Description
Article no.: 7350073737765

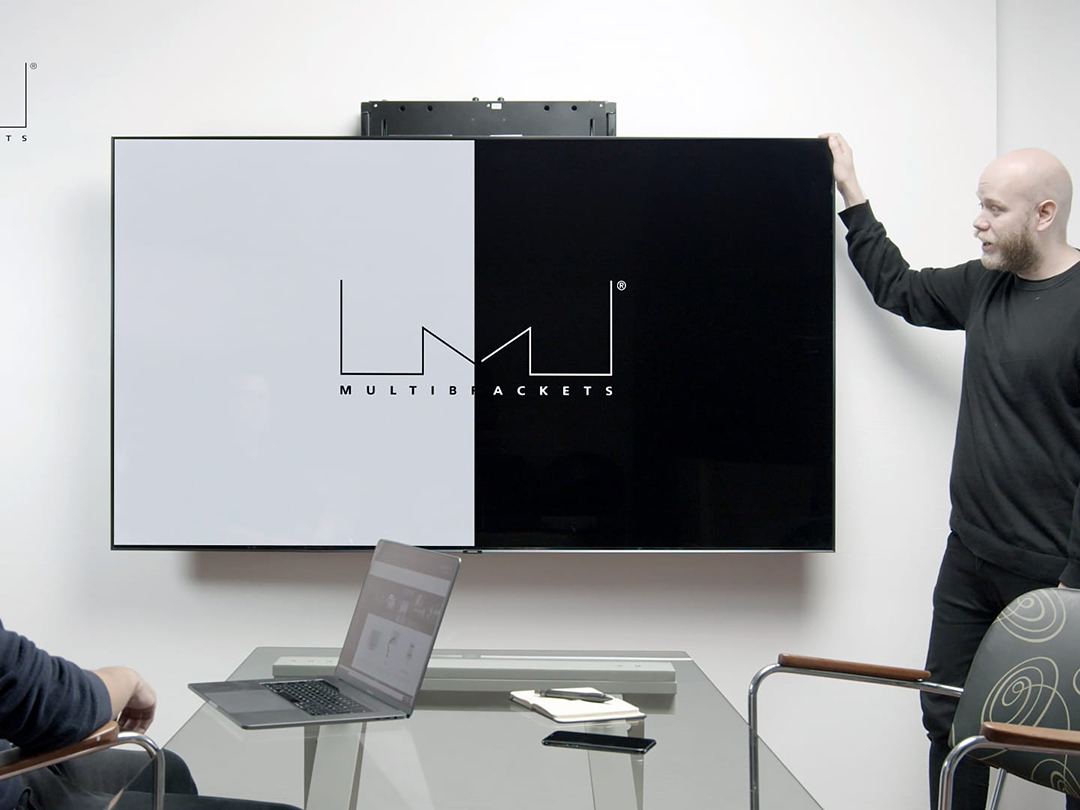

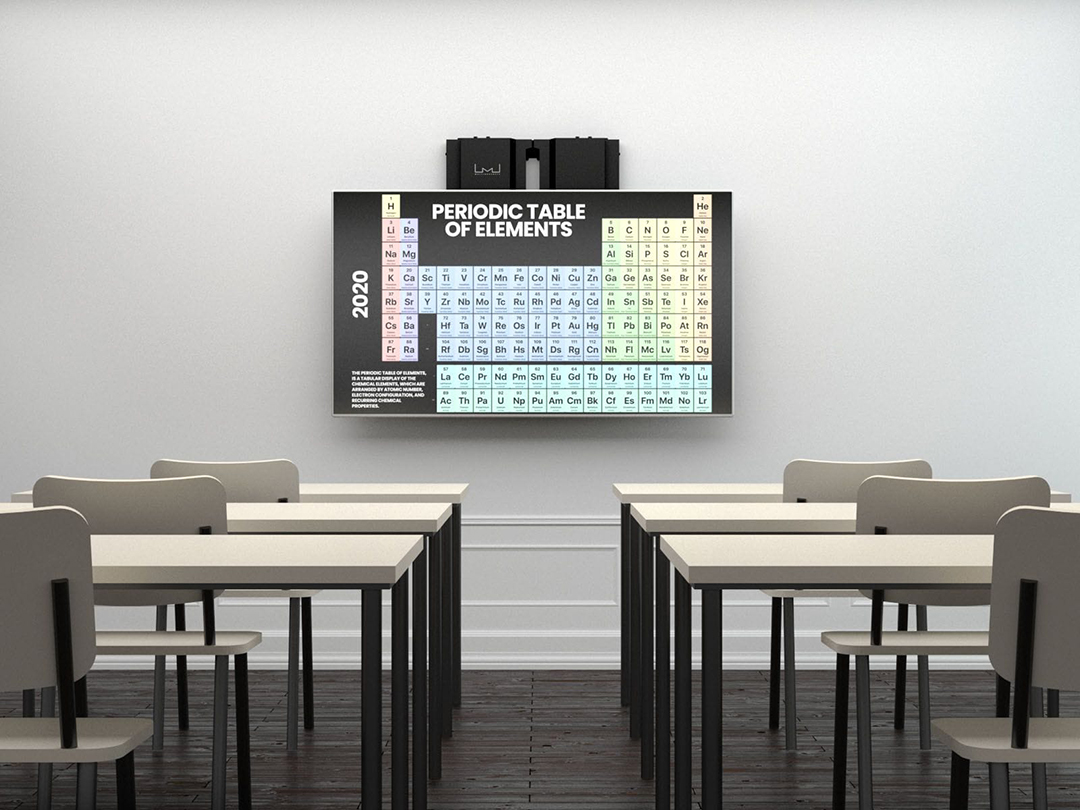

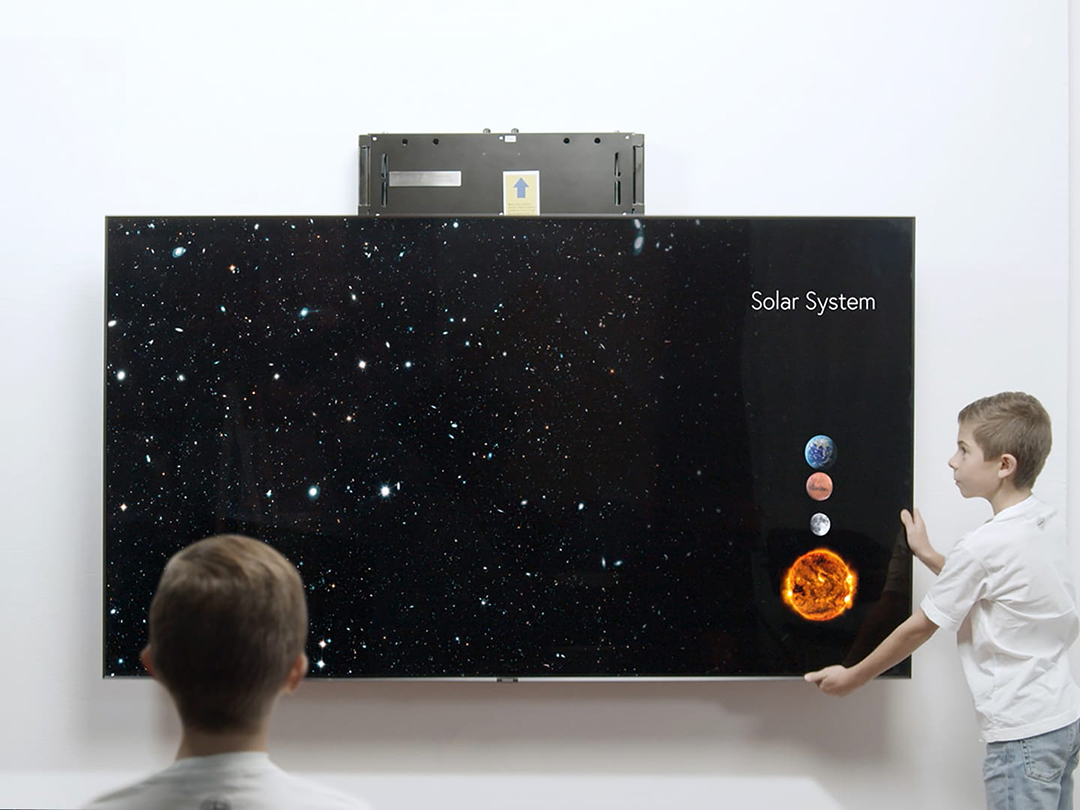

The M Counterbalanced Wallmount 35-65kg makes vertical adjustment of large displays or touchscreens effortless. Designed for displays weighing between 35 and 65 kg, it is ideal for various public environments including meeting rooms and educational spaces.

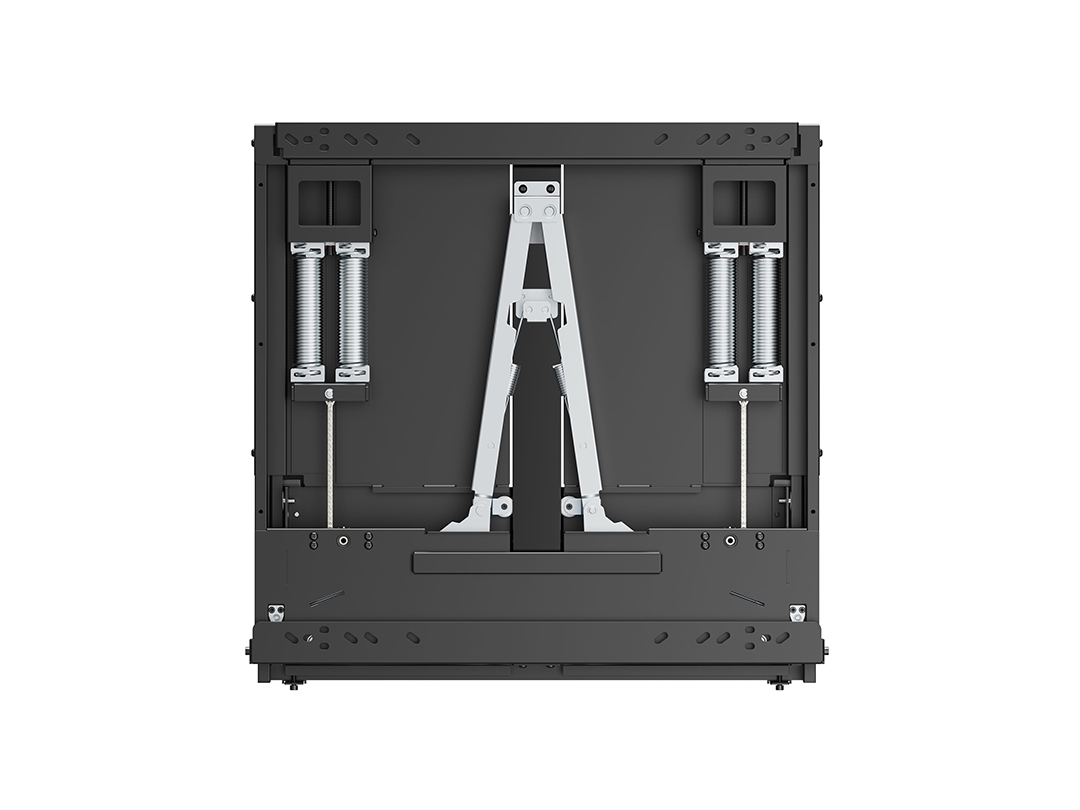

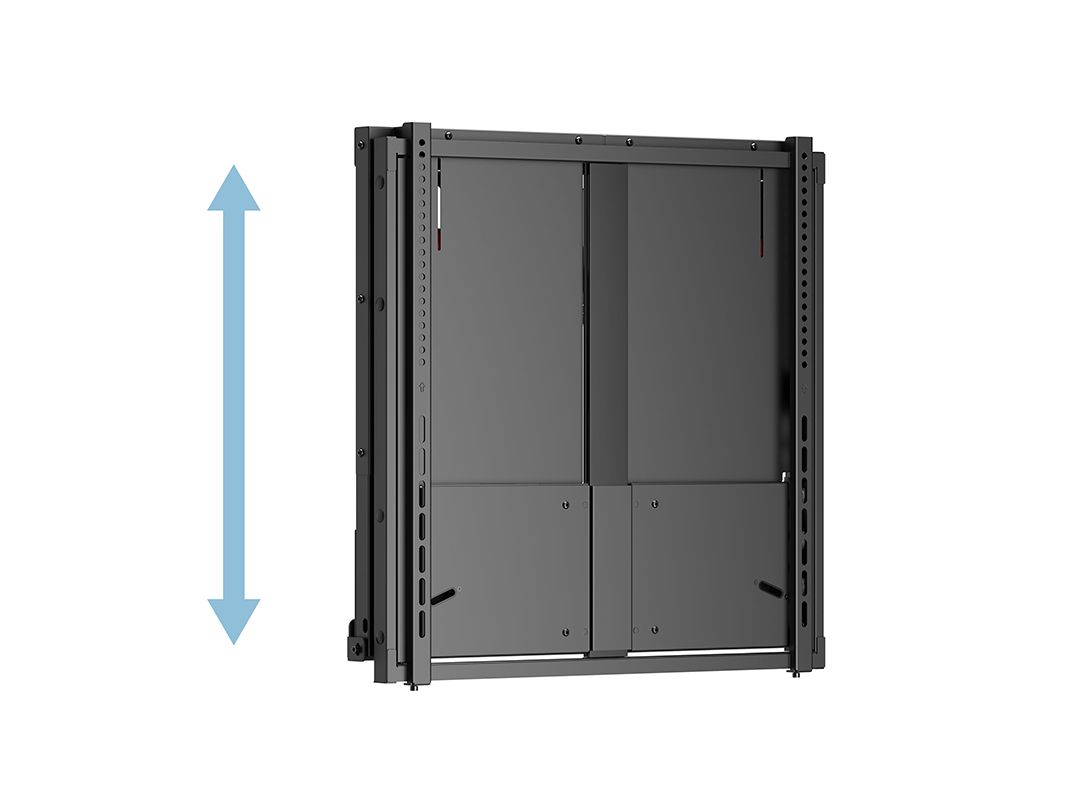

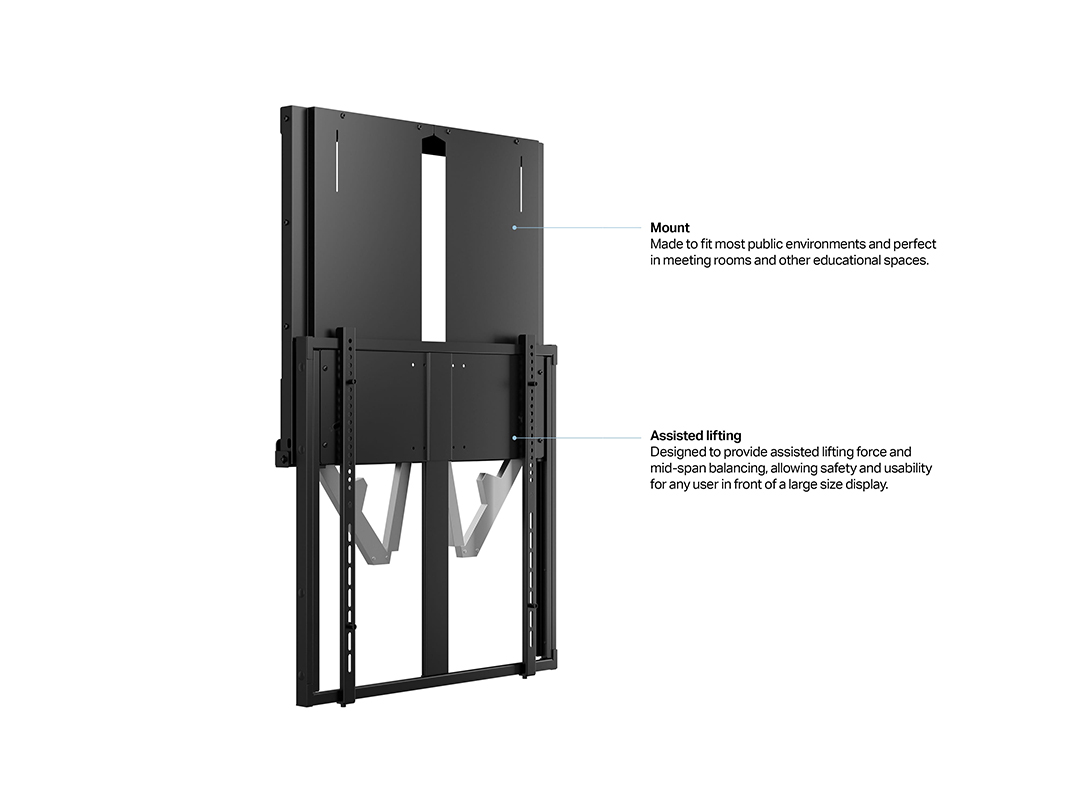

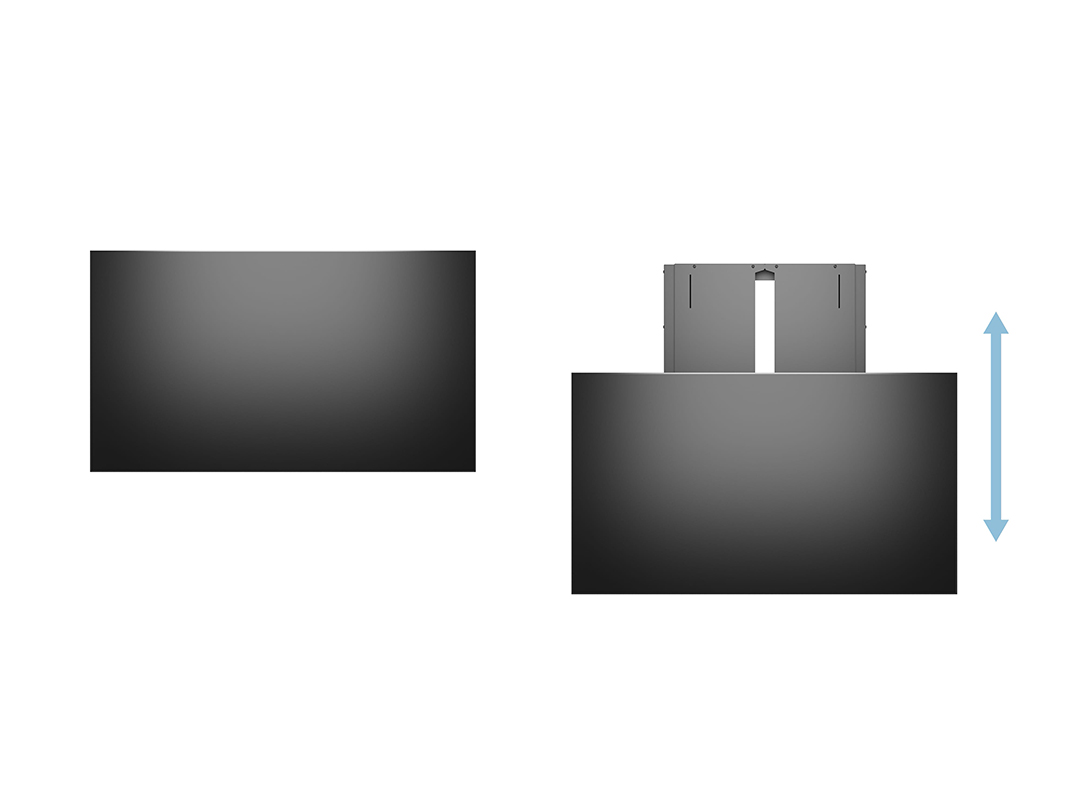

This dynamic wall mount features assisted lifting force and mid-span balancing, enabling smooth and controlled vertical motion with precise stopping. It allows users to raise or lower displays across a 400 mm range with minimal effort, silently and securely holding the screen in any position without requiring power.
Built from premium stainless steel and aluminum components, this maintenance-free mount is tested to withstand extreme conditions beyond normal use, ensuring long-term durability and reliability. It supports VESA mounting interfaces up to 600x600 mm and fits nearly all large screens on the market.TUV compliant with standard EK5/AK7 13-01:2013

| Specification | |
| M Counterbalanced Wallmount 35-65kg | |
| For screen size: | 55" - 86" |
| VESA: | 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400, 600x600 mm |
| Mounting holes (VESA): | max 600x600 mm |
| Article No: | 7 350 073 737 765 |
| Colour: | Black |
| Max load: | 35~65 kg, 4 times loading test passed |

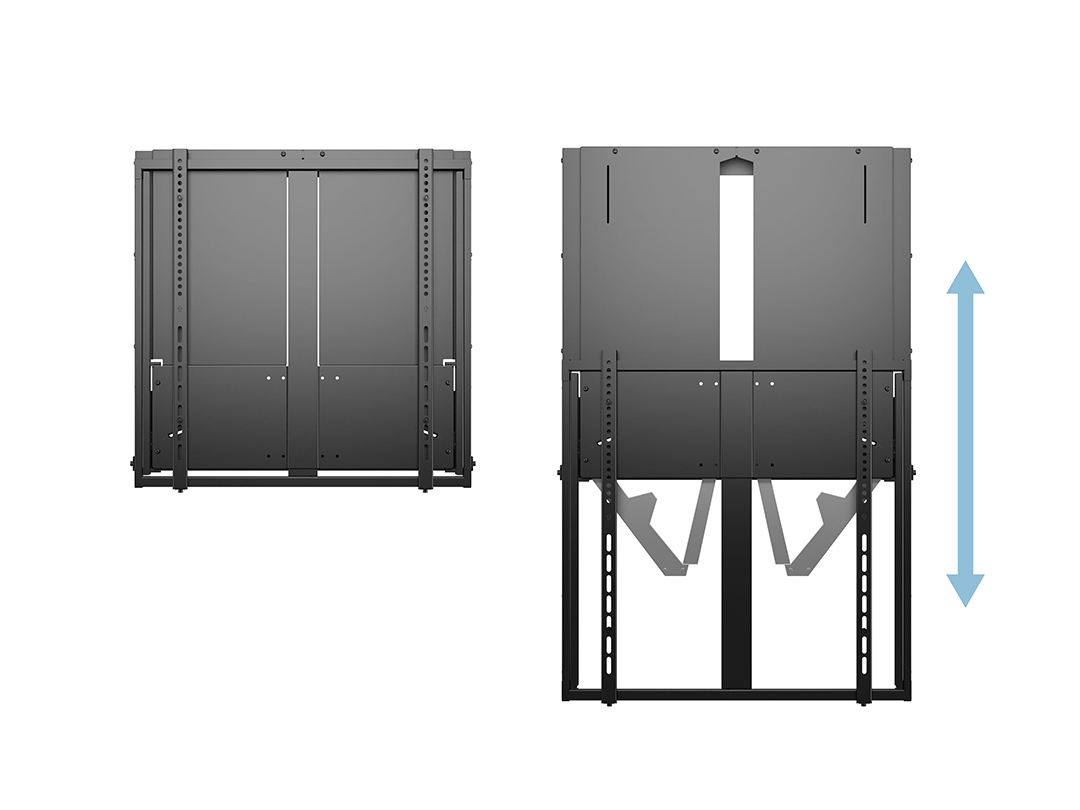

| Height adjustment: | 400 mm ( manual movement ) |
| Motor: | No |
| Tilt/Swivel: | No |
| Installation: | Dell 65" P6524QT Smart Board SBID-MX265-V3N-PW / SBID-MX265-V3-PW SBID-MX275-V3N-PW / SBID-MX275-V3-PW And many other large displays not model specified above. |
| Dimension: (WxHxD) | 127 x 840 x 660mm |
| Weight: | 27.4kg ( weight of one packed unit) |
| Options | |
| Certification: | CE |
| Warranty: | 5 year |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 75.7 x 75.7 x 14.5 cm |
| Package Weight: | 27.40 kg |
