Description
Article no.: 7350073737772

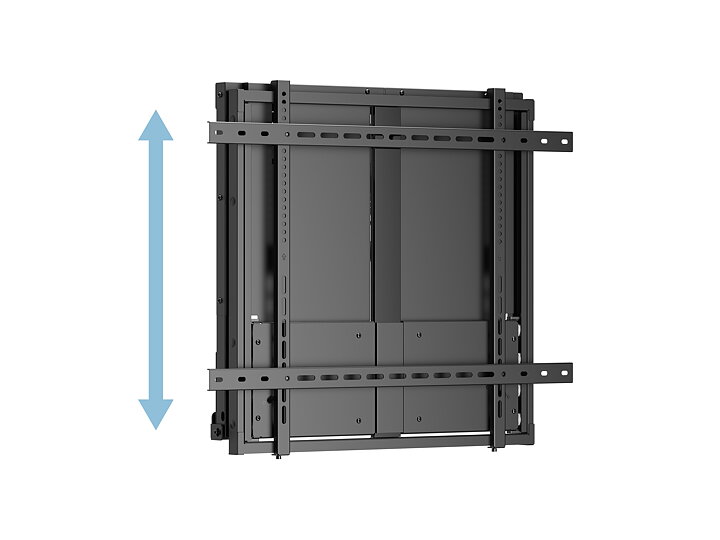

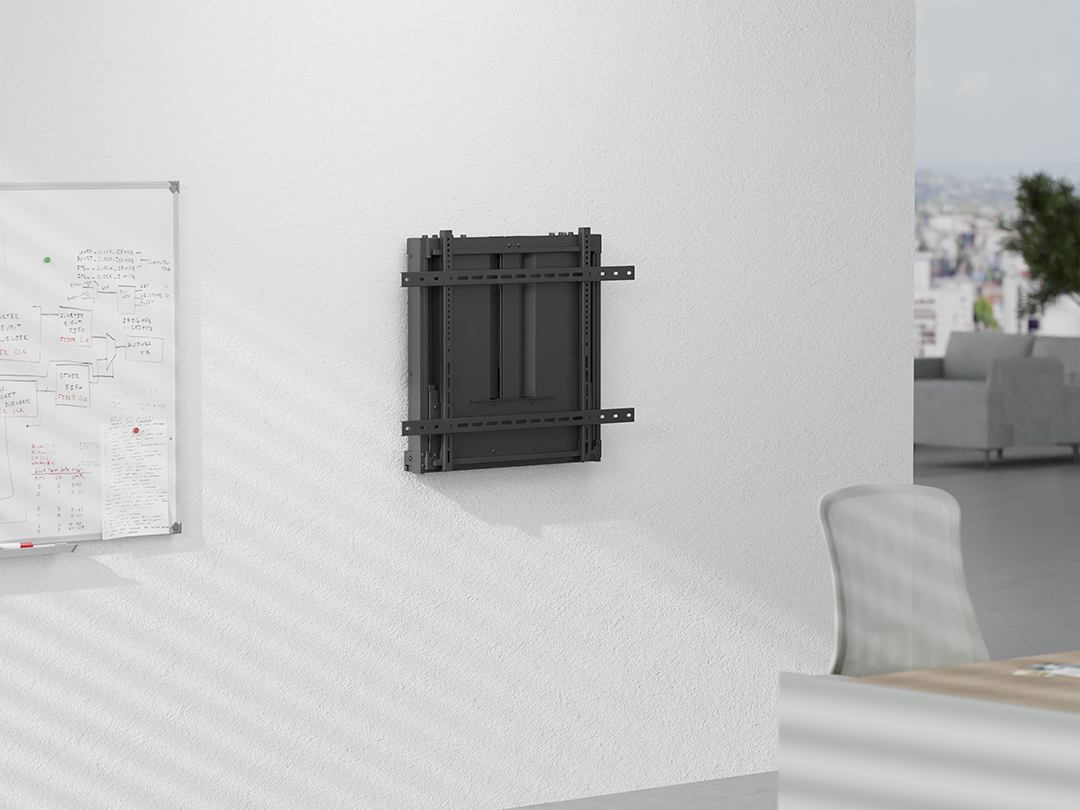

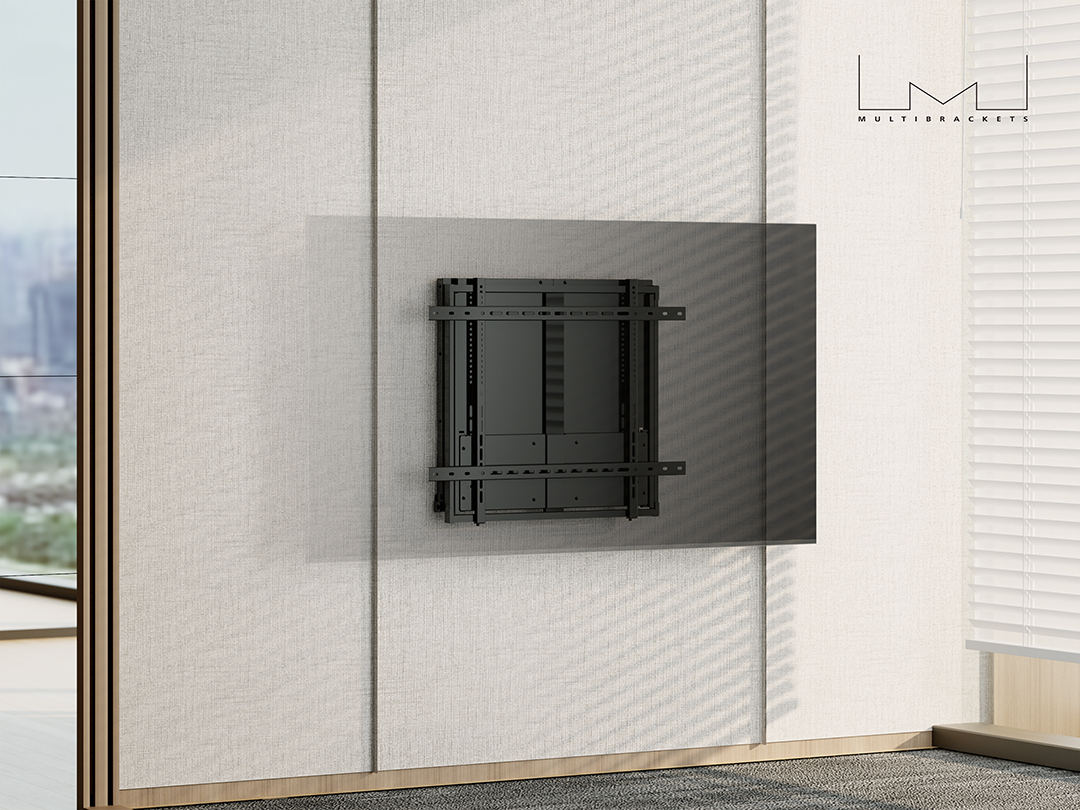

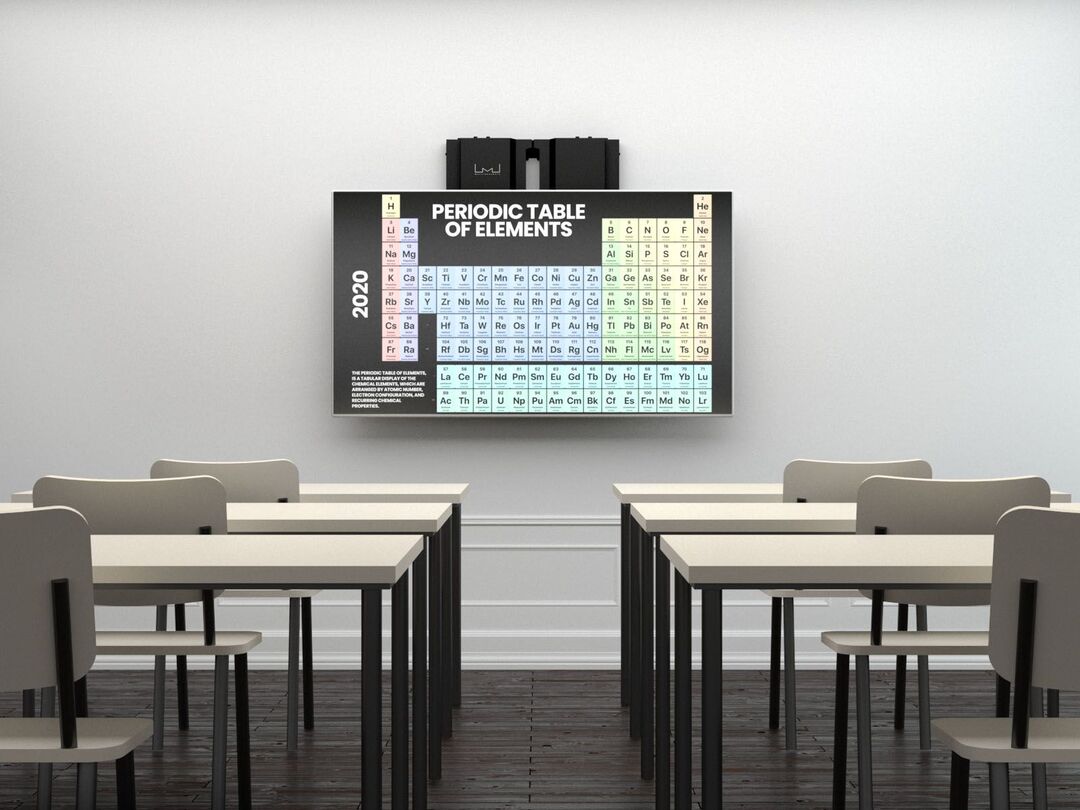

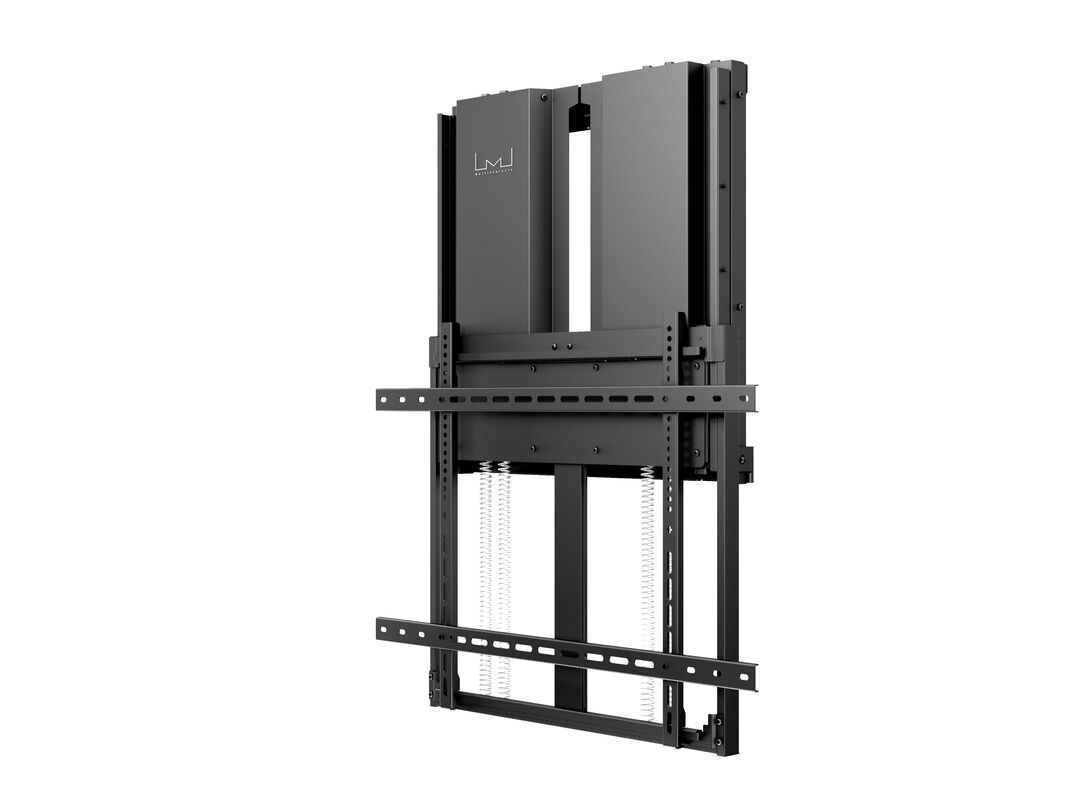

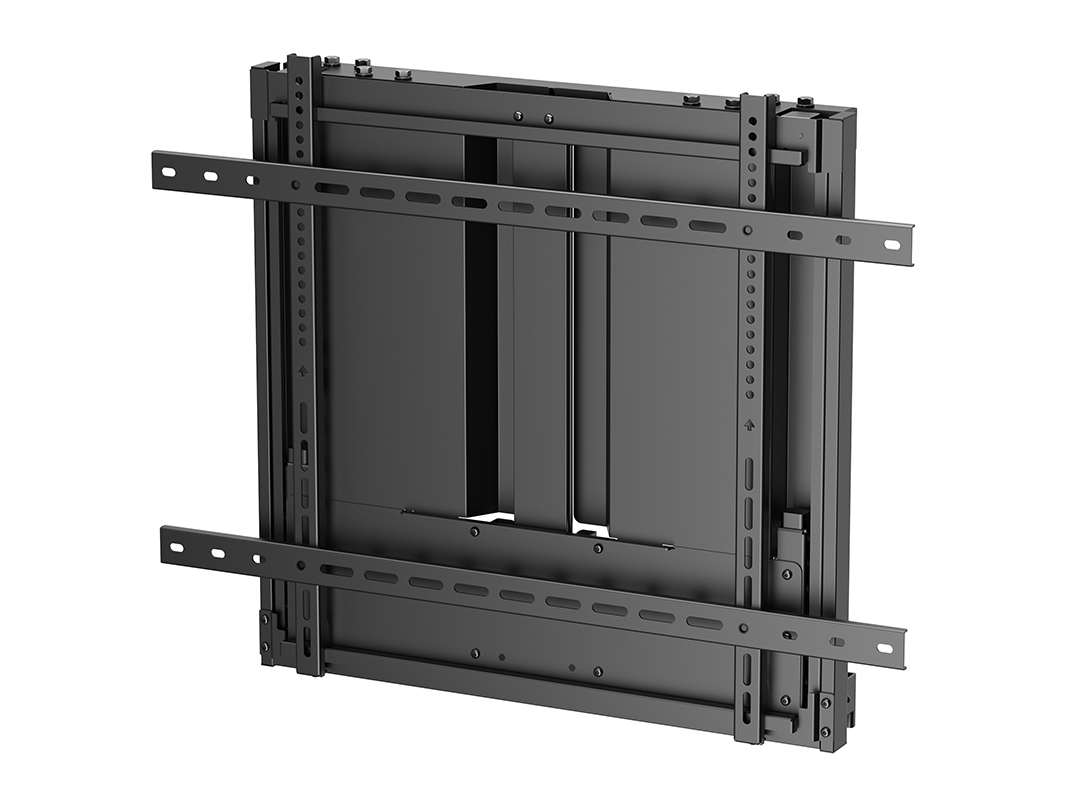

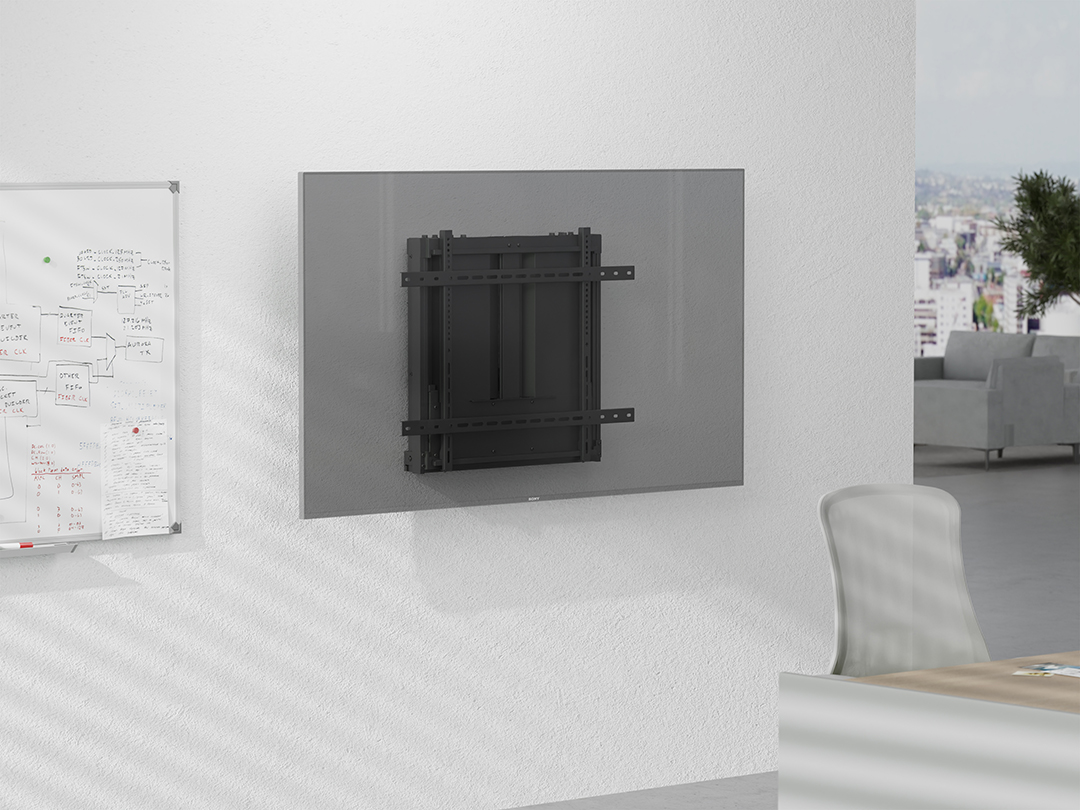

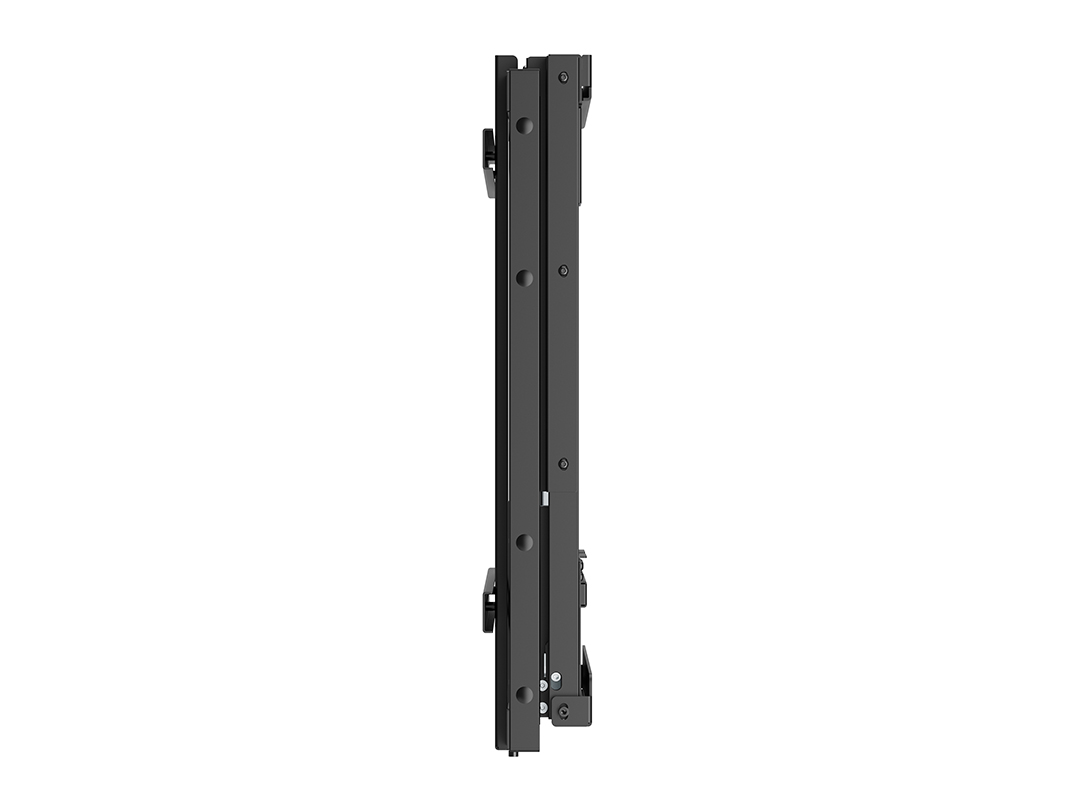

Effortlessly move large displays or touchscreens vertically with the M Counterbalanced Wallmount HD, designed for screens weighing between 60 and 90 kg. This robust wall mount is perfect for public environments such as meeting rooms and educational spaces.

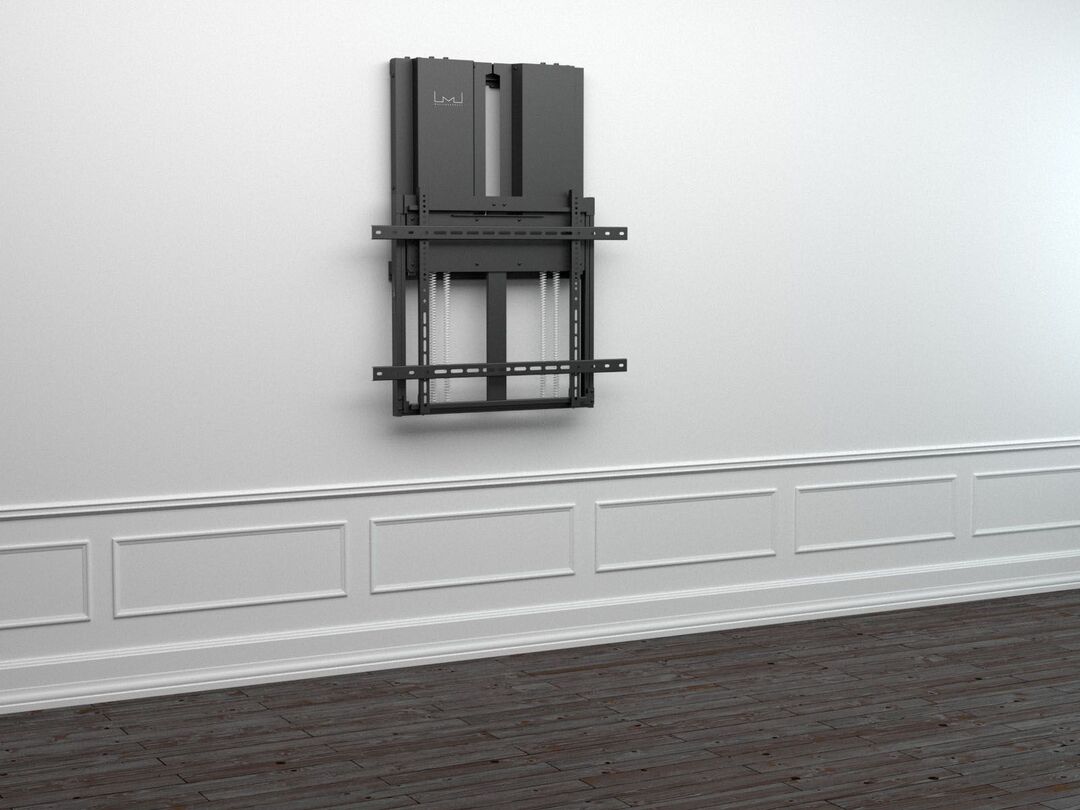

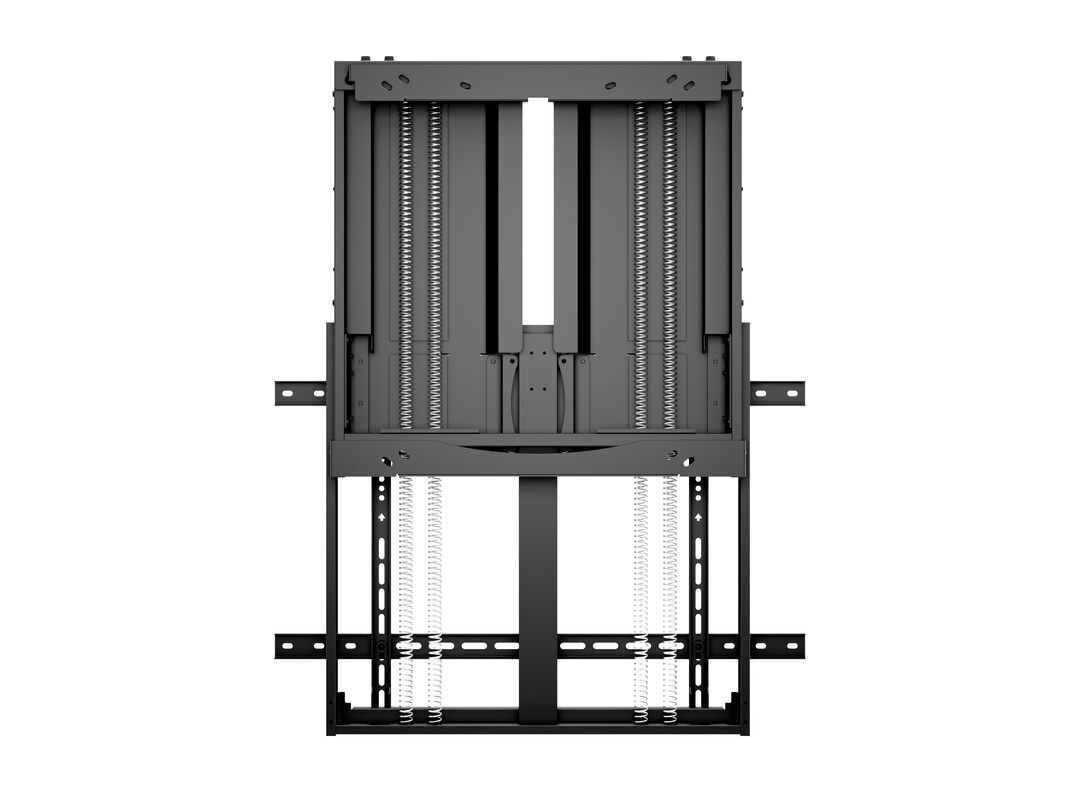

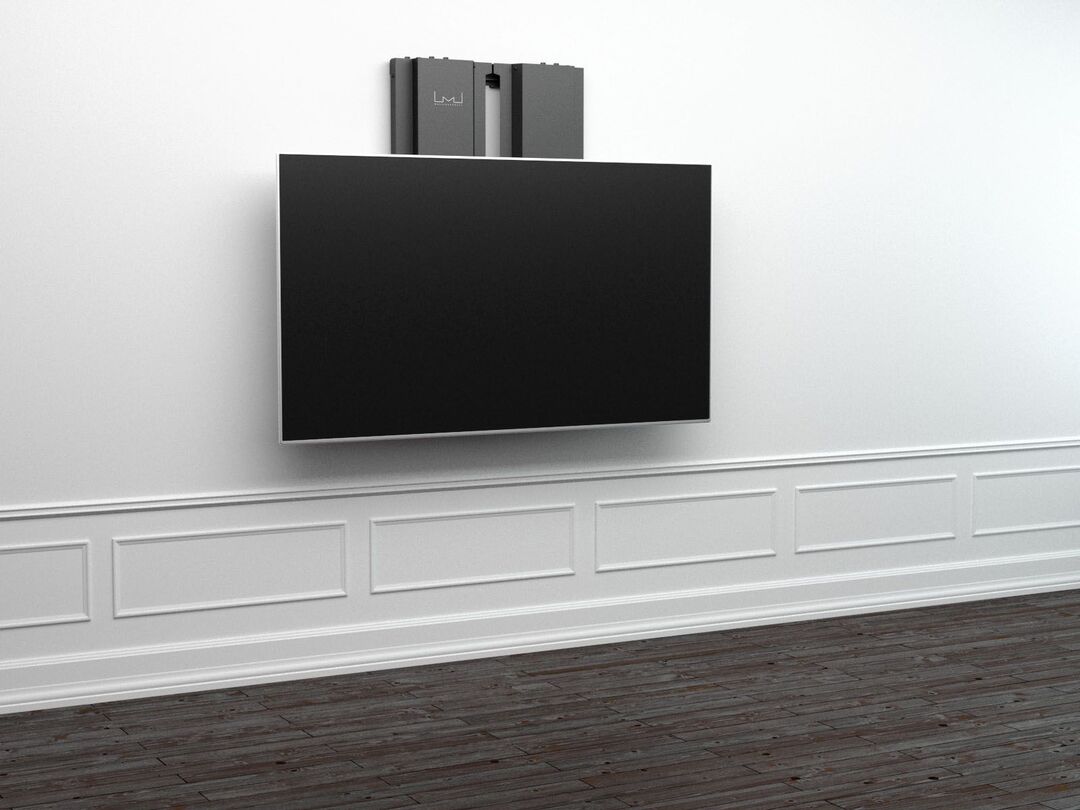

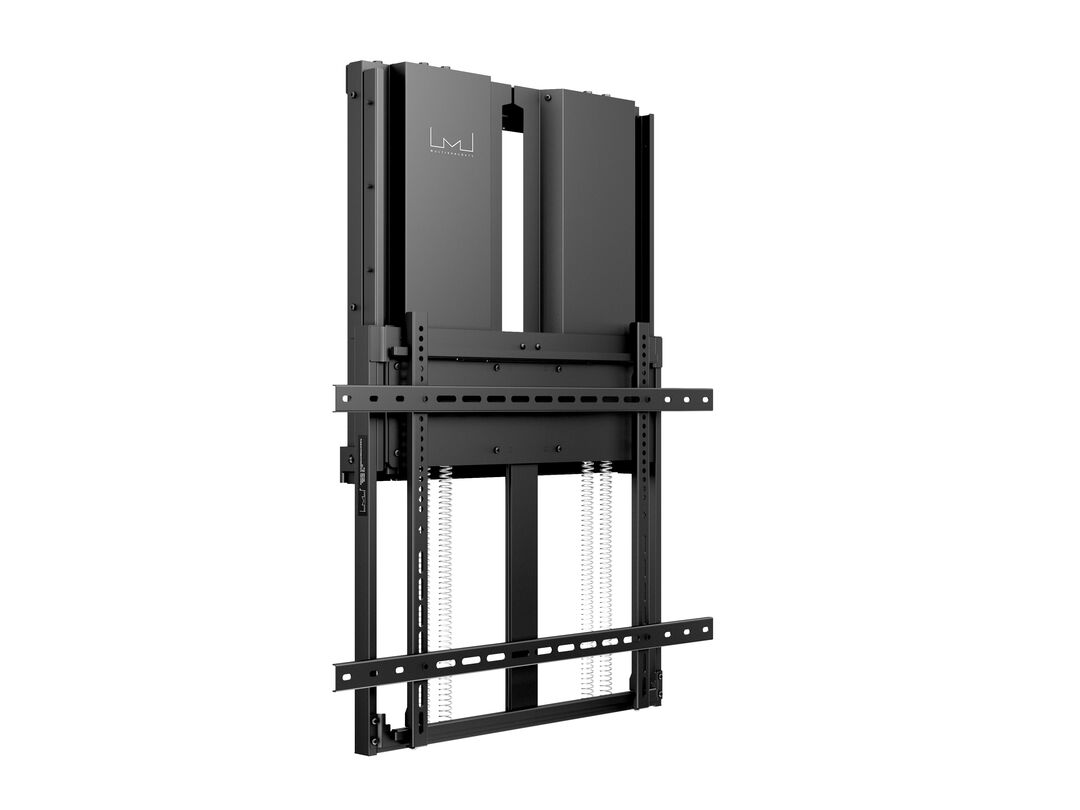

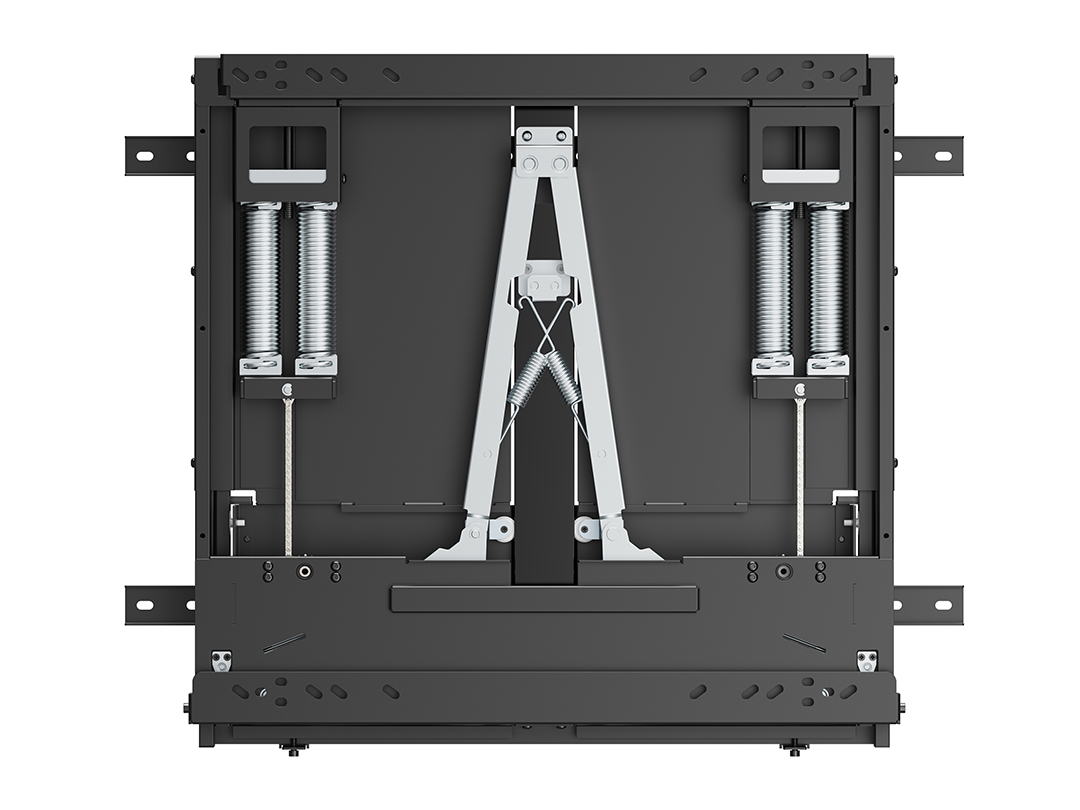

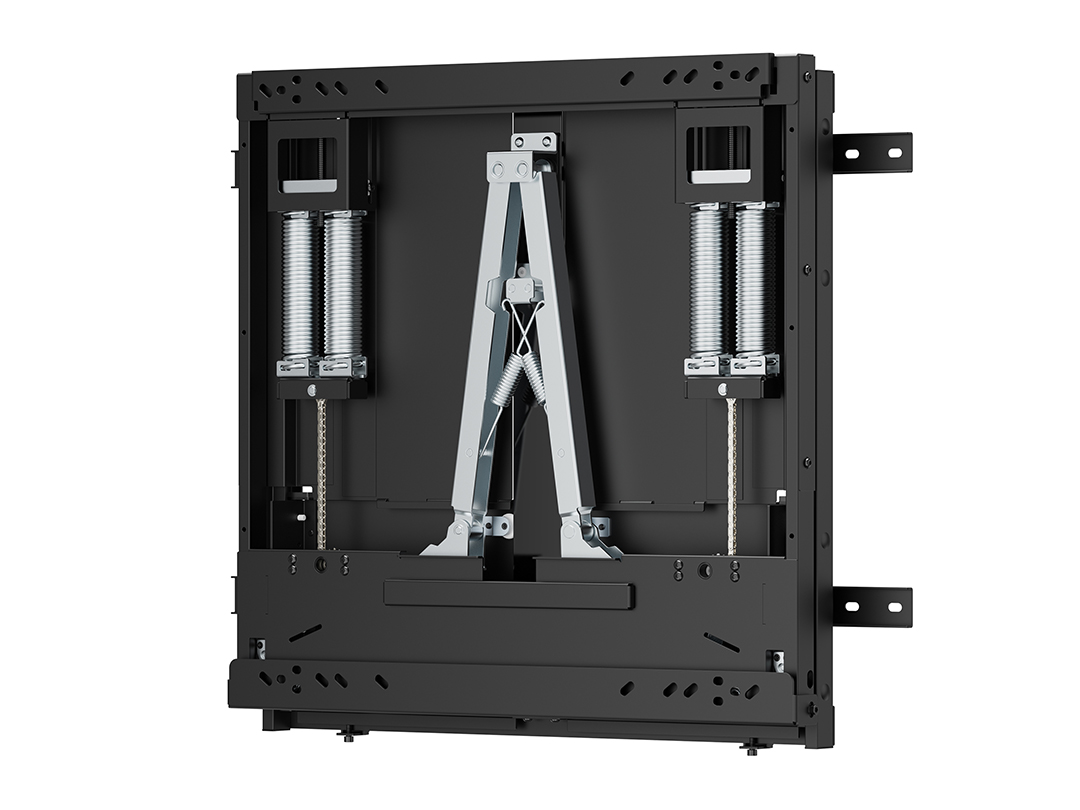

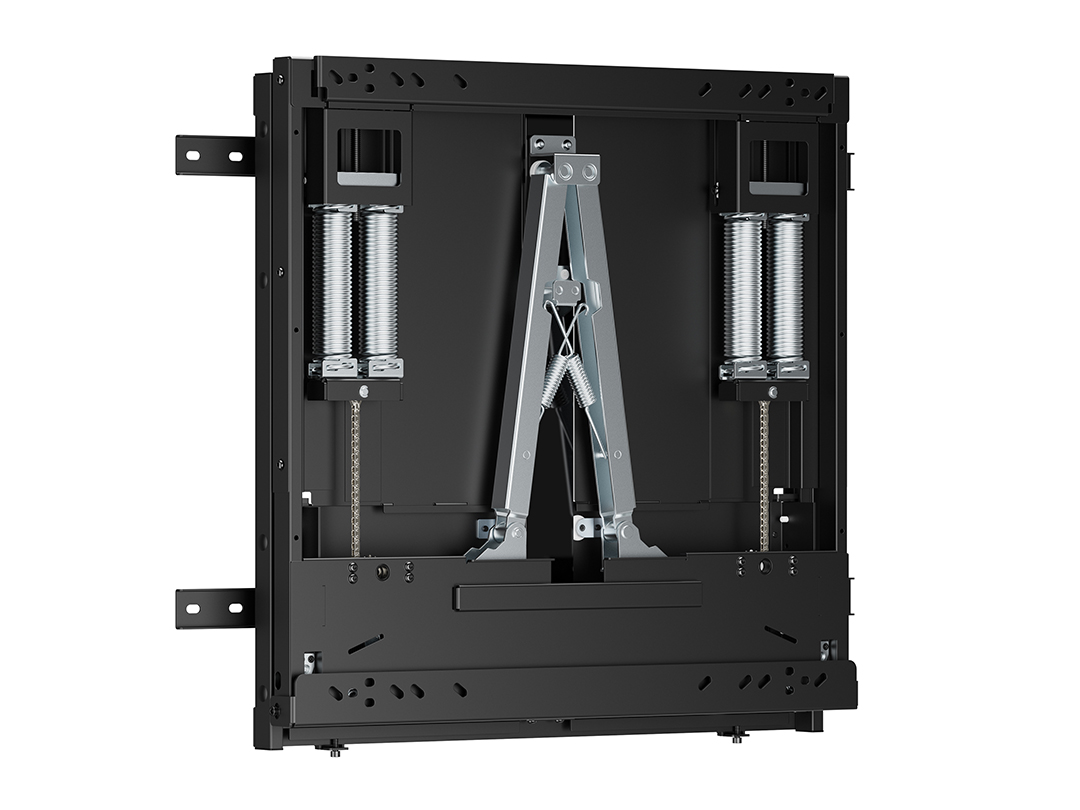

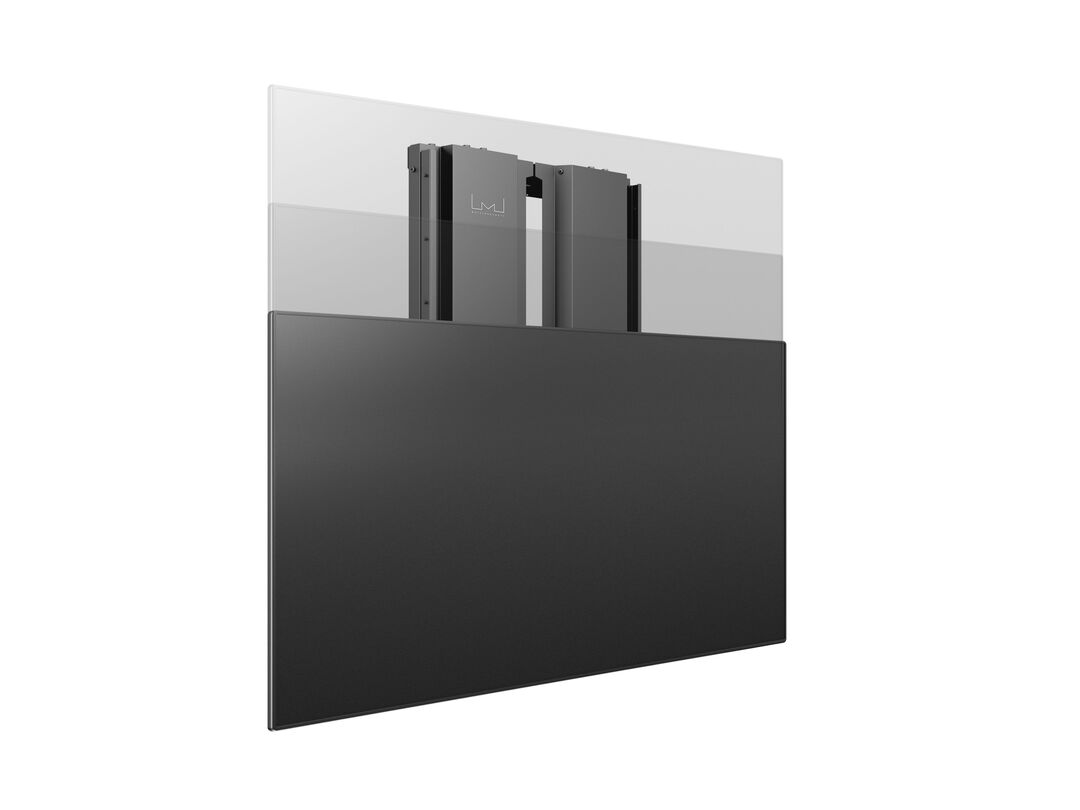

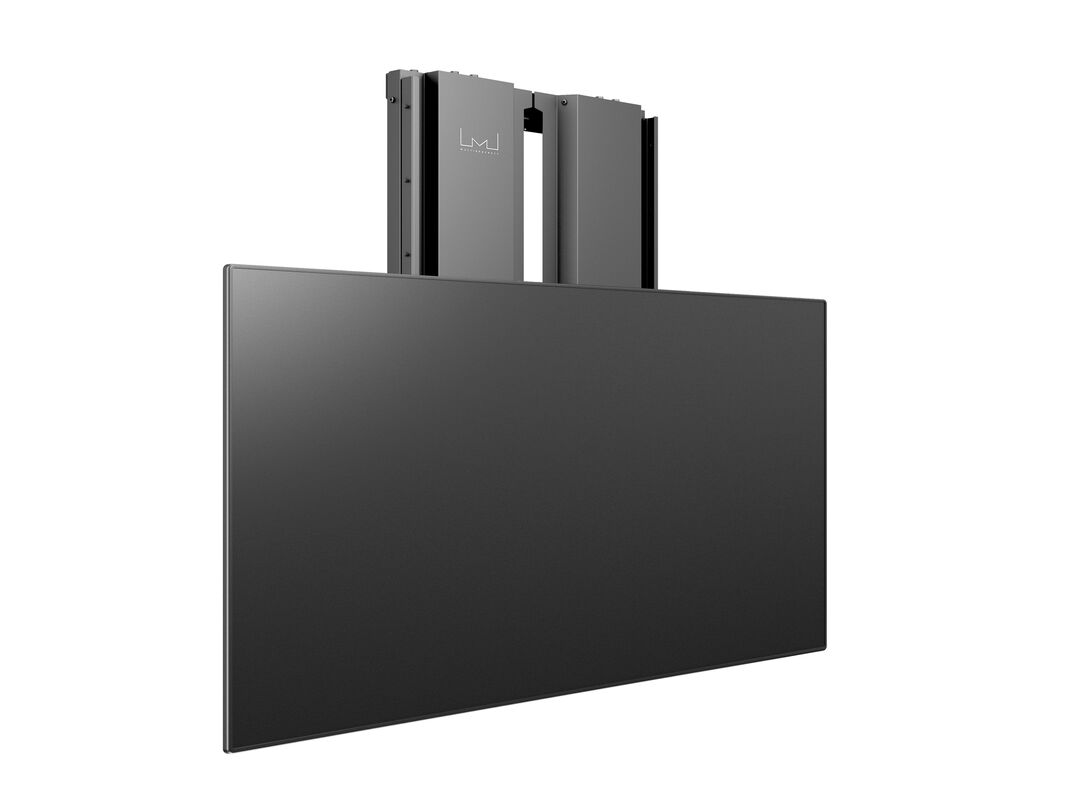

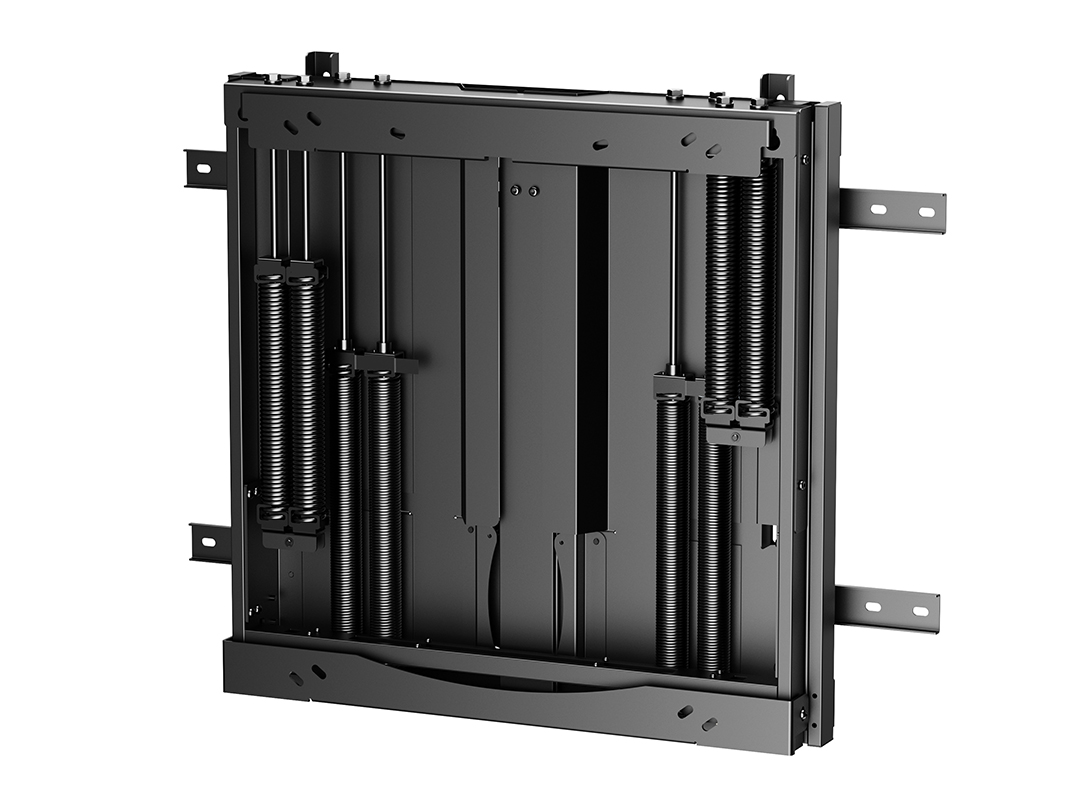

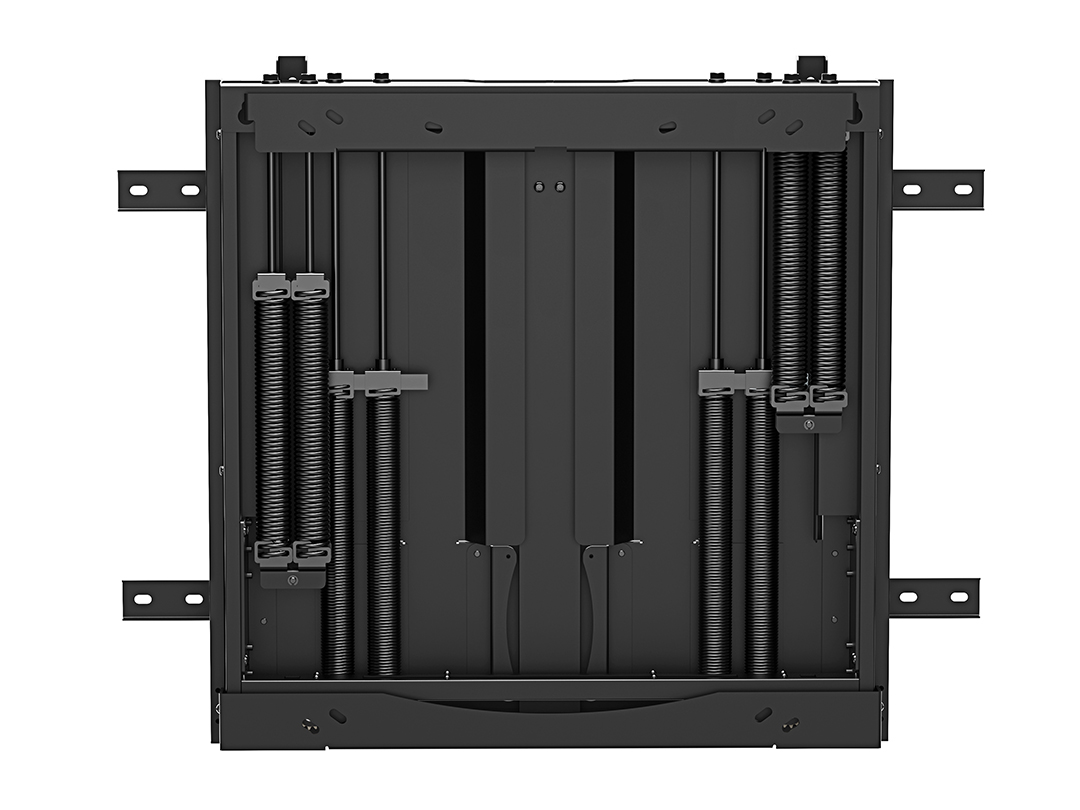

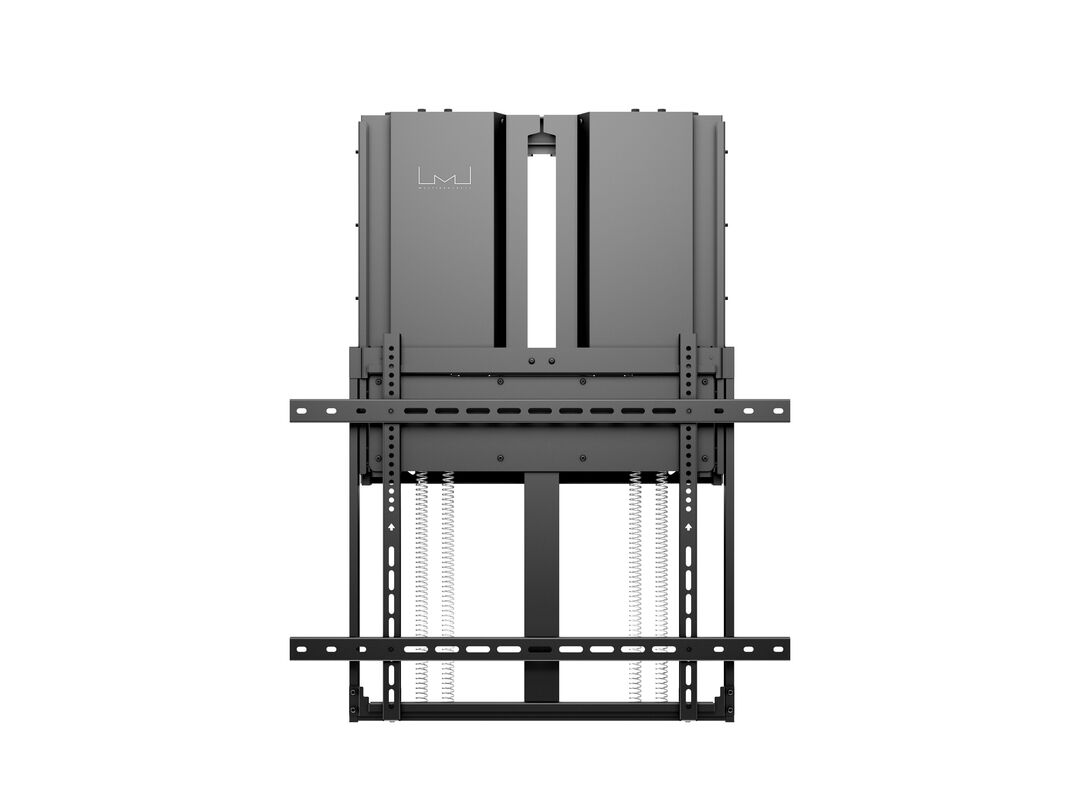

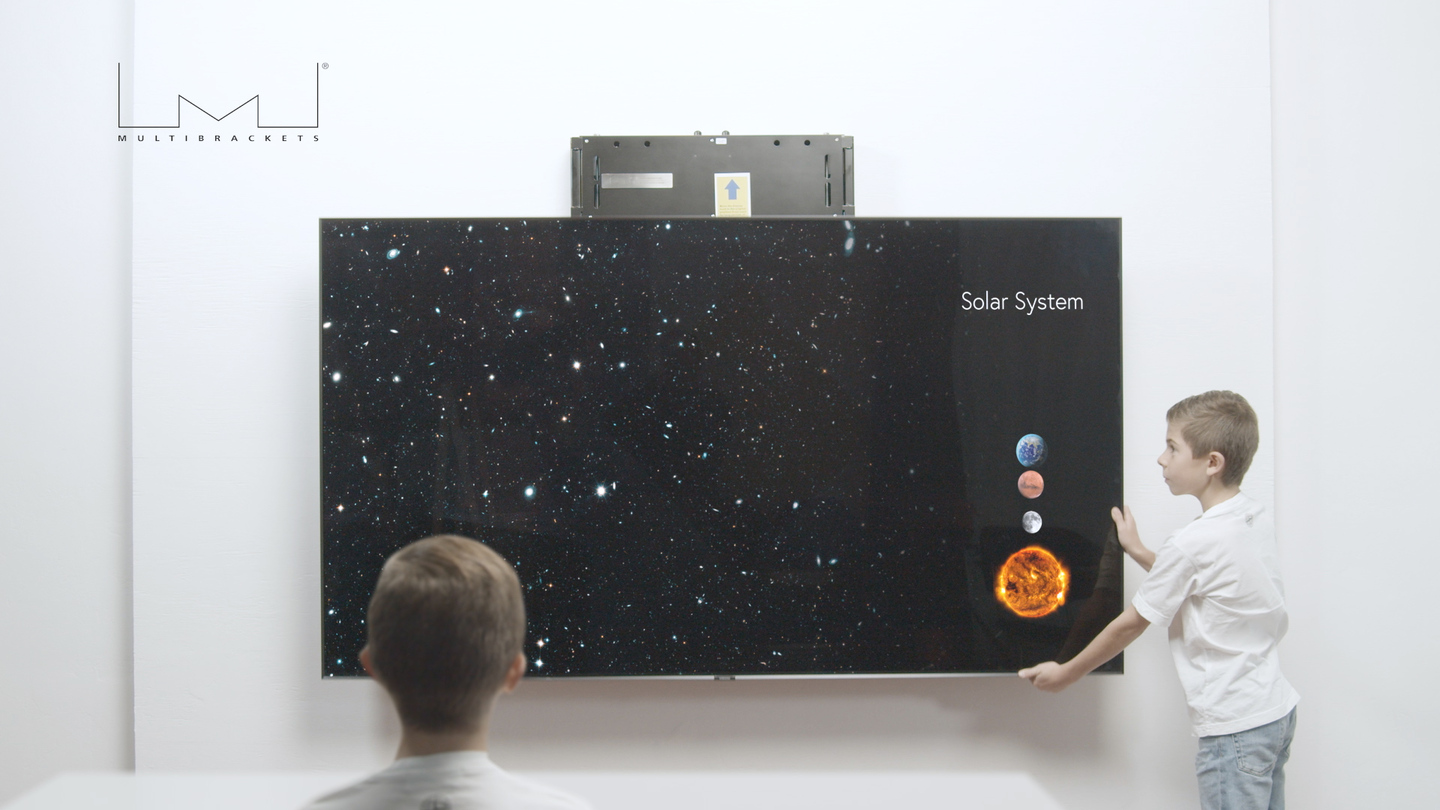

The mount features assisted lifting force and mid-span balancing to ensure safe, smooth, and controlled vertical movement across a 400 mm range. Users can easily raise or lower the display with minimal effort while the mount securely holds it in any position, operating completely silently without power requirements.

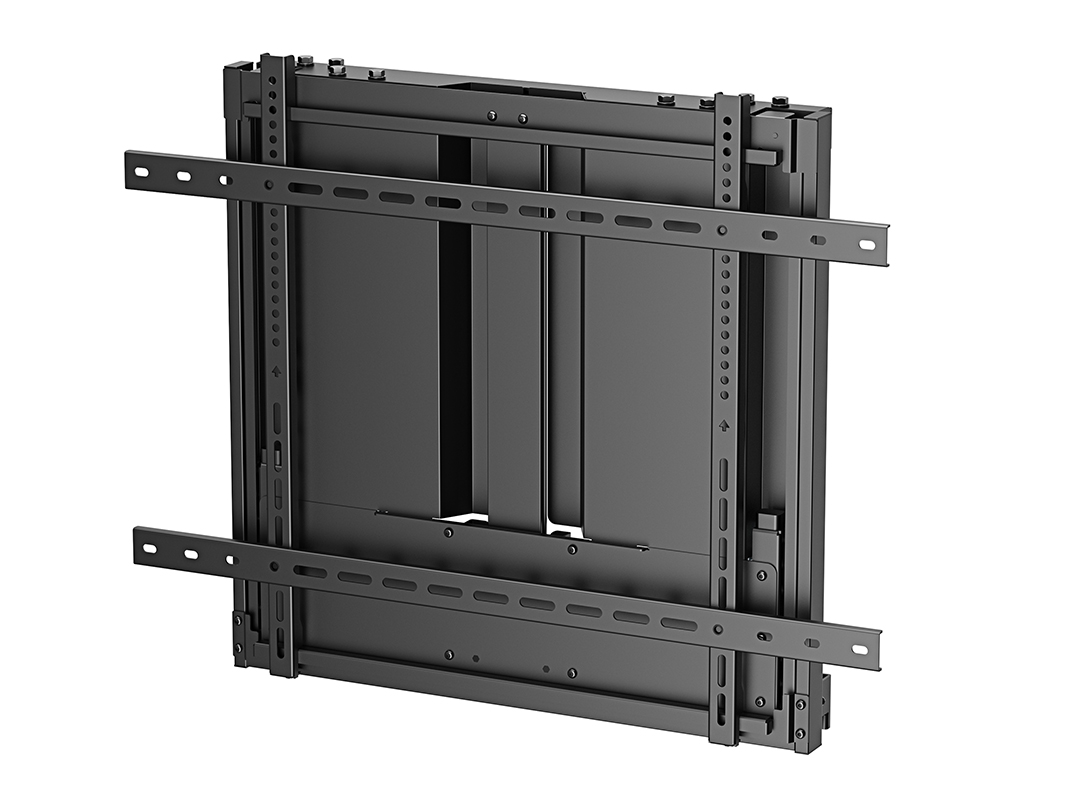

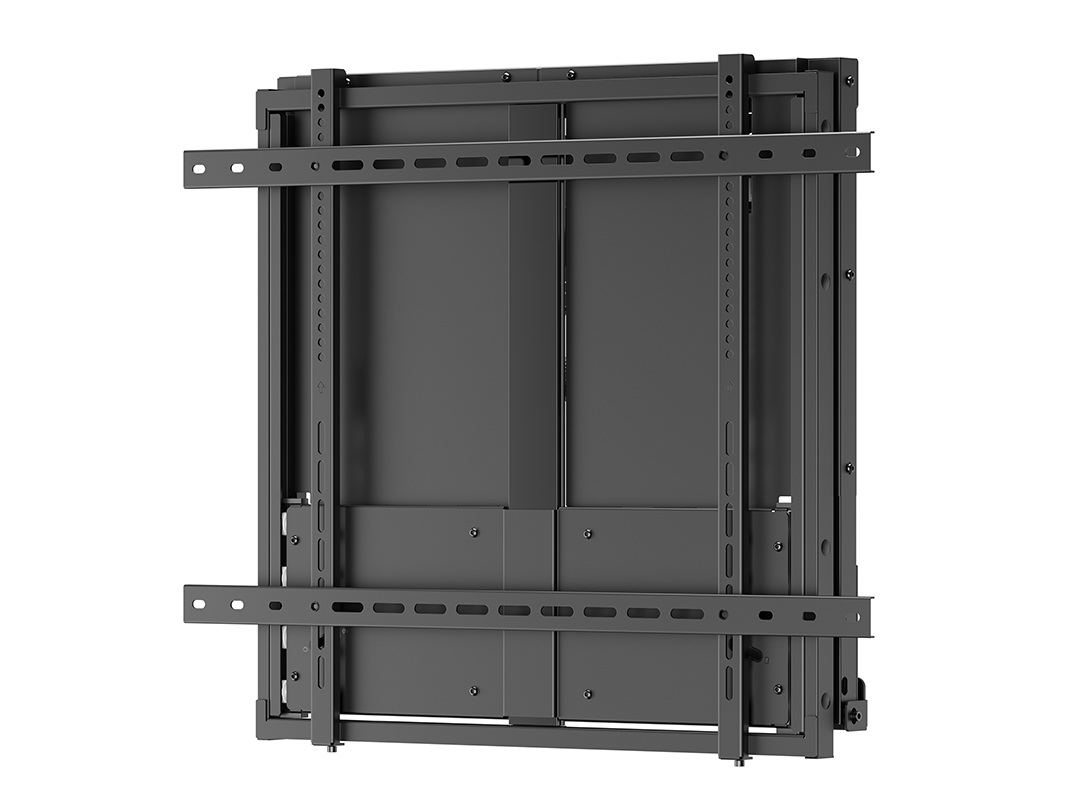

Constructed with premium stainless steel and aluminum components, this maintenance-free mount has undergone rigorous testing to guarantee durability and reliability under extreme conditions. It supports VESA mounting up to 800x600 mm, fitting almost all large displays available.TUV compliant with standard EK5/AK7 13-01:2013

| Specification | |
| M Counterbalanced Wallmount HD 60-90kg | |
| For screen size: | 75"-90" |

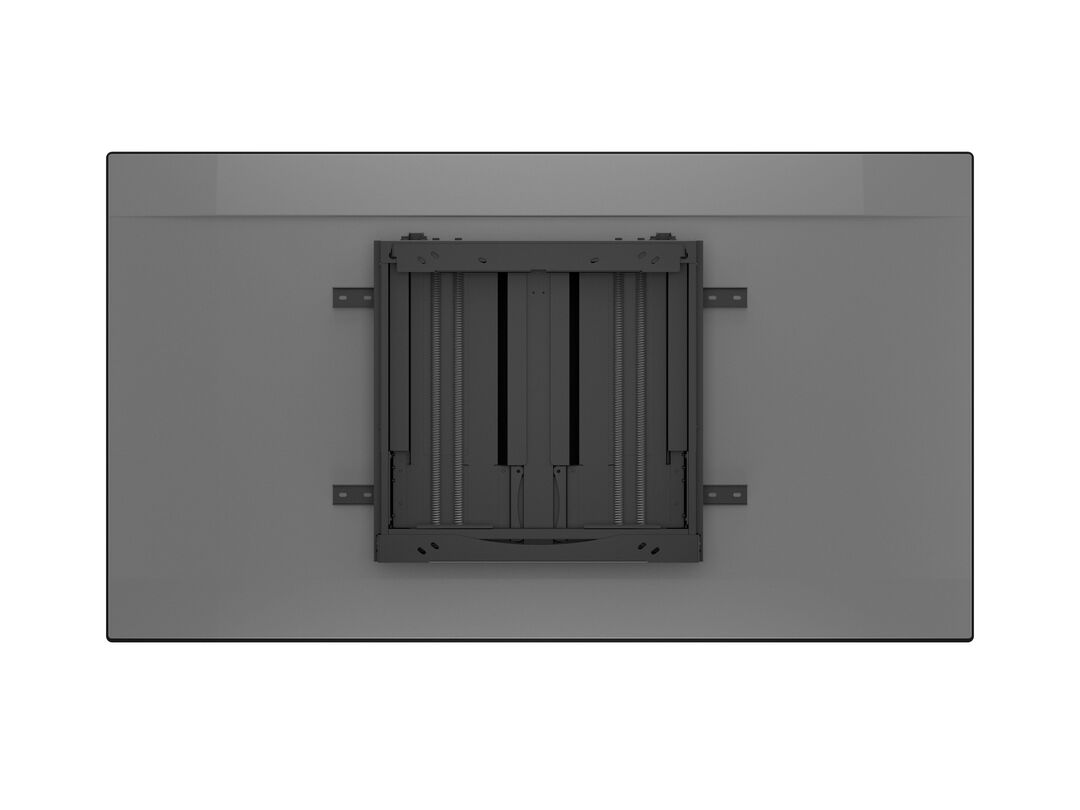

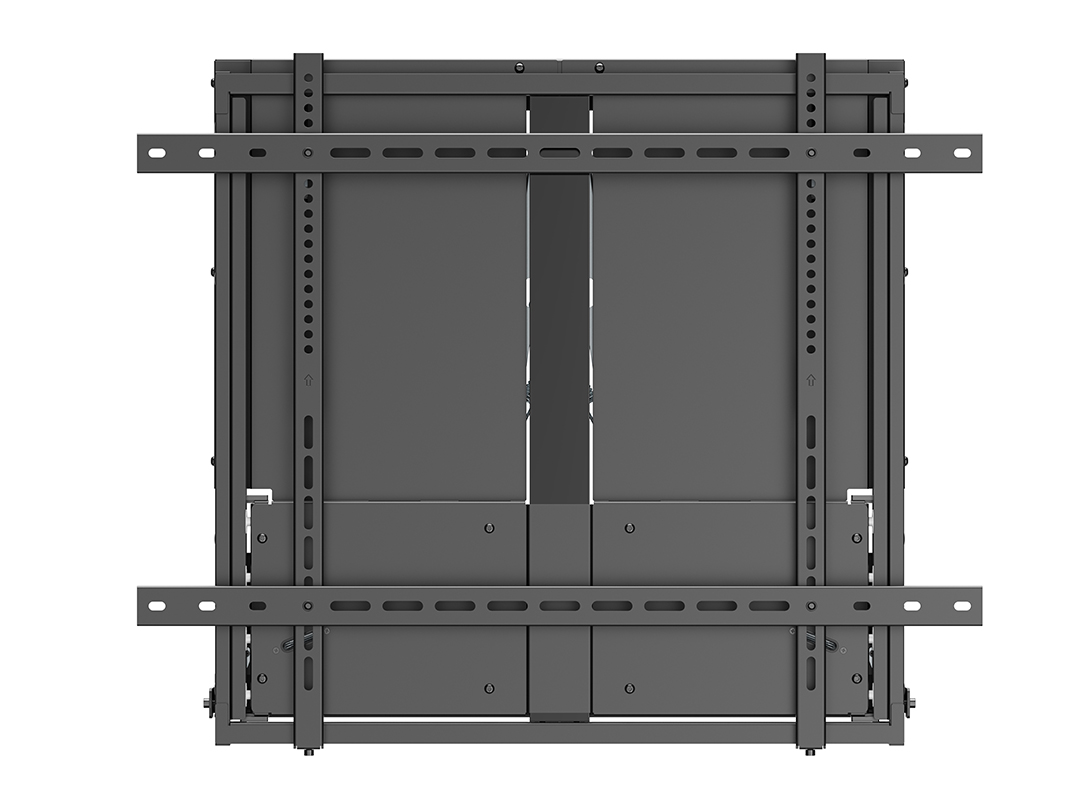

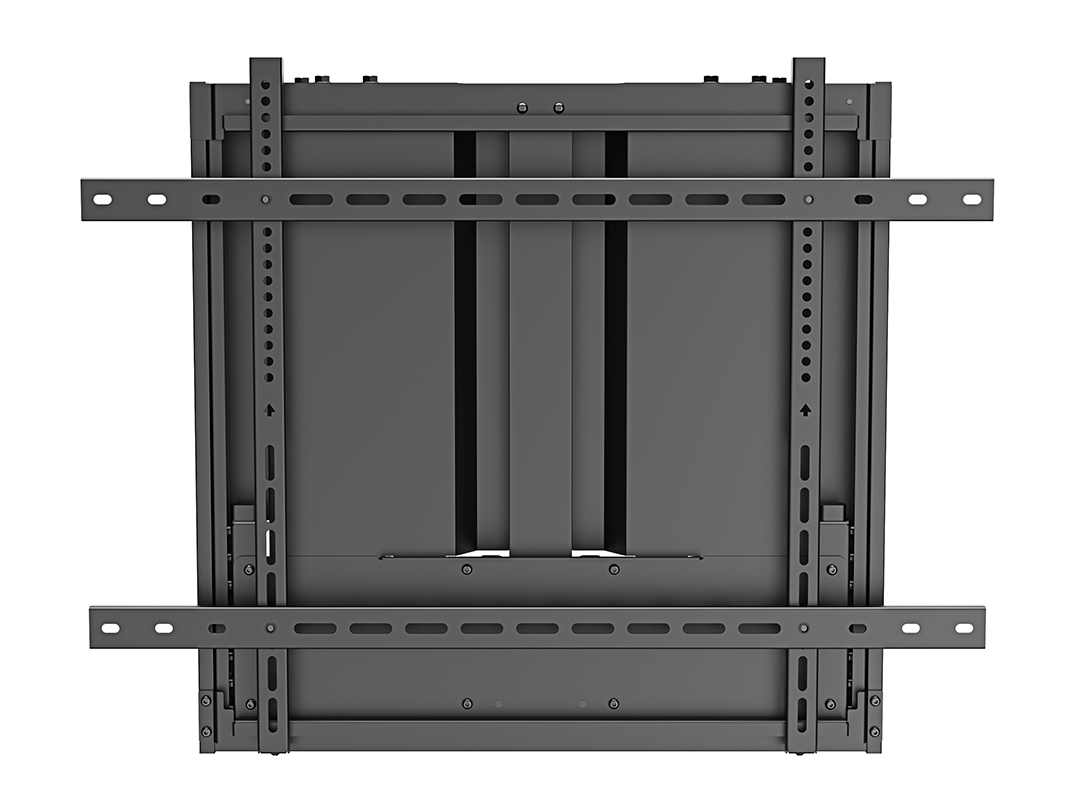

| Mounting holes (VESA): | 300x300,400x200,400x300,400x400,600x400, 600x600,700x400,800x500,800x400,800x600mm |
| Mounting holes (VESA): | max 800x600 mm |
| Article No: | 7 350 073 737 772 |
| Colour: | Black |
| Max load: | 60~90kg, 4 times loading test passed |

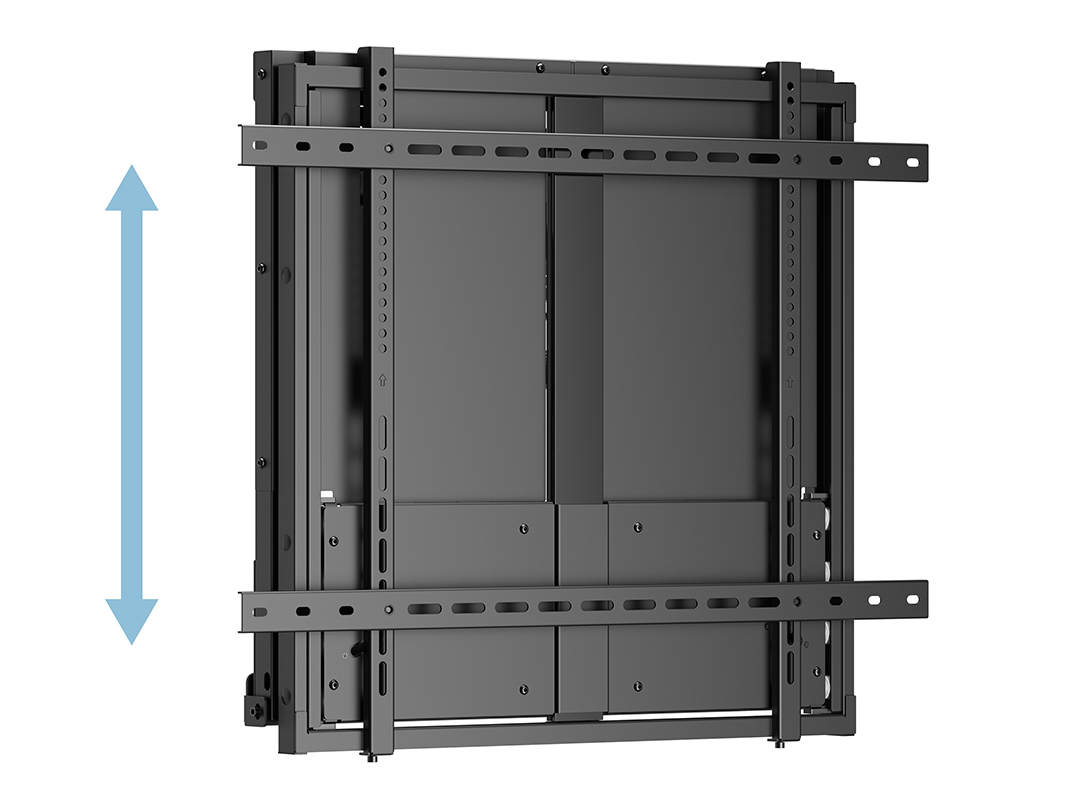

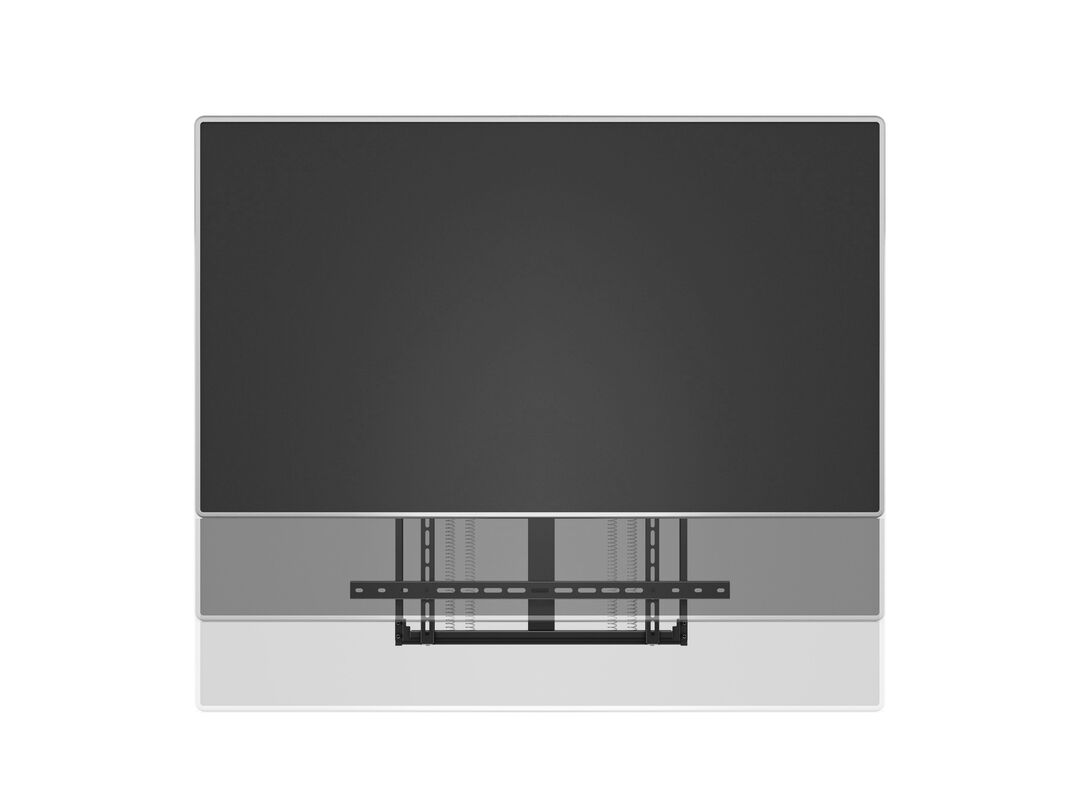

| Height adjustment: | 400 mm ( manual movement ) |
| Motor: | No |
| Tilt/Swivel: | No |
| Installation: | Surface HUB 2S 85" Dell 86" C8621QT Dell 75" C7520QT SMART Board SBID-MX286-V3-PW And many other large displays not model specified above. |

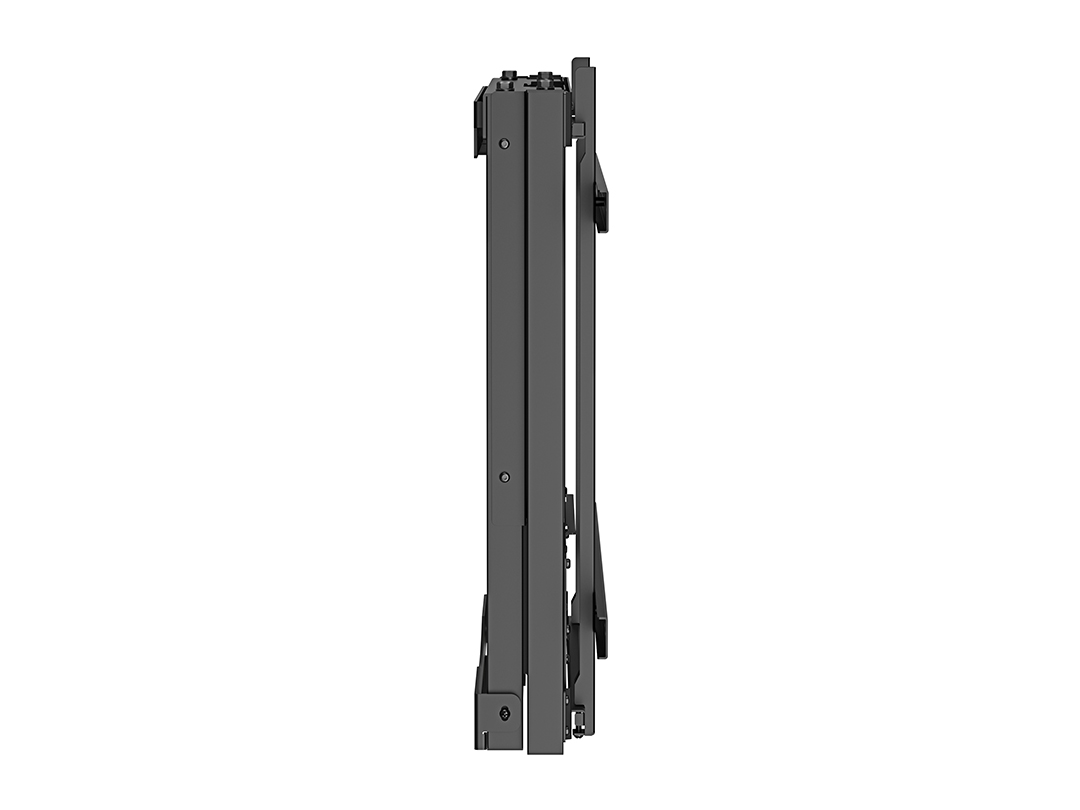

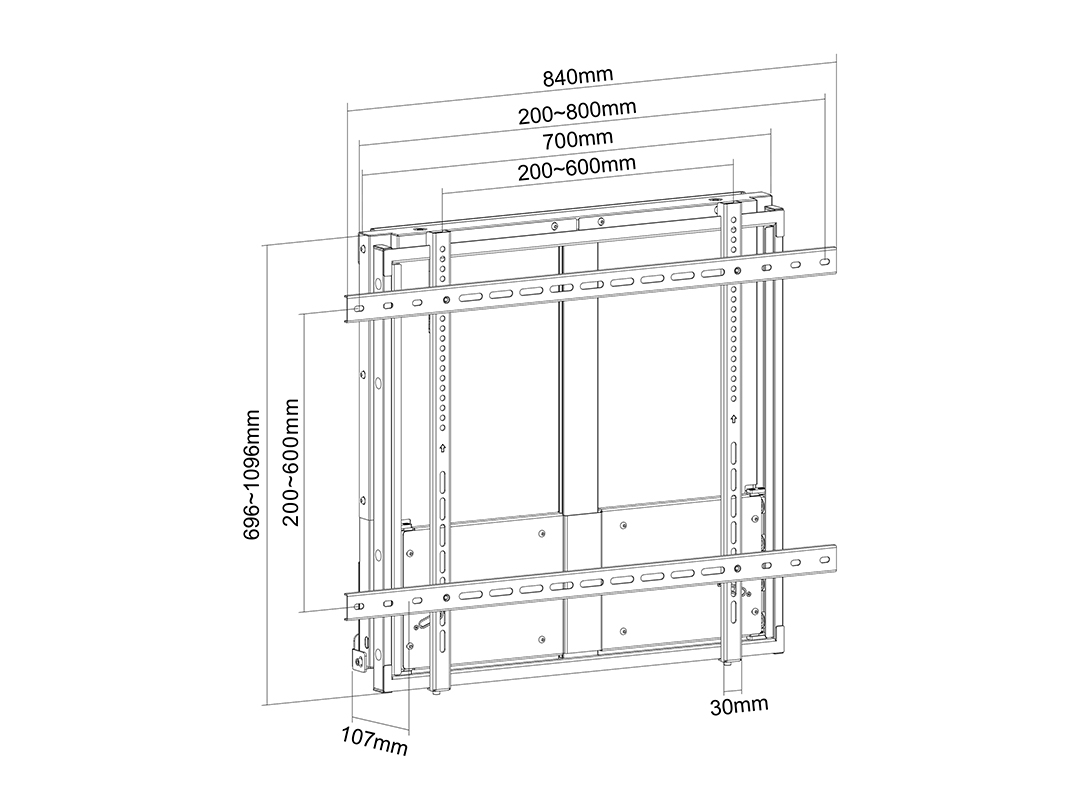

| Dimension: (WxHxD) | 127 x 840 x 660mm |
| Weight: | 28.9 kg (weight of one packed unit) |
| Options | |
| Certification: | CE |
| Warranty: | 5 year |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 75.7 x 75.7 x 14.5 cm |
| Package Weight: | 28.90 kg |
