M 16:9 Motorized Projection Screen 172x97, 77"
Options
Variants that match your options:
In stock: 7
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350022730403

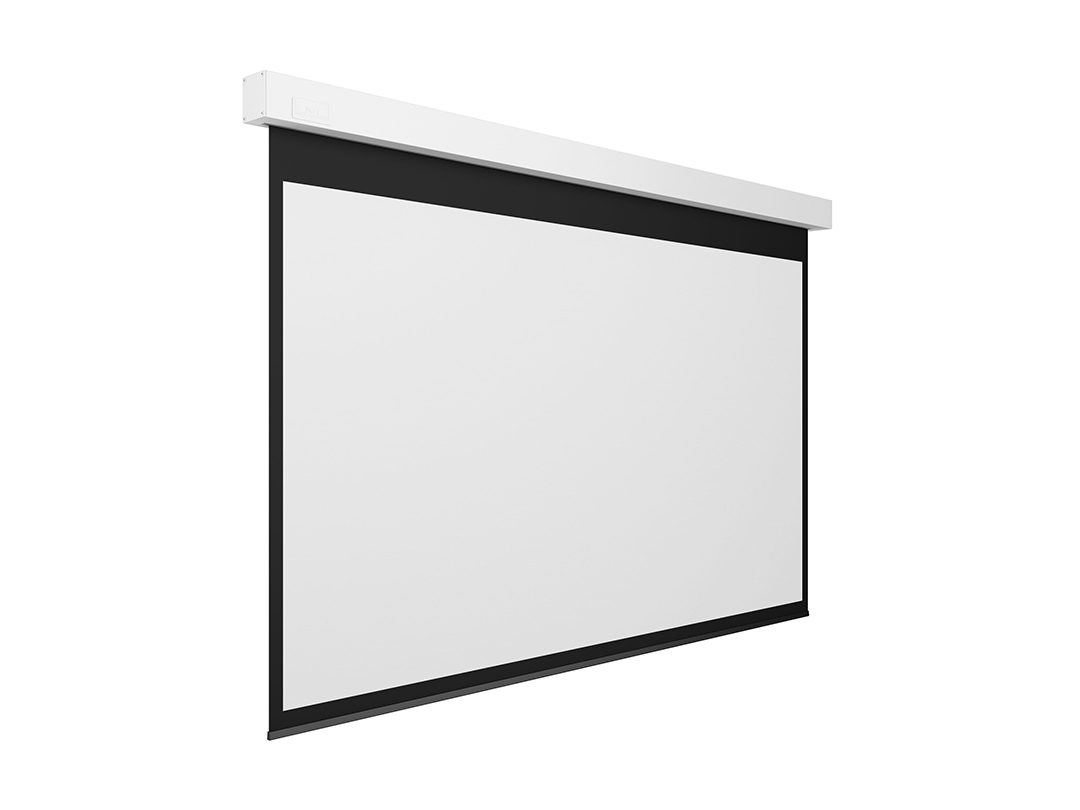

Multibrackets M Motorized Projection Screen Deluxe - Projection screen - motorized - 77 in ( 196 cm ) - 16:9 - Matte White - white
Product overview

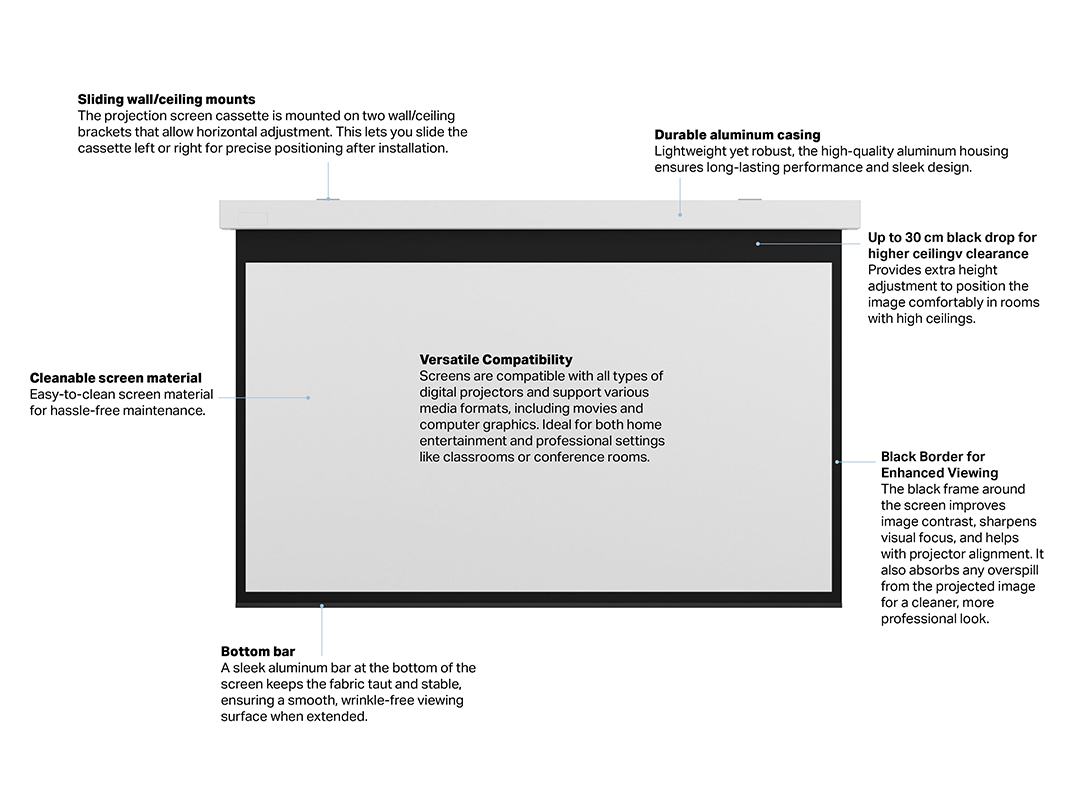

Multibrackets Motorized Projection Screen Deluxe is a high-performance screen for home theaters, boardrooms and educational use. With its clean Nordic design, it integrates effortlessly into modern interiors.
This model features a 196 cm (77”) viewing area in 16:9 format—ideal for widescreen content in professional or residential settings. Easy to install and operate, the screen includes a wireless RF remote for smooth control.

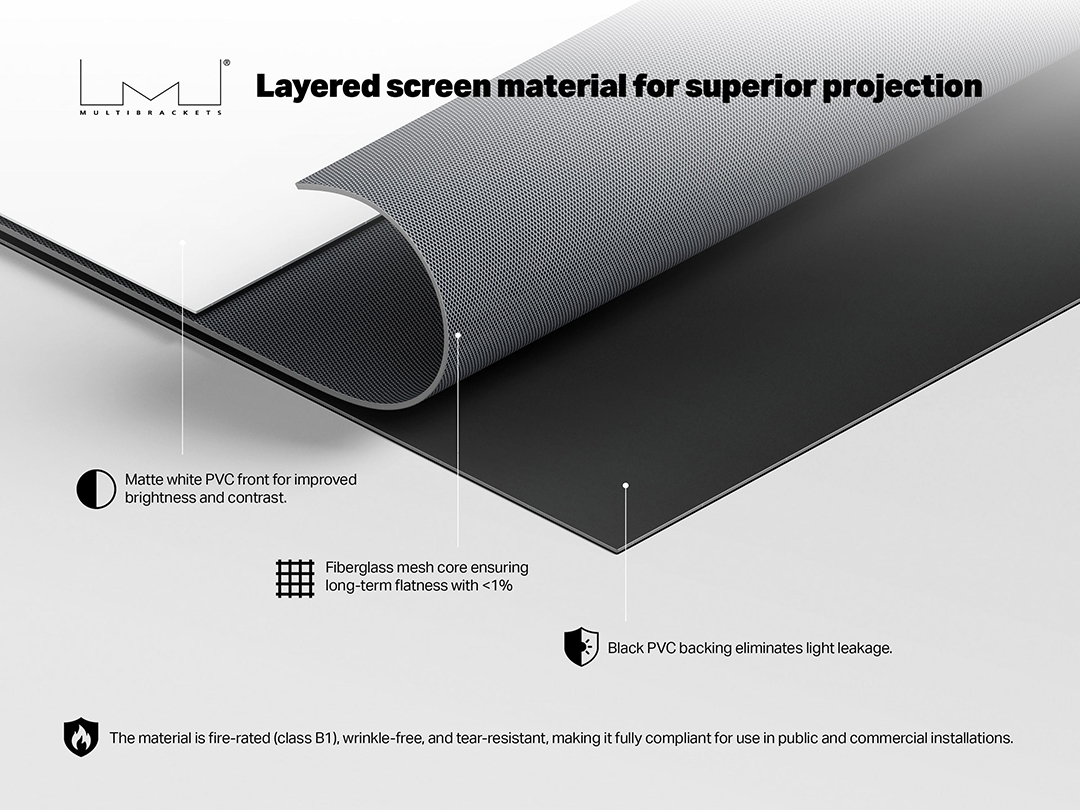

The screen fabric is engineered with three layers: a matte white PVC front for optimal contrast and brightness, a fiberglass mesh core that ensures lasting flatness with <1% flex, and a black PVC backing to block light from behind. The material is fire-rated, wrinkle-free and tear-resistant—suitable for use in public, commercial, and residential environments.
Highlights
-
Format: 16:9, viewing area 196 cm (77”)
-
Matte white surface for natural color and clarity
-
Triple-layer screen: PVC front, fiberglass mesh core, black PVC backing
-
Fire-rated, tear-proof, wrinkle-free fabric
-

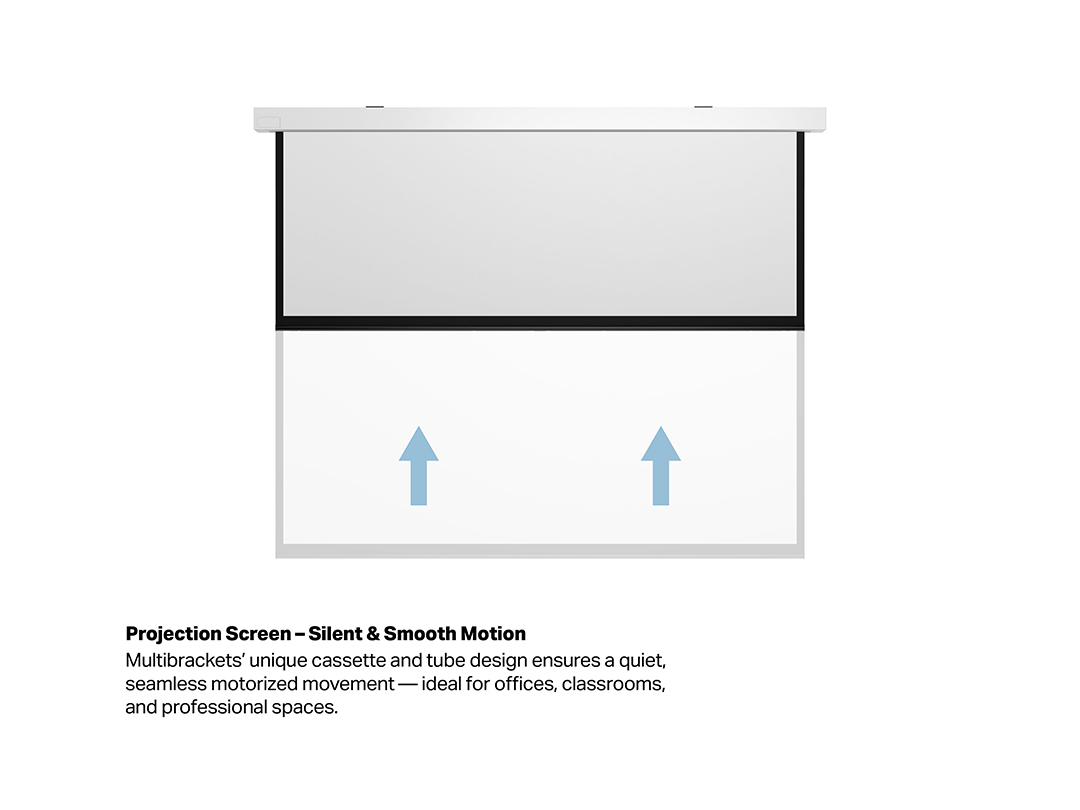

Quiet CE-certified motor (28 RPM)
-
Pre-programmed end stops for reliable operation
-
Motor accessible via two underside openings
-

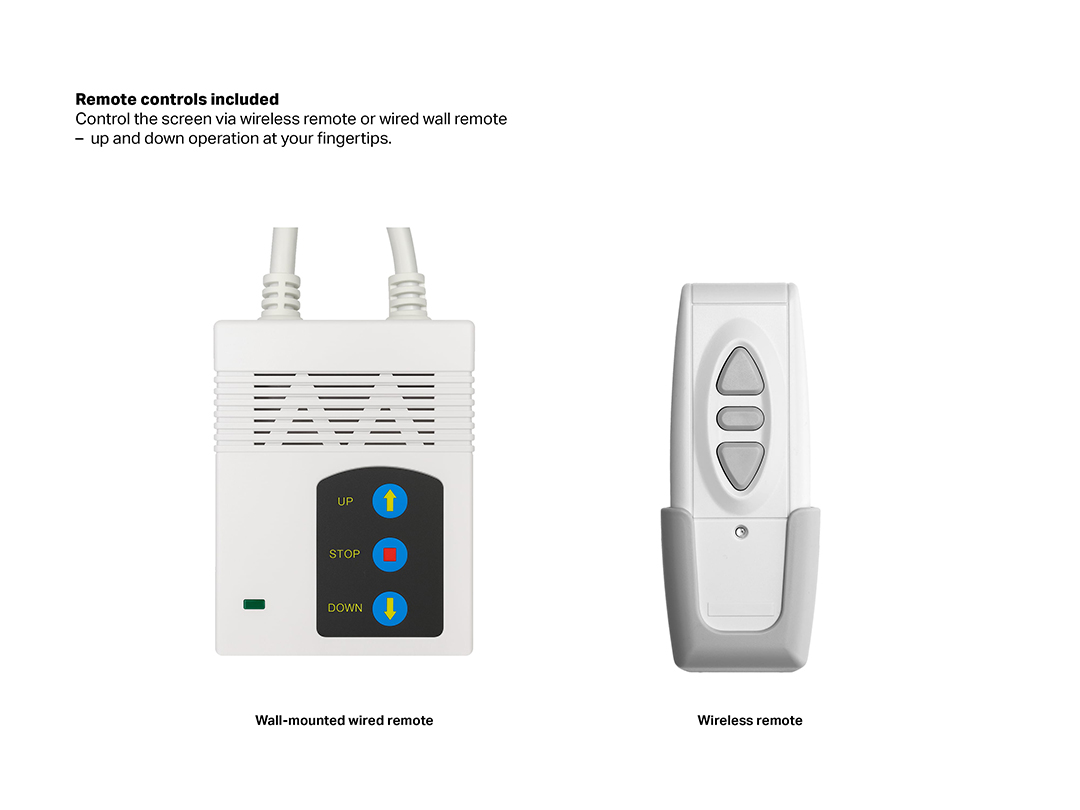

Wireless RF remote control included
-
Supplied with 3 m 4-core plug & play power cable
-
Gain 1.0, viewing angle over 50°, approx. 450 g/m²
-

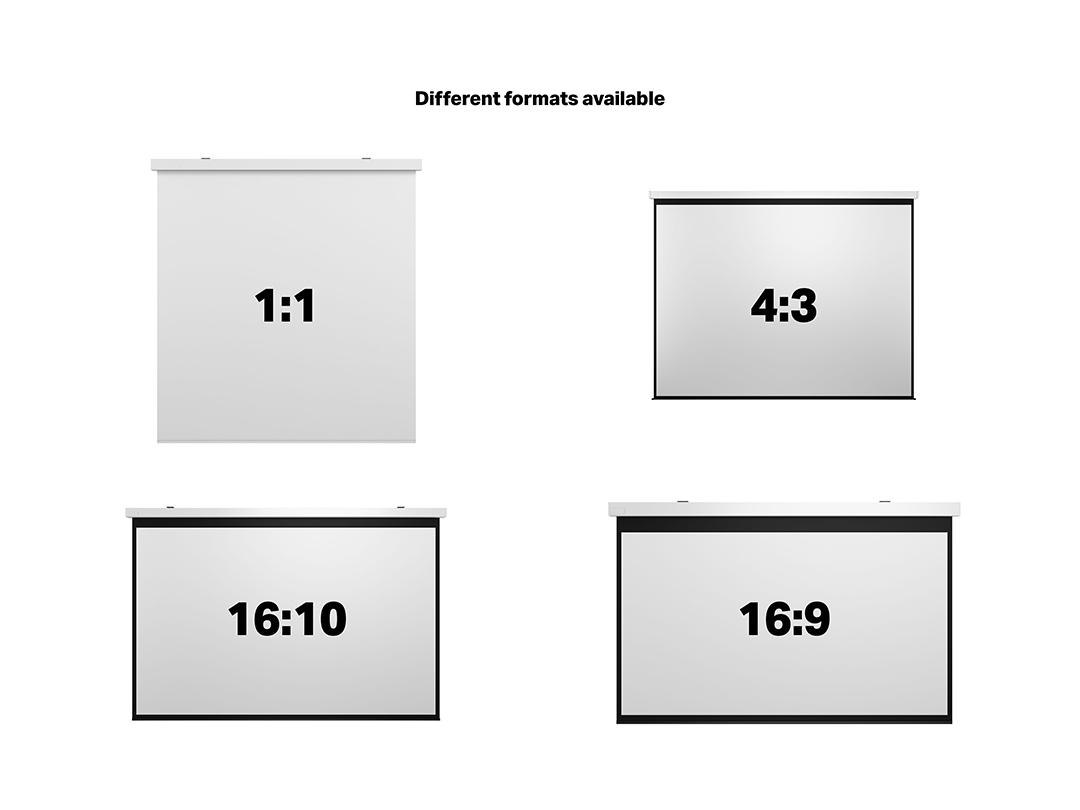

Supports formats: 16:9, 4:3, and 1:1
-
4 cm black border around viewing area
-
30 cm black drop
-

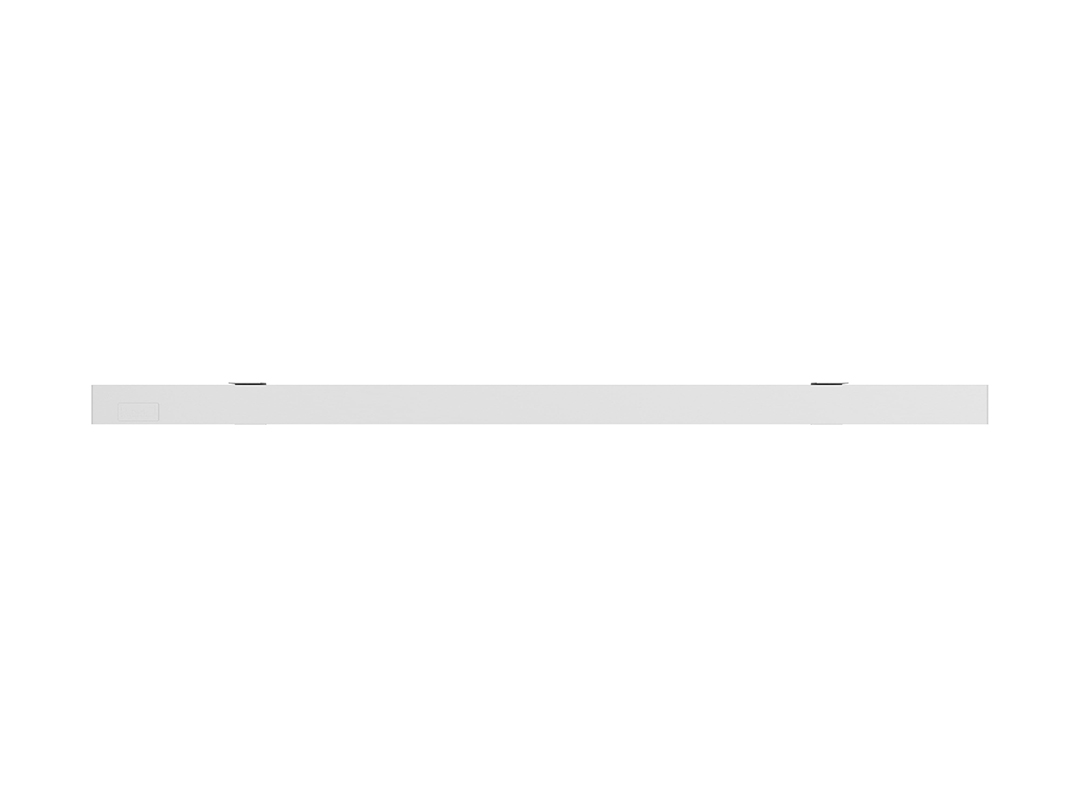

Available in white or black aluminum case
-
Compliant with modern product and fire safety standards
Projection Screen Formats - FAQ Projection Screen Terms - FAQ
| Specification | |
| M 16:9 Motorized Projection Screen Deluxe 172x97, 77" | |
| Article No: | 7 350 022 730 403 |
| Format: | 16:9 |
| Size: | 77" |
| Projection area: | 1,72 x 0,97 m |
| Diagonal: | 1,96 m |
| Motor: | Yes |
| Remote: | Yes (RF frequency 433 Hz) |
| Cassette colour: | White |
| Cassette material: | Aluminium |
| Surface: | Matte white |
| Gain: | 1,0 |
| Border: | 4 cm |
| Weight: | 9,5 kg |
| Black drop: | 30 cm |
| Cassette measurements: | 185,4 x 9 x 9 cm (L*W*H) |
| Single package measurements: | 212 x 14 x 13 cm (L*W*H) |
| Single package weight: | 12 kg |
| Distribution package: | 4 pcs |
| Distribution package measurements: | 219 x 31 x 30 cm (L*W*H) |
| Distribution package weight: | 52 kg |
| Warranty: | 1 year / DIN 4102-1:1998-05 Classification (B1) |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 212 x 14.5 x 13.5 cm |
| Package Weight: | 9.50 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 4 pcs |
| Package Measurements: | 37 x 228.4 x 37 cm |
| Package Weight: | 40.00 kg |
High Resolution Photos Drawing PDF Drawing PDF 2
Installation manual Remote Control User Guide Video Black Drop User Guide Video Motor specification Wiring diagram
