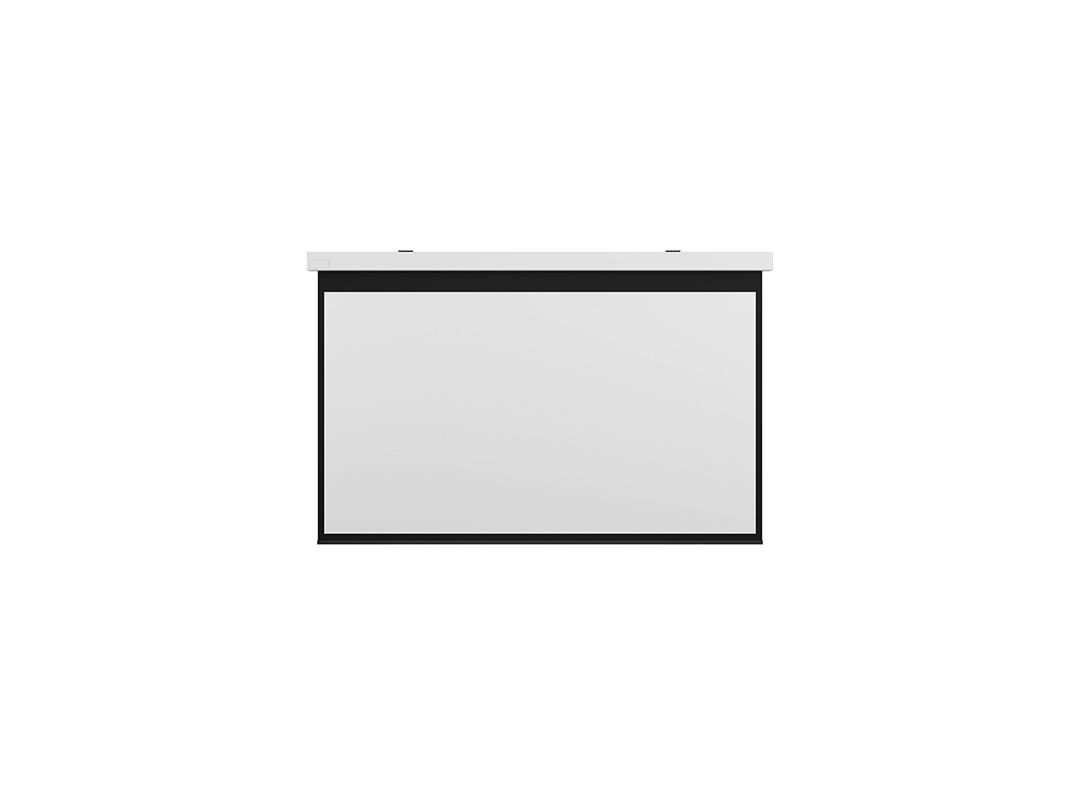

M 16:9 Motorized Projection Screen 200x112, 90"
Options
Variants that match your options:
In stock: 1
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350022730410
Multibrackets M Motorized Projection Screen Deluxe - Projection screen - motorized - 90 in ( 229 cm ) - 16:9 - Matte White - white
Product overview

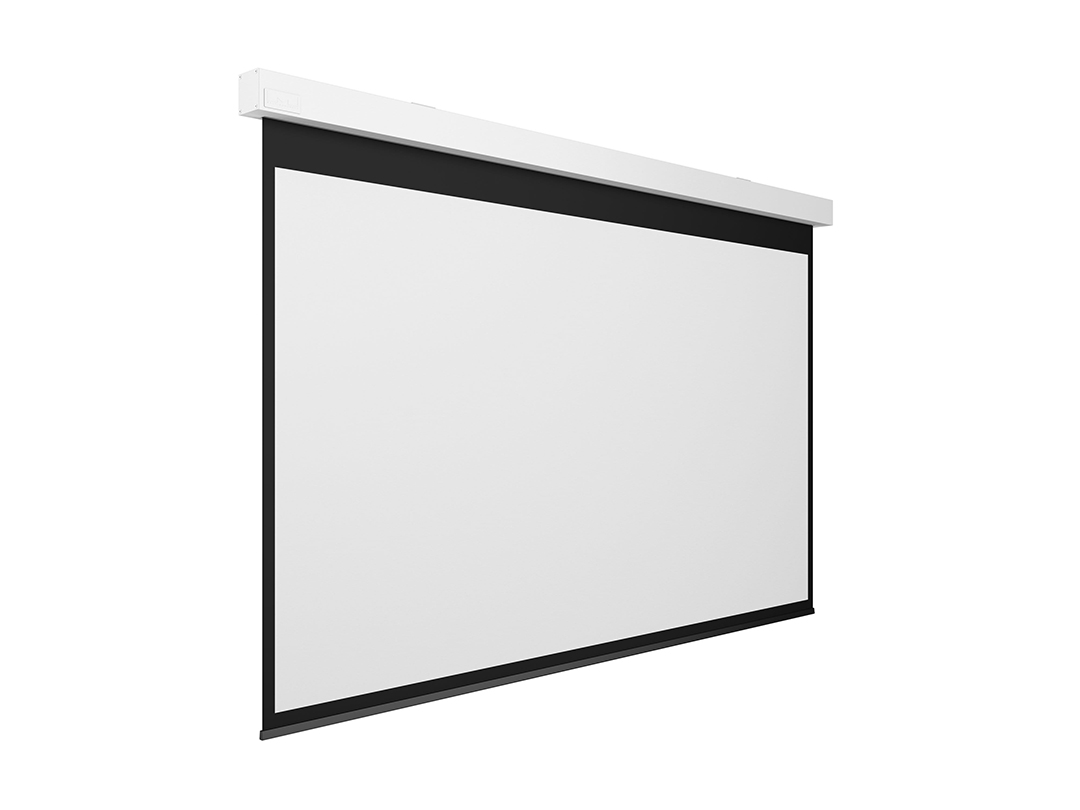

Multibrackets Motorized Projection Screen Deluxe is a sleek, high-performance projection screen made for home cinemas, boardrooms, and educational spaces. The minimalist Nordic design makes it an elegant fit for any modern installation.
This model features a 229 cm (90”) viewing area in 16:9 format, ideal for widescreen video and presentation content. Setup is fast and simple, with a wireless RF remote included for effortless daily operation.

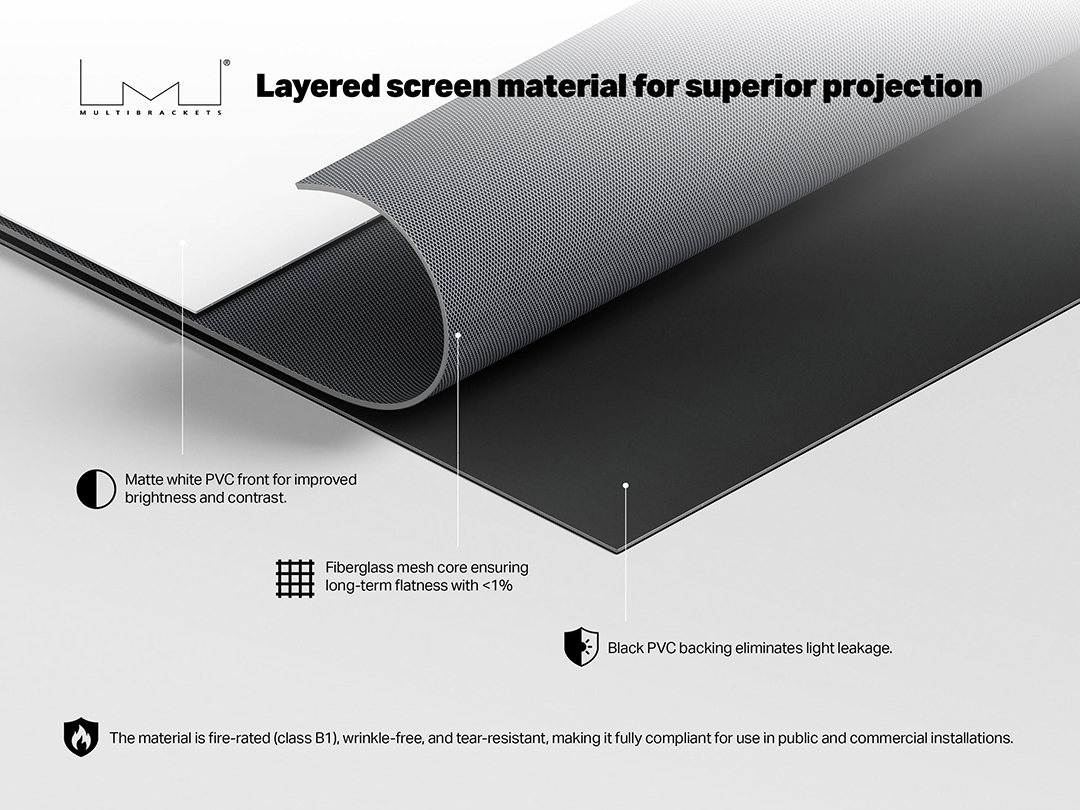

The screen fabric is built from three precision-engineered layers: a matte white PVC front for vivid contrast, a fiberglass mesh core that maintains flatness over time (<1% flex), and a black PVC backing to eliminate light penetration. The material is fire-rated, wrinkle-free, and tear-resistant—safe for public, educational and commercial use.
Highlights
-
Format: 16:9, viewing area 229 cm (90”)
-
Matte white surface for accurate color and sharp contrast
-
Triple-layer screen: PVC front, fiberglass mesh core, black PVC backing
-
Fire-rated, wrinkle-free, tear-resistant screen fabric
-
Quiet CE-certified motor (28 RPM)
-
Pre-programmed end positions for consistent screen operation
-
Direct motor access via two underside openings
-

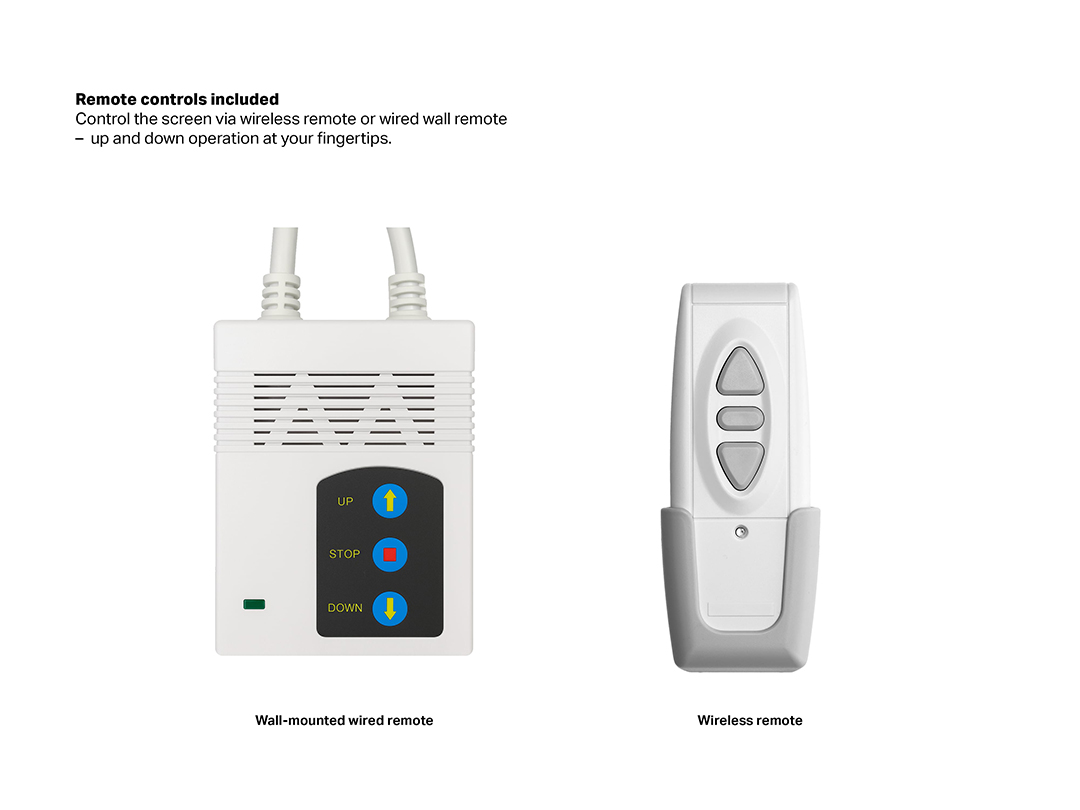

Wireless RF remote control included
-
Supplied with 3 m 4-core plug & play power cable
-
Gain 1.0, viewing angle over 50°, approx. 450 g/m²
-

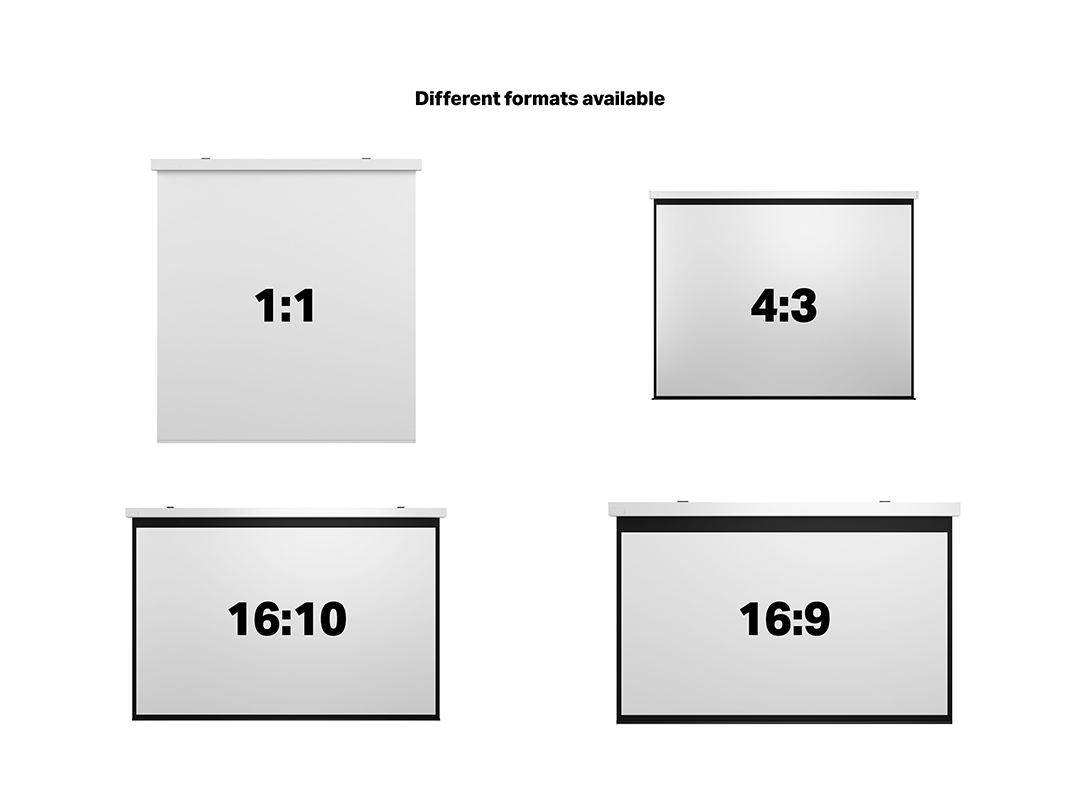

Supports formats: 16:9, 4:3, and 1:1
-

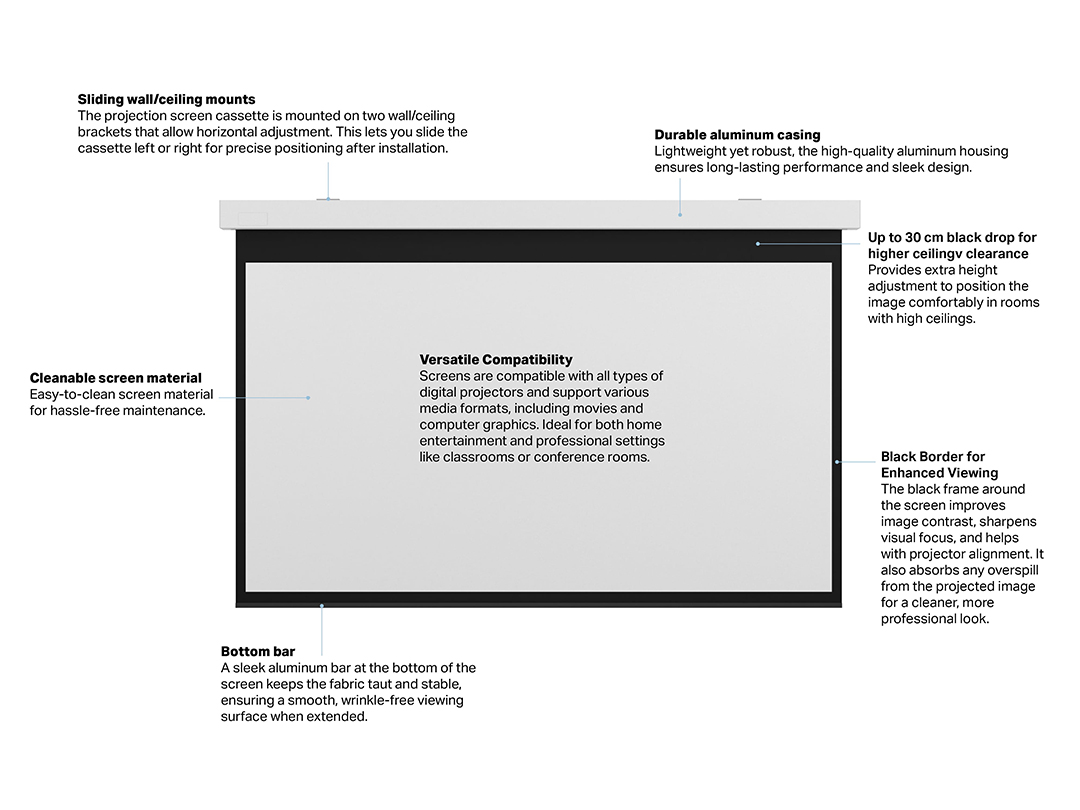

4 cm black border around the viewing area
-
30 cm black drop
-
Available in white or black aluminum case
-
Compliant with fire and product safety regulations
Projection Screen Formats - FAQ Projection Screen Terms - FAQ
| Specification | |
| M 16:9 Motorized Projection Screen Deluxe 200x112, 90" | |
| Article No: | 7 350 022 730 410 |
| Format: | 16:9 |
| Size: | 90" |
| Projection area: | 2 x 1,12 m |
| Diagonal: | 2,29 m |
| Motor: | Yes |
| Remote: | Yes (RF frequency 433 Hz) |
| Cassette colour: | White |
| Cassette material: | Aluminium |
| Surface: | Matte white |
| Gain: | 1,0 |
| Border: | 4 cm |
| Weight: | 12 kg |
| Black drop: | 30 cm |
| Cassette measurements: | 215,4 x 8.2 x 7.2 cm (L*W*H) |
| Single package measurements: | 240 x 14 x 13 cm (L*W*H) |
| Single package weight: | 13,7 kg |
| Distribution package: | 4 pcs |
| Distribution package measurements: | 248 x 31 x 30 cm (L*W*H) |
| Distribution package weight: | 58 kg |
| Warranty: | 1 year / DIN 4102-1:1998-05 Classification (B1) |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 240 x 14.5 x 13.5 cm |
| Package Weight: | 13.70 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 4 pcs |
| Package Measurements: | 31 x 248 x 30 cm |
| Package Weight: | 58.00 kg |
High Resolution Photos Drawing PDF Drawing PDF 2
Installation manual Installation manual (old model) Remote Control User Guide Video Black Drop User Guide Video Motor specification Wiring diagram
