Description
Article no.: 7350022730427

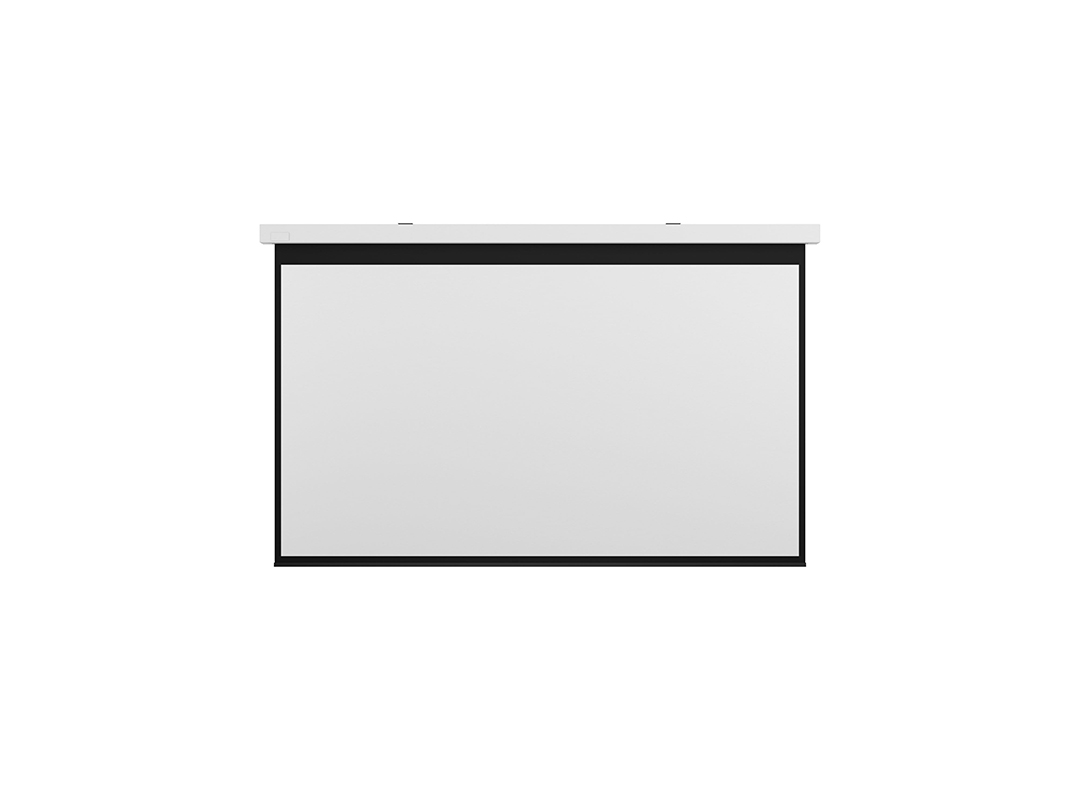

Multibrackets M Motorized Projection Screen Deluxe - Projection screen - motorized - 108 in ( 274 cm ) - 16:9 - Matte White - white

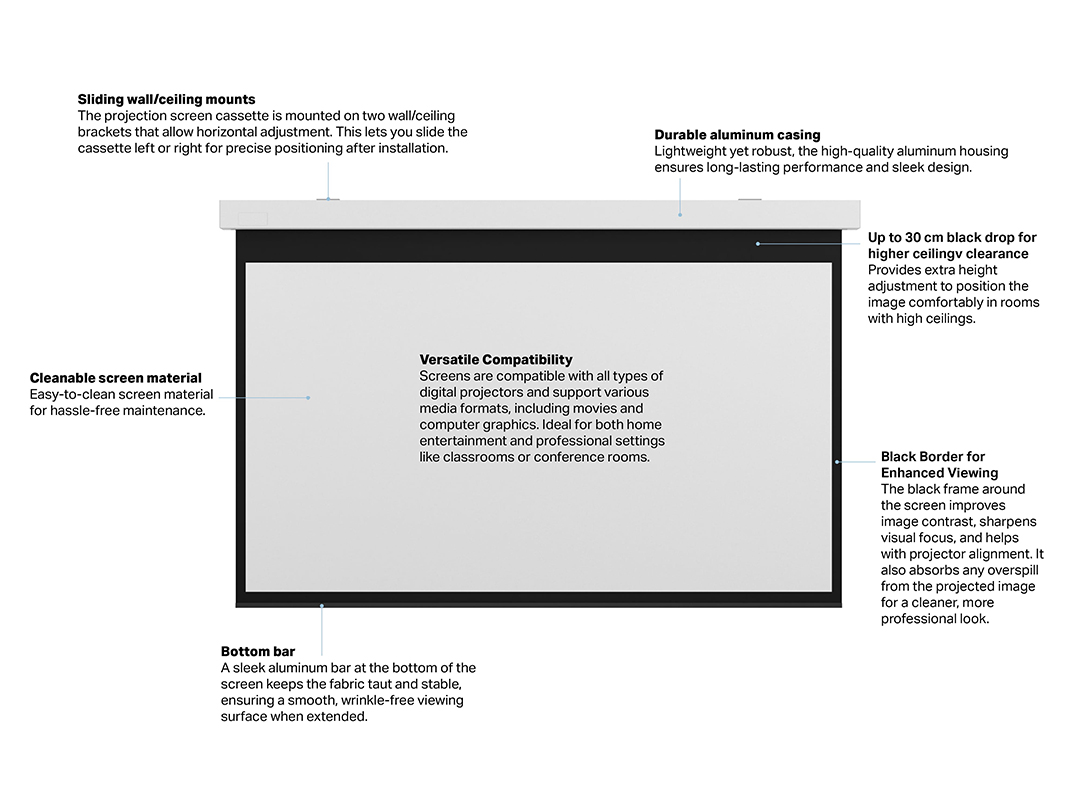

Multibrackets Motorized Projection Screen Deluxe is a high-quality screen designed for modern home theaters, corporate meeting rooms, and learning environments. With its minimalist Nordic design, it fits seamlessly into any interior.
This model features a 274 cm (108”) viewing area in 16:9 format, ideal for widescreen video and presentations. The screen is quick to install and includes a wireless RF remote for easy, reliable use.
Built with a durable 3-layer fabric structure, the screen includes a matte white PVC surface for optimal image quality, a fiberglass mesh core for tension and flatness, and a black PVC backing that eliminates ambient light. The fabric is fire-rated, wrinkle-free, and tear-resistant, making it safe for both public and commercial spaces.
Format: 16:9, viewing area 274 cm (108”)
Matte white surface for vivid, high-contrast projection
Triple-layer screen: PVC front, fiberglass mesh core, black PVC backing
Fire-rated, wrinkle-free, tear-proof fabric
Quiet CE-certified motor (28 RPM)
Pre-programmed end positions for smooth operation
Direct motor access via two underside openings

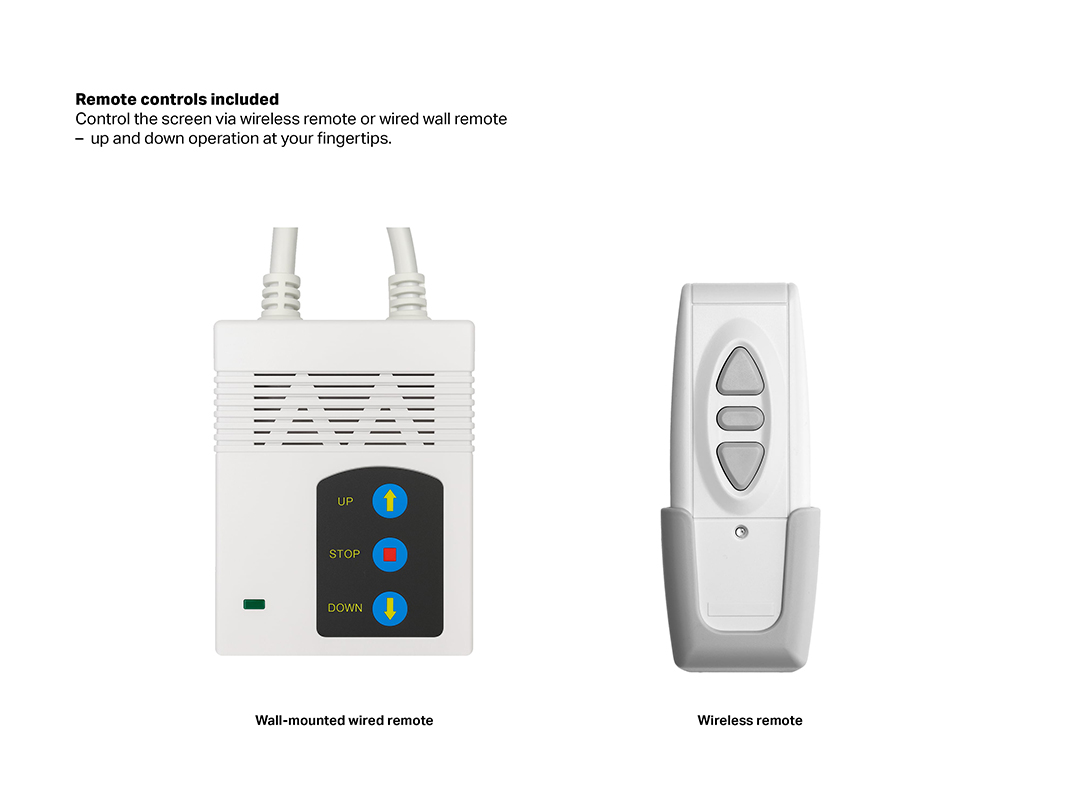

Wireless RF remote control included
Supplied with 3 m 4-core plug & play power cable
Gain 1.0, viewing angle over 50°, approx. 450 g/m²
Supports formats: 16:9, 4:3, and 1:1
4 cm black border around the viewing area
30 cm black drop
Case colours available in white and black
Fully compliant with fire and product safety standards
Projection Screen Formats - FAQ
Projection Screen Terms - FAQ| Specification | |
| M 16:9 Motorized Projection Screen Deluxe 240x135, 108" | |
| Article No: | 7 350 022 730 427 |
| Format: | 16:9 |
| Size: | 108" |
| Projection area: | 2,4 x 1,35 m |
| Diagonal: | 2,74 m |
| Motor: | Yes |
| Remote: | Yes (RF frequency 433 Hz) |
| Cassette colour: | White |
| Cassette material: | Aluminium |
| Surface: | Matte white |
| Gain: | 1,0 |
| Border: | 4,5 cm |
| Weight: | 14,5 kg |
| Black drop: | 30 cm |
| Cassette measurements: | 255,4 x 9 x 9 cm (L*W*H) |
| Single package measurements: | 281 x 14 x 13 cm (L*W*H) |
| Single package weight: | 15,8 kg |
| Distribution package: | 4 pcs |
| Distribution package measurements: | 290 x 31 x 30 cm (L*W*H) |
| Distribution package weight: | 67 kg |
| Warranty: | 1 year / DIN 4102-1:1998-05 Classification (B1) |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 281 x 14.5 x 13.5 cm |
| Package Weight: | 15.80 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 4 pcs |
| Package Measurements: | 31 x 290 x 30 cm |
| Package Weight: | 67.00 kg |
High Resolution Photos
Drawing PDF
Drawing PDF 2
Installation manual
Installation manual (old model)
Remote Control User Guide Video
Black Drop User Guide Video
Motor specification
Wiring diagram
