M Motorized TV Lift X-Large
Options
Variants that match your options:
In stock: 161
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105214066
Product Overview

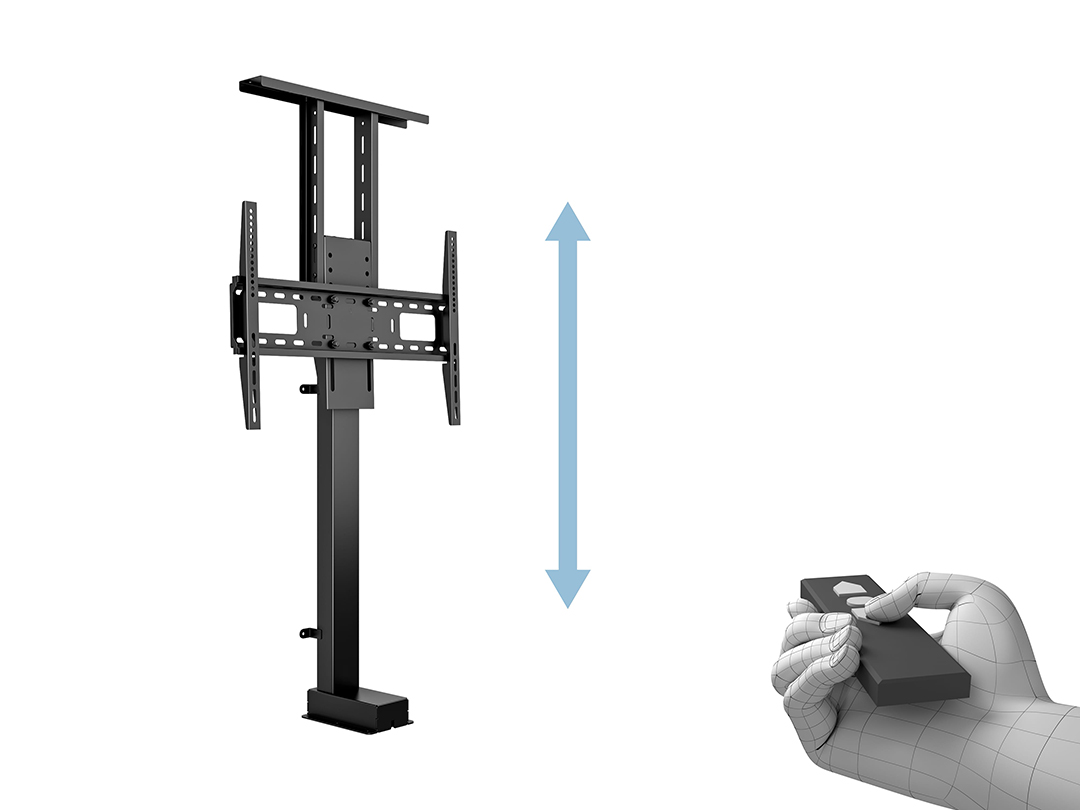

Your TV or display is a central feature in meeting rooms and living rooms. The M Motorized TV Lift X-Large combines multiple telescoping lift columns into one smooth, fast mechanism, raising screens up to 80" in 20 seconds. Effortlessly hide your TV when not in use and reveal it with the push of a button using the included remote, mobile app, or voice control.
Enjoy silent operation below 50dB, making this lift popular among homeowners, office users, and professional installers across Europe. Whether hiding your TV at the foot of the bed, behind furniture, or in meeting rooms, this lift offers stylish and practical solutions. It supports TVs up to 60kg with a height adjustment range from 810mm to 2170mm, compatible with almost all TVs on the market.
Highlights
- Supports TVs up to 80”
- Height adjustment: 810-2170 mm
- Anti-collision safety feature
- Simple installation with partial pre-assembly
- Silent operation below 50dB
- RJ45 connection for external control
- Includes RF remote control
- Control via mobile app and voice commands
 Click to view larger images |
| Specification | |
| M Motorized TV Lift X-Large | |
| Article No: | 7 350 105 214 066 |
| For screen size: | 37-80" |
| Mounting holes (VESA): | 200x200,200x300, 200x400,300x200, 300x300,300x400, 350x350,400x200, 400x300,400x400, 600x200,600x300, 600x400 |
| Colour: | Black |
| Max load: | 60 kg |
| Motor: | Yes, DC 29V, 1.8A Input: 240 VAC, Cable length: 1.5m |
| Travelling Speed: | 30mm per second (without load ), around 25mm per second (with load /weight) |
| Remote control: | Yes, RF Remote Control included. Batteries not included |
| Cable management: | Yes |

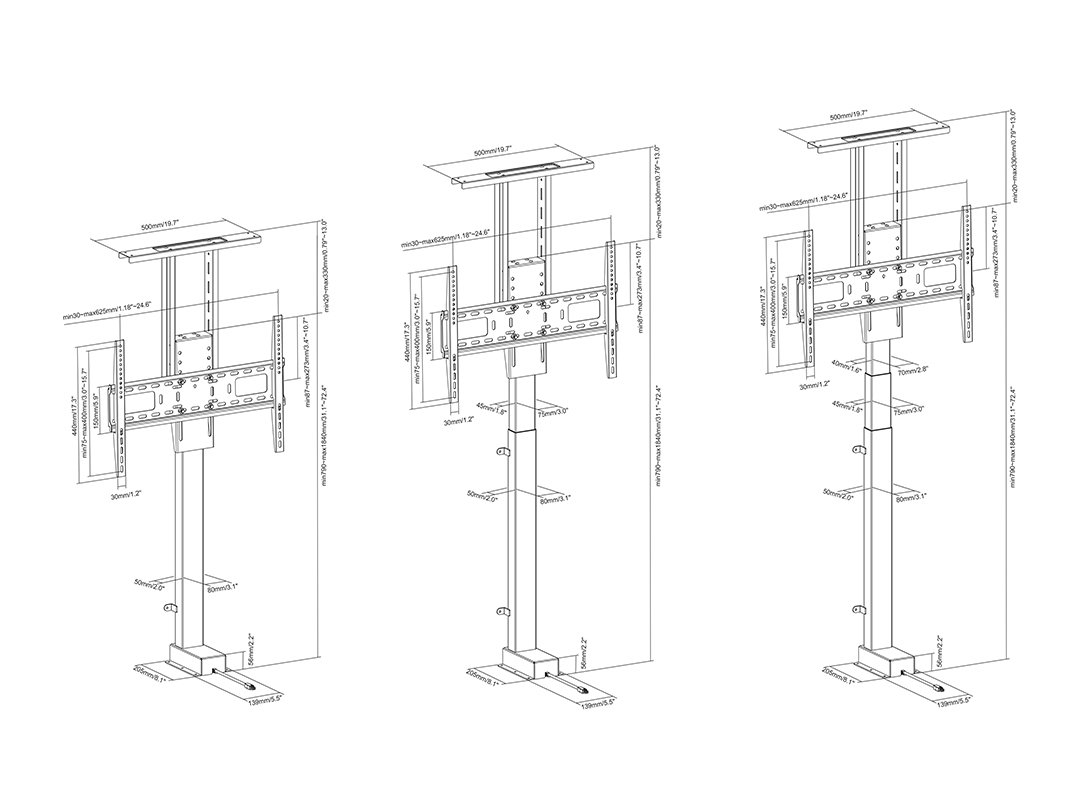

| Dimension: (WxHxD) min. | 205 x 660 x 810 ~ 2170 mm |
| Weight: | 18.7 kg |
| External Cabinet: | Recommended weight of top lid is max 5 kg |
| Certification: | CE |
| Warranty: | 1 year |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 86.5 x 20 x 28.5 cm |
| Package Weight: | 18.75 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 1 pcs |
| Package Measurements: | 86.5 x 20 x 28.5 cm |
| Package Weight: | 18.75 kg |
