Pro Series - Custom Configuration
Pro Series is designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range of products with close to unlimited flexibility. The product provides the versatility and flexibility demanded by installers.With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change. Over time the Pro Series installation can be combined into a wide range of new configurations.
Multibrackets Pro Series is a Digital Signage product series, that can be configured to different combinations of:
- Ceiling Mounts
- Floor to Ceiling Mounts
- Menu Boards
- Wallmounts
Learn what parts are needed
On each pre-configured package there is a "blow out" picture, so you can see what is included in the package.This "blow out" picture is an instruction how an installation built with sepatare parts is made. Here is an example.
 |
Pro Series - Multiple Screen Mounts Configuration
 |
Calculate Rails configuration depending on screen size
Download the Excel Guide for different screen sizes and screens side by side up to 10 screens.Video wall calculation guide. Divide total screen width with 100 and you have number of 100cm rails needed.
16:9 screens Excel sheet
Formula
(Number of screens - 1) x (screen width) / 100 = number of 100cm rails to VESA center.
The deciamals is the missing cm to VESA center.
Add 1pcs 48 cm rail to cover up to VESA 400 mm screens
Example 4 x 55" screens in portrait mode
(4-1) x 68 /100 = 3 x 68 /100 = 2.04 = 2 x 100cm rails to VESA center, but 4 cm is missing + (4-1) x 2 screen border width .
For VESA 200 add 20 cm and for VESA 400 add 40 cm + the missing 4 cm + 6 x screen border widths (ca 10 cm)
Conclusion:
2 x 100 cm rail + 1 x 68 cm rail is needed for VESA 400 screens
2 x 100 cm rail + 1 x 48 cm rail is needed for VESA 200 screens
Parts for Rail configuration
New
M Pro Series - Single Screen Rail 48cm Black - Single Screen Rail, Part for Pro Series, aluminum, length: 48cm - black
New
M Pro Series - Single Screen Rail 68cm Black - Single Screen Rail, Part for Pro Series, aluminum, length: 68cm - black
New
M Pro Series - Single Screen Rail 100cm Black - Single Screen Rail, Part for Pro Series, aluminum, length: 100cm - black
New
M Rail Extension - Rail Extension Bars, Part for Pro Series, 4 pcs, aluminum - black
New
M Pro Series - Rail Stopper - Rail Stopper, Part for Pro Series, steel, 12 pcs
New
M Rail End Cover - Rail End Cover, Part for Pro Series, plastic - 2 pcs- black
Pro Series - Screen Mount Arms Configuration

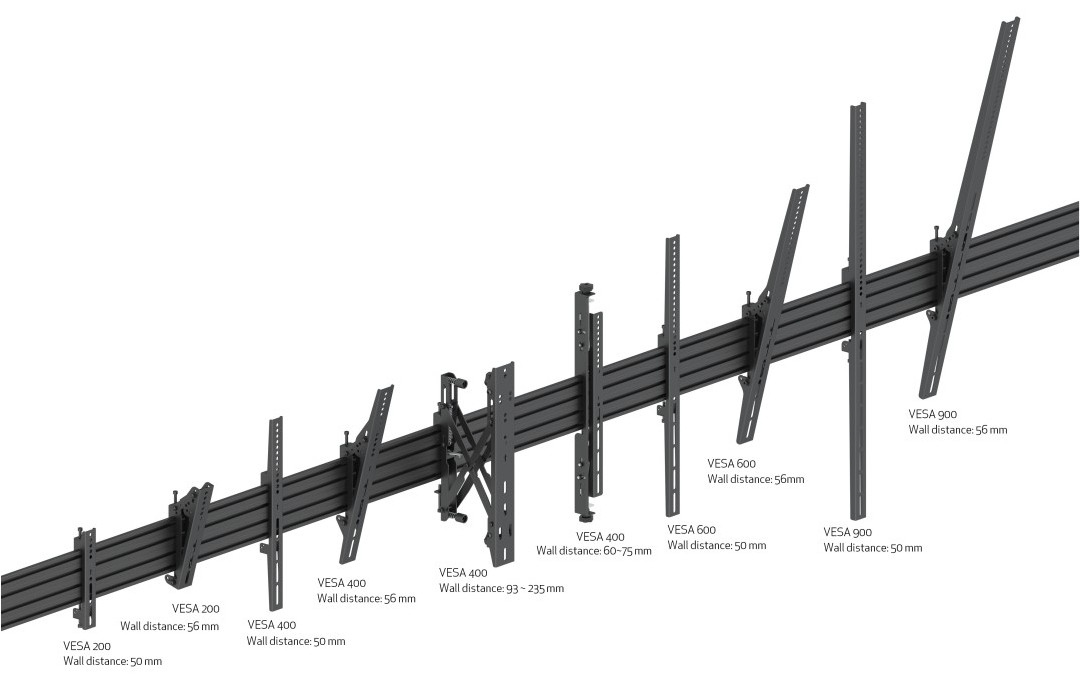

Select arm type
There are many types of screen mount arms to select from depending och screen size or landscape or portrait mode.
Fixed arms - for vertical positioning
Tilt arms - when screen needs to be tilted, up to 15 degrees
Push In Pop Out arms - when easy service is needed
Micro Adjustable arms - for frameless screens that need side by side fine tune adjustments
 |
