M Ceiling Mount Pro MBC3X1U VESA 600
Options
Variants that match your options:
In stock: 307
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073733477
Product overview

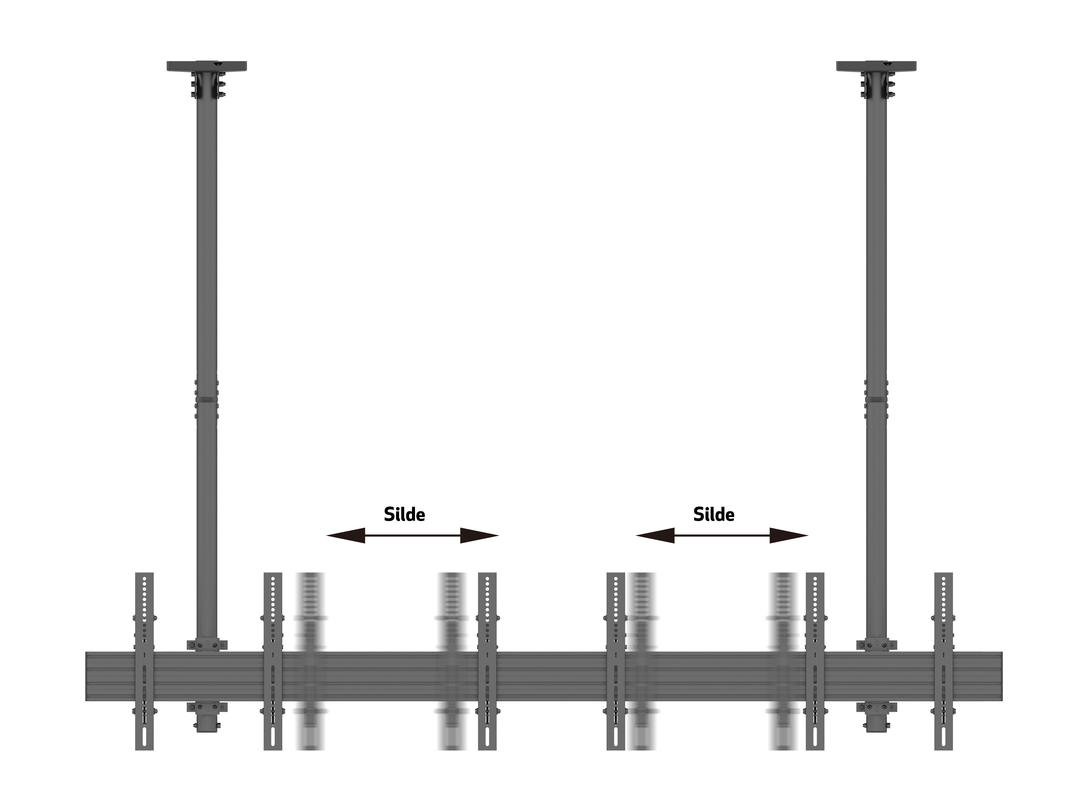

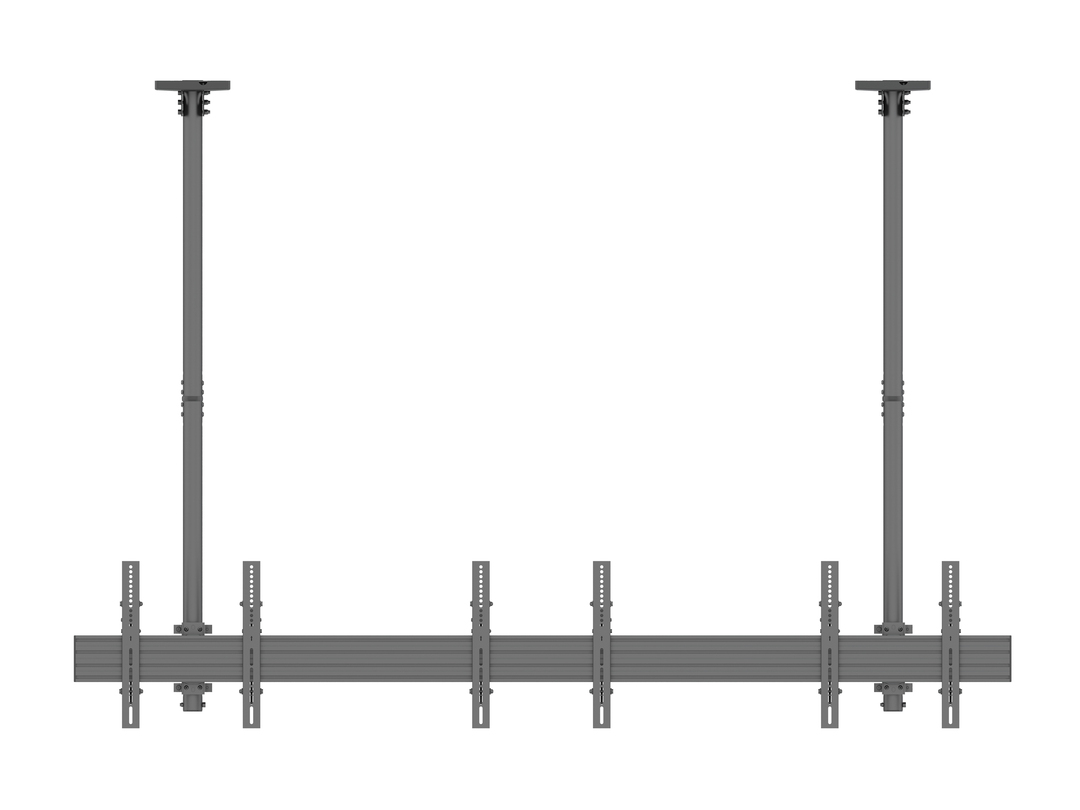

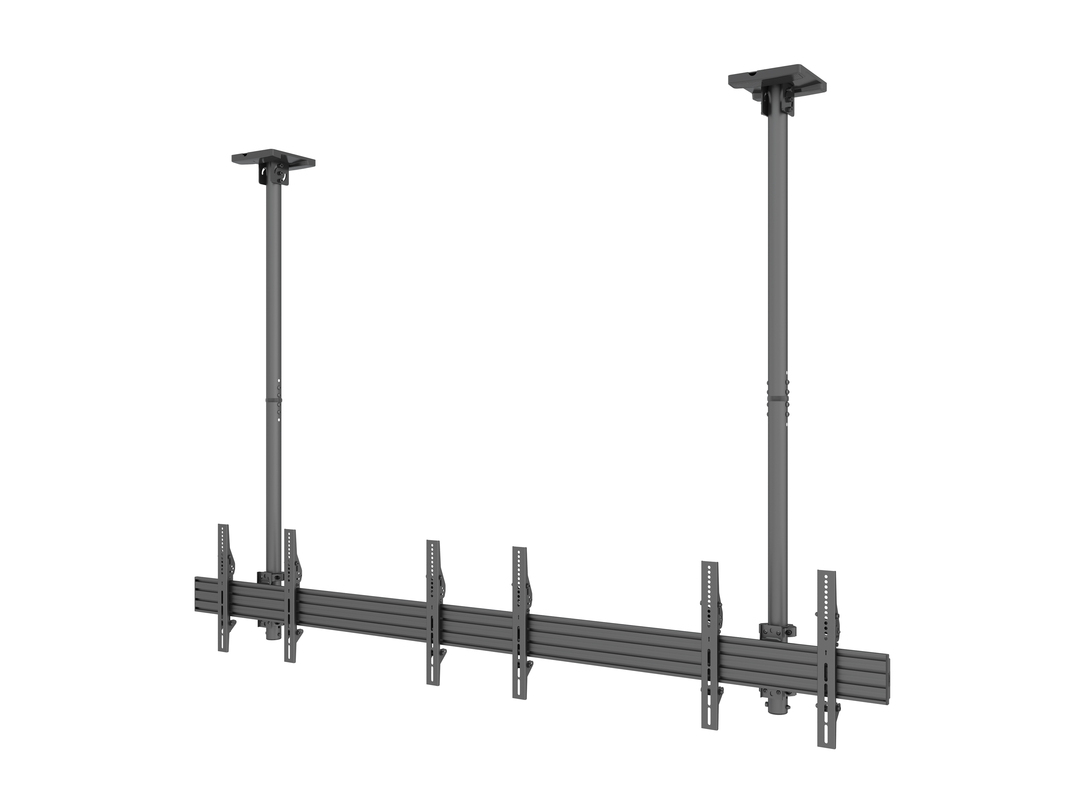

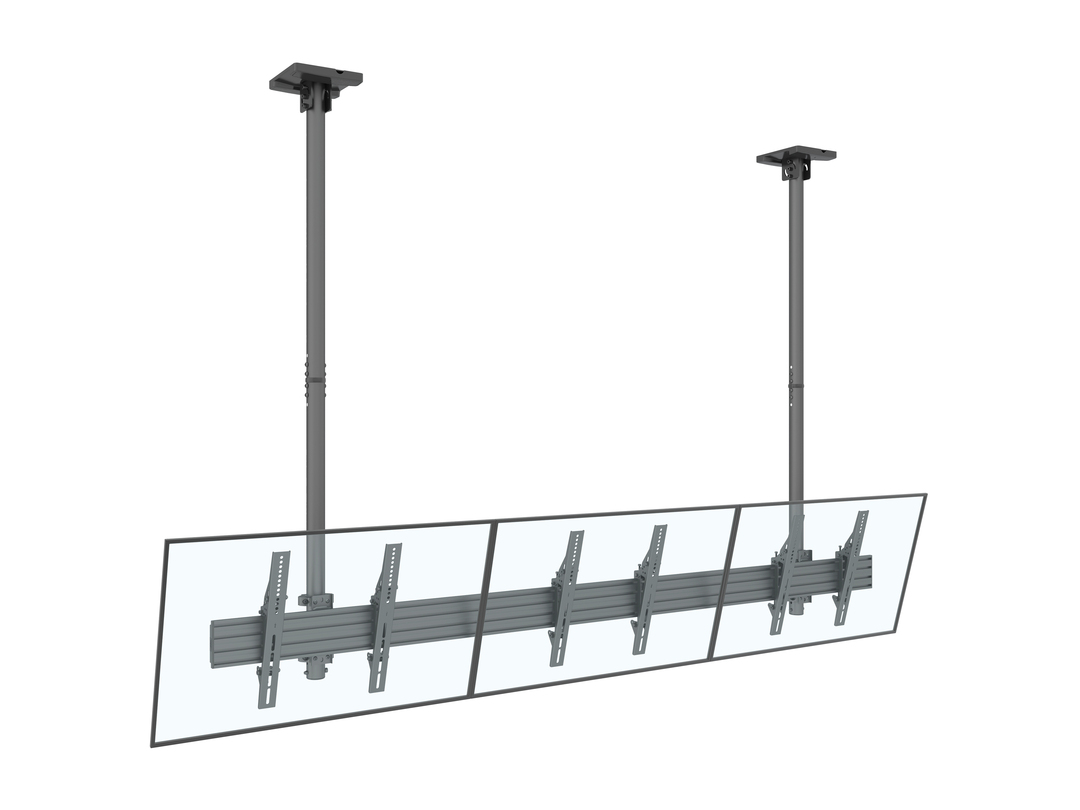

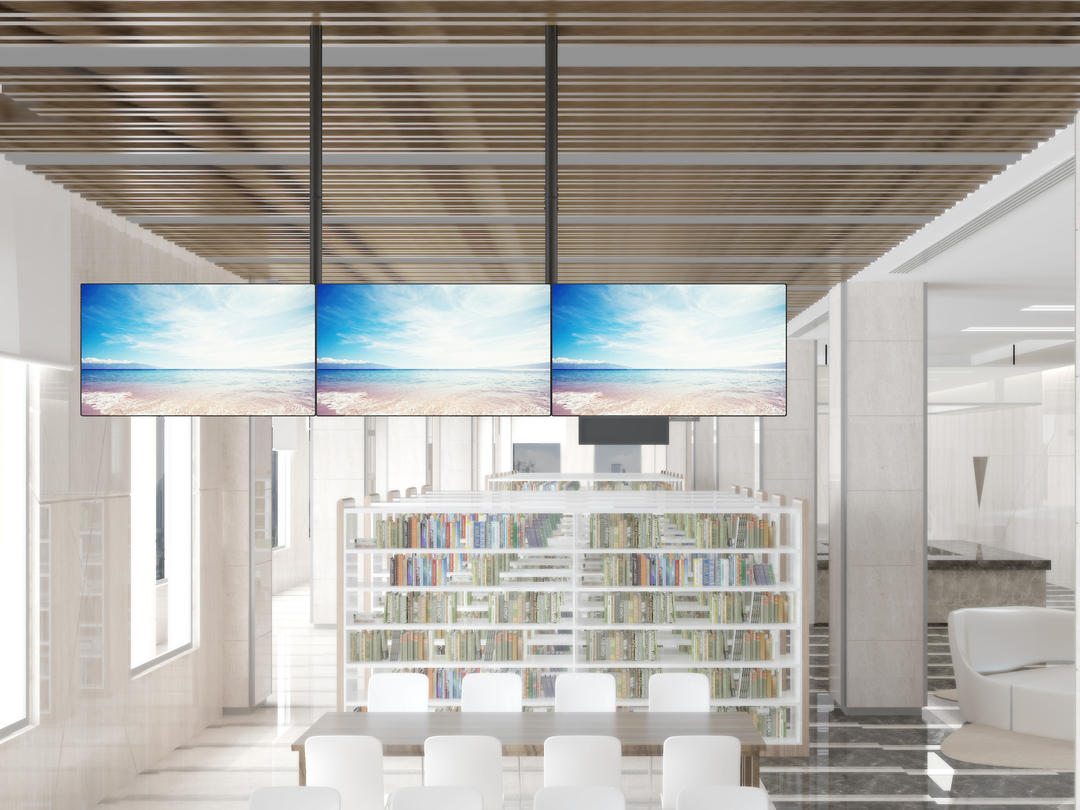

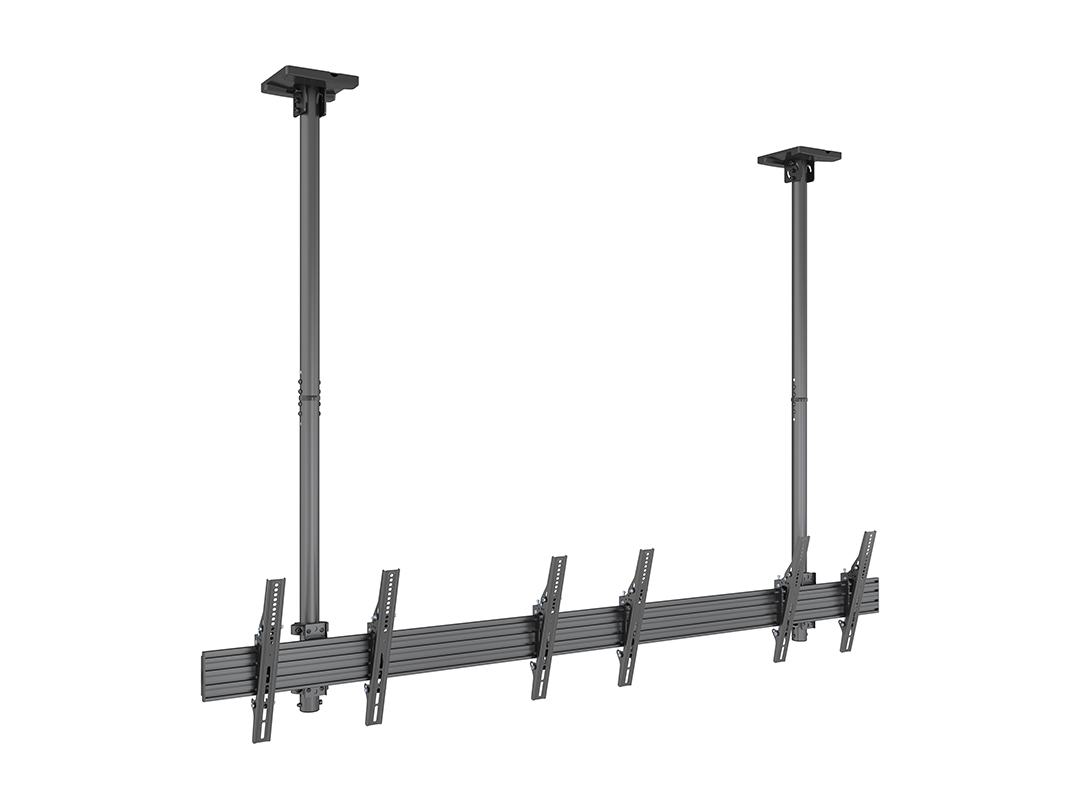

The Multibrackets M Ceiling Mount Pro MBC3X1U VESA 600 is a professional ceiling mount solution designed for three displays mounted side-by-side on a single rail. Ideal for digital signage in retail, control rooms, or corporate environments, it offers robust performance, clean aesthetics, and flexible configuration options.

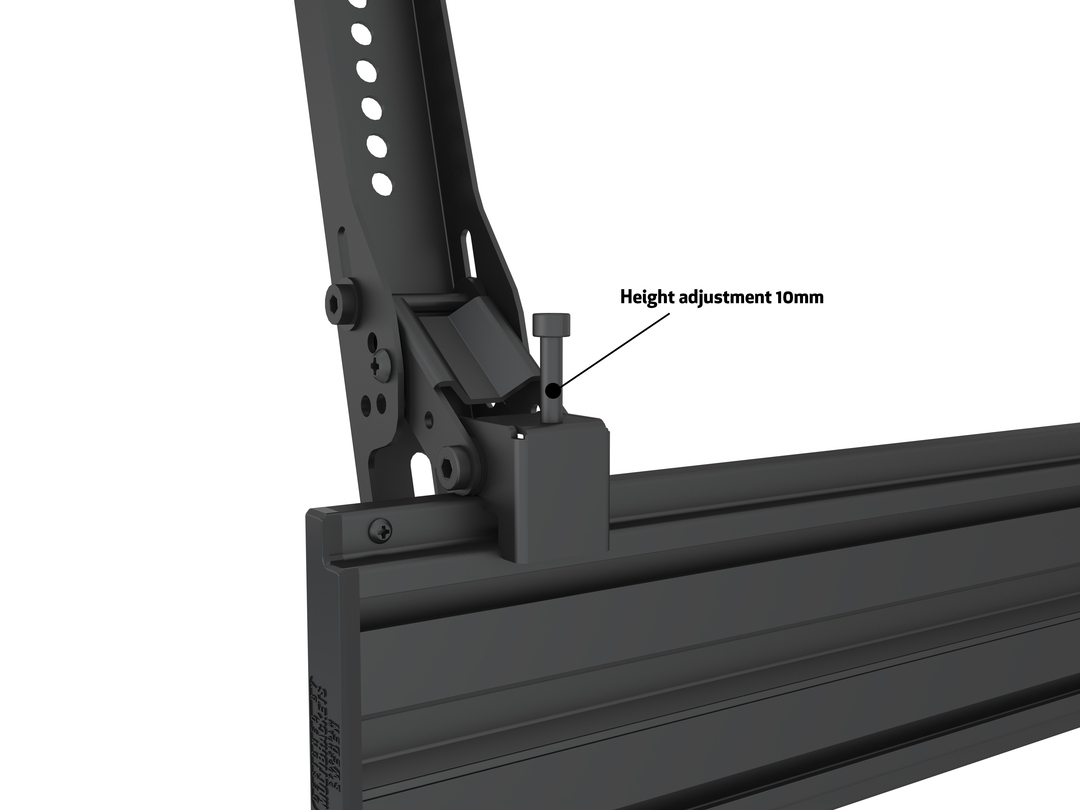

Part of the Pro Series, this mount features a modular aluminum rail system with integrated cable management. It supports both portrait and landscape modes, tilt functionality, and allows easy adjustments post-installation.
Designed with Scandinavian precision, the MBC3X1U blends visual minimalism with industrial strength—making it a go-to solution for large-scale ceiling-mounted display arrays.
Highlights
- Triple-display ceiling mount for 40"–65" screens
- VESA support up to 600x400 mm

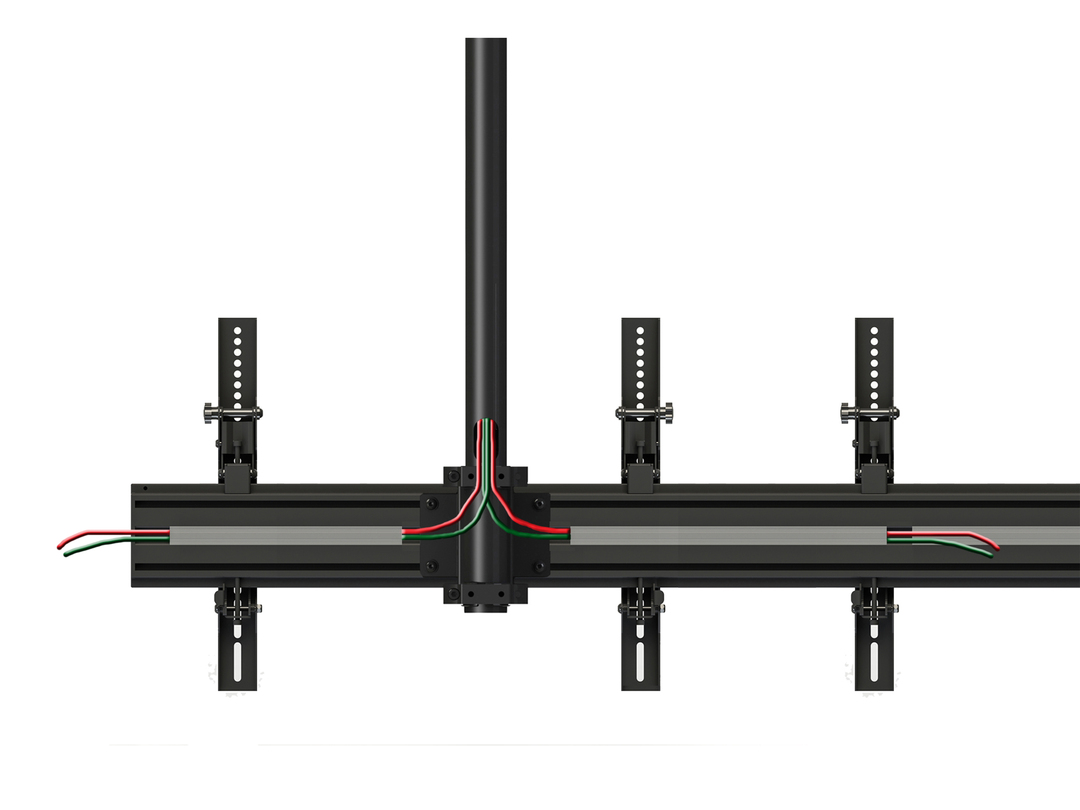

- Integrated cable management system
- Power Click system for safe, quick installation
- Supports portrait or landscape screen orientation
- Ceiling plate and hardware kit included
- Modular design for future reconfiguration
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.

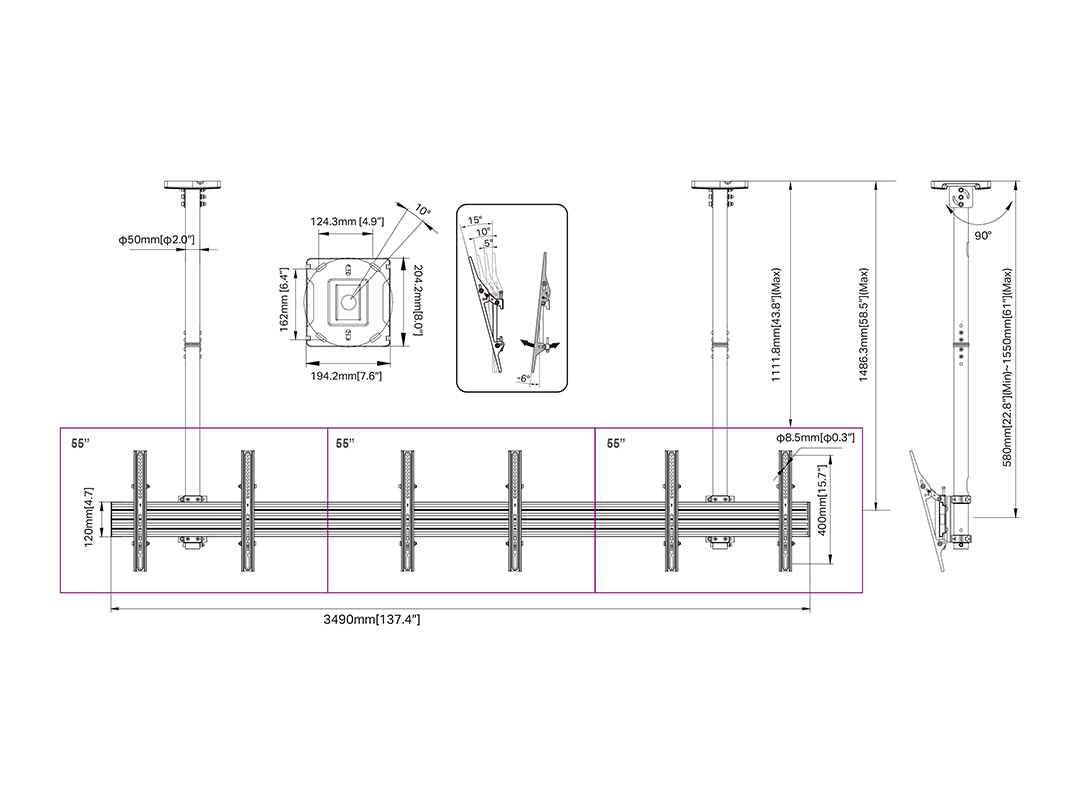

| Specification | |
| M Ceiling Mount Pro MBC3X1U VESA 600 | |
| Article No: | 7 350 073 733 477 |
| For screen size: | 40”-65" |
| Type: | Single MBC3X1U |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max Optional VESA 800x600 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 32.5 kg |
| Measurements | 349x338x20 cm |
| Max Load: | 30 kg per screen |

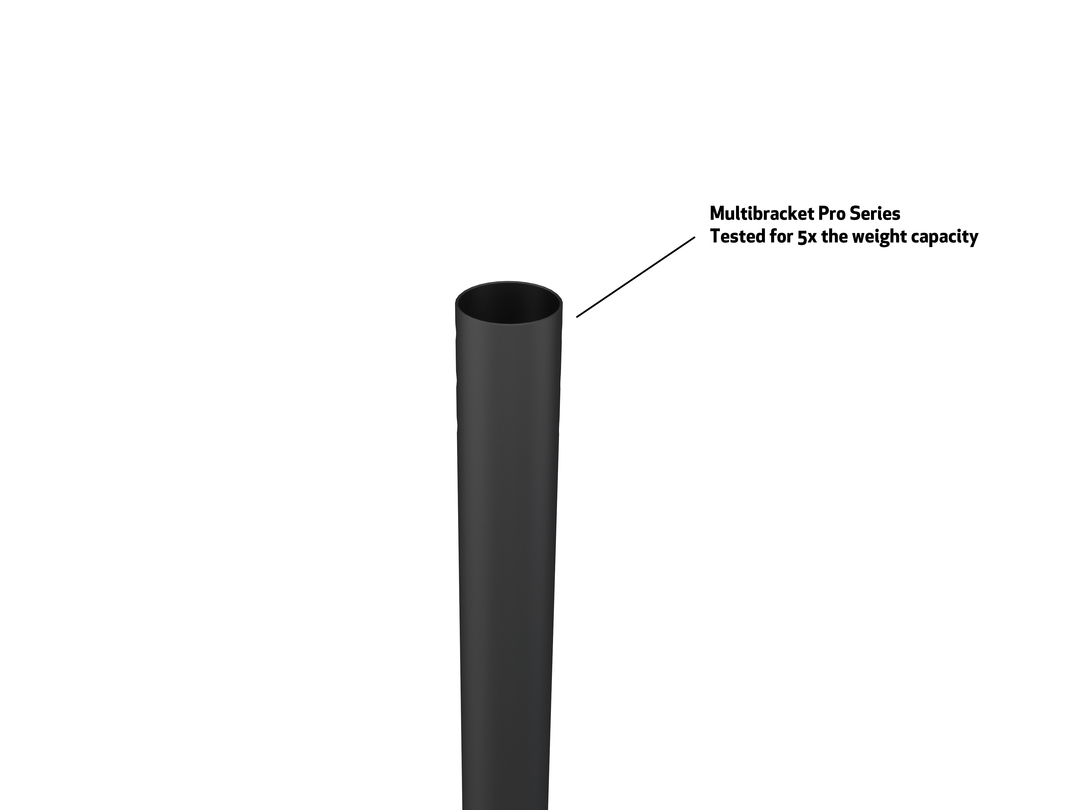

| Pillar length: | Min: 580mm to Max: 3150 mm from ceiling to VESA plate center Extension pipes: 3m (800mm*8pcs) included |
| Tilt: | Yes, -6°~+15° |
| Swivel: | Yes, 360° |
| Rotate: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE, TÜV Nord |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 103 x 36 x 18 cm |
| Package Weight: | 34.50 kg |
