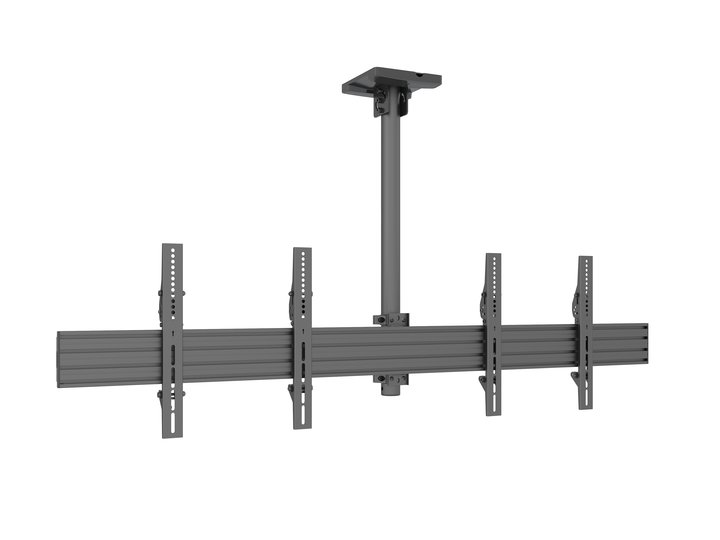

M Menu Board Mount Pro MBC2X1U VESA 600

Name: M Menu Board Mount Pro MBC2X1U VESA 600
Availability: InStock

M Menuboard Mount Pro MBC2X1U VESA 600 - Ceiling mount for LCD display, steel, 2m length, 2 screens, single side, tilt arms, VESA Max 600x400 - screen size: 40"-65" - black

Options

Variants that match your options:

Price

Not available

Price

In stock: 329

Delivery: Status: In Stock

Quantity

This value doesn't have the right number of decimals. This value is too small. This value is too large. This is required. Invalid value.

Quick response on email requests
Fast deliveries
Pan European warehousing

Description

Article no.: 7350073733934

M Menu Board Mount Pro MBC2X1U VESA 600 – Ceiling mount for 2 LCD displays – 2m aluminum rail – VESA Max 600x400 – screen size: 40"-65" – black

Product Overview

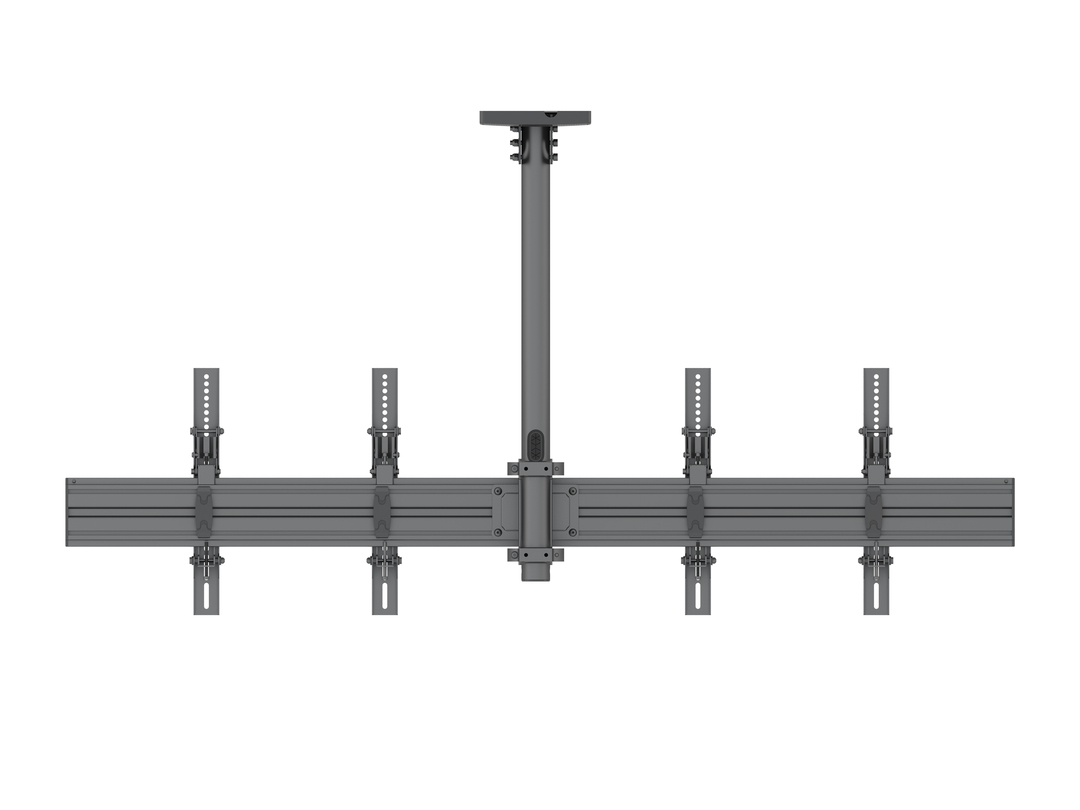

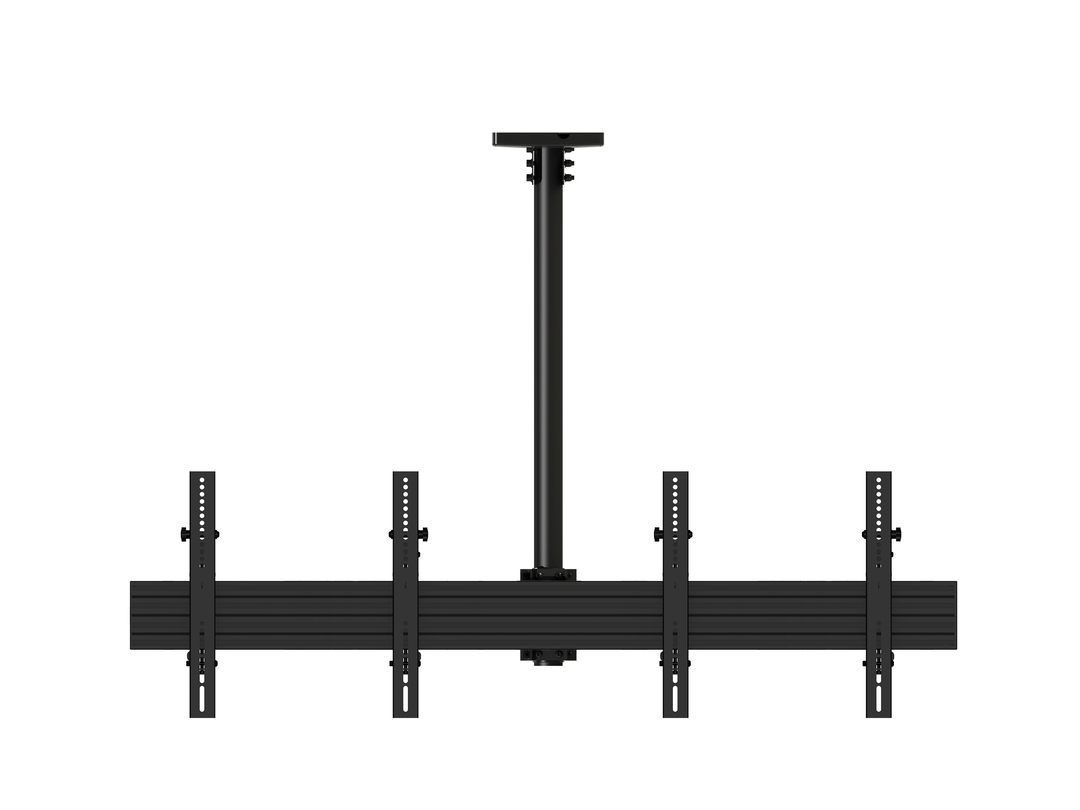

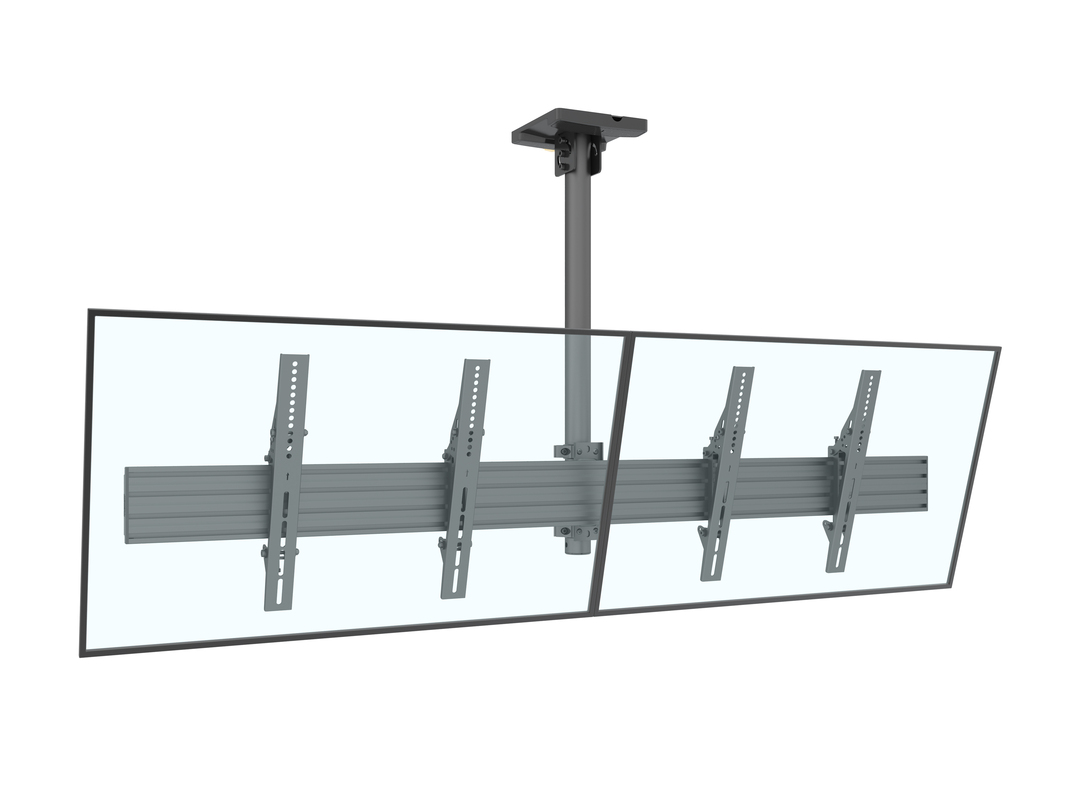

The M Menu Board Mount Pro MBC2X1U VESA 600 is a dual-screen, ceiling-mounted system tailored for commercial digital signage. Designed for screens between 40" and 65", this 2 -meter-wide solution enables perfect tilt and alignment—ideal for menu boards in QSRs, transportation, and retail settings.

Part of the Multibrackets Pro Series, the system is modular, installer-friendly, and future-ready. Featuring integrated cable management and a Scandinavian design philosophy, the MBC2X1U ensures a clean, professional installation every time. The mount supports both portrait and landscape orientation and can be expanded with additional Pro Series components.

Click to view larger images

Highlights

Dual-screen ceiling mount for 40"-65" displays
Supports VESA up to 600x400 (adapters included)
2m aluminum rail for side-by-side configuration

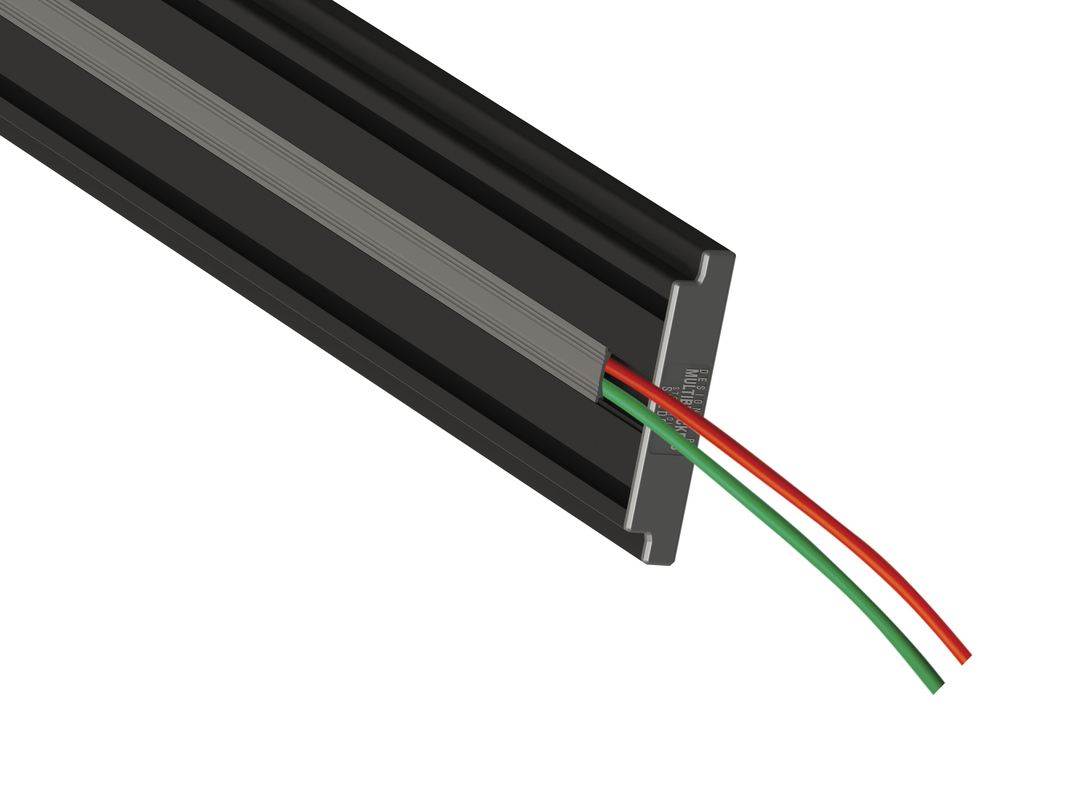

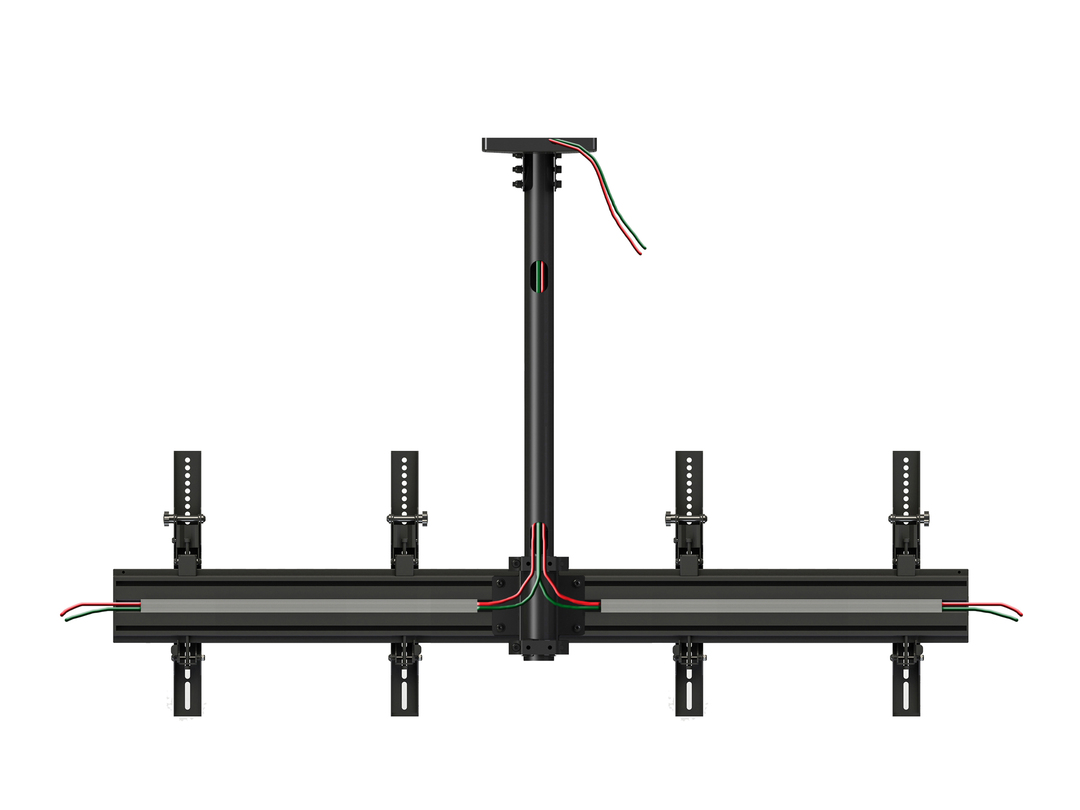

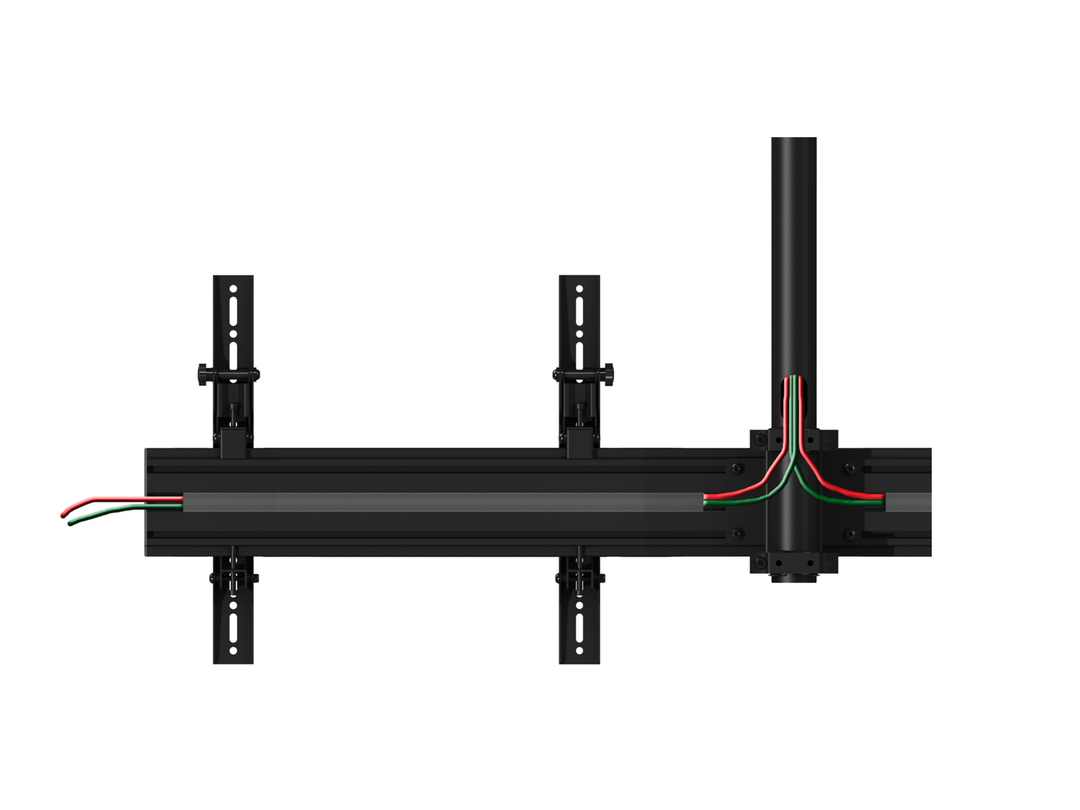

Integrated cable management for clean setup
Power Click™ install system for quick, secure mounting
Portrait or landscape screen orientation
Expandable with additional Pro Series modules

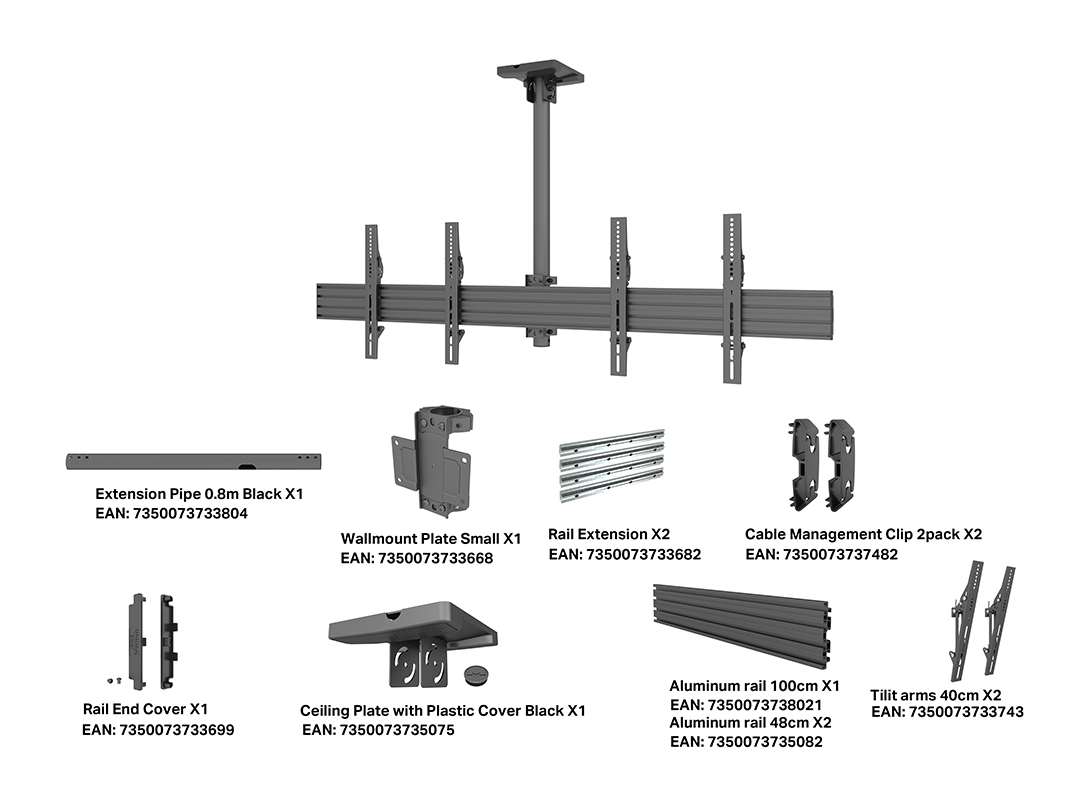

Includes ceiling plate and complete hardware kit

Multibrackets Pro Series configurations are design protected by Multibrackets via:
EU Community Design Protect 003641406-0002

Click here to reach Multibrackets Pro Series overview page.

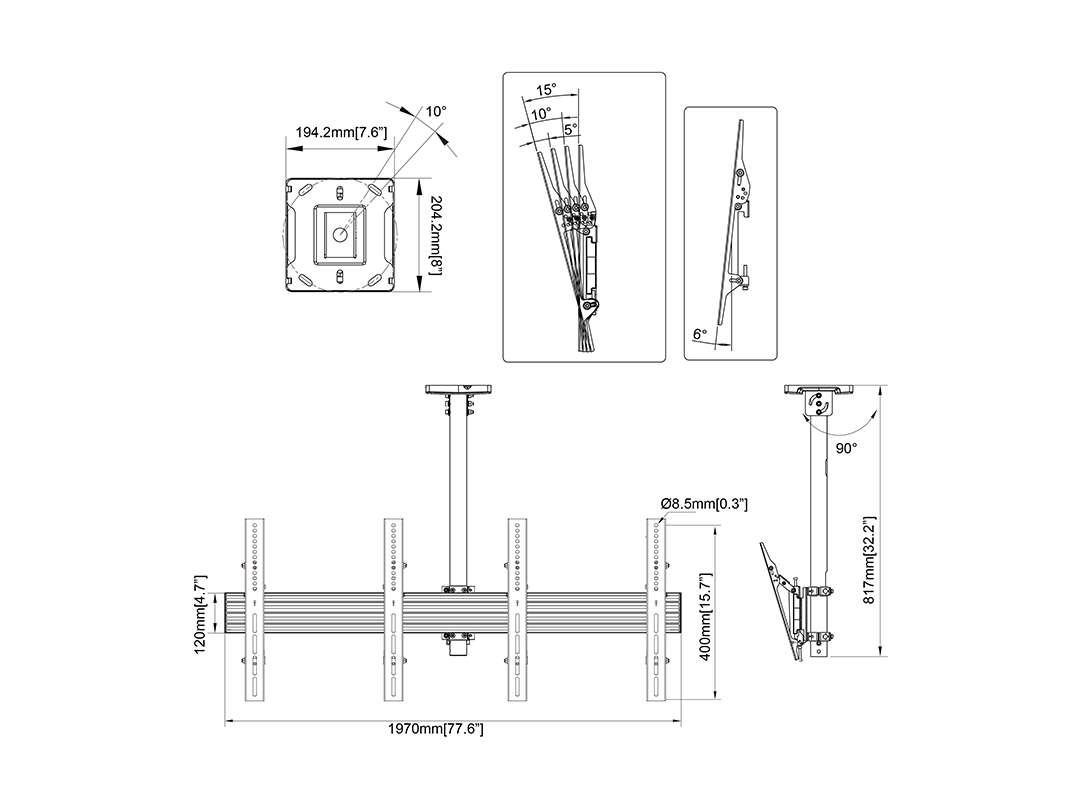

Specification
M Menuboard Mount Pro MBC2X1U VESA 600
Article No:	7 350 073 733 934
For screen size:	40”-65"
Type:	Single Side MBC2X1U
Universal & VESA standard:	Adjustable from 100x100 , 100x200 to 600x400 max Optional VESA 800x600
Material:	Steel, Aluminium
Color:	Black
Surface Finish:	Powder coating/Anodic Oxidation
Weight:	25 kg
Measurements	222x338x20 cm
Max Load:	30 kg per screen

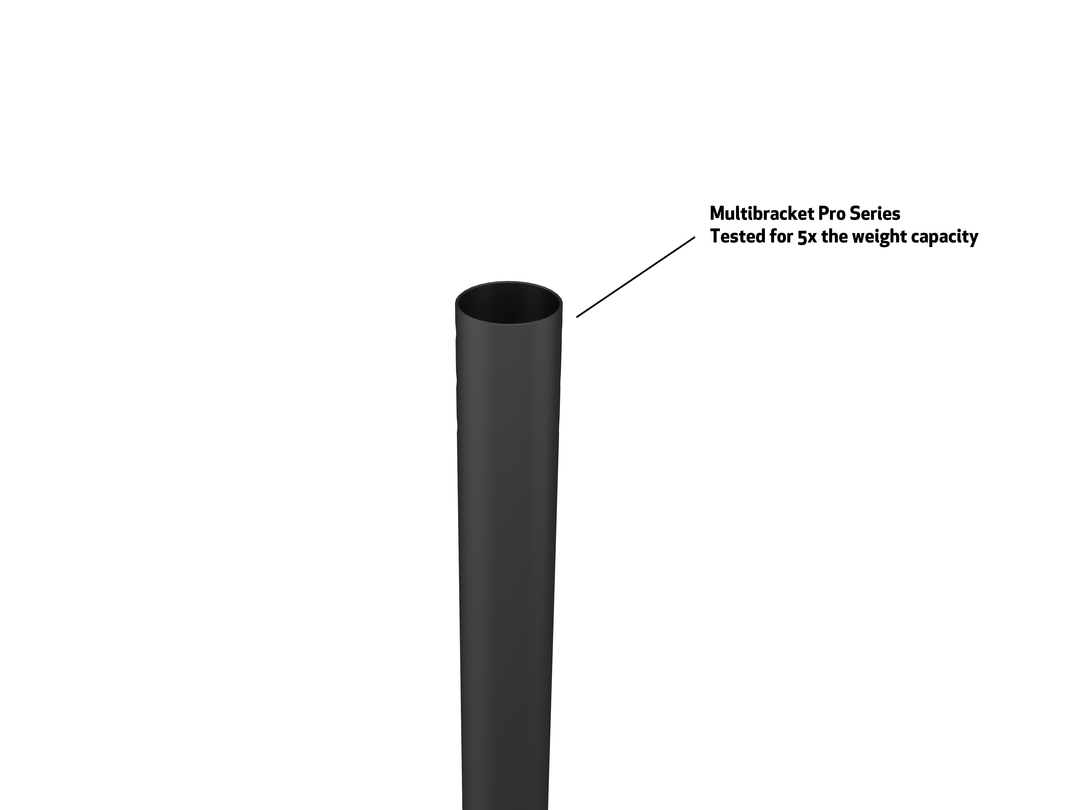

Pillar length:	Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*2pcs) included
Tilt:	Yes, 0~15°
Swivel:	Yes, 360°
Rotate:	Yes, ±4°
Cable Management:	Yes
Options:	Extension pipes : 0.8m, 1.5m, 3.0m
Certifications:	CE
Warranty:	5 years
