M Menu Board Mount Pro MBC3X1U Curved
Options
Variants that match your options:
In stock: 201
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7340234814305
Product overview

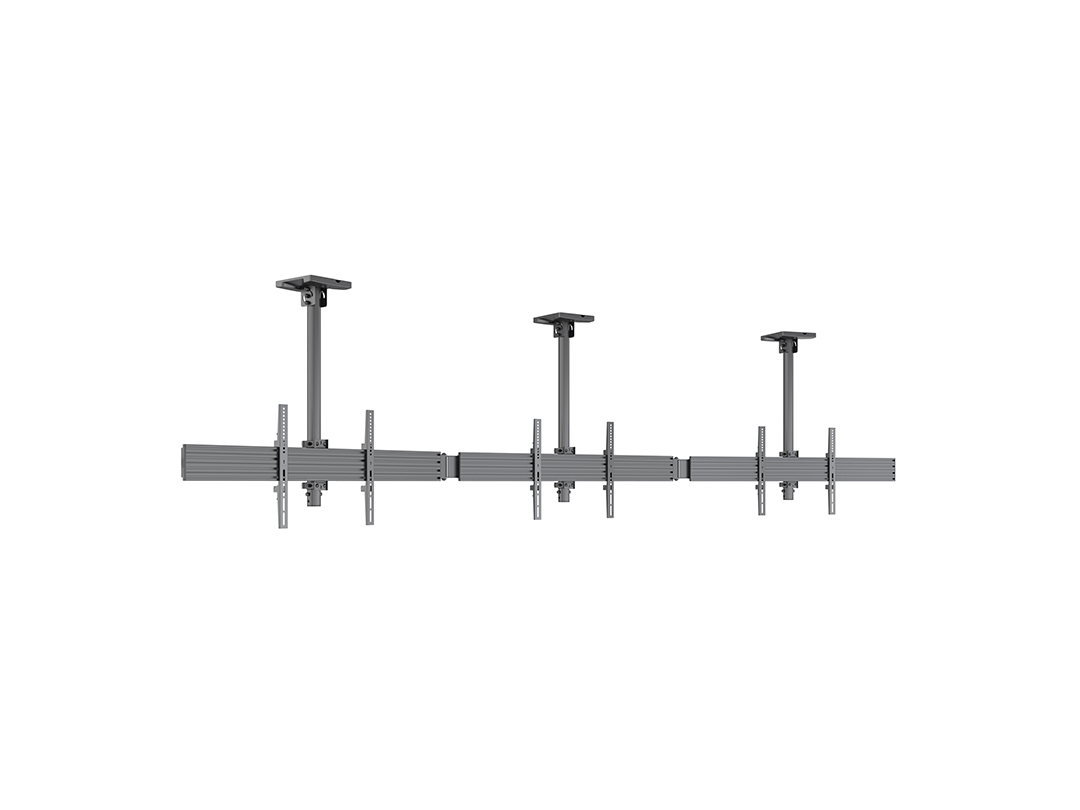

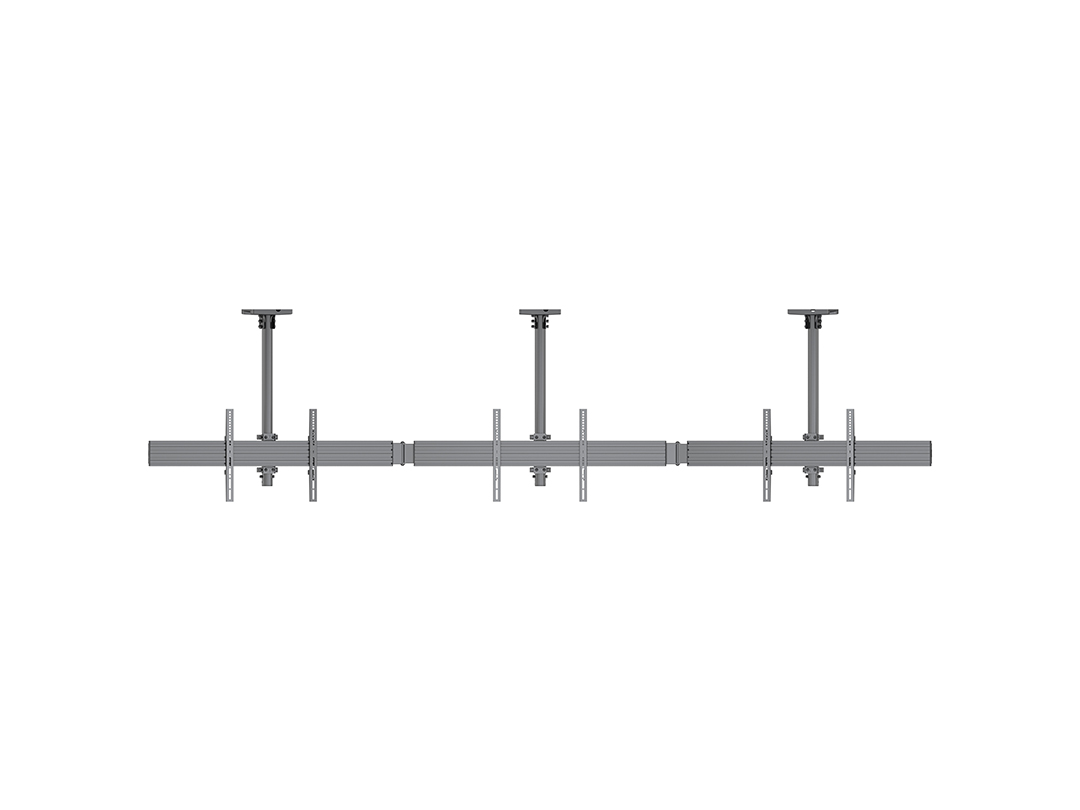

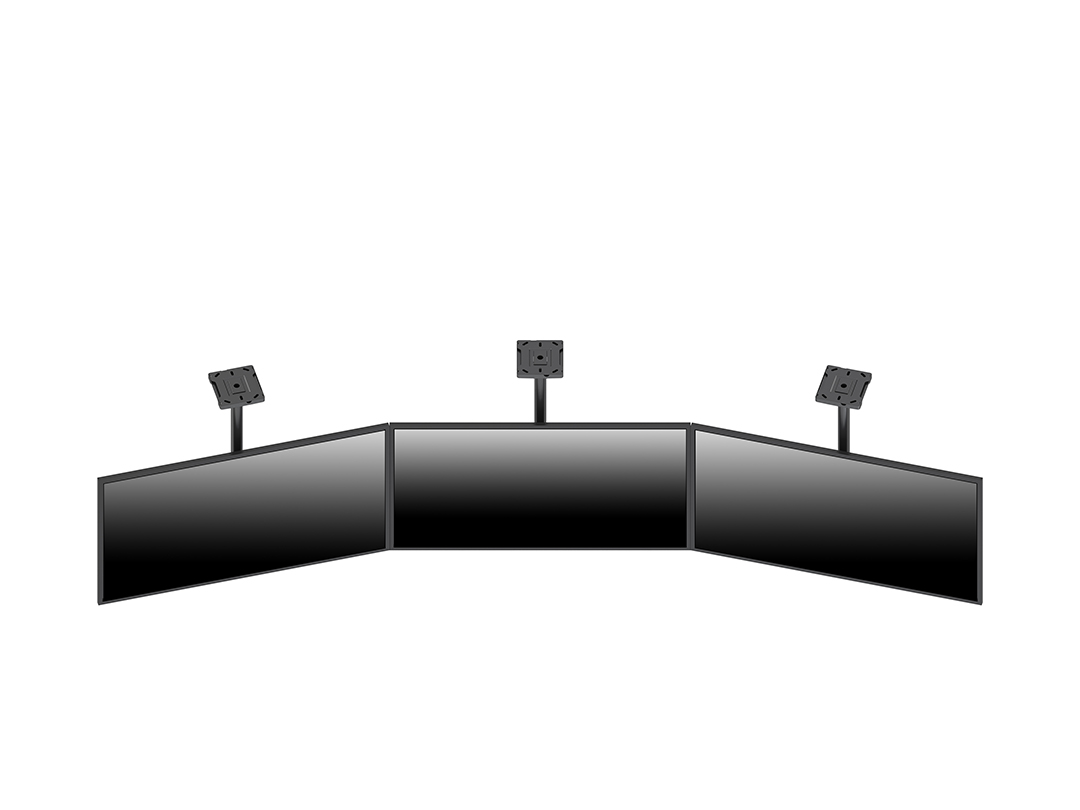

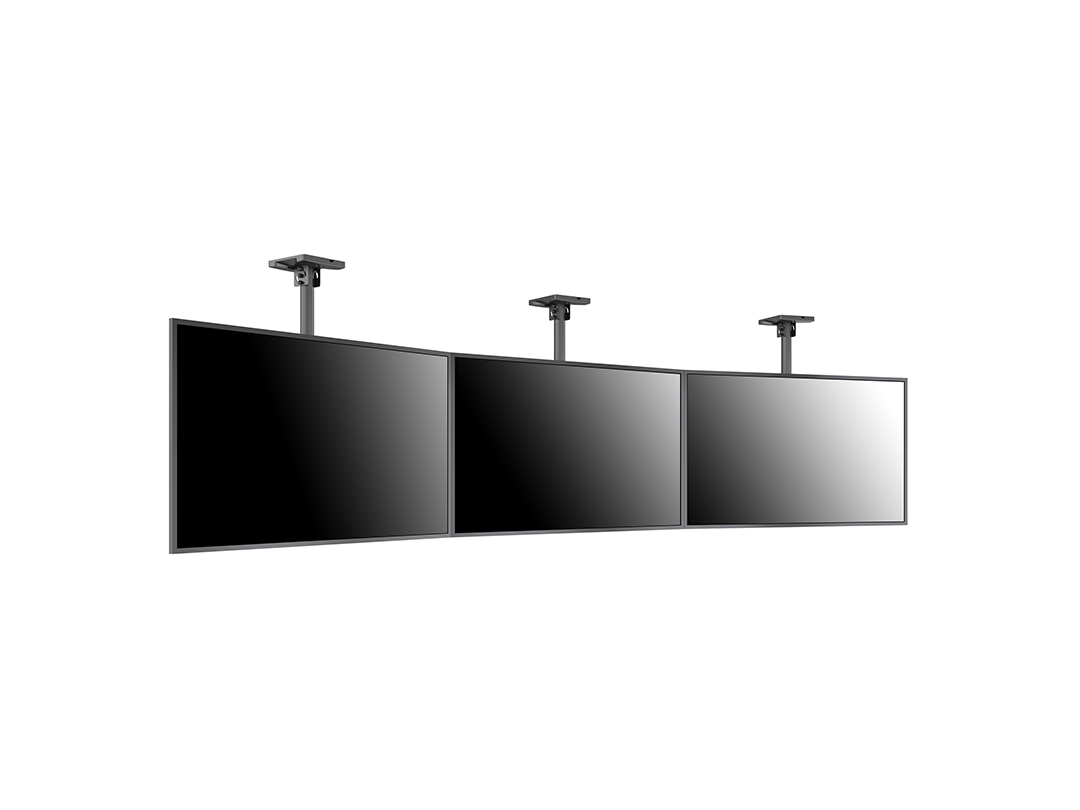

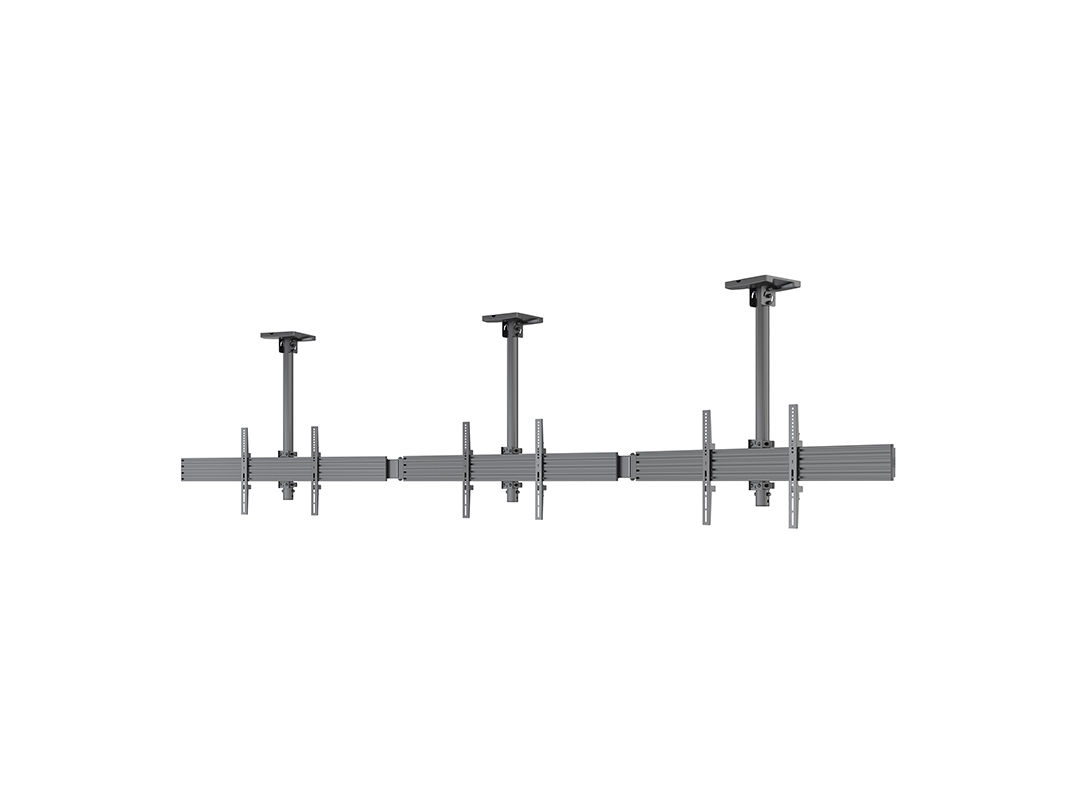

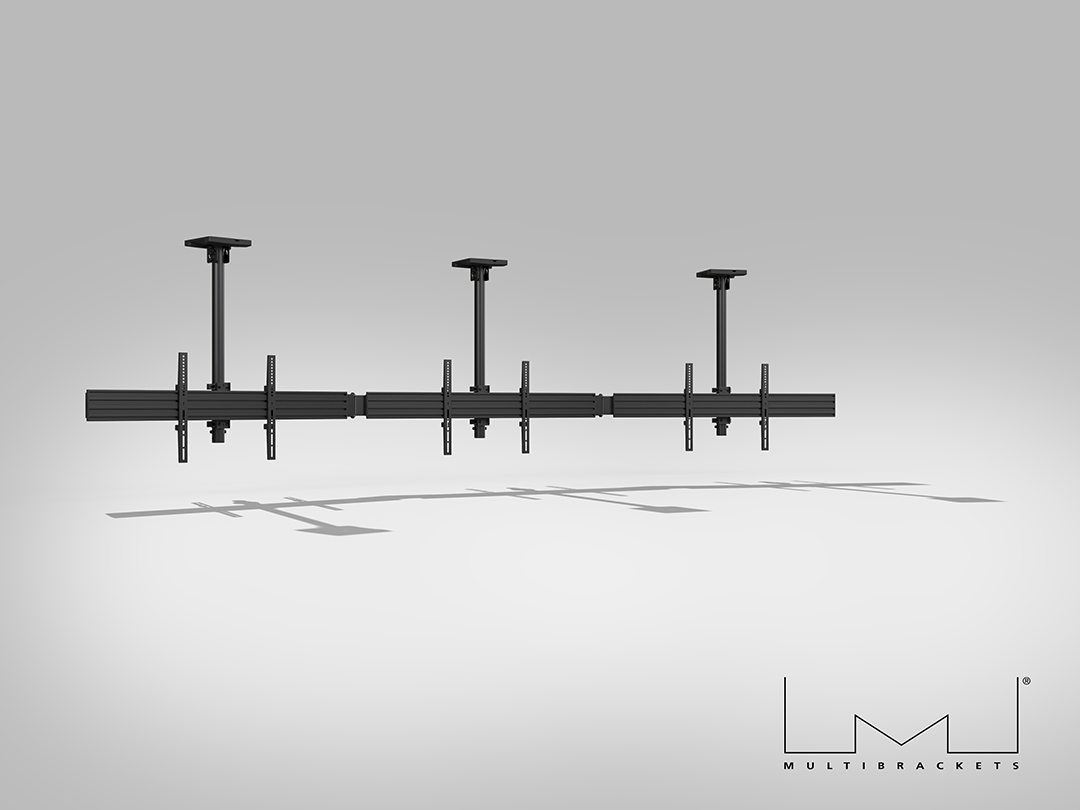

The Multibrackets M Menu Board Mount Pro MBC3X1U Curved is a professional ceiling mount solution designed for three displays mounted side-by-side on a single rail. Ideal for digital signage in retail, control rooms, or corporate environments, it offers robust performance, clean aesthetics, and flexible configuration options.
Part of the Pro Series, this mount features a modular aluminum rail system with integrated cable management. It supports both portrait and landscape modes, tilt functionality, and allows easy adjustments post-installation.
Designed with Scandinavian precision, the MBC3X1U Curved blends visual minimalism with industrial strength—making it a go-to solution for large-scale ceiling-mounted display arrays.
Highlights
- VESA support up to 600x400 mm
- Integrated cable management system
- Power Click system for safe, quick installation
- Supports portrait or landscape screen orientation

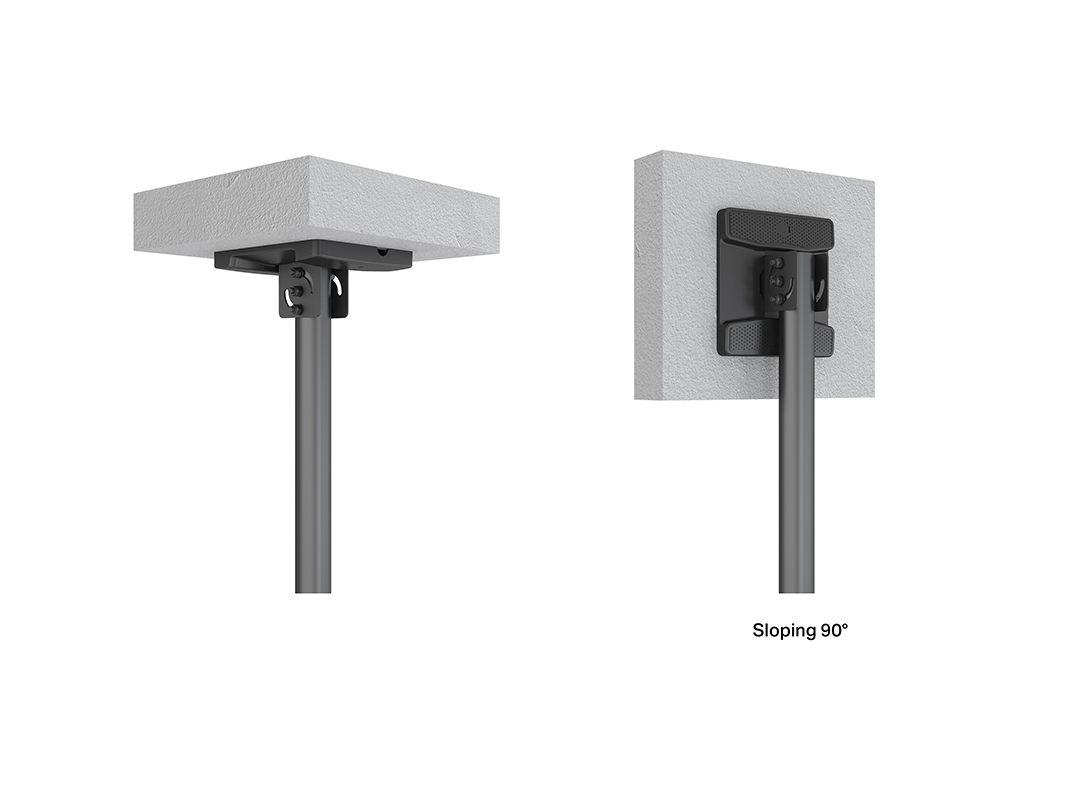

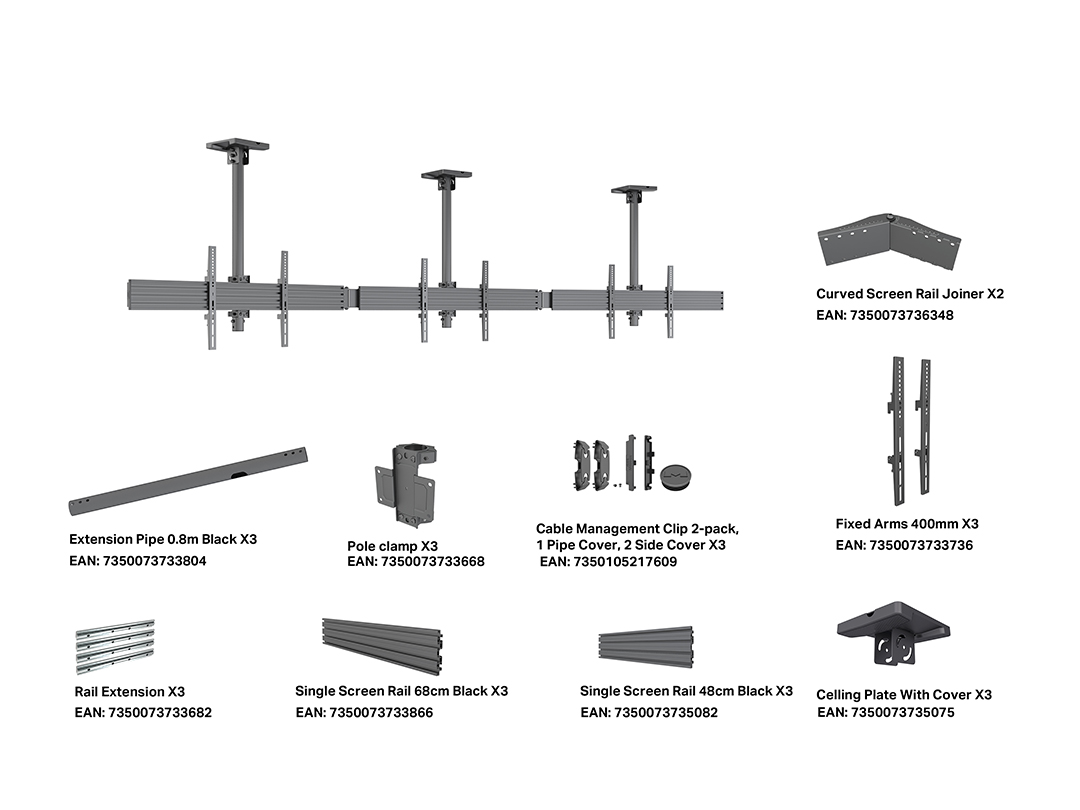

- Ceiling plate and hardware kit included
- Modular design for future reconfiguration
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.

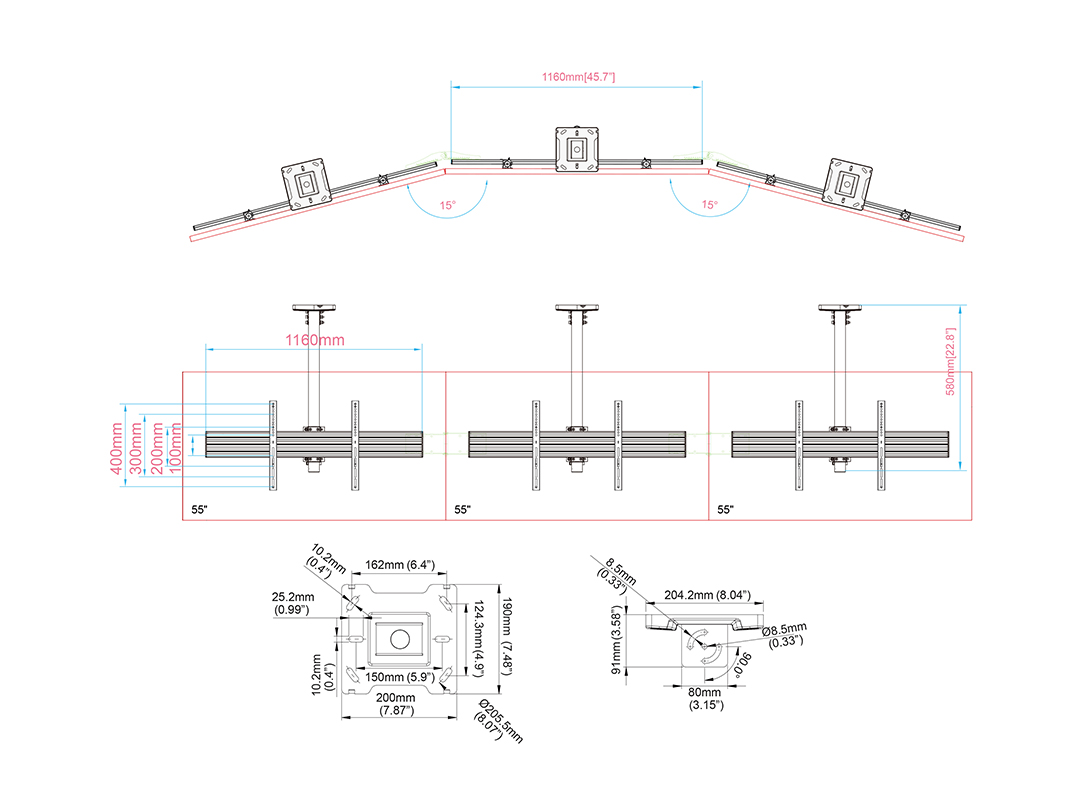

| Specification | |
| M Menu Board Mount Pro MBC3X1U Curved | |
| Article No: | 7 340 234 814 305 |
| For screen size: | 40”-65" |
| Type: | Single MBC3X1U Curved |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max Optional VESA 800x600 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 31 kg |
| Measurements | 127.8x35.5x22.5cm |
| Max Load: | 30 kg per screen |
| Tilt: | 0° |
| Swivel: | 0° |
| Rotate: | 0° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE, TÜV Nord |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 127.8x35.5x22.5cm |
| Package Weight: | 33 kg |
