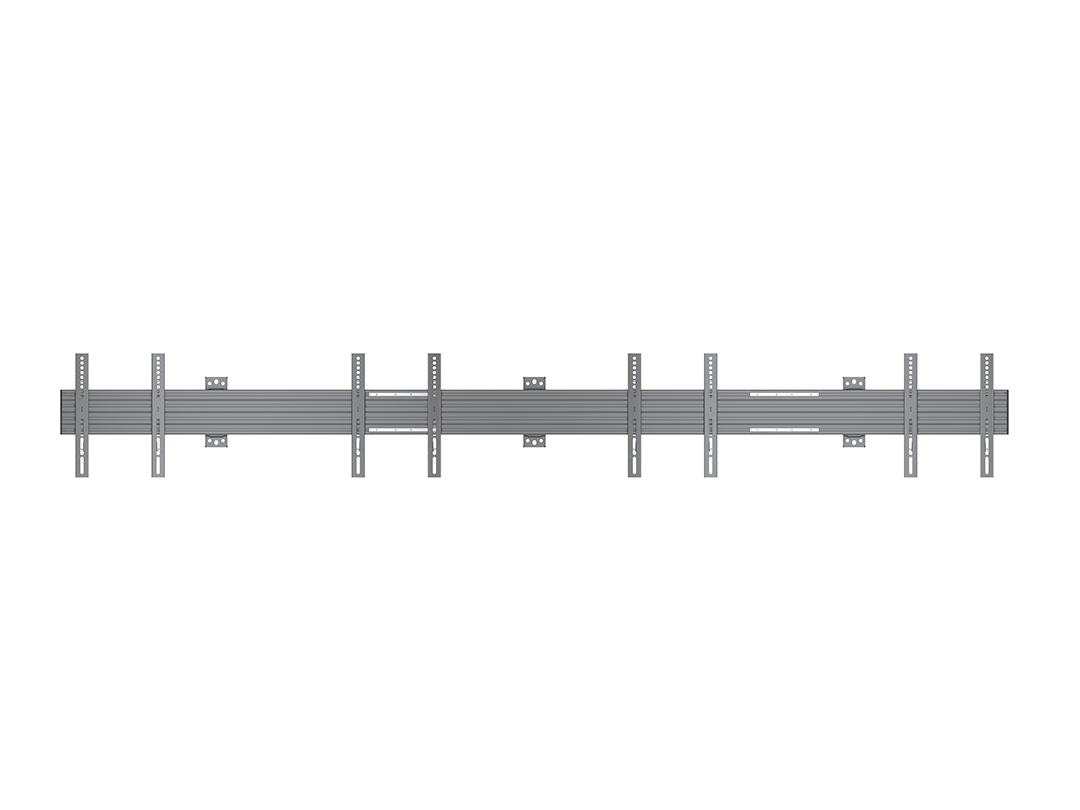

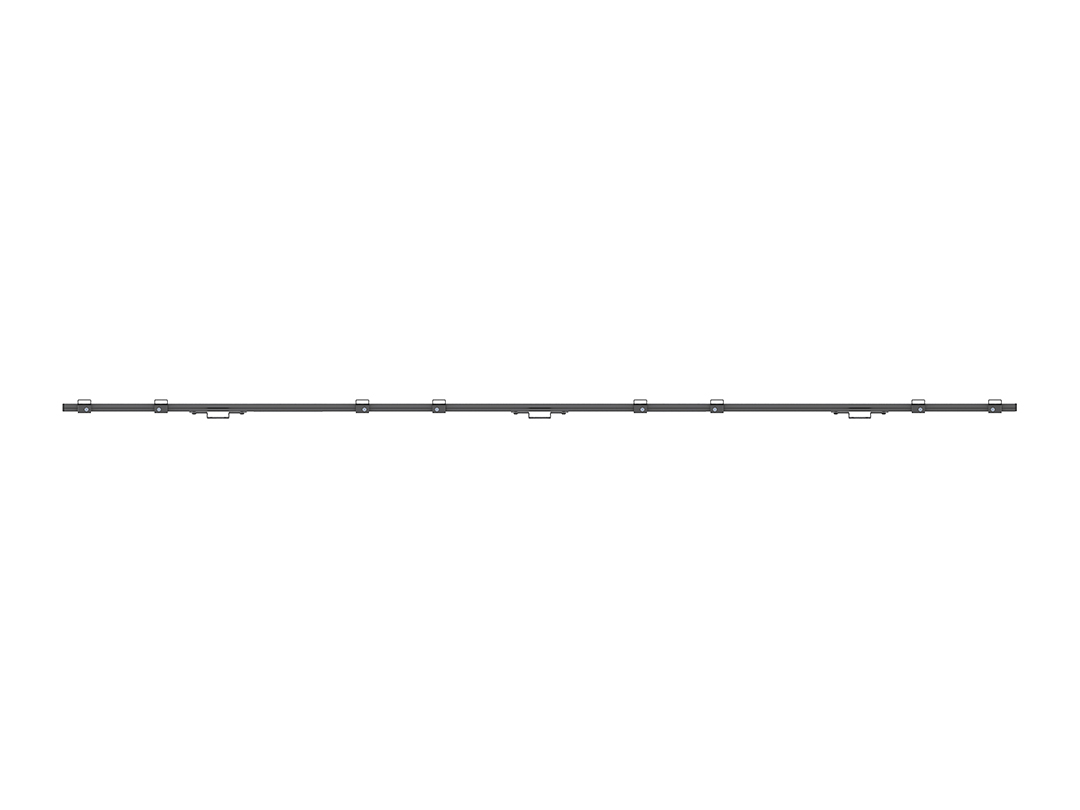

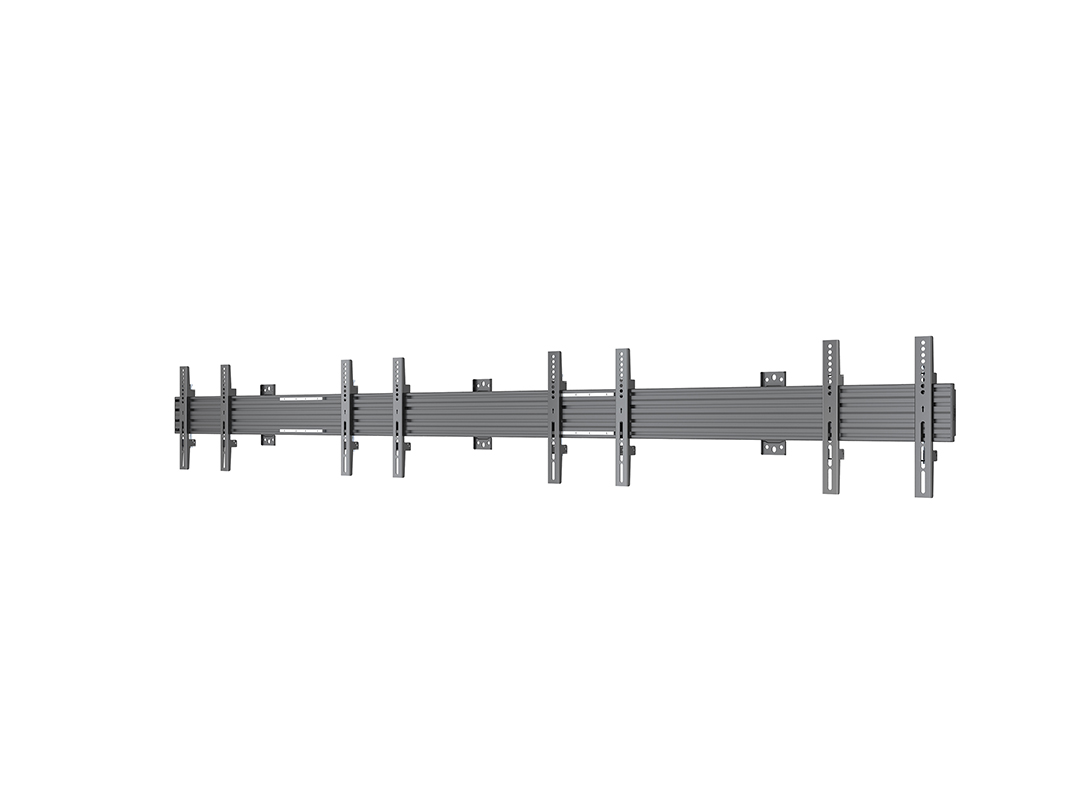

M Wallmount Pro MBW4X1U VESA 300 Fixed
Options
Variants that match your options:
In stock: 81
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105216213
Product overview
The M Menu Board Wall Mount Pro MBW4X1U VESA 300 Fixed is a modular and installer-focused wall mount designed for professional single-display digital signage installations. Built on the Pro Series aluminium rail system, it offers a robust and highly adaptable construction with integrated cable management for a clean and efficient installation workflow. The modular design allows installers to configure, update and expand the solution as requirements evolve, ensuring long-term flexibility in a wide range of commercial environments. With its clean Nordic aesthetics and precision-engineered components, the mount delivers a refined and durable result suitable for public spaces. Ideal for menu boards, videowalls and other large-screen signage applications, the Pro Series provides the reliability, scalability and installation efficiency required in modern AV projects.
Highlights

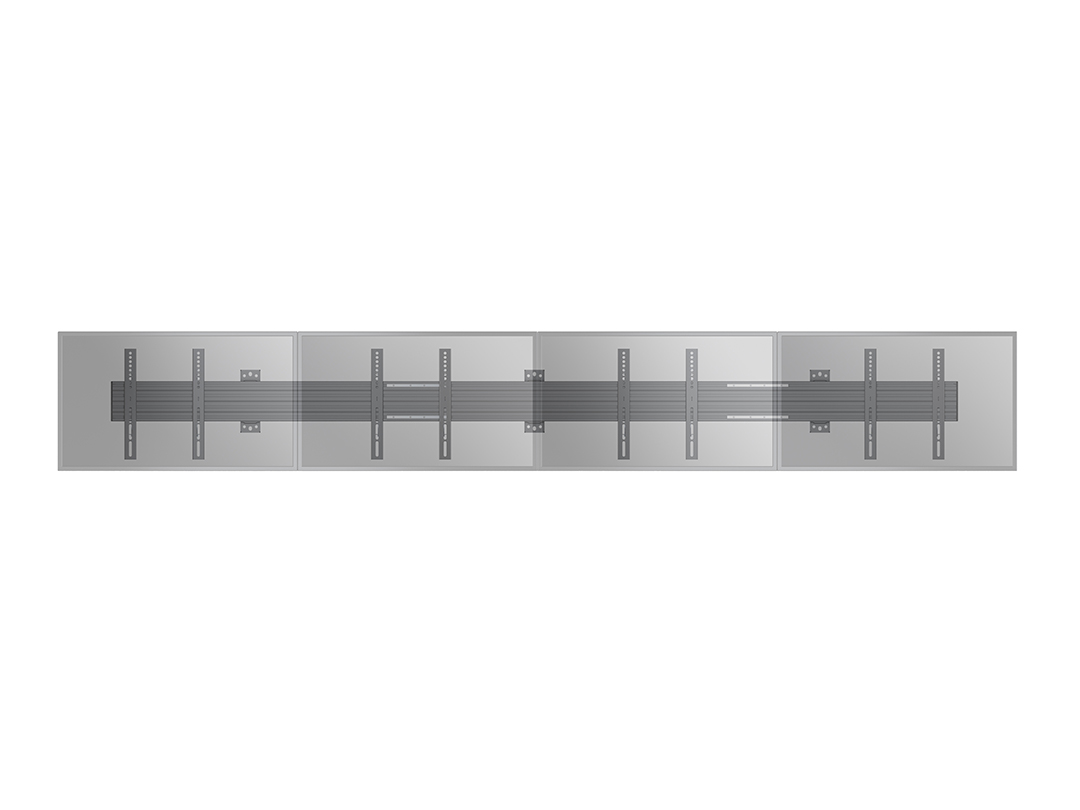

- A flexible system product ideal for video walls and menuboards
- VESA 300x300

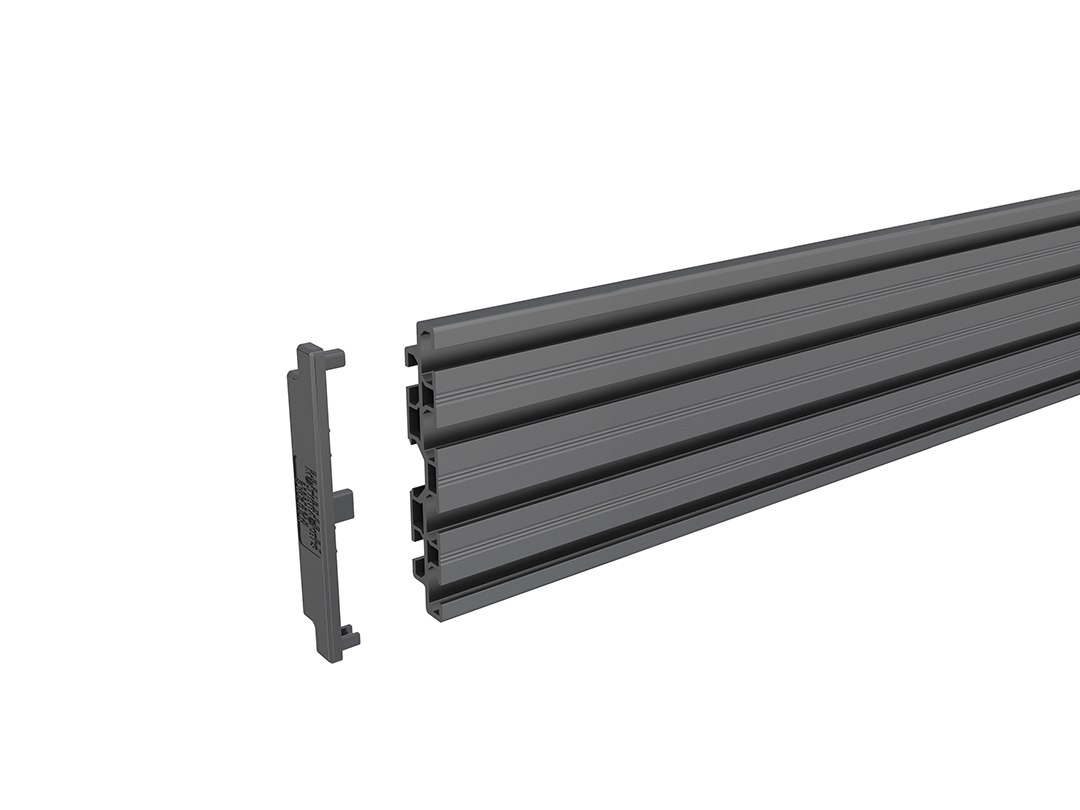

- Module based aluminum rails creates desirable length without cutting
- Integrated cable management throughout the entire solution
- Power click install for an easy, fast and safe installation
- Dual wallplates included

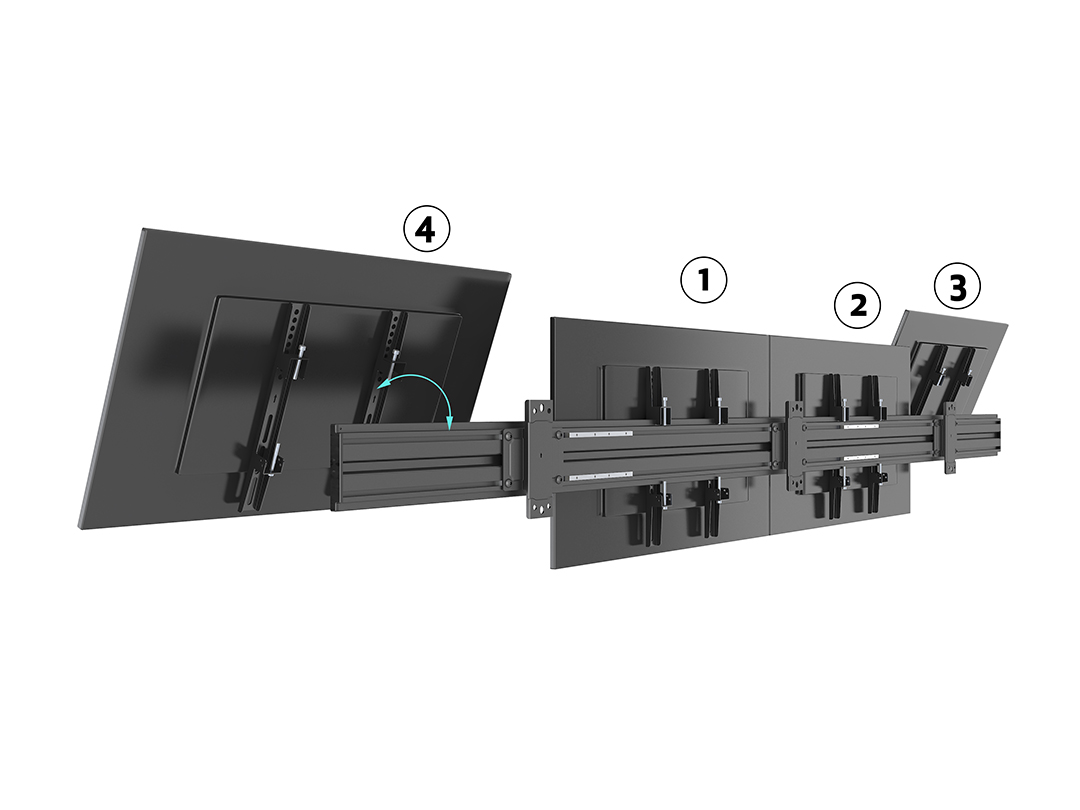

- Portrait or landscape position of screen possible

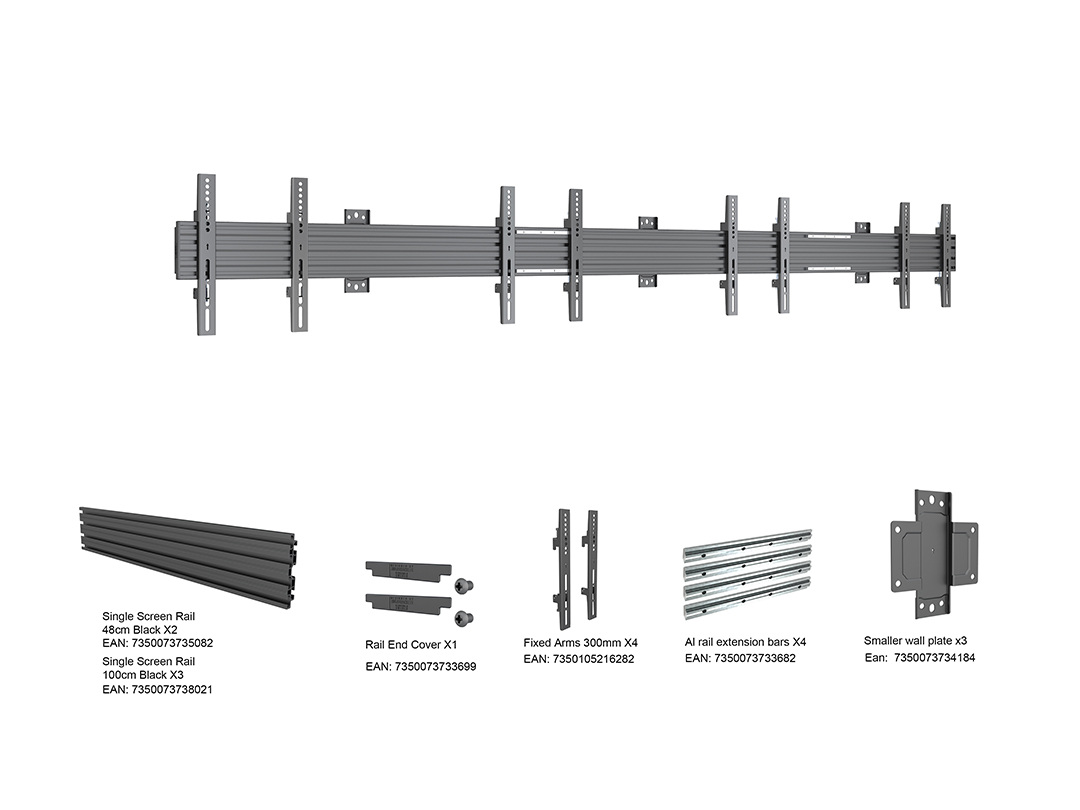

- Hardware kit included
Selected models are TÜV approved.
MB Pro Series is design protected by Multibrackets
| Specification | |
| M Wallmount Pro MBW4X1U Fixed VESA 300 | |
| Article No: | 7 350 105 216 213 |
| For screen size: | 32”-50" |
| Type: | Single Side MBW4X1U |
| Universal & VESA standard: | Adjustable from 75x75 to 300x300 max |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 19 kg |

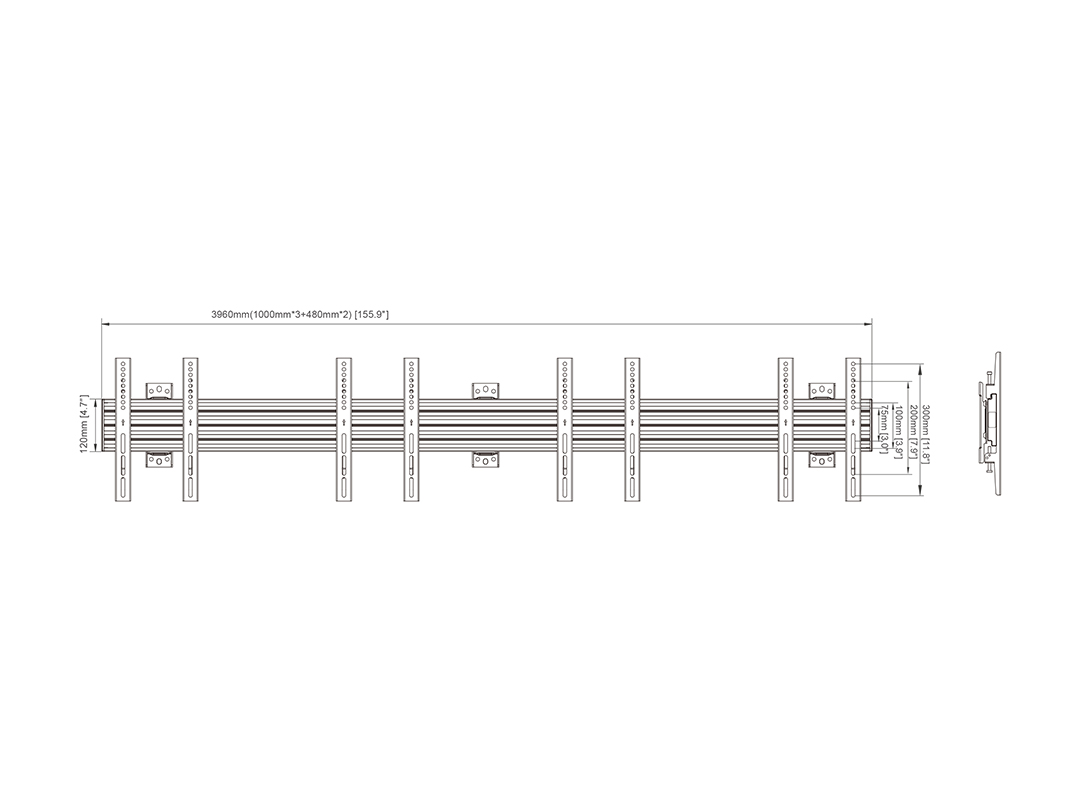

| Measurements | 104.5 x 15 x 16 cm |
| Max Load: | 50 kg per screen |

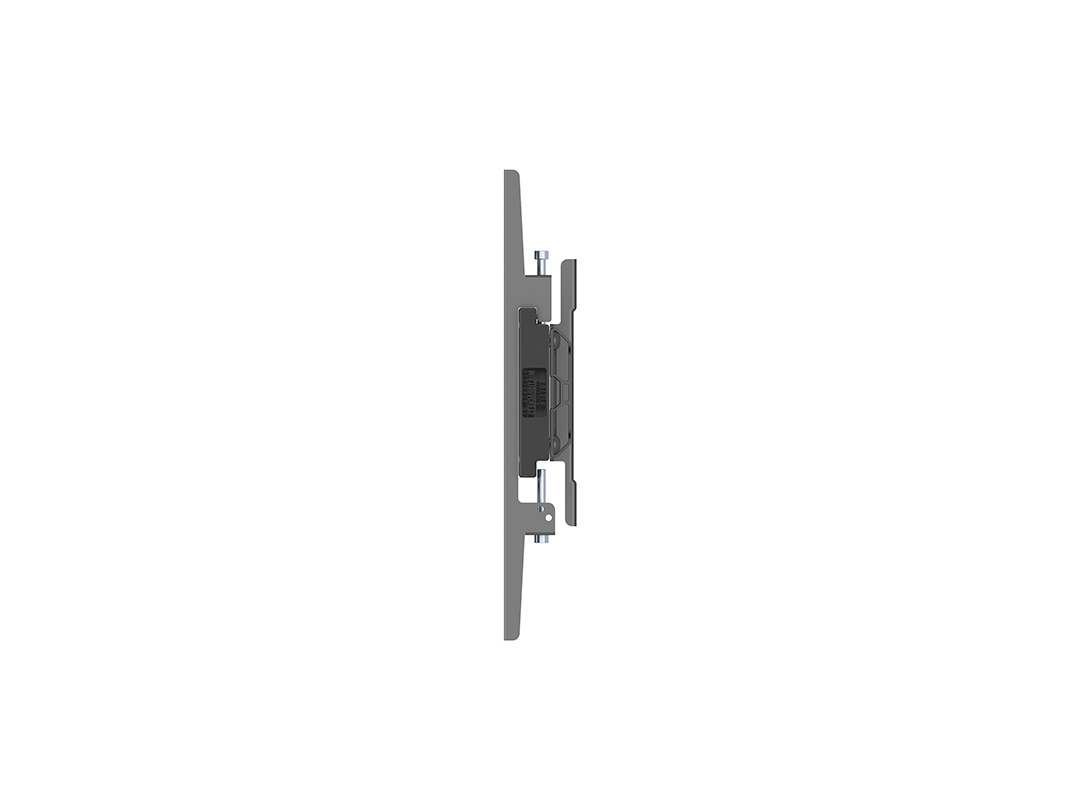

| Tilt: | No, +-0° |
| Swivel: | 0° |
| Rotate: | 0° |
| Cable Management: | Yes |

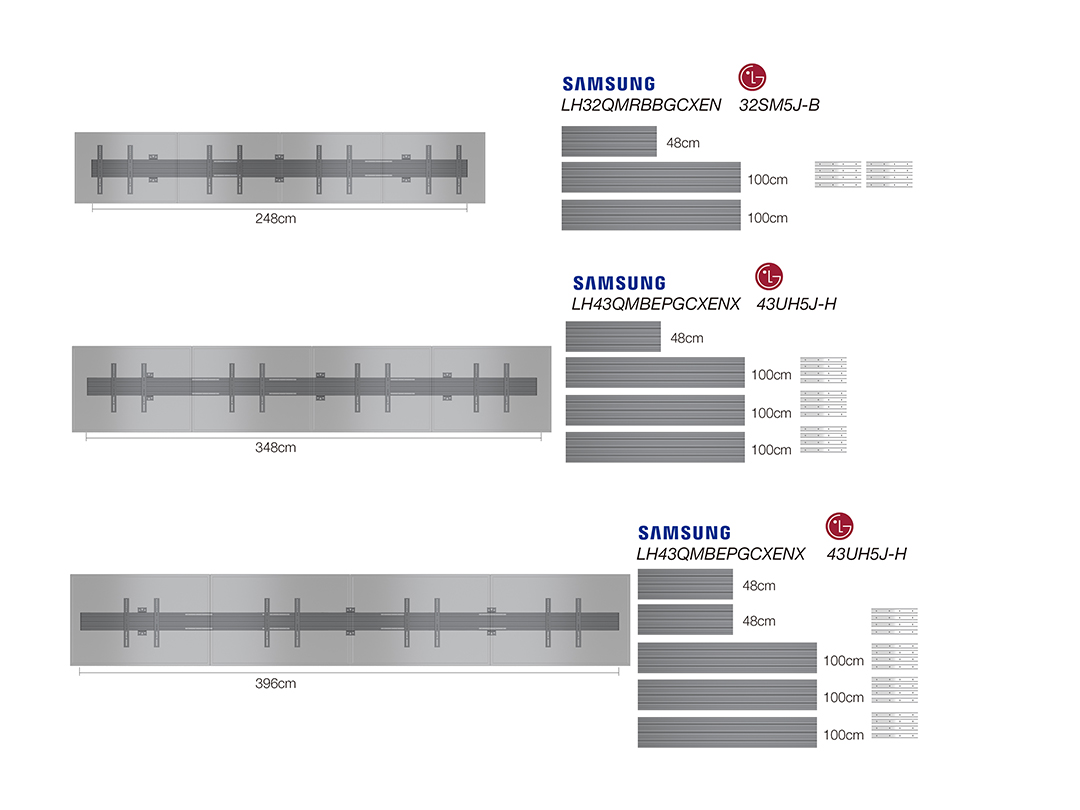

| Installation: | Samsung: LH32QMRBBGCXEN, LH43QMBEPGCXEN, LH50QMBEBGCXEN LG: 32SM5J-B, 43UH5J-H, 49UH5J-H |
| Options: | M Pro Series Parts |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 104.5 x 20 x 17 cm |
| Package Weight: | 16 kg |
