M Projector Mount HD 345-1300-2250-3200-4150mm
Options
Variants that match your options:
In stock: 64
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073735235
Product overview
The M Universal Ceiling Mount supports projectors up to 15kg, with VESA compatibility ranging from 180mm to 400mm. It features height adjustment from 345mm to 4150mm, allowing for precise placement and orientation using a lockable ball joint.
The design minimizes surface area around the projector, reducing heat buildup and extending lamp life. The articulated and telescopic arms ensure compatibility with various projector models.
Equipped with fine-tune adjustment technology, this mount simplifies positioning, saves installation time, and allows for easy future projector or screen adjustments.
Click to view larger images
Highlights
- Heavy Duty: Supports up to 15 kg
- Fast Installation: Innovative design for quick setup
- Versatile: Compatible with various projector brands and future upgrades
- Adjustable: Projector positioning from 345-4150mm from the ceiling
- Dual Mounts: Suitable for both flat and sloping ceilings
- Precise Adjustments: Smart fine-tuning via lockable ball joint
- Cable Management: Integrated system for concealing cables
- Complete Kit: Includes arm, projector mount, and all hardware
- Pre-Assembled: Partially pre-assembled for faster installation
- Projector Cage: Compatible with Multibrackets Projector Cage for added security (optional)
| Specification | |
| M Projector Mount HD 345-4150mm | |
| Article No: | 7 350 073 735 235 |

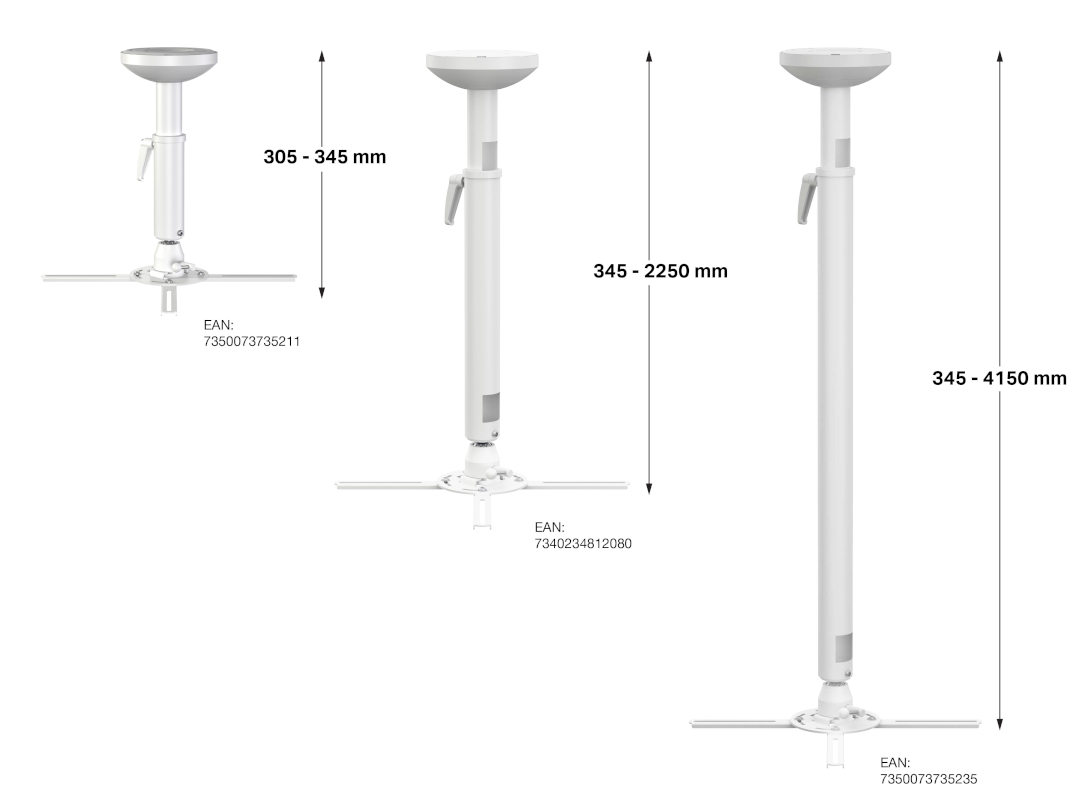

| Height: | 345-1300-2250-3200-4150mm |
| Distance from the ceiling minimum: | 345 mm |
| Distance from the slope ceiling minimum: | 1000mm |
| Weight: | 2 kg |
| Colour: | White |
| Max load ceiling: | 15 kg |
| Tilt: | front /back +/-20; left/right+/-20º |
| Rotate: | 360º |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 115.7 x 17.5 x 8.7 cm |
| Package Weight: | 6.00 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 4 pcs |
| Package Measurements: | 118 x 20 x 38 cm |
| Package Weight: | 24.40 kg |
High Resolution Photos Drawing PDF Product Fact Sheet Manual 5228 5235 Additional manual how to reassemble.pdf
