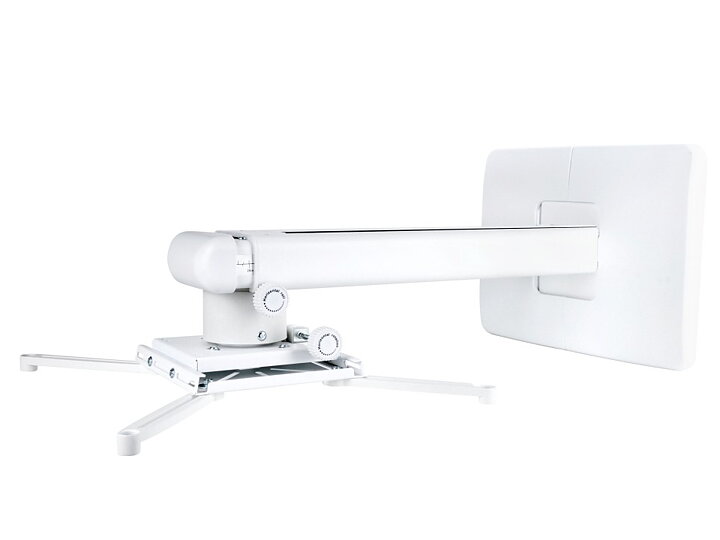

M Projector Mount Short Throw Deluxe 300-700 Medium

Product overview

The all-new M Universal Projector Mount Short Throw Deluxe is designed to maximize the performance of your short throw projector by allowing close-up placement above the audience while saving valuable space. Its versatile adjustment range (325-740 mm from the wall) and ±5° tilt enable precise positioning for optimal projection.

This mount supports projectors up to 25 kg and includes everything needed for a complete installation — wall plate, mounting hardware, and a compact, cleanly designed short throw arm compatible with most short throw projectors on the market. The built-in fine tune adjustment offers fingertip control to accommodate specific projector weights and ensures exact alignment with 3-axis adjustment.

Ideal for multi-brand projector use or users anticipating future projector upgrades, the mount ships fully assembled for easy installation.

Highlights

• Fast installation with innovative, compact design
• Projector distance from wall adjustable between 325 mm and 740 mm (centered)
• Integrated lateral shift and telescopic slide extension
• Fine tune adjustment with 3-axis alignment
• Concealed cable management system
• Includes short throw arm and projector mount
• Complete hardware kit for nearly any wall installation
