M Public Video Wall Mount Push Slim
Options
Variants that match your options:
In stock: 179
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073739967
Product Overview

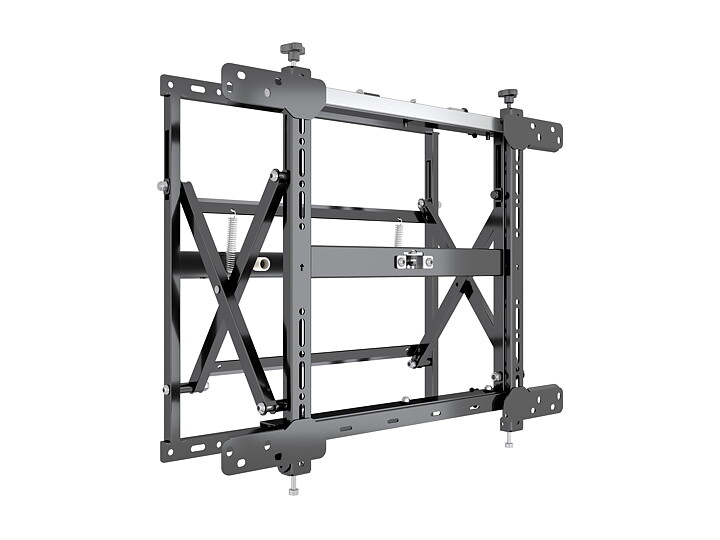

The M Public Video Wall Mount Push Slim is one of the thinnest and easiest to install video wall mounts available. Its slim-to-wall design allows displays to fit closer to the wall than most other video wall mounts, combining a sleek appearance with professional-grade performance.
Designed specifically for video wall applications, it offers fast installation, easy configuration, and simplified maintenance. Its tailored pantograph alignment system and tool-less 8-knob fine adjustments enable precise alignment of each screen in depth, height, and side position—saving installers hours of adjustment work.

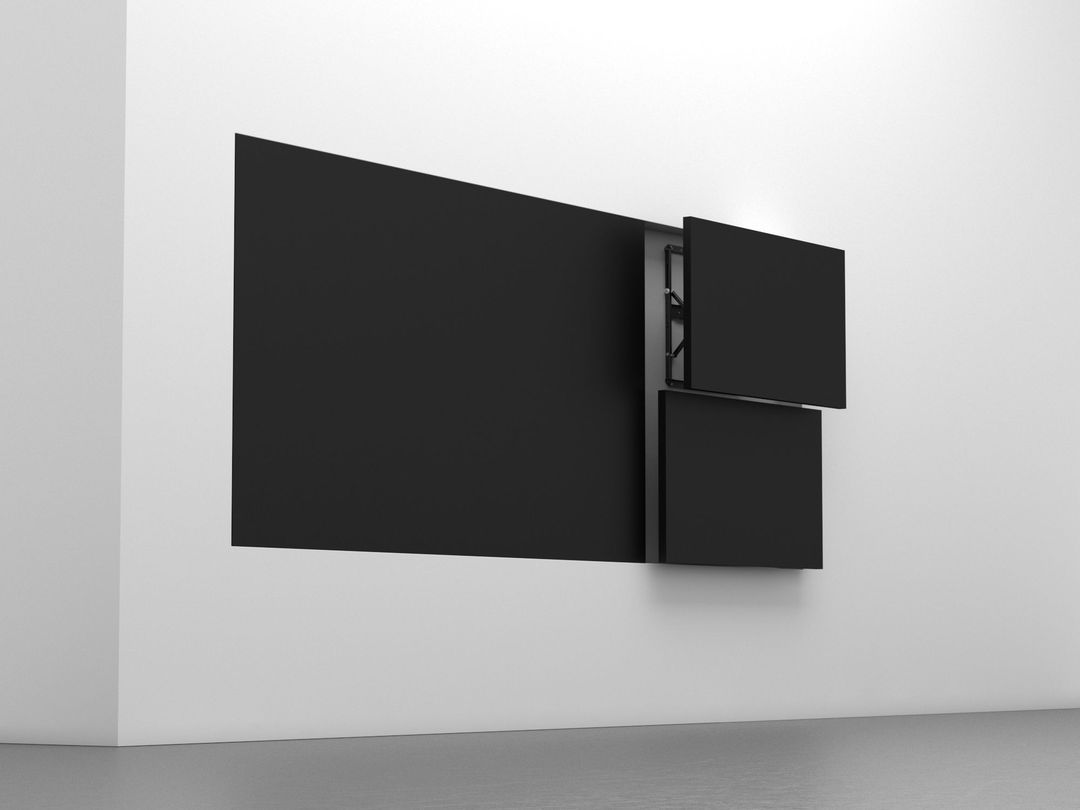

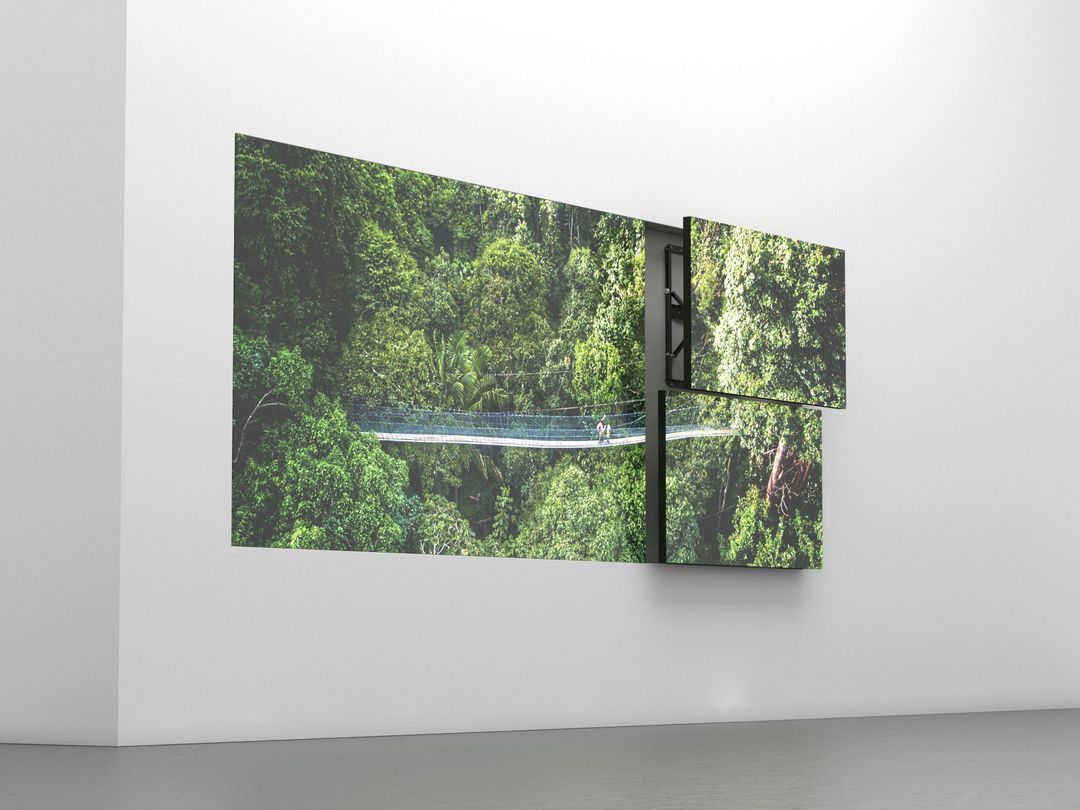

The pop-out feature allows quick service access to any screen without needing to remove adjacent panels, making maintenance simple even in recessed or surrounded video walls. The scissor arm construction smoothly extends and retracts the display with minimal effort.
Constructed from heavy-duty iron with an epoxy coating, the mount supports screens weighing up to 35 kg in the popped-out position. This ensures durable, long-lasting performance for demanding video wall installations.
Click to view larger images
Highlights

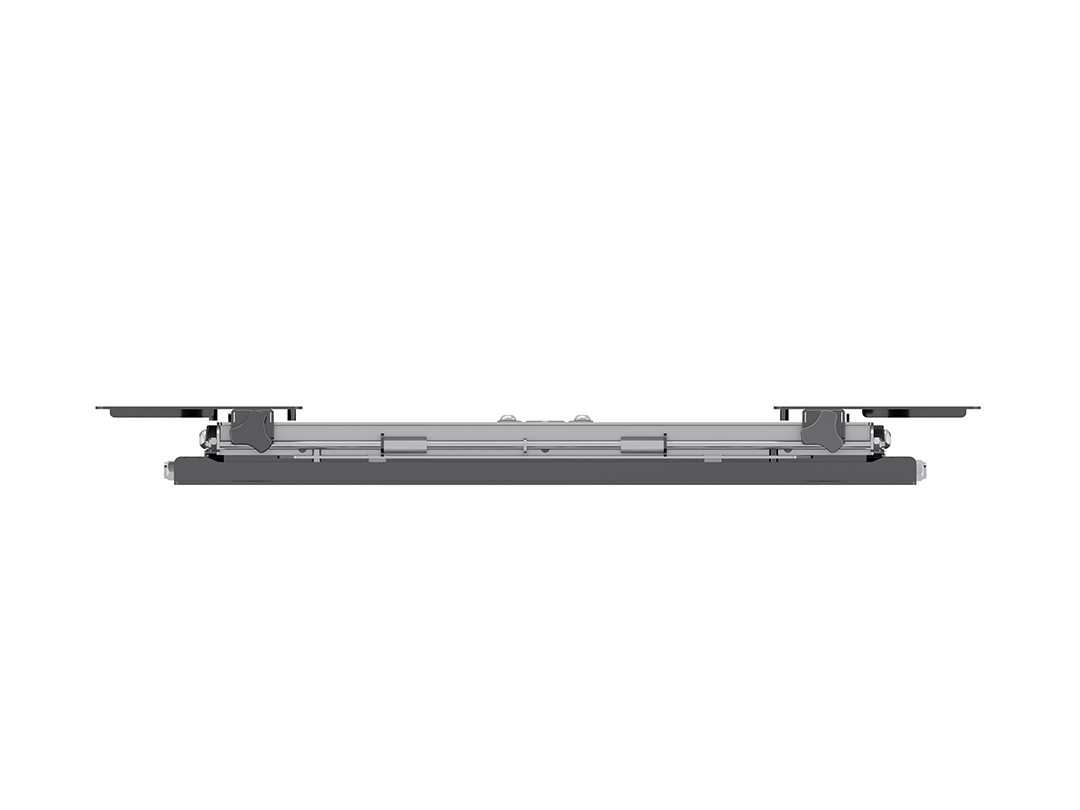

- Super slim video wall construction for minimal gap to the wall
- Heavy-duty iron structure supporting up to 35 kg
- Fast, simple, and seamless installation
- VESA up to 600x400 landscape or 400x600 portait
- Modular design enabling unlimited video wall configurations

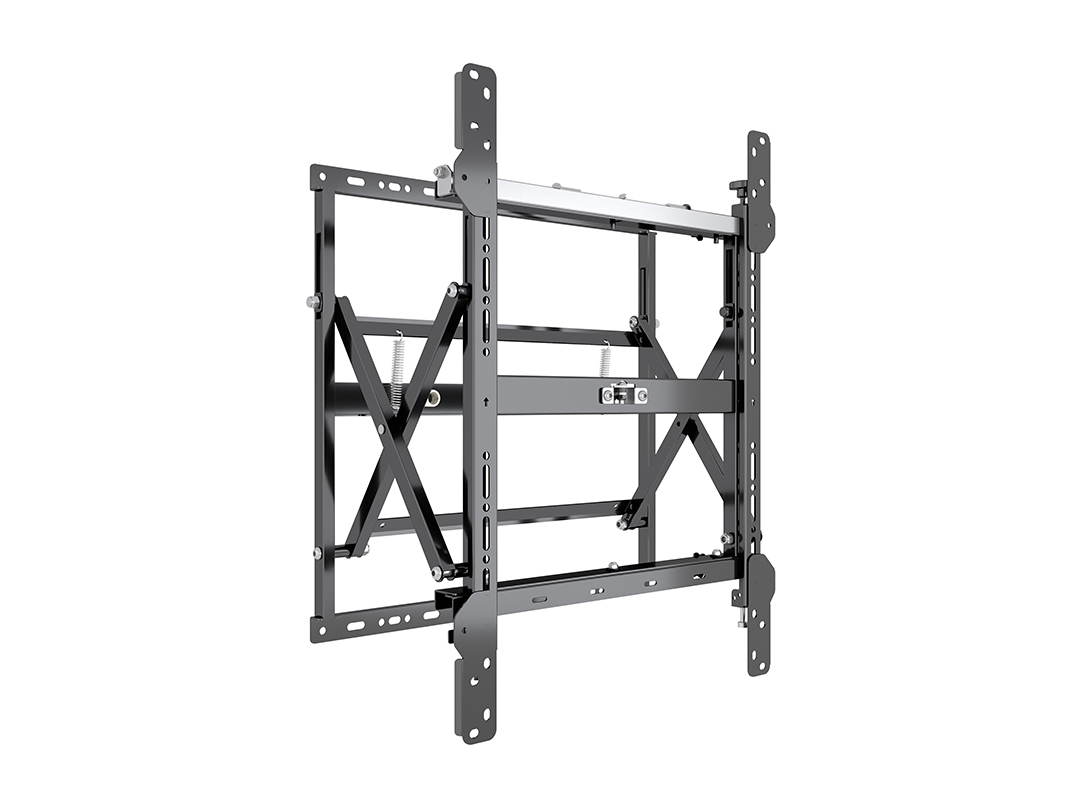

- Compatible with both landscape and portrait mounting
- Monitor tailored spacer kit for fast on-site installation
- Tool-less fine adjustments with 8 knobs for perfect screen alignment
- Ideal for recessed or surrounded video wall setups
- Push-in pop-out functionality for easy access and maintenance
- Integrated cable management system
- Security screws to prevent accidental dismounting
 Click to view larger images |
| Specification | |
| M Public Video Wall Mount Push Slim | |
| For screen size: | 40 - 55" |
| Article No: | 7 350 073 739 967 |
| VESA standard: | 200x200 200x300 200x400 300x200 300x300 400x200 400x300 400x400 400x600 600x400 |
| Colour: | Black |
| Max load: | 35 kg |
| Weight: | 7.5 kg |
| Box dimensions: | 60x60x8 cm |
| Size in mm: | 534x542 mm |
| Warranty: | 2 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 60 x 60 x 8 cm |
| Package Weight: | 8.00 kg |
