M Universal Fixed Wallmount SD MAX 1200x900
Options
Variants that match your options:
In stock: 194
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073730940
Product Overview

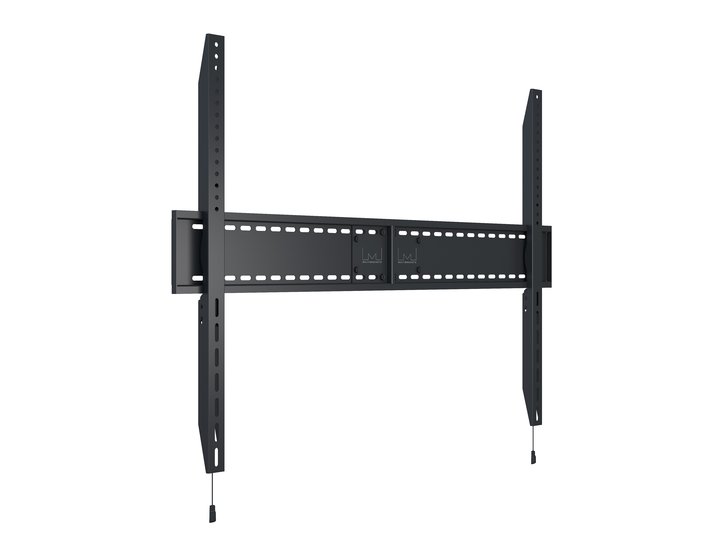

The Multibrackets M Universal Wallmount Fixed SD is engineered for the growing demand for extra-large screen installations in commercial and public environments. Supporting screens up to 115" and weights up to 125 kg, this mount fits VESA patterns up to 1200 x 900 mm, accommodating heavy touchscreens and large displays in high-traffic areas.
Designed for both landscape and portrait orientations, it offers versatile mounting solutions with smart adjustment screws for precise leveling post-installation. The robust 3mm cold-rolled steel construction ensures durability and long-lasting performance.
Part of the Multibrackets SD series, this mount solves challenging installation problems such as leveling and stud alignment with installer-friendly features for safe and fast setup. Its low-profile design (45mm from the wall) creates a clean aesthetic suitable for digital signage, education, and corporate installations. Whether mounting a single screen or configuring complex video walls, this solution offers reliability and flexibility.
Highlights
- Supports screens from 60" to 115", max load 125 kg
- Compatible with VESA mounting up to 1200 x 900 mm
- Use in both landscape and portrait orientations
- Durable 3mm cold-rolled steel construction
- Slim profile: 45mm from the wall for a clean look
- Secure arms latch for added safety
- Optional anti-theft lock and key system
- Enables virtually any video wall configuration
- Installer-inspired features for quick, safe installation
| Specification | |
| M Universal Wallmount Fixed SD MAX 1200x900 | |
| For screen size: | 60"-115" |
| Universal & VESA standard: | Landscape 1200x900 1200x800 1200x600, 1000x900, 1000x800, 1000x600, 1000x400, 900x800 900x600 900x400 800x600 800x500 800x400 Portrait 600x900 400x900 300x900 200x900 600x800 200x500 200x400 200x300 |
| Article No: | 7 350 073 730 940 |
| Colour: | Black |
| Max load: | 125 kg |
| Net weight: | 10,5 kg |
| Gross weight: | 11,8 kg |
| Options: | Anti-theft: Lock and key (optional) |
| Warranty: | 5 years |
| Distance to wall: | 45mm |
| Backplate measurement: | Landscape: 1314mm (W), Portait: 657mm (W) |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 96 x 20 x 10 cm |
| Package Weight: | 11.00 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 3 pcs |
| Package Measurements: | 97 x 31.5 x 22.5 cm |
| Package Weight: | 32.10 kg |
