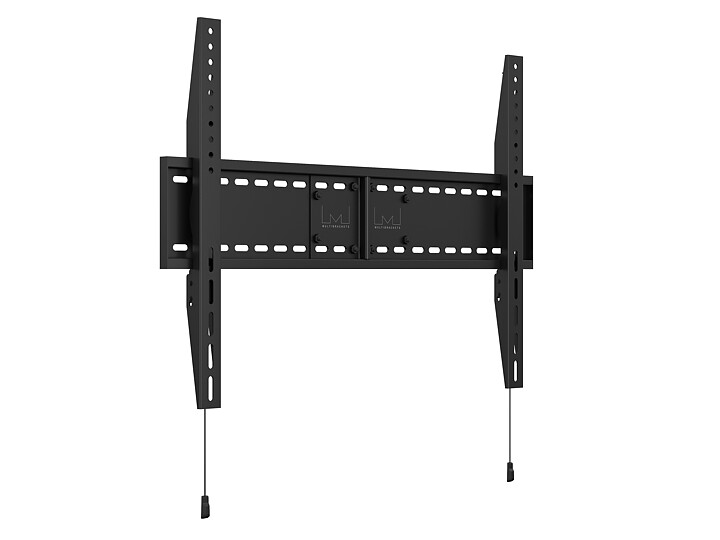

M Universal Fixed Wallmount SD MAX 800x600
Options
Variants that match your options:
In stock: 80
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073731091
Product Overview
The Multibrackets M Universal Wallmount Fixed SD is a heavy-duty, versatile wall mount designed for large display installations from 60" to 110". Engineered for both portrait and landscape orientations, it features an ingenious bracket system that allows use of half the horizontal bracket for portrait setups, supporting VESA patterns up to 400x600 mm. With a robust 3mm cold-rolled steel construction, it supports screens up to 125 kg and VESA mounting up to 800x600 mm.
Ideal for commercial, corporate, and public environments, this mount includes integrated lock possibilities for enhanced security, making it a reliable choice for high-traffic areas. It enables fine adjustment in all directions post-installation, ensuring perfect screen alignment without hassle.
Part of the Multibrackets SD series, including fixed, tilt, and pull-out variants, it solves common installation challenges such as leveling and stud location. Designed for quick and safe installation, it offers a slim profile of only 45mm from the wall, ensuring a sleek, professional finish whether for a single display or large video wall configurations.
Highlights
- Supports large screens from 60" up to 110", max load 125 kg
- Compatible with VESA patterns up to 800x600 mm (supports portrait with 400x600)
- Can be used in both landscape and portrait orientations
- Constructed from super-duty 3mm cold-rolled steel for durability
- Slim profile: only 45mm distance from the wall
- Secure arms latch for extra safety
- Optional anti-theft lock and key system
- Enables almost any video wall configuration
- Easy to install and maintain with installer-inspired features
| Specification | |
| M Universal Wallmount Fixed SD MAX 800x600 | |
| For screen size: | 60-110" |

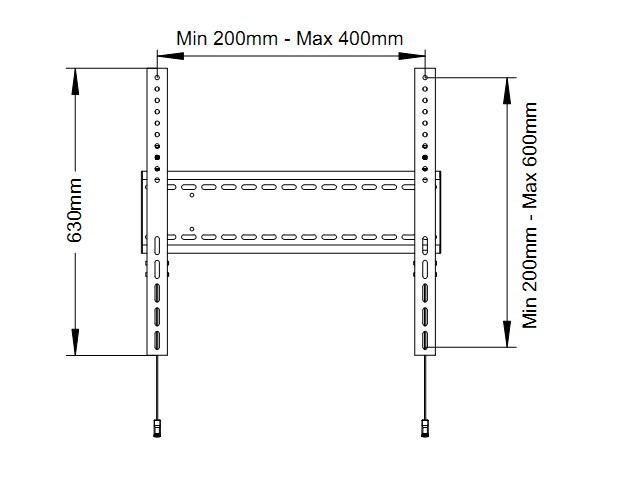

| Universal & VESA standard: | Landscape 800x600 800x500 800x400 800x300 600x600 600x400 600x300 600x200 500x500 400x400 Portrait 200x600 300x600 400x600 400x400 200x500 300x500 400x5000 500x500 200x300 200x400 |
| Article No: | 7 350 073 731 091 |
| Colour: | Black |
| Max load: | 125 kg |
| Net weight: | 8,5 kg |
| Gross weight: | 9,8 kg |
| Options: | Anti-theft: Lock and key (optional) |
| Warranty: | 5 years |
| Distance to wall: | 39mm |

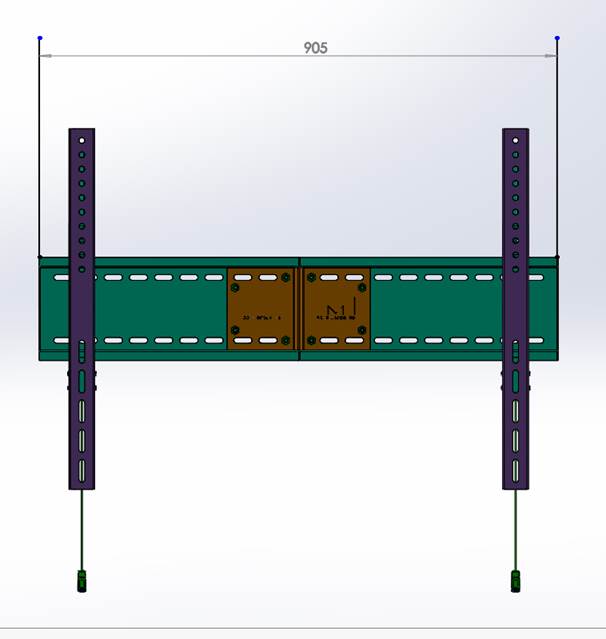

| Backplate measurement: | Landscape: 907mm (W), Portait: 453,7mm (W) |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 67 x 20 x 10 cm |
| Package Weight: | 8.00 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 5 pcs |
| Package Measurements: | 68 x 50 x 23 cm |
| Package Weight: | 39.40 kg |
