M Universal Wallmount Black Large
Options
Variants that match your options:
In stock: 778
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350022731004
Product Overview

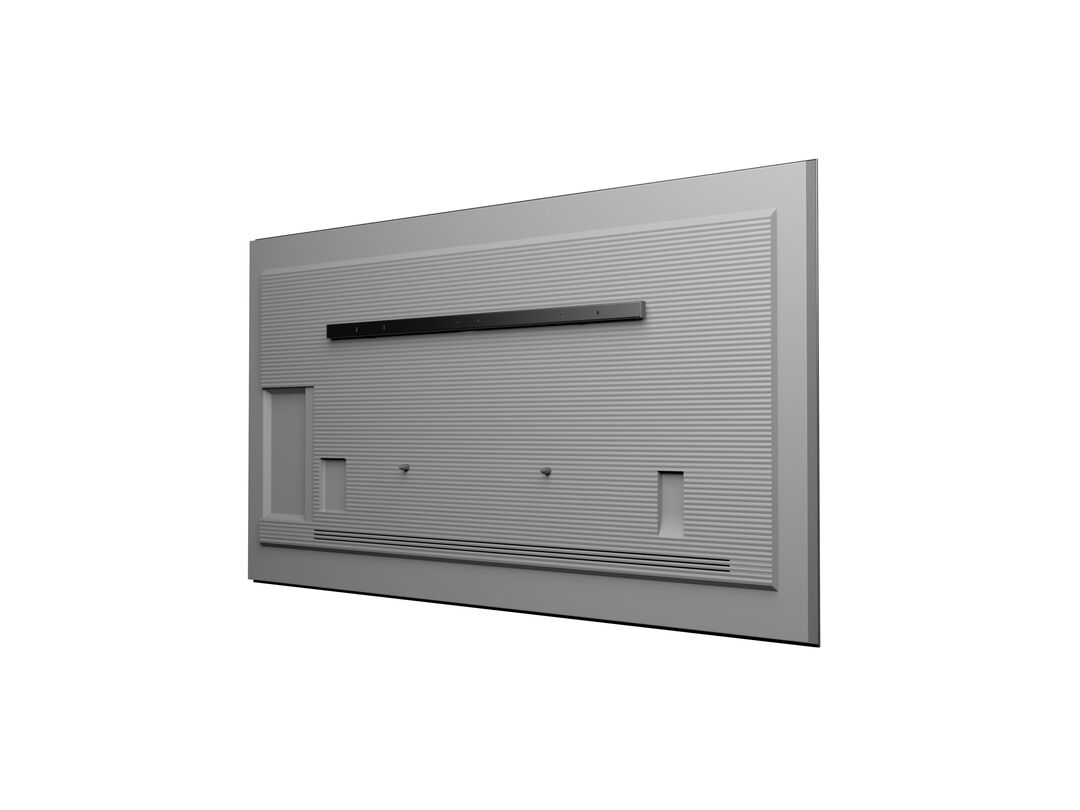

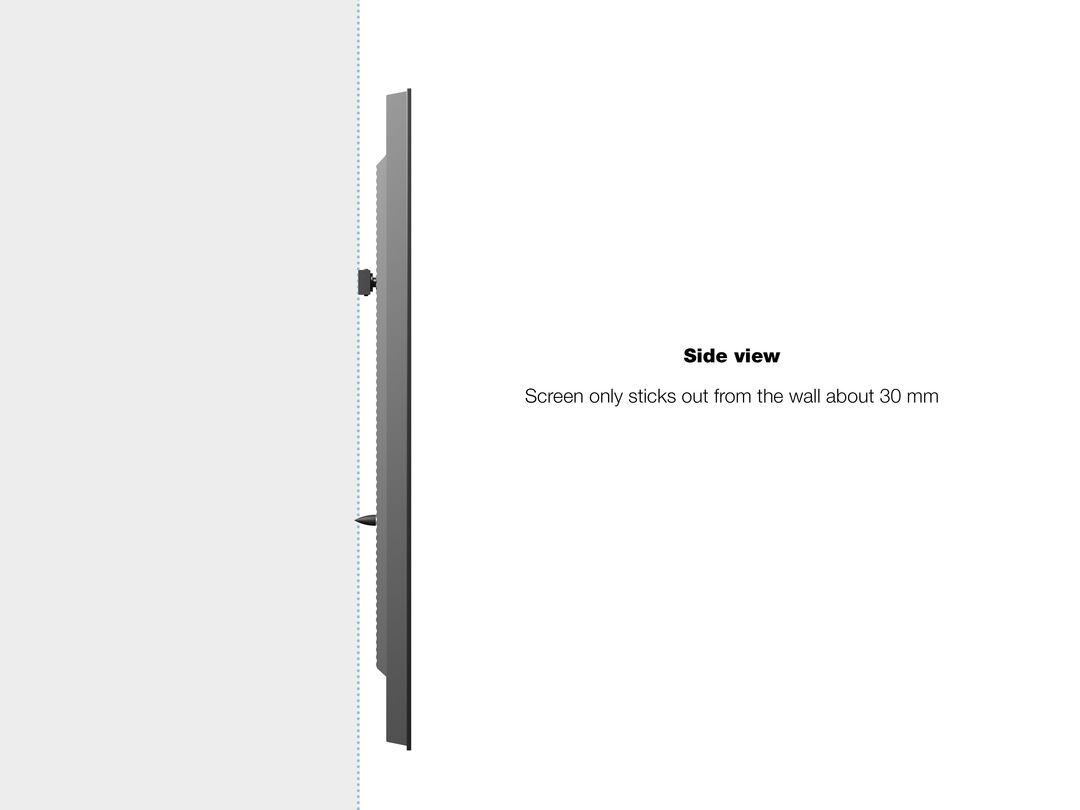

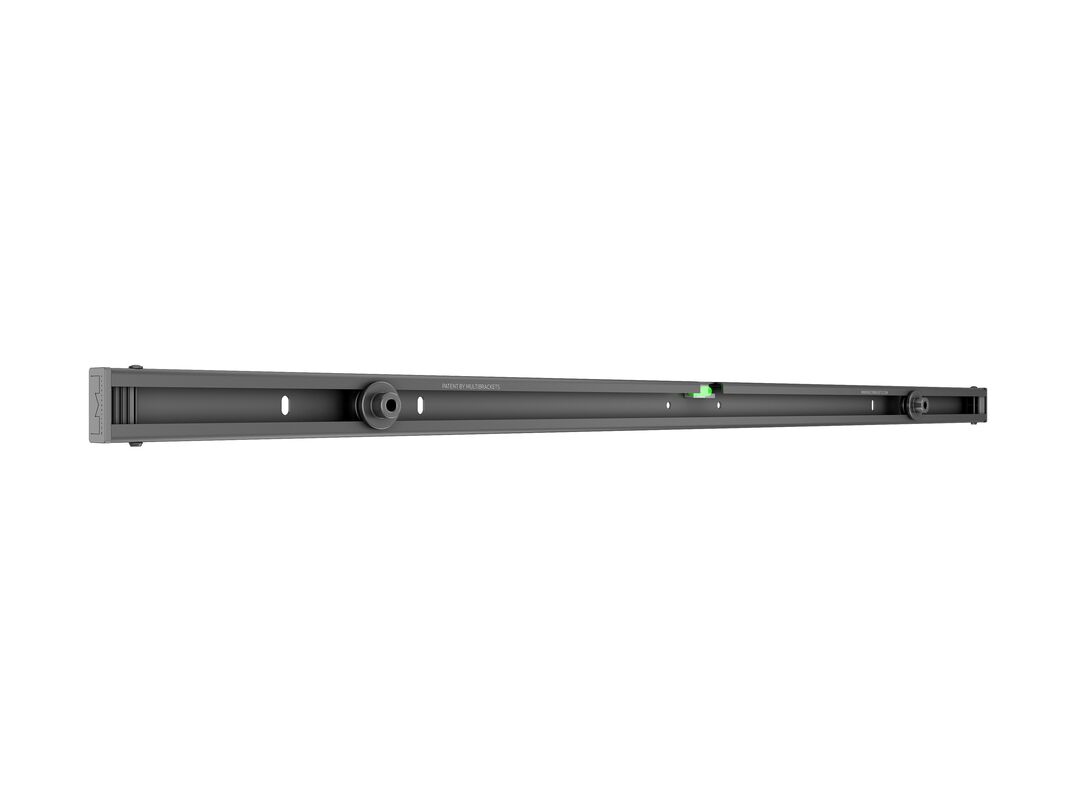

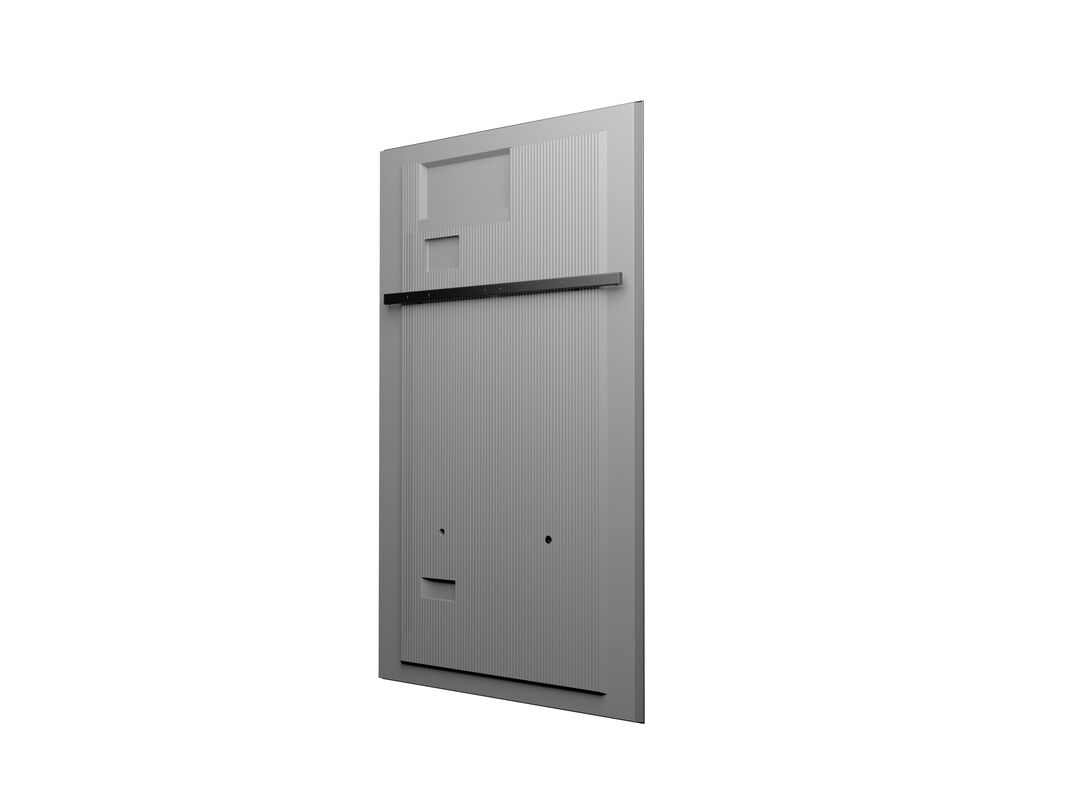

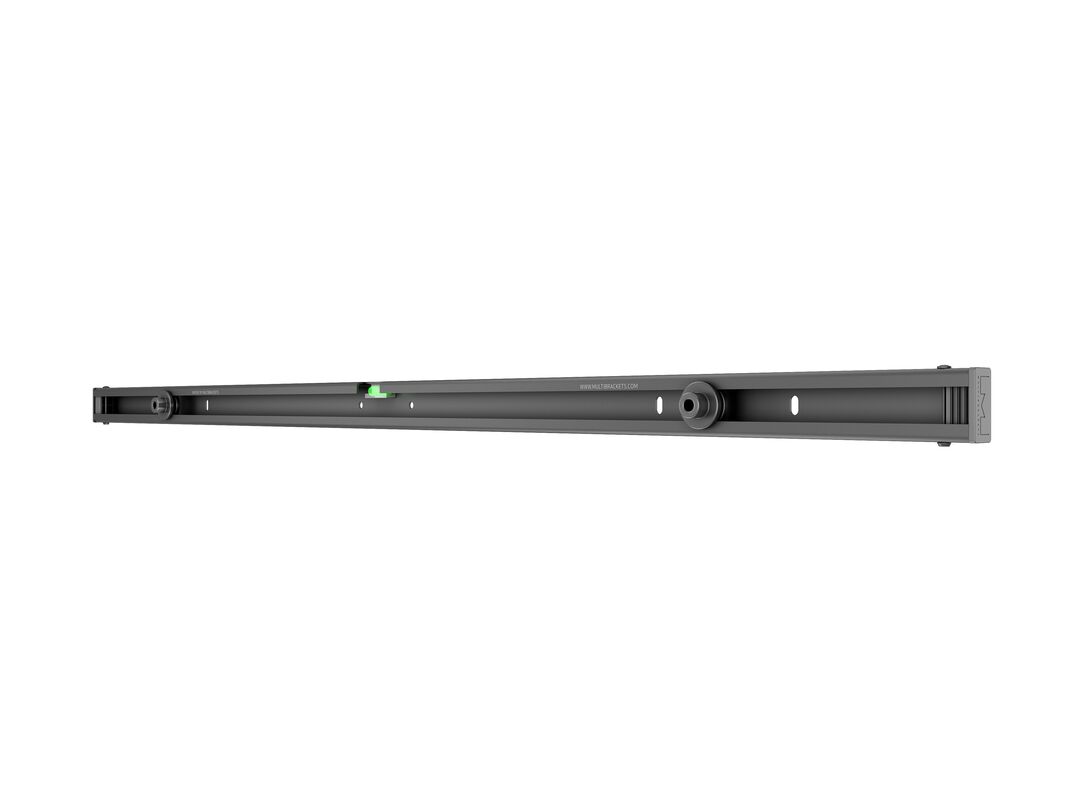

The Multibrackets M Universal Wallmount Black Large is a versatile and installer-inspired wall mount designed to fit most large display screens on the market. Supporting portrait installations from 65" to 85" and landscape from 55" to 75", this mount combines powerful weight handling with a clean, slim profile of just 30mm.
Built on direct feedback from professional installers, it features wide stud compatibility, fast bolt pre-installation on the display, and a centerless lateral shift allowing limitless post-installation centering. The built-in cable management system keeps setups clean and accessible, while optional integrated locks enhance security for commercial or public environments.
The robust construction offers a 600mm span between assembly bolts, enabling secure installation into various stud distances or wall types. The Multibrackets Anti-theft system provides peace of mind by allowing the screen to be locked to the mount.
Highlights
- Fast pre-installation of bolts on the display for efficient mounting
- Centerless Shift for unlimited lateral adjustment after installation
- Wide stud range for secure and flexible mounting options
- Integrated cable management for a neat, professional look
- Optional integrated security locks to prevent theft
- Complete custom hardware kit included for easy installation
- Eco-friendly packaging with reduced waste
Patents and Certifications
- Patented design across Europe and the US (SE, DK, FI, IT, NL, PL, RO, CH, ES, GB, TR, CZ, FR, DE, US)

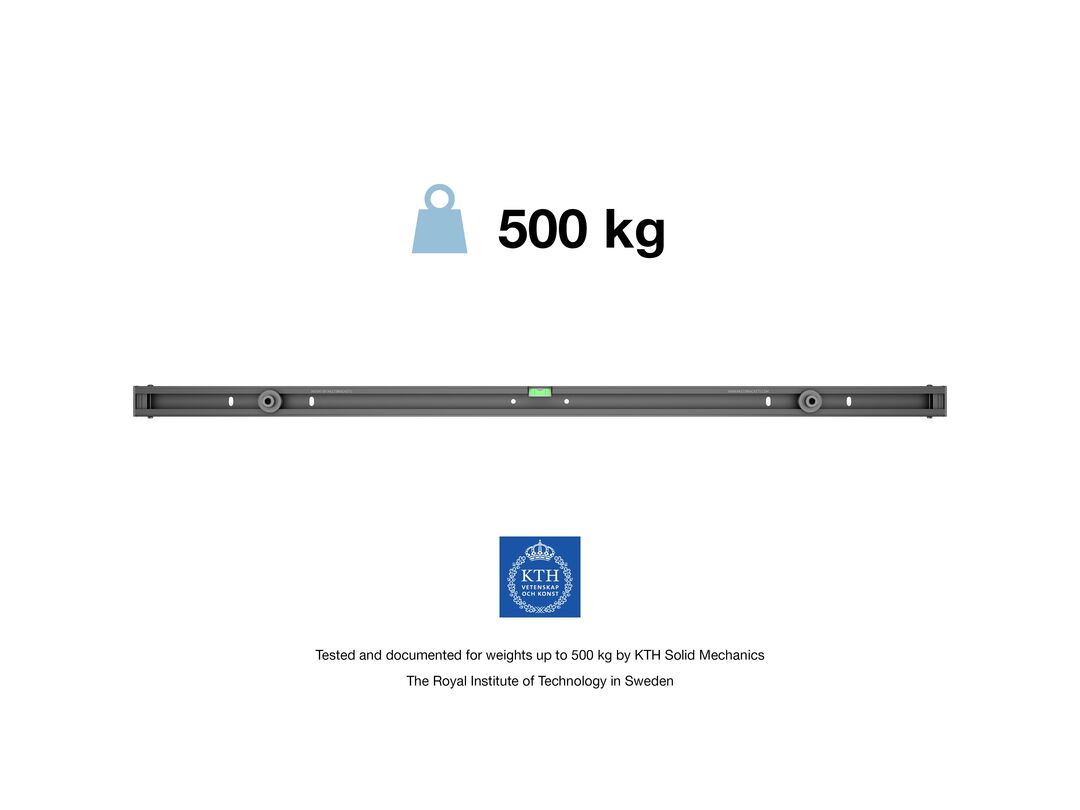

- Tested and certified by KTH Solid Mechanics, The Royal Institute of Technology, Sweden – supports weights up to 500 kg
 |
Tested and documented for weights up to 500 kg by KTH Solid Mechanics – The Royal Institute of Technology in Sweden |
| Specification | |
| M Universal Wallmount Black Large | |
| For screen size - Landscape: | 55-75" |
| For screen size - Portrait: | 65-85” |

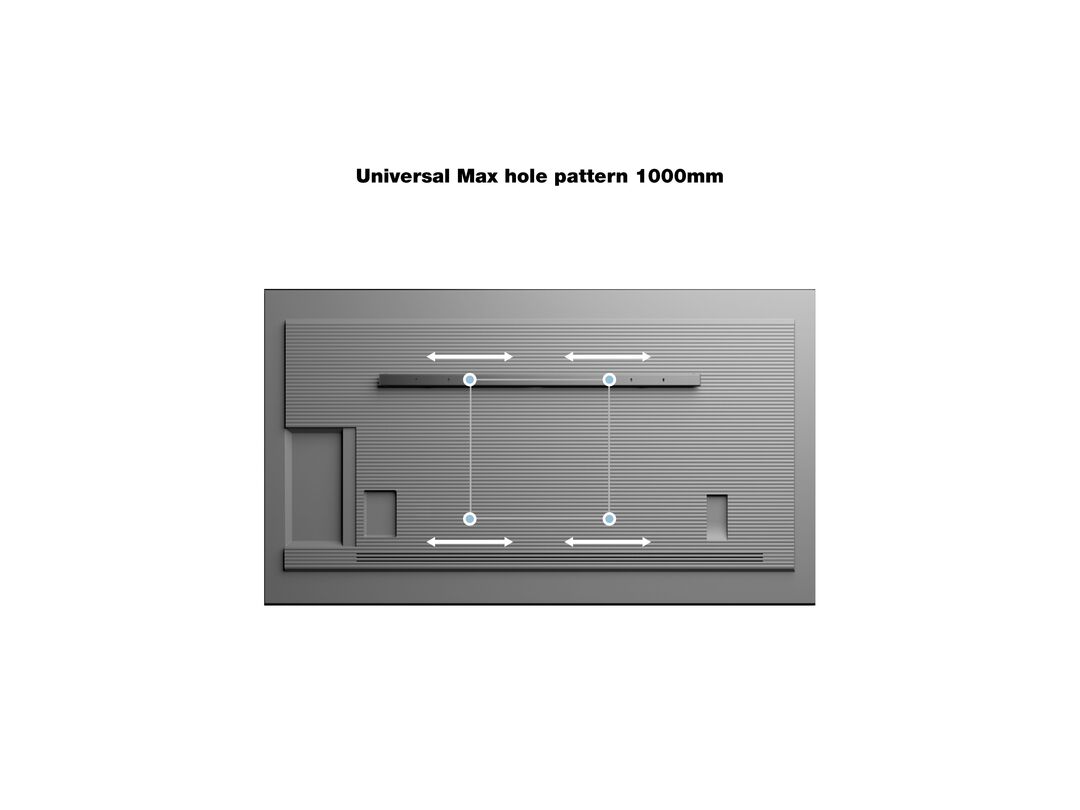

| Universal: | Max hole pattern 1000 mm wide and 2000 mm high |
| VESA standard - Landscape mounting: | 200x200 200x300 300x200 300x300 400x200 400x400 600x300 600x400 800x400 800x600 900x400 900x600mm |
| VESA standard - Portrait mounting: | 400x600 600x900 900x1200mm |
| Article No: | 7 350 022 731 004 |

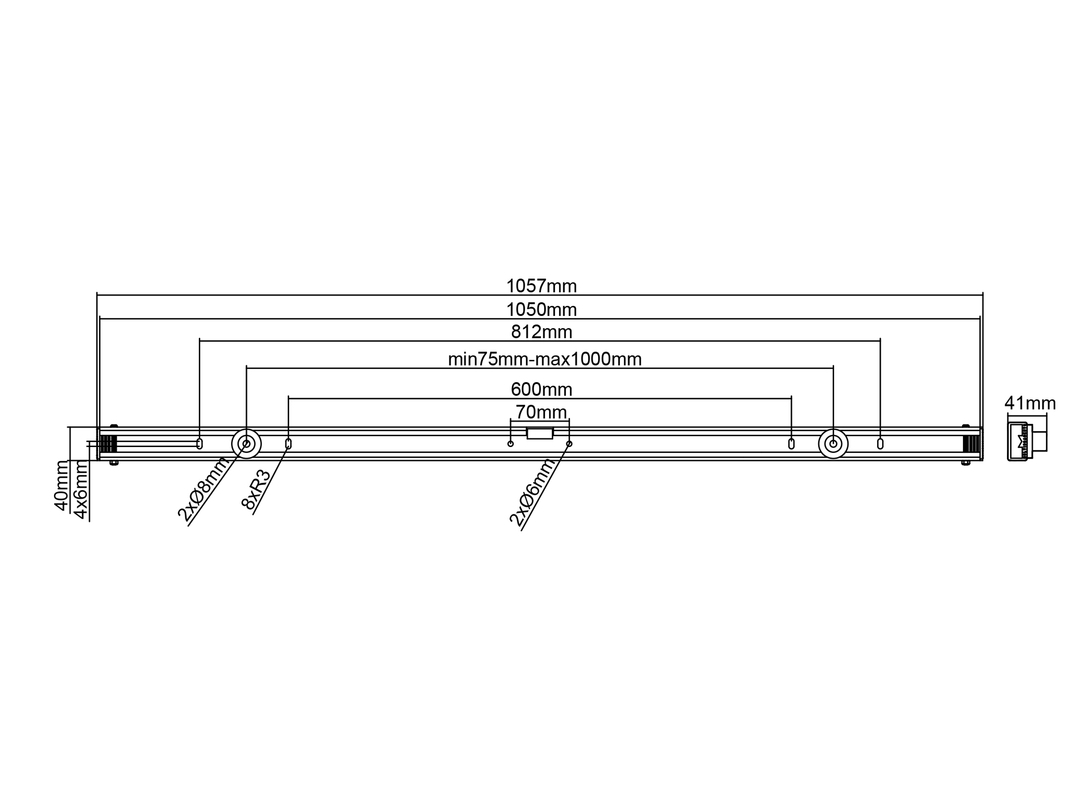

| Size in mm:* | 1050x40x40 |
| Tilt: | No |
| Colour: | Black |
| Max load: | 80 kg |
| Weight: | 1,4 kg |
| Size Retail box: | 107.5x5x3cm |
| Units on pallet: | 480 pcs |
| Distribution package: | 12 pcs |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 107.5 x 5 x 3 cm |
| Package Weight: | 1.85 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 12 pcs |
| Package Measurements: | 44.5 x 114 x 7.8 cm |
| Package Weight: | 22.00 kg |
High Resolution Photos Drawing Info PDF Product Fact Sheet Manual Video
Test report by KTH, Sweden Declaration of Compliance (CE)
