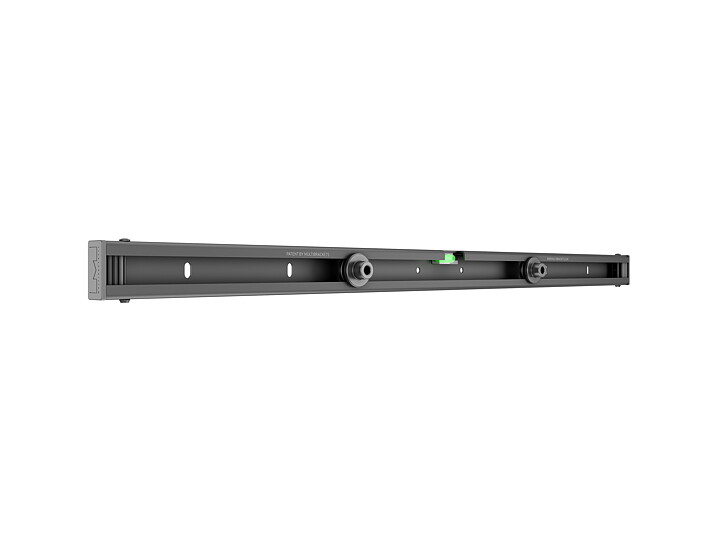

M Universal Wallmount Black Medium
Options
Variants that match your options:
In stock: 1538
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350022730991
Product Overview

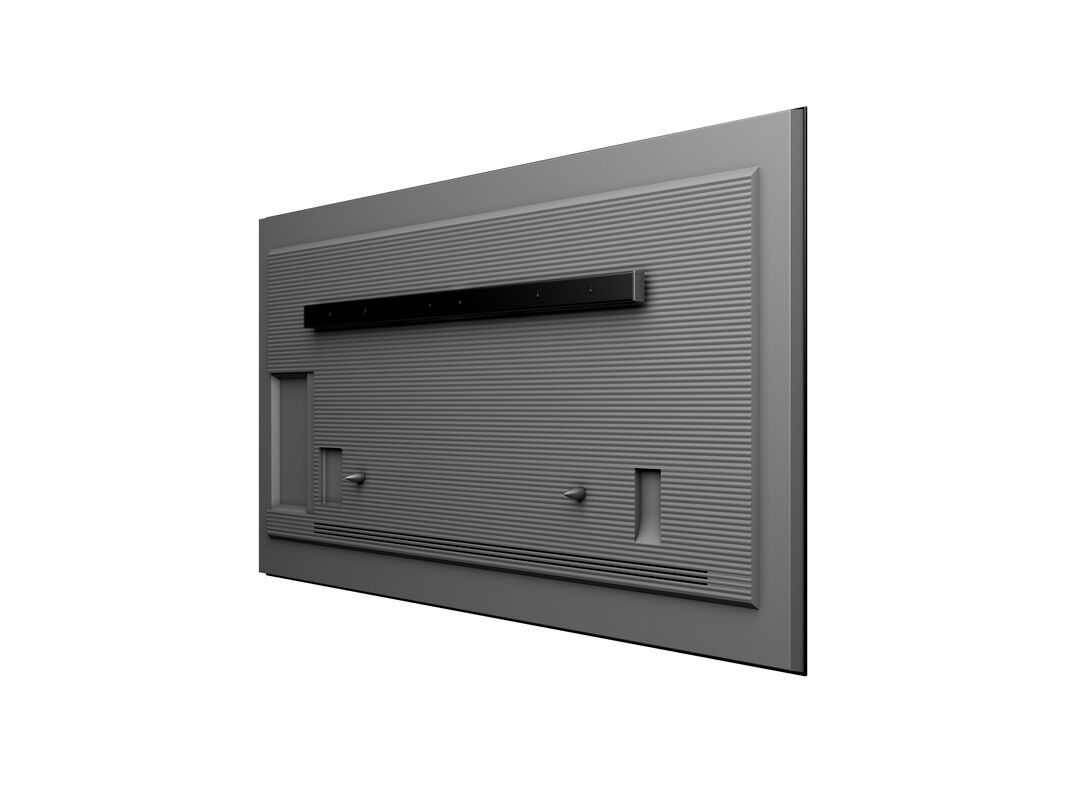

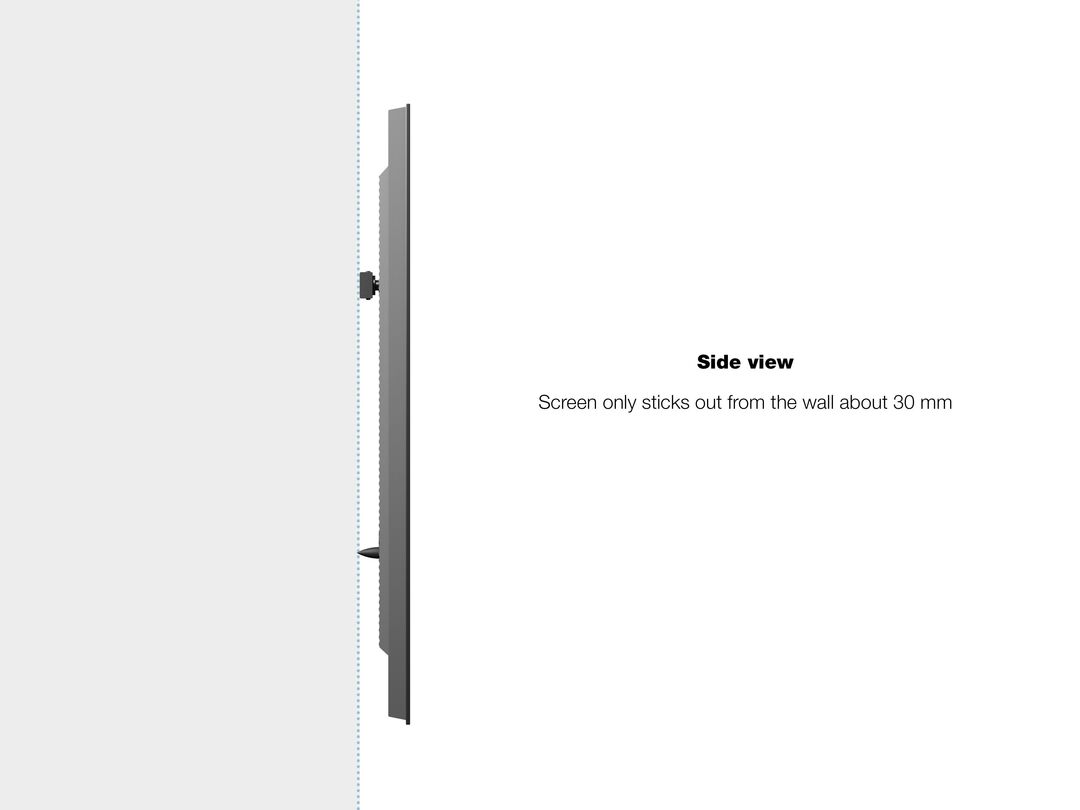

The Multibrackets M Universal Wallmount Black Medium is a versatile, installer-inspired wall mount designed to fit most medium to large display screens on the market. It supports portrait orientations from 65" to 75" and landscape from 40" to 75", with a slim 30mm profile that keeps your screen sleekly close to the wall.
Built on installer feedback and extensive field observations, this mount features wide stud compatibility, fast pre-installation of bolts to the display, and a centerless lateral shift for effortless post-installation alignment. Cable management is integrated for tidy setups, and optional security locks allow you to protect your valuable screens.

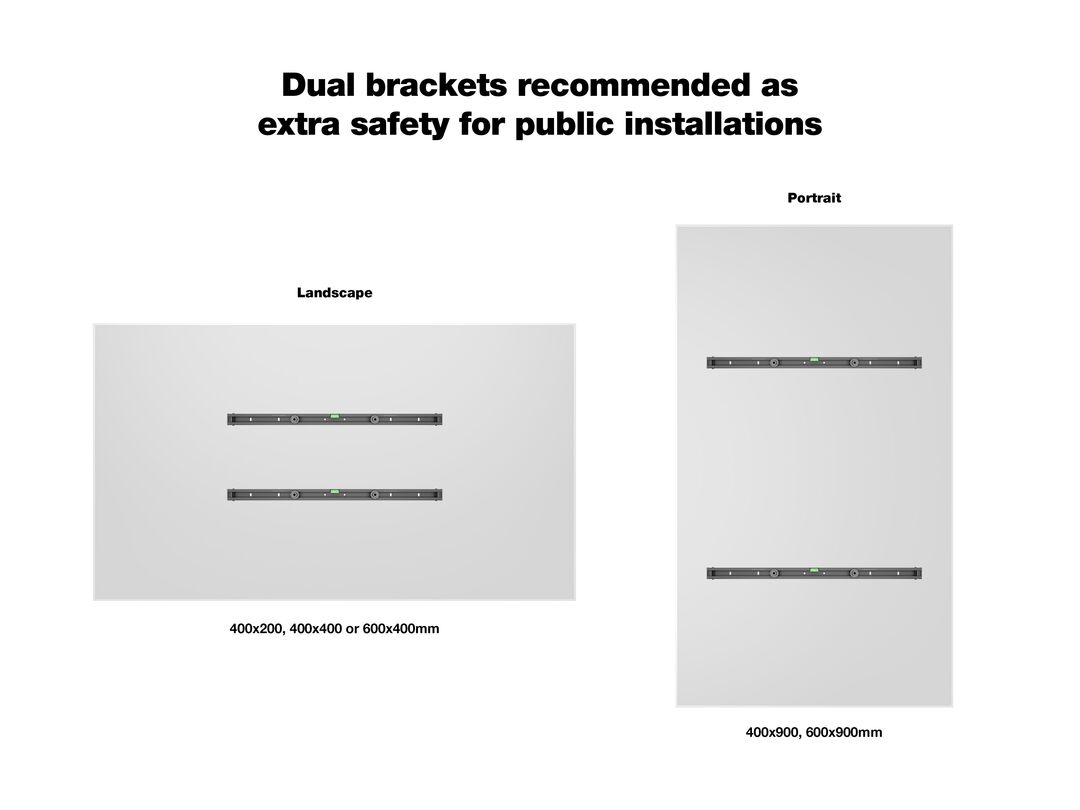

With a robust span of 600mm between assembly bolts, the wallmount secures safely into wall studs or joints. The Multibrackets Anti-theft system offers an added layer of security for commercial or public environments.
Highlights

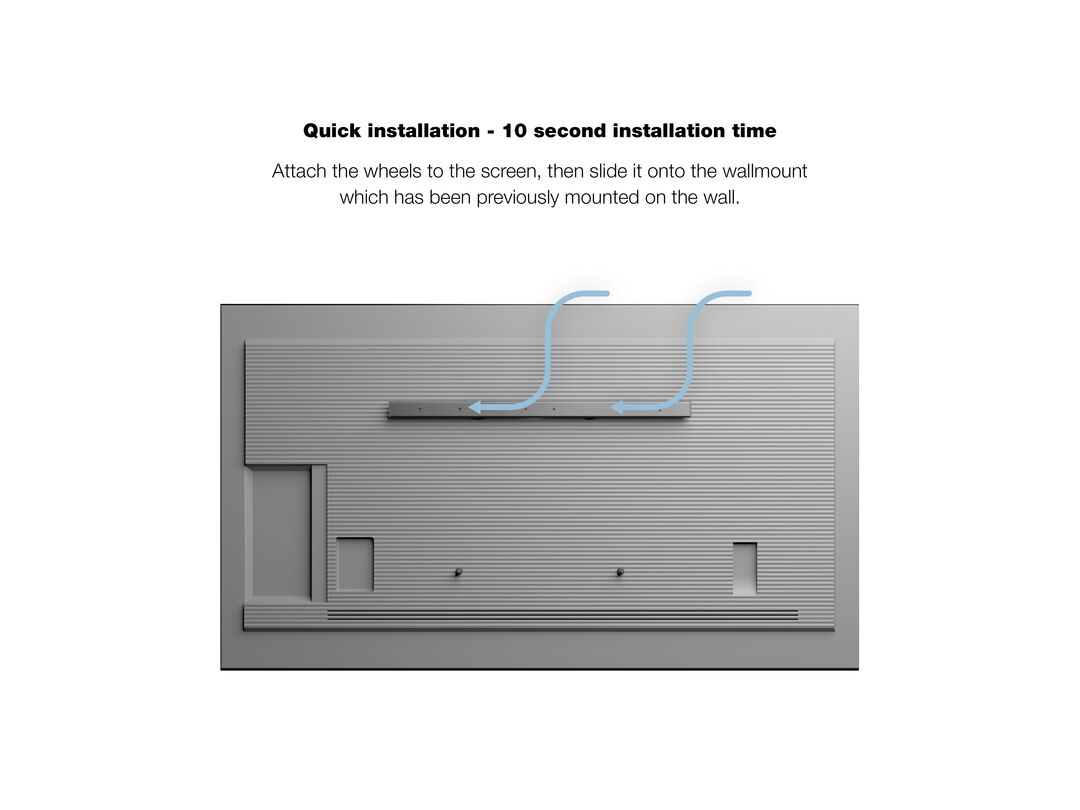

- Fast pre-installation of bolts on the display for efficient setup
- Centerless shift enables limitless lateral adjustment after installation
- Wide stud compatibility ensures safe and flexible mounting
- Integrated cable management for clean and accessible wiring

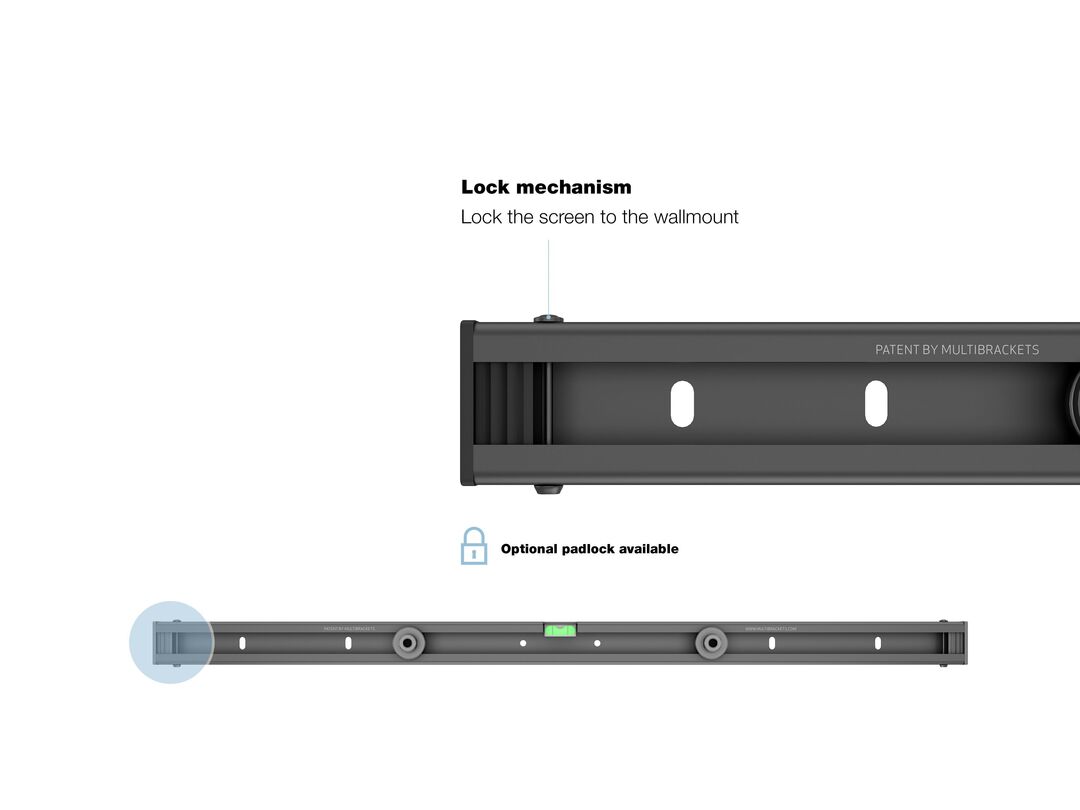

- Optional integrated security locks for theft prevention
- Complete custom hardware kit included for easy installation
- Eco-conscious packaging with minimal waste
Patents and Certifications
- Patented design across multiple regions (SE, DK, FI, IT, NL, PL, RO, CH, ES, GB, TR, CZ, FR, DE, US)
- Tested and documented by KTH Solid Mechanics, The Royal Institute of Technology, Sweden – certified to support weights up to 500 kg
 |
Tested and documented for weights up to 500 kg by KTH Solid Mechanics – The Royal Institute of Technology, Sweden |
| Specification | |
| M Universal Wallmount Black Medium | |
| For screen size - Landscape: | 40-75" |
| For screen size - Portrait: | 65-75" |

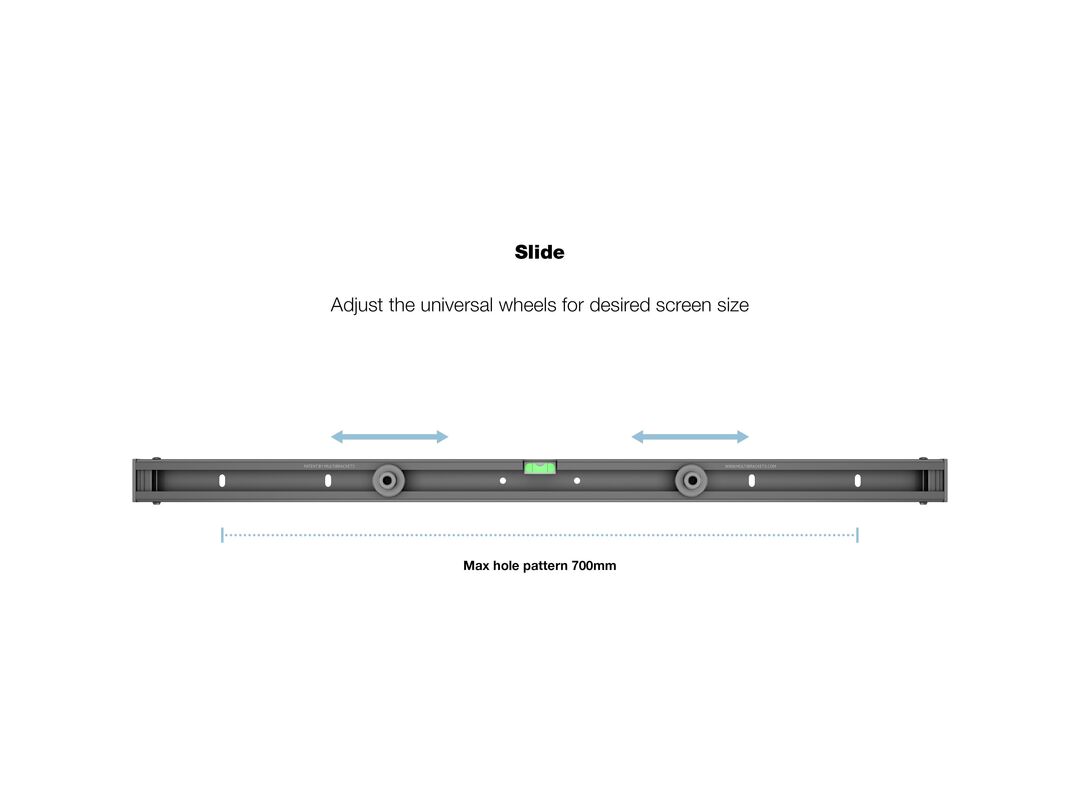

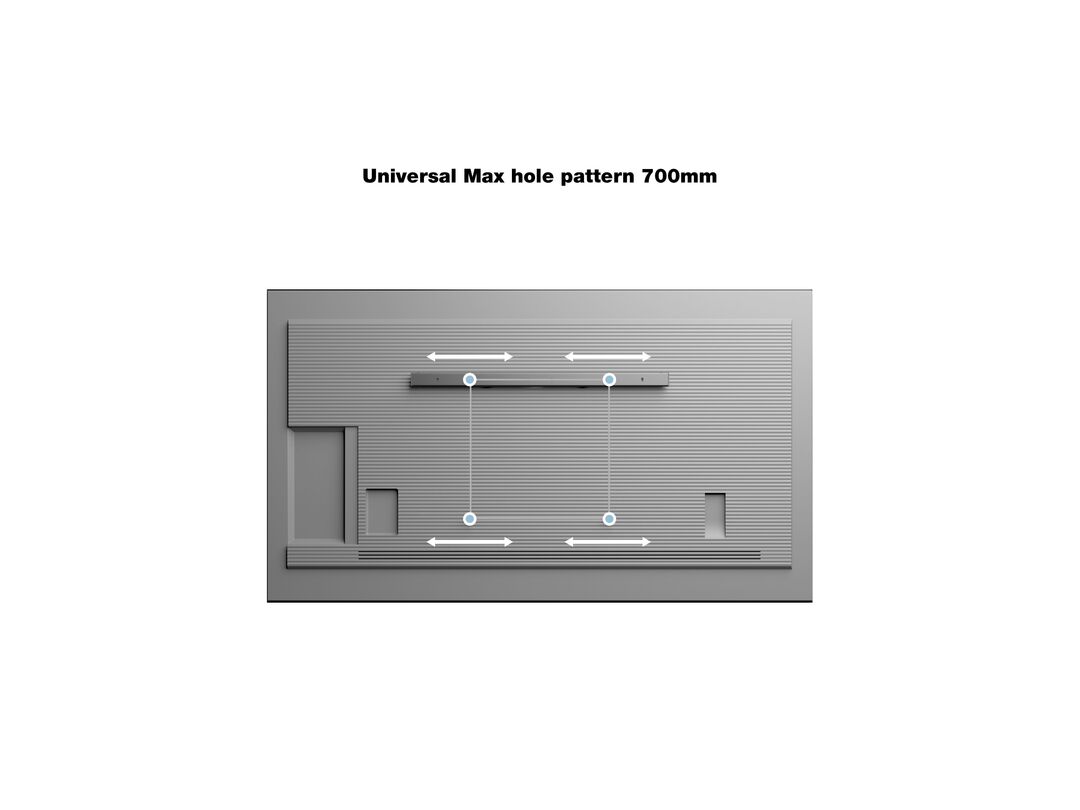

| Universal: | Max hole pattern 700 mm wide and 2000 mm high |

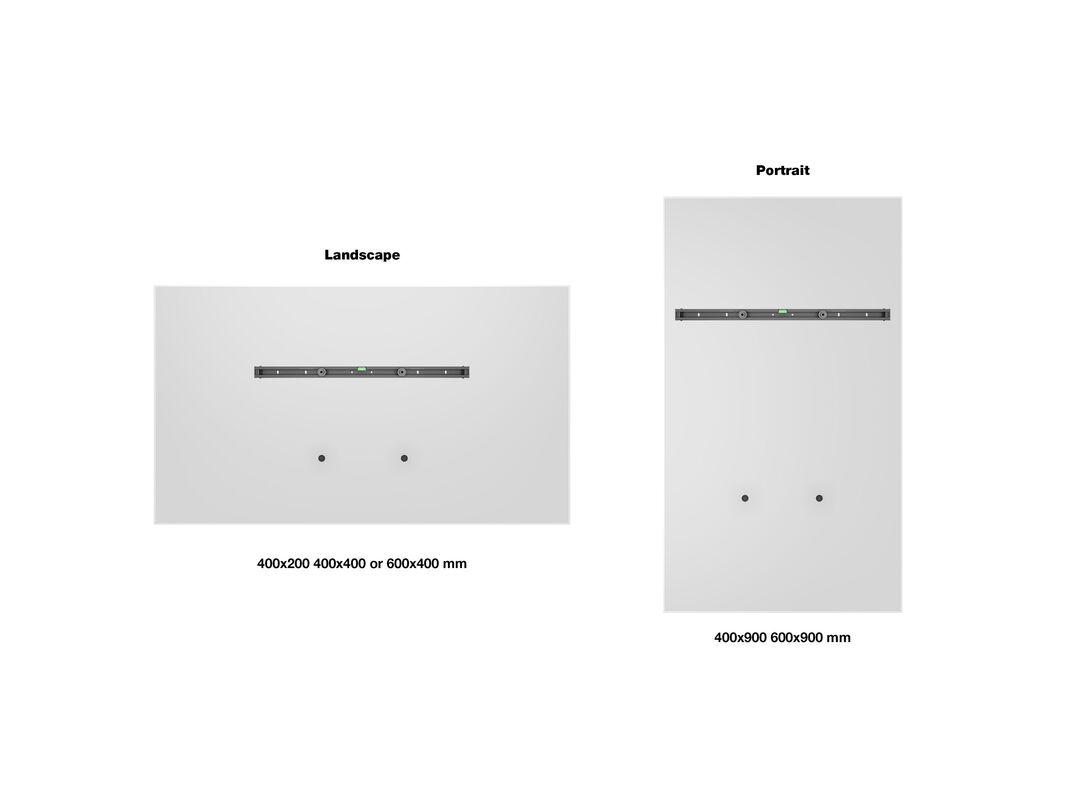

| VESA standard - Landscape mounting: | 200x200 200x300 300x200 300x300 300x400 400x200 400x300 400x400 600x400mm |
| VESA standard - Portrait mounting: | 400x600 600x900 mm |
| Article No: | 7 350 022 730 991 |
| Size in mm:* | 750x40 |
| Tilt: | No |
| Weight: | 1,2 kg |
| Colour: | Black |
| Max load: | 80 kg |
| Units on pallet: | 576 pcs |
| Distribution package: | 24 pcs |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 76.5 x 5 x 3 cm |
| Package Weight: | 1.40 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 24 pcs |
| Package Measurements: | 42.5 x 81.5 x 13.5 cm |
| Package Weight: | 35.00 kg |
| Material Specification | |
| Product Weight: | kg |
| Product Materials: | |
| Total Package Material Weight: | 0.143 kg |
| Retail Package Outer Box: | 0.080 kg |
| Retail Package Inner Box: | 0.045 kg |
| Plastic Material: | 0.018 kg |
