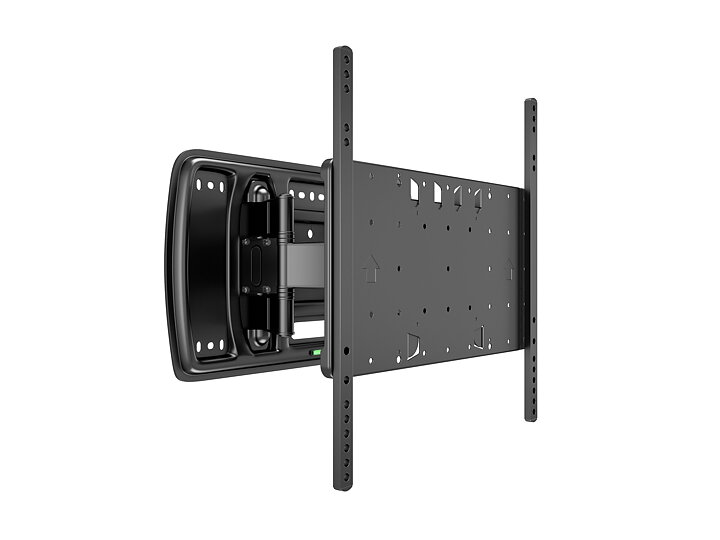

M VESA Super Slim Tilt & Turn
Options
Variants that match your options:
In stock: 1186
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350022734036
Product Overview
The Multibrackets M VESA Super Slim Tilt & Turn is a premium wall mount designed for modern LED and OLED displays, delivering an ultra-slim profile with superior flexibility. Perfect for commercial and residential installations, this mount fits screens ranging from 32" to 65" and supports weights up to 40 kg, combining sleek aesthetics with robust engineering.

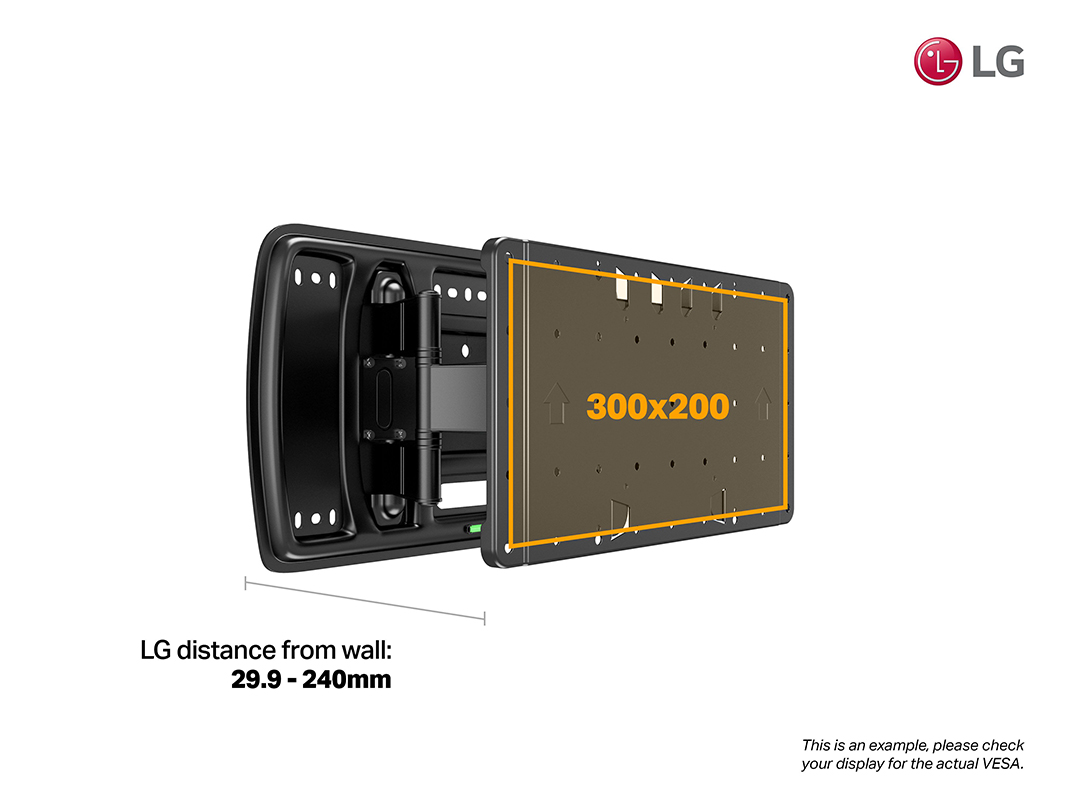

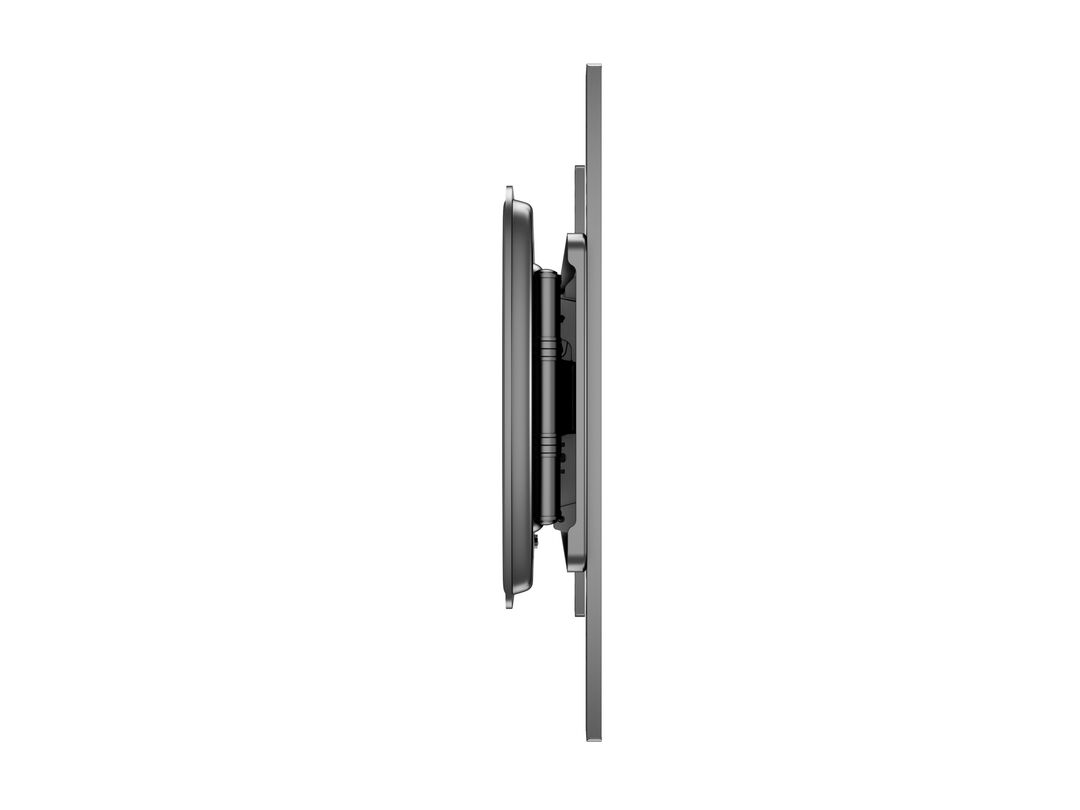

With a minimal distance to the wall of just 29 mm and an extension capability up to 270 mm, it offers optimal positioning with smooth tilt and turn adjustments to reduce glare and maximize viewing comfort. The mount supports a wide range of VESA standards (100x100 to 400x400 mm), and can be extended to 600x400 mm using an optional extender kit, making it highly adaptable for various display models.
Click to view larger images
Highlights

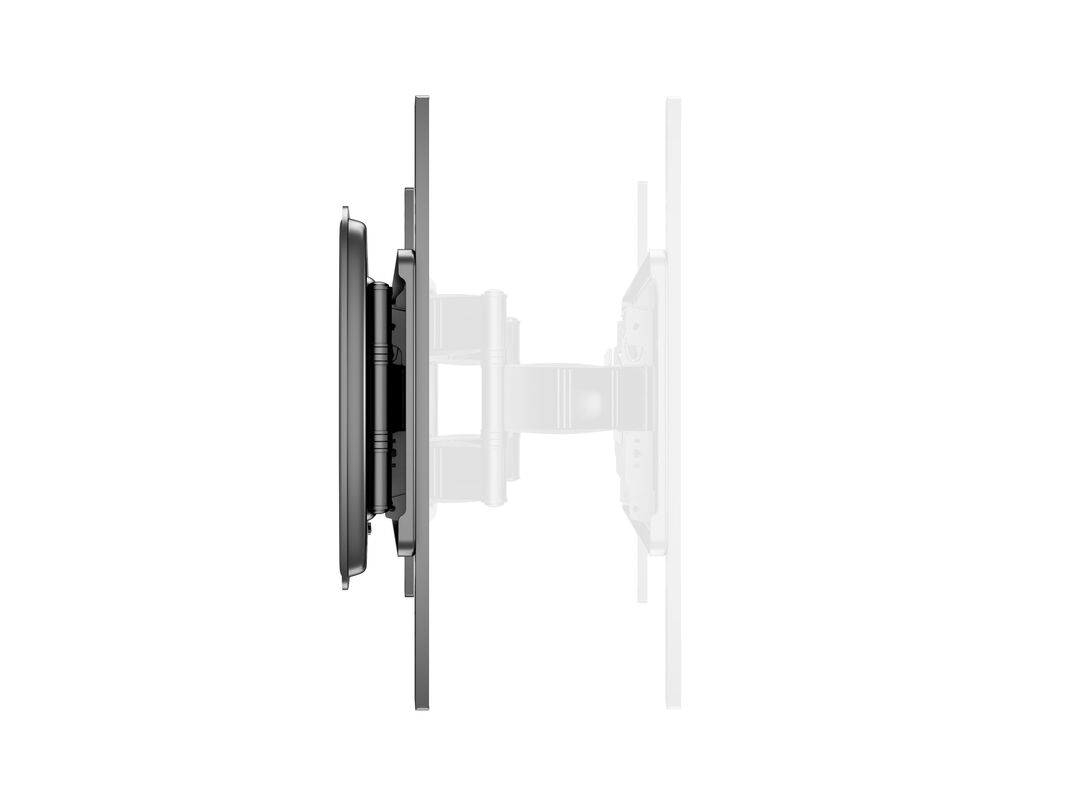

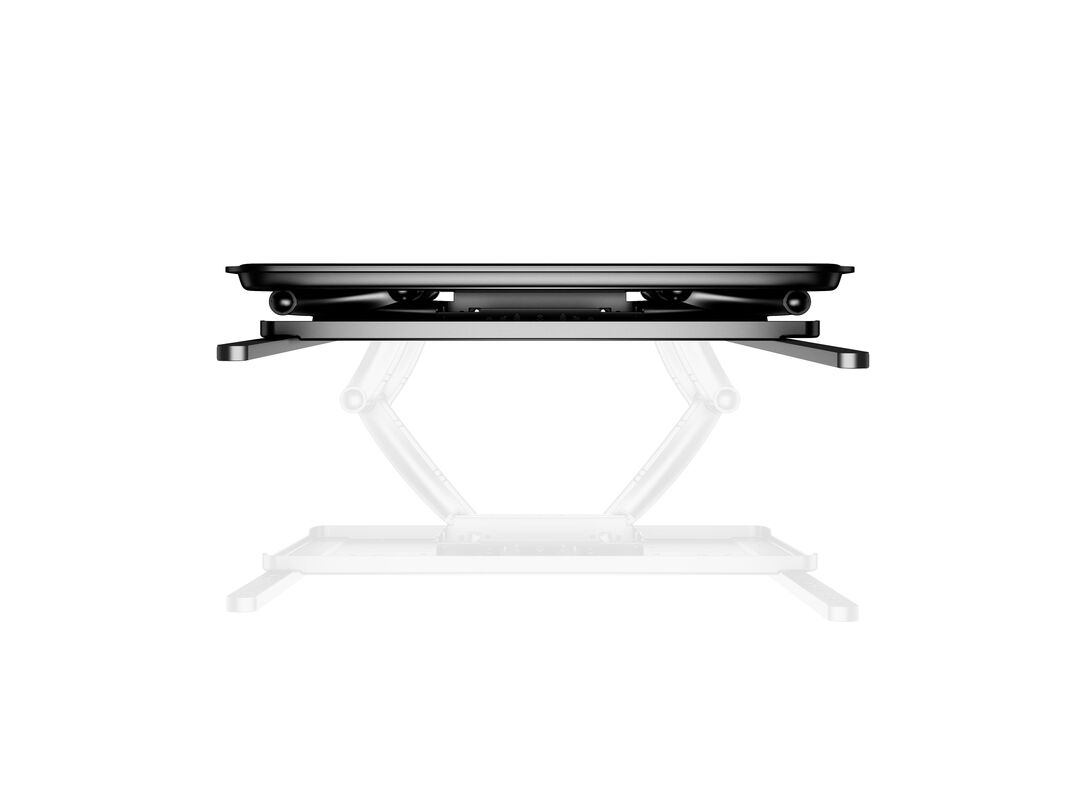

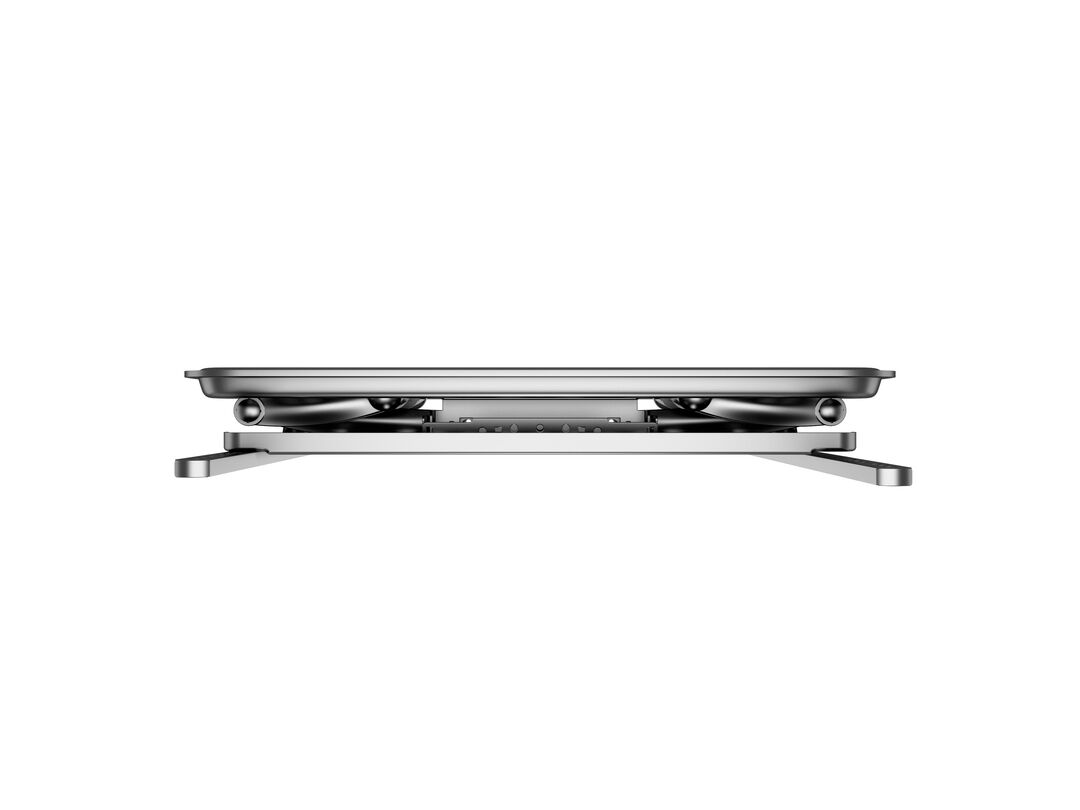

- Super slim 30 mm mounting profile for near-wall installation
- Extendable arm up to 270 mm for flexible viewing angles

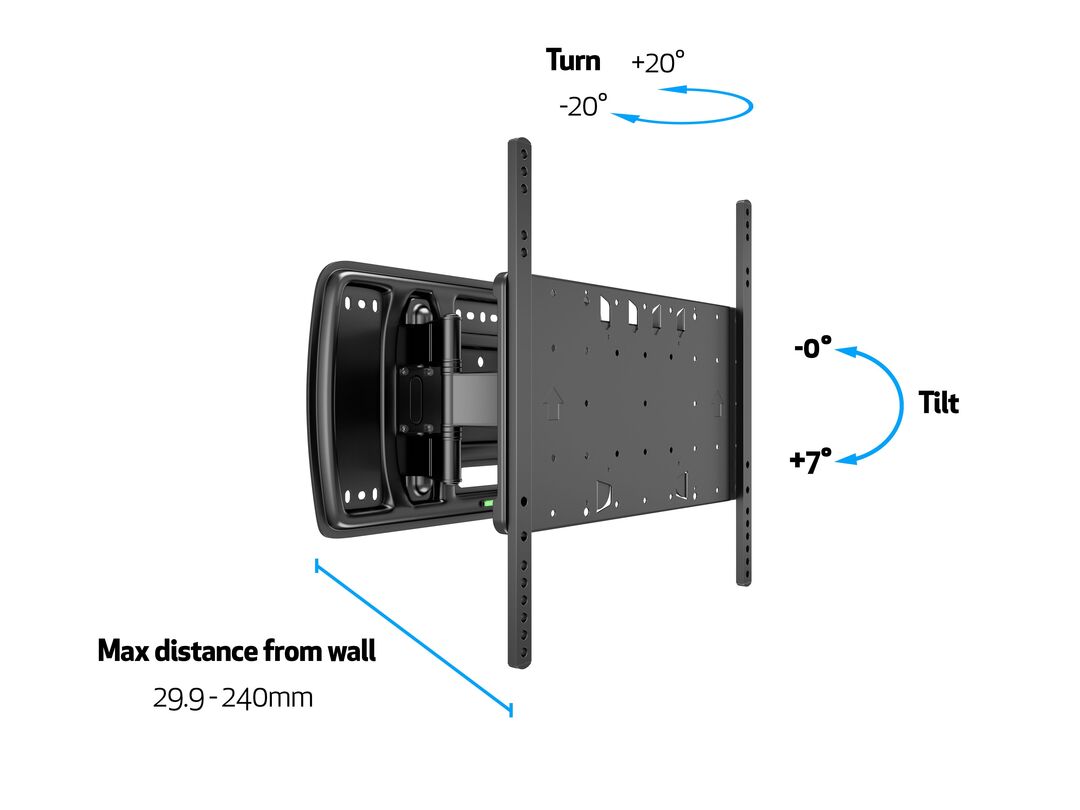

- Smooth tilt adjustment from -0° to +7° to reduce screen glare
- Effortless swivel from -20° to +20° for ideal viewing positions
- Included installation template and tool kit for fast and precise setup

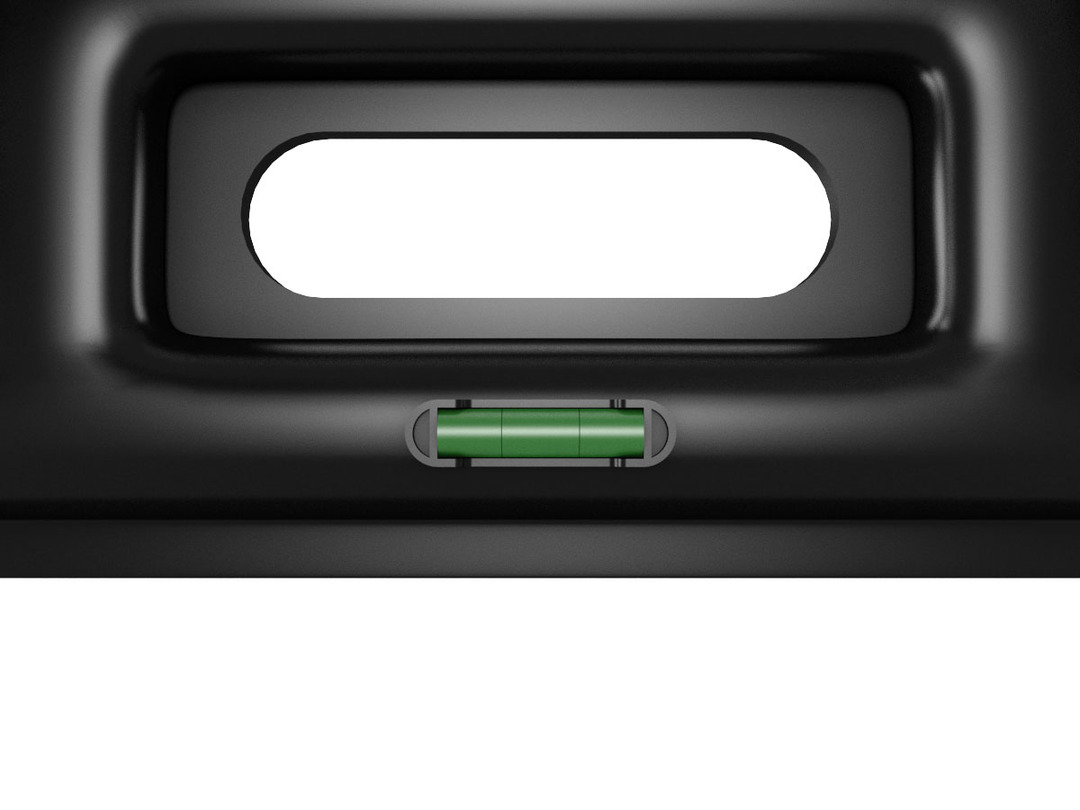

- Built-in bubble level for accurate and hassle-free mounting
- Single-person tilt adjustment saves time during installation
- Optional locking accessory available to secure your investment
| Specification | |
| M VESA Super Slim Tilt & Turn | |
| For screen size: | 32-65" |
| Universal & VESA standard: | 100x100 100x200 200x100 200x200 300x300 300x200 400x200 400x300 400x400 (600x400 via extenders EAN: 7350022734043) |
| Article No: | 7 350 022 734 036 |
| Size in mm: | 285x500x29-270 (W*H*D) |
| Distance to wall: | VESA 100 / 200 / 300: 29mm |
| Distance to wall with extender arms: | VESA 400: 39mm |
| Weight: | 7,5 kg |
| Colour: | Black |
| Max load: | 40 kg |
| Distribution package: | 4 pcs |
| Warranty: | 5 years |
| Units on pallet: | 64 pcs |
| Single box size (WxDxH): | 587x80x382mm |
| Units on a EUR-pallet: | 80 pcs |
| For VESA 800x400 600x400 600x300 600x200: | Combine with optional M Extender Kit Tilt & Turn |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 60 x 38 x 9 cm |
| Package Weight: | 7.50 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 4 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0.00 kg |
| Material Specification | |
| Product Weight: | kg |
| Product Materials: | |
| Total Package Material Weight: | 1.008 kg |
| Retail Package Outer Box: | 0.000 kg |
| Retail Package Inner Box: | 0.918 kg |
| Plastic Material: | 0.089 kg |
