M VESA Super Slim Tilt & Turn HD
Options
Variants that match your options:
In stock: 1076
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350022735101
Product Overview

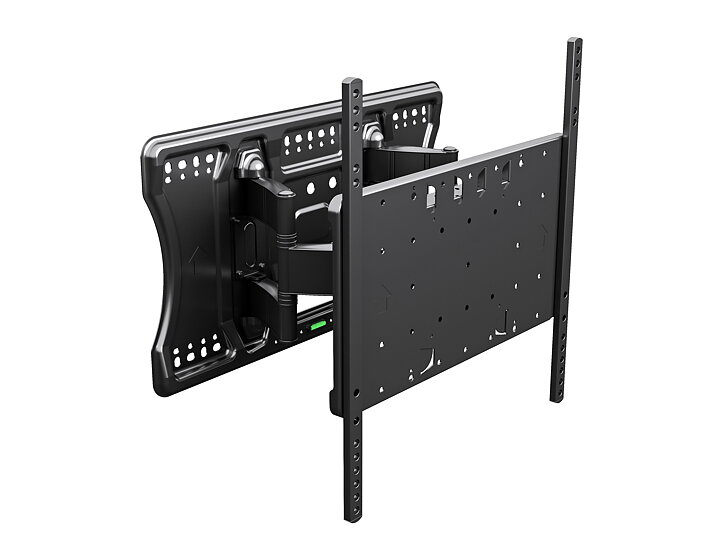

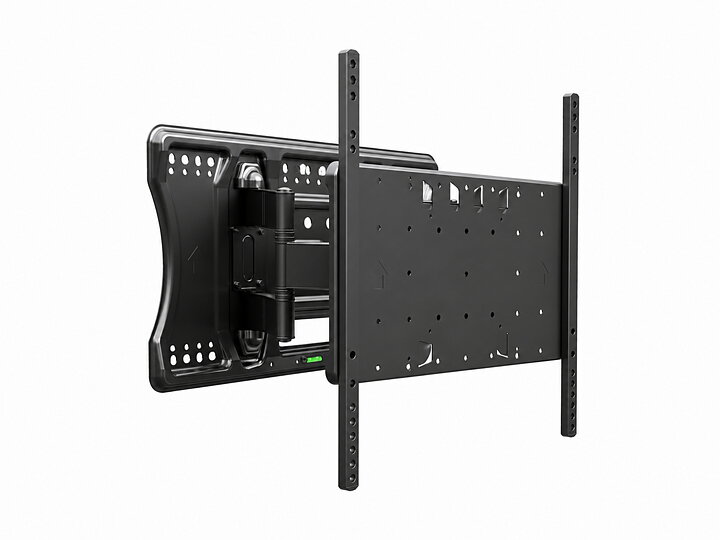

The Multibrackets M VESA Super Slim Tilt & Turn HD (Heavy Duty) wall mount redefines slim, lightweight mounting solutions for large LED and OLED screens. Designed for screens from 40" up to 86" and supporting up to 52 kg, this mount offers a discreet, ultra-thin profile of just 50 mm from the wall, extending up to 260 mm for flexible viewing angles.
Ideal for premium residential and commercial installations requiring seamless integration, the Super Slim Tilt & Turn HD combines a minimalist design with robust construction. Crafted from high-quality materials, it supports a wide range of VESA standards (100x100 up to 400x400 mm), with an optional extender kit available for 600x400 mm configurations, ensuring compatibility with most display models.
Highlights
- Super slim 50 mm mounting profile for minimal wall projection
- Flex, tilt, and turn to achieve the perfect viewing angle
- Tilt range from -0° to +7° to effectively reduce glare
- Turn range of -20° to +20°, adaptable to screen size
- Includes installation template and tool kit for easy setup
- Built-in bubble level guarantees precise mounting
- Single-person tilt adjustment for convenient operation
| Specification | |
| M VESA Super Slim Tilt & Turn HD (Heavy Duty) | |
| For screen size: | 40-86" |

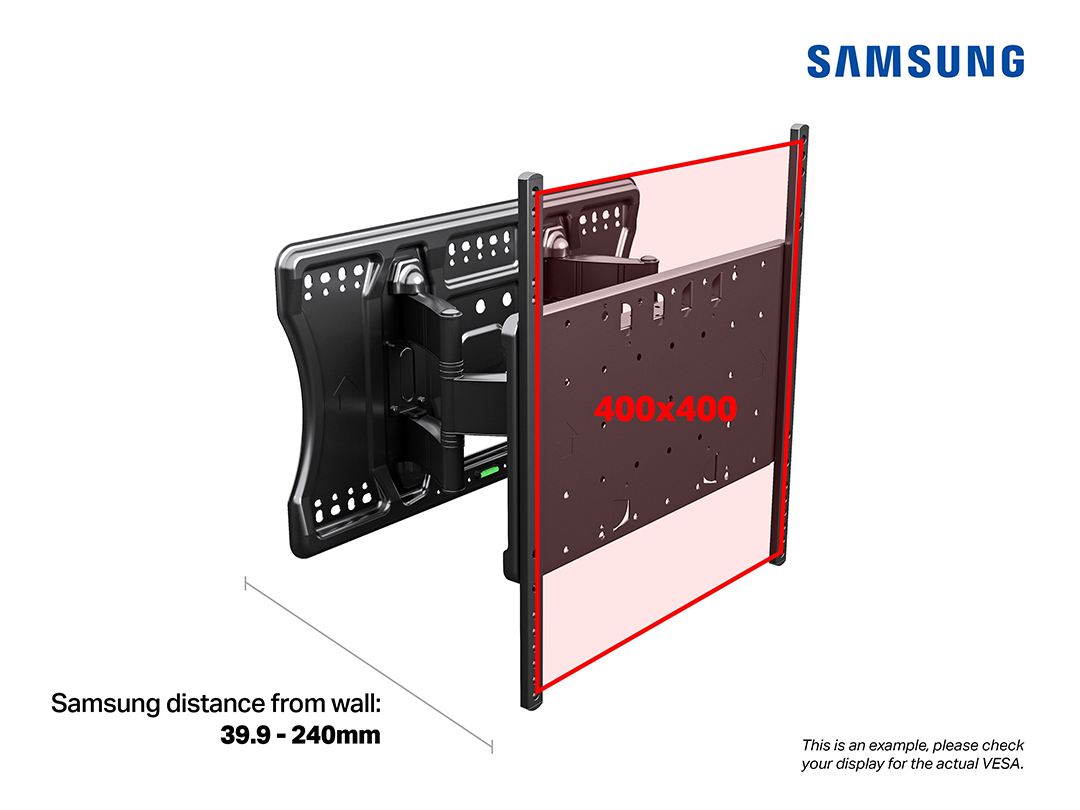

| Universal & VESA standard: | 100x100 100x200 200x100 200x200 300x300 300x200 400x200 400x300 400x400 (600x400 via extenders 7350022734043) |
| Article No: | 7 350 022 735 101 |
| Size in mm: | 595*294*50 (W*H*D) |
| Distance to wall: | VESA 100 / 200 / 300: 40mm |
| Distance to wall with extender arms: | VESA 400: 50mm |
| Weight: | 7,7 kg |
| Colour: | Black |
| Max load: | 52 kg |
| Distribution package: | 4 pcs |
| Warranty: | 5 years |
| Distance to wall: | min 48mm - max 260mm |
| Single box size (WxDxH): | 687x80x365mm |
| Units on a EUR-pallet: | 80 pcs |
| For VESA 800x400 600x400 600x300 600x200: | Combine with optional M Extender Kit Tilt & Turn |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 60 x 38 x 8 cm |
| Package Weight: | 7.50 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 4 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0.00 kg |
| Material Specification | |
| Product Weight: | kg |
| Product Materials: | |
| Total Package Material Weight: | 1.008 kg |
| Retail Package Outer Box: | 0.000 kg |
| Retail Package Inner Box: | 0.918 kg |
| Plastic Material: | 0.089 kg |
