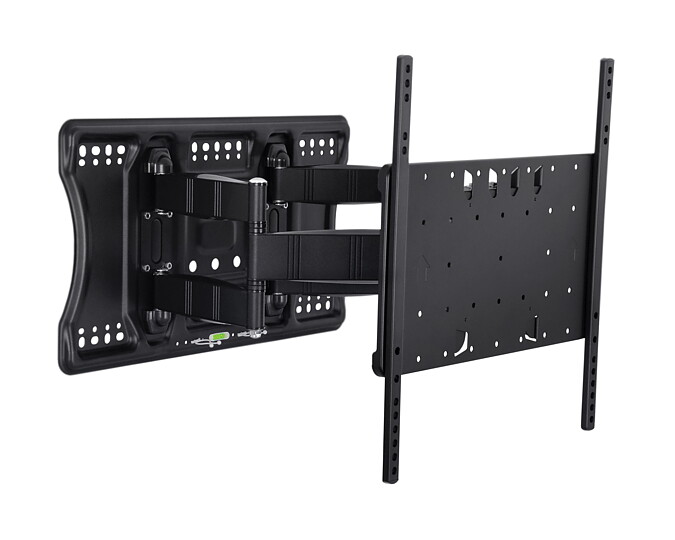

M VESA Super Slim Tilt & Turn Plus
Options
Variants that match your options:
In stock: 290
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350022734227
Product Overview
The Multibrackets M VESA Super Slim Tilt & Turn Plus sets a new standard in wall mounts, replacing bulky and heavy arms with a sleek, ultra-thin design perfect for modern LED and OLED displays. This lightweight yet super-strong mount fits screens from 32" to 65" and supports up to 40 kg, delivering seamless integration with an extended reach of up to 439 mm from the wall.
Featuring a minimal 39 mm low-profile design, the mount offers exceptional flexibility with smooth tilt and turn functions that help reduce glare and optimize viewing angles. Compatible with a wide range of VESA standards (100x100 up to 400x400 mm), it also supports an optional extender kit for 600x400 mm VESA patterns, ensuring broad compatibility for various display models.
 Click to view larger images |
Highlights
- Super slim 38 mm mounting profile for minimal wall intrusion
- Flex, tilt, and turn with effortless adjustment for optimal viewing angles
- Tilt range from -0° to +7° to reduce screen glare
- Turn range of -45° to +45°, depending on screen size
- Includes installation template and tool kit for quick and easy setup
- Built-in bubble level ensures precise and level mounting
- Single-person tilt adjustment for convenience
- Optional locking accessory available for added security
| Specification | |
| M VESA Super Slim Tilt & Turn Plus | |
| For screen size: | 32-65" |
| Universal & VESA standard: | 100x100 100x200 200x100 200x200 300x300 300x200 400x200 400x300 400x400 With extenderkit: 7350022734043 600x400, 700x400, 800x400 |
| Article No: | 7 350 022 734 227 |
| Size in mm: | 595*294*38-439 (W*H*D) |
| Distance to wall: | VESA 100 / 200 / 300: 39mm |
| Distance to wall with extender: | VESA 400: 49mm |
| Weight: | 9,5 kg |
| Colour: | Black |
| Max load: | 40 kg |
| Distribution package: | 3 pcs |
| Warranty: | 5 years |
| Single box size (WxDxH): | 687x80x365mm |
| Units on a EUR-pallet: | 54 pcs |
| For VESA 800x400 600x400 600x300 600x200: | Combine with optional M Extender Kit Tilt & Turn |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 71 x 38 x 26 cm |
| Package Weight: | 9.50 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 3 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0.00 kg |
| Material Specification | |
| Product Weight: | kg |
| Product Materials: | |
| Total Package Material Weight: | 1.055 kg |
| Retail Package Outer Box: | 0.000 kg |
| Retail Package Inner Box: | 0.951 kg |
| Plastic Material: | 0.103 kg |
