M VESA Super Slim Tilt & Turn Plus HD
Options
Variants that match your options:
In stock: 766
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350022739697
Product Overview

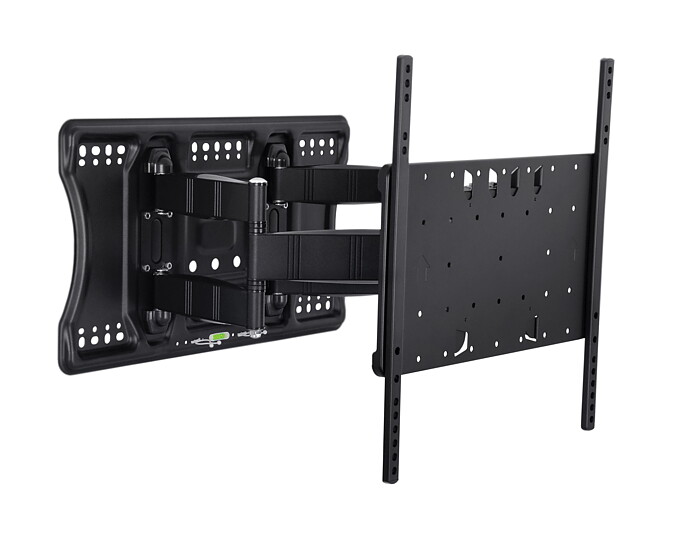

The Multibrackets M VESA Super Slim Tilt & Turn Plus HD is a high-performance wall mount solution engineered for professional installations where flexibility, aesthetics, and strength are paramount. Designed to support large LED and OLED displays from 40" up to 86" with a maximum load of 65 kg, this mount delivers full-motion functionality in an ultra-slim format.
As part of the Super Slim Series, the Tilt & Turn Plus HD combines a sleek, discreet profile with heavy-duty articulation. The mount extends up to 439 mm from the wall and retracts to a mere 50 mm, offering dynamic positioning without compromising the room’s visual appeal. This makes it ideal for boardrooms, retail environments, hospitality installations, and premium home AV setups.
The mount supports VESA patterns from 100x100 mm up to 400x400 mm and can be expanded to 800x400 mm with an optional extender kit—ensuring broad compatibility with a wide range of commercial displays. Built-in tilt and turn adjustments enable easy repositioning for optimal viewing angles, glare reduction, and enhanced user experience. The robust construction and smart mounting features make it a preferred choice for integrators and facility managers alike.
Highlights
- Supports screens from 40" to 86", up to 65 kg
- Full-motion mount with articulating arm – extends up to 439 mm
- Ultra-slim profile: only 50 mm from wall when retracted
- VESA compatibility from 100x100 mm to 400x400 mm (optional extender up to 800x400 mm)
- Tilt and swivel functionality for optimal screen positioning
- Minimalist design for seamless integration in professional spaces
- Quick installation with included mounting template and tool kit
- Ideal for corporate, retail, hospitality, and high-end AV environments
| Specification | |
| M VESA Super Slim Tilt & Turn Plus HD | |
| For screen size: | 40-86" |

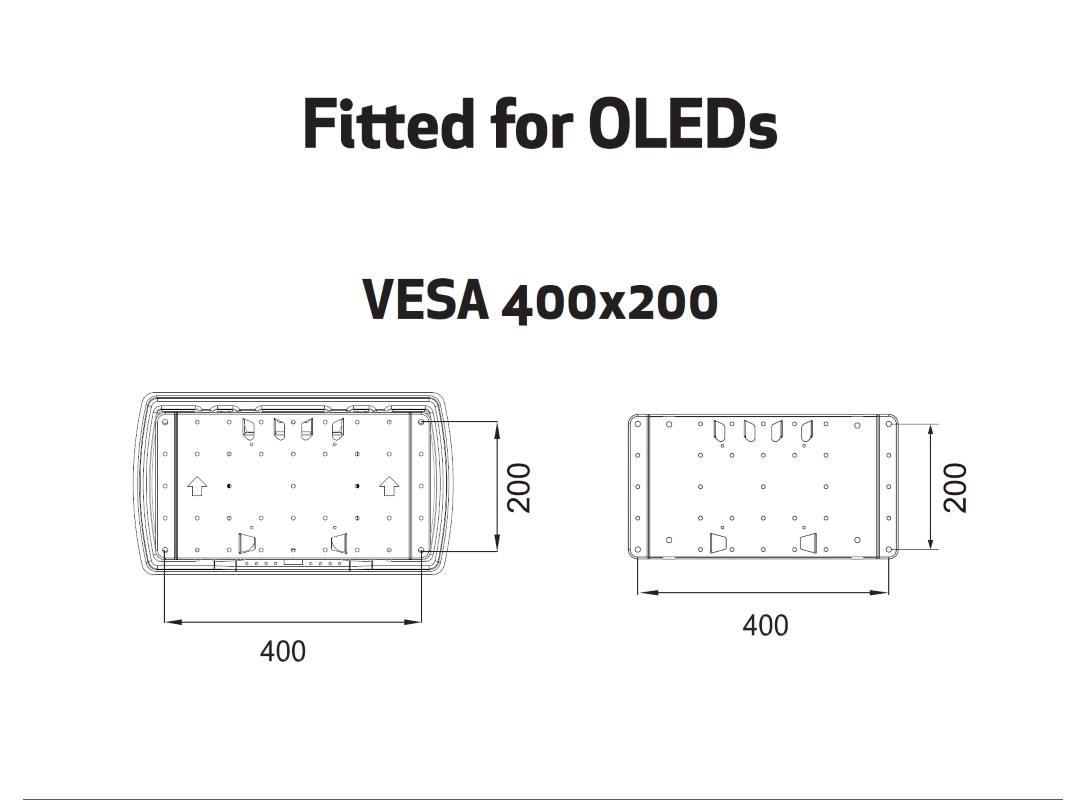

| Universal & VESA standard: | 100x100 200x100 200x200 300x300 300x200 400x200 400x300 400x400 With extenderkit, 7350022734043, reach: 600x400, 700x400, 800x400 |
| Article No: | 7 350 022 739 697 |
| Size in mm: | 595*294*48-449 (W*H*D) |
| Distance to wall: | VESA 100 / 200 / 300: 49mm |
| Distance to wall with extender: | VESA 400: 59mm |
| Weight: | 10 kg |
| Colour: | Black |
| Max load: | 65 kg |
| Distribution package: | 3 pcs |
| Single box size (W*D*H): | 687*80*365mm |
| Warranty: | 5 years |
| For VESA 800x400 600x400 600x300 600x200: | Combine with optional M Extender Kit Tilt & Turn |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 69 x 37 x 9 cm |
| Package Weight: | 10.50 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 3 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0.00 kg |
