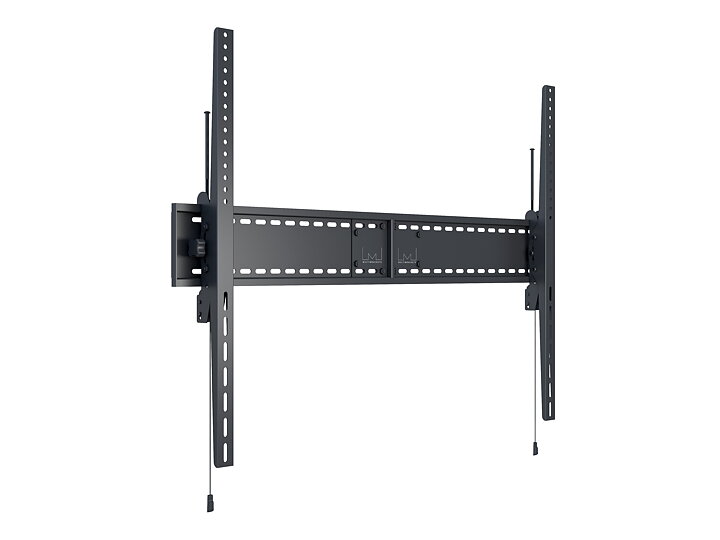

M Universal Tilt Wallmount SD MAX 1200x900
Options
Variants that match your options:
In stock: 39
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073730926

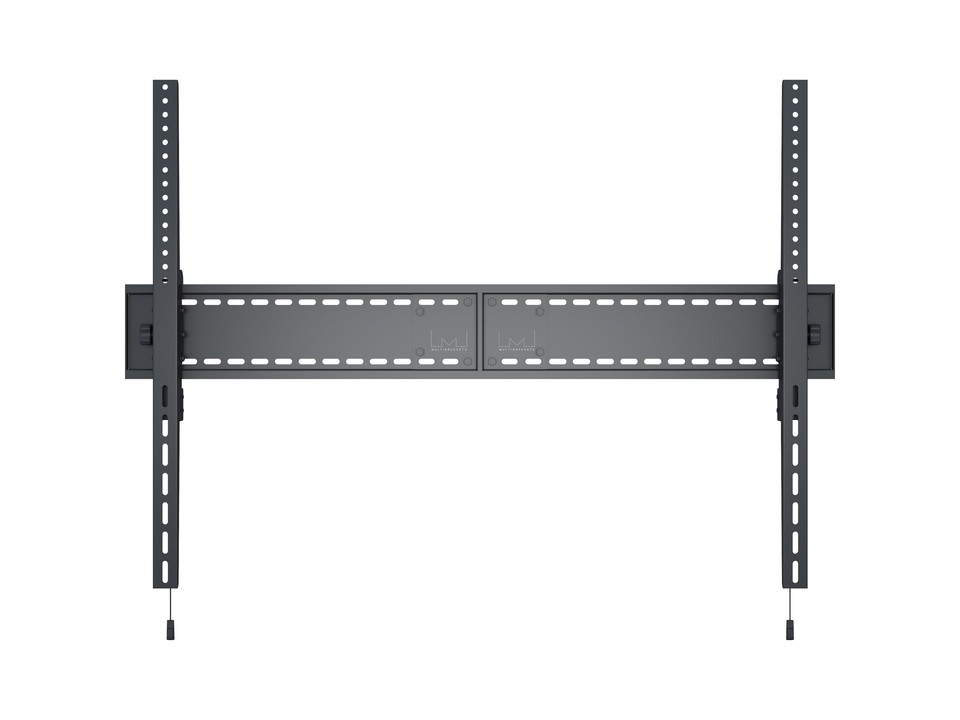

Product Overview
The M Universal Wallmount Fixed and Tilt series is developed to meet the demand for extra large screen installations in commercial and public spaces. Designed to support heavy screens such as touch screens and large displays, this mount handles up to 125 kg and fits VESA mounting patterns up to 1200 x 900 mm.
The versatile design supports both landscape and portrait orientations for screens up to 115". With installer-inspired features for easy leveling, stud location, and maintenance, the SD series offers a low-profile mount engineered for fast installation and high usability. Suitable for setups ranging from single TVs to video wall matrices in digital signage environments.
Highlights
- Clean, professional look with easy installation
- Ideal for digital signage, education, and corporate environments
- Supports both landscape and portrait screen orientations
- Designed for quick installation and user-friendly operation
- Tilt adjustment possible without removing the screen
- Slim 75mm wall distance
- Super Duty (SD) rated with max load of 125 kg
- Constructed from durable 3mm cold-rolled steel
- Secure latching arms for safety
- Optional anti-theft lock and key
| Specification | |
| M Universal Wallmount Tilt SD MAX 1200x900 | |
| For screen size: | 63-115" |
| Universal & VESA standard: | Landscape 400x400 600x300 600x400 800x400 800x500 800x600 900x400 900x600 900x800 1200x600 1200x800 1200x900 Portrait 200x300 200x400 300x600 400x400 400x600 400x800 400x900 600x800 600x900 |
| Article No: | 7 350 073 730 926 |
| Colour: | Black |
| Max load: | 125 kg |
| Net weight: | 12,5 kg |
| Gross weight: | 13,5 kg |
| Options: | Anti-theft: Lock and key (optional) |
| Warranty: | 5 years |
| Distance to wall: | (min-max) 75-113mm |
| Backplate measurement: | Landscape: 1314mm (W), Portait: 657mm (W) |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 96 x 20 x 12 cm |
| Package Weight: | 11.50 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 3 pcs |
| Package Measurements: | 97 x 39 x 22 cm |
| Package Weight: | 32.30 kg |
