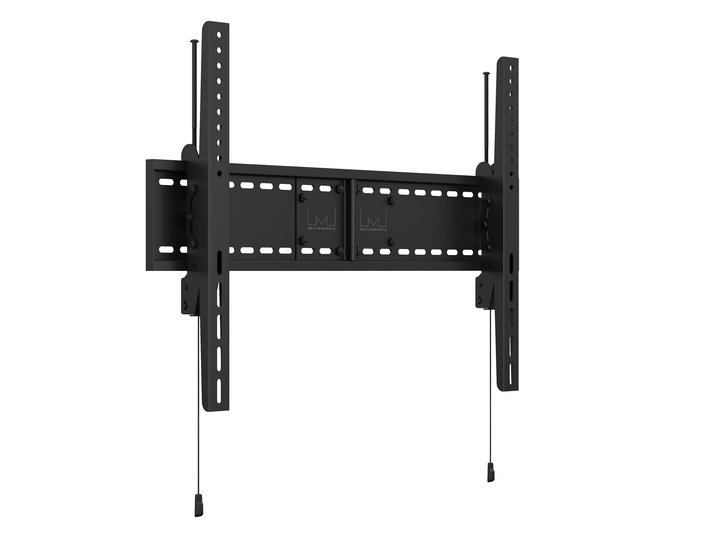

M Universal Tilt Wallmount SD MAX 800x600
Options
Variants that match your options:
In stock: 122
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073731107
Product Overview
The Multibrackets M Universal Tilt SD is a versatile wall mount designed for large display installations. Its smart design supports both landscape and portrait orientations and can handle screens up to 110" with a maximum weight of 125 kg. Compatible with a wide range of VESA patterns up to 800x600 mm, it fits most large screens available on the market.
This mount series, including tilt, fixed, and pull-out options, is engineered to solve challenging installation issues such as leveling and stud location. Installer-inspired features ensure safe, quick, and easy installation and maintenance. Engineered for usability and speed, these low-profile mounts are suitable for a variety of applications ranging from single TVs to extensive video wall matrices used in digital signage.
Highlights
- Clean design with easy installation
- Ideal for digital signage, educational, and corporate environments
- Supports both landscape and portrait installations
- Engineered for fast installation and high usability
- Tilt angle adjustable without removing the screen
- Slim 75mm distance to wall
- Super Duty (SD) with max load capacity of 125 kg
- Constructed from 3mm cold-rolled steel for durability
- Secure latching arms
- Optional anti-theft lock and key
| Specification | |
| M Universal Wallmount Tilt SD MAX 800x600 | |
| For screen size: | 63-110" |
| Universal & VESA standard: | Landscape 300x300 400x400 600x300 600x400 700x400 800x400 800x500 800x600 Portrait 200x300 200x400 200x600 300x600 400x600 400x400 400x600 |
| Article No: | 7 350 073 731 107 |
| Colour: | Black |
| Max load: | 125 kg |
| Net weight: | 8.10 kg |
| Gross weight: | 8.30 kg |
| Options: | Anti-theft: Lock and key (optional) |
| Warranty: | 5 years |
| Distance to wall: | (min-max) 75-113mm |
| Backplate measurement: | Landscape: 907mm (W), Portait: 453,7mm (W) |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 68 x 20 x 12 cm |
| Package Weight: | 8.30 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 5 pcs |
| Package Measurements: | 68 x 39 x 23 cm |
| Package Weight: | 26.70 kg |
