M Ceiling Mount Pro Dual 55BDL-4050D
Options
Variants that match your options:
Delivery: Status: Not in Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105210730
Product Overview

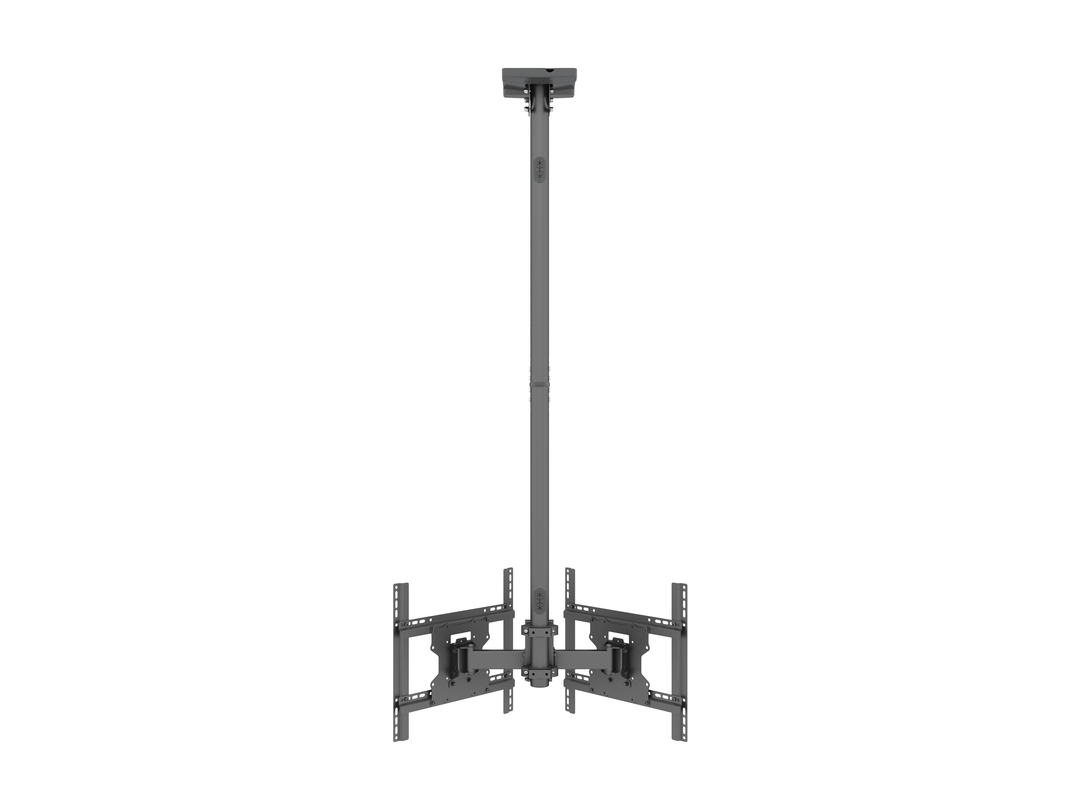

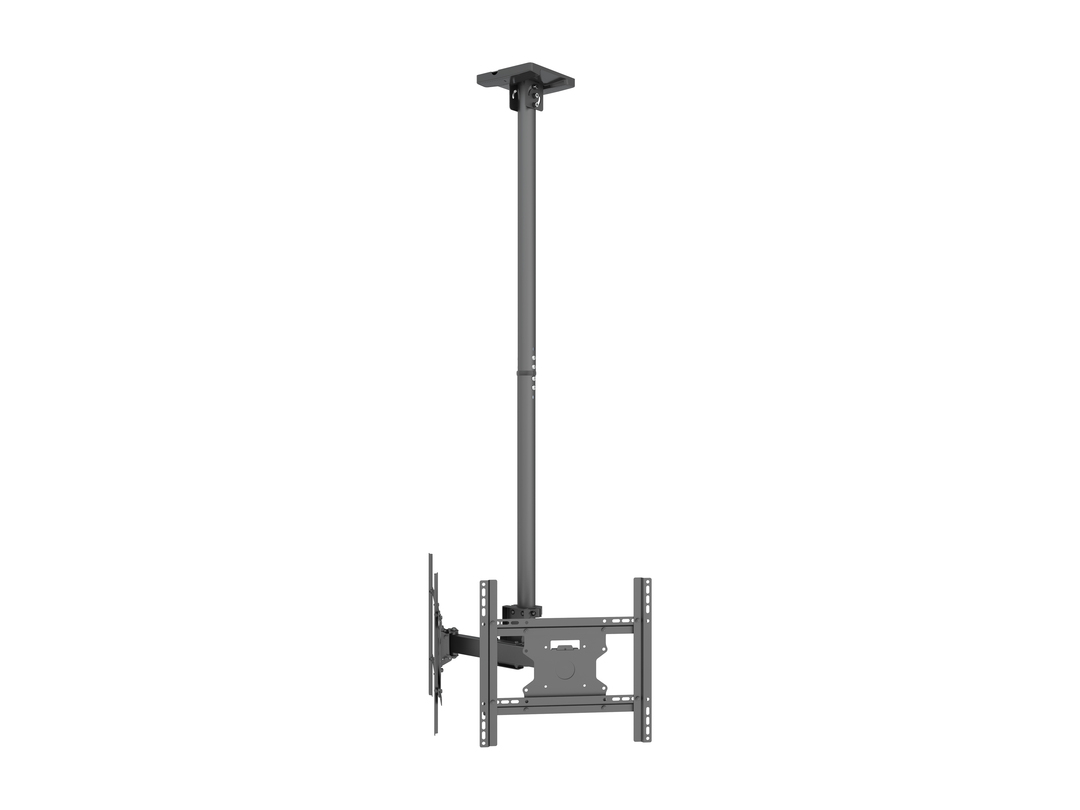

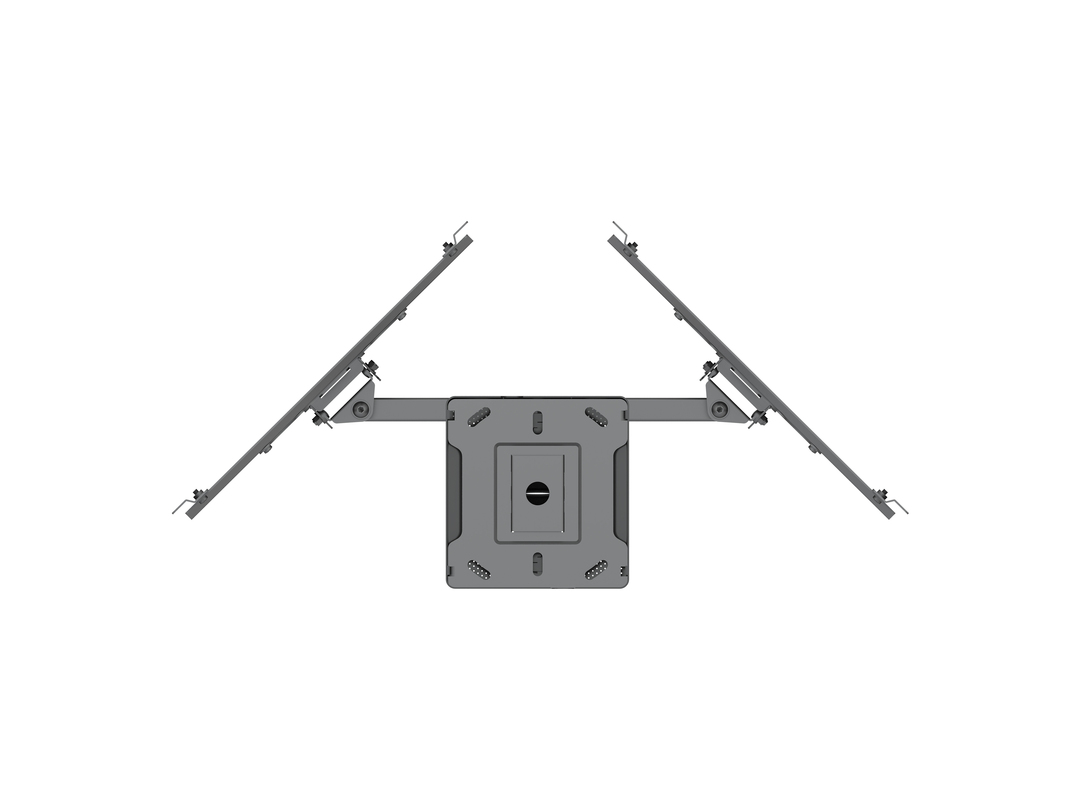

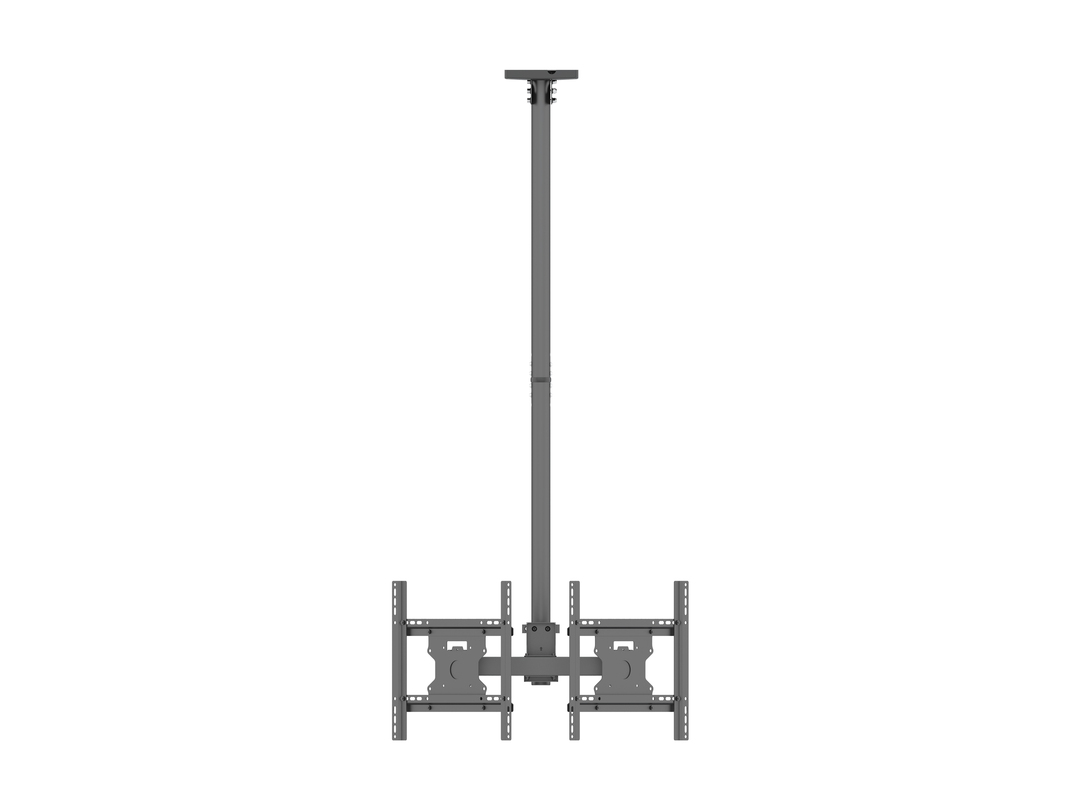

The Multibrackets Pro Series M Ceiling Mount Pro Dual 55BDL-4050D is an innovative, ready-to-install dual side-display ceiling mount designed for LCD screens ranging from 32" to 55" with VESA compatibility up to 400x400. Crafted with the installer in mind, this modular solution combines ease of configuration, quick installation, and simple maintenance with professional-grade materials.
Built on the Pro Series' strong and ultra-flexible aluminum rail system, this mount features integrated cable management that streamlines installation and results in a sleek, aesthetic finish suitable for high-visibility commercial environments. Its modular design provides extensive flexibility, allowing installers to update and reconfigure the setup as needs evolve.

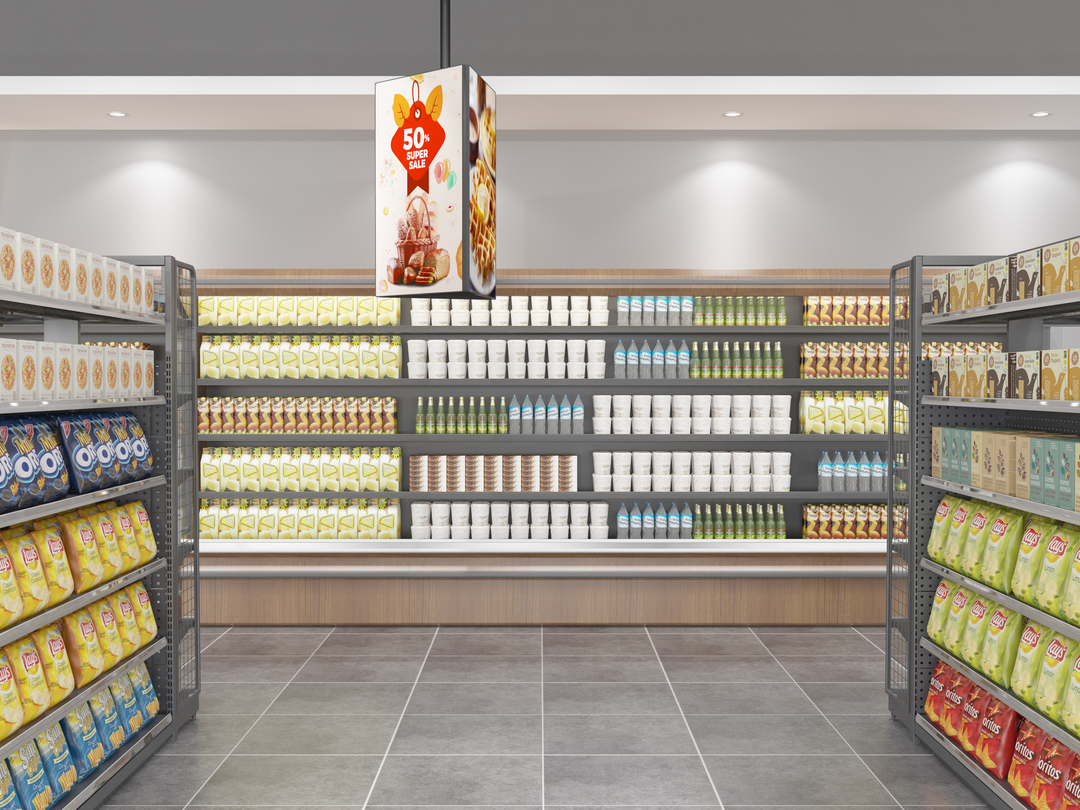

Inspired by Scandinavian design principles, this ceiling mount offers a clean Nordic look with high-quality materials and attention to detail. It is ideal for various large-screen digital signage applications in retail, corporate, and public spaces.
Click to view larger images
Highlights
- Professional, flexible, and modular ceiling mount system
- Includes VESA adapters supporting up to 400x400 compatibility
- Integrated cable management for clean installations
- Power click installation for fast, safe, and easy setup
- Ceiling plate included for secure mounting
- Supports portrait or landscape screen orientation

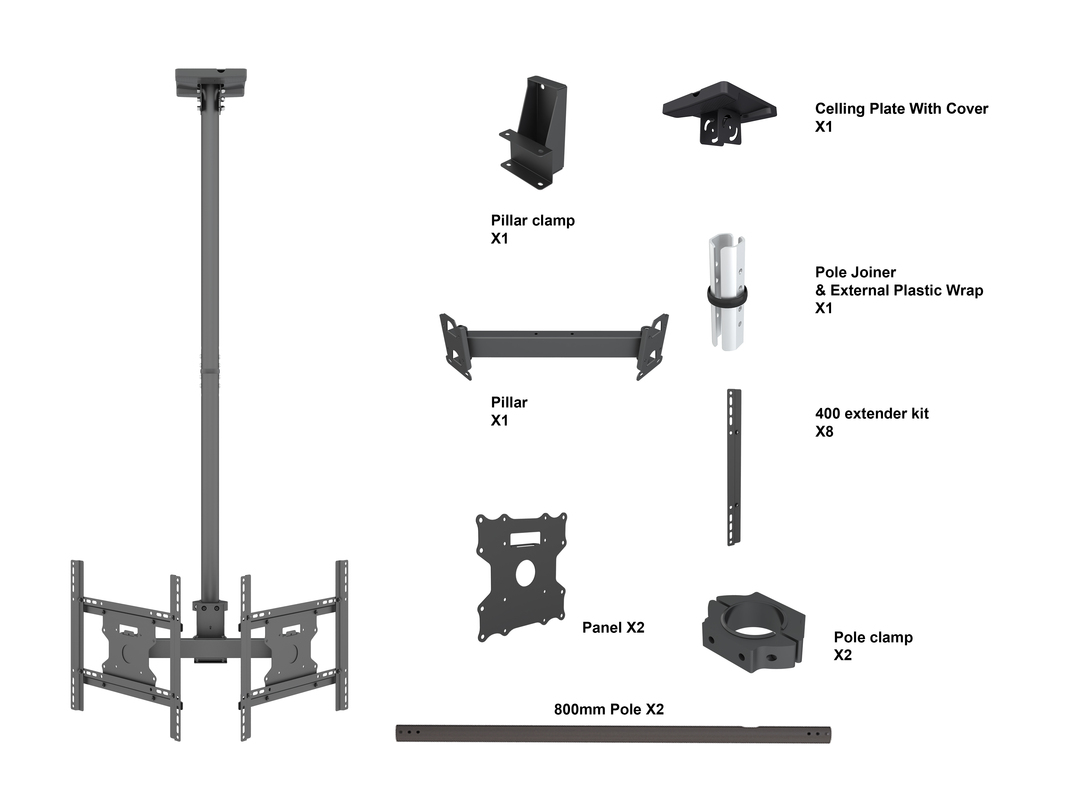

- Complete hardware kit included
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro Dual 55BDL-4050D | |
| Article No: | 7 350 105 210 730 |
| For screen size: | 32"-55" |
| Type: | Dual MBC1U |
| Universal & VESA standard: | 100x100,100x200,200x100,200x200,300x300,400x400 |
| Material: | Steel, Aluminium, Plastic |
| Color: | Black |
| Surface Finish: | Powder coating |
| Weight: | 14.5 kg |

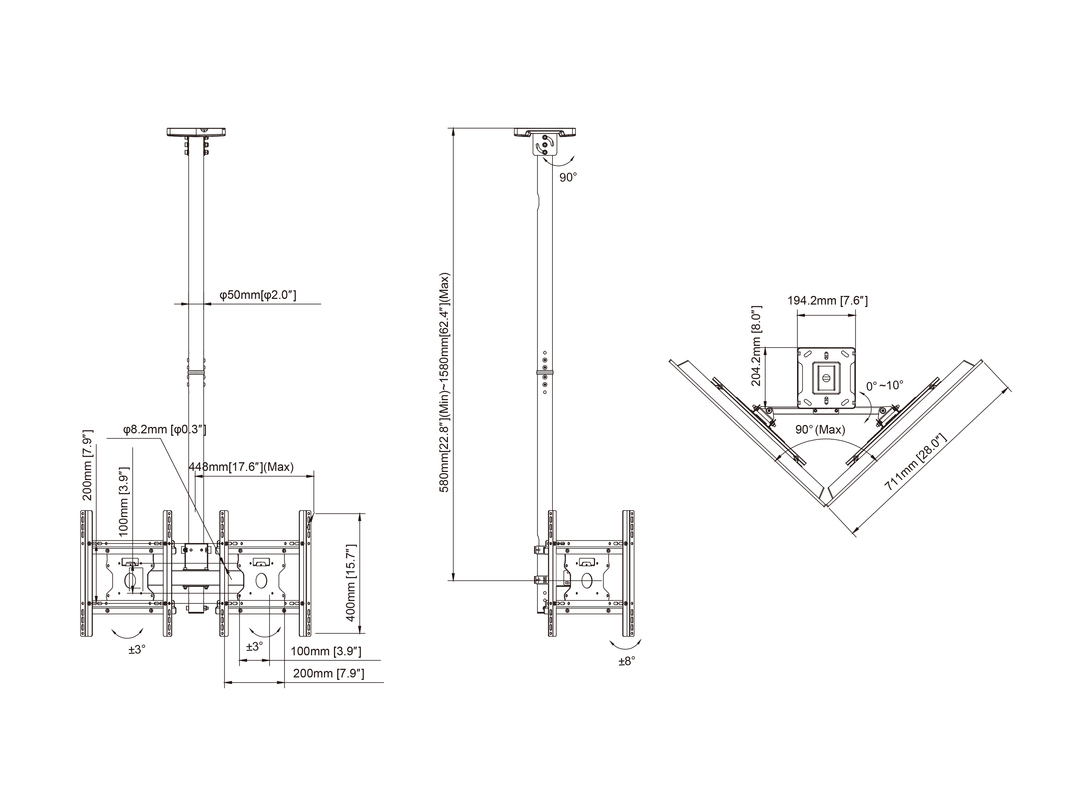

| Measurements | 815x228x125 mm |
| Max Load: | 30 kg per screen TUV approved at 30 kg per screen |
| Pillar length: | 1681mm Extension pipes: 1.5m (800mm*2pcs) included |

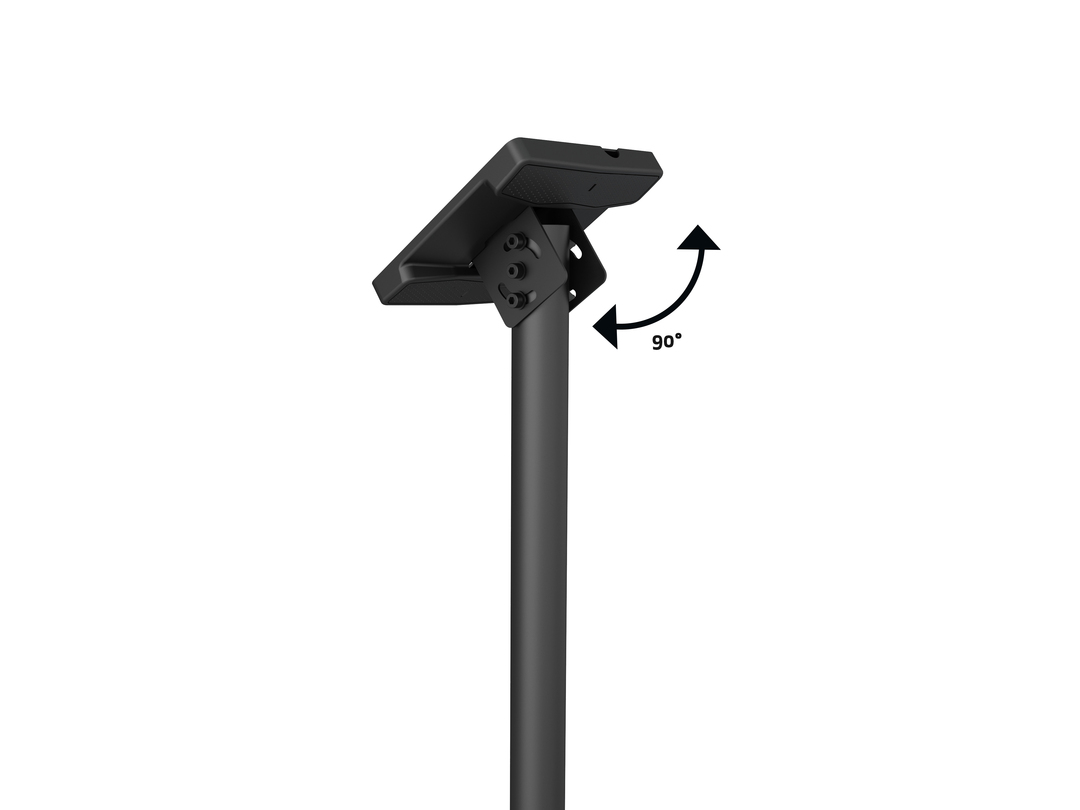

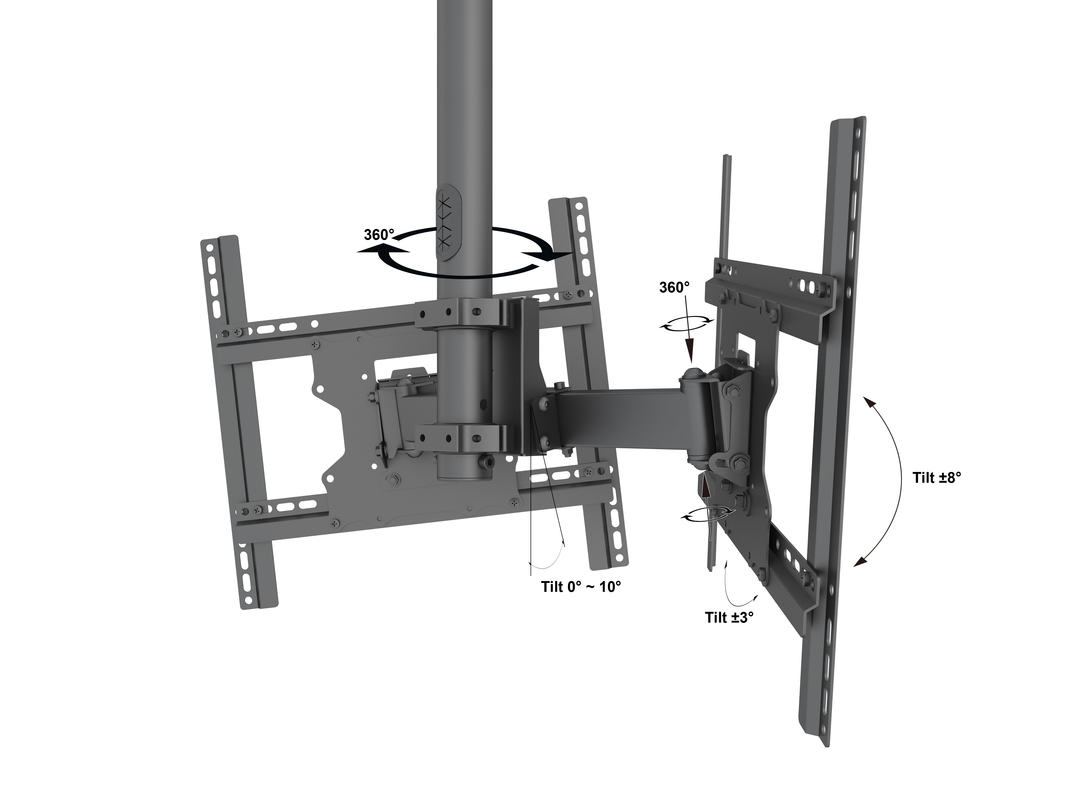

| Tilt: | Yes, 90° |
| Swivel: | Yes, ±3° |

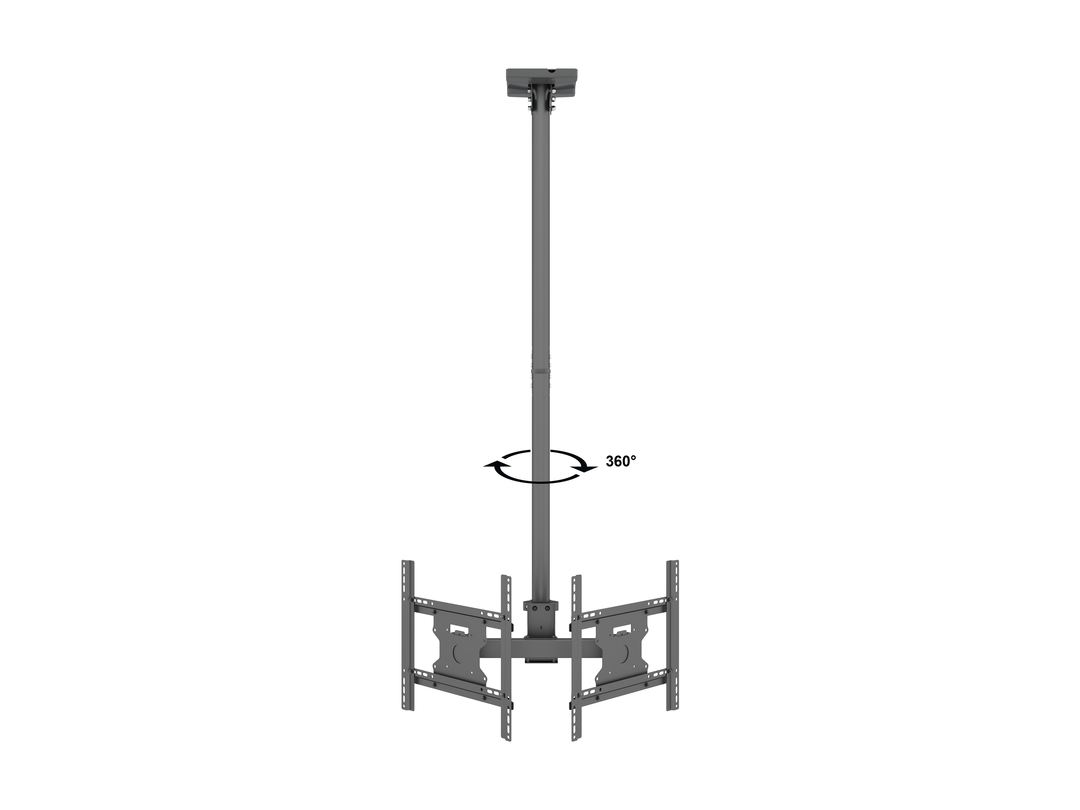

| Rotate: | Yes, 360° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0.00 kg |
