M Ceiling Mount Pro MBC1U i-Beam VESA 200
Options
Variants that match your options:
In stock: 56
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7340234816903

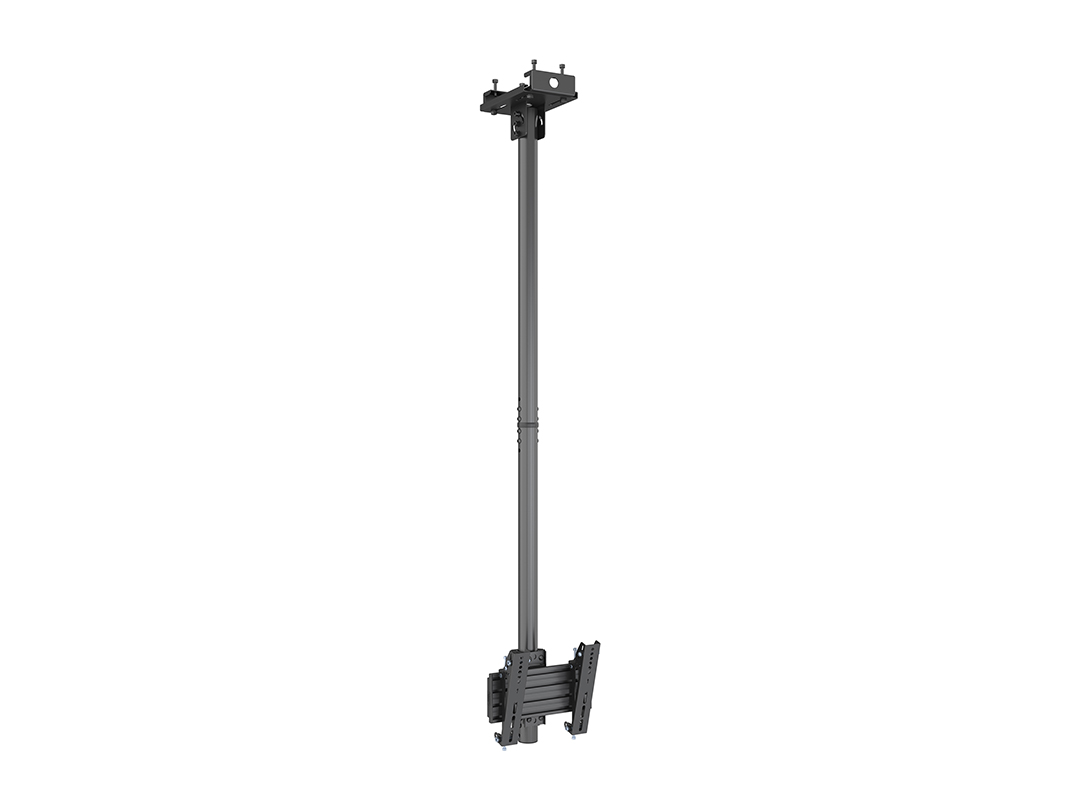

M Ceiling Mount Pro MBC1U i-Beam VESA 200 - Ceiling mount for LCD display, steel, 1.5m length, 1 screen, single side, tilt arms, VESA 200 - screen size: 24"-42" - black
Product overview
Multibrackets M Ceiling Mount Pro MBC1U i-Beam VESA 200 is a single-sided ceiling mount built for professional digital signage in commercial and public environments. Designed for rapid installation and modular adaptability, it combines durability with modern aesthetics.
With support for screens from 24" to 42", this model features tilt functionality for optimal display angles. Its robust steel and aluminum construction integrates clean cable routing and a sleek black finish. VESA compatibility up to 200x200 and TÜV-tested strength ensures secure and future-ready installations.
The modular Pro Series system allows you to extend pipes, adjust screen orientation, or expand to more complex configurations as project needs grow.
Highlights
- For single screen, ceiling-mounted installations
- Supports screen sizes 24"–42"
- VESA compatibility up to 200x200
- TÜV tested to 5x maximum load capacity
- Integrated cable management for clean setup
- 1.5m vertical mounting pipe included
- Tilt functionality for ideal viewing angle
- Supports portrait or landscape screen orientation
- Steel and aluminum construction with black finish

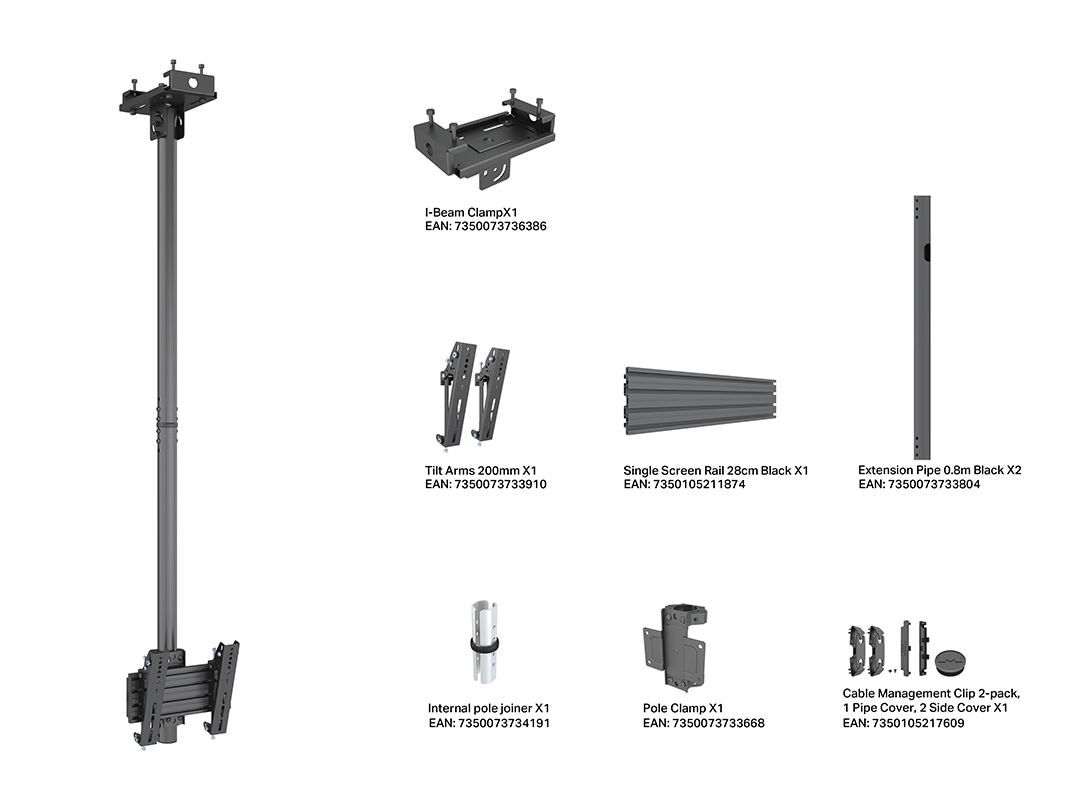

- Ceiling plate and full hardware kit included
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC1U i-Beam VESA 200 | |
| Article No: | 7340234816903 |
| For screen size: | 24”-42" |
| Type: | Single Side MBC1U, VESA 200 |
| Universal & VESA standard: | 75x75, 100x100, 150x200mm, 200x200 mm |
| Material: | Steel, Aluminium, Plastic |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 8.5 kg |
| Measurements | 69x178x20 cm |
| Max Load: | 35 kg |

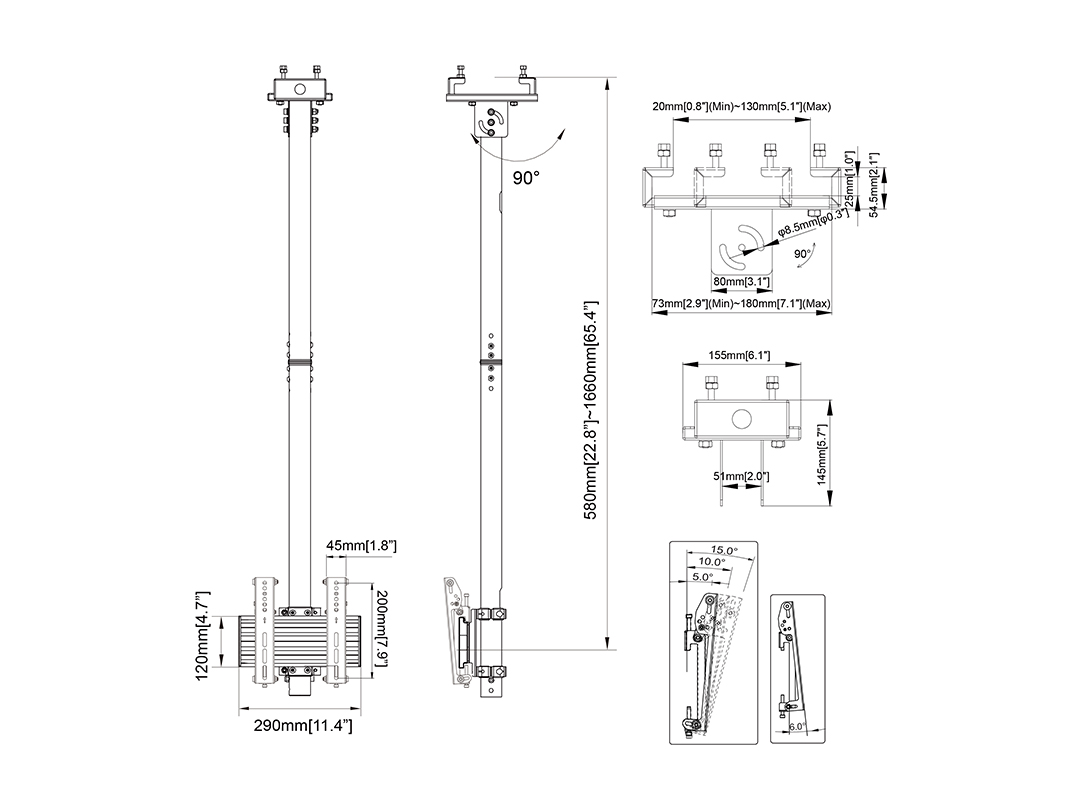

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*2pcs) included |
| Tilt: | Yes, -6°~+15° |
| Swivel: | Yes, 360° |
| Rotate: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 82 x 20.5 x 14 cm |
| Package Weight: | 10.10 kg |
