M Ceiling Mount Pro MBC1U VESA 400
Options
Variants that match your options:
In stock: 164
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7340234814145

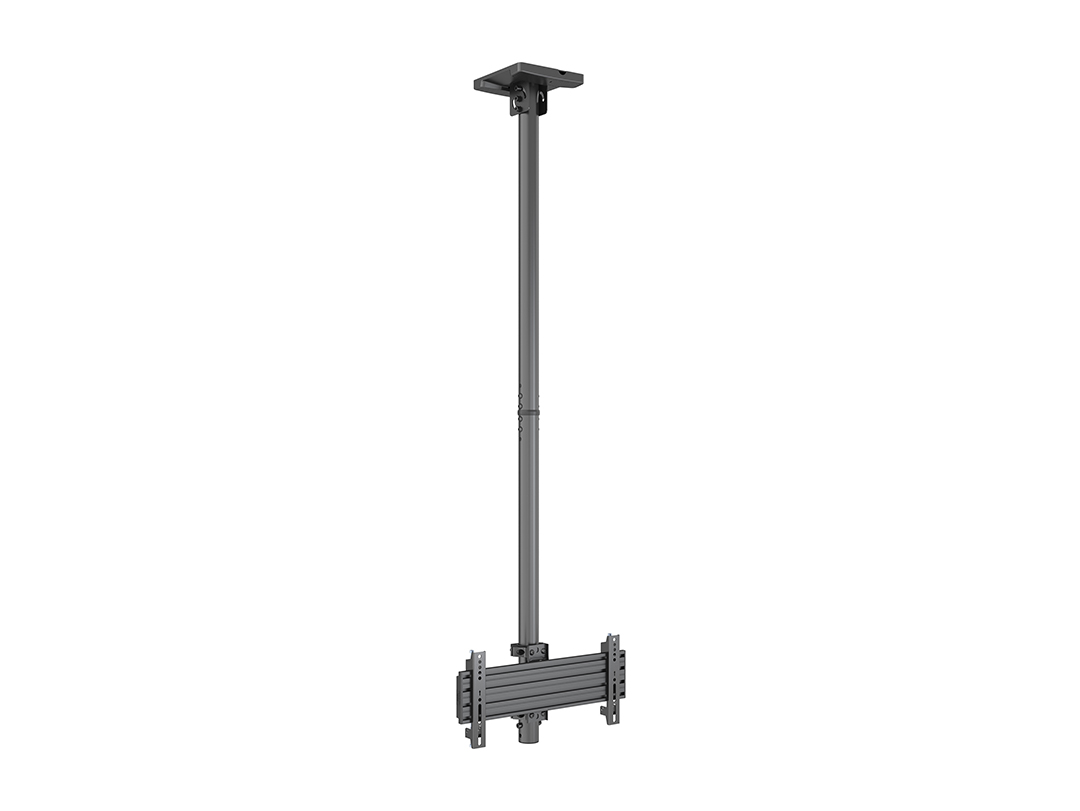

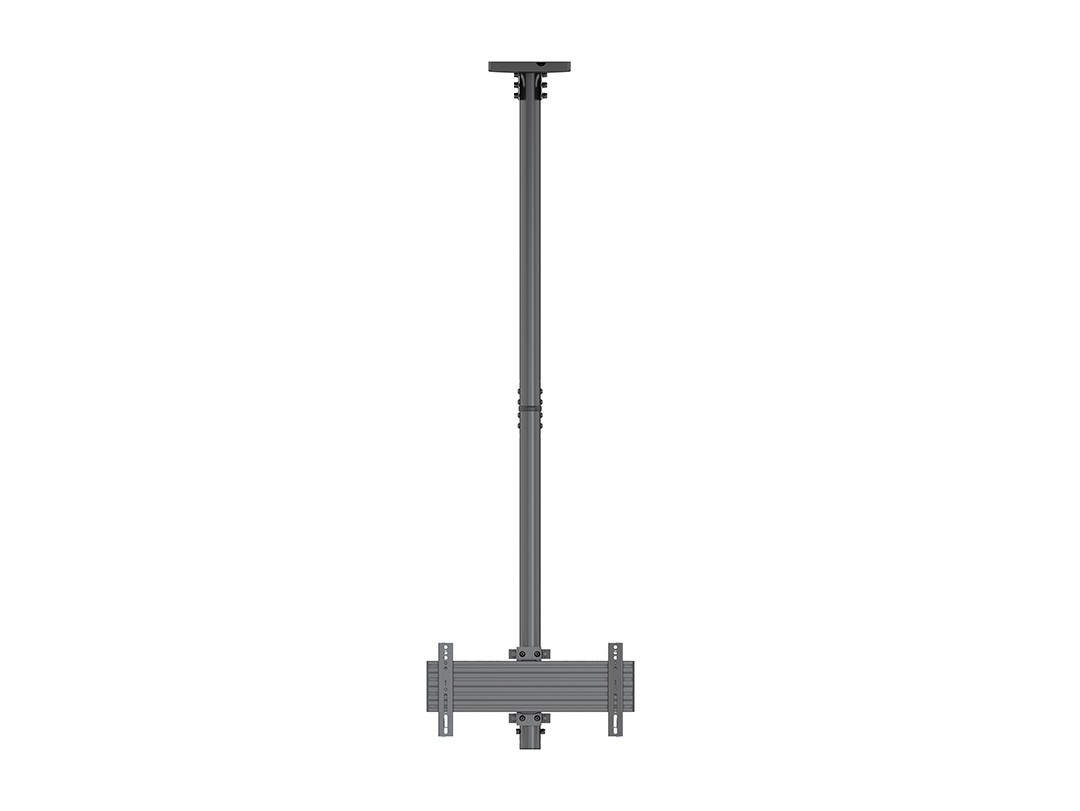

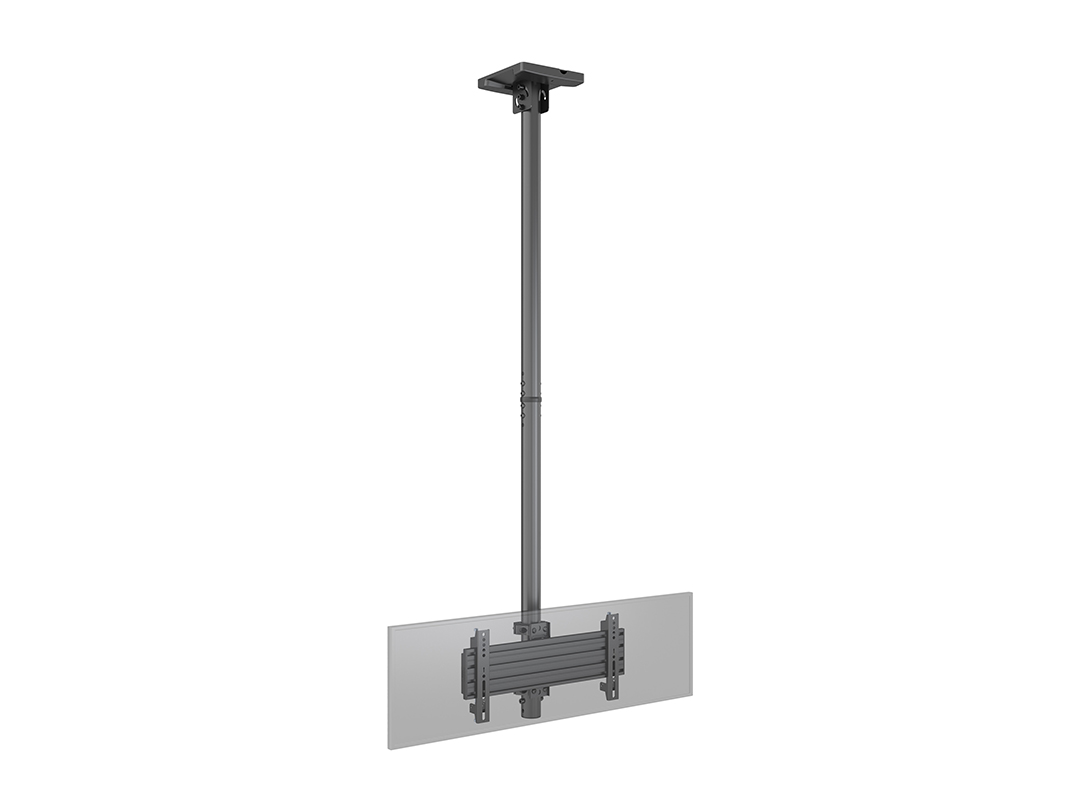

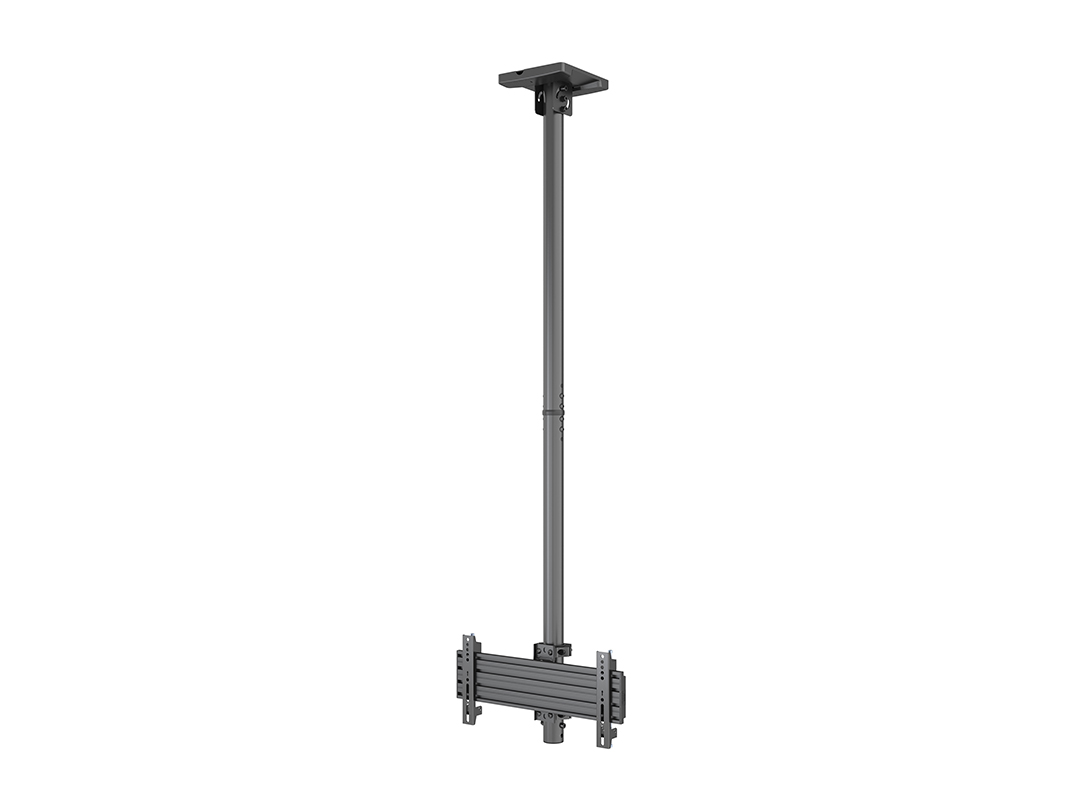

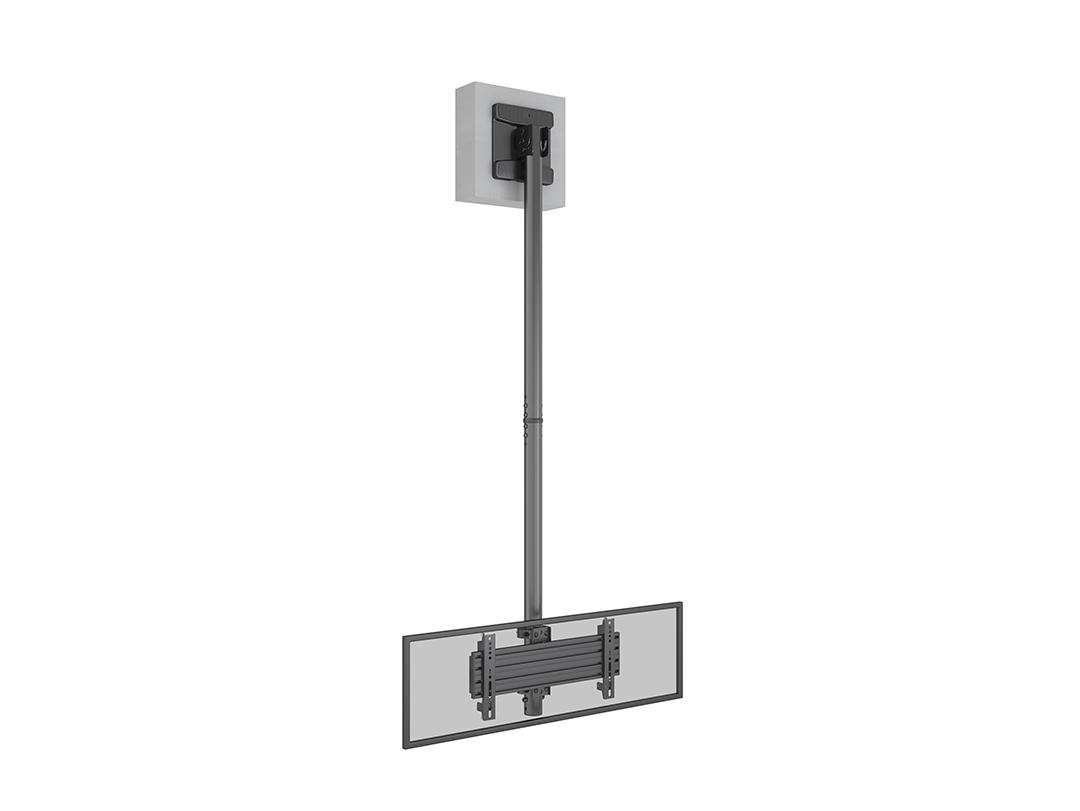

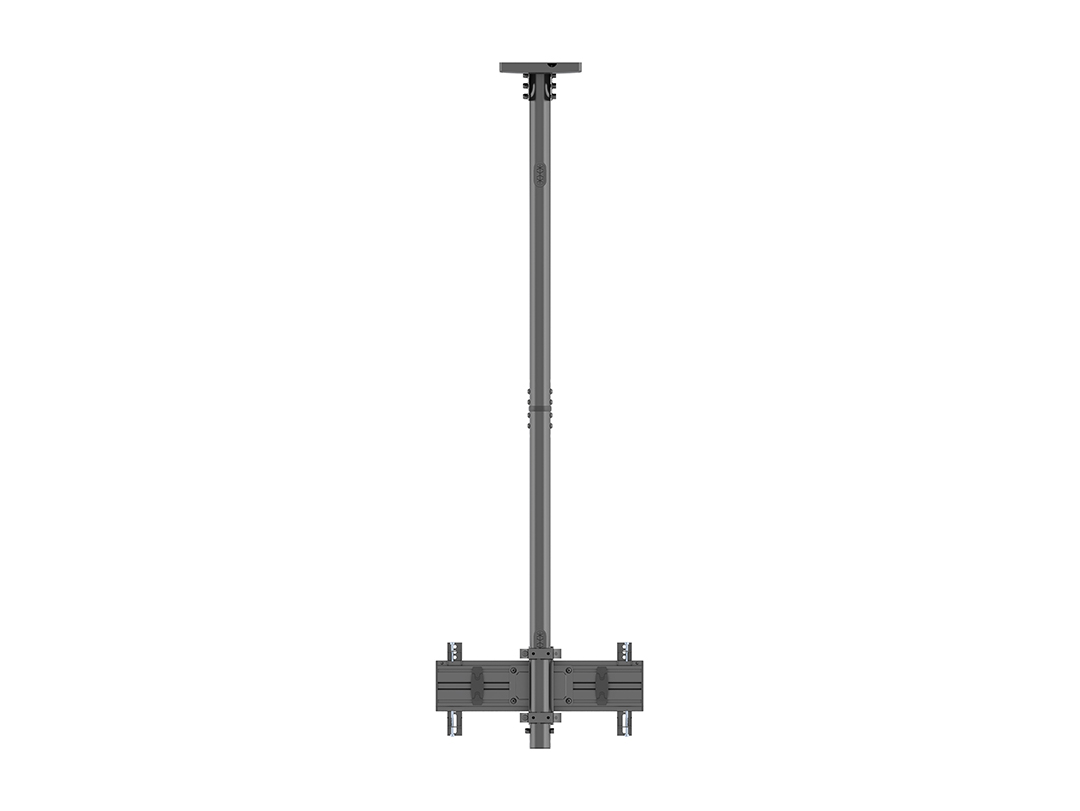

M Ceiling Mount Pro MBC1U VESA 400 - Ceiling mount for LCD display, steel, 1.5m length, 1 screen, single side, tilt arms, VESA 400x200 - screen size: 24"-42" - black
Product overview

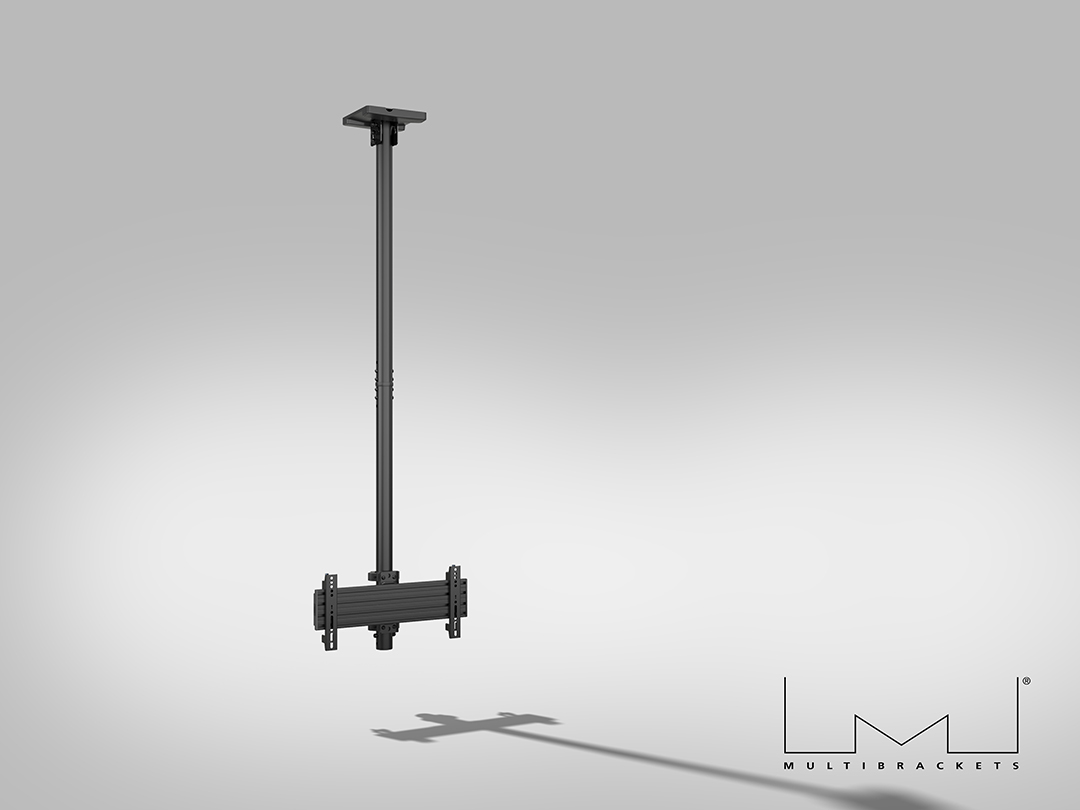

Multibrackets M Ceiling Mount Pro MBC1U VESA 400 is a single-sided ceiling mount built for professional digital signage in commercial and public environments. Designed for rapid installation and modular adaptability, it combines durability with modern aesthetics.
With support for screens from 24" to 42", this model features tilt functionality for optimal display angles. Its robust steel and aluminum construction integrates clean cable routing and a sleek black finish. VESA compatibility up to 400x200 and TÜV-tested strength ensures secure and future-ready installations.

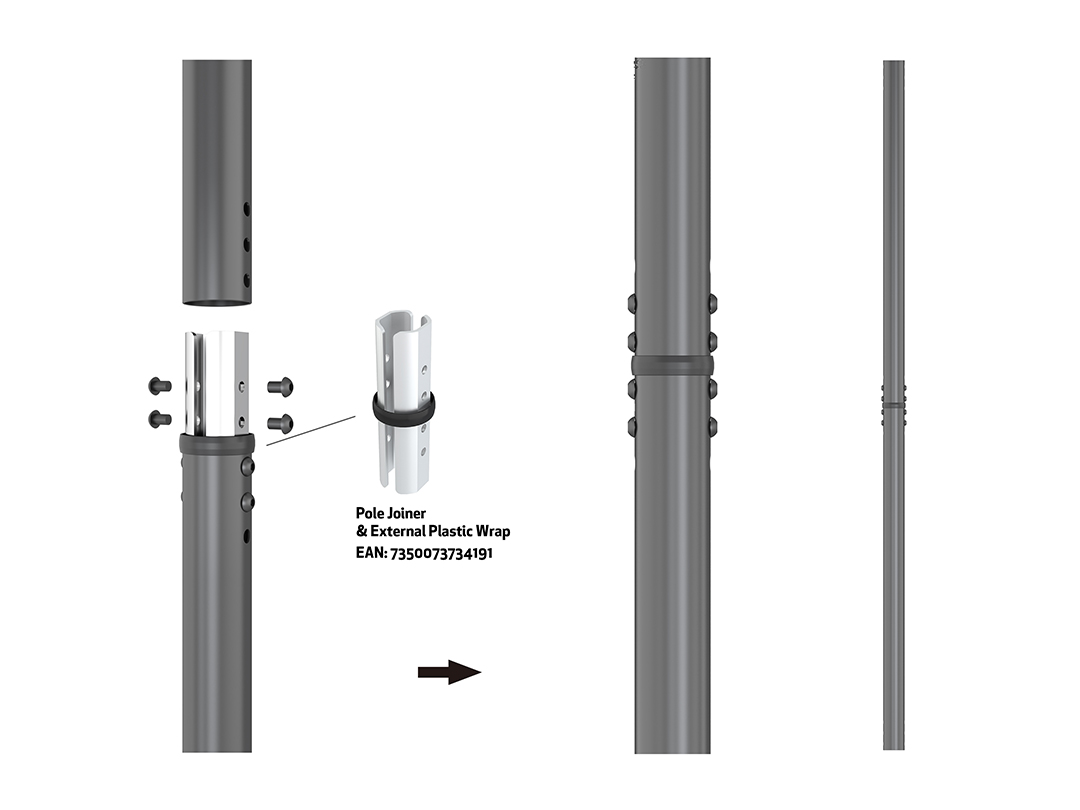

The modular Pro Series system allows you to extend pipes, adjust screen orientation, or expand to more complex configurations as project needs grow.
Highlights
- For single screen, ceiling-mounted installations
- Supports screen sizes 24"–42"
- VESA compatibility up to 400x200
- TÜV tested to 5x maximum load capacity

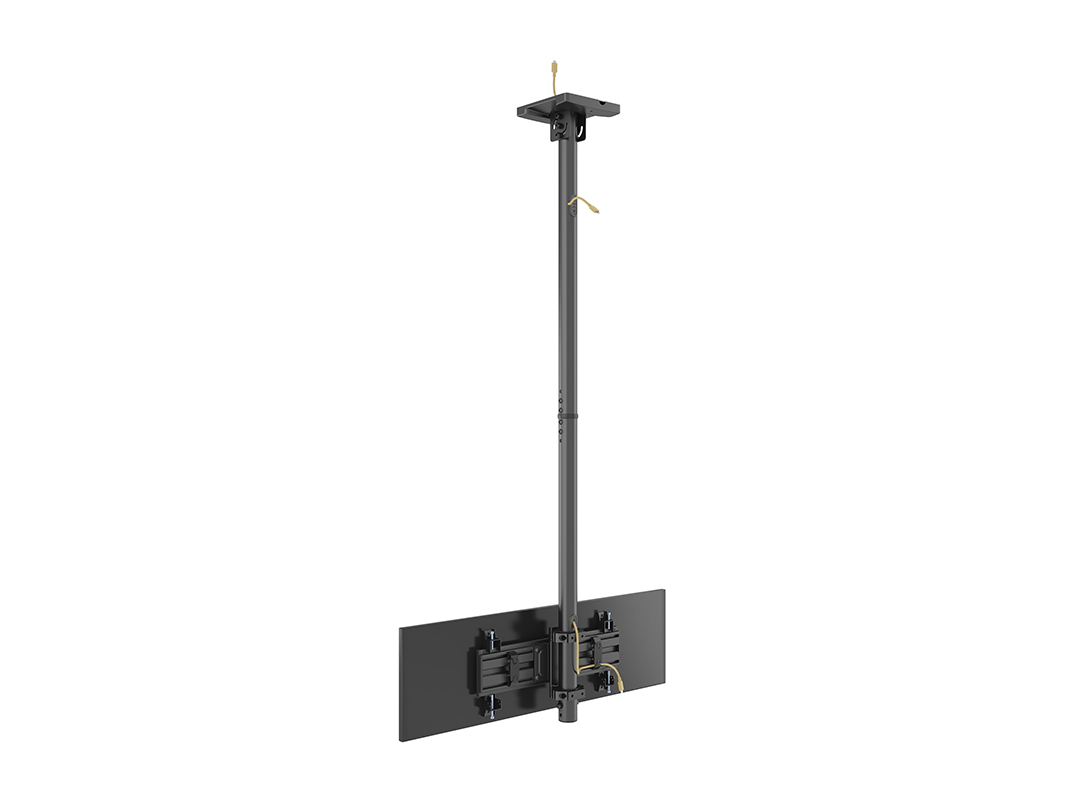

- Integrated cable management for clean setup
- 1.5m vertical mounting pipe included

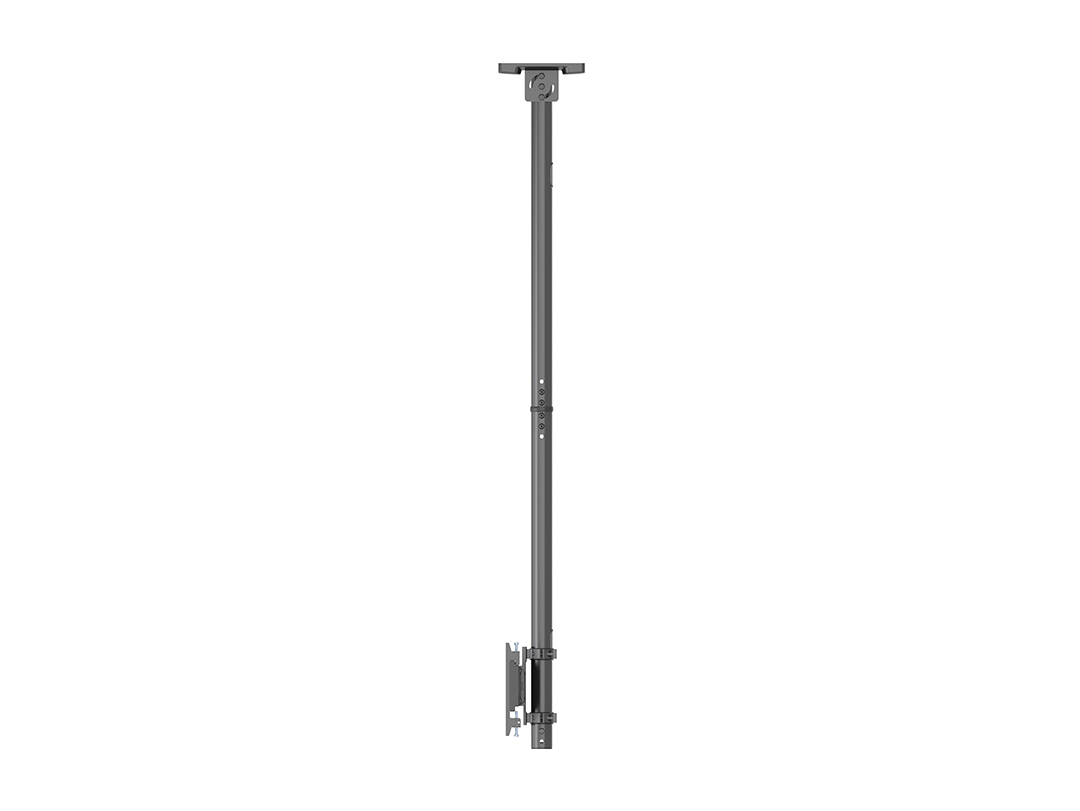

- Tilt functionality for ideal viewing angle
- Supports portrait or landscape screen orientation
- Steel and aluminum construction with black finish

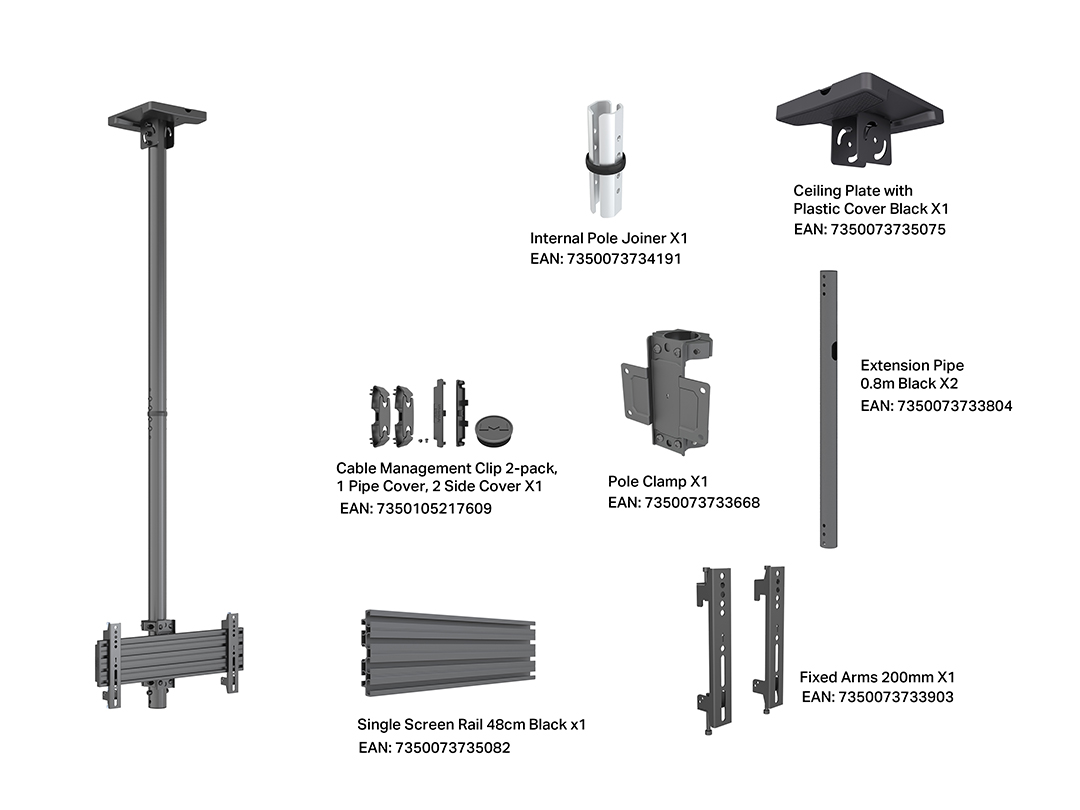

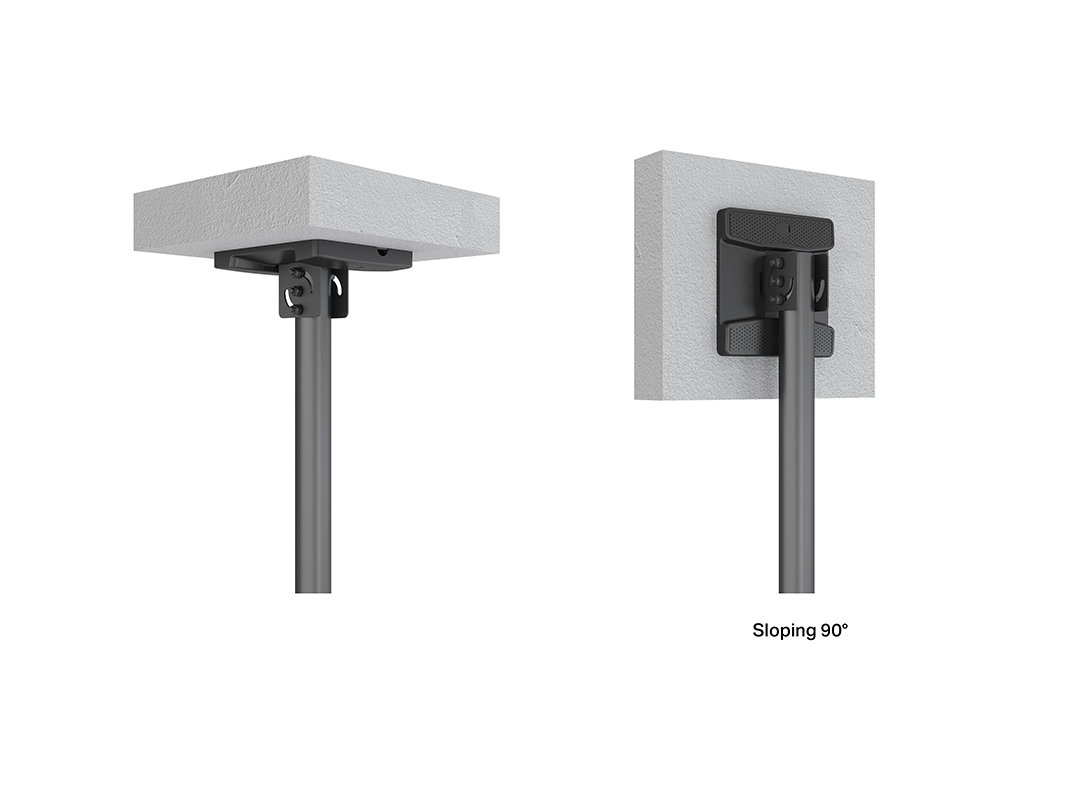

- Ceiling plate and full hardware kit included
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC1U VESA 400 | |
| Article No: | 7 340 234 814 145 |
| For screen size: | 24”-42" |
| Type: | MBC1U |
| Universal & VESA standard: | 75x75, 100x100, 200x200, 400x200mm |
| Material: | Steel, Aluminium, Plastic |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 8.5 kg |
| Measurements | 84.5x20x12cm |
| Max Load: | 35 kg |

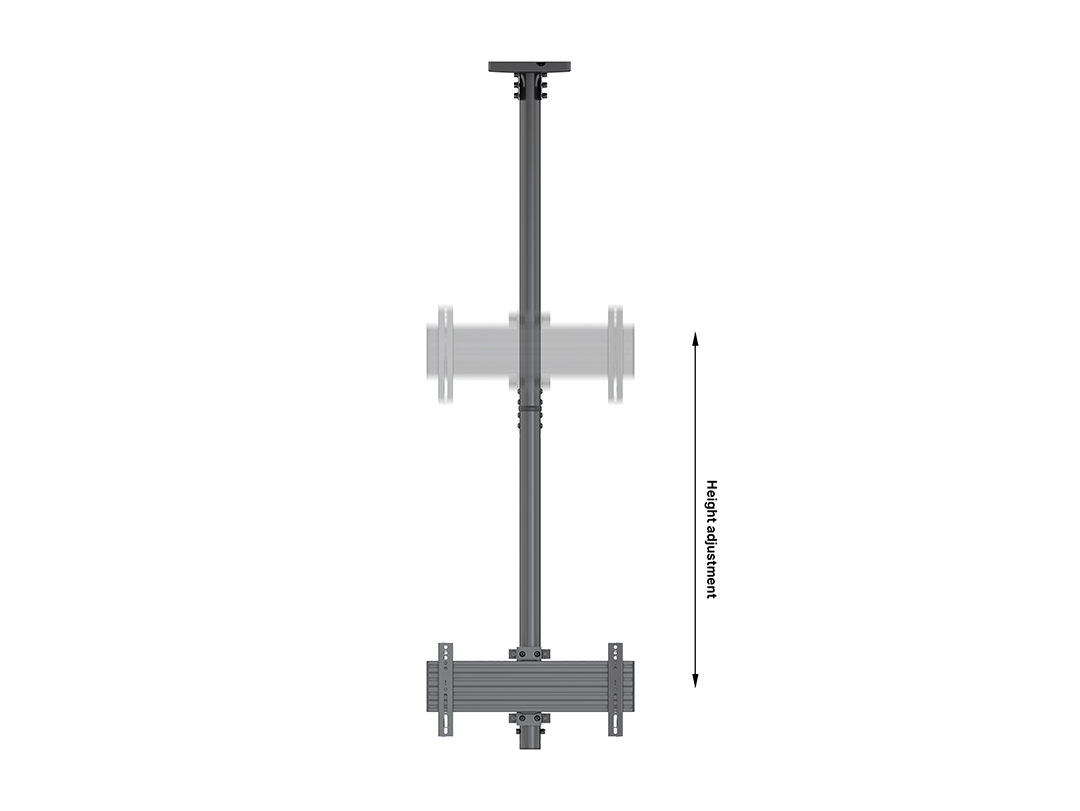

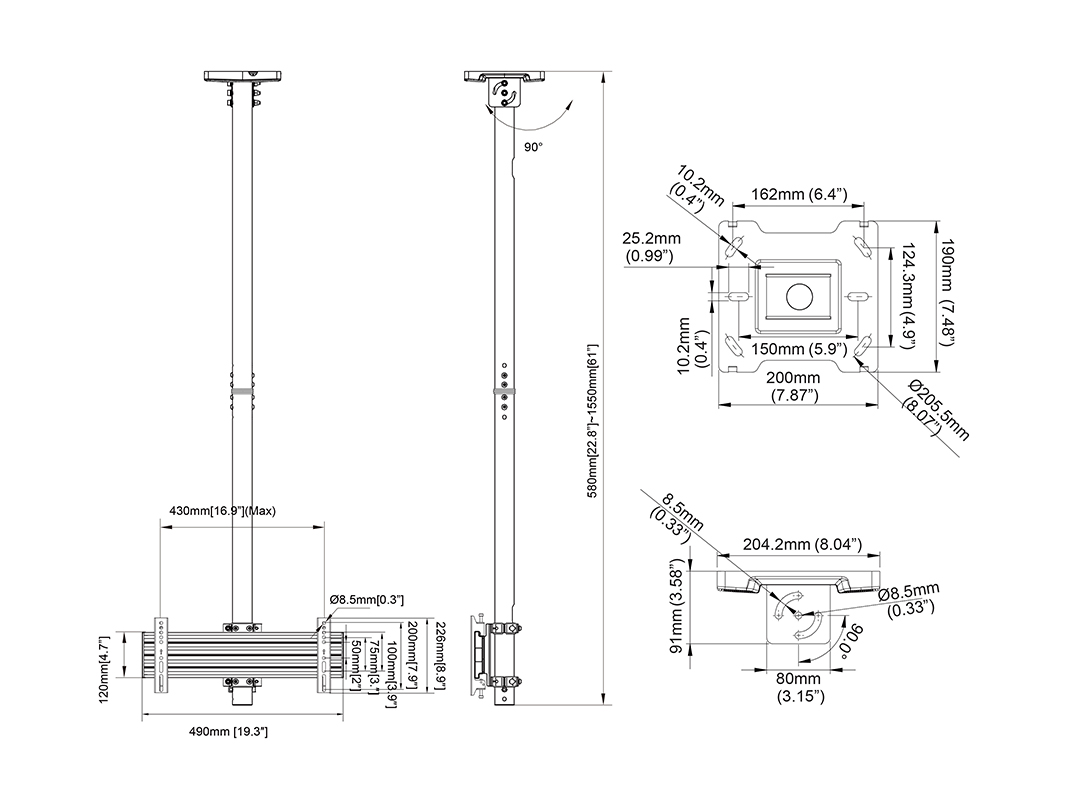

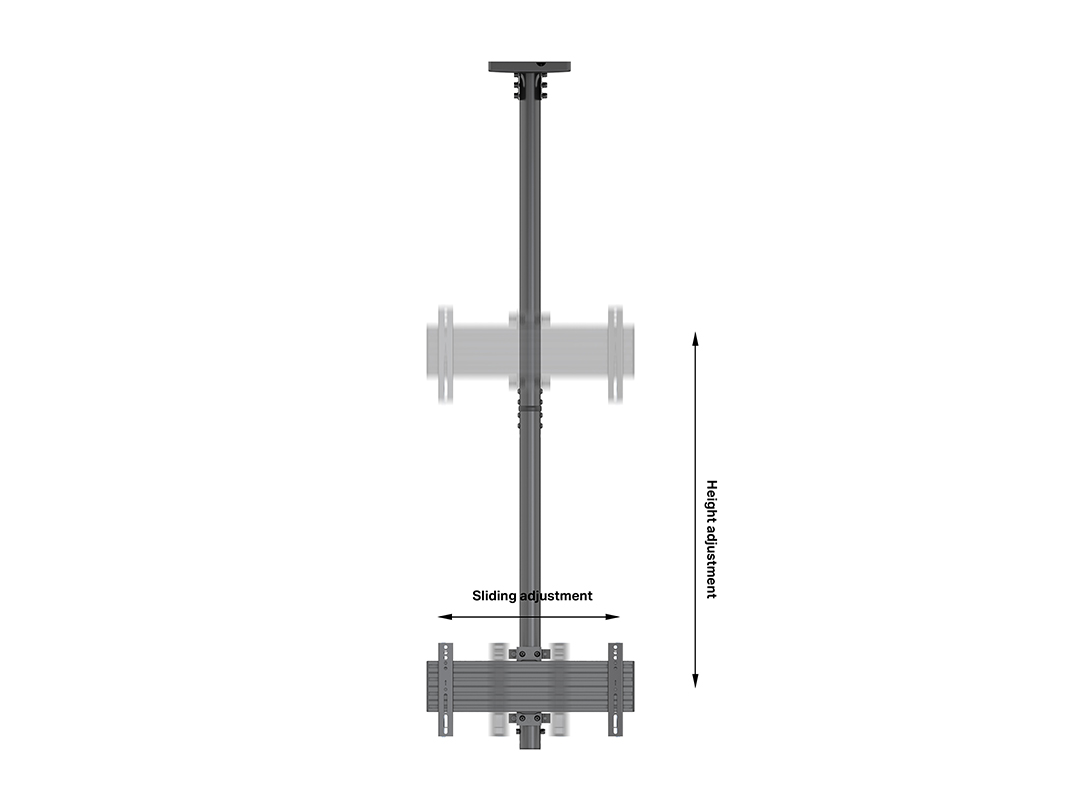

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*2pcs) included |
| Tilt: | 0° |
| Swivel: | 0° |
| Rotate: | 0° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 84.5x20x12cm |
| Package Weight: | 10 kg |
