M Ceiling Mount Pro MBC1UGC VESA 400
Options
Variants that match your options:
In stock: 58
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7340234811892

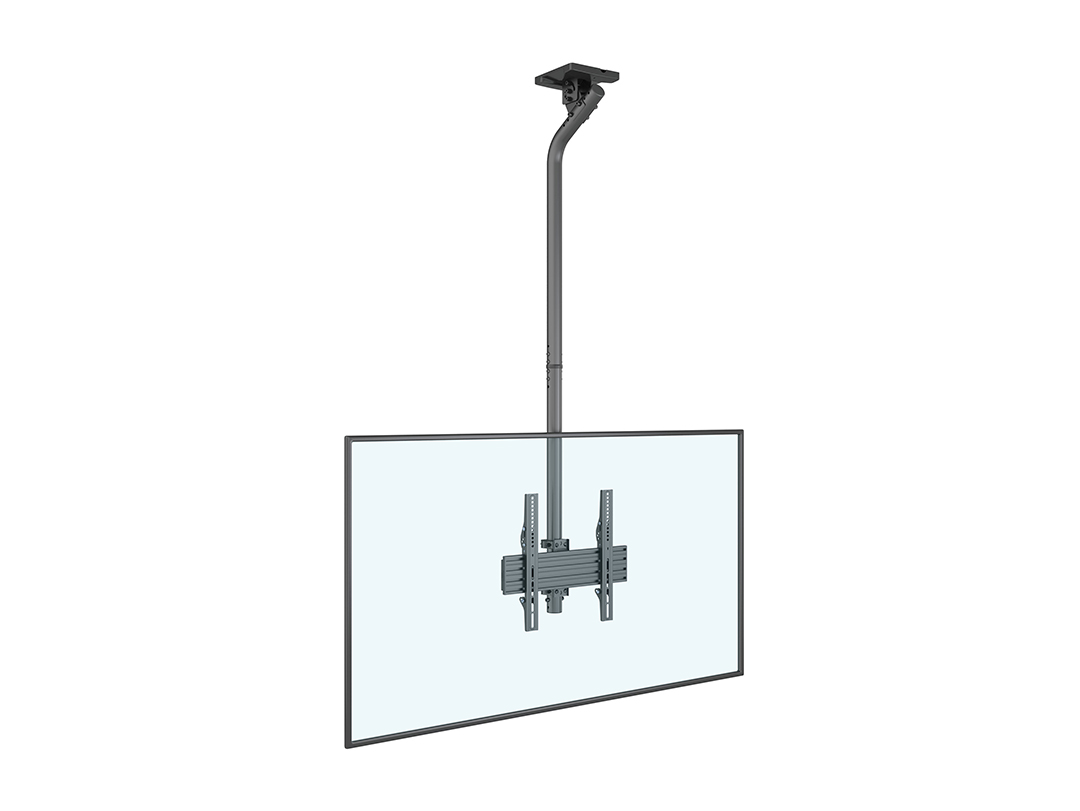

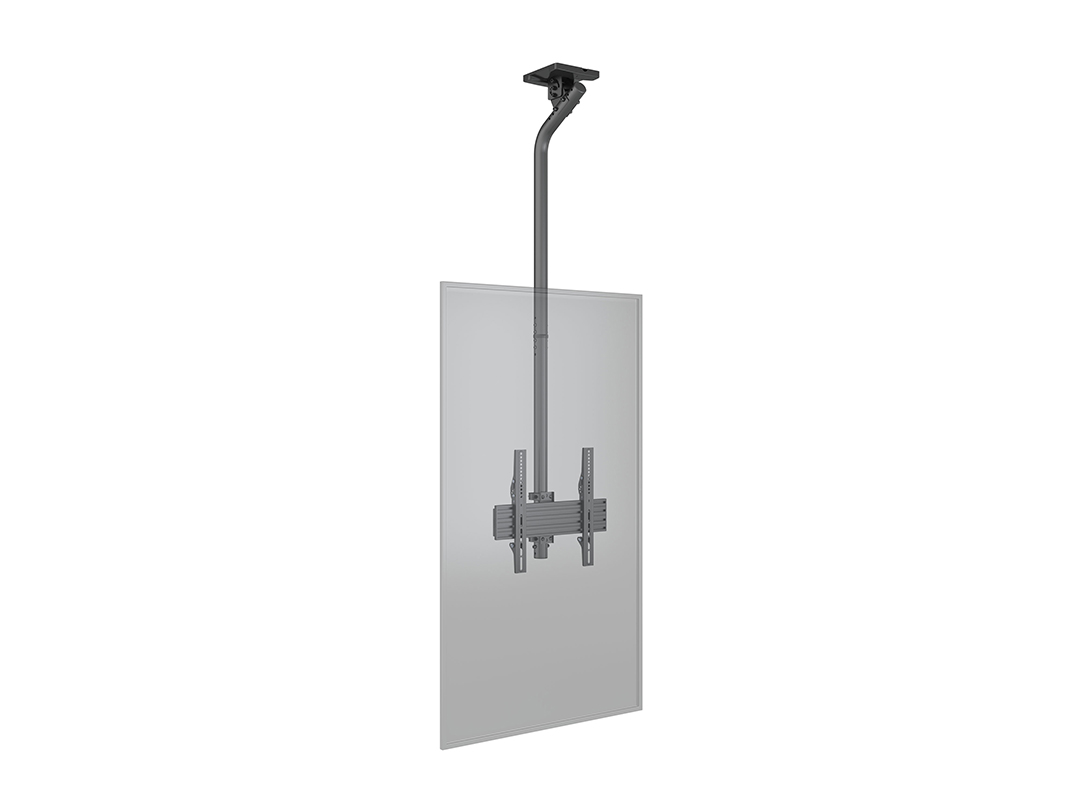

M Ceiling Mount Pro MBC1UGC VESA 400 - Ceiling mount for LCD display, steel, 1.5m length, 1 screen, single side, tilt arms, VESA 400 - screen size: 40"-65" - black
Product overview
The Multibrackets Pro Series M Ceiling Mount Pro MBC1UGC VESA 400 is a professional ceiling mount built for single-screen installations in commercial environments. Supporting screens from 40” to 65” and VESA patterns up to 400x400, it offers flexible tilt functionality and a clean, minimal appearance.
Part of the modular Pro Series A/V line, it features a strong aluminum rail with integrated cable management and supports fast installation. The design allows for easy reconfiguration using extensions or accessories—ideal for digital signage or corporate AV.
Inspired by Scandinavian design principles, it balances durability, performance, and aesthetics, making it well-suited for public spaces, retail, and offices.
Highlights
- Supports screen sizes from 40” to 65"
- VESA compatibility up to 400x400
- TÜV tested to 5x maximum load

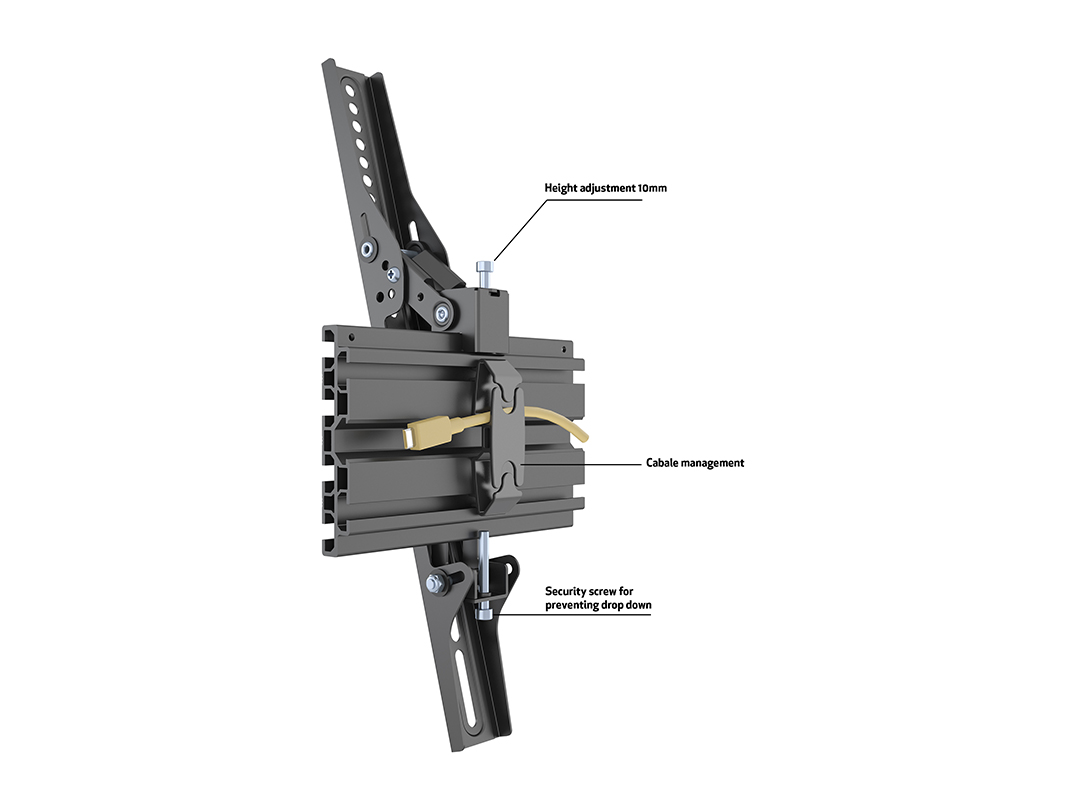

- Tilt arms for flexible viewing

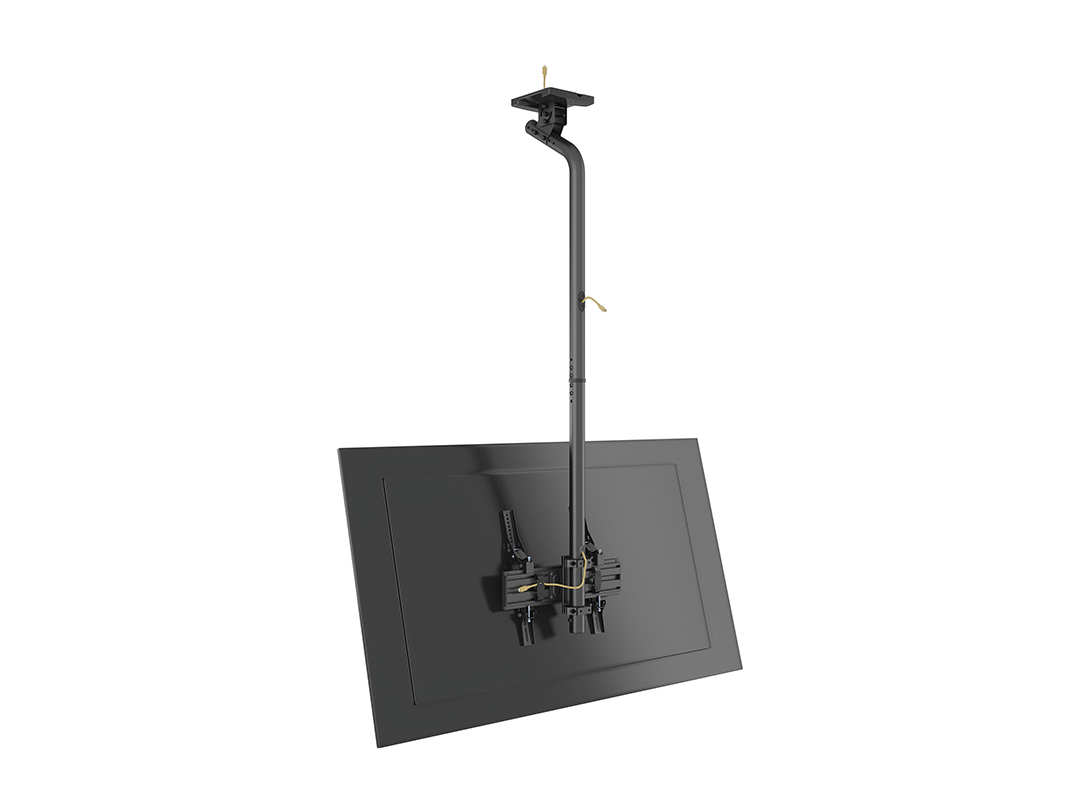

- Integrated cable management
- Power Click install system

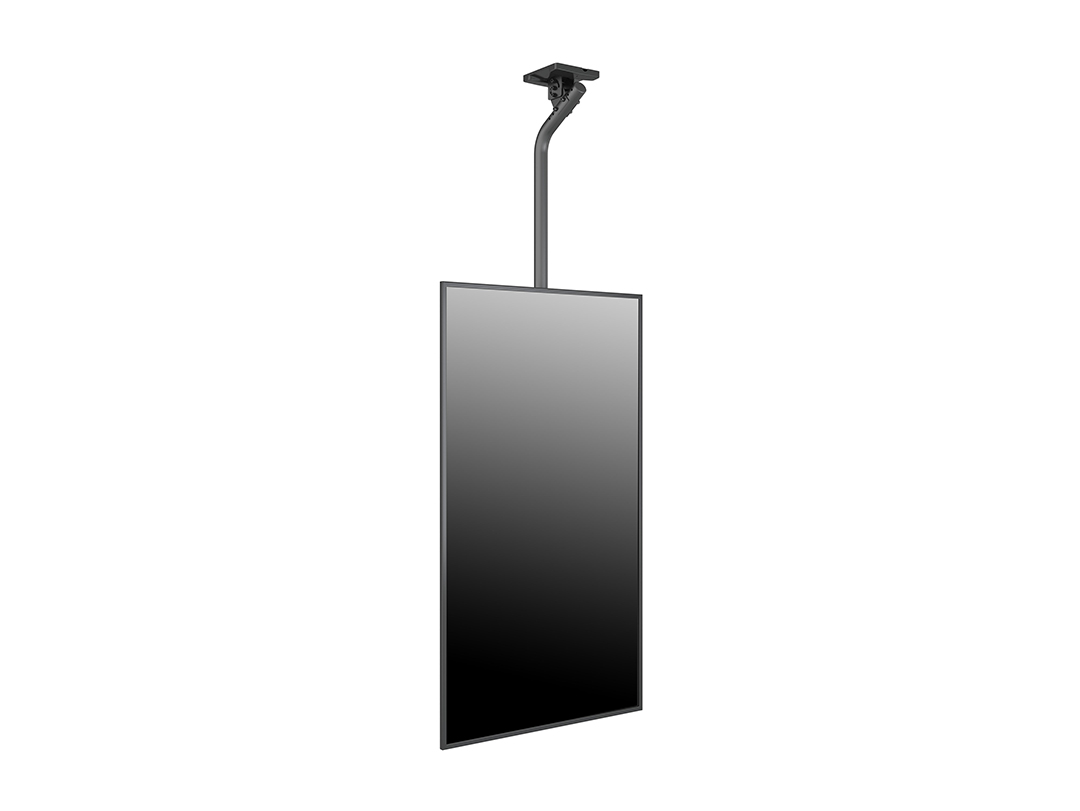

- Portrait or landscape orientation

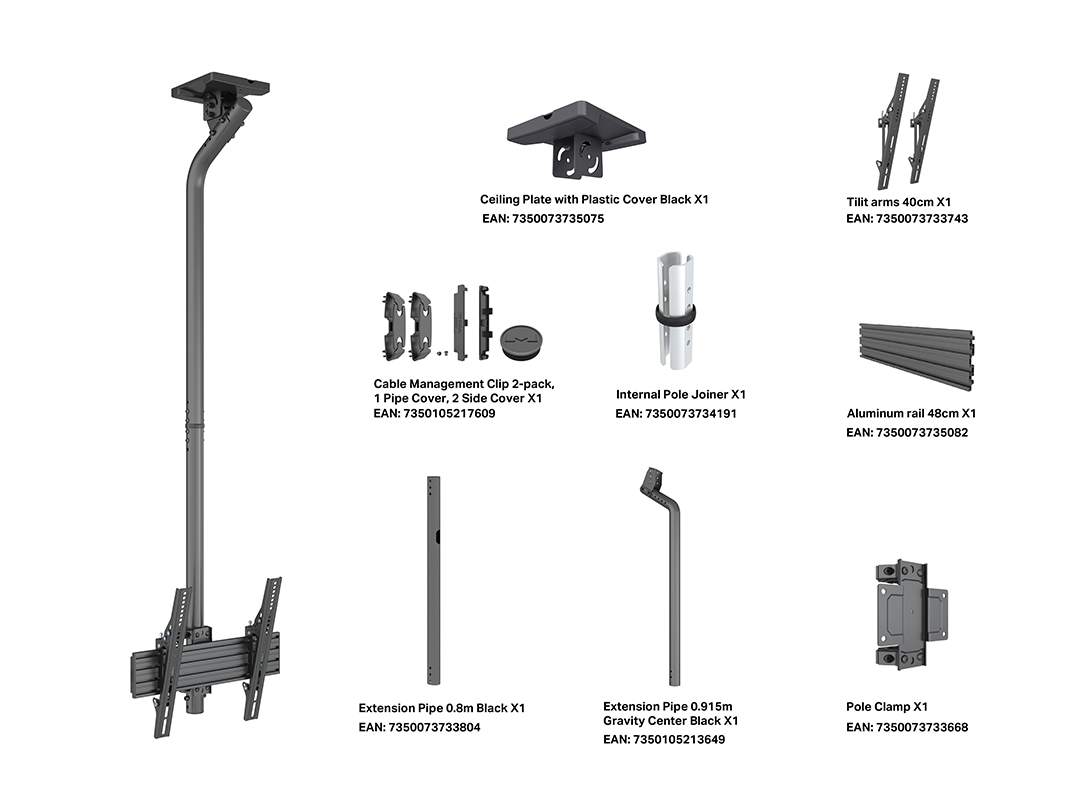

- Includes ceiling plate and full hardware kit
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide| Specification | |
| M Ceiling Mount Pro MBC1UGC VESA 400 | |
| Article No: | 7 340 234 811 892 |
| For screen size: | 40”-65" |
| Type: | Single Side MBC1U, VESA 200 |
| Universal & VESA standard: | 100x100 200x200 300x300 400x400mm |
| Material: | Steel, Aluminium, Plastic |
| Color: | Black |
| Surface Finish: | Powder coating |
| Weight: | 8.7 kg |

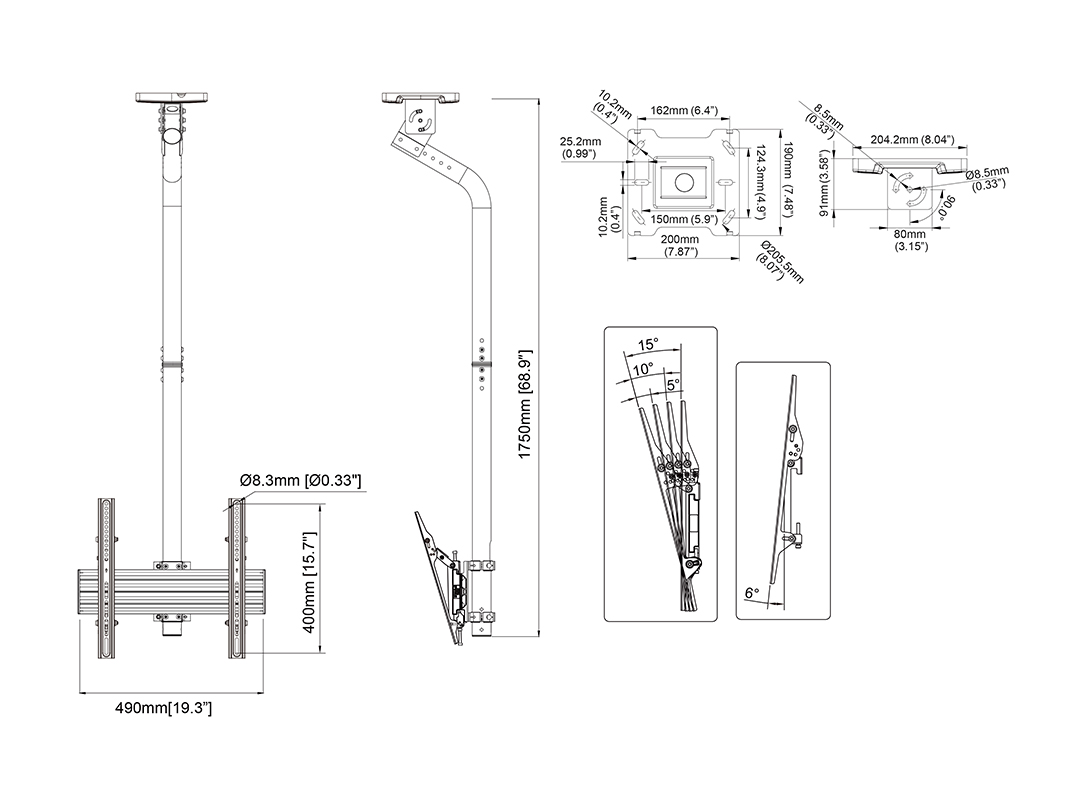

| Measurements | 105.5x29.5x15.9cm |
| Max Load: | 35 kg per screen |

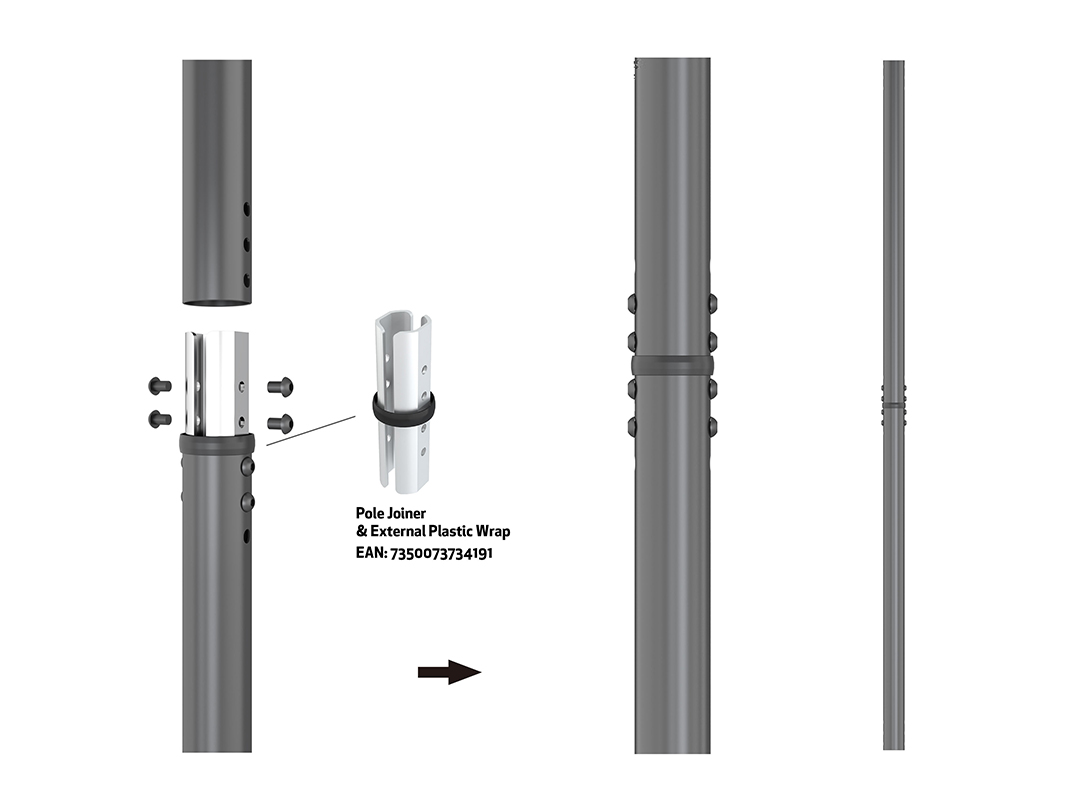

| Pillar length: | 580~1550 mm height adjustment from ceiling to VESA plate center Extension pipes: 1.5m (800mm*2pcs) included |

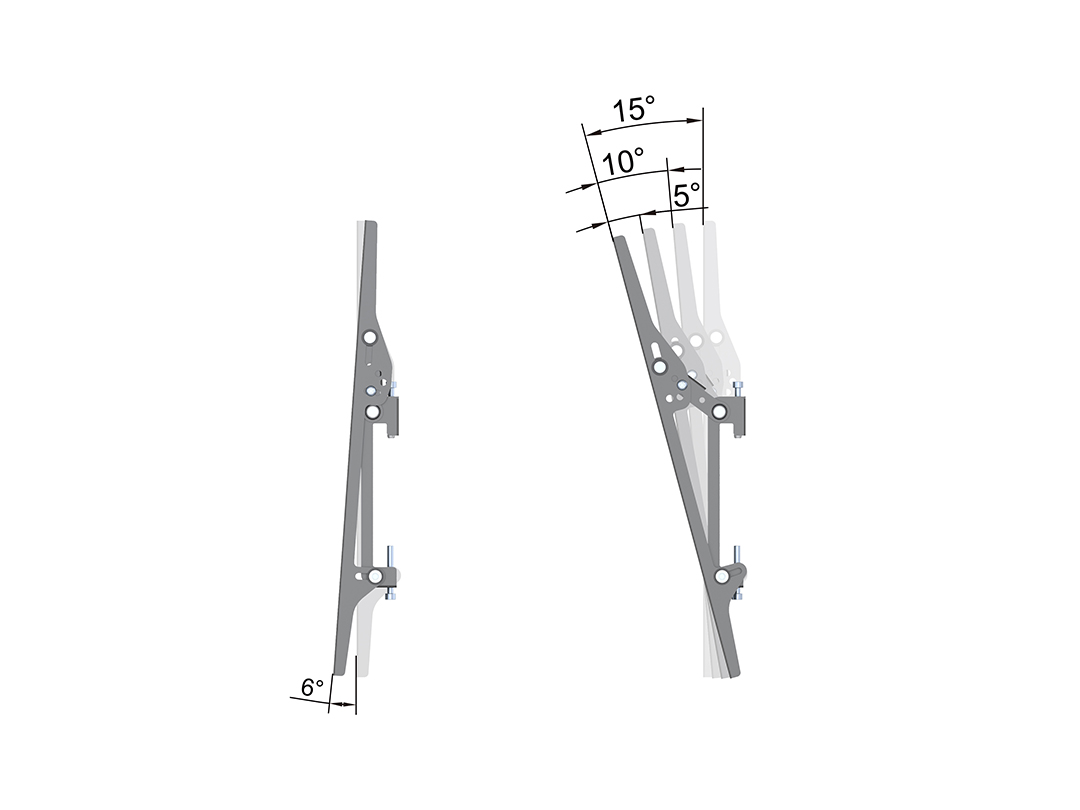

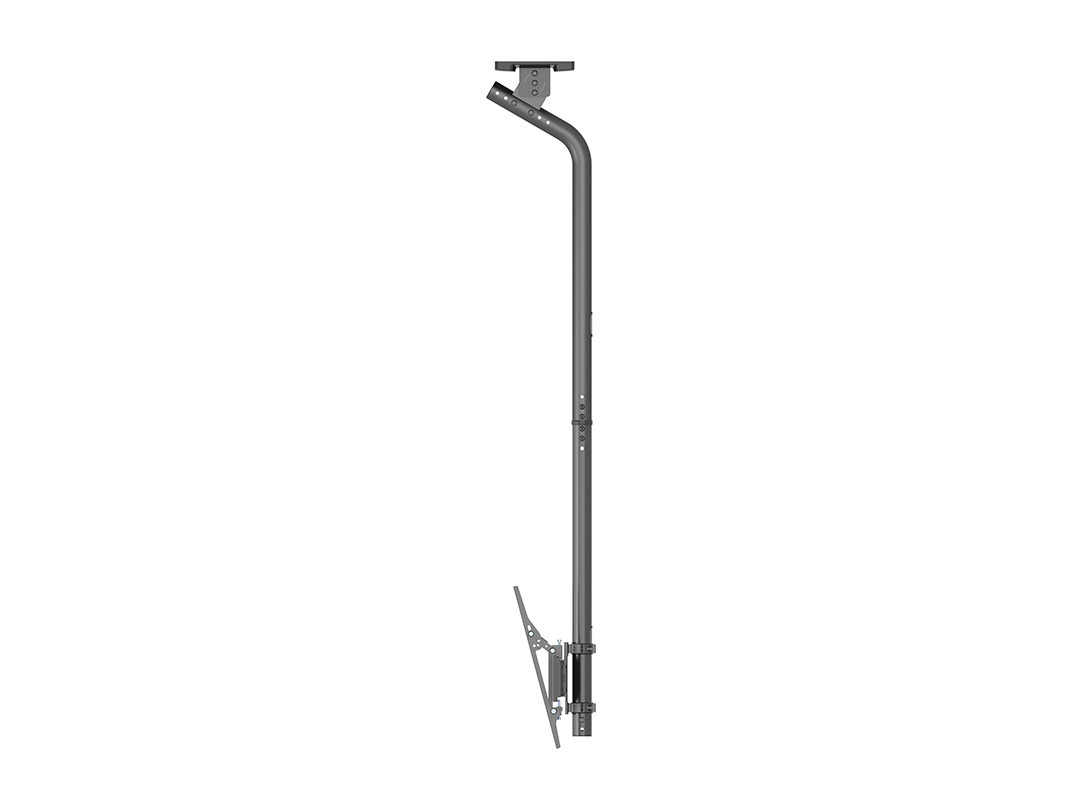

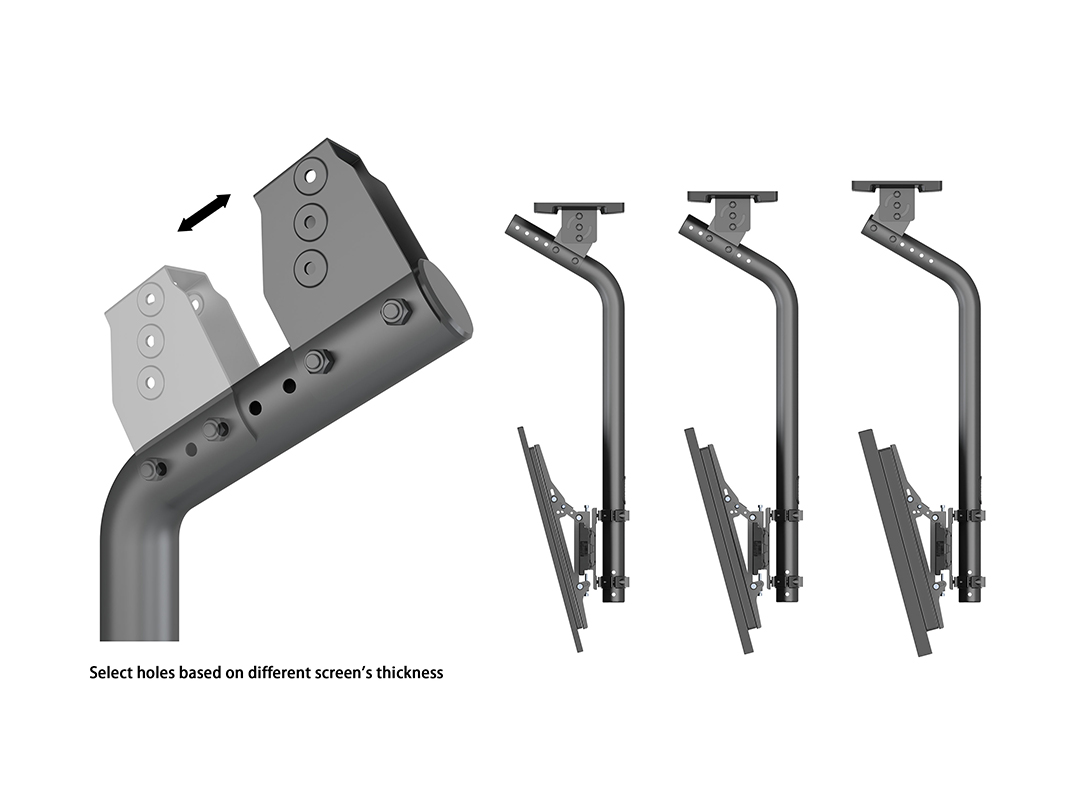

| Tilt: | Yes, -6°~+15° |
| Swivel: | Yes, 90° |
| Rotate: | Yes, 360° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 82 x 20 x 12 cm |
| Package Weight: | 8.95 kg |
