M Ceiling Mount Pro MBC1UP VESA 400x600 Chrome
Options
Variants that match your options:
In stock: 15
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7340234813803
Product overview

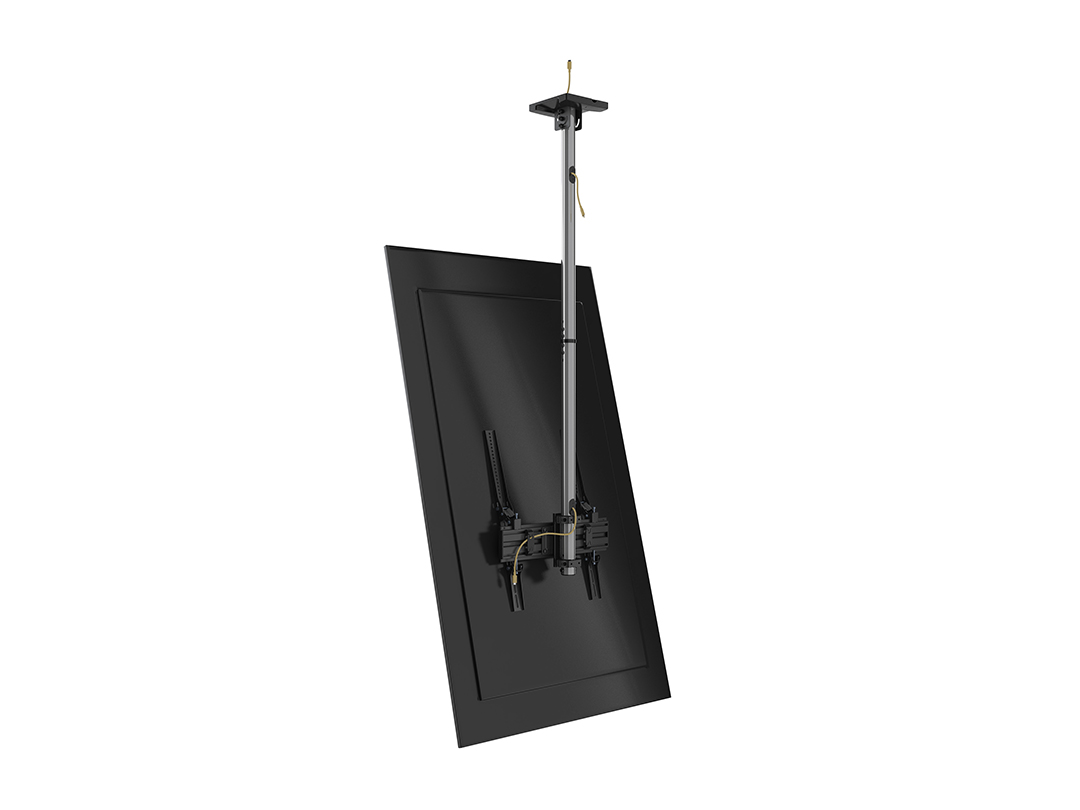

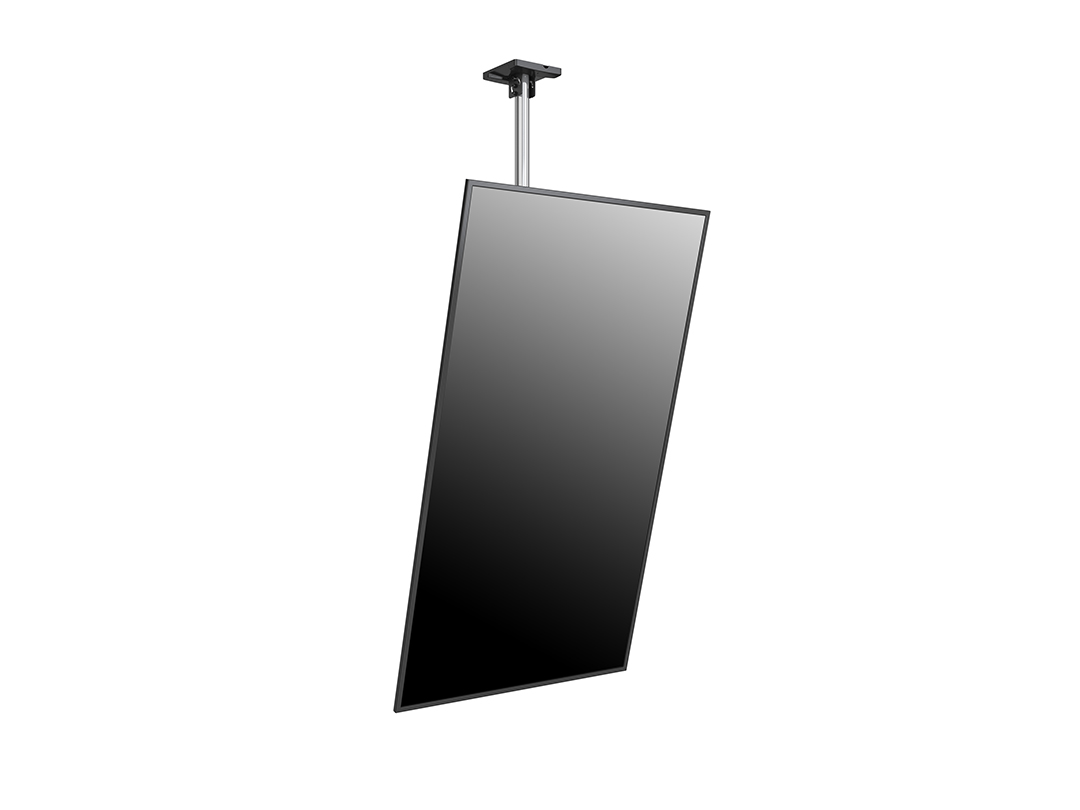

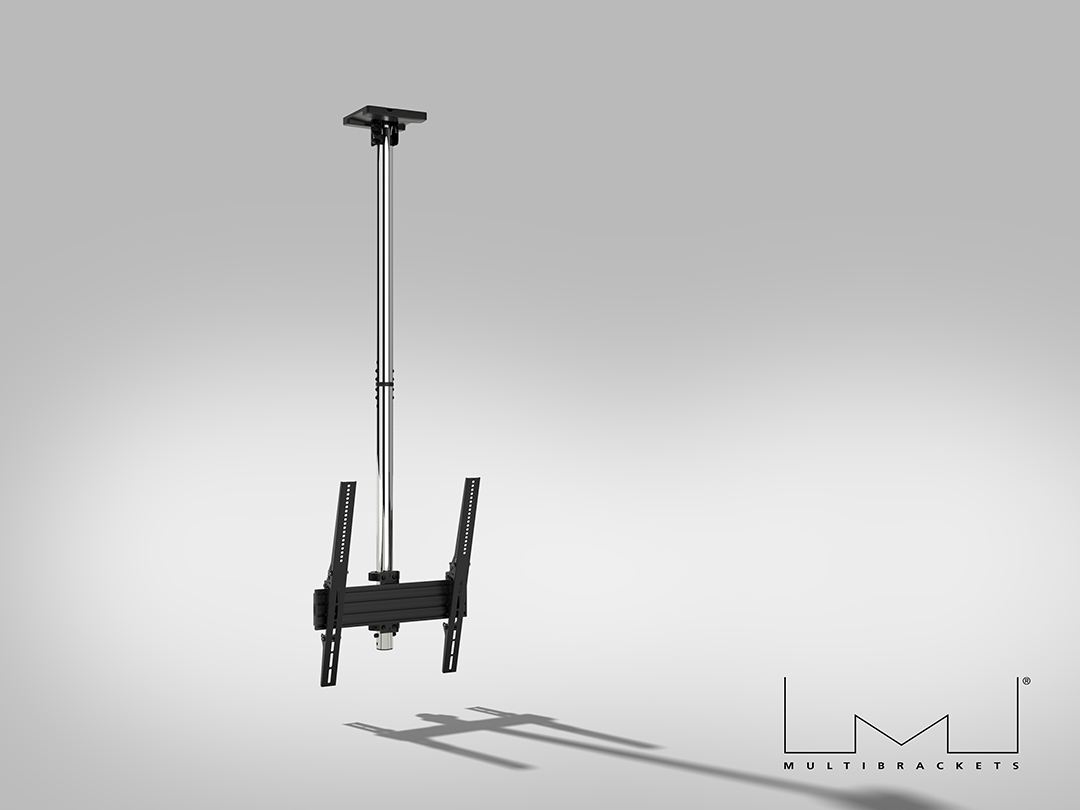

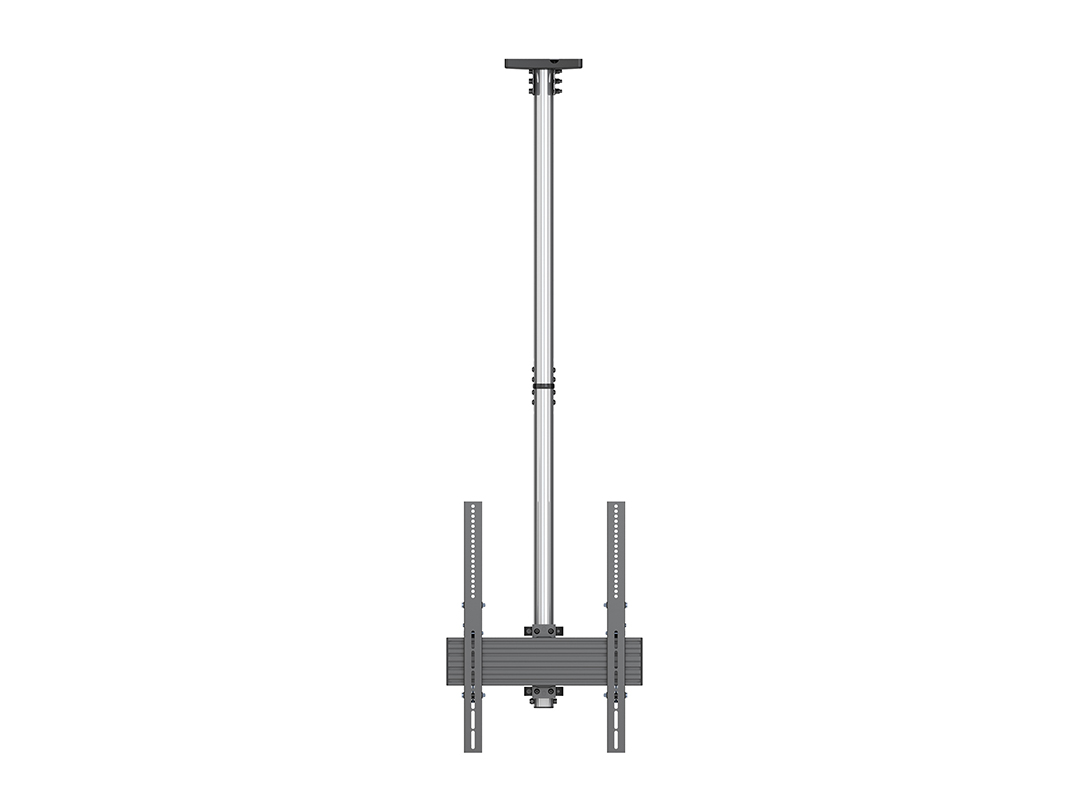

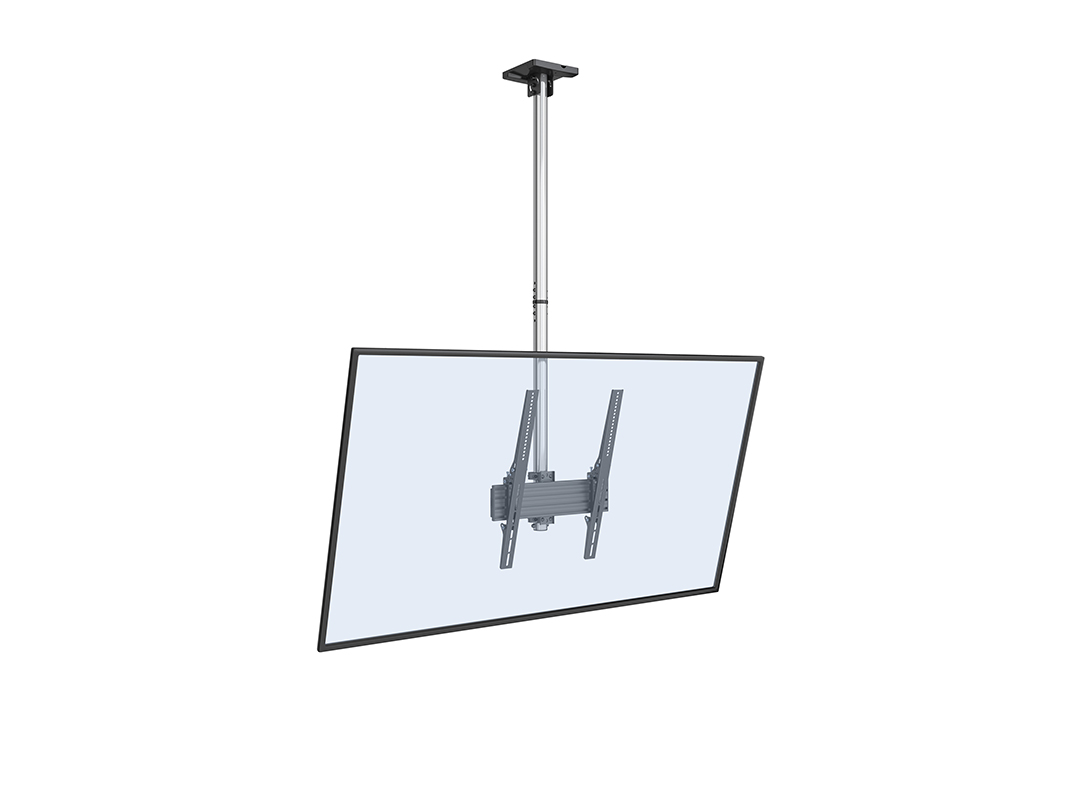

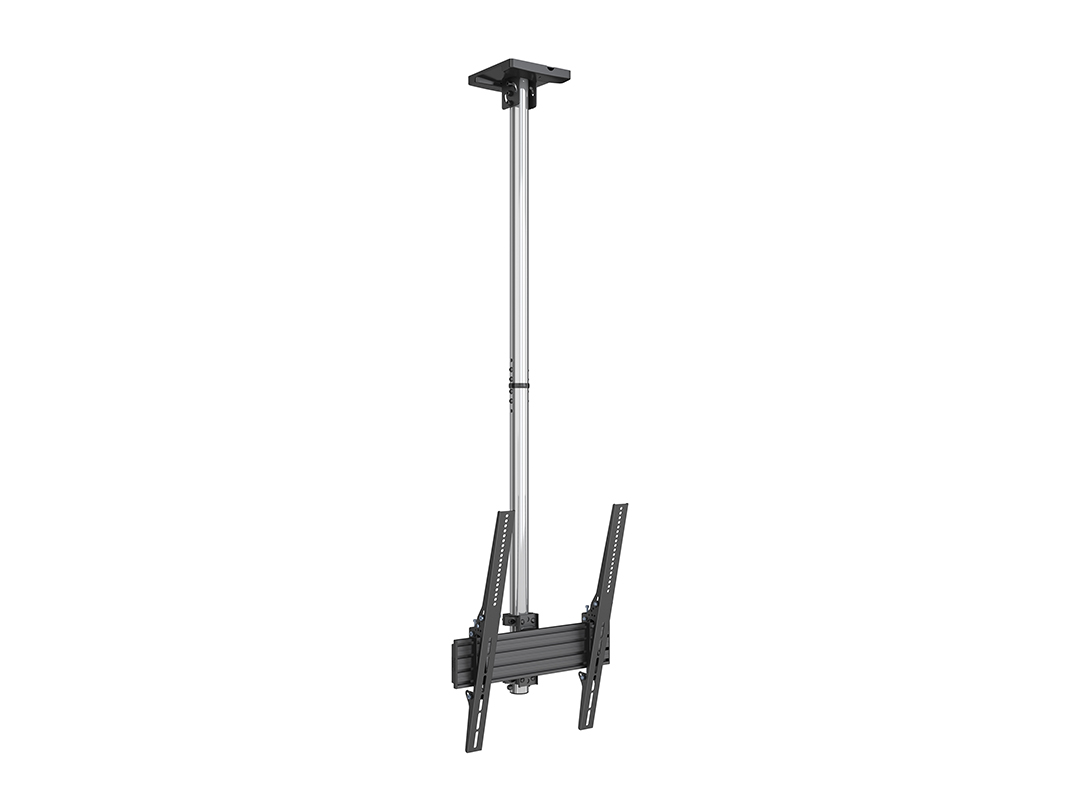

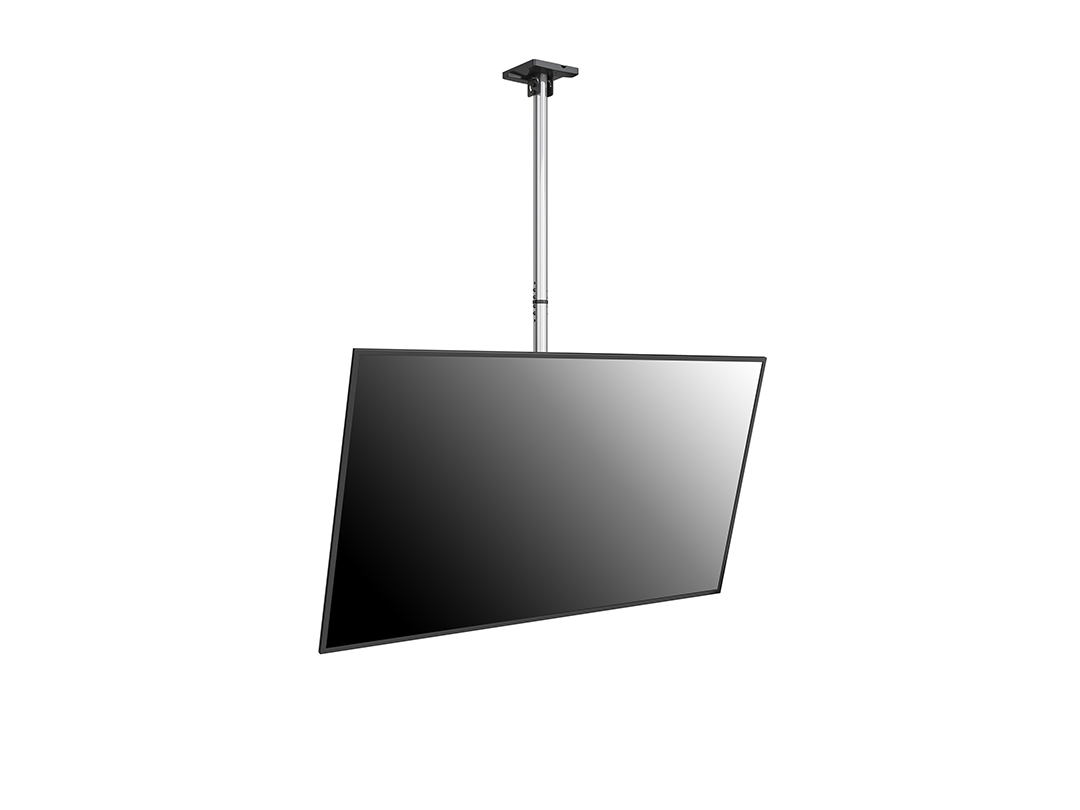

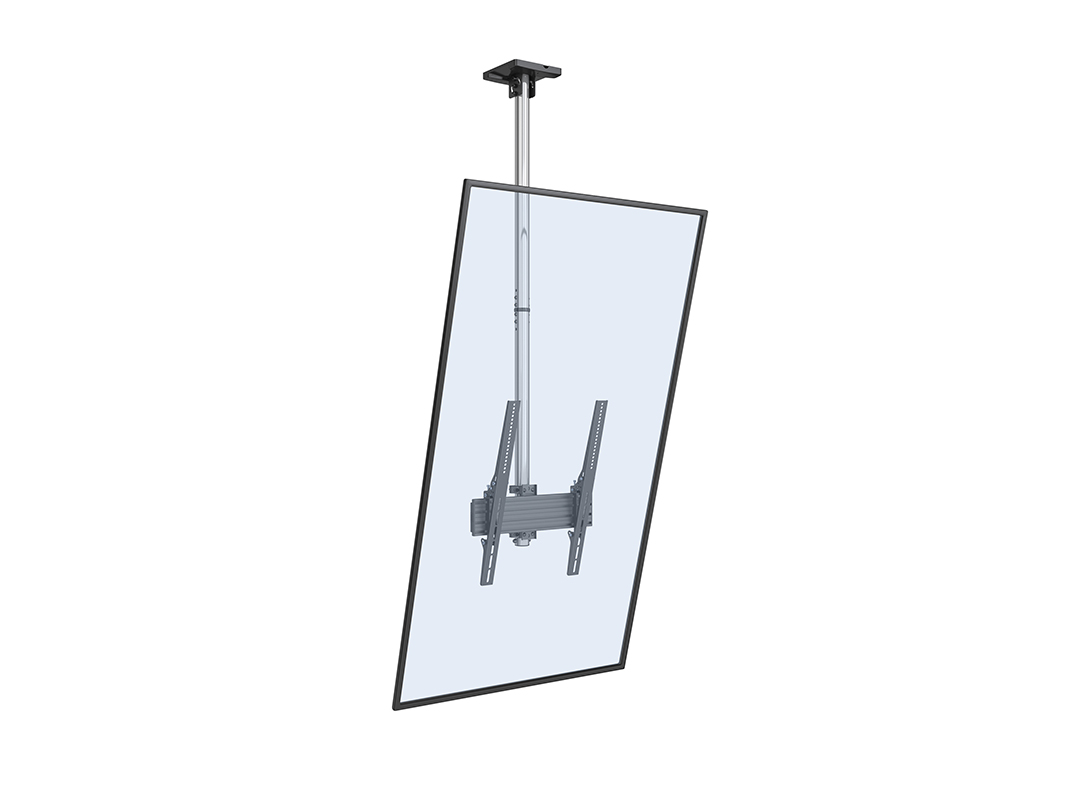

The Multibrackets M Ceiling Mount Pro MBC1UP VESA 400x600 is a professional ceiling mount tailored for single LCD displays sized 42" to 75". Designed for commercial AV installations, it combines robust steel construction with flexible modular features.
With support for VESA patterns up to 400x600, this mount includes a 1.5m vertical pole and tilt arms, enabling precise angle adjustments. Integrated cable management and compatibility with optional extension pipes make it suitable for a wide range of environments such as control rooms, retail signage, and conference areas.
Part of the Multibrackets Pro Series, the system allows for scalability and configuration expansion to fit future installation demands.
Highlights
- Single-display ceiling mount for professional use
- Screen size support: 42"–75"
- VESA compatibility: 100x100 to 400x600

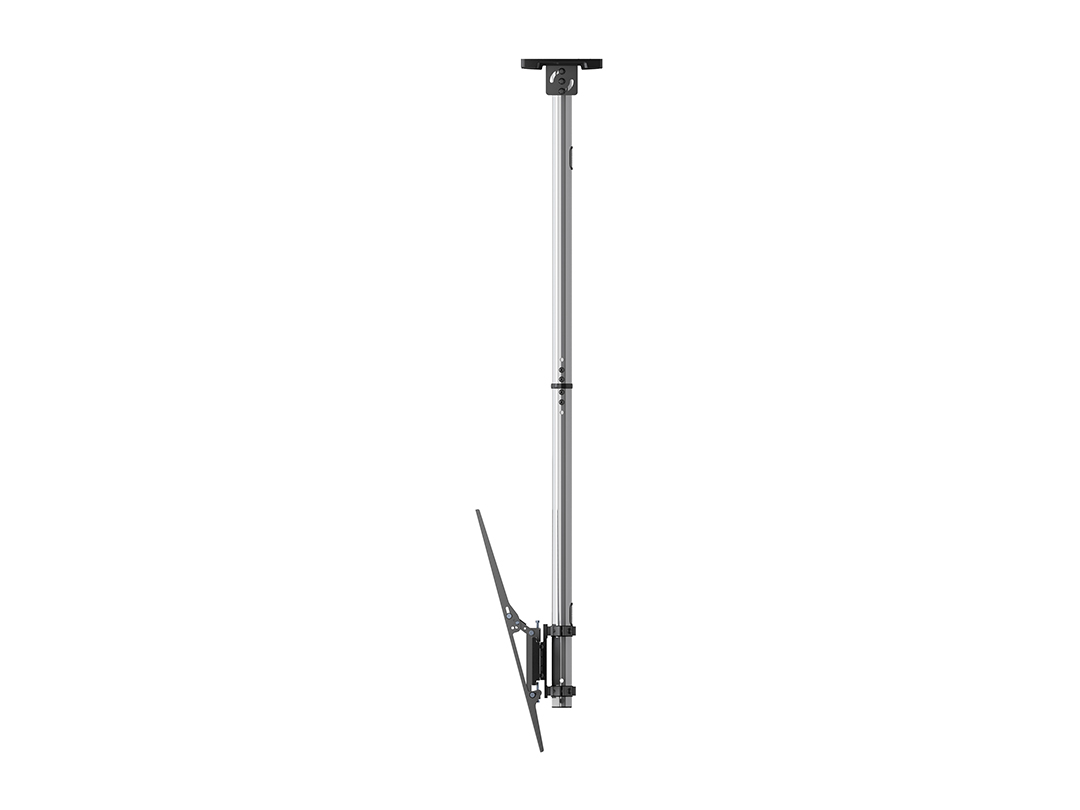

- 1.5m vertical steel mounting pole
- Adjustable tilt arms for optimal viewing angle
- Max load capacity: 50 kg per screen

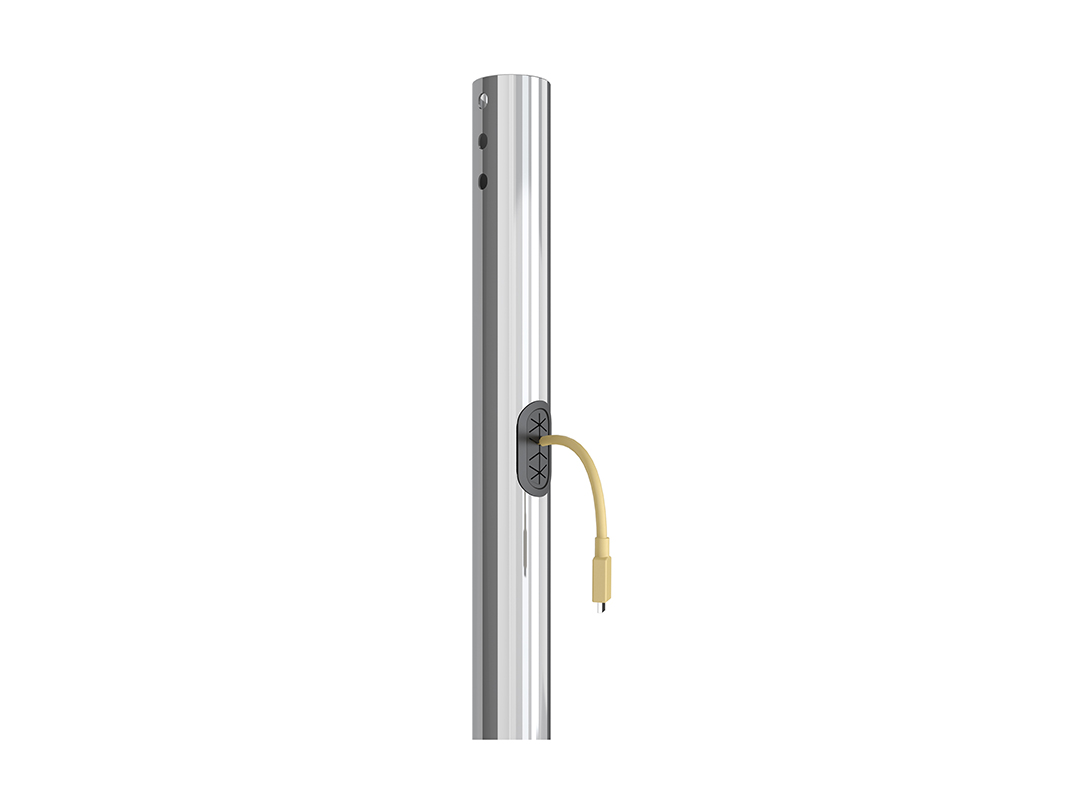

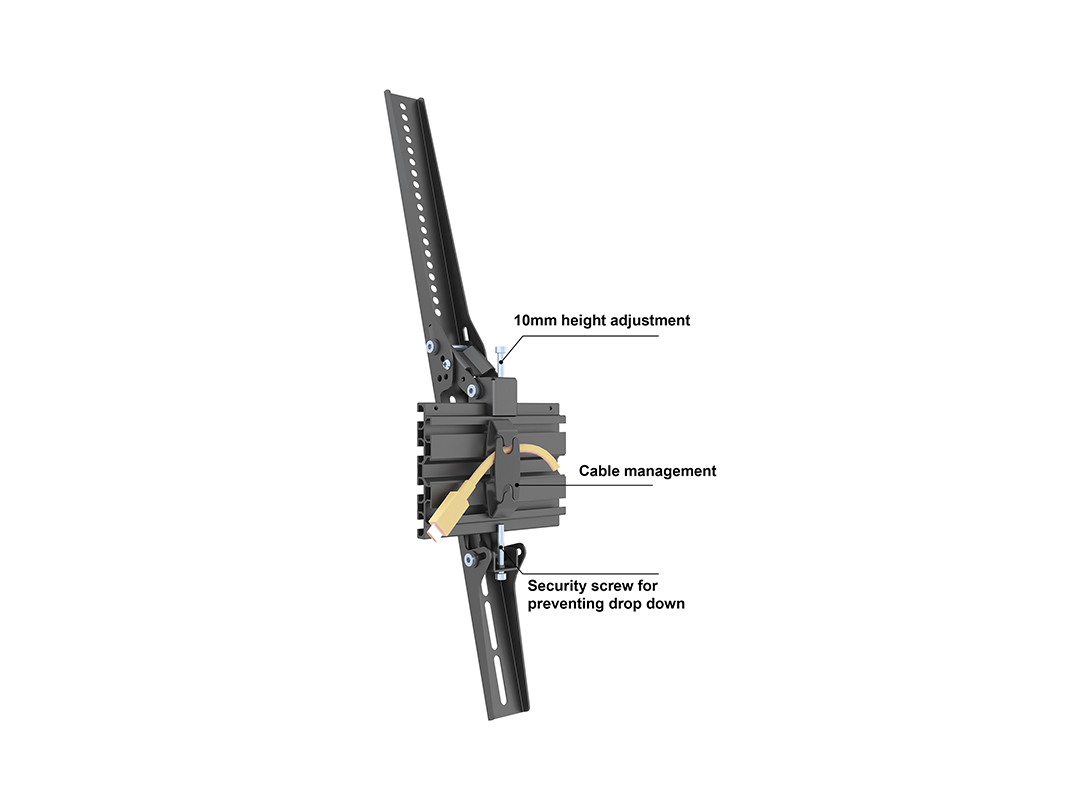

- Integrated cable management system

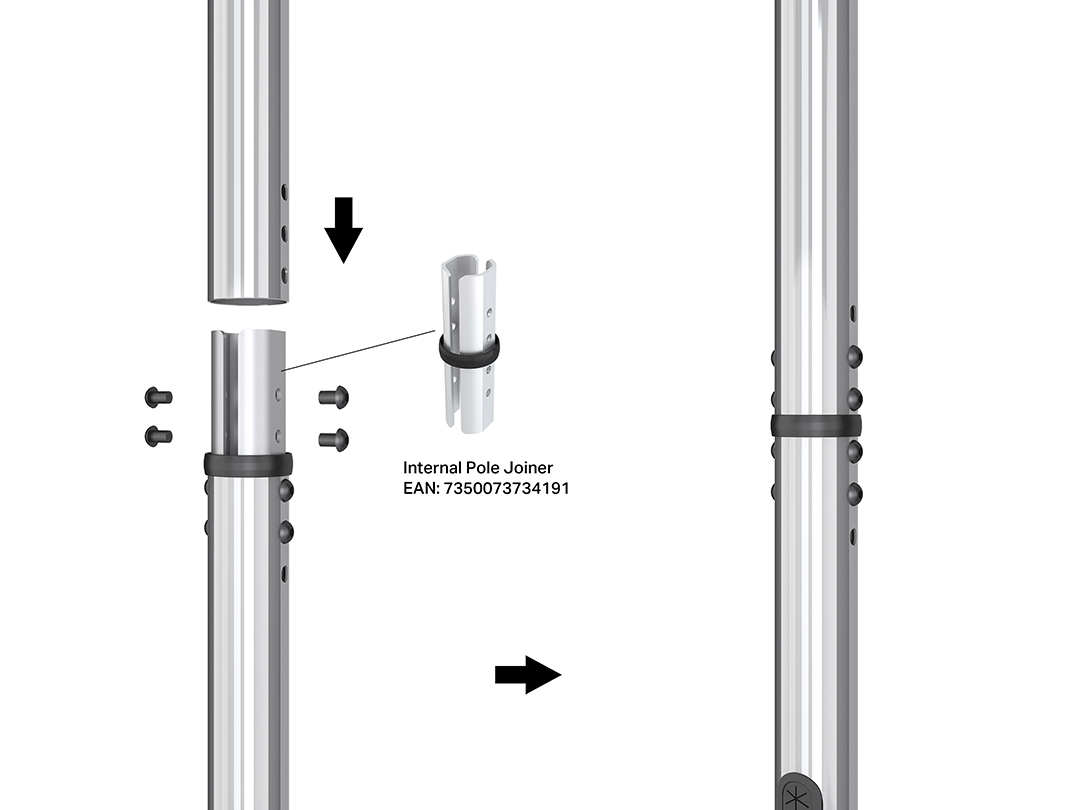

- Compatible with extension pipes
- Fast setup with Power Click installation
- Ideal for commercial and retail environments
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
| Specification | |
| M Ceiling Mount Pro MBC1UP VESA 400x600 Chrome | |
| Article No: | 7 340 234 813 803 |
| For screen size: | 42"-75" |
| Type: | Single Side MBC1U |
| Universal & VESA standard: | 100x100 200x200 300x300 400x400 400x600 |
| Material: | Steel, Aluminium, Plastic |
| Color: | Chrome |
| Surface Finish: | Powder coating |
| Weight: | 9.4 kg |
| Measurements | 82.0x21.5x12.3 cm |
| Max Load: | 50 kg per screen TUV approved at 30 kg per screen |

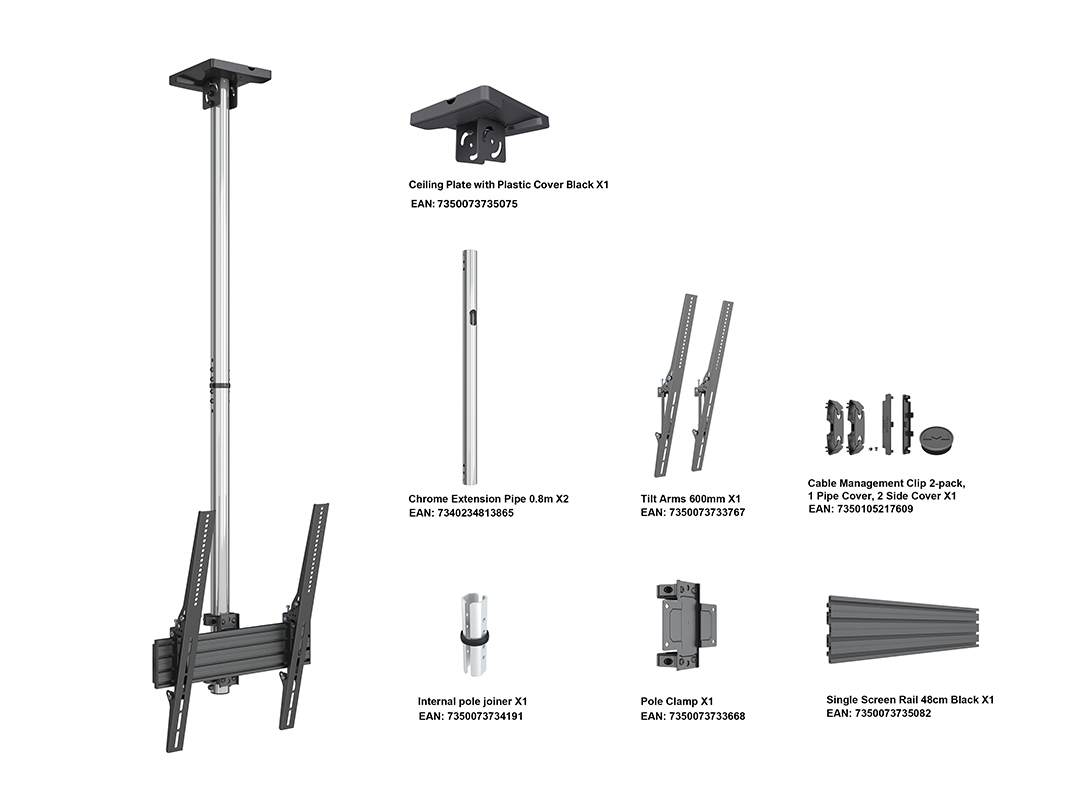

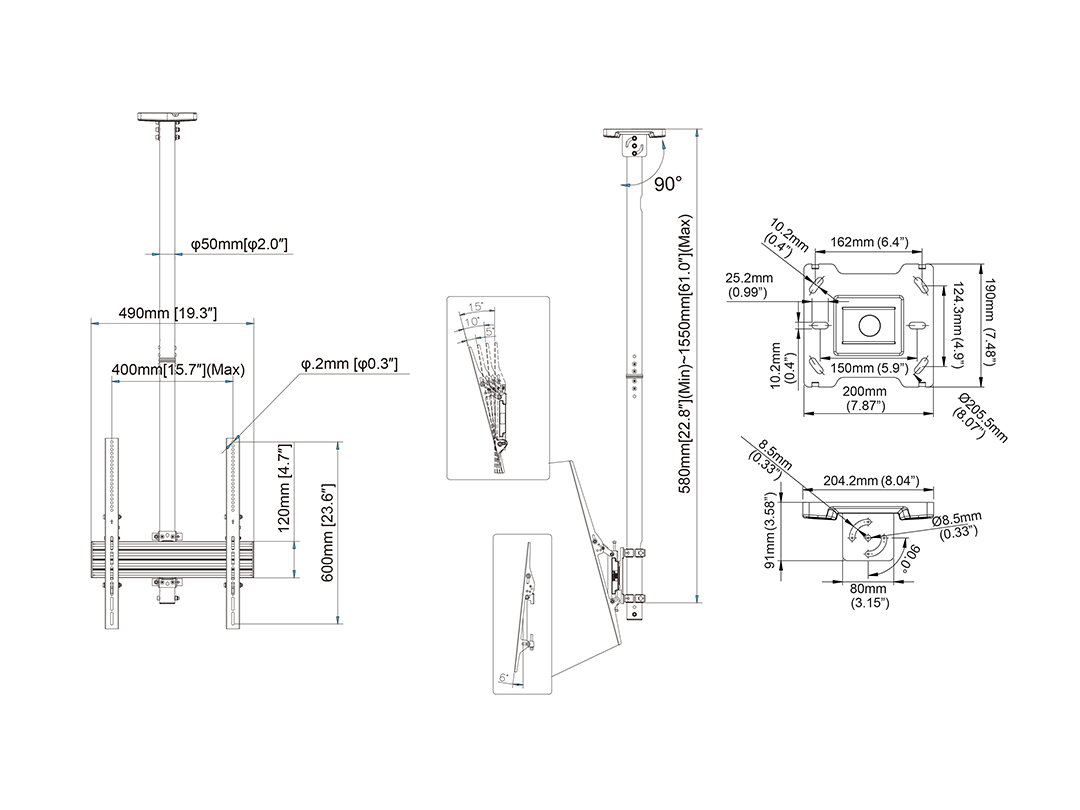

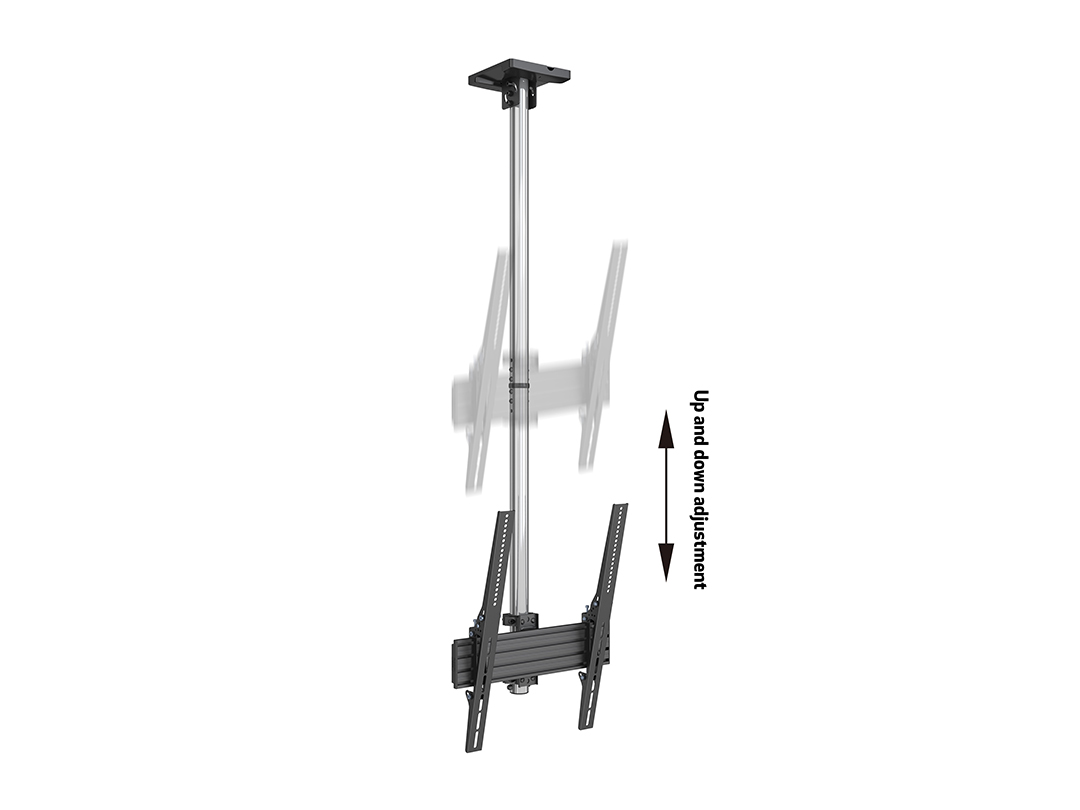

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*2pcs) included |

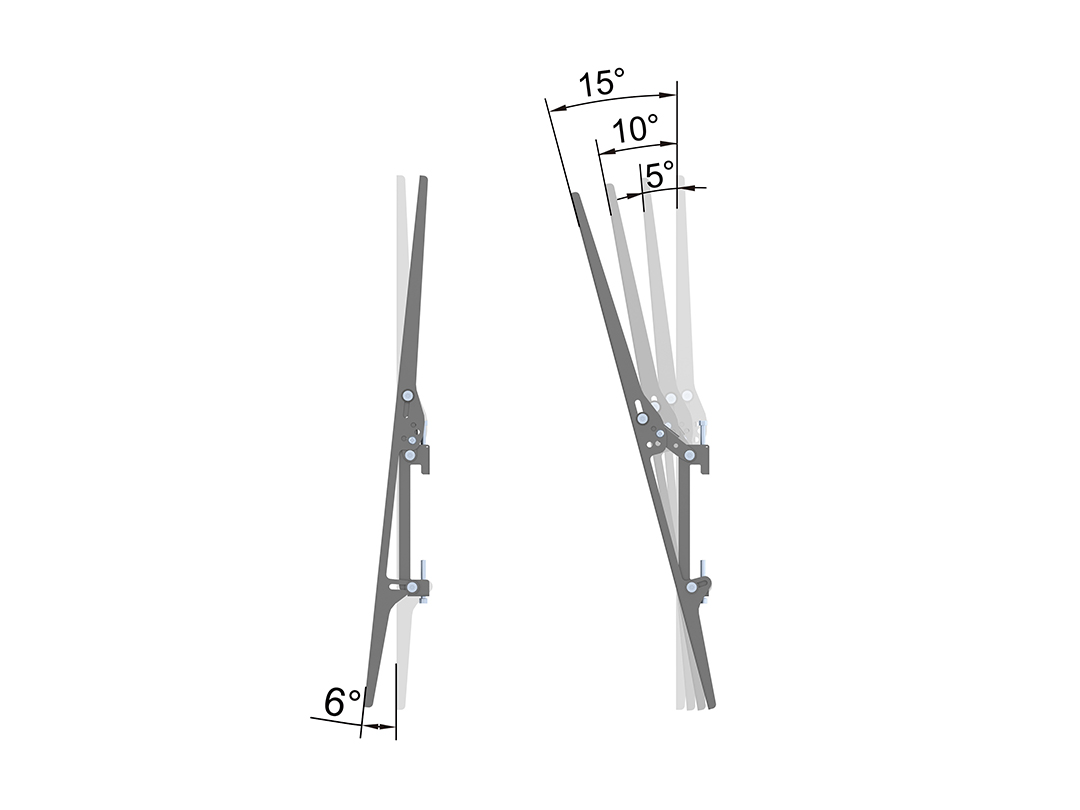

| Tilt: | Yes, -6°~+15° |
| Swivel: | Yes, 90° |
| Rotate: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 82 x 21.5 x 12.3 cm |
| Package Weight: | 8.70 kg |
