M Ceiling Mount Pro MBC1UP VESA 400x900
Options
Variants that match your options:
In stock: 368
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073736904
Product overview

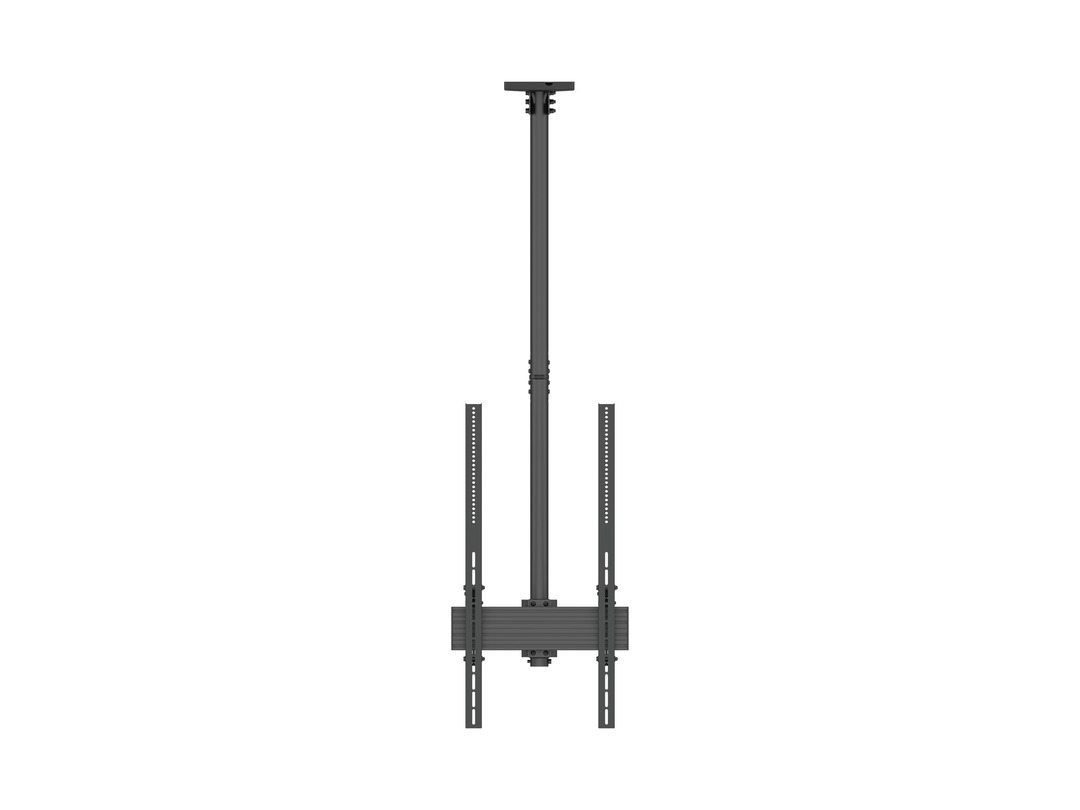

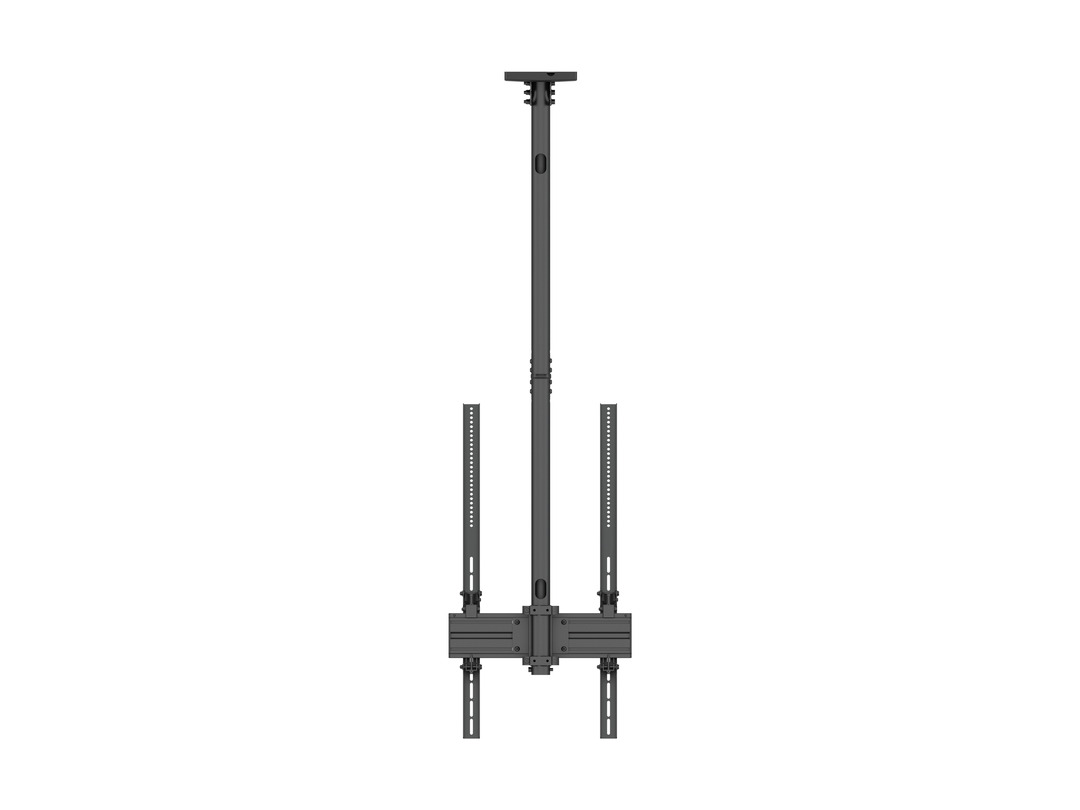

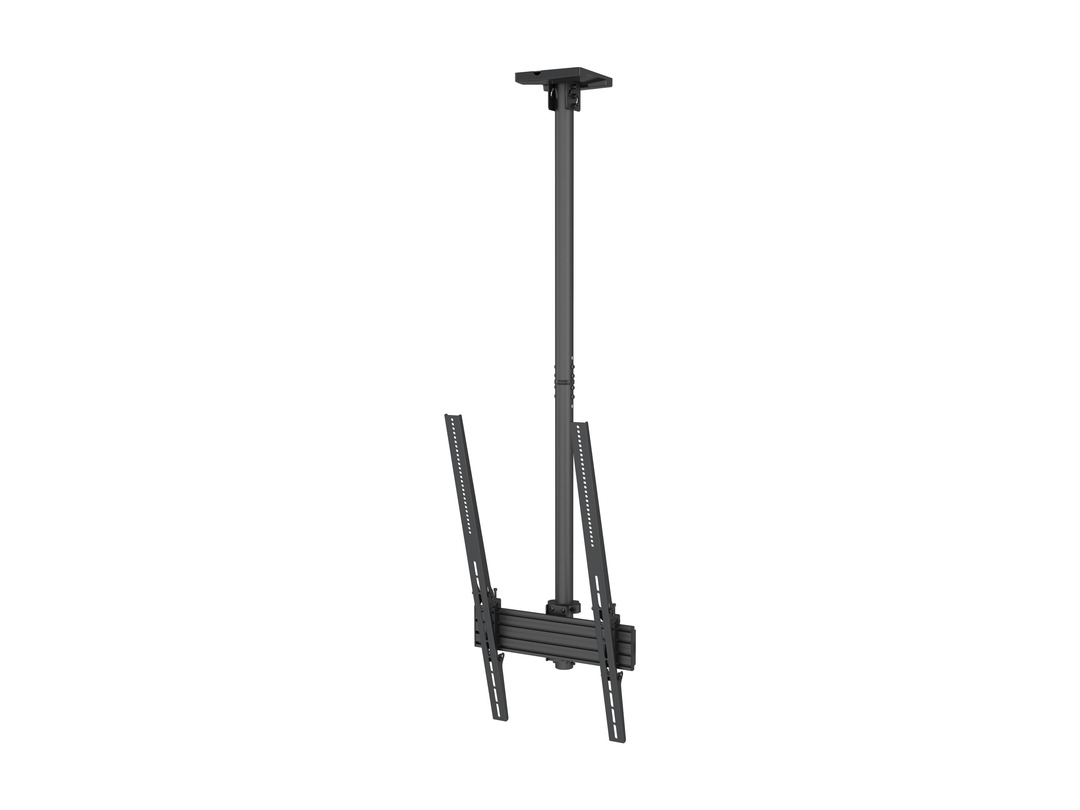

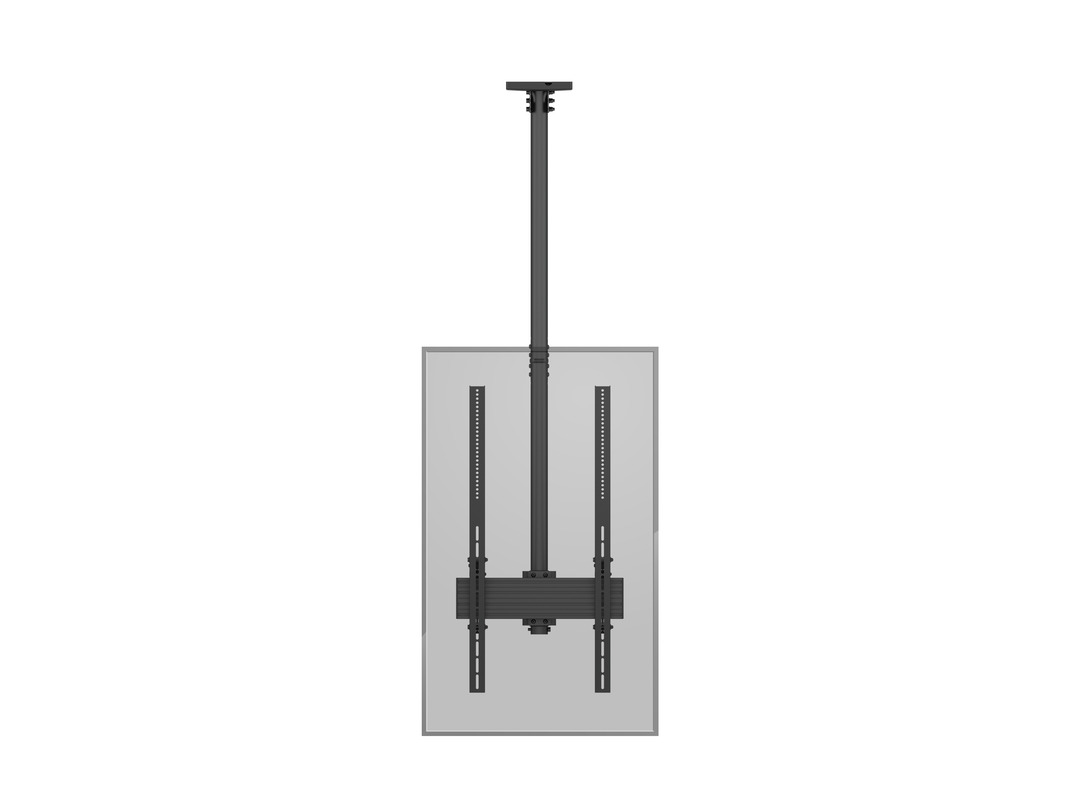

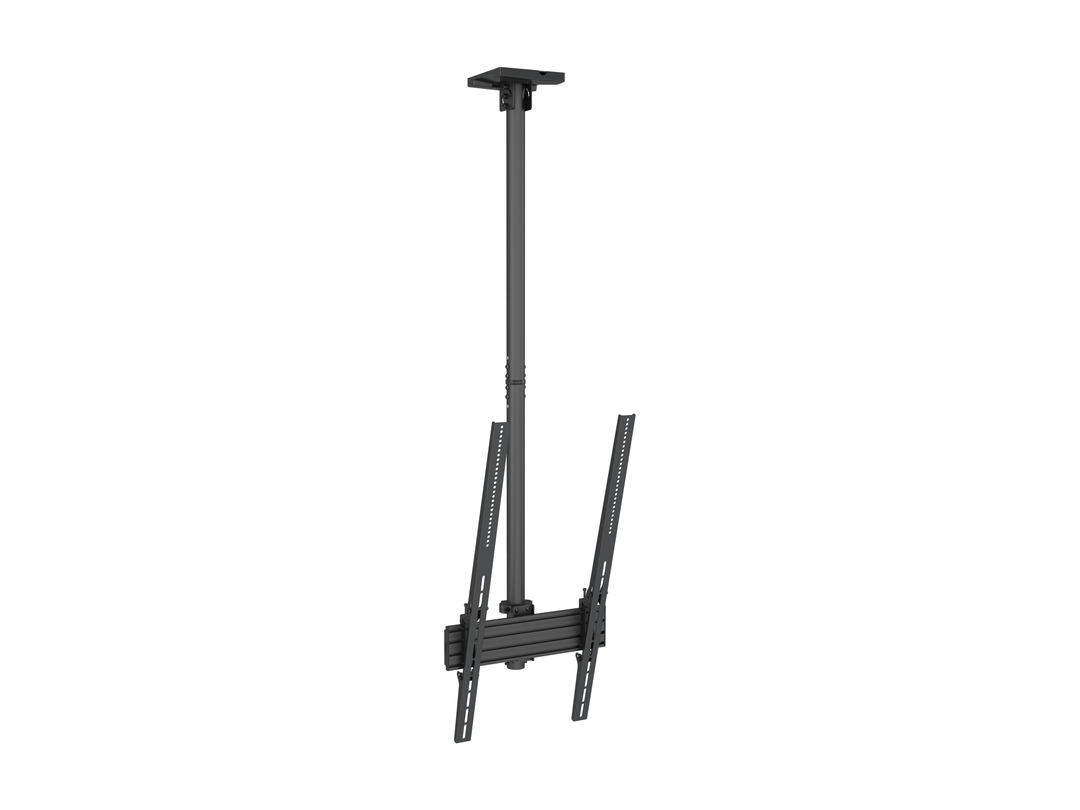

The Multibrackets M Ceiling Mount Pro MBC1UP VESA 400x900 is a professional ceiling mount designed for single LCD displays sized 42" to 75". It features a sturdy 1.5m vertical steel pole, tilt arms for flexible screen positioning, and VESA compatibility up to 400x900—ideal for demanding commercial environments.
With its sleek black finish and integrated cable management, this ceiling mount is both functional and visually discrete. It supports up to 50 kg per screen and is TÜV tested for safety. As part of the Multibrackets Pro Series, it is fully modular and adaptable to evolving AV installation needs.
Whether in retail, control rooms, or office signage, this ceiling mount offers a scalable solution built for performance and longevity.
Highlights
- Single-display ceiling mount with tilt functionality
- Screen size support: 42"–75"

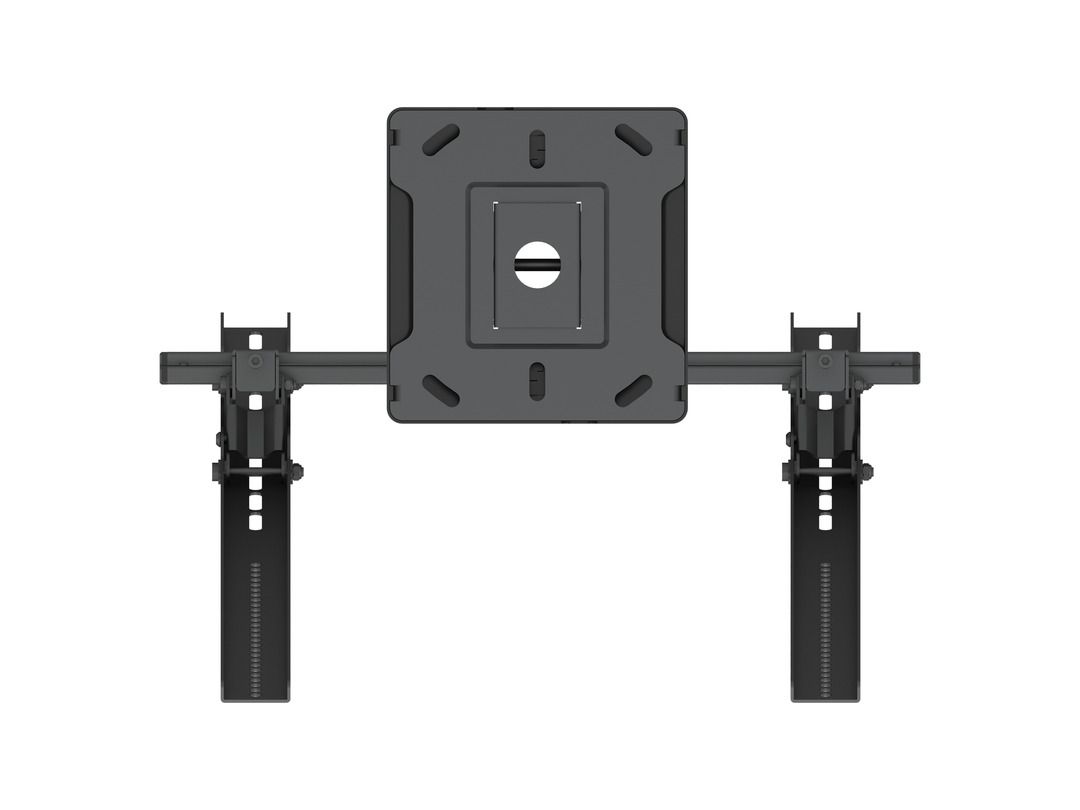

- VESA compatibility: up to 400x900

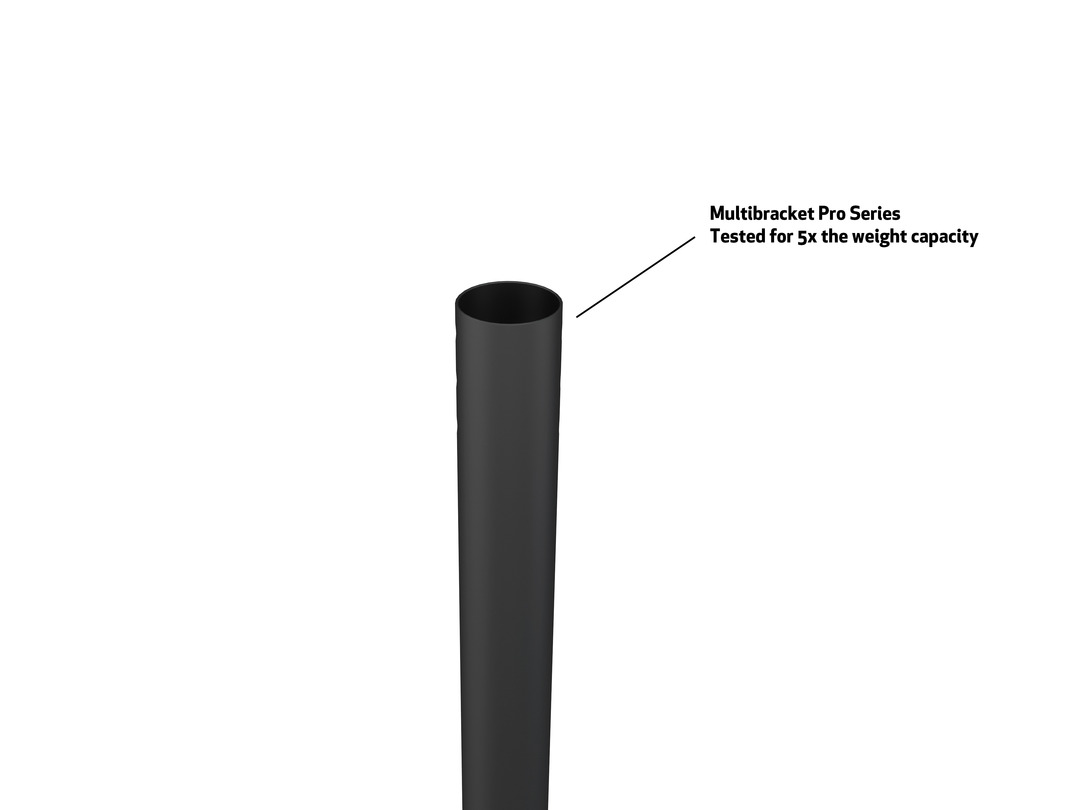

- 1.5m vertical mounting pole included
- Supports up to 50 kg per screen
- Integrated cable management for clean installations
- Modular design – compatible with extension pipes
- Quick and secure installation with Power Click system
- Suitable for commercial and retail applications
- Part of the TÜV certified Pro Series
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
| Specification | |
| M Ceiling Mount Pro MBC1UP VESA 400x900 | |
| Article No: | 7 350 073 736 904 |
| For screen size: | 42"-75" |
| Type: | Single Side MBC1U |
| Universal & VESA standard: | 100x100 200x200 300x300 400x400 400x600 400x900 |
| Material: | Steel, Aluminium, Plastic |
| Color: | Black |
| Surface Finish: | Powder coating |
| Weight: | 10.3 kg |
| Measurements | 98.5x20.5x12.0cm |
| Max Load: | 50 kg per screen TUV approved at 30 kg per screen |

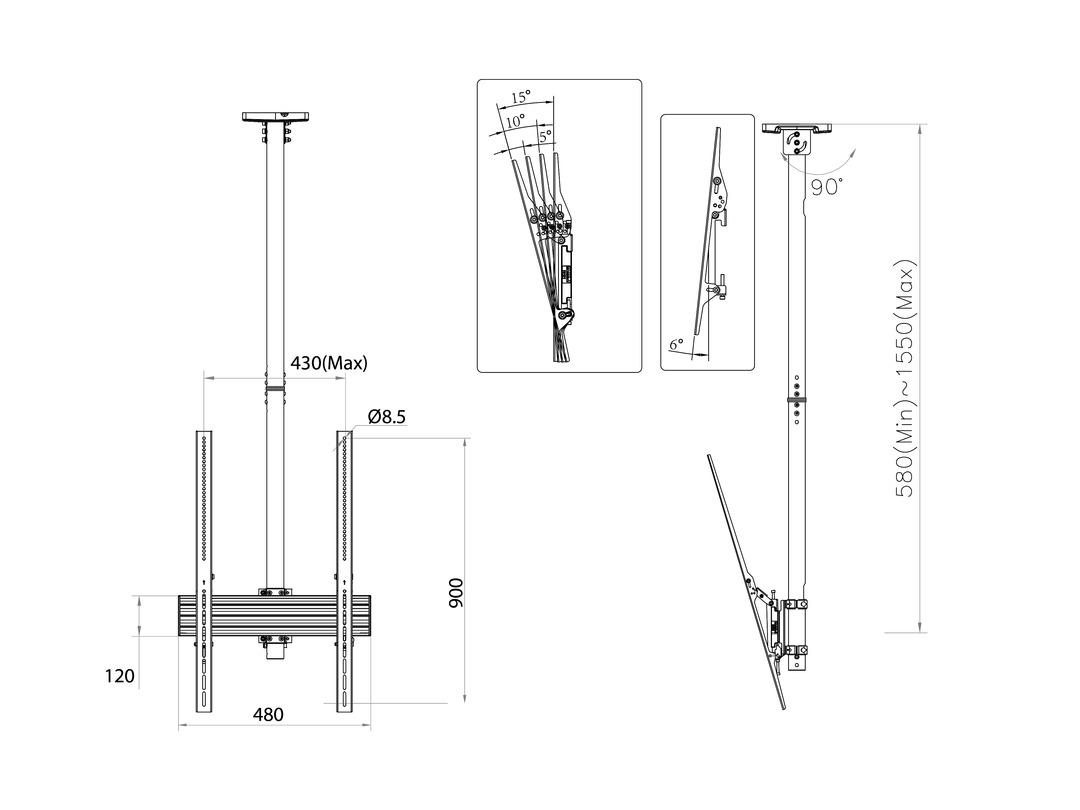

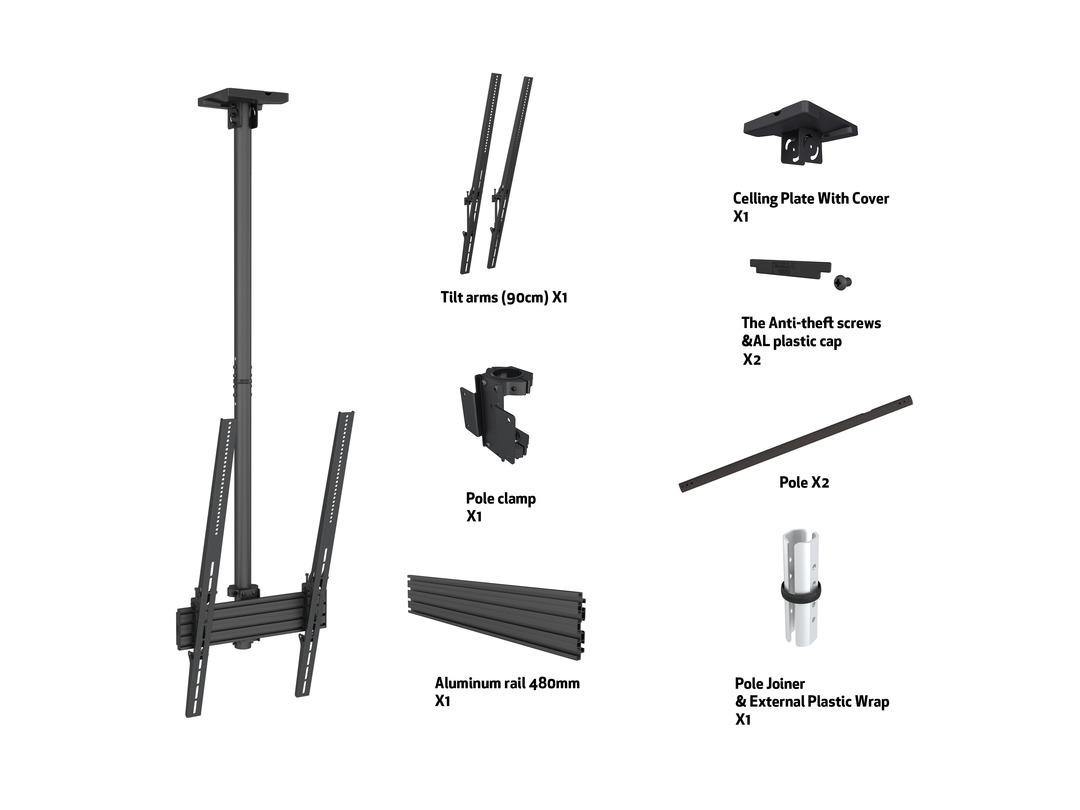

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*2pcs) included |

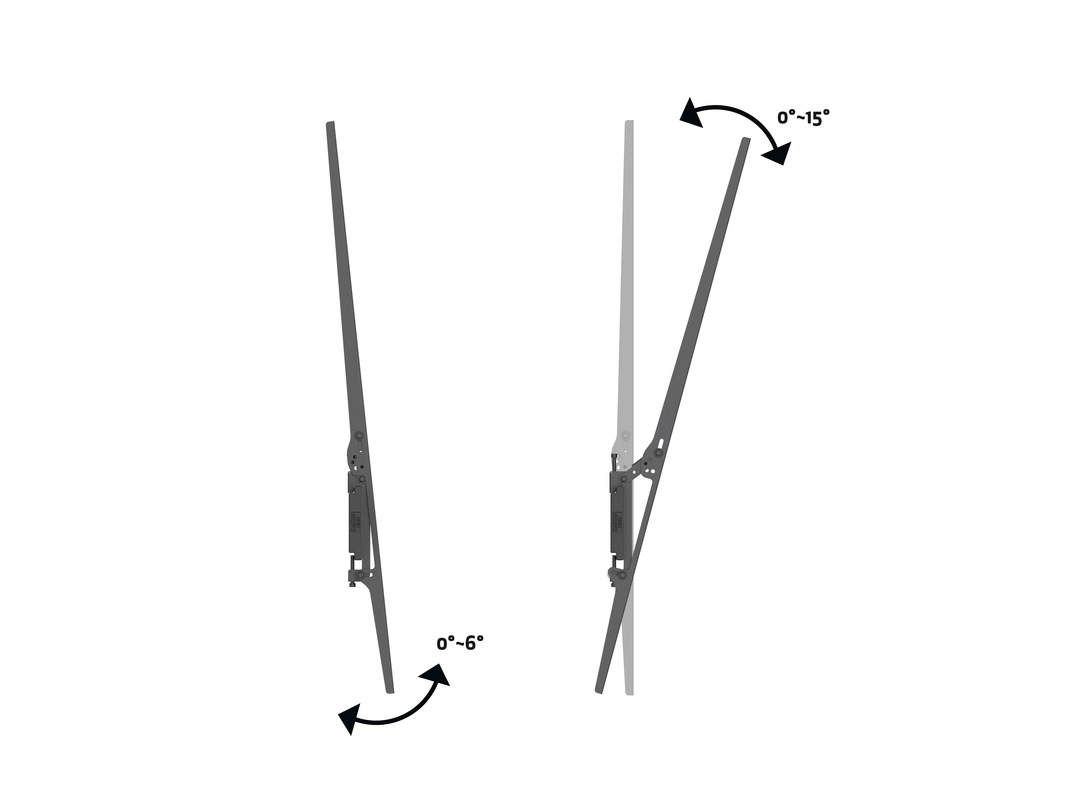

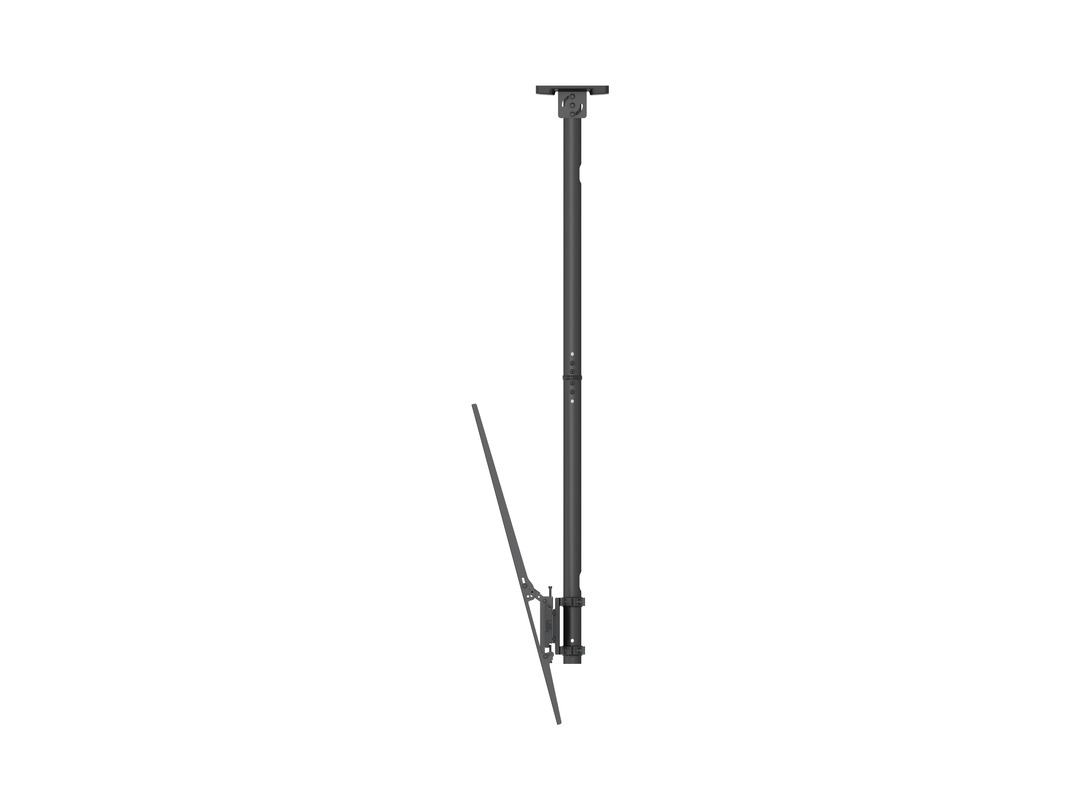

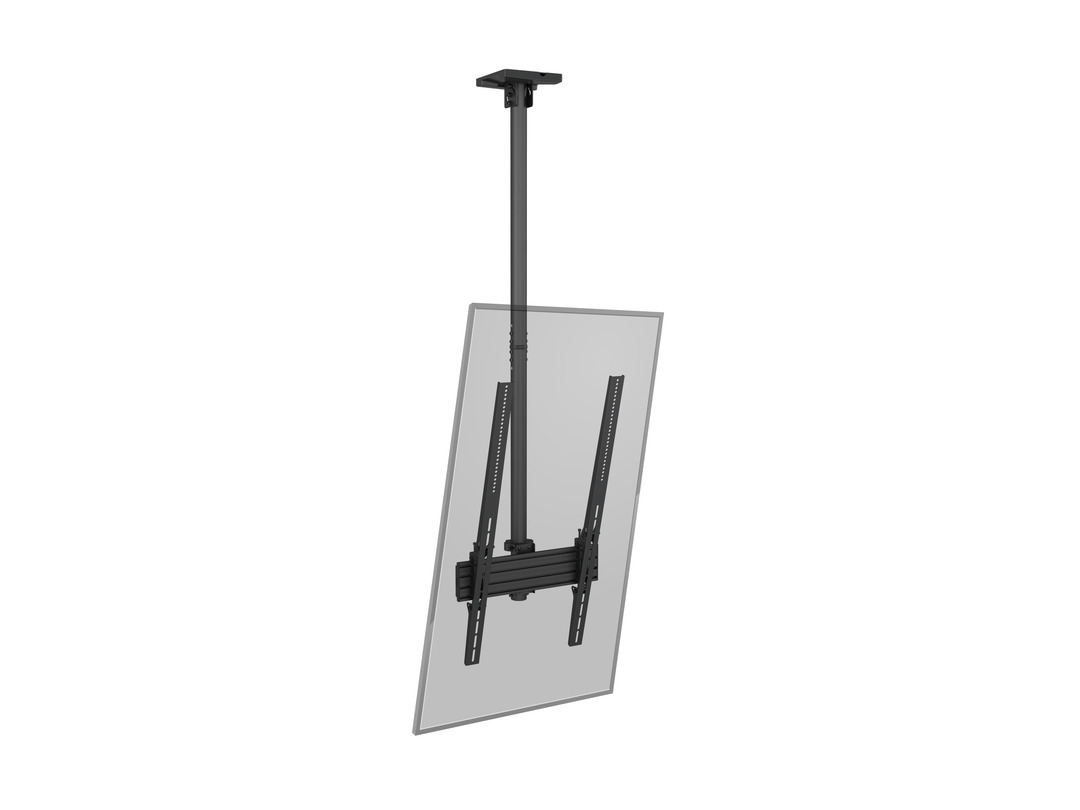

| Tilt: | Yes, -6°~+15° |
| Swivel: | Yes, 90° |
| Rotate: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 98.5 x 20.5 x 12 cm |
| Package Weight: | 9.40 kg |
