M Ceiling Mount Pro MBC1UPHD VESA 600x900
Options
Variants that match your options:
In stock: 368
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073736126
Product overview

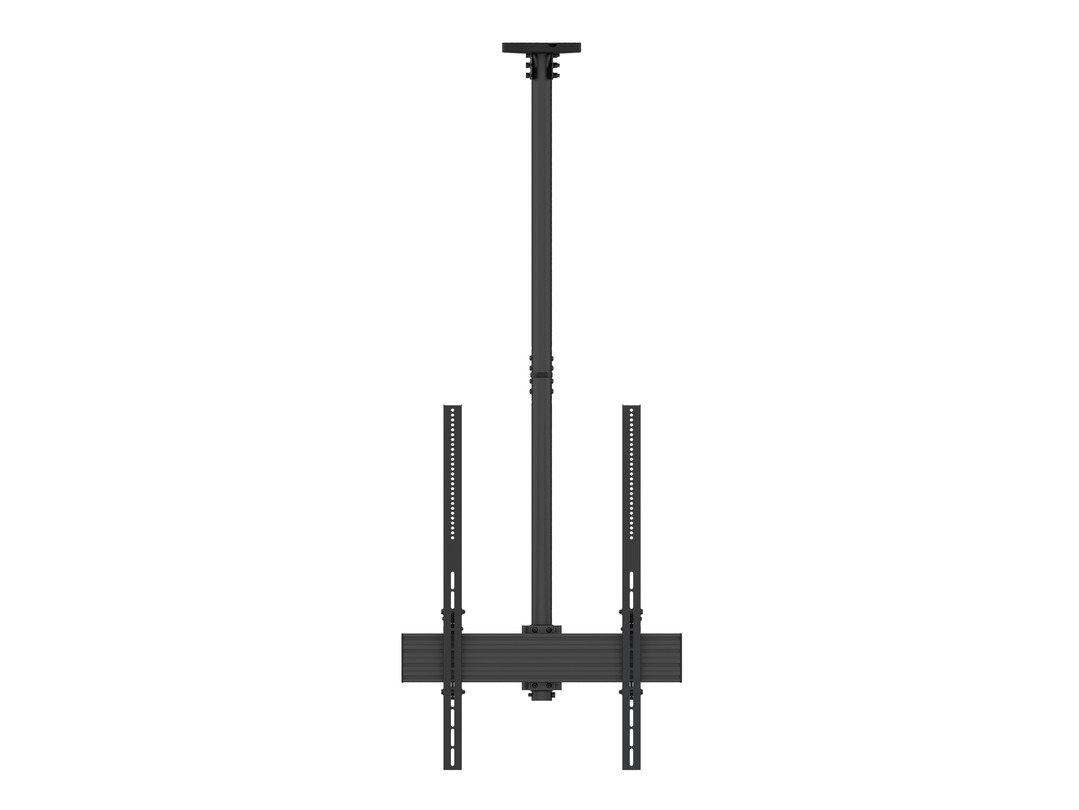

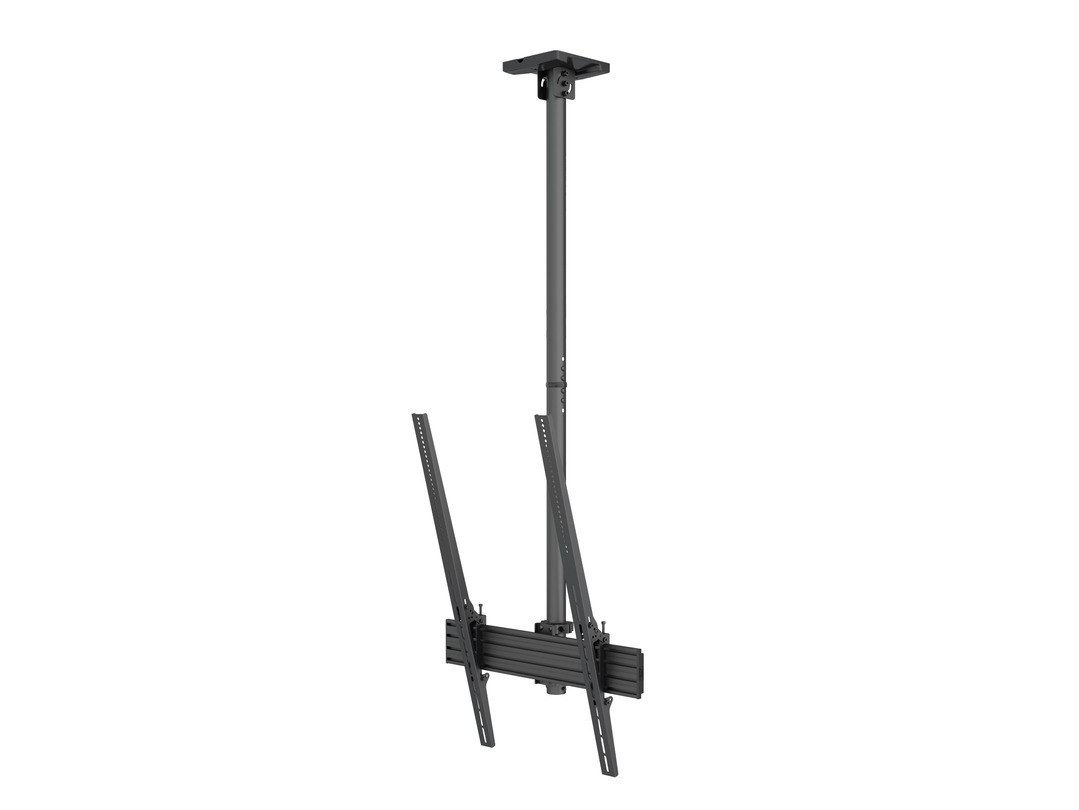

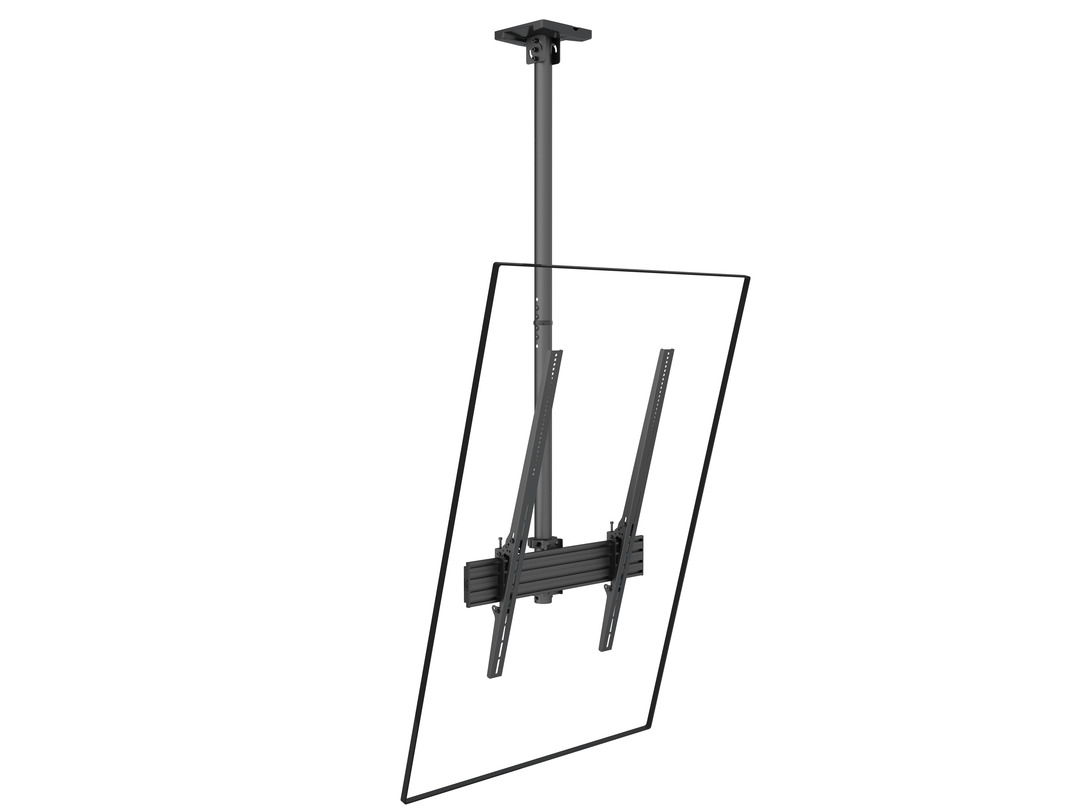

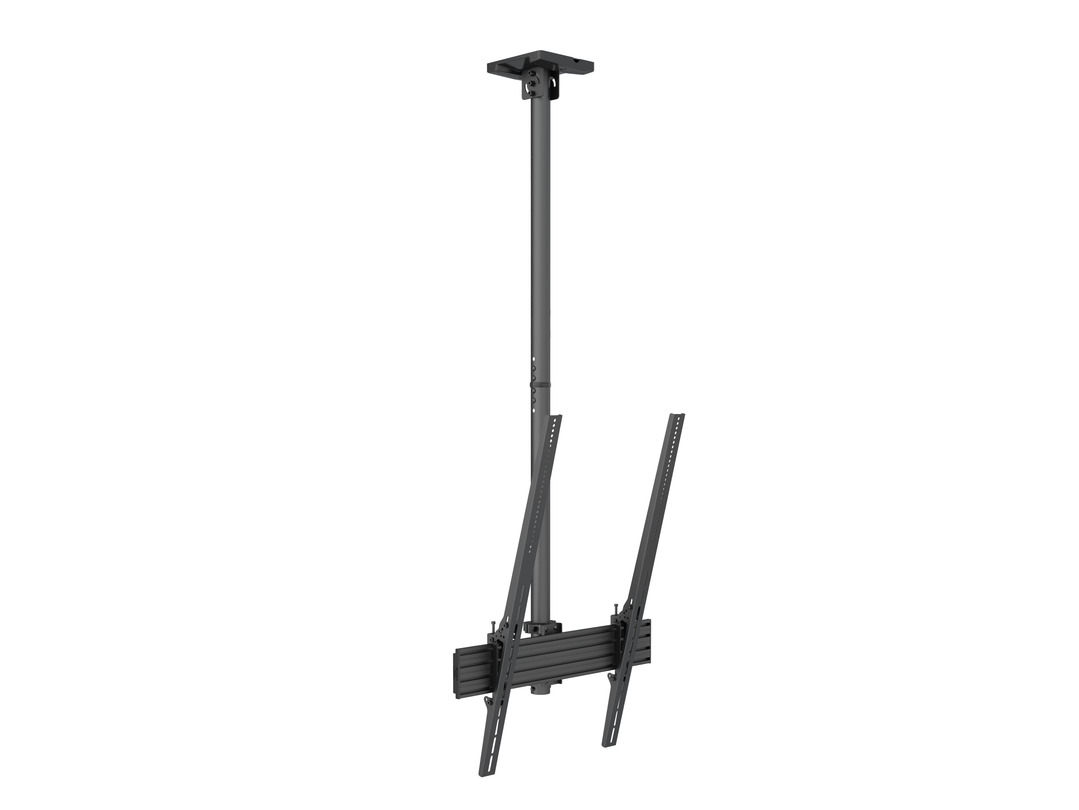

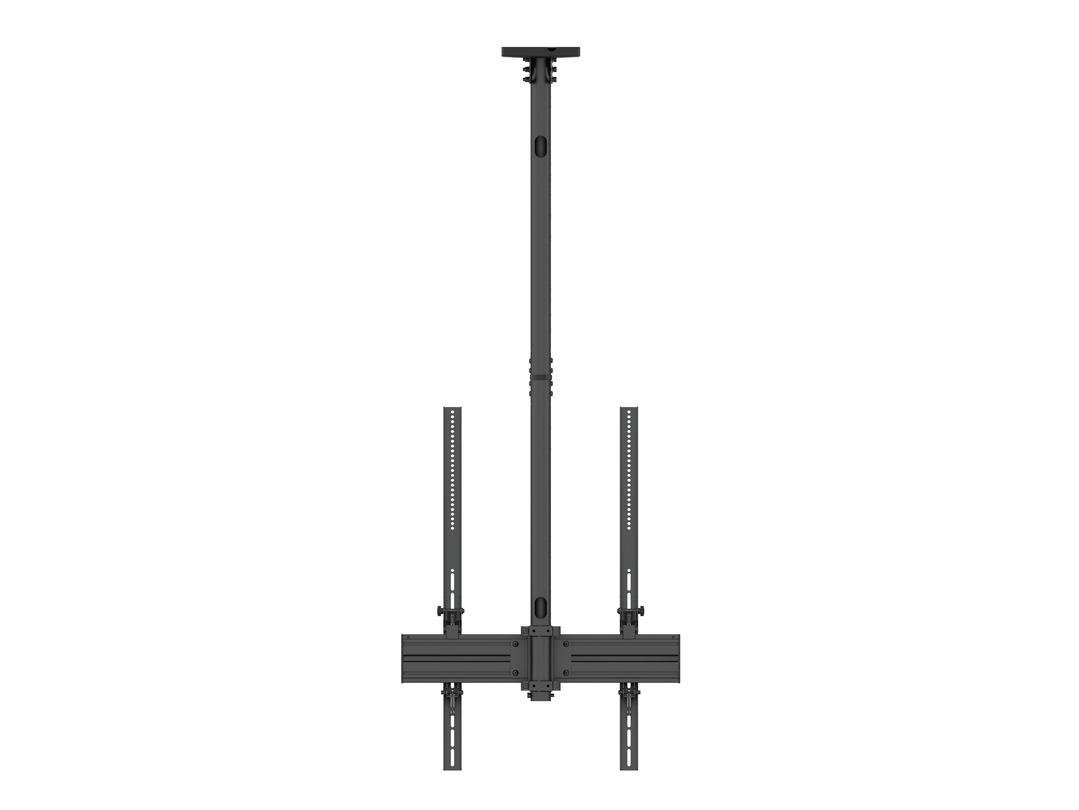

The Multibrackets M Ceiling Mount Pro MBC1UPHD VESA 600x900 is a professional-grade ceiling mount for LCD displays sized 40" to 75". Built in steel with a 1.5m vertical structure, this model is ideal for single-screen setups requiring stability, flexibility, and a clean design.
Supporting VESA patterns up to 600x900 and a max load of 50 kg, it includes tilt arms for angle adjustment and features integrated cable management for neat installations. As part of the Multibrackets Pro Series, it enables modular expansion with compatible accessories and extensions.
Optimized for demanding commercial and public installations, this mount is suitable for retail, signage, and control room use where long-term performance is a priority.
Highlights
- Ceiling mount for one LCD display
- Supports screen sizes from 40" to 75"
- VESA compatibility up to 600x900
- Max load capacity: 50 kg
- 1.5m vertical steel construction
- Tilt arms for viewing angle adjustment

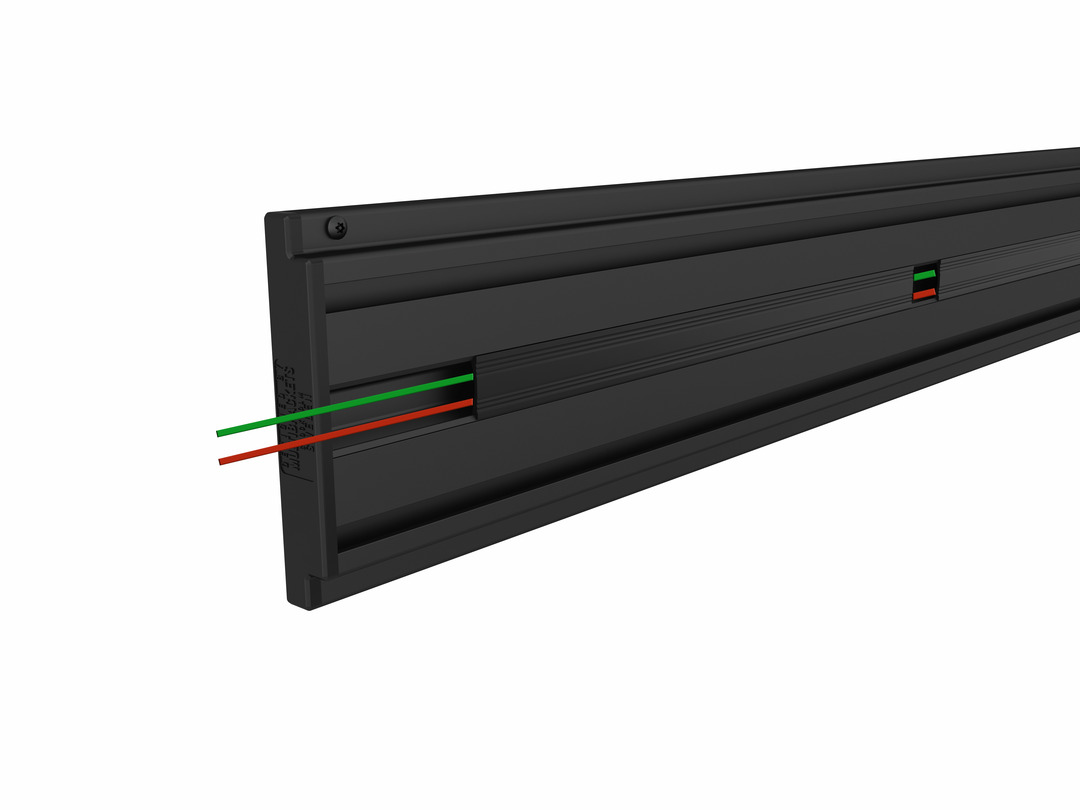

- Integrated cable management
- Part of the modular Pro Series
- Ideal for signage and control room installations
- Supports expansion with optional accessories
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.

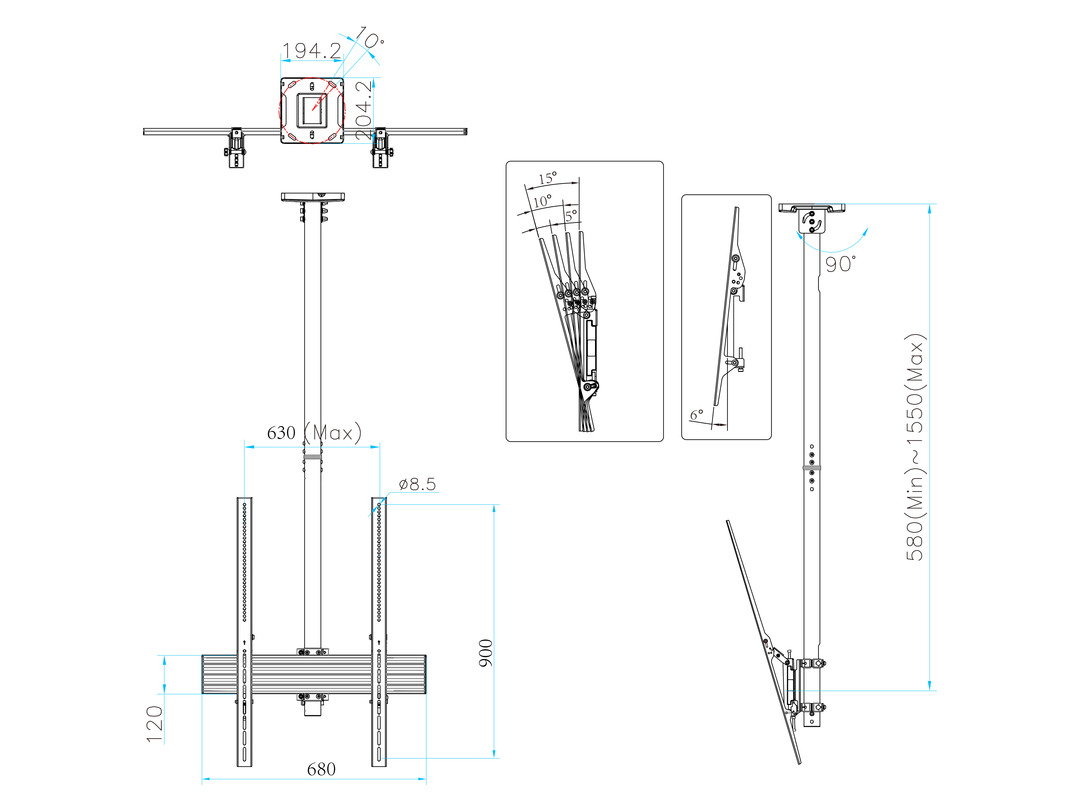

| Specification | |
| M Ceiling Mount Pro MBC1UPHD VESA 600x900 | |
| Article No: | 7 350 073 736 126 |
| For screen size: | 40”-75" |
| Type: | Single Side MBC1UHD |
| Universal & VESA standard: | Adjustable from 100x100 to 600x900 max |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 8.5 kg |
| Measurements | 69x178x20 cm |
| Max Load: | 50 kg |

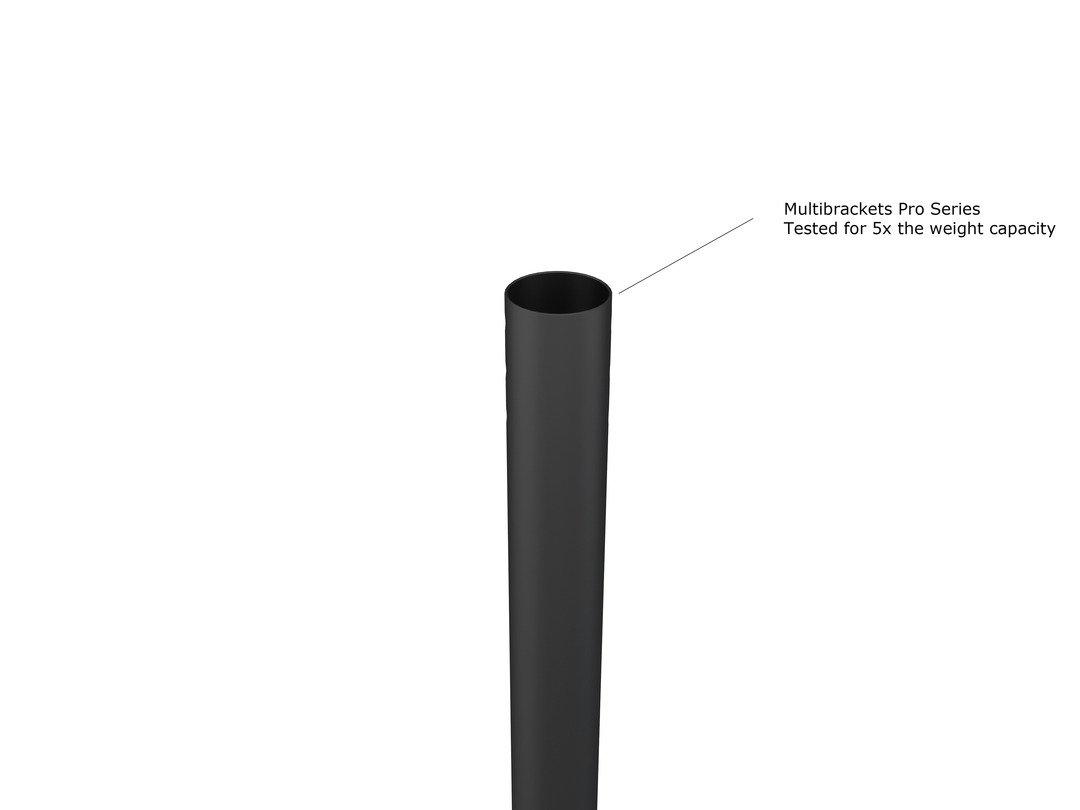

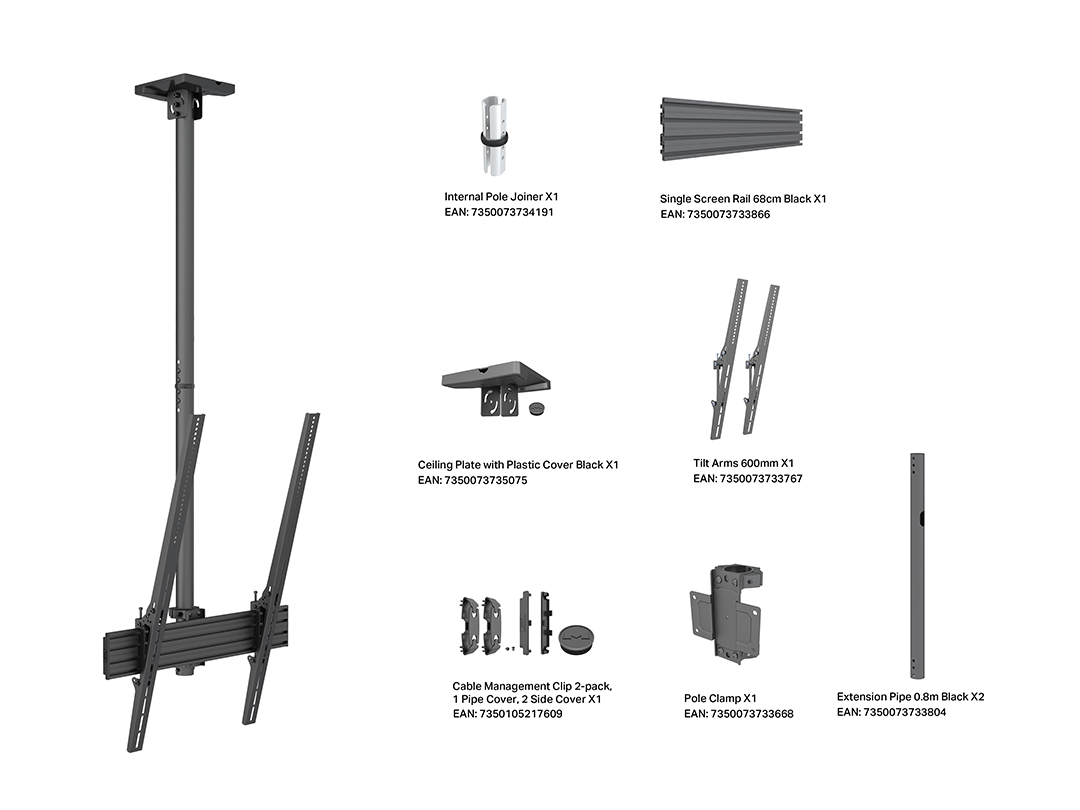

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*2pcs) included |
| Tilt: | Yes, -6°~+15° |
| Swivel: | Yes, 90° |
| Rotate: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 95.8 x 20.5 x 18 cm |
| Package Weight: | 11.10 kg |
