M Ceiling Mount Pro MBC1UPSD VESA 600x900
Options
Variants that match your options:
In stock: 309
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073736133
Product overview

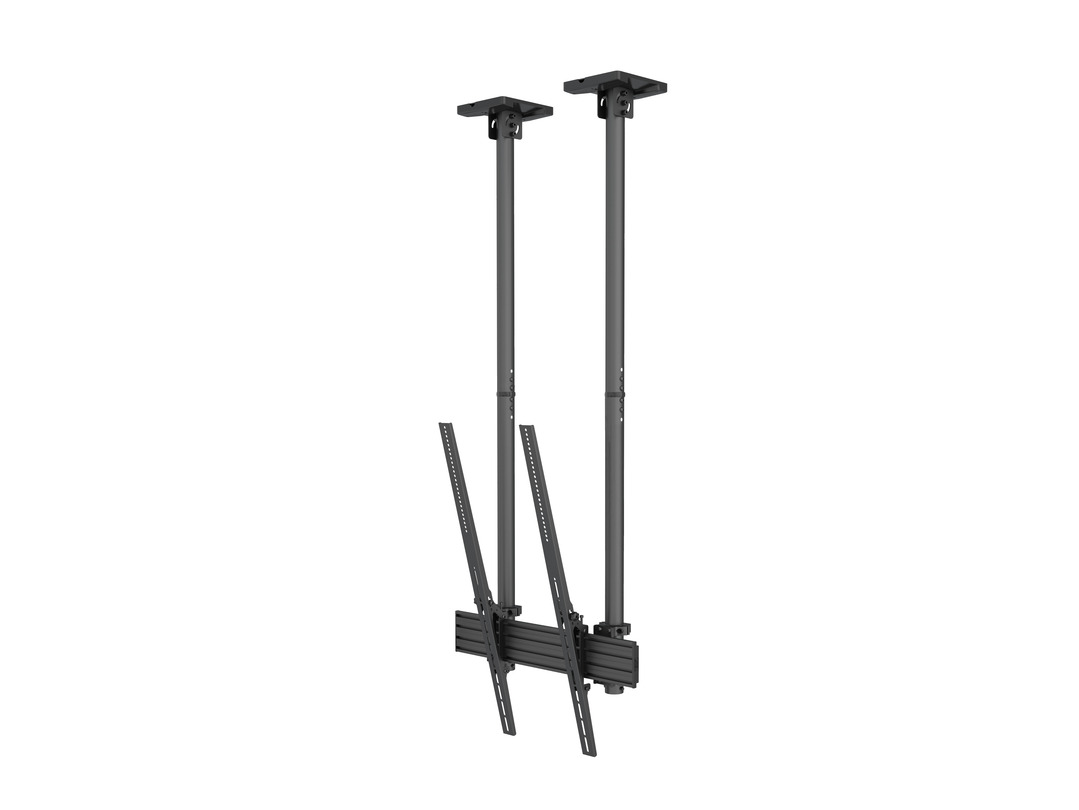

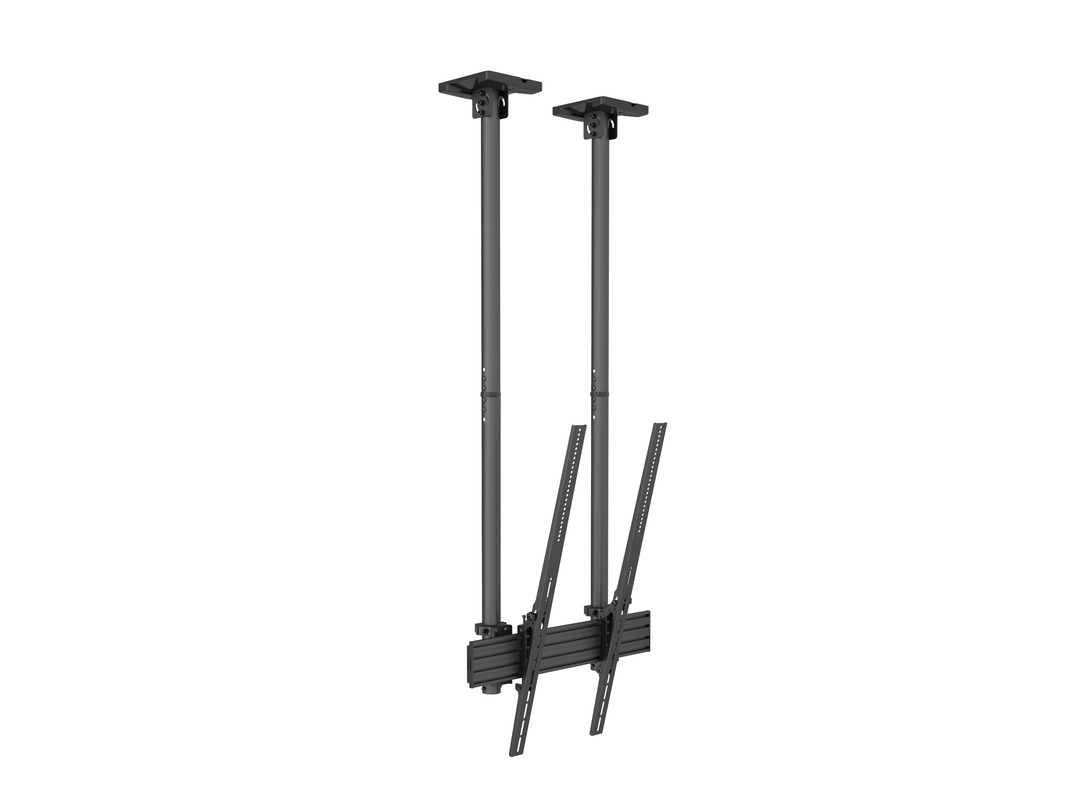

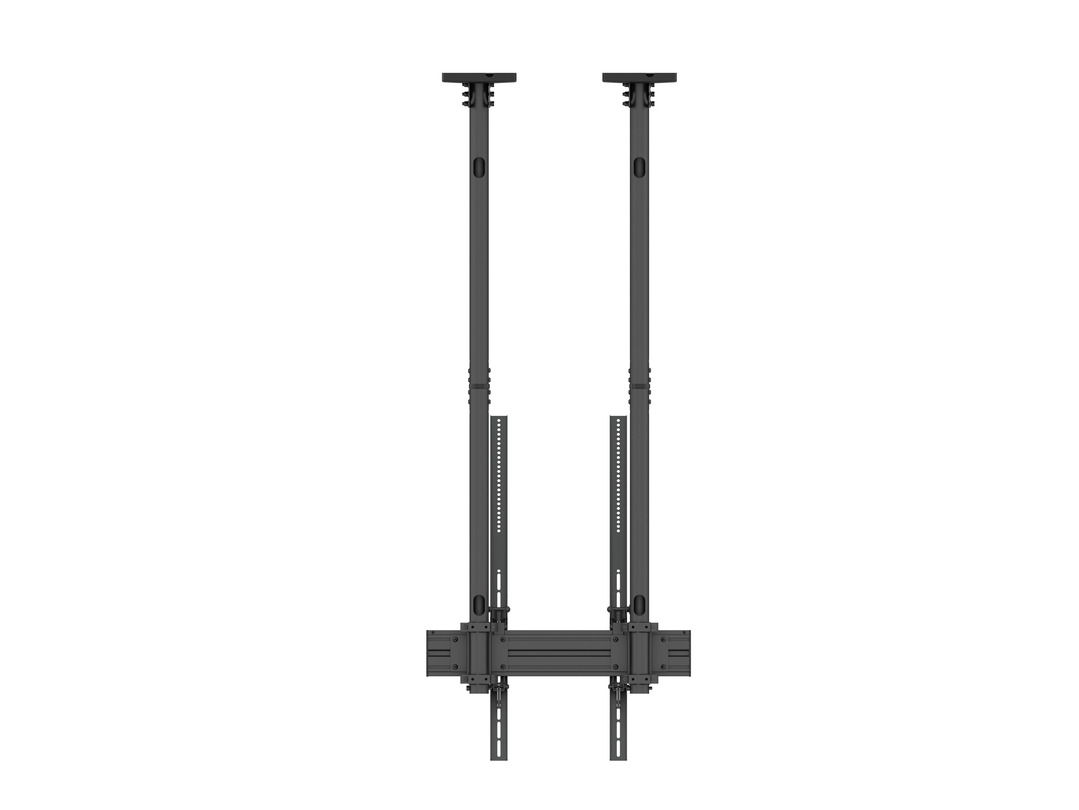

The Multibrackets M Ceiling Mount Pro MBC1UPSD VESA 600x900 is a super-duty ceiling mount for single LCD displays, designed for professional digital signage and commercial installations. Built with high-strength steel and aluminium, it supports up to 180 kg and is compatible with VESA patterns up to 600x900.
As part of the modular Pro Series A/V system, this mount offers maximum installation flexibility. It includes tilt and rotation functions, an adjustable-length pole, integrated cable management, and a ceiling plate. With its clean Scandinavian design and robust engineering, it’s ideal for demanding environments such as public spaces, control rooms, and retail settings.
Fully modular and upgradeable, the Pro Series enables easy customization, ensuring long-term adaptability as installation needs evolve.
Highlights
- Supports large displays with up to 180 kg load
- VESA compatibility: up to 600x900
- Modular and upgradeable ceiling mount system

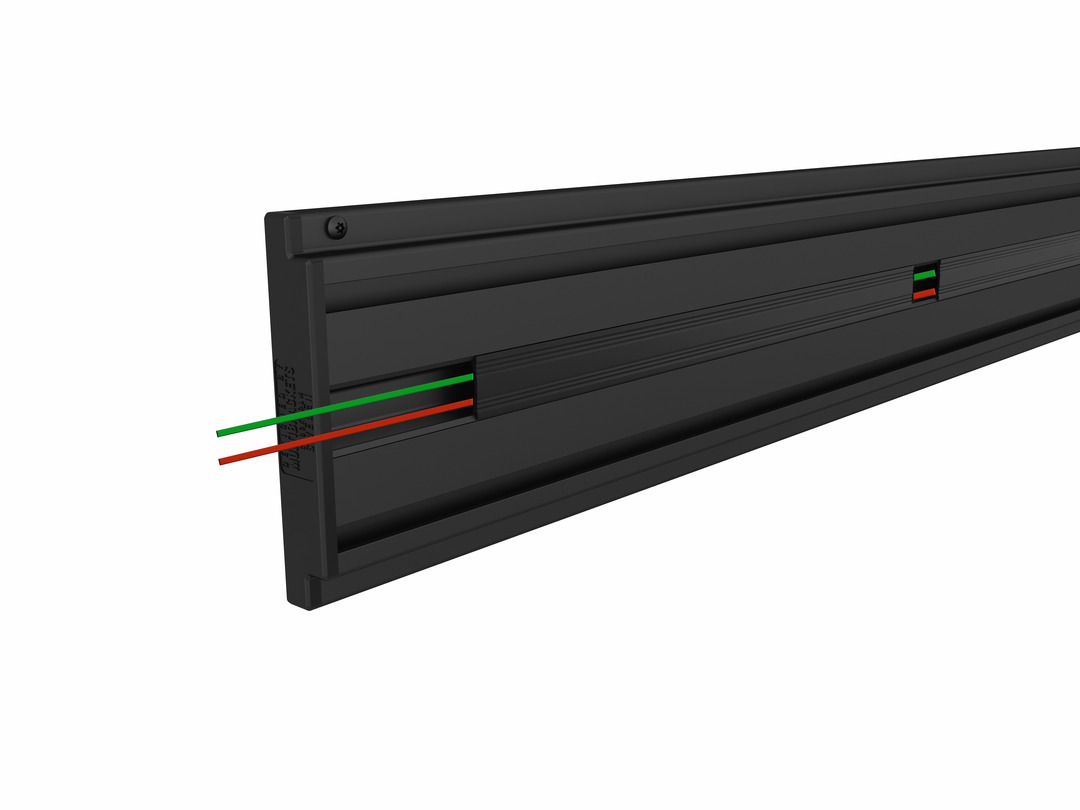

- Integrated cable management
- Portrait or landscape orientation supported
- Power Click install for fast and secure setup

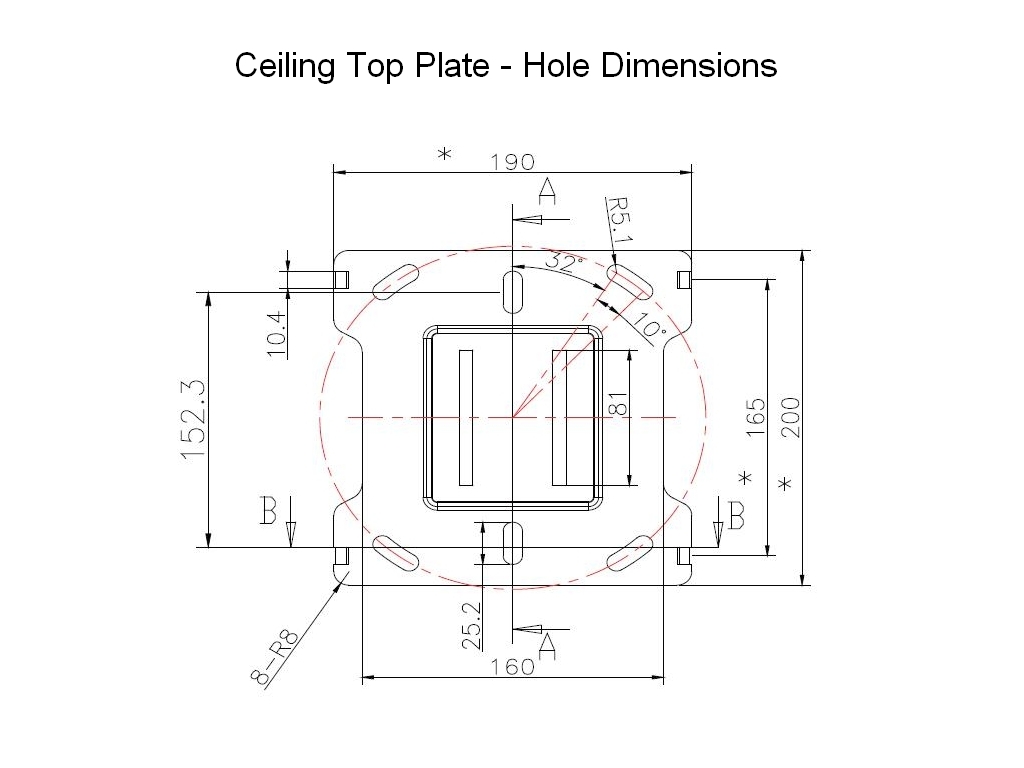

- Includes 1.5m extension pipe and ceiling plate

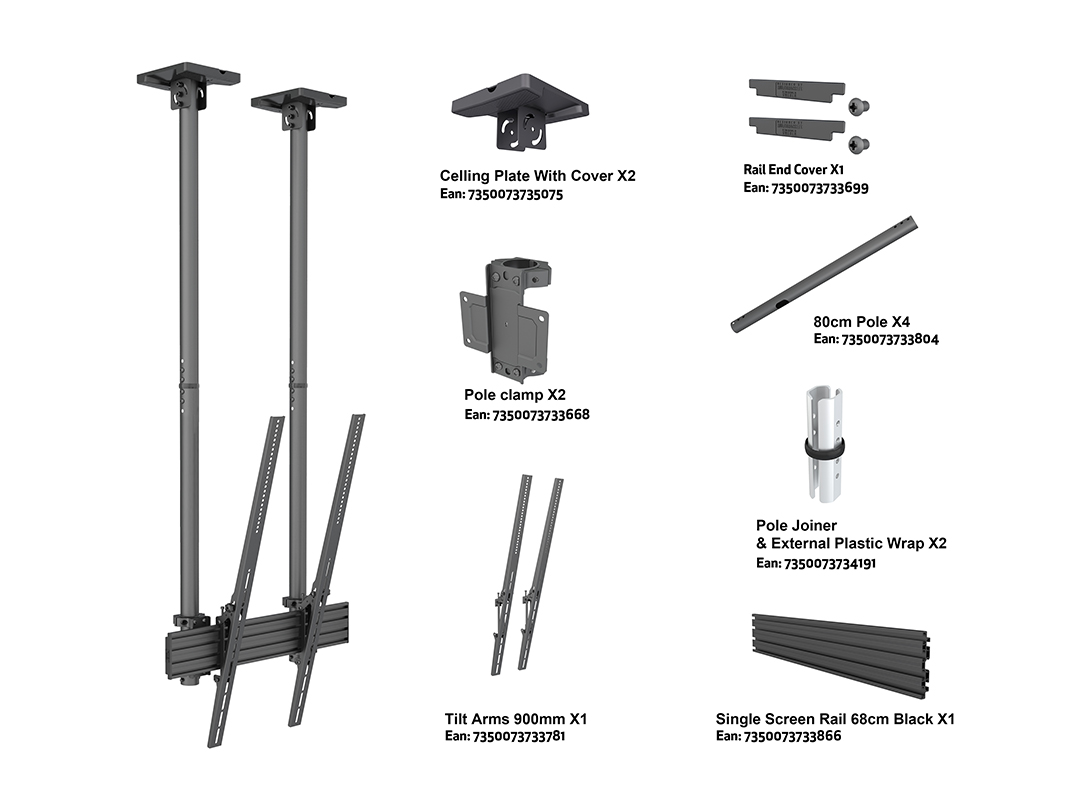

- All required mounting hardware included
- Engineered for digital signage and commercial use
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
| Specification | |
| M Ceiling Mount Pro MBC1UPSD VESA 600x900 | |
| Article No: | 7 350 073 736 133 |
| For screen size: | 40”-100" |
| Type: | Single Side MBC1U |
| Universal & VESA standard: | Adjustable from 100x100 to 600x900 max |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 12 kg |
| Measurements | 69x178x20 cm |
| Max Load: | 180 kg |

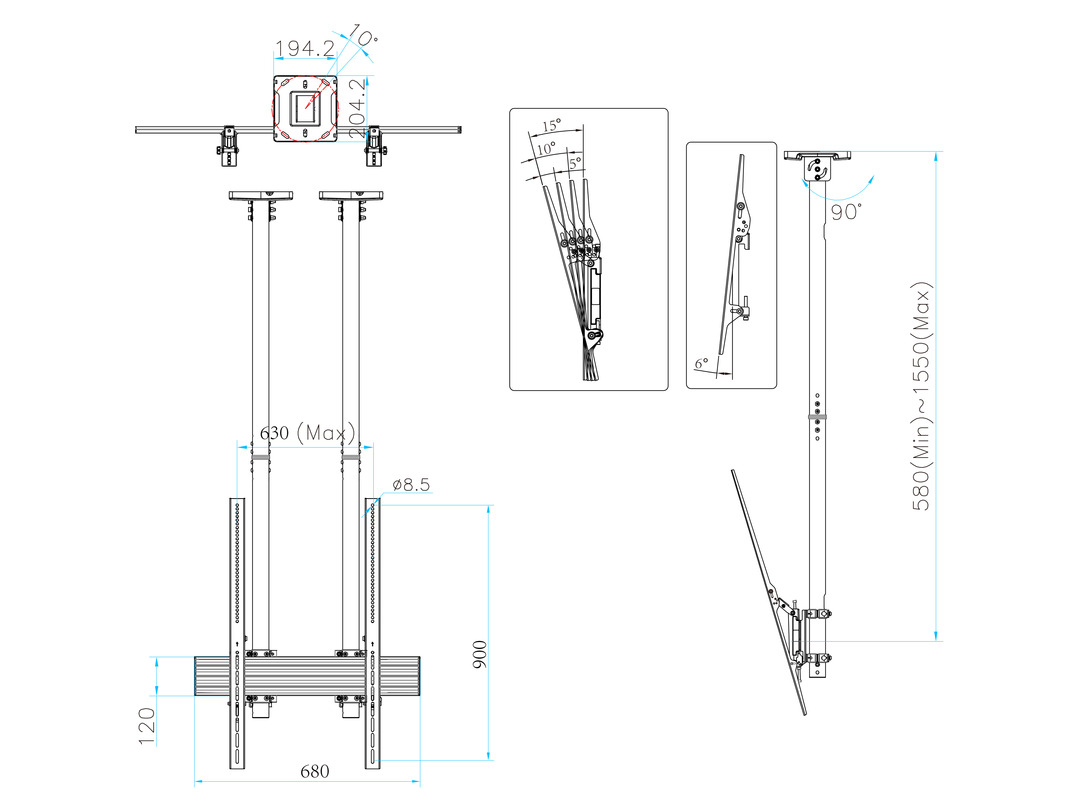

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*4pcs) included |
| Tilt: | Yes, -6°~+15° |
| Swivel: | Yes, 90° |
| Rotate: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 96 x 20.5 x 19.8 cm |
| Package Weight: | 13.00 kg |
