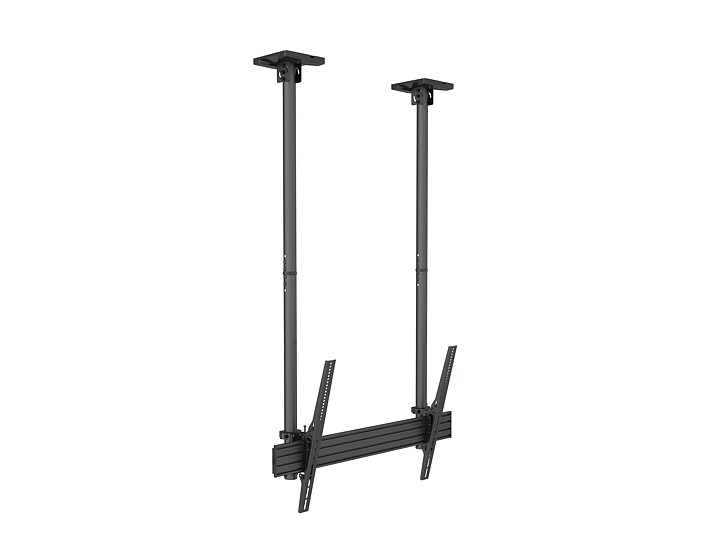

M Ceiling Mount Pro MBC1USD VESA 900
M Ceiling Mount Pro MBC1USD VESA 900 - Ceiling mount for LCD display, steel, 1.5m length, 1 screen, single side, tilt arms, Max load 135kg, VESA Max 900x600 - screen size: 40"-100" - black
Options
Variants that match your options:
Price
Not available
Price
In stock: 291
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073735785
M Ceiling Mount Pro MBC1USD VESA 900 - Ceiling mount for LCD display, steel, 1.5m length, 1 screen, single side, tilt arms, Max load 135kg, VESA Max 900x600 - screen size: 40"-100" - black
Product overview
Multibrackets Pro Series M Ceiling Mount Pro MBC1USD VESA 900 is a ready-to-install ceiling mount designed for single-screen, super-duty applications. Engineered for larger LCD displays up to 100", it supports VESA patterns up to 900x600 and a max load of 135 kg.
Part of the Pro Series A/V line, it features a modular system with integrated cable management and adjustable tilt, swivel, and rotation. Built from steel and aluminium with a black powder-coated finish, it ensures durability and clean aesthetics in public or commercial spaces.
With flexible configuration and included extension pipes, this ceiling mount adapts easily to diverse installation environments.
Highlights
- Supports screen sizes 40"–100"
- Max load: 135 kg
- VESA compatibility up to 900x600

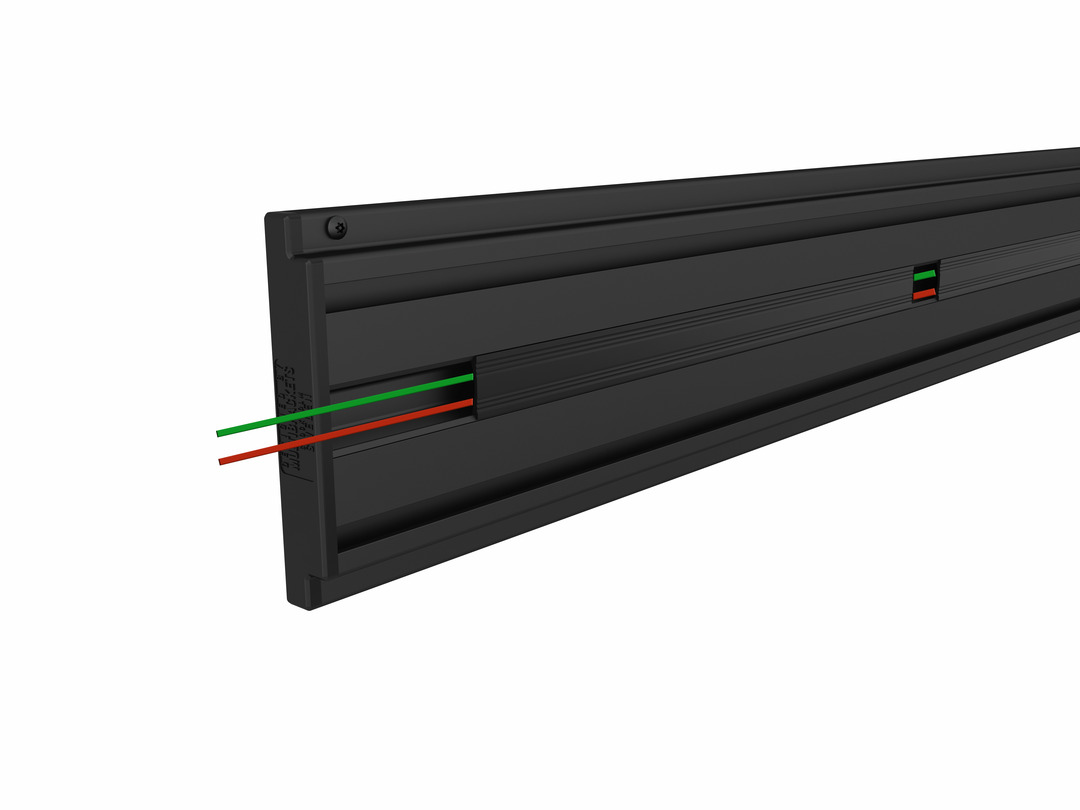

- Integrated cable management
- Modular construction with extension pipes included

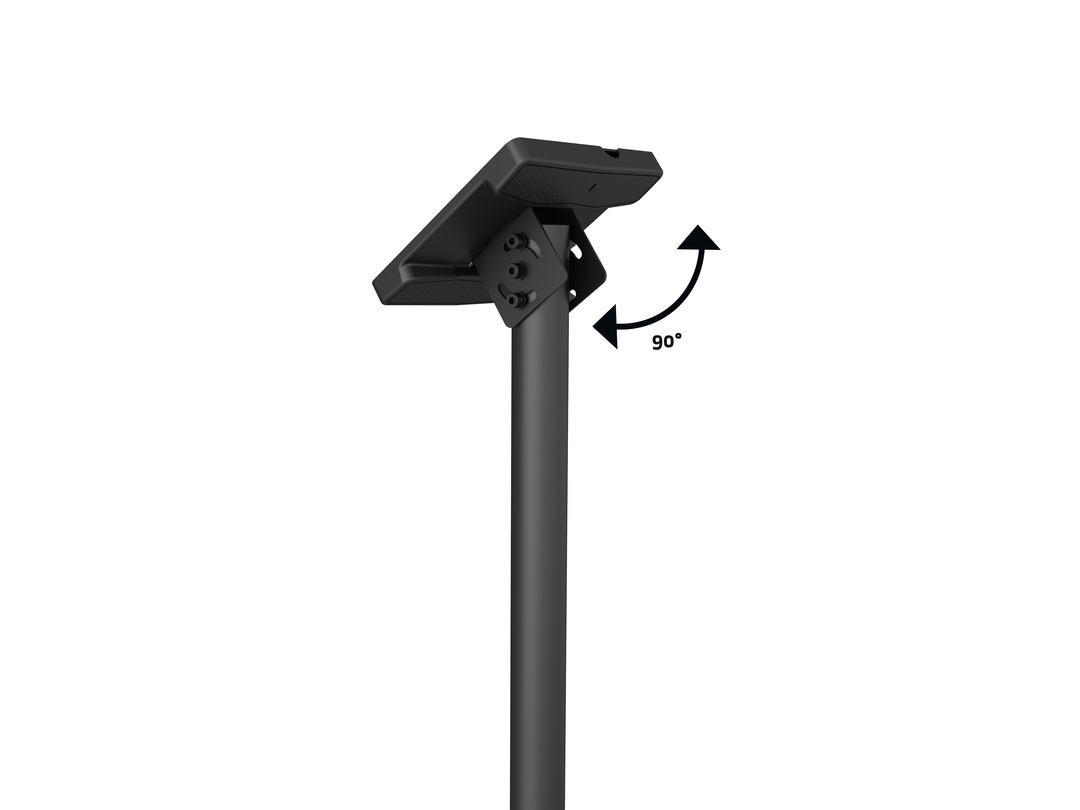

- Adjustable tilt (-6°~+15°), swivel (90°), and rotation (±4°)

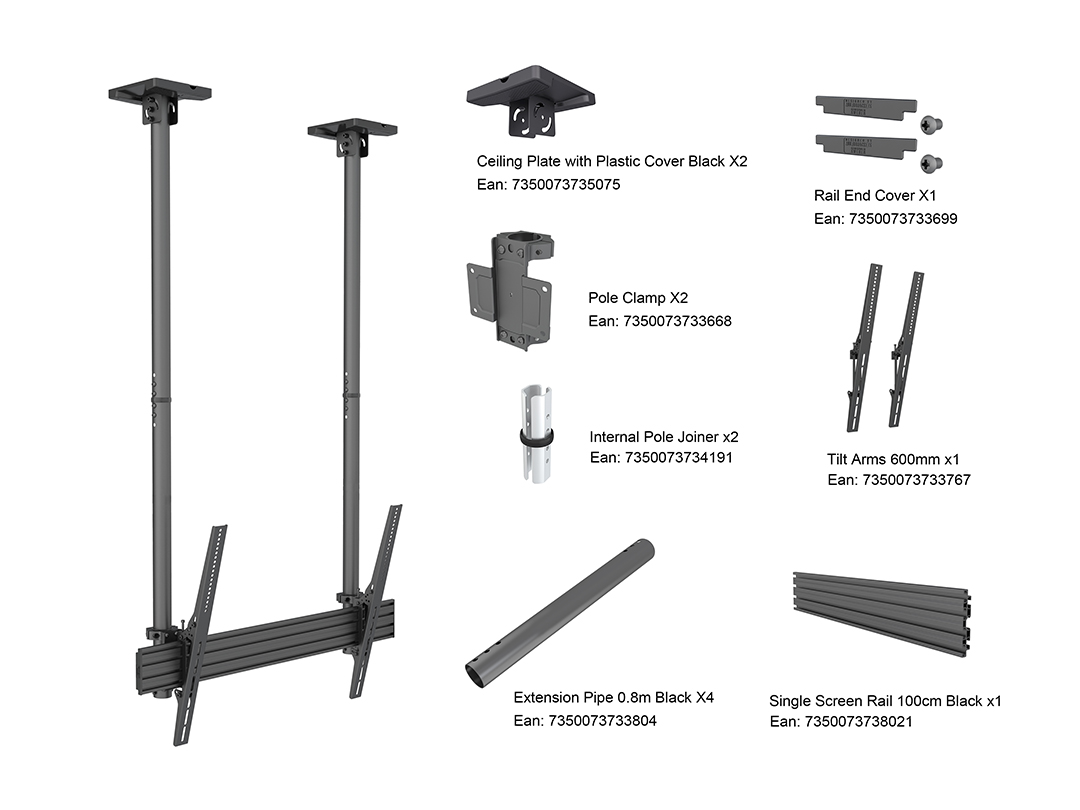

- Ceiling plate and hardware kit included
- Portrait or landscape screen positioning
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Pro Series Configuration Guide
Selected models are TÜV approved.
| Specification | |
| M Ceiling Mount Pro MBC1USD VESA 900 | |
| Article No: | 7 350 073 735 785 |
| For screen size: | 40”-100" |
| Type: | Single Side MBC1U |
| Universal & VESA standard: | Adjustable from 100x100 to 900x600 max |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 12 kg |
| Measurements | 69x178x20 cm |
| Max Load: | 135 kg |
| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*4pcs) included |
| Tilt: | Yes, -6°~+15° |
| Swivel: | Yes, 90° |
| Rotate: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 83.1 x 23.3 x 18.8 cm |
| Package Weight: | 17.00 kg |
