M Ceiling Mount Pro MBC1USDGC VESA 600
Options
Variants that match your options:
In stock: 29
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7340234811922
Product overview

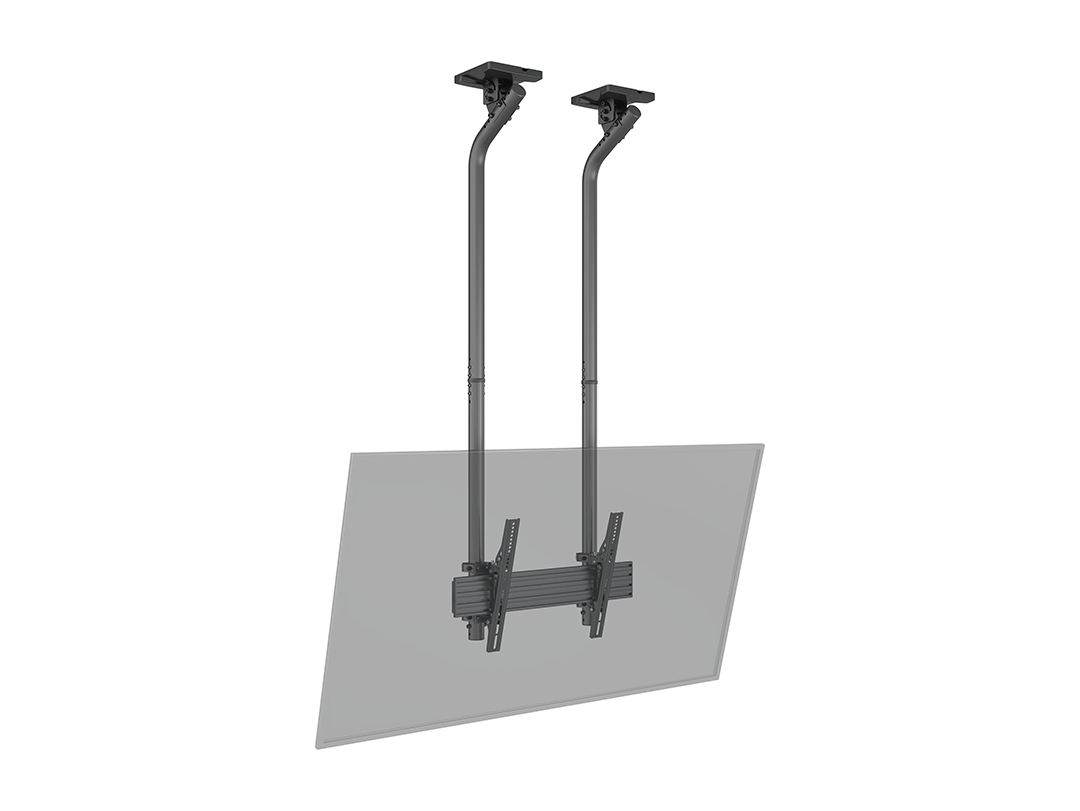

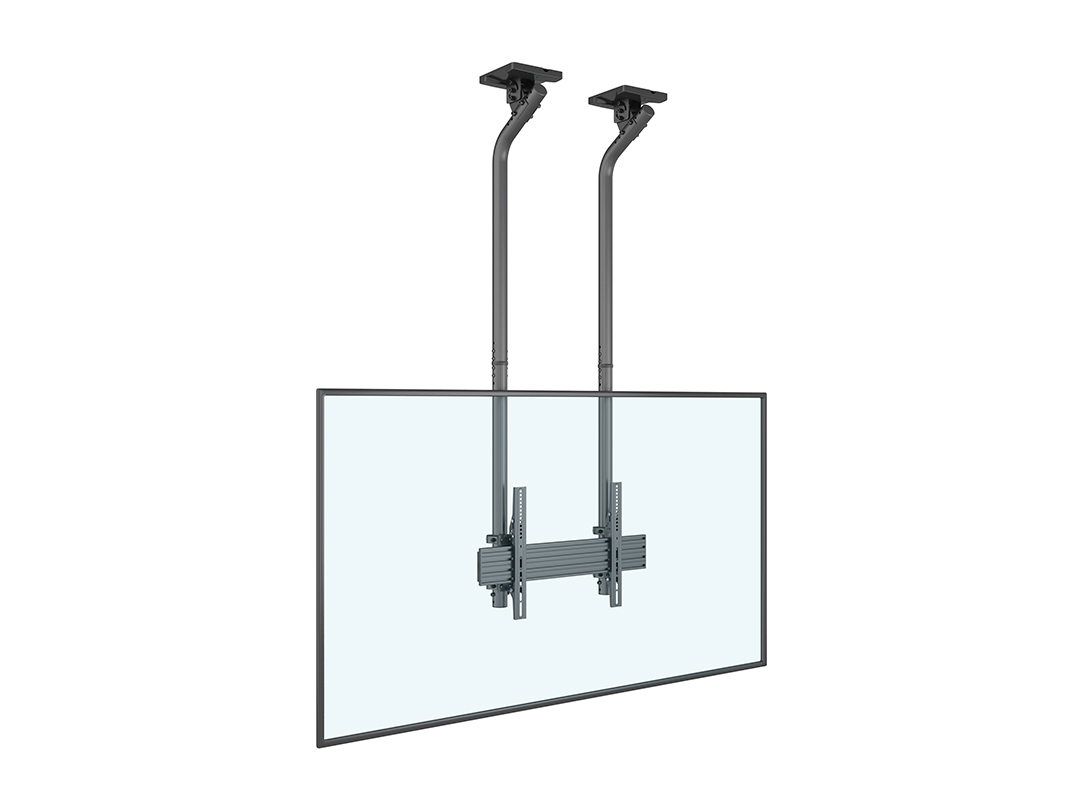

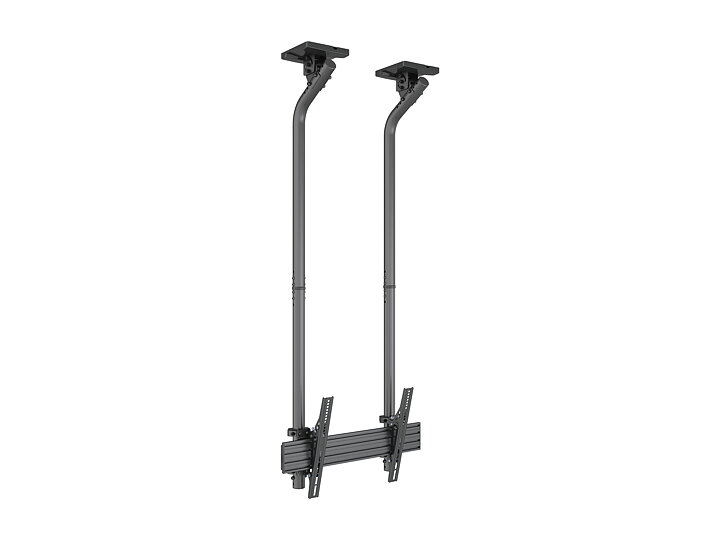

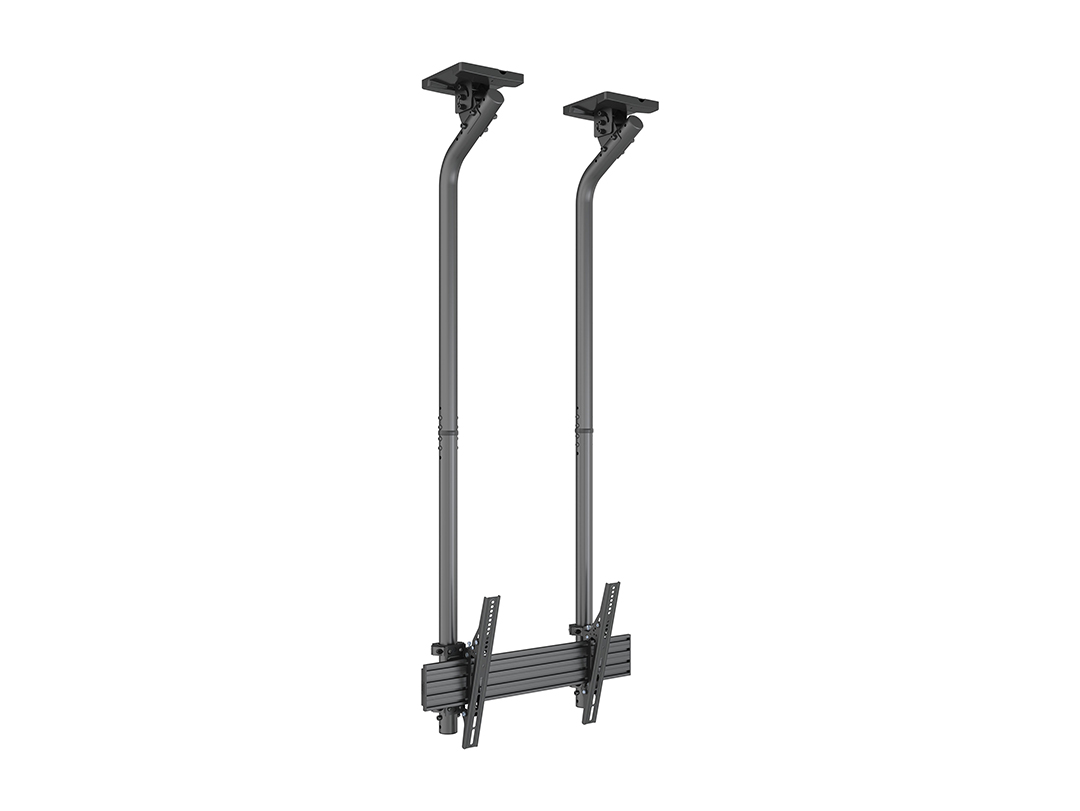

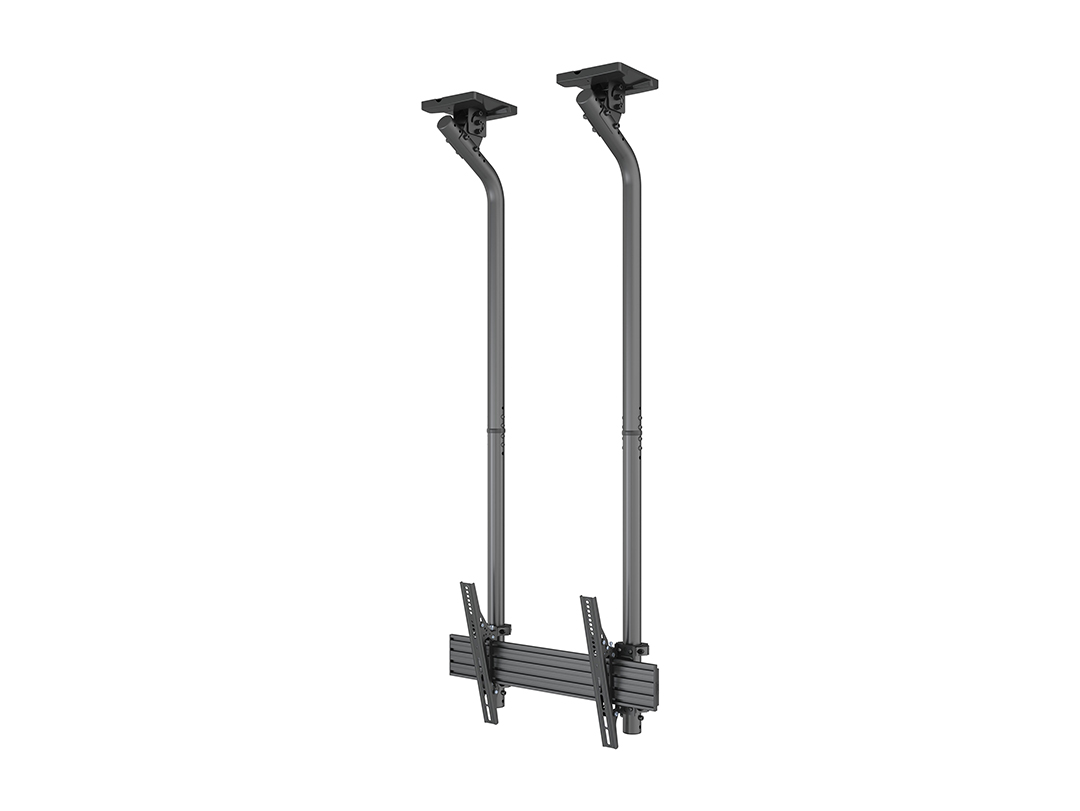

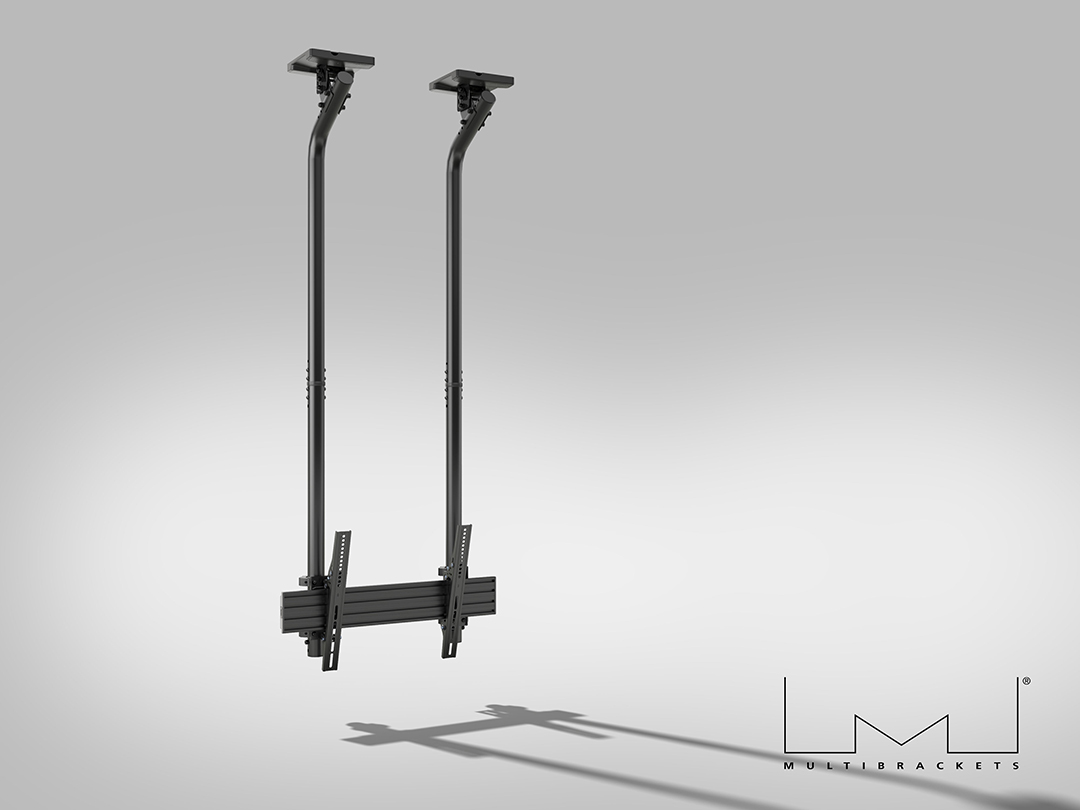

The Multibrackets M Ceiling Mount Pro MBC1USDGC VESA 600 is a professional ceiling mount for single LCD displays up to 100". With a 1.5m vertical steel structure and tilt functionality, this solution supports VESA patterns up to 600x400 and is ideal for commercial signage and retail environments.
Part of the modular Pro Series, this mount offers high weight capacity and flexible installation. Its integrated cable management and aluminum rail design provide both visual cleanliness and structural strength.
The system is designed with scalability in mind, offering compatibility with optional extension pipes and accessories—allowing installers to adapt setups to a wide range of needs.
Highlights

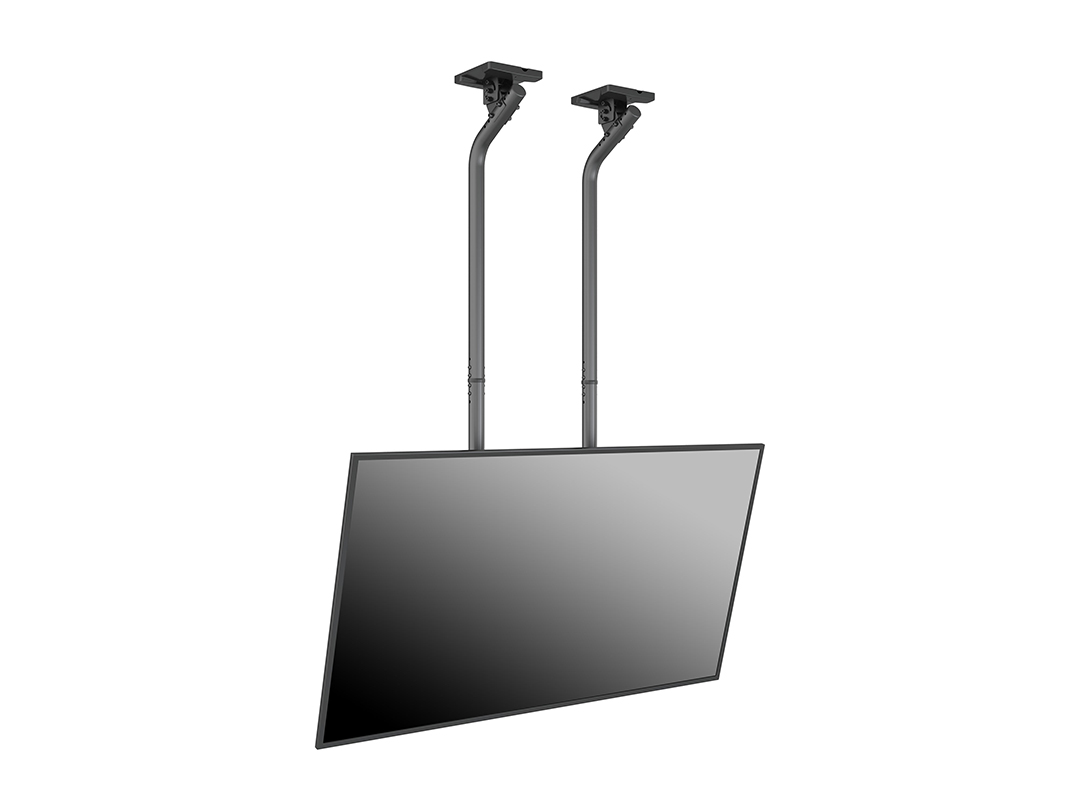

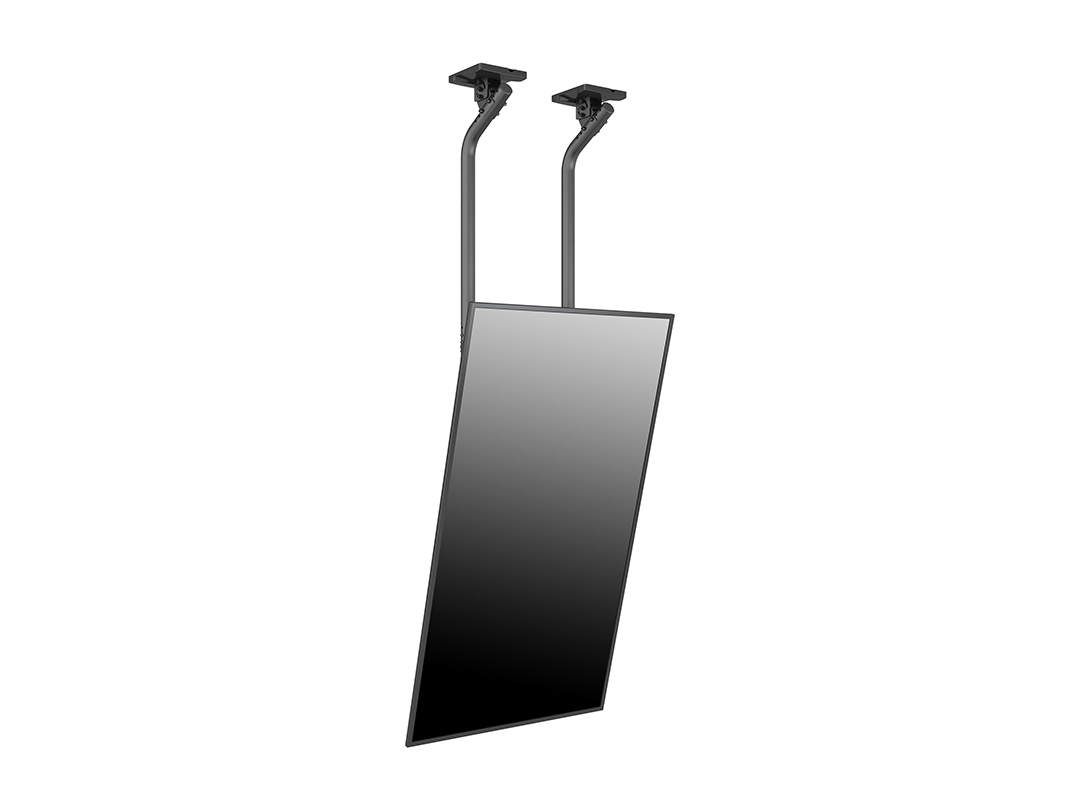

- Ceiling mount for one LCD display
- Supports screen sizes from 40" to 100"
- VESA compatibility up to 600x400
- Max load capacity: 120 kg
- 1.5m vertical steel and aluminum construction

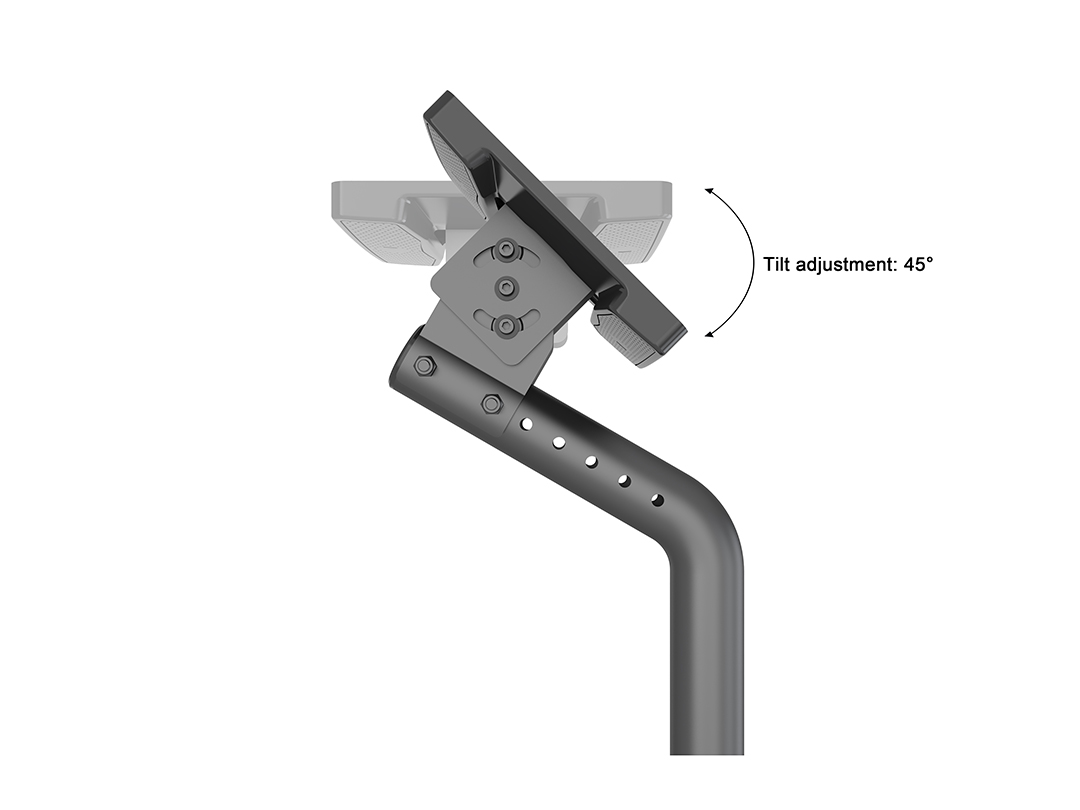

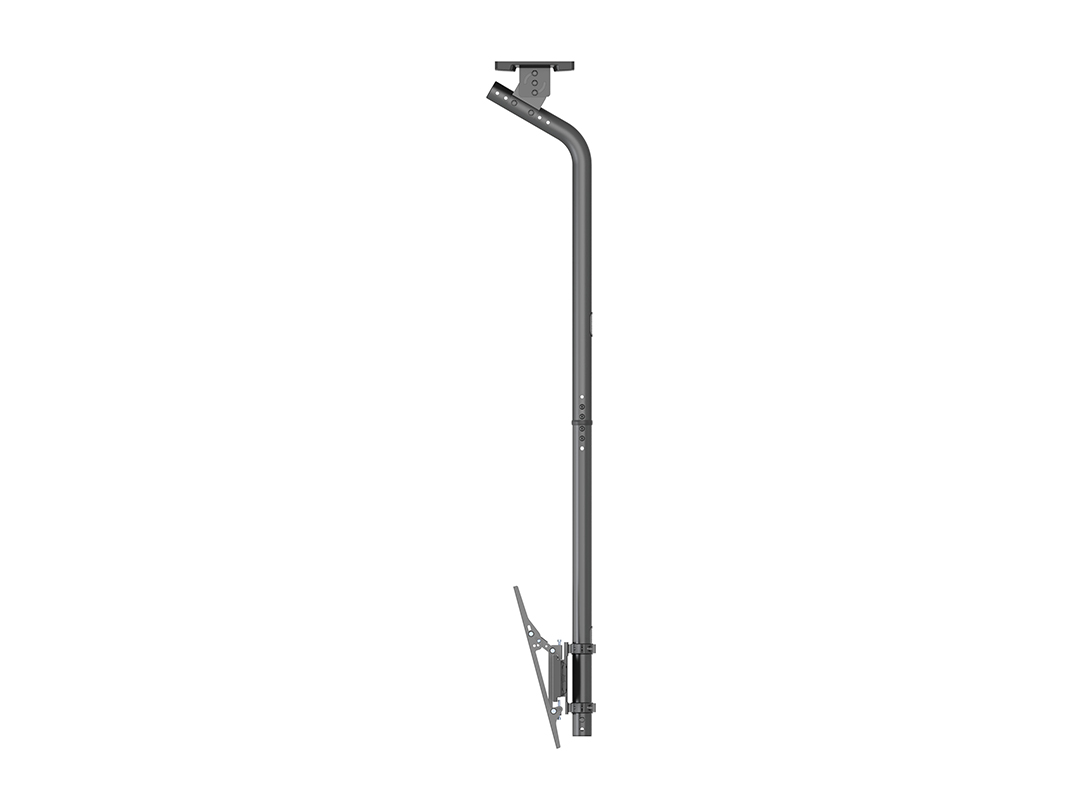

- Tilt arms for precise viewing angle

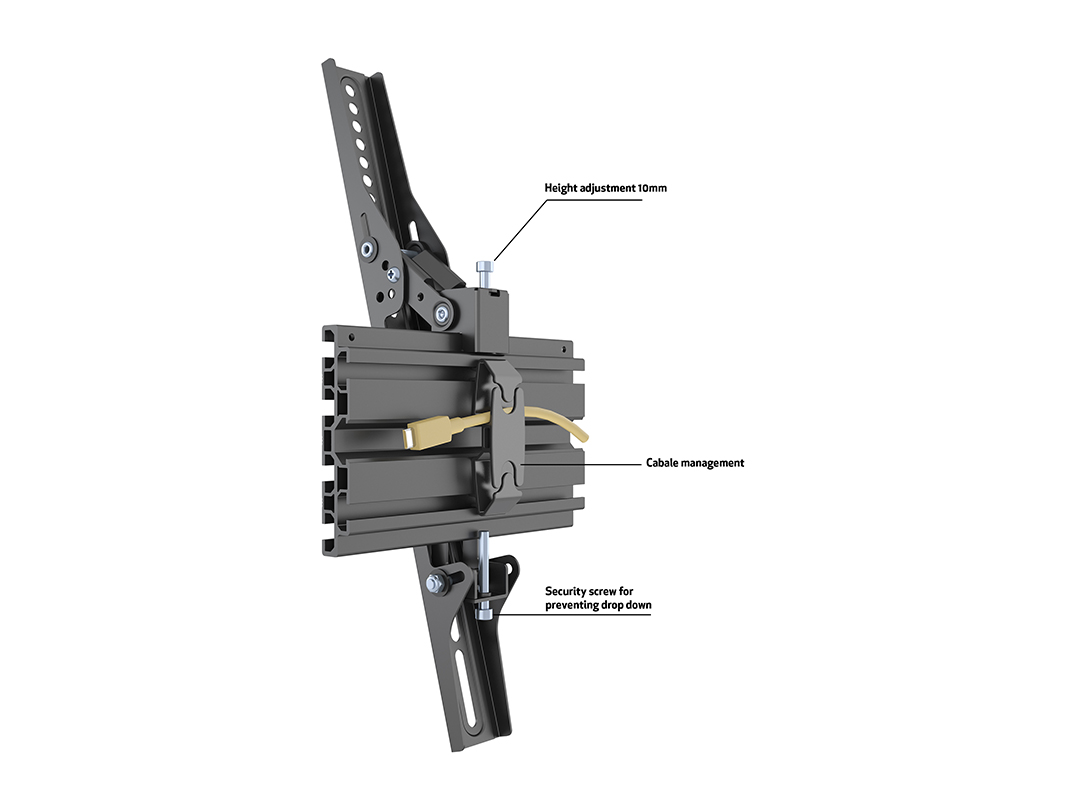

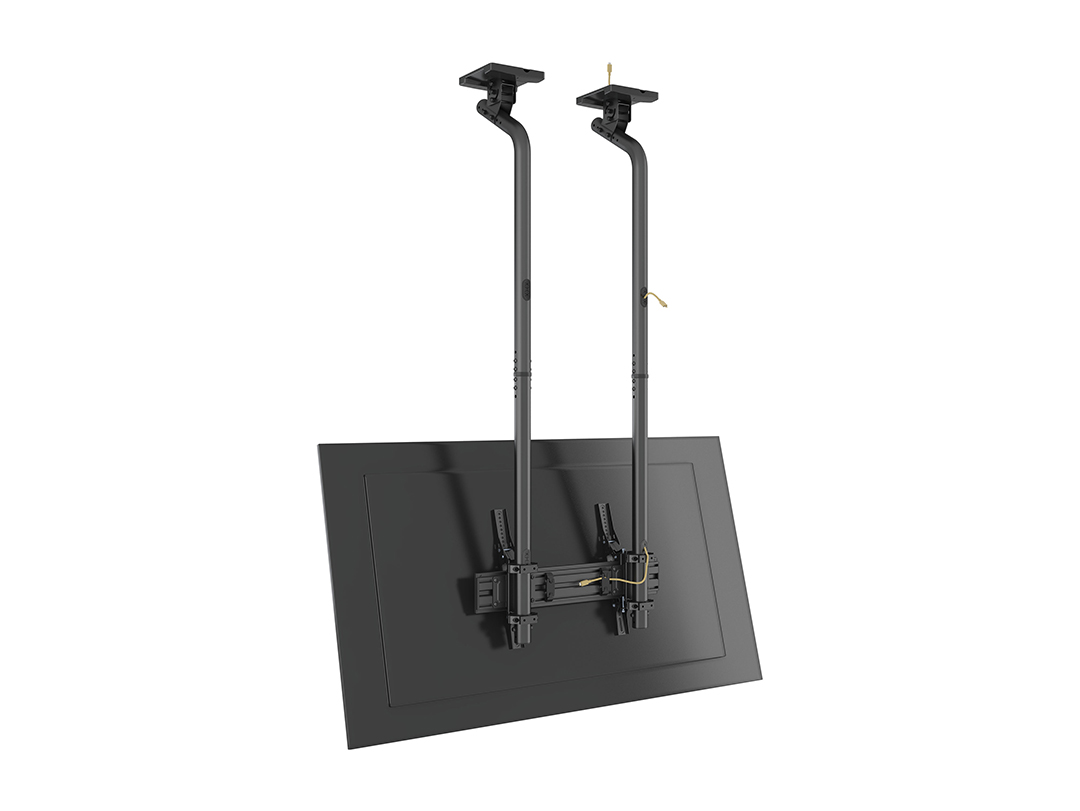

- Integrated cable management system

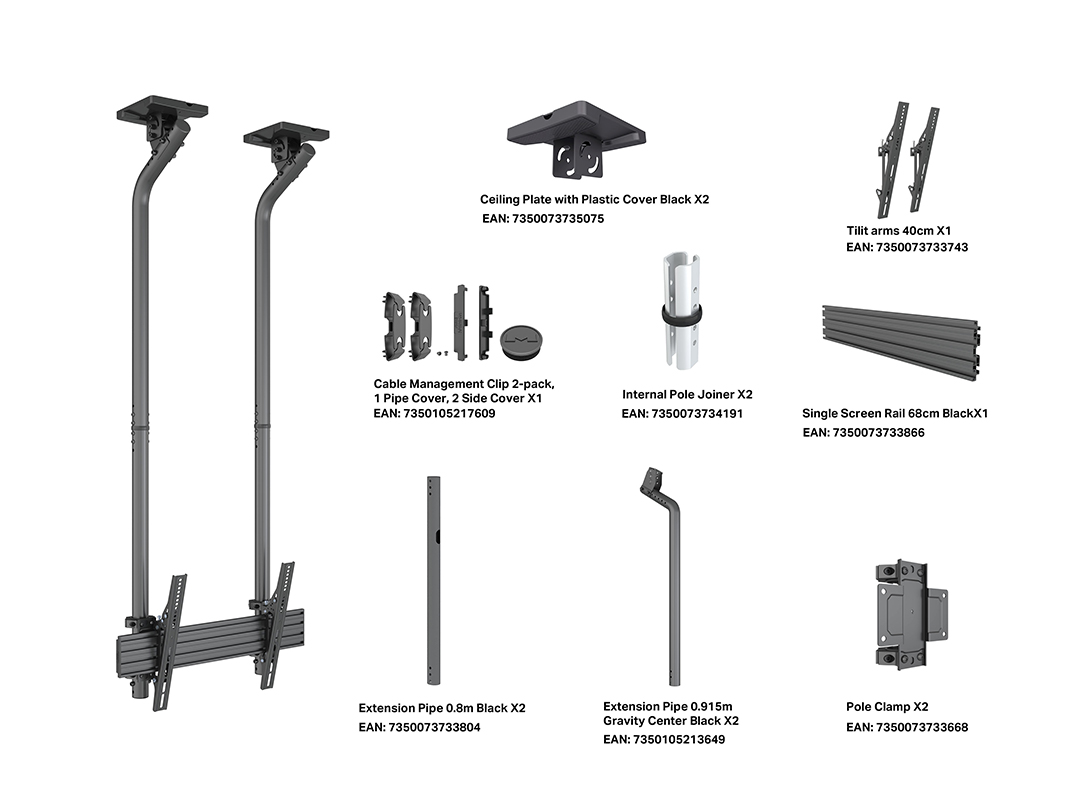

- Modular design – part of the Multibrackets Pro Series

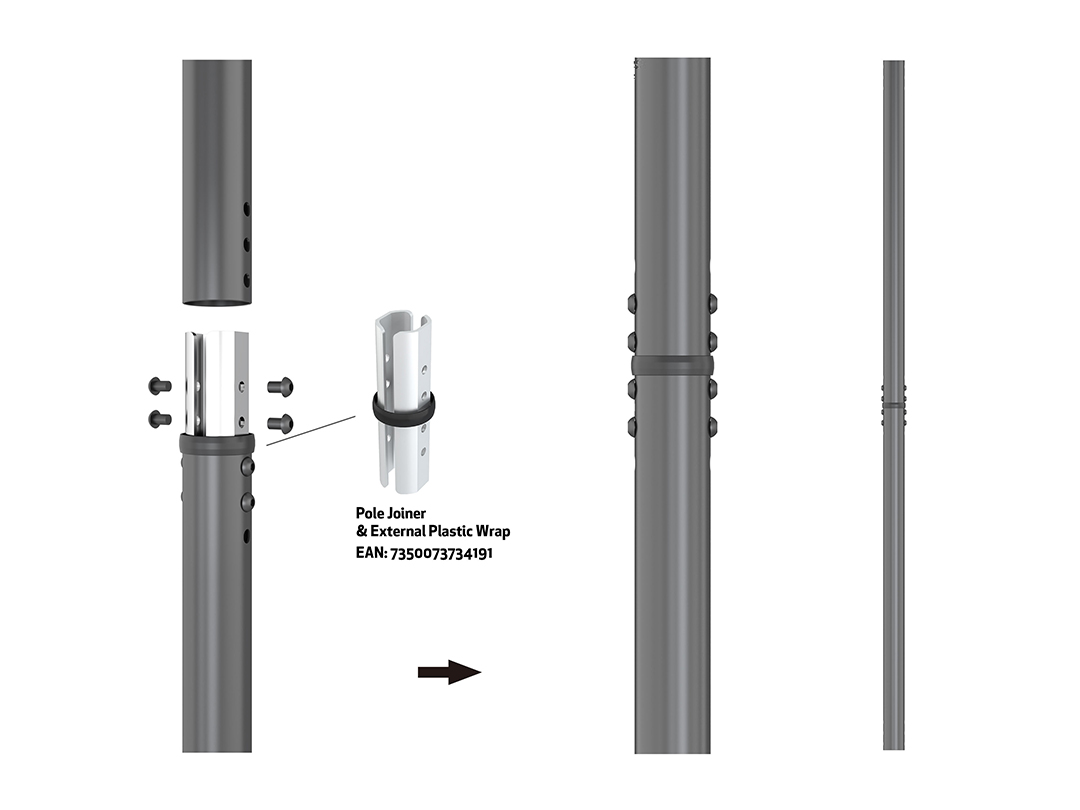

- Optional pipe extensions available
- Ideal for commercial, retail, and signage use
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |

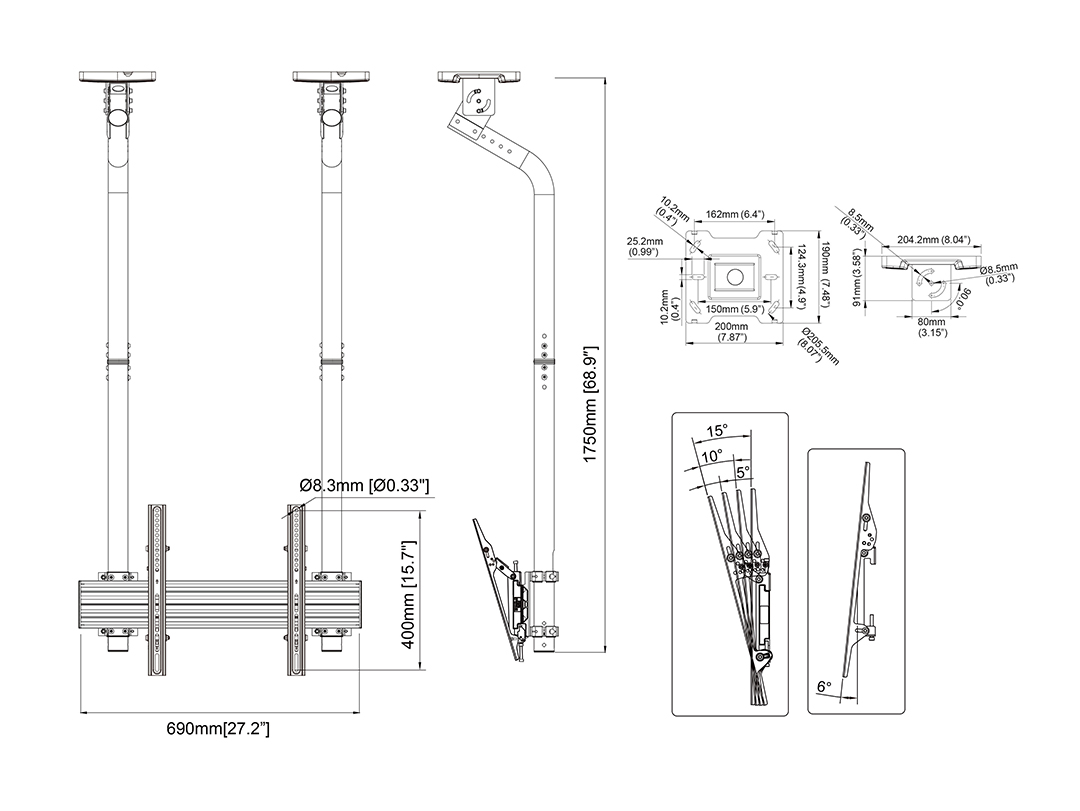

| Specification | |
| M Ceiling Mount Pro MBC1USDGC VESA 600 | |
| Article No: | 7 340 234 811 922 |
| For screen size: | 40"-100" |
| Type: | Single Side |
| Universal & VESA standard: | 100x100 200x200 300x300 400x400 600x400 |
| Material: | Steel, Aluminium, Plastic |
| Color: | Black |
| Surface Finish: | Powder coating |
| Weight: | 18 kg |
| Measurements | 96x25.5x22cm |
| Max Load: | 120 kg per screen |
| Pillar length: | 580 mm to 1550 mm |

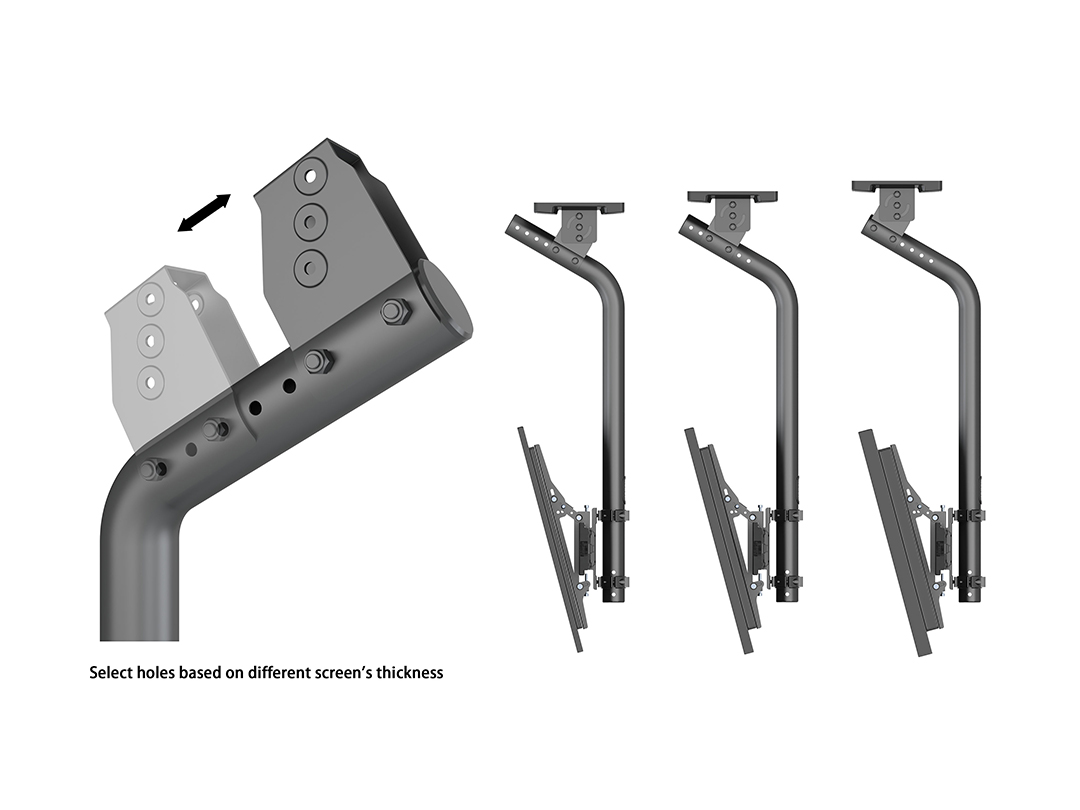

| Tilt: | Yes, -6°~+15° |
| Swivel: | Yes, 360° |
| Rotate: | 0° |
| Cable Management: | Yes |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0 kg |
