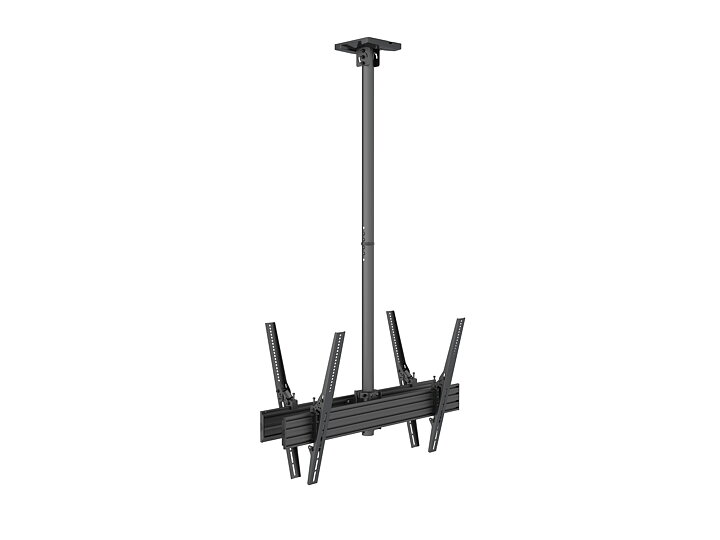

M Ceiling Mount Pro MBC1UX2HD VESA 900
Options
Variants that match your options:
In stock: 128
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073736232
Product overview

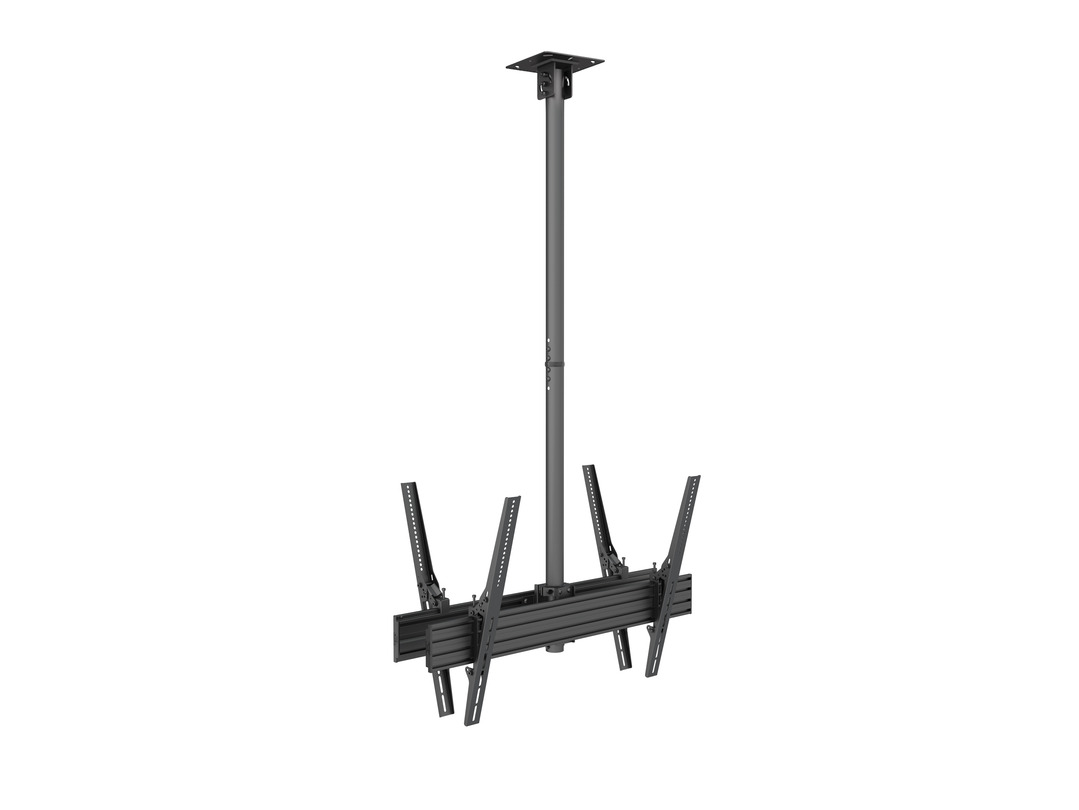

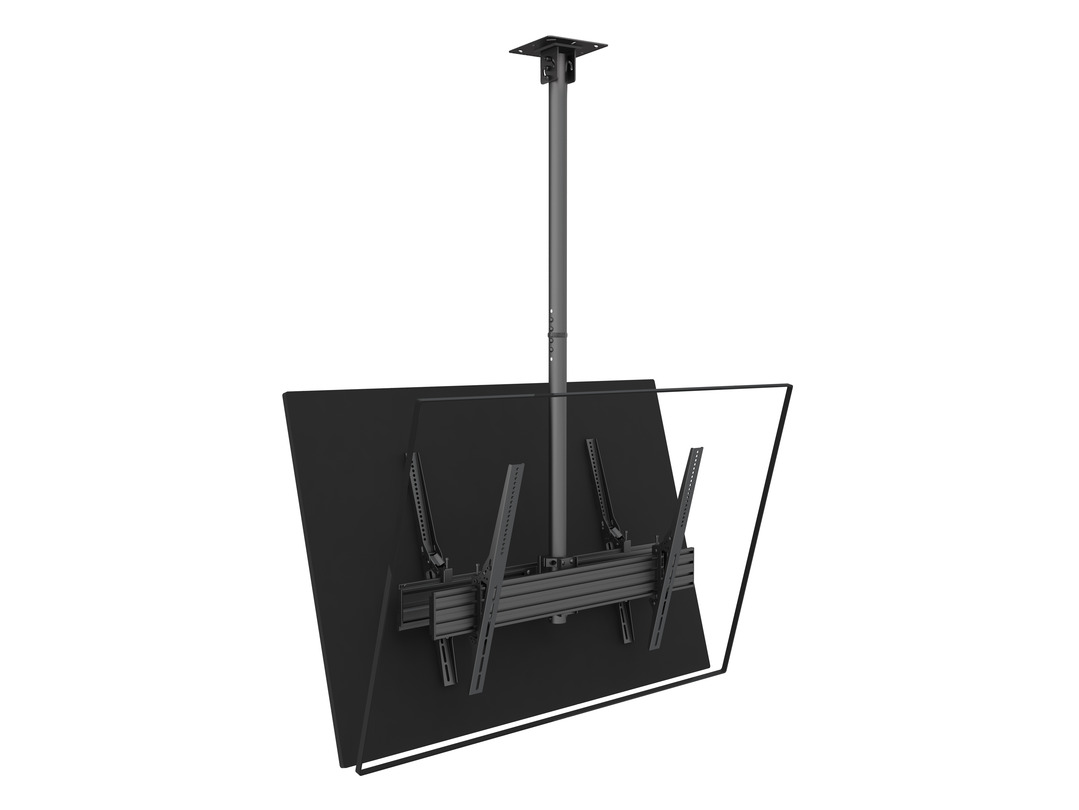

The Multibrackets Pro Series M Ceiling Mount Pro MBC1UX2HD is a heavy-duty dual-side ceiling mount engineered for high-load installations in commercial and public environments. Supporting two displays from 42" to 75" with a max VESA of 900x600 and 90kg total weight capacity, it's perfect for airports, shopping malls, and corporate signage systems.
Built on the versatile Pro Series platform, it features a robust aluminum rail system, adjustable 1.5m mounting pole, and internal cable management for streamlined installations. Its modular design enables future reconfiguration without replacing the full solution — ideal for scalable AV environments.
Finished in black and shaped by Scandinavian industrial design, the MBC1UX2HD delivers functionality, elegance, and long-term reliability where it counts most.
Highlights
- Dual-screen ceiling mount for 42"–75" displays
- Max load capacity: 90 kg
- Supports VESA patterns up to 900x600 mm
- Heavy-duty steel and aluminum construction

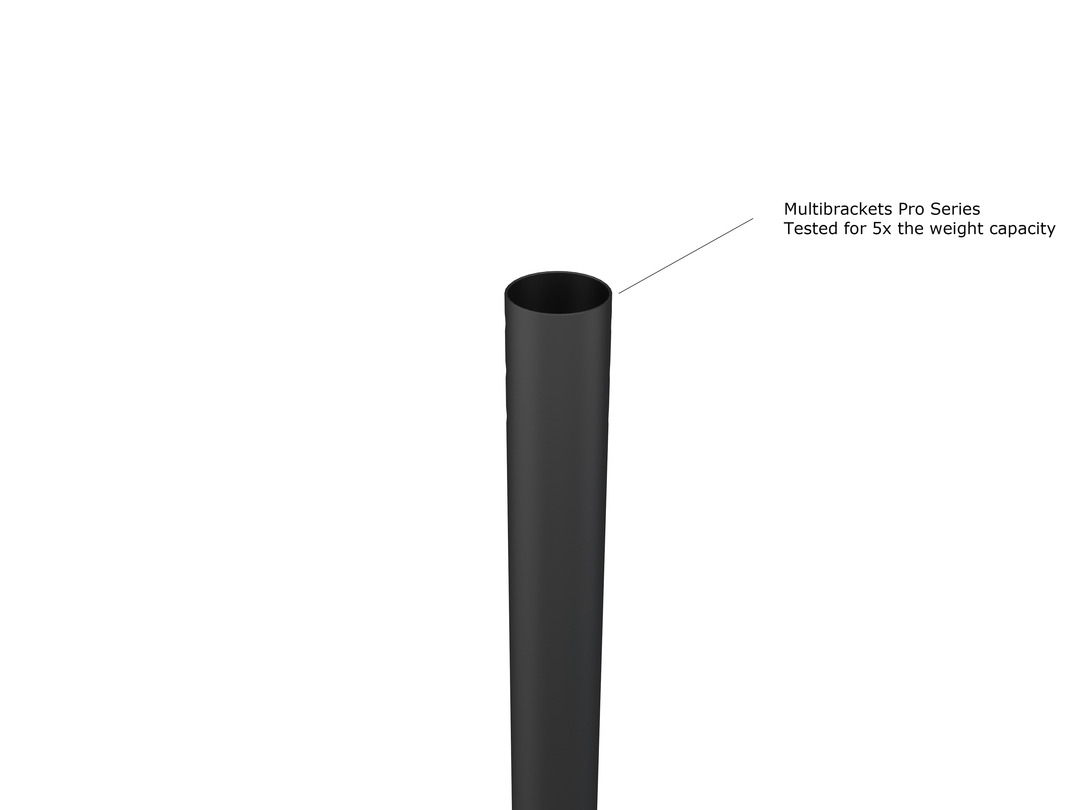

- 1.5m ceiling pole included
- Tilt arms for optimal screen viewing angle
- Portrait or landscape orientation supported

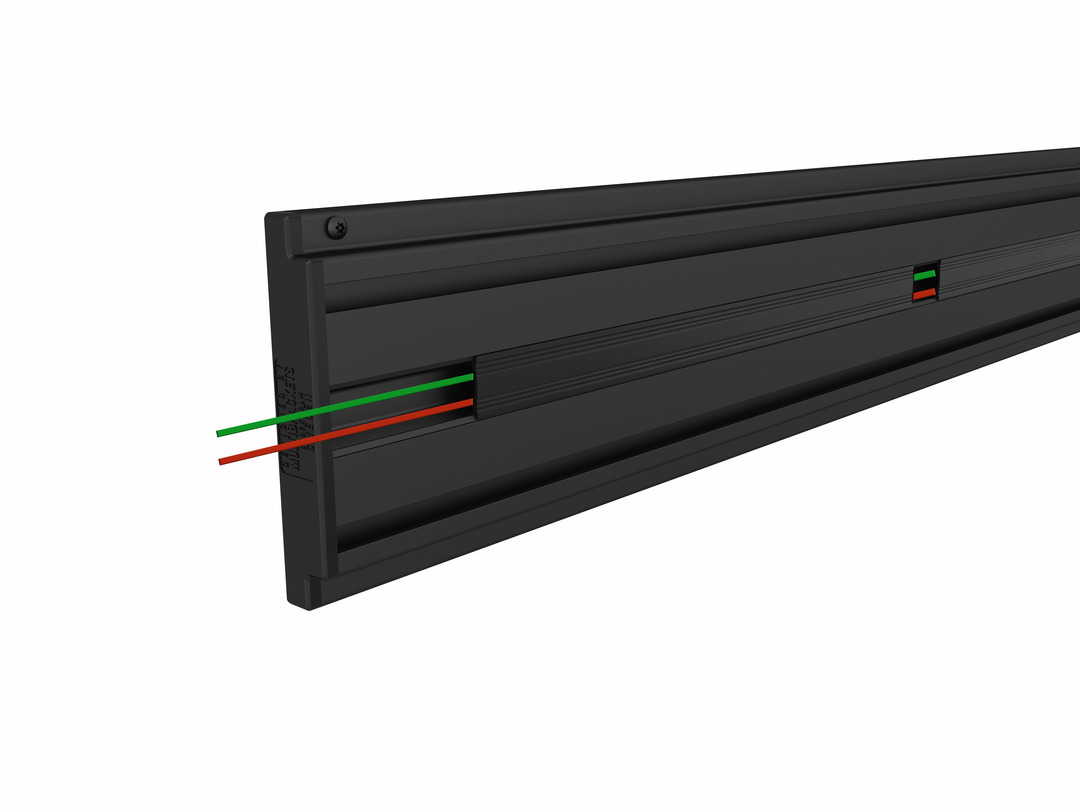

- Integrated cable management system
- Power Click system for quick installation

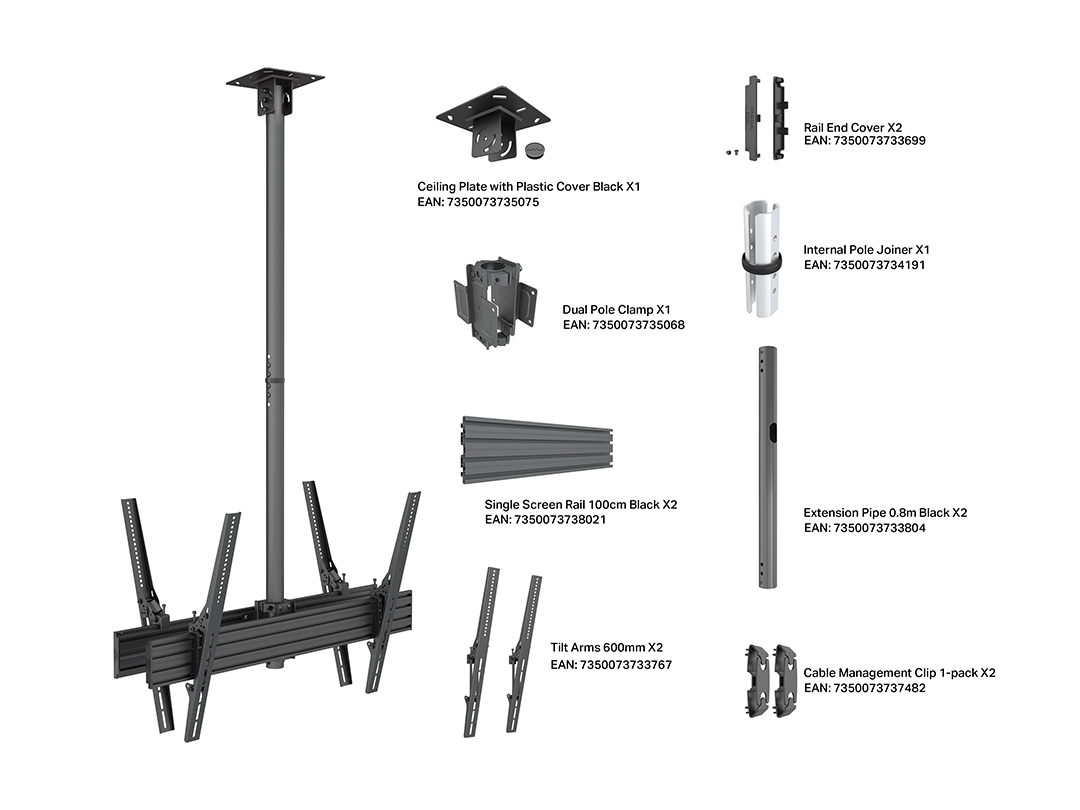

- Ceiling plate and hardware kit included
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
| Specification | |
| M Ceiling Mount Pro MBC1UX2HD VESA 900 | |
| Article No: | 7 350 073 736 232 |
| For screen size: | 42”-75" |
| Type: | Doulbe Side MBC1UHD |
| Universal & VESA standard: | Adjustable from 100x100 to 900x600 max |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 8.5 kg |
| Measurements | 69x178x20 cm |
| Max Load: | 90 kg |

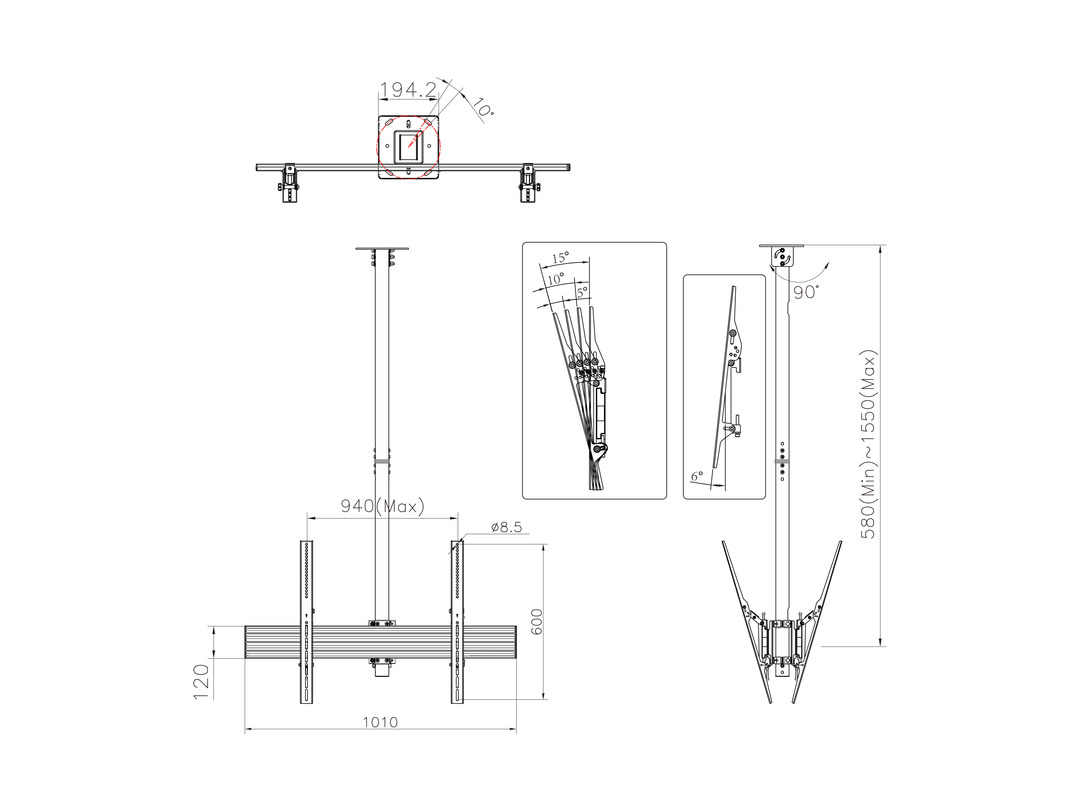

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*2pcs) included |
| Tilt: | Yes, -6°~+15° |

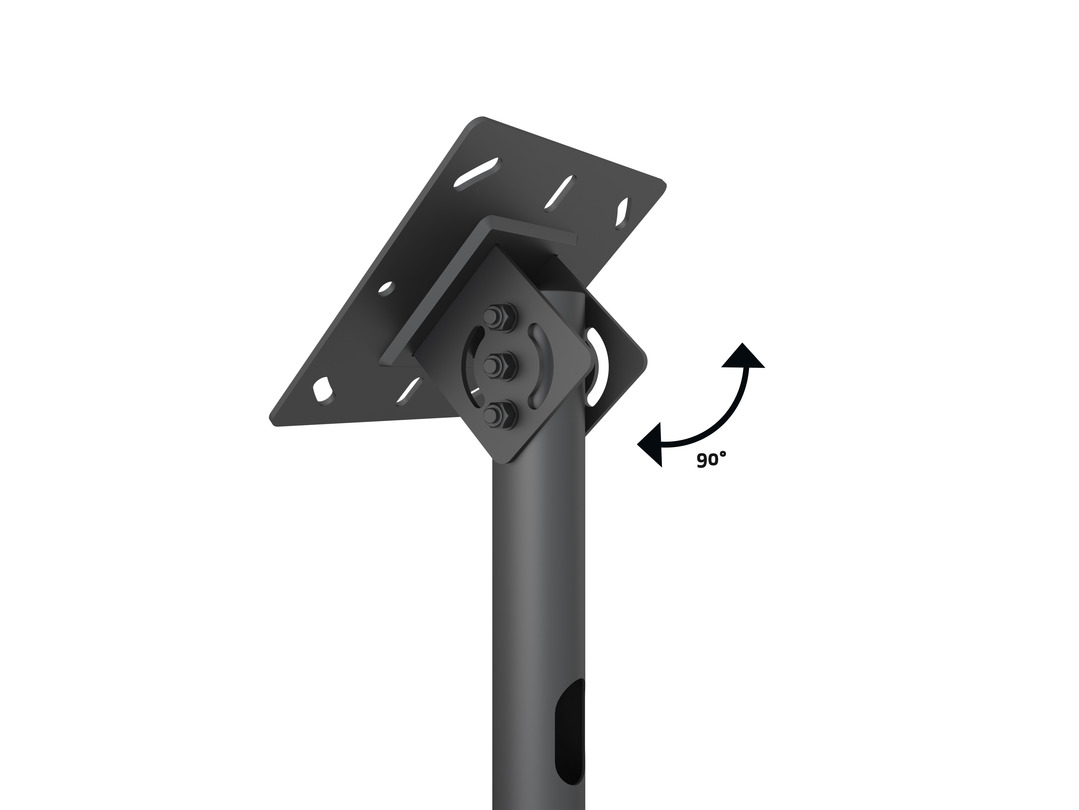

| Swivel: | Yes, 90° |
| Rotate: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 102 x 20.5 x 18 cm |
| Package Weight: | 20.00 kg |
