M Ceiling Mount Pro MBC1UX2PHD VESA 600x900
Options
Variants that match your options:
In stock: 2
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073736256
Product overview

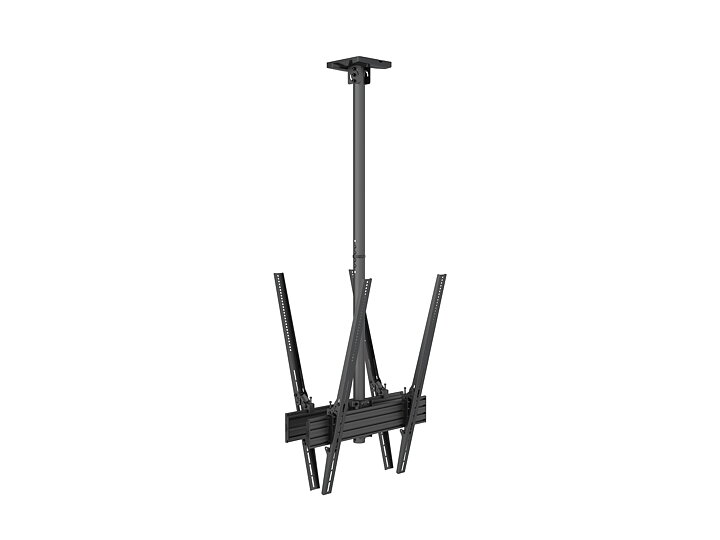

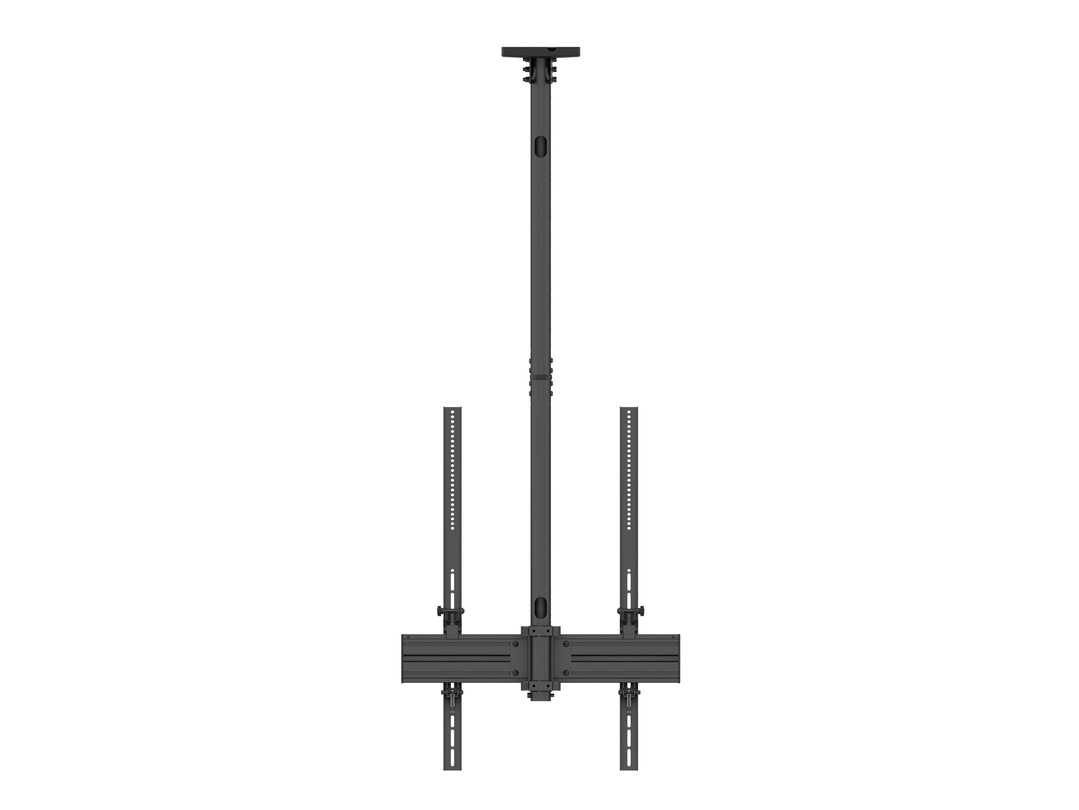

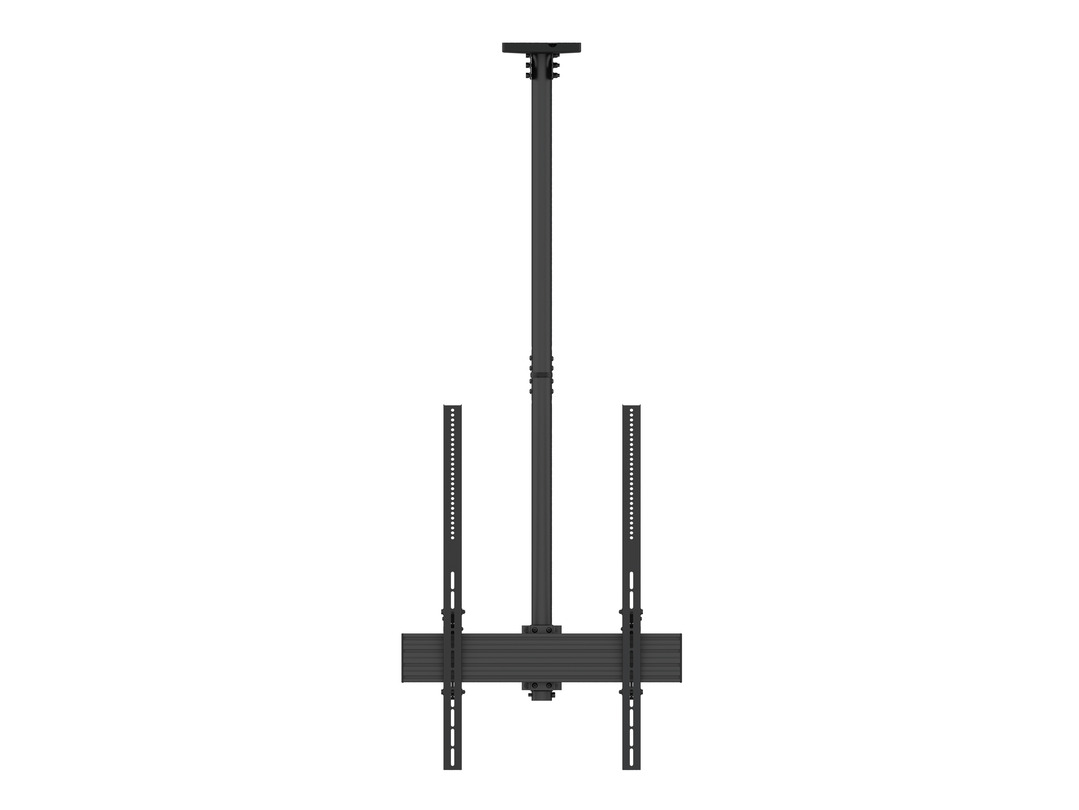

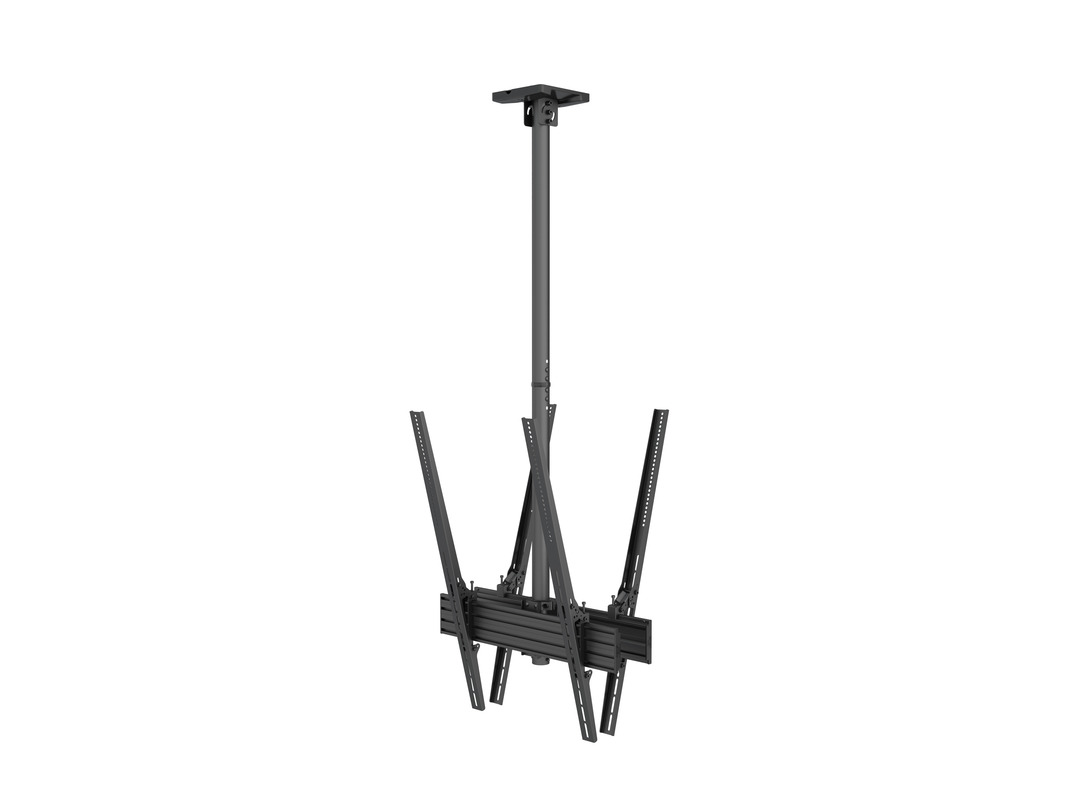

The Multibrackets Pro Series M Ceiling Mount Pro MBC1UX2PHD is a high-duty dual-screen ceiling mount designed for portrait-mode installations in demanding commercial environments. Supporting two displays from 40" to 75", this dual-sided solution is ideal for digital signage in transportation hubs, retail, and corporate spaces where visibility and reliability are critical.
Built on the modular Pro Series system, it features a robust steel and aluminum structure, integrated cable management, and a 1.5m extension pipe for flexible mounting height. Designed for both performance and aesthetics, it delivers a clean Scandinavian look that blends into modern interiors while providing strong load capacity and secure screen positioning.
Installers benefit from the Power Click system and modular expandability, making it easy to customize, update, or scale over time. TÜV-tested and built for 24/7 performance, the MBC1UX2PHD is a future-proof solution for professional AV projects.
Highlights
- Dual-screen ceiling mount for portrait-mode displays
- Supports screen sizes 40"–75"
- Max load capacity: 90 kg
- VESA compatibility up to 600x900 mm
- 1.5m ceiling pipe included
- Tilt arms for flexible viewing angles

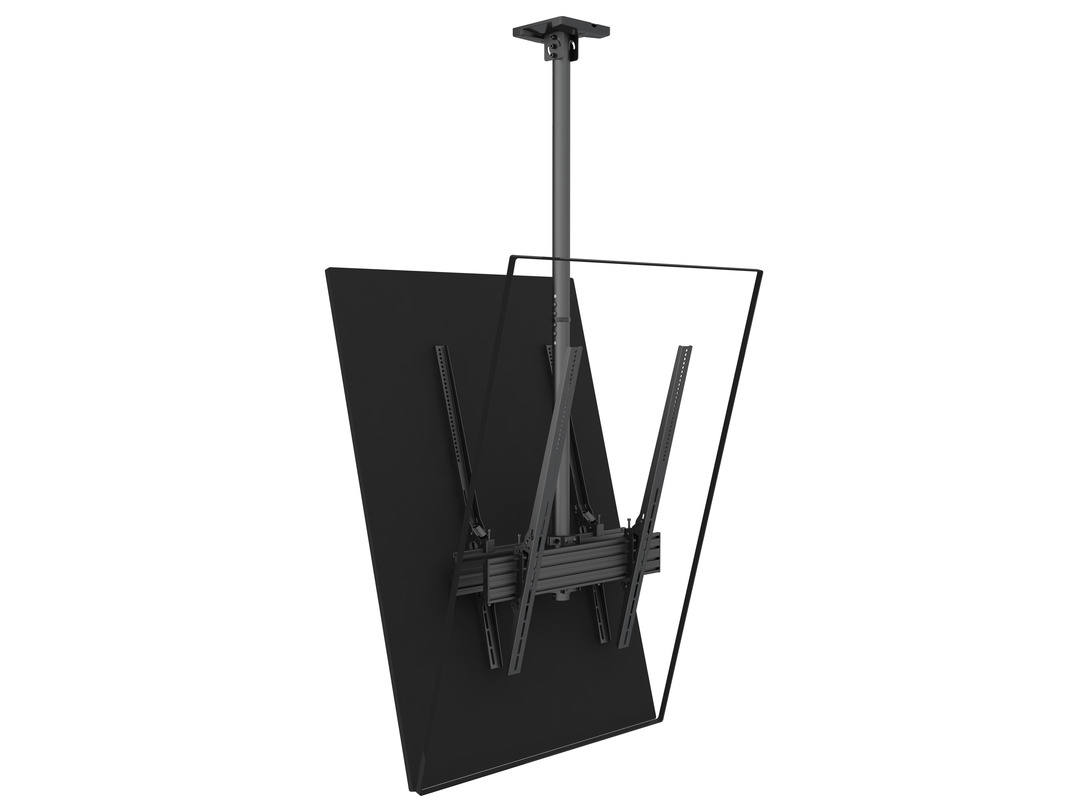

- Portrait and landscape mounting supported

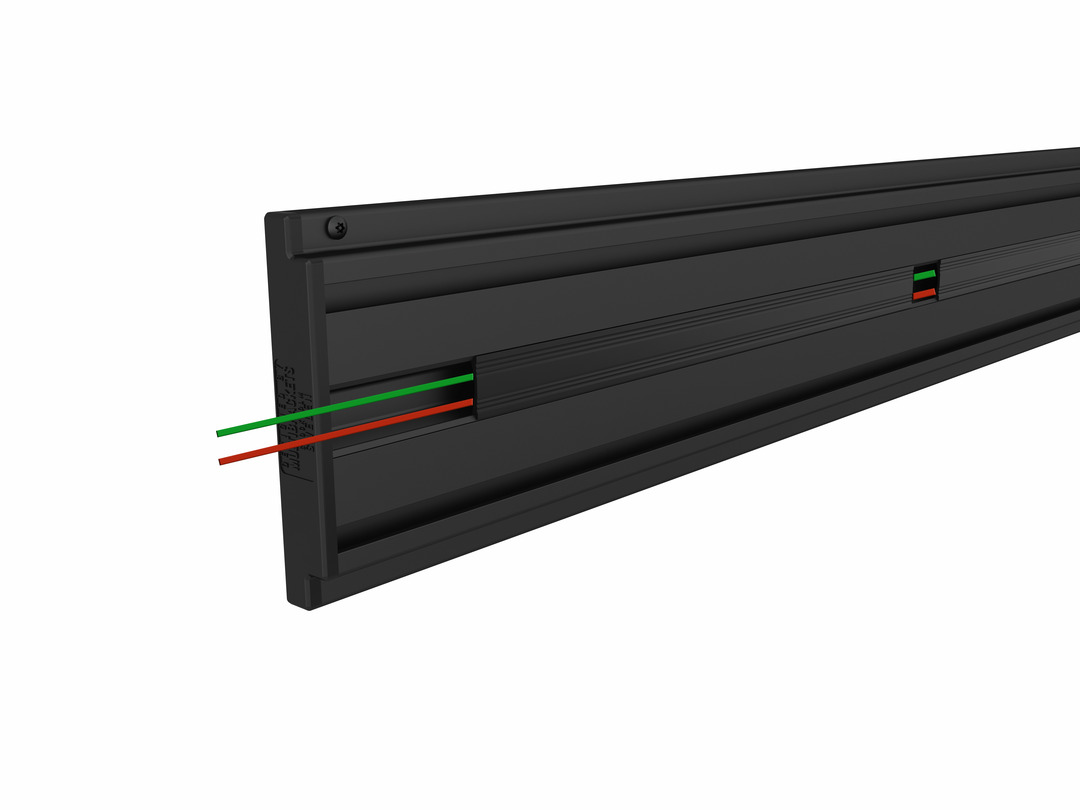

- Integrated cable management for a clean look
- Power Click system for fast and secure installation

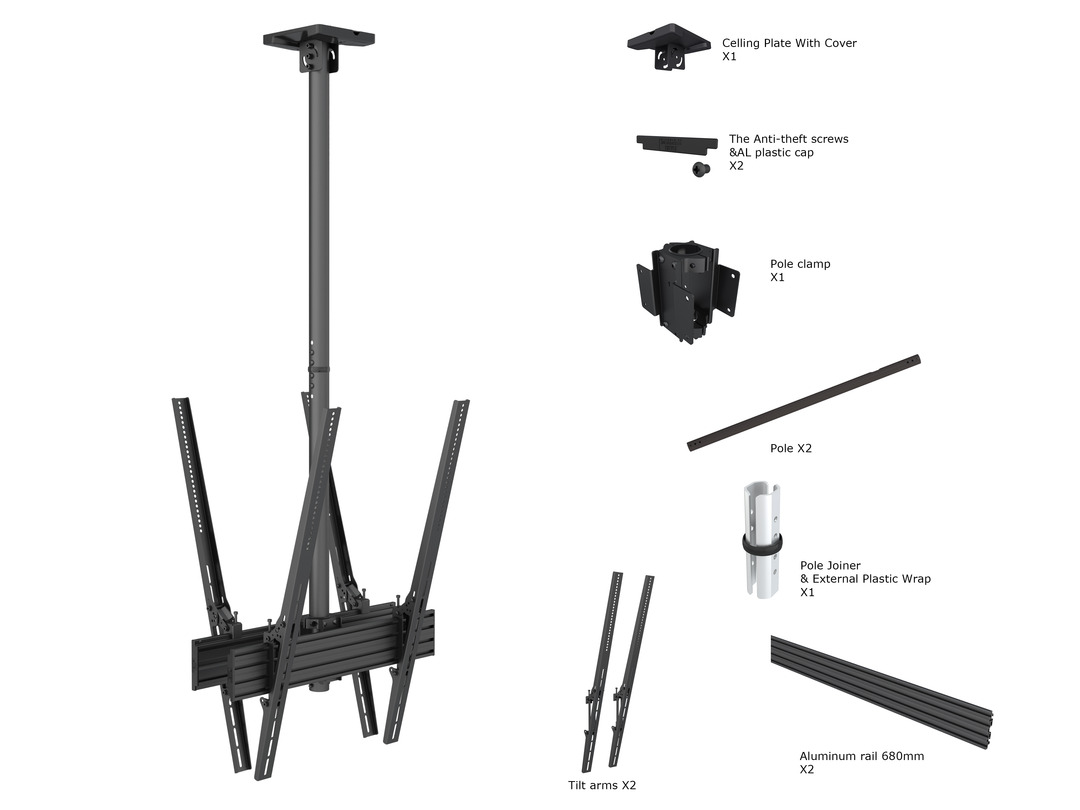

- Includes ceiling plate and complete hardware kit
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
| Specification | |
| M Ceiling Mount Pro MBC1UX2PHD VESA 600x900 | |
| Article No: | 7 350 073 736 256 |
| For screen size: | 40”-75" |
| Type: | Dual Side MBC1UX2PHD |
| Universal & VESA standard: | Adjustable from 100x100 to 600x900 max |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 8.5 kg |
| Measurements | 69x178x20 cm |
| Max Load: | 90 kg |

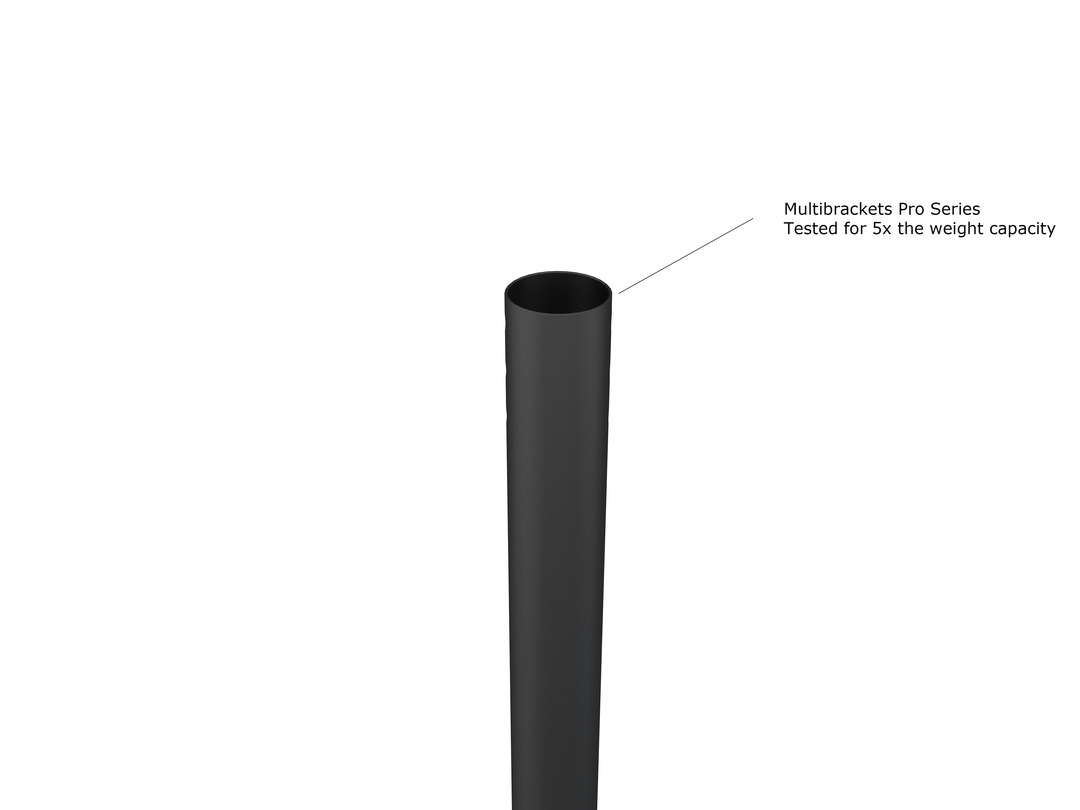

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*2pcs) included |
| Tilt: | Yes, -6°~+15° |
| Swivel: | Yes, 90° |
| Rotate: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 98.2 x 24 x 17.5 cm |
| Package Weight: | 17.00 kg |
