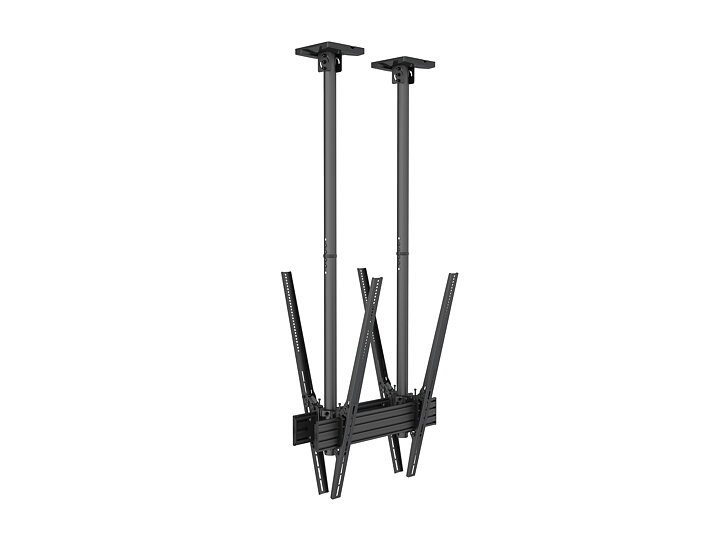

M Ceiling Mount Pro MBC1UX2PSD VESA 600x900
Options
Variants that match your options:
In stock: 182
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073736263
Product overview

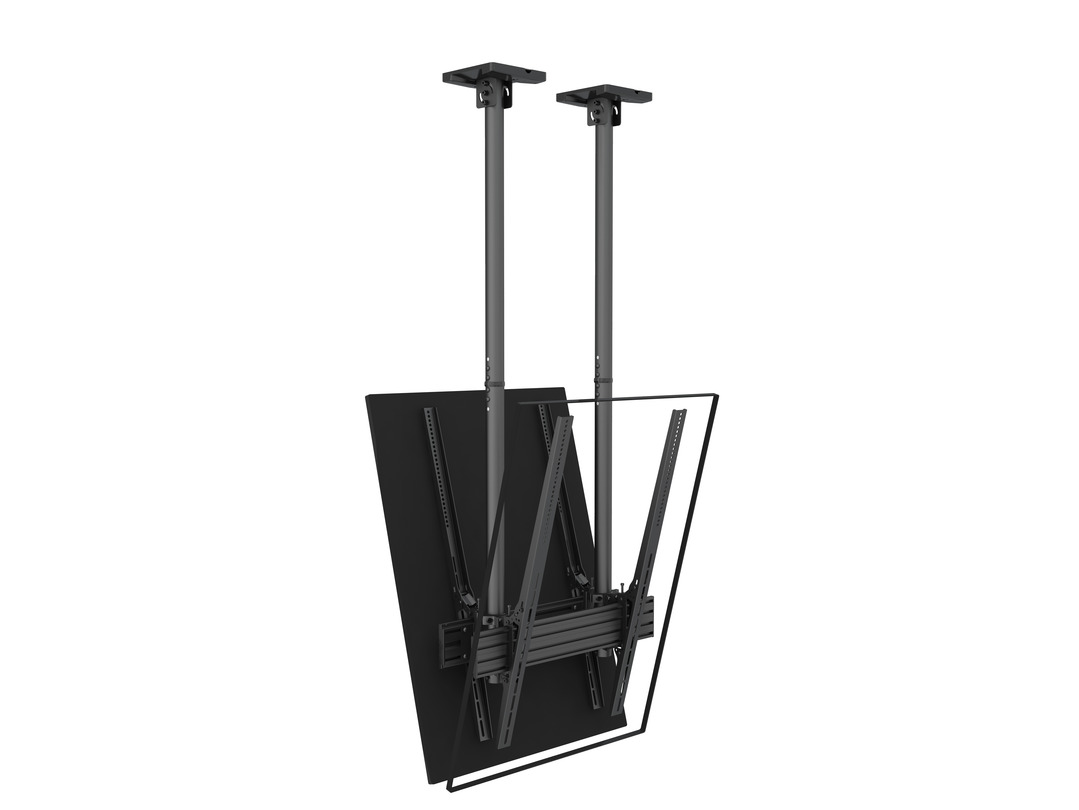

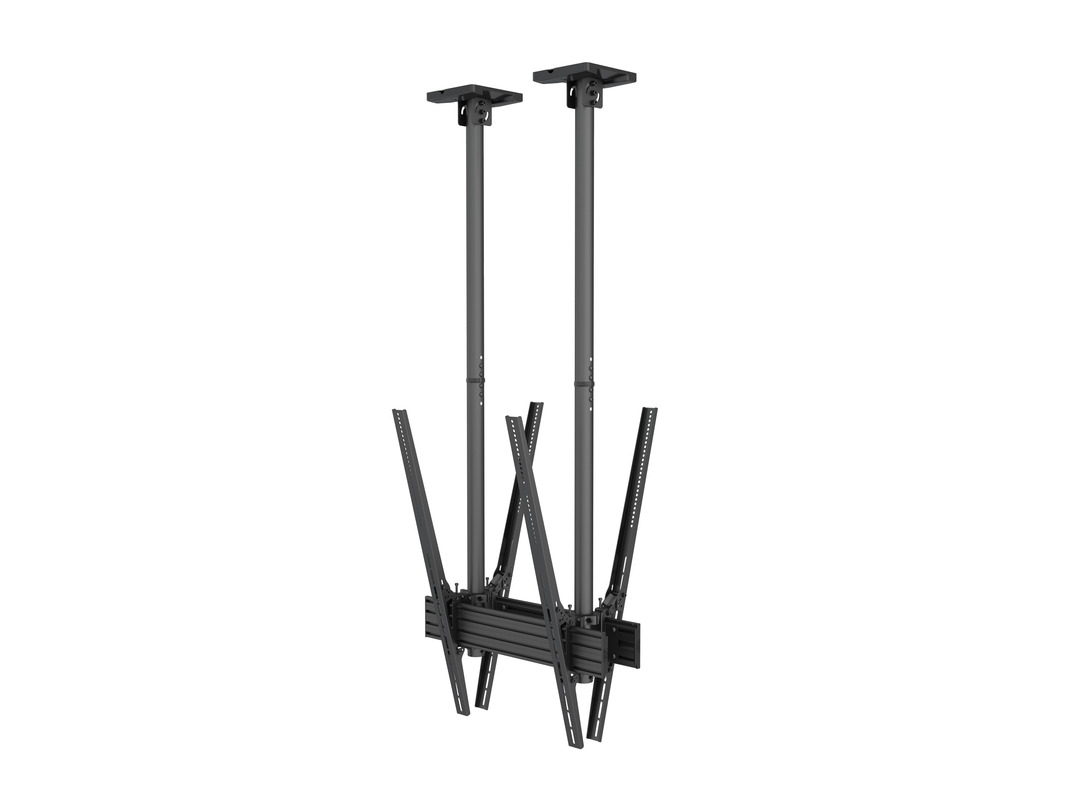

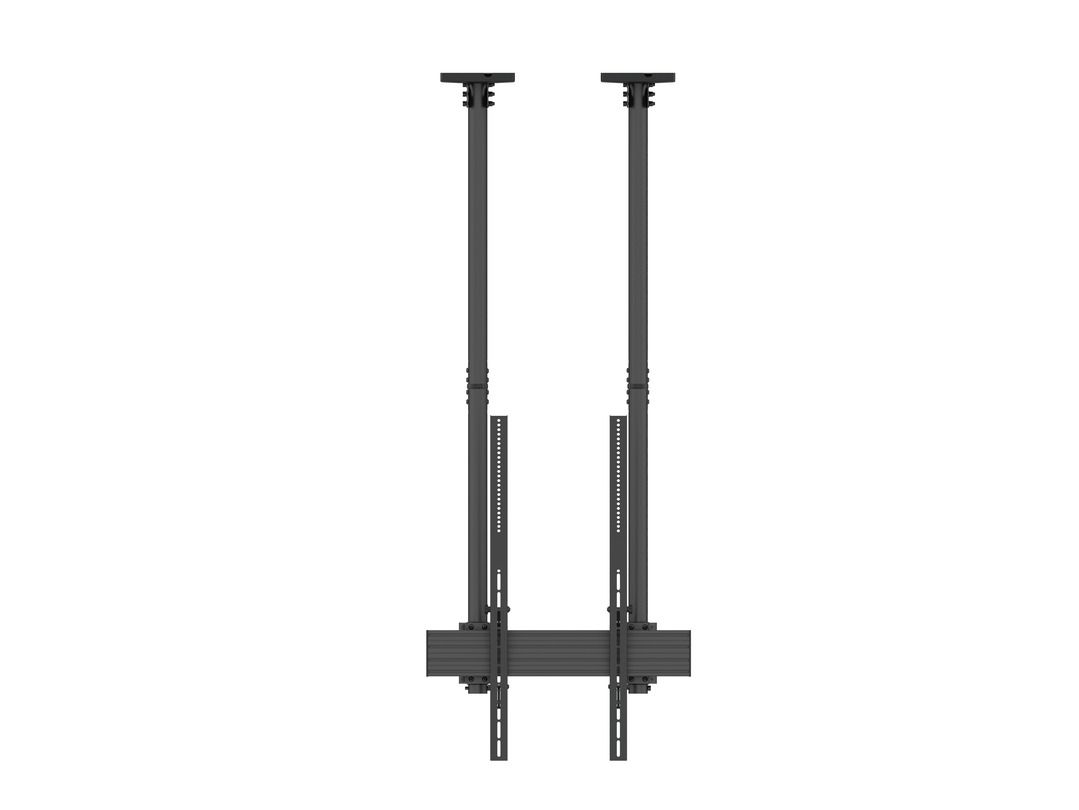

The Multibrackets M Ceiling Mount Pro MBC1UX2PSD VESA 600x900 is a robust, dual-screen ceiling mount designed for professional AV environments. Supporting large displays up to 100" and 180 kg total load, this super-duty mount is ideal for airports, retail, and public signage installations.
Part of the Pro Series, it features a modular aluminum rail system with built-in cable management for clean and efficient installations. Designed for flexibility, it supports both portrait and landscape modes and is fully adjustable for future reconfiguration.
With a Scandinavian design approach, the MBC1UX2PSD offers a sleek appearance combined with industry-grade performance—making it a reliable choice for any large-scale ceiling-mounted setup.
Highlights
- Dual-screen ceiling mount for 40”–100” displays
- Max load: 180 kg (90 kg per screen)
- VESA support up to 600x900 mm
- Flexible screen orientation: portrait or landscape

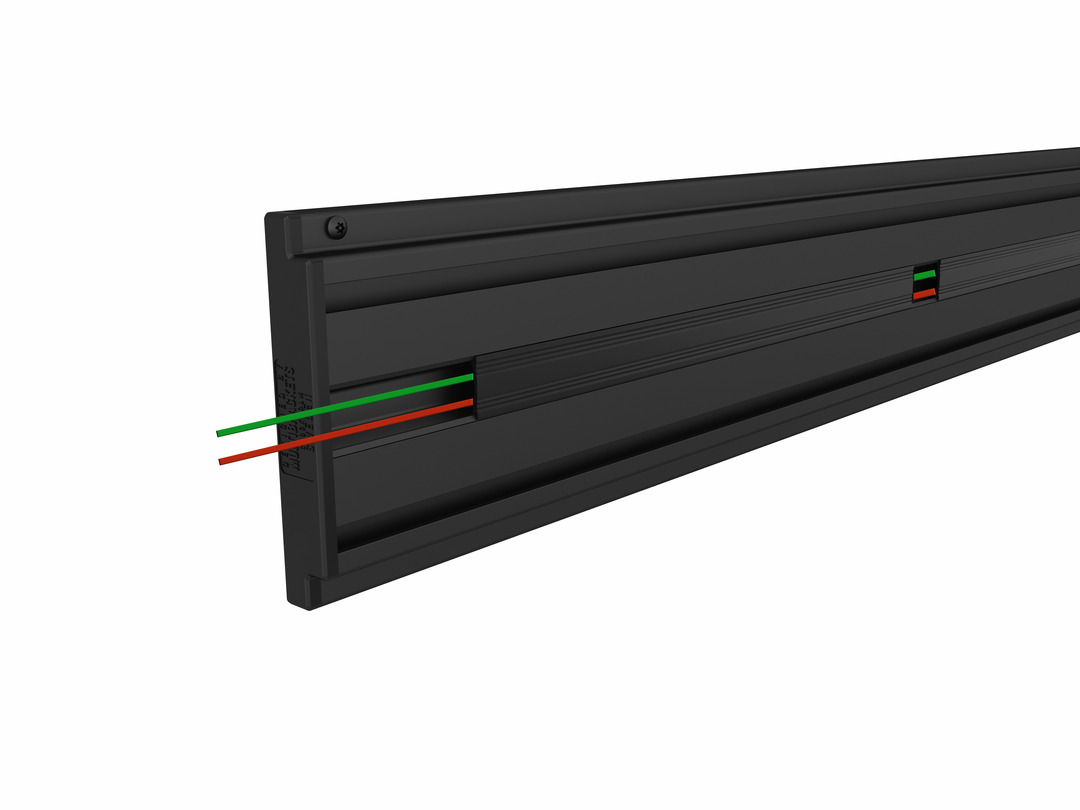

- Integrated cable management system
- Power Click for fast and safe installation

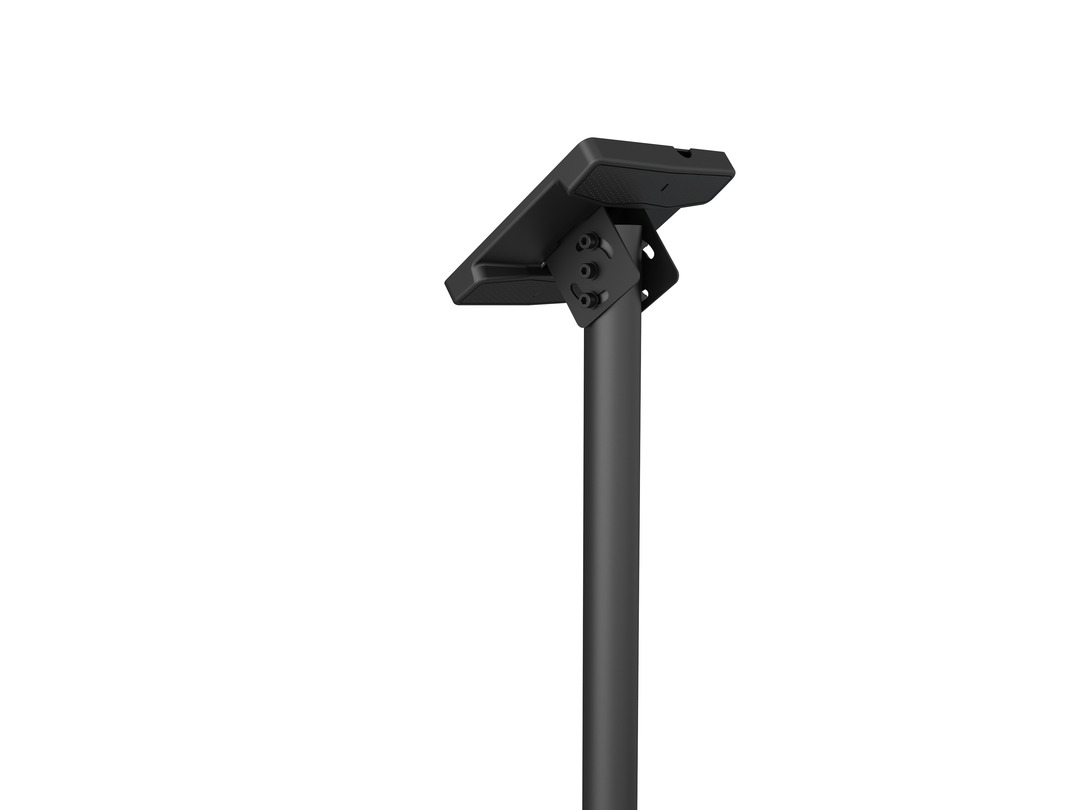

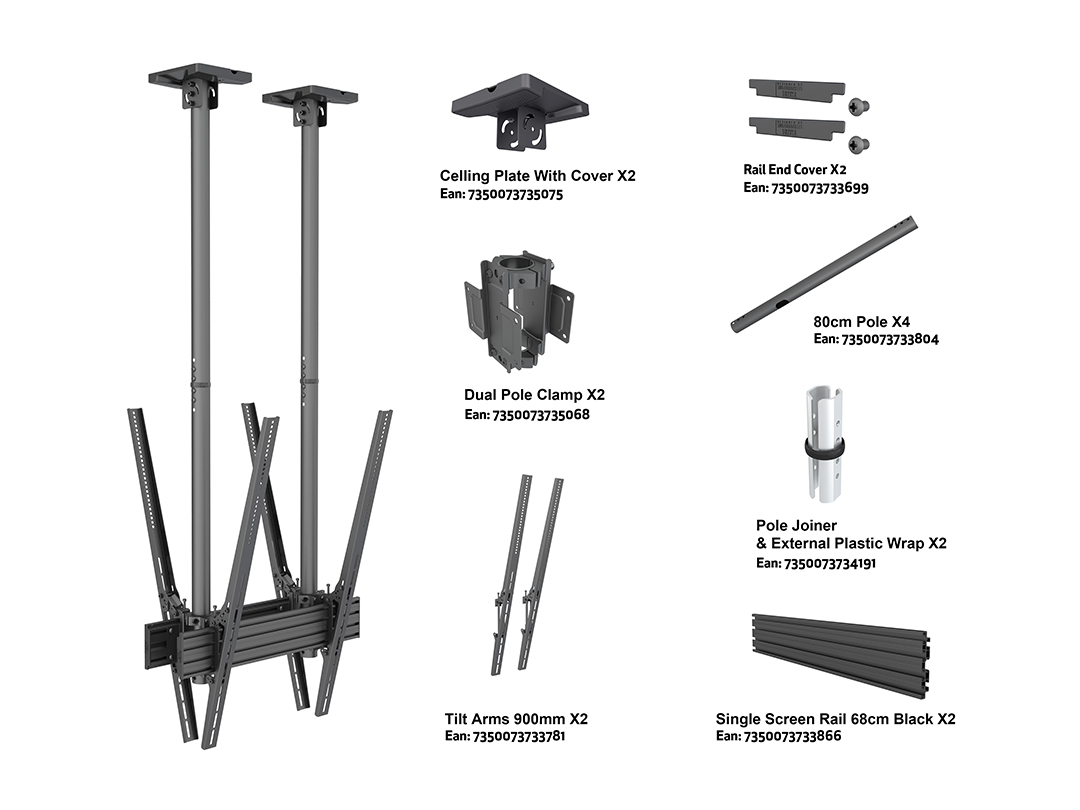

- Includes ceiling plate and full hardware kit
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC1UX2PSD VESA 600x900 | |
| Article No: | 7 350 073 736 263 |
| For screen size: | 40”-100" |
| Type: | Double Side MBC1U |
| Universal & VESA standard: | Adjustable from 100x100 to 600x900 max |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 12 kg |
| Measurements | 69x178x20 cm |
| Max Load: | 180 kg, 90 kg per screen |

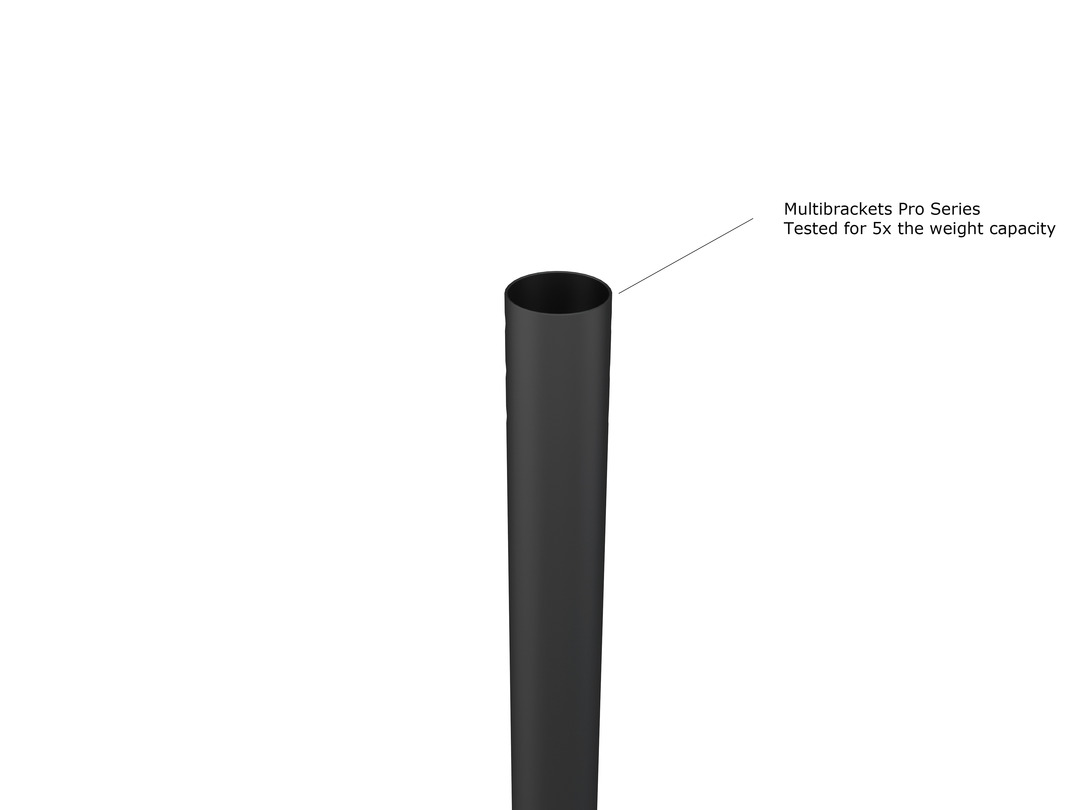

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*4pcs) included |
| Tilt: | Yes, -6°~+15° |
| Swivel: | Yes, 90° |
| Rotate: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 96 x 30.5 x 16 cm |
| Package Weight: | 19.00 kg |
