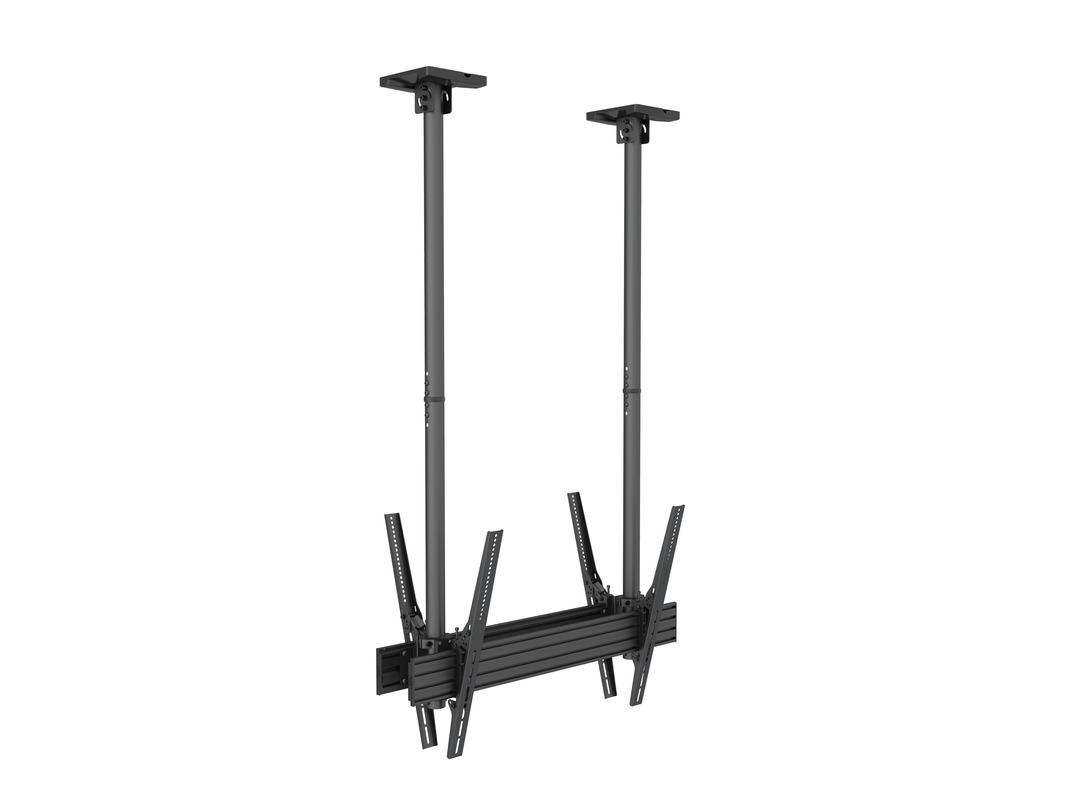

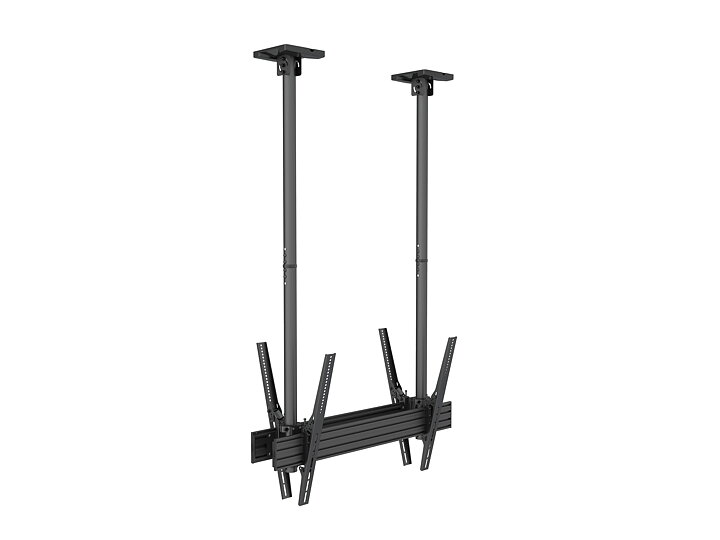

M Ceiling Mount Pro MBC1UX2SD VESA 900
Options
Variants that match your options:
In stock: 203
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073736249
Product overview

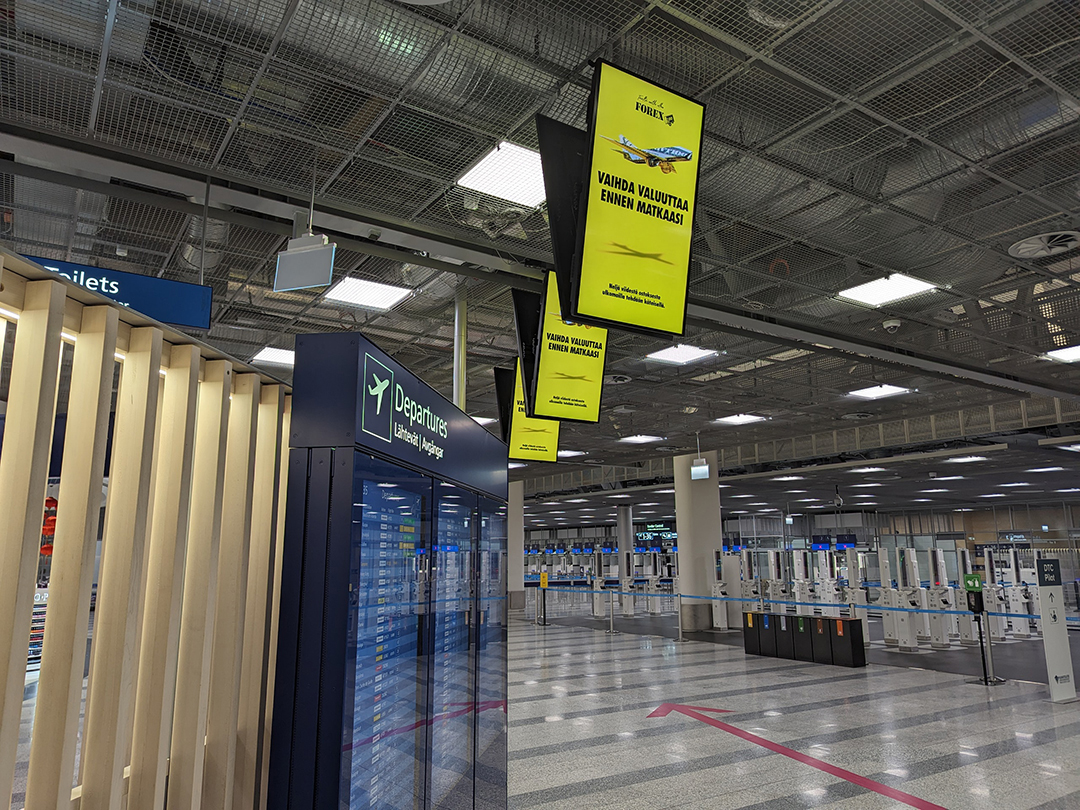

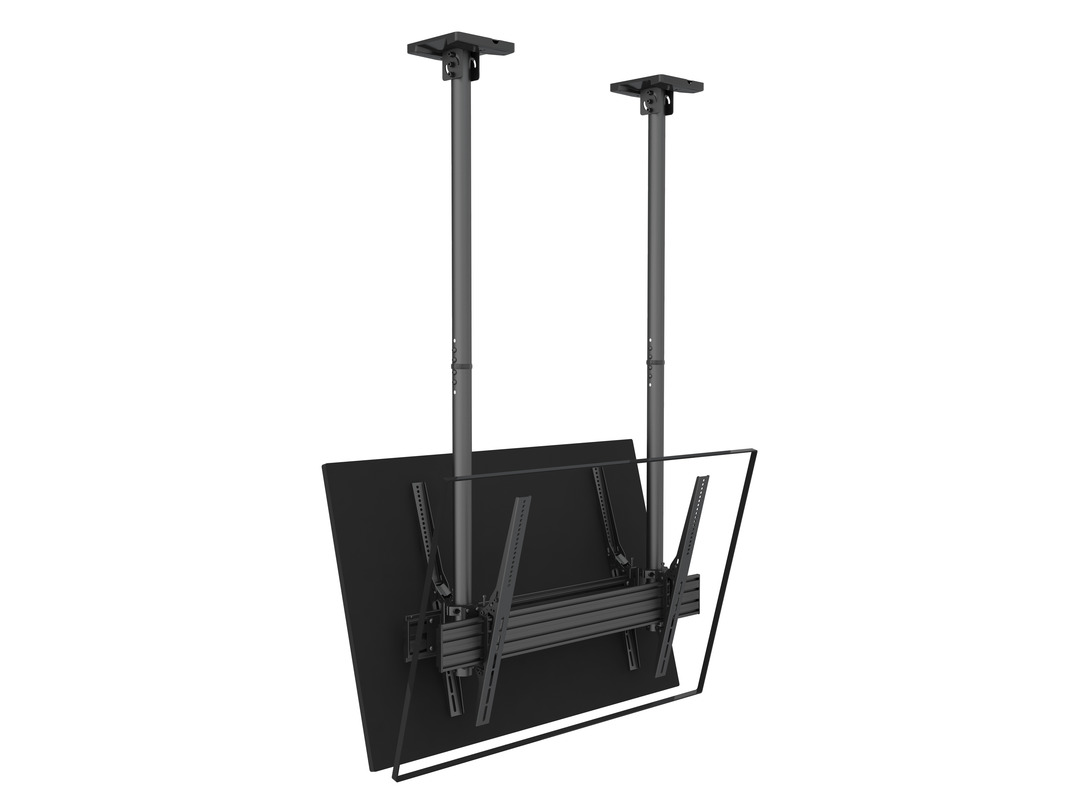

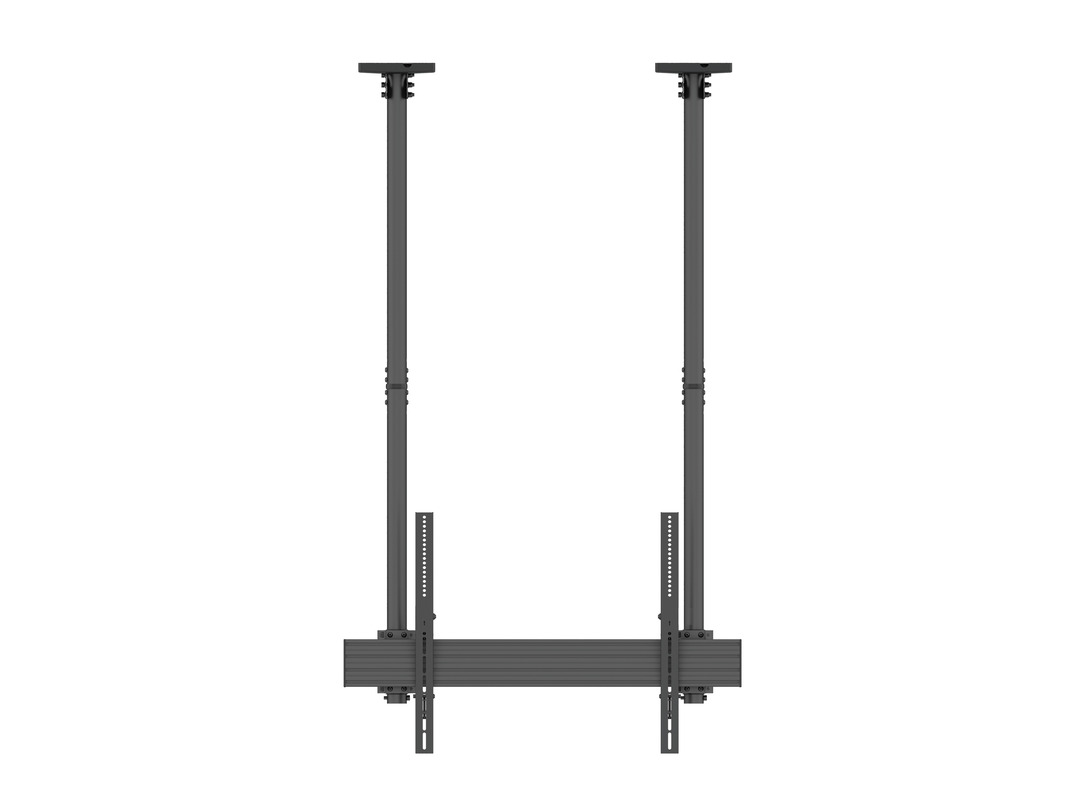

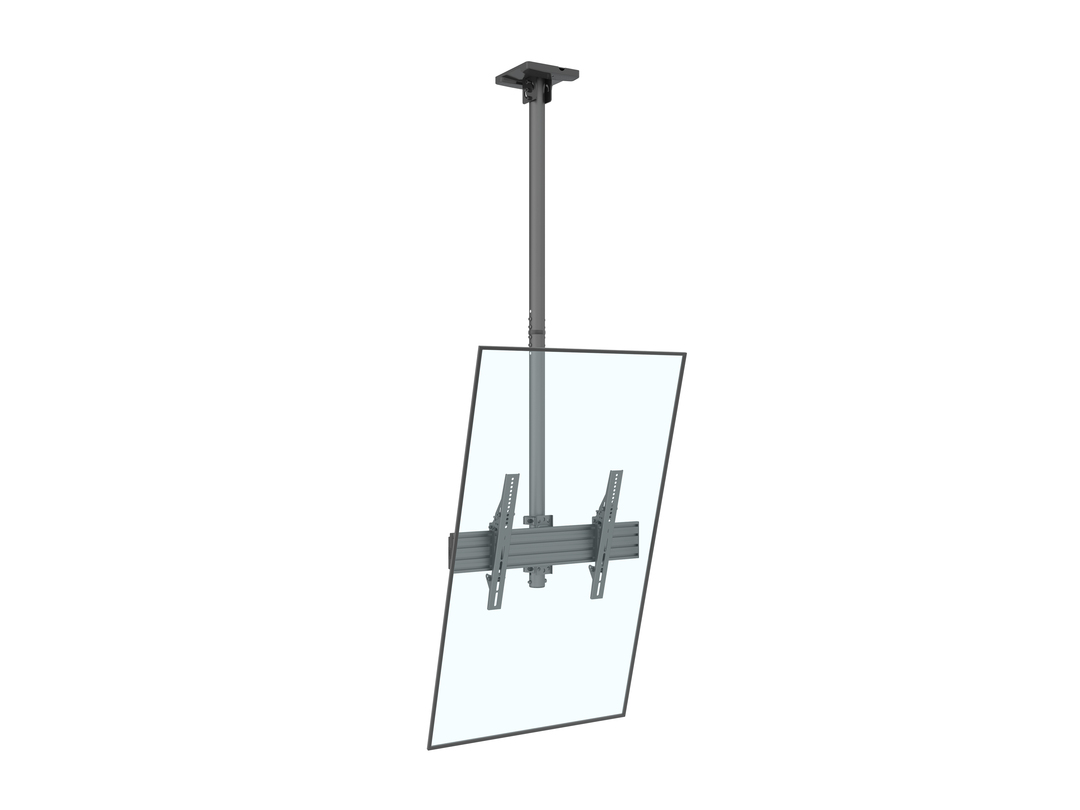

The Multibrackets M Ceiling Mount Pro MBC1UX2SD VESA 900 is a heavy-duty ceiling mount built for dual-screen installations in demanding commercial settings. With support for screens up to 100" and a total load capacity of 180 kg, it’s ideal for public displays, transport hubs, or retail environments.
This mount is part of the Pro Series—Multibrackets' modular system built around a durable aluminum rail with integrated cable management. Designed for professional AV use, it offers flexible configuration, tilt functionality, and clean Scandinavian aesthetics for visible installations.
Thanks to its modular design, the MBC1UX2SD VESA 900 adapts easily to changing needs over time, offering future-proof scalability without compromise.
Highlights
- Dual-screen ceiling mount for 40”–100” displays
- Max load: 180 kg (90 kg per screen)
- VESA support up to 900x600

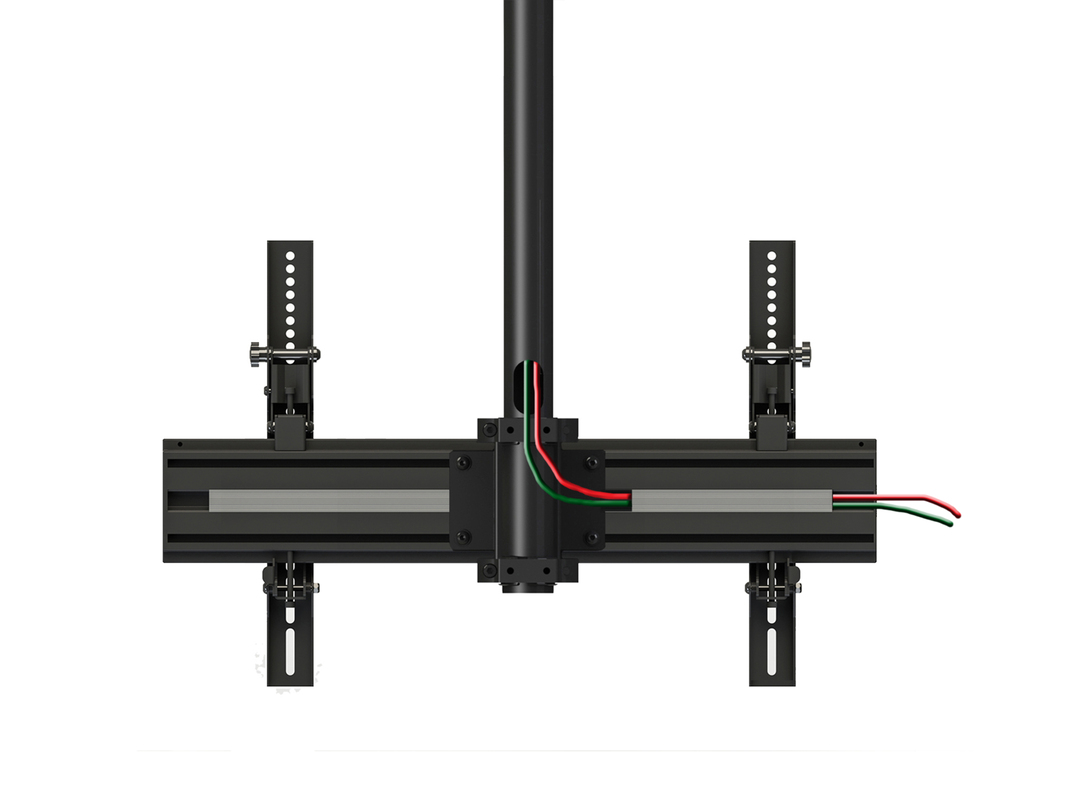

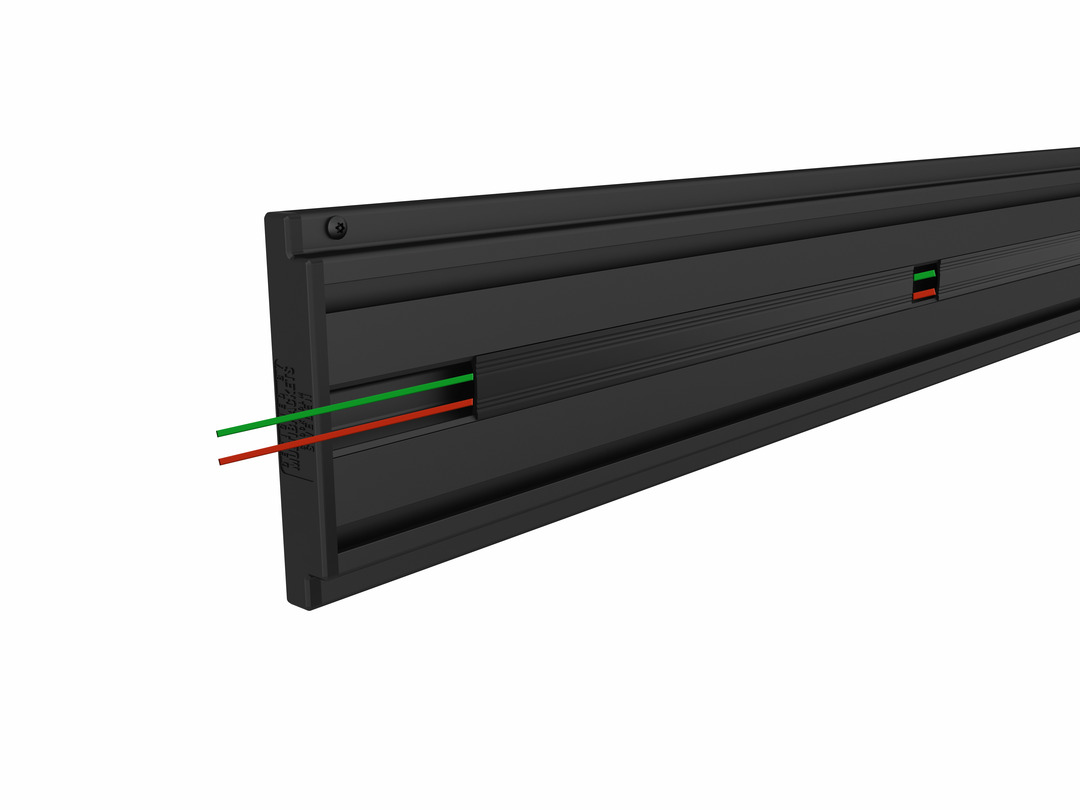

- Integrated cable management
- Power Click system for quick installation
- Portrait or landscape screen orientation

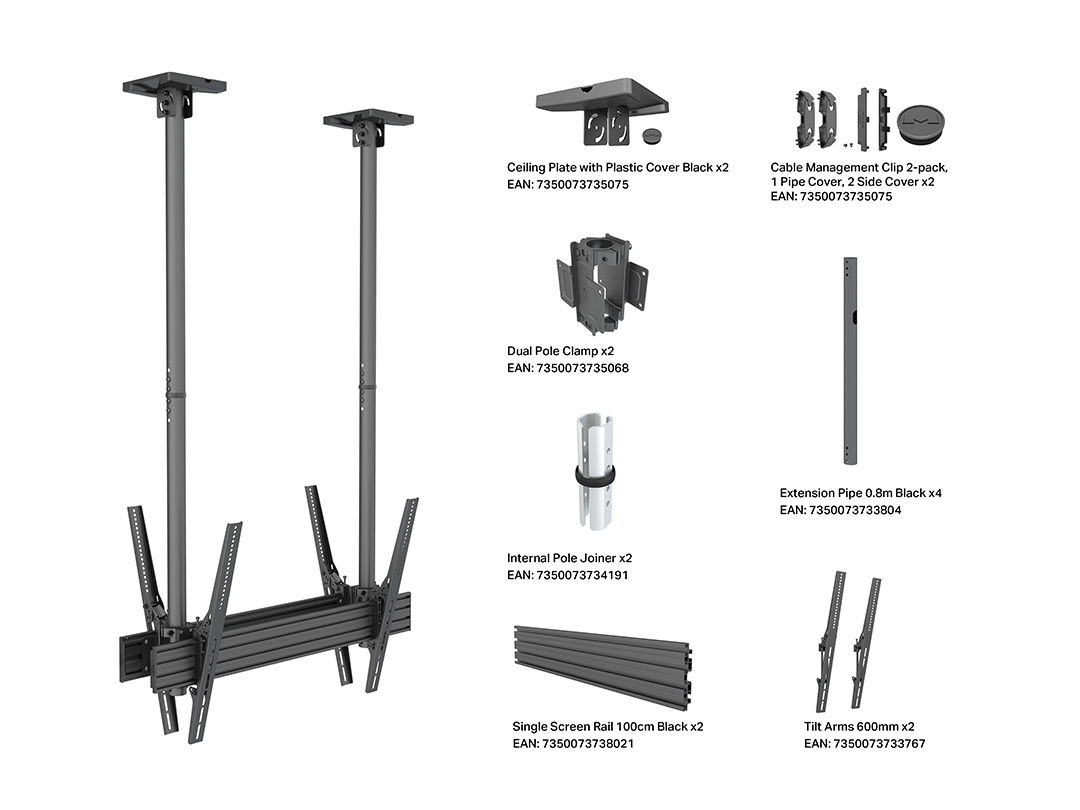

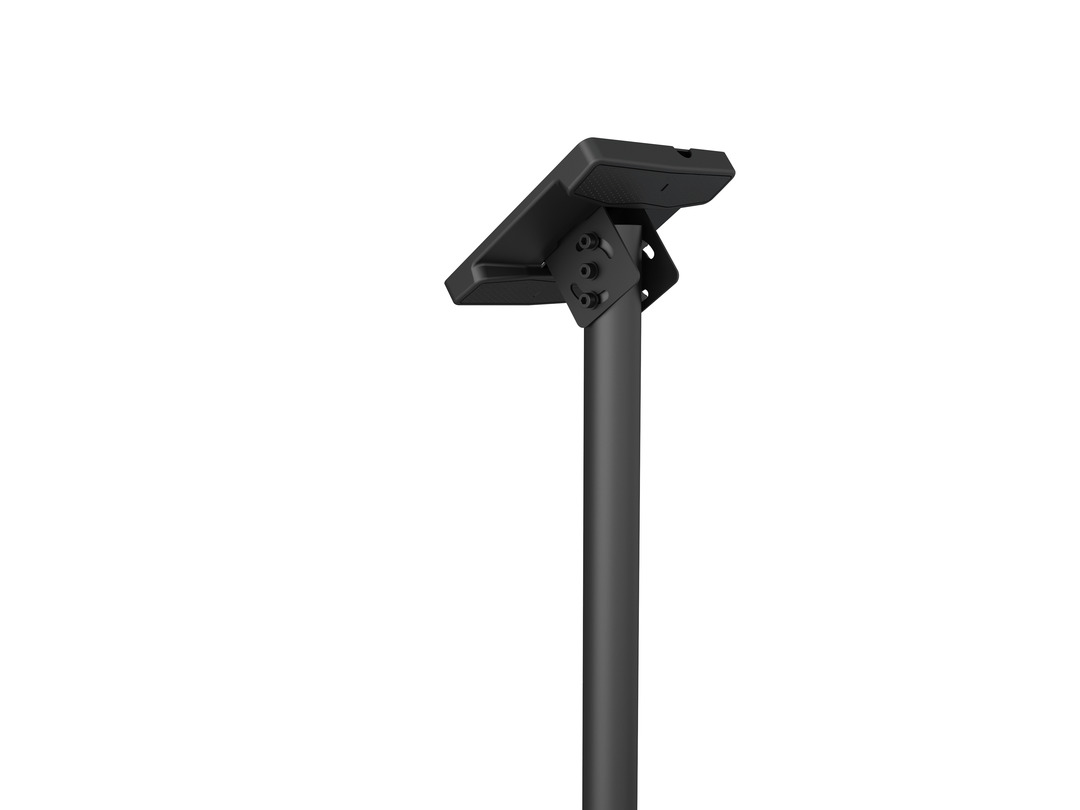

- Includes ceiling plate and hardware kit
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC1UX2SD VESA 900 | |
| Article No: | 7 350 073 736 249 |
| For screen size: | 40”-100" |
| Type: | Double Side MBC1U |
| Universal & VESA standard: | Adjustable from 100x100 to 900x600 max |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 12 kg |

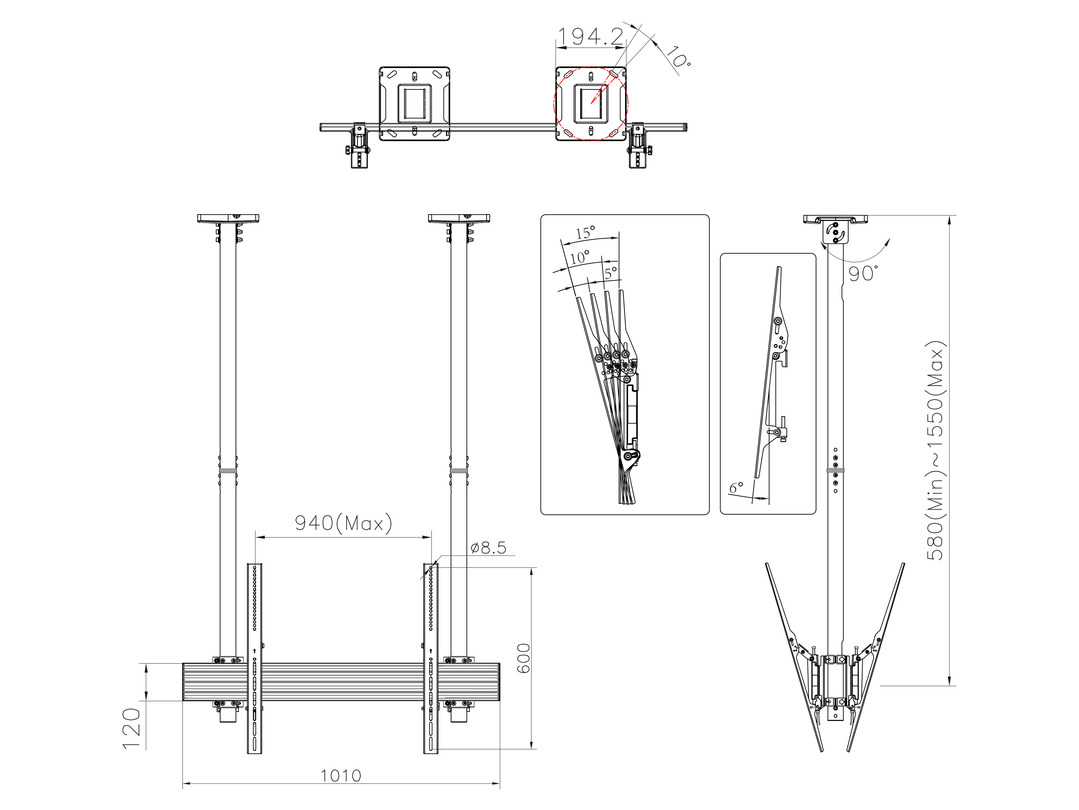

| Measurements | 69x178x20 cm |
| Max Load: | 180 kg, 90 kg per screen |
| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*4pcs) included |
| Tilt: | Yes, -6°~+15° |

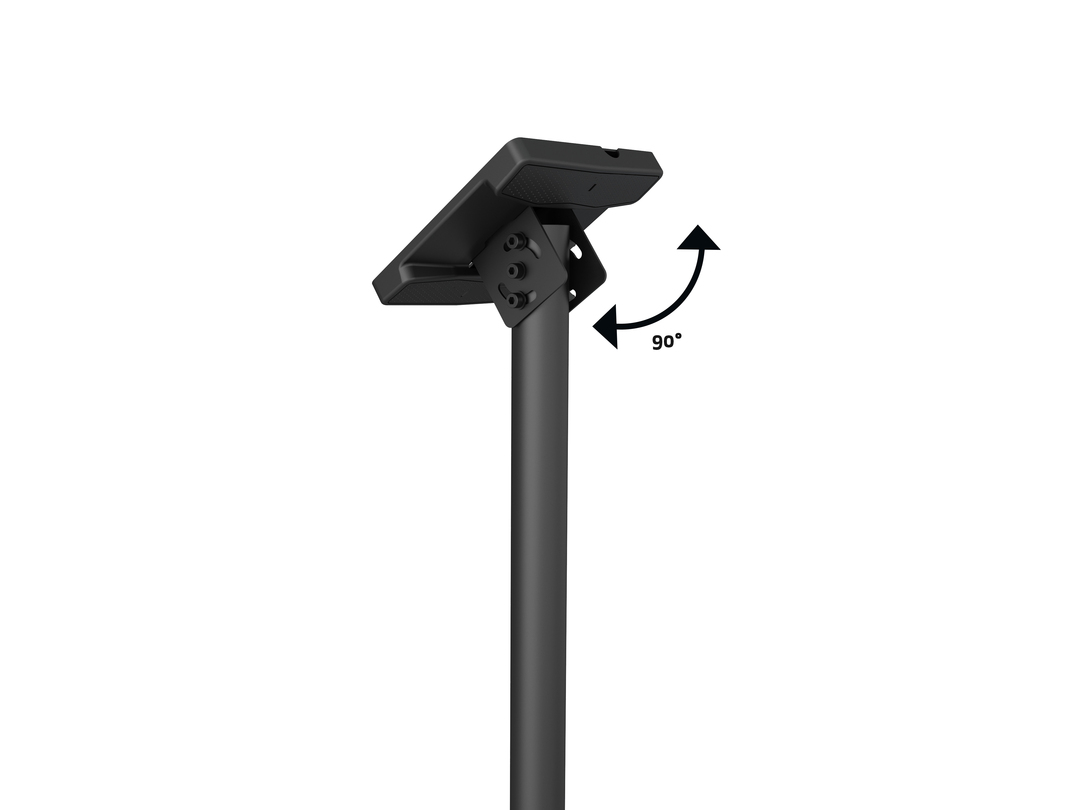

| Swivel: | Yes, 90° |
| Rotate: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 118.5 x 22.7 x 18 cm |
| Package Weight: | 20.00 kg |
