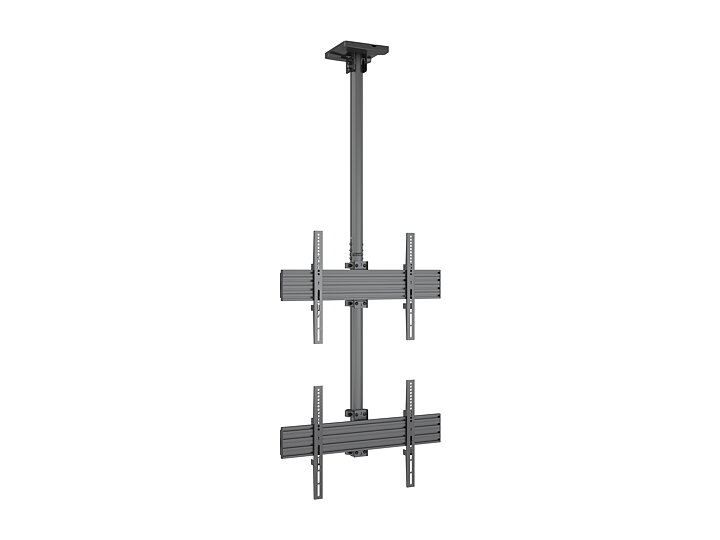

M Ceiling Mount Pro MBC2U VESA 600
Options
Variants that match your options:
In stock: 22
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073733545
Product overview
The Multibrackets M Ceiling Mount Pro MBC2U VESA 600 is a single-display ceiling mount designed for high-performance AV installations. Built as part of the modular Pro Series, this solution is fully customizable, with integrated cable management and support for VESA up to 600x400.
Engineered for commercial environments, the MBC2U combines durable aluminum construction with a clean Scandinavian design. Its modular architecture enables installers to easily configure, expand, and adapt the system to fit any project requirement—whether for retail, corporate, or public signage use.
Thanks to its Power Click system, installation is quick and secure. The included ceiling plate and hardware kit ensure the MBC2U is ready straight out of the box, delivering a premium, professional mounting experience.
Highlights
- Professional-grade ceiling mount for single displays
- Compatible with VESA patterns up to 600x400
- Modular design for scalable installations

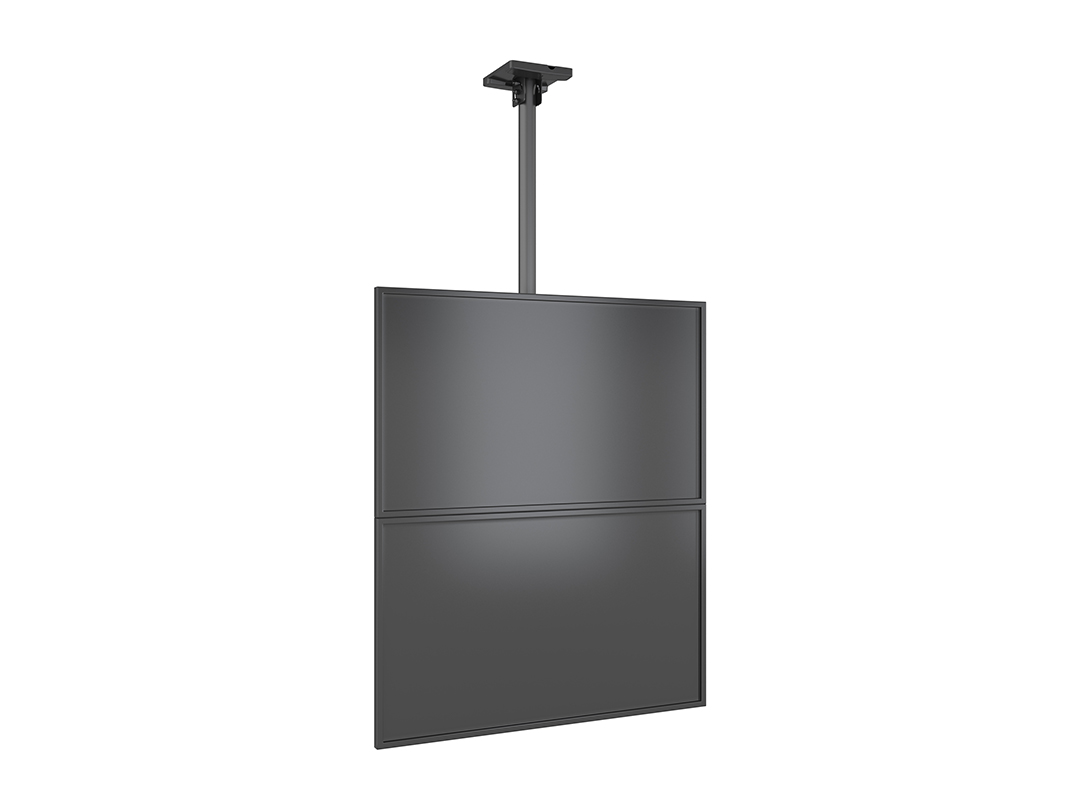

- Supports portrait and landscape orientations
- Integrated cable management system
- Power Click technology for easy, fast installation

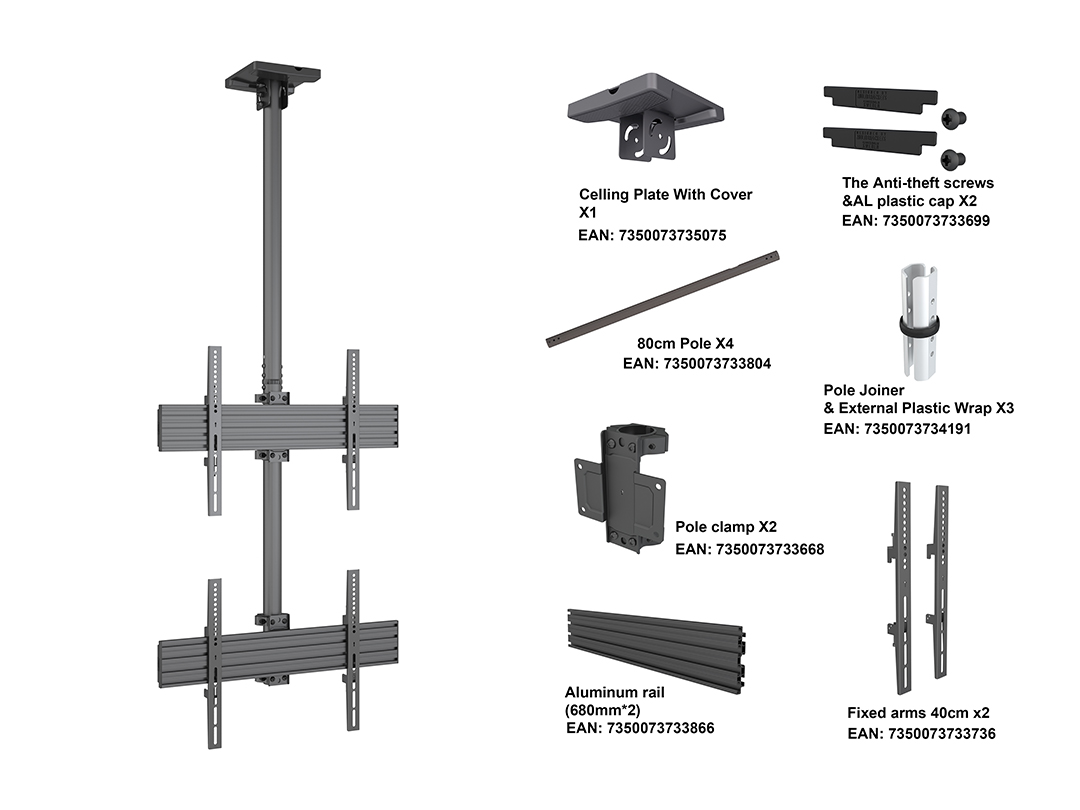

- Includes ceiling plate and full hardware kit
- Ideal for commercial and signage applications
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
| Specification | |
| M Ceiling Mount Pro MBC2U VESA 600 | |
| Article No: | 7 350 073 733 545 |
| For screen size: | 40”-65" |
| Type: | Single Side MBC2U |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max Optional VESA 800x600 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 17 kg |
| Measurements | 69x338x20 cm |
| Max Load: | 50 kg per screen TUV approved at 30 kg per screen |

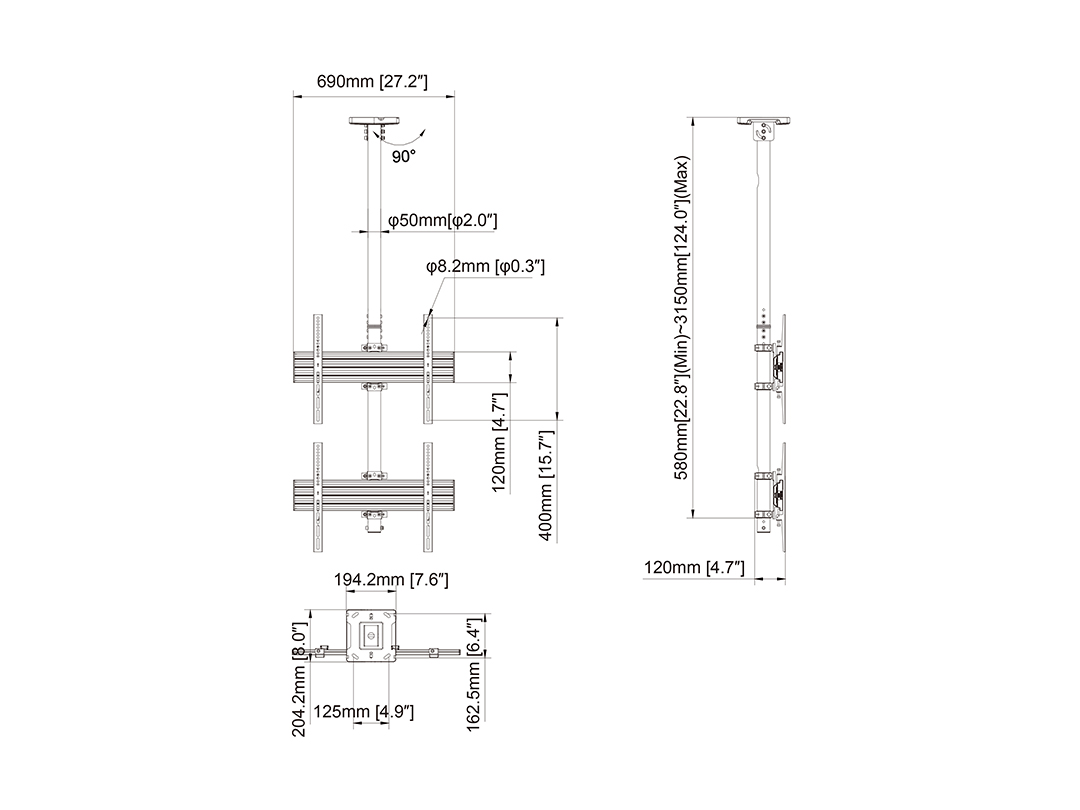

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 3m (800mm*4pcs) included |
| Fixed: | Yes, |
| Swivel: | Yes, 360° |
| Rotate: | No |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 83 x 21 x 18 cm |
| Package Weight: | 17.00 kg |
