M Ceiling Mount Pro MBC2UPV 50/100/200
Options
Variants that match your options:
In stock: 14
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105212451
Product overview

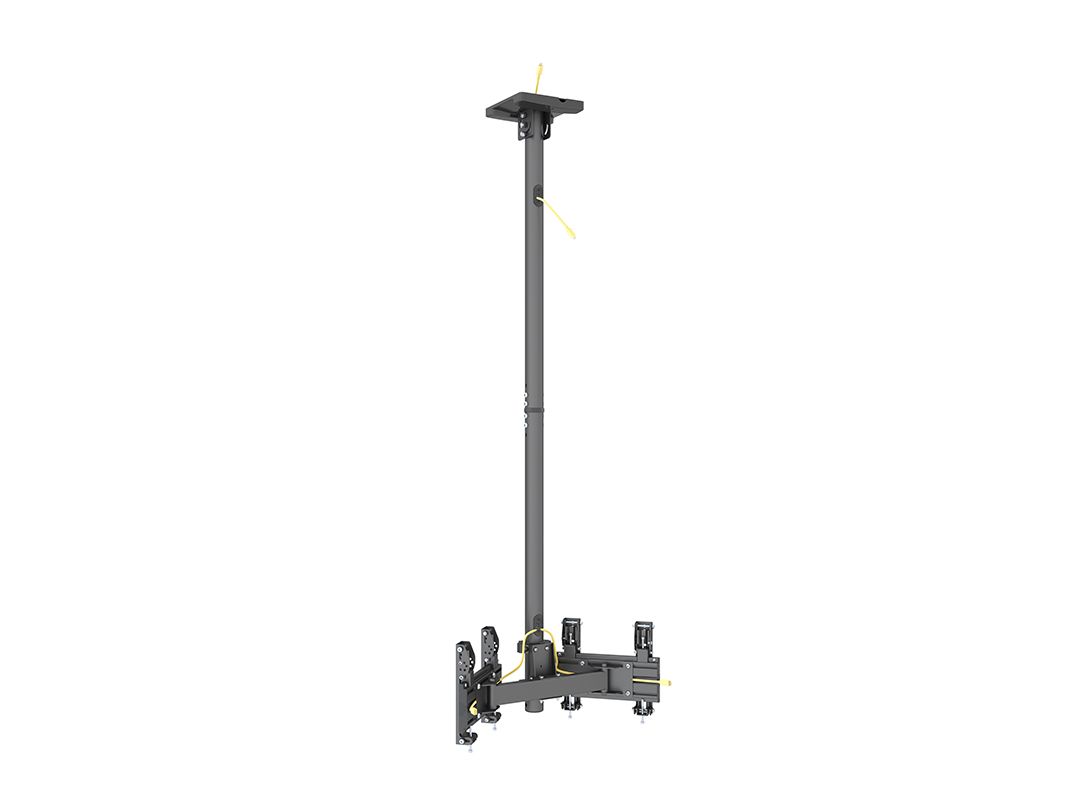

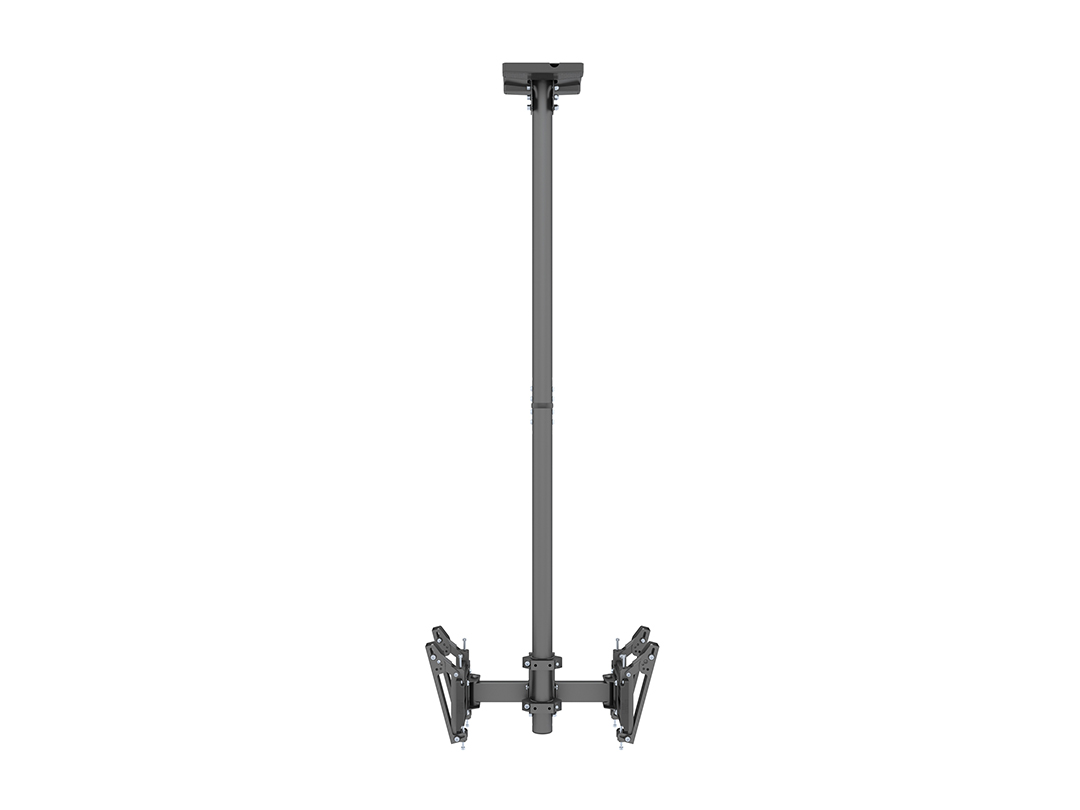

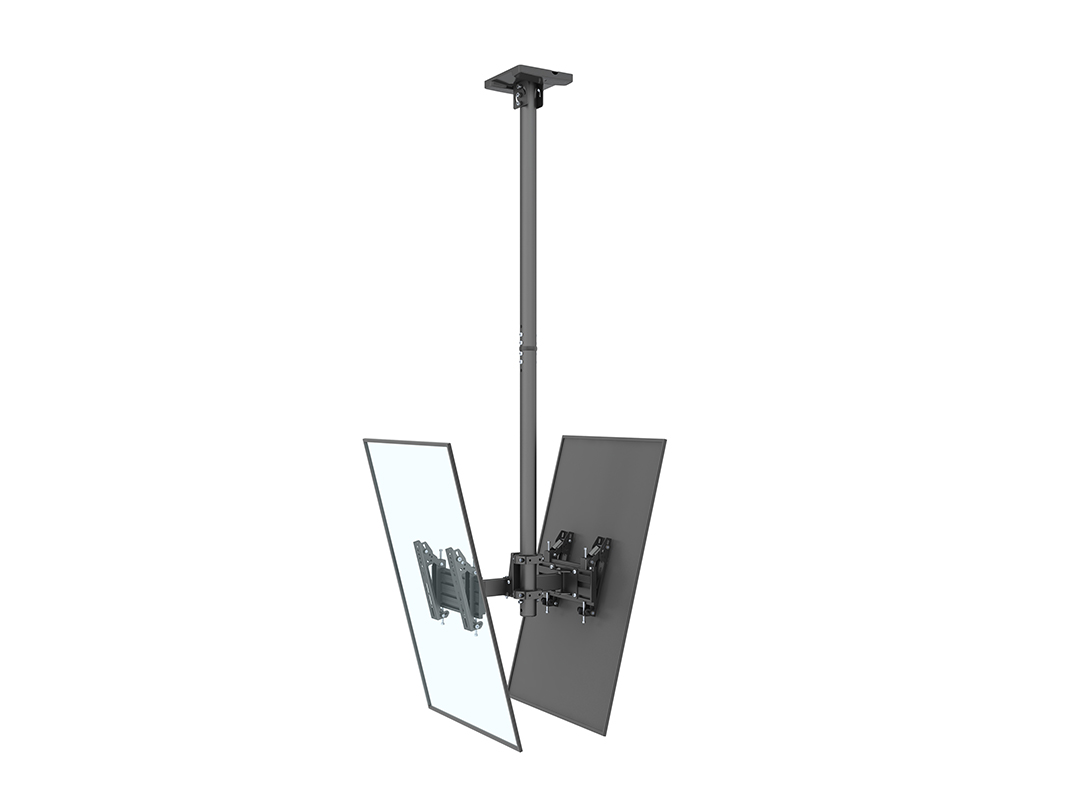

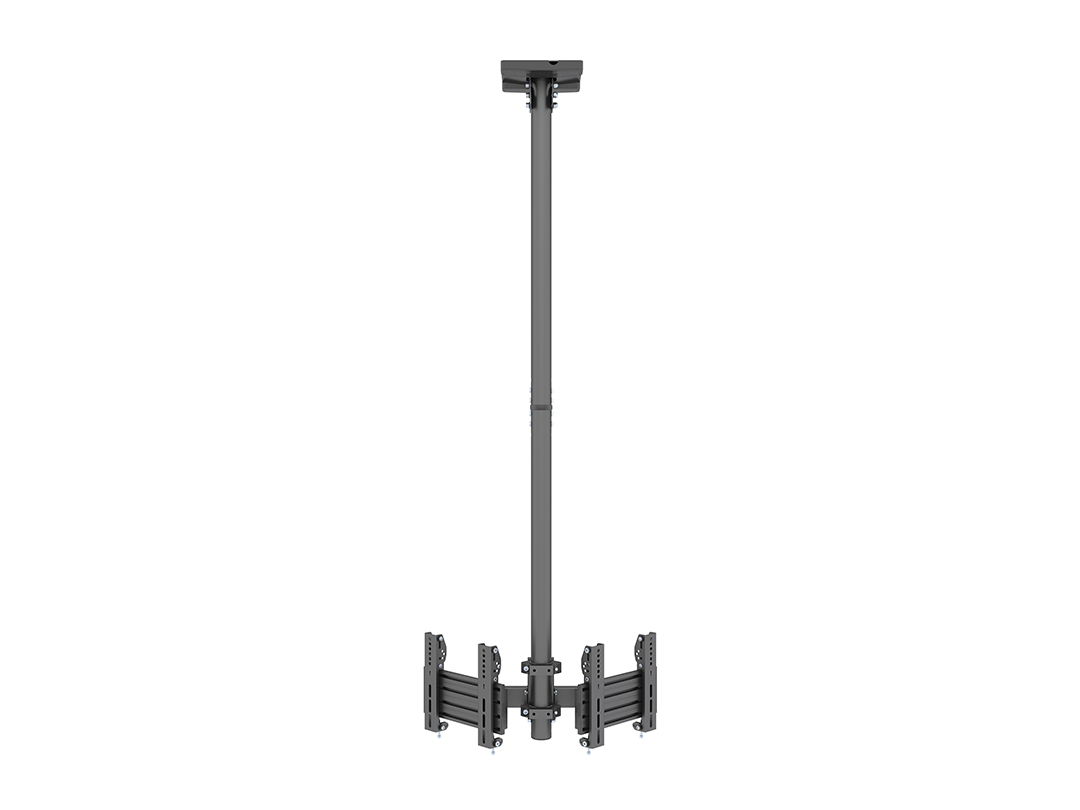

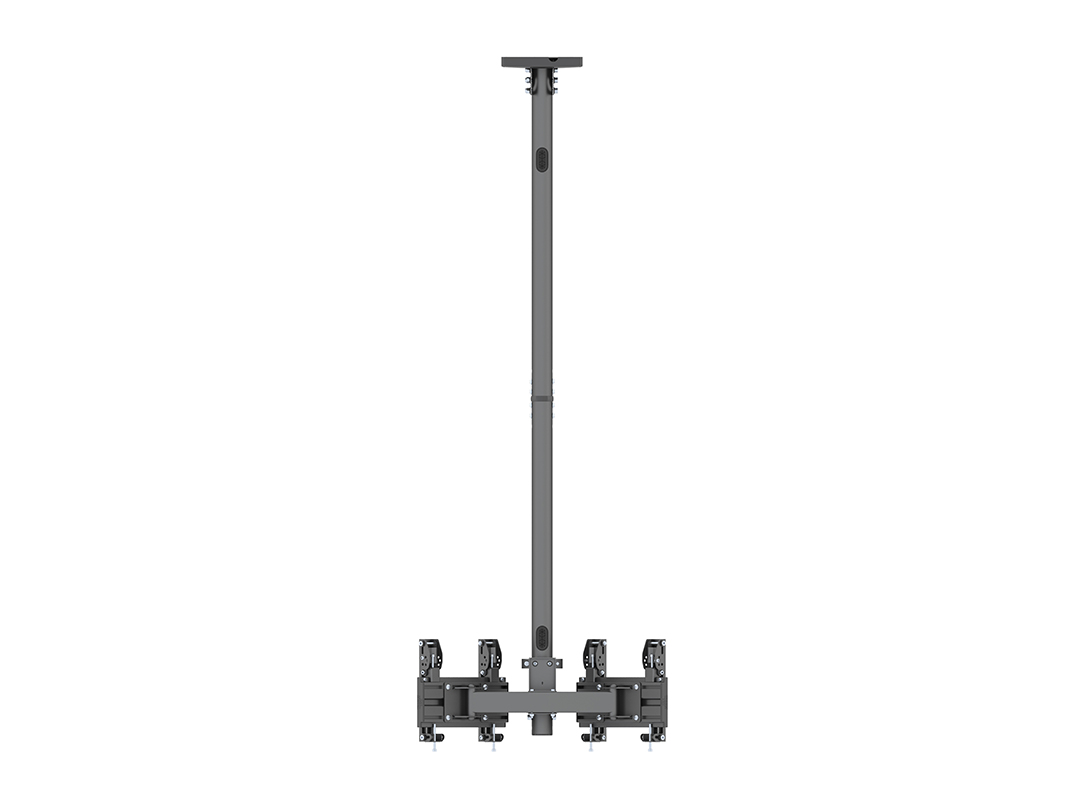

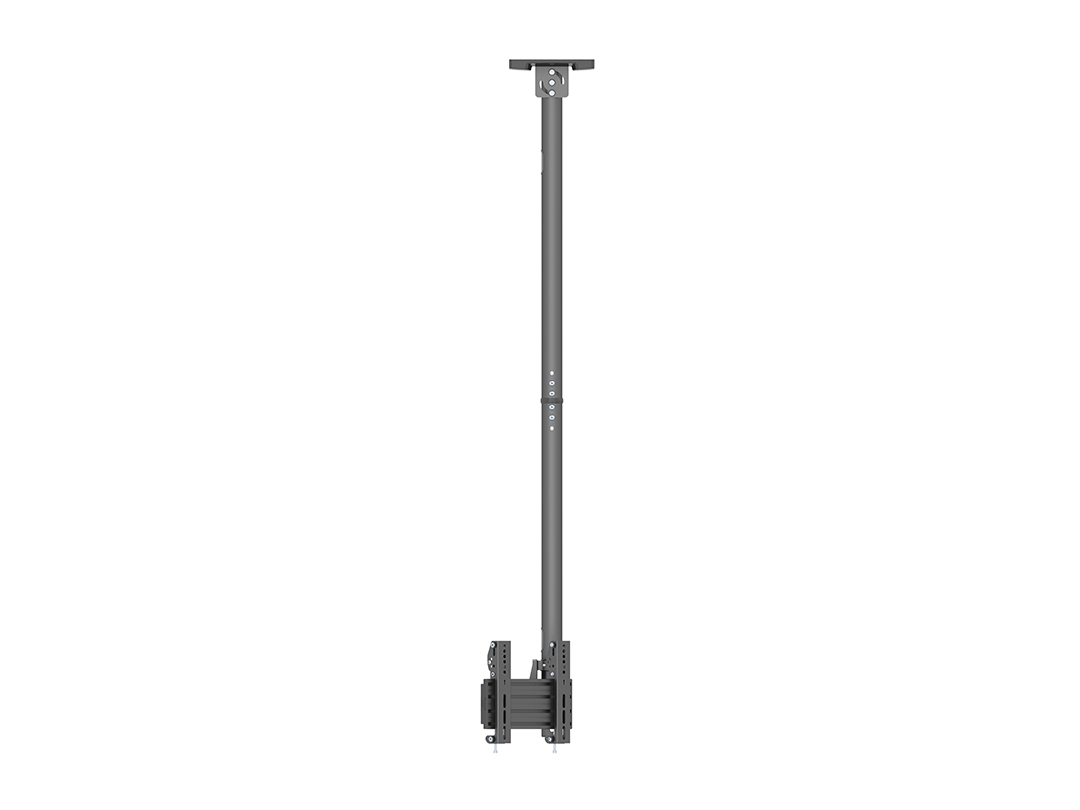

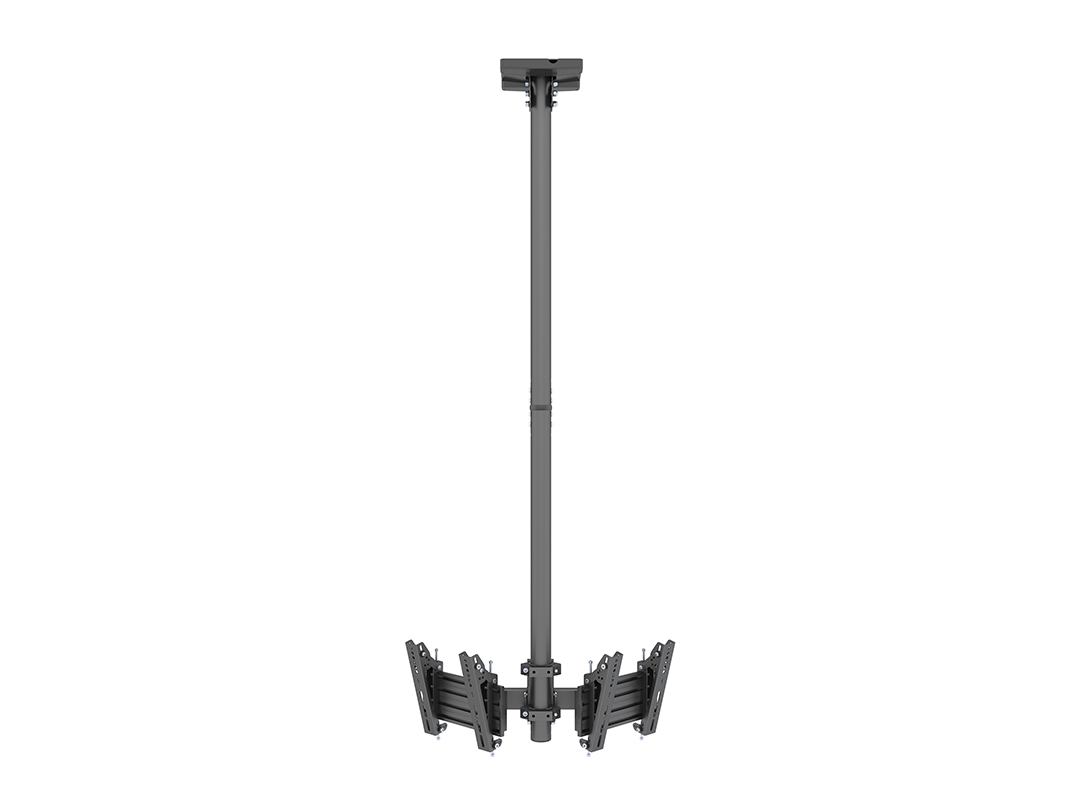

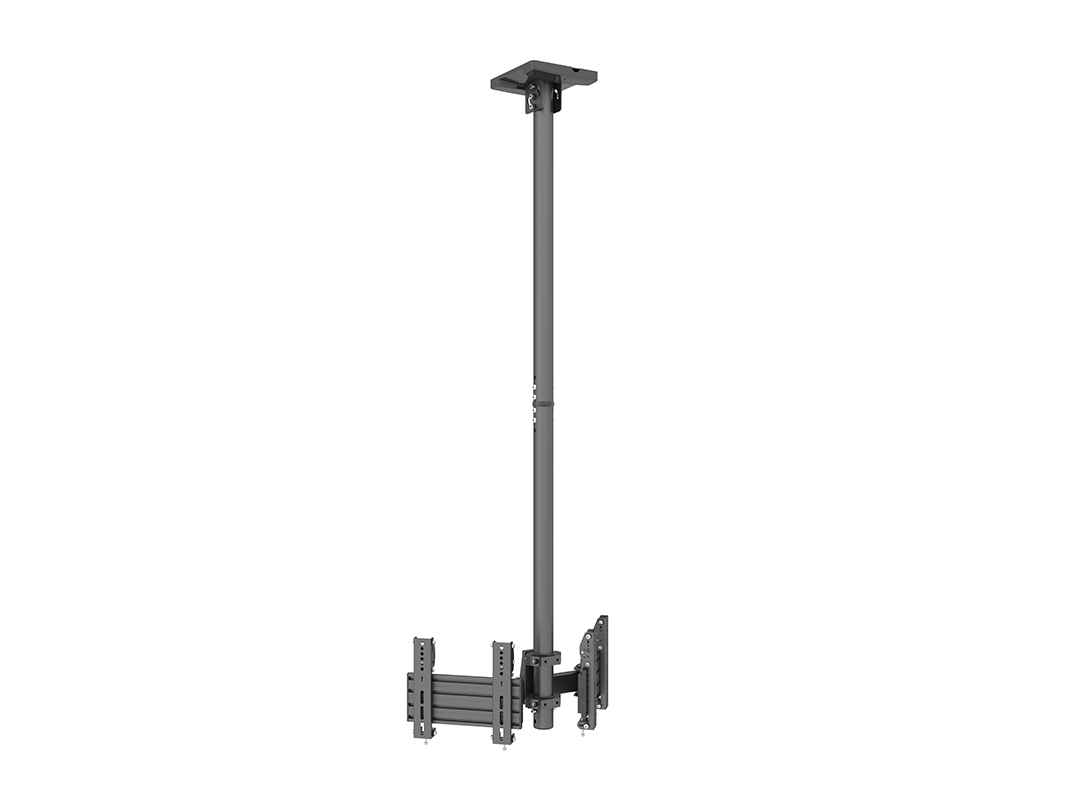

The Multibrackets M Ceiling Mount Pro MBC2UPV 50/100/200 is a modular dual-screen ceiling mount designed for commercial AV and signage environments. Supporting two displays in a wide-angle V-formation, this solution maximizes visibility across high-traffic zones like retail or exhibition spaces.
Its steel-based structure supports VESA patterns from 50x50 to 200x200 and holds up to 30 kg per screen. Built on the flexible Pro Series system, it offers integrated cable management, tilt functionality, and adjustable display spacing for tailored installations. The clean Nordic design ensures a professional and unobtrusive appearance in modern interiors.
This mount is ideal when maximum screen exposure and compact ceiling integration are essential—delivering high impact with minimal footprint.
Highlights

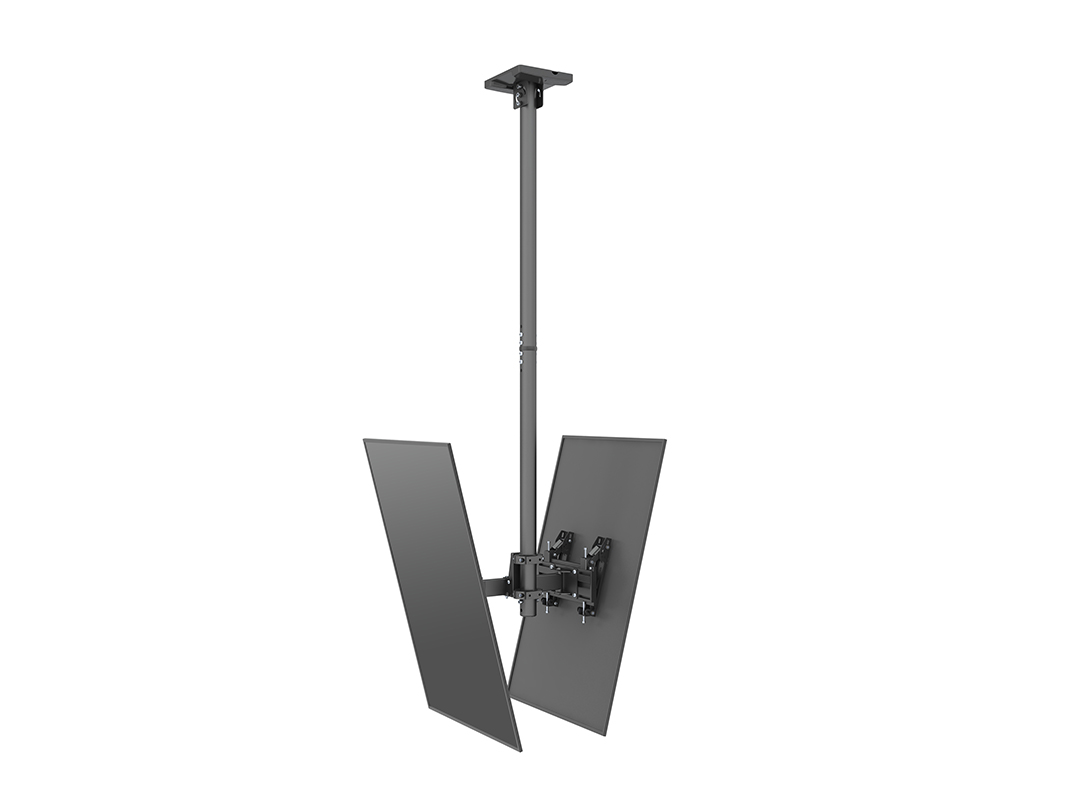

- Dual-display V-shaped ceiling mount
- Screen size support: 32"–43"
- Max load: 30 kg per screen
- VESA compatibility: 50x50–200x200
- Integrated cable management

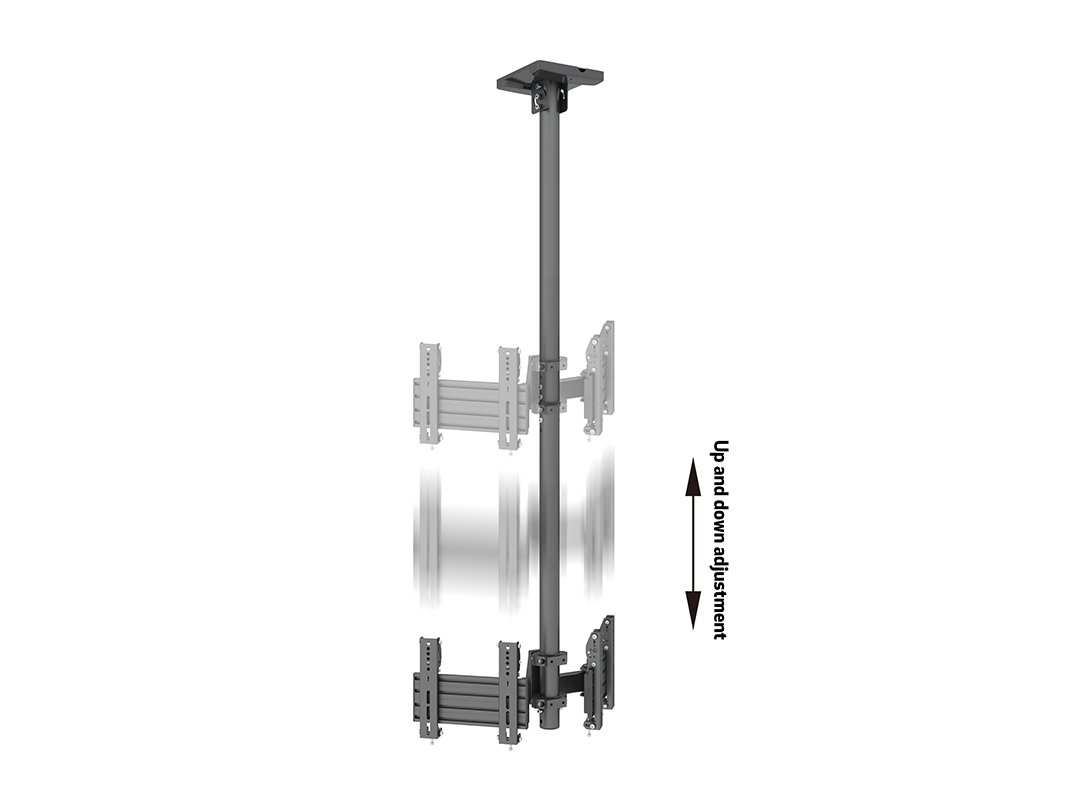

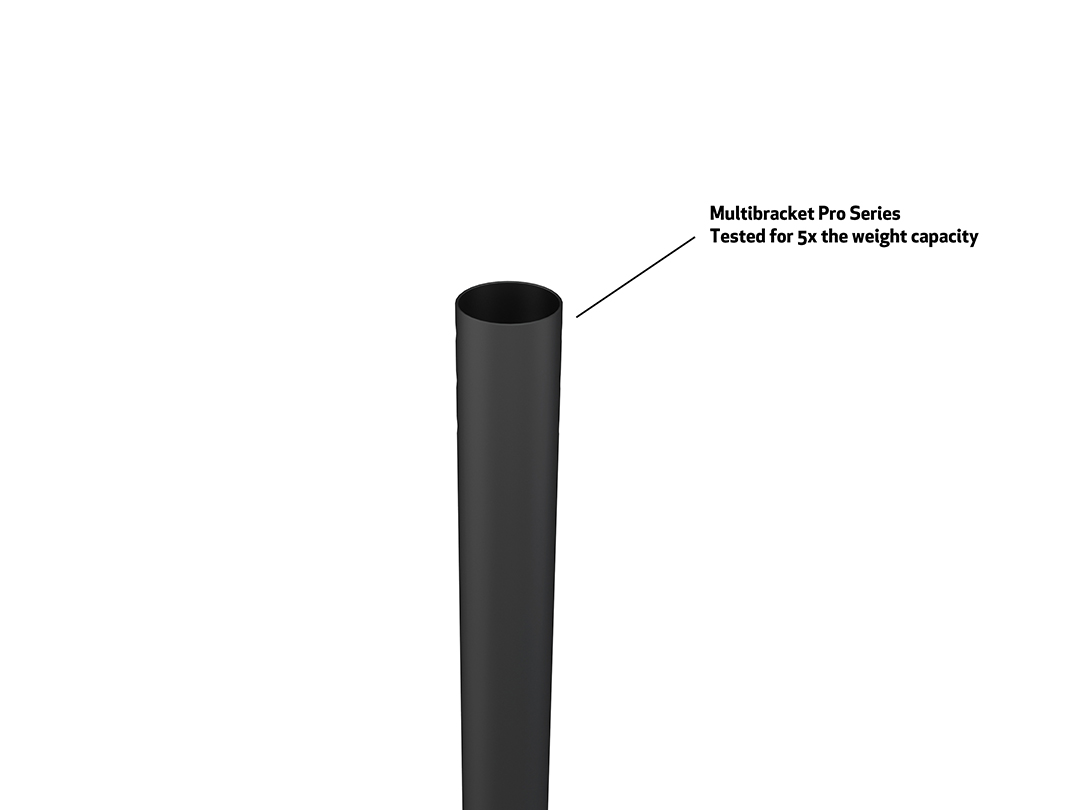

- Height adjustable 3m steel column
- Tilt arms for angle customization
- Modular Pro Series design
- Clean Scandinavian finish for professional environments

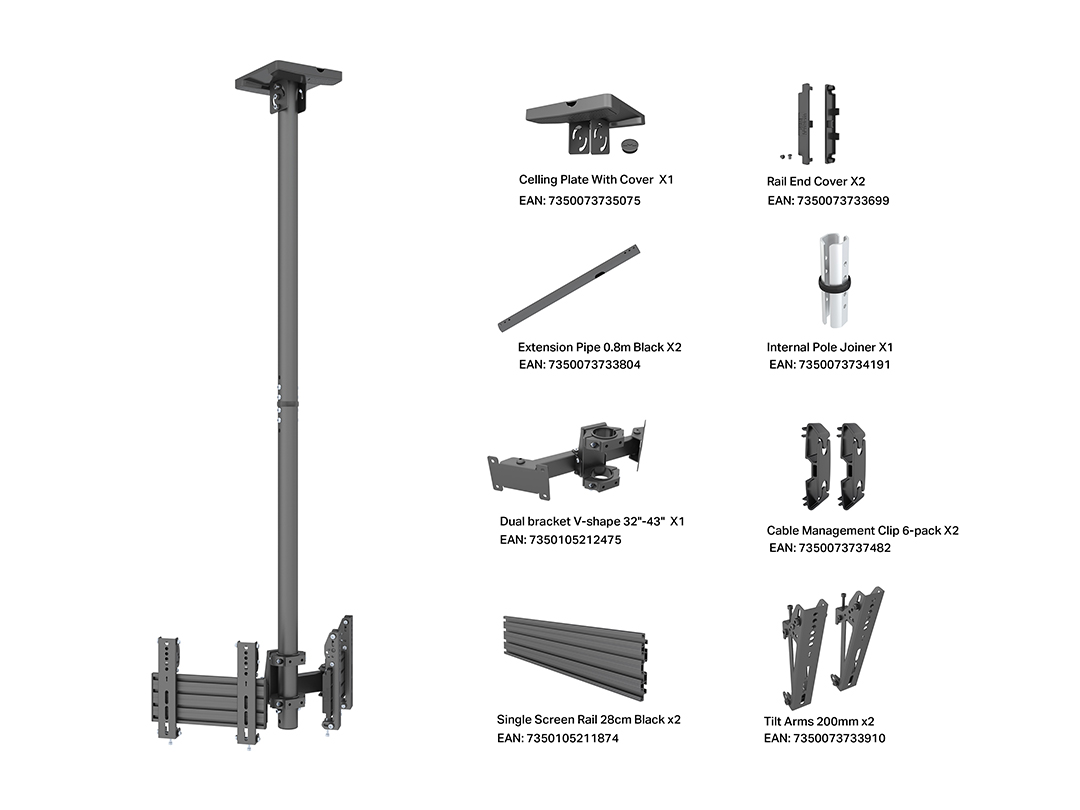

- Hardware and ceiling plate included
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
| Specification | |
| M Ceiling Mount Pro MBC2UPV 50/100/200 | |
| Article No: | 7350105212451 |
| Color: | Black |
| For screen size: | 32"~43" |
| Universal & VESA standard: | 50x50, 100x100, 200x200 |
| Material: | Steel, Aluminium, Plastic |
| Surface Finish: | Powder coating |
| Weight: | 12.5KG |
| Measurements | 845*261*130 |
| Max Load: | 30 kg per screen |
| Height: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*2pcs) included |

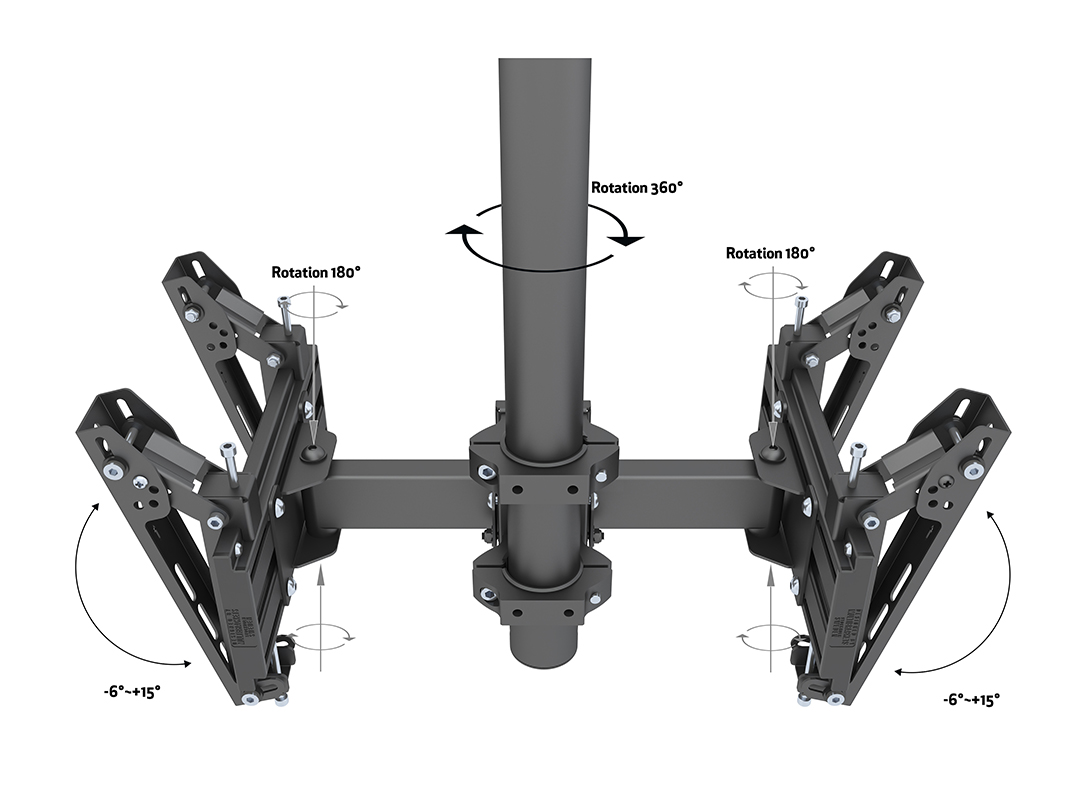

| Tilt: | -6°~+15° |

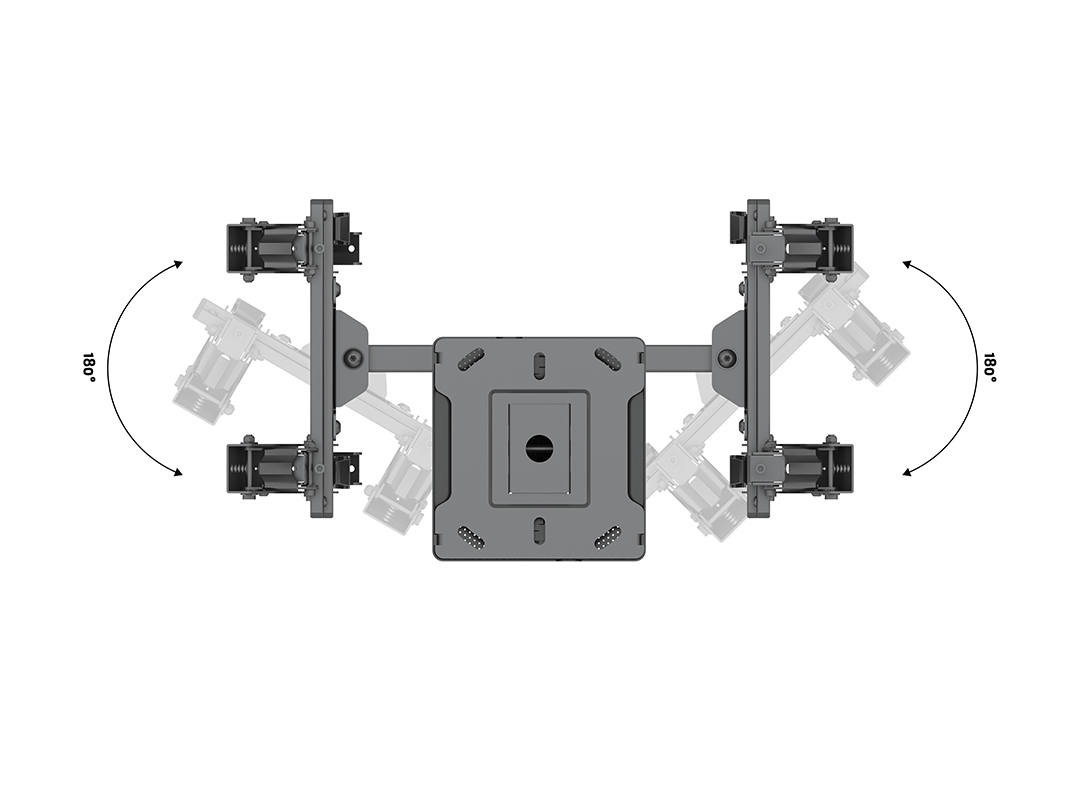

| Swivel: | 180° |
| Rotate: | ±4° |
| Installation: | M Pro Series |
| Cable Management: | N/A |
| Options: | Article no:7350105212451 |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 0 x 0 x 0 cm |
| Package Weight: | 0.00 kg |
