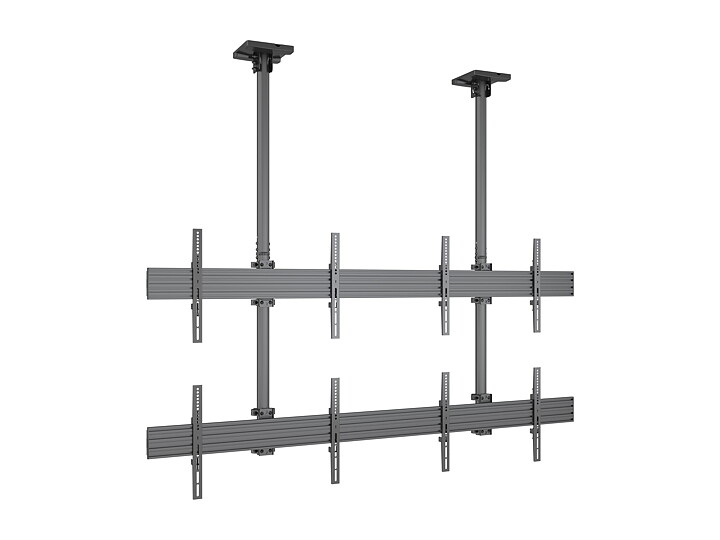

M Ceiling Mount Pro MBC2X2U VESA 600
M Ceiling Mount Pro MBC2X2U VESA 600 - Ceiling mount for LCD display, steel, 3m length, 4 screens, single side, fixed arms, VESA Max 600x400 - screen size: 40"-65" - black
Options
Variants that match your options:
Price
Not available
Price
In stock: 153
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073733552
M Ceiling Mount Pro MBC2X2U VESA 600 - Ceiling mount for LCD display, steel, 3m length, 4 screens, single side, fixed arms, VESA Max 600x400 - screen size: 40"-65" - black
Product overview
The Multibrackets M Ceiling Mount Pro MBC2X2U VESA 600 is a professional-grade, single-side ceiling mount built to support four large displays in commercial environments. As part of the Pro Series, it features a modular, high-strength aluminum rail and streamlined cable management—perfect for retail, control rooms, or other high-visibility applications.
With its fixed arm configuration and 3-meter drop length, this mount delivers both visual symmetry and installation efficiency. The modular design ensures that configurations can be tailored, upgraded, or expanded as display requirements evolve over time.
Highlights
- Supports 4 screens on one side
- Fixed arm design for stable installations
- VESA compatible up to 600x400
- Max screen size: 65", max load: 30kg per screen
- Modular design with customizable options
- Integrated cable management for clean installations
- Quick and secure Power Click installation system
- Portrait or landscape orientation support

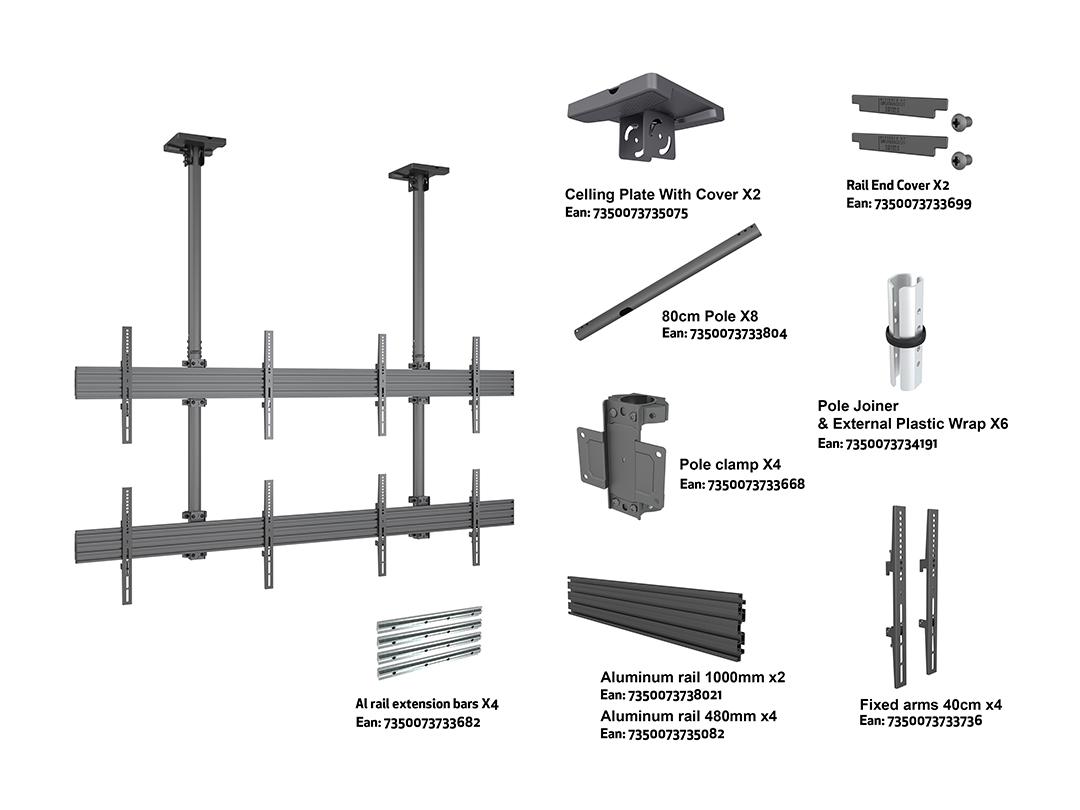

- Ceiling plate and complete hardware kit included
- Ideal for digital signage in commercial and public settings
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC2X2U VESA 600 | |
| Article No: | 7 350 073 733 552 |
| For screen size: | 40”-65" |
| Type: | Single Side MBC2X2U |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max Optional VESA 800x600 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 37 kg |
| Measurements | 222x338x20 cm |
| Max Load: | 30 kg per screen |
| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 3m (800mm*8pcs) included |
| Fixed: | Yes, Option: Tilt -6°~+15° |
| Swivel: | No |
| Rotate: | No |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 106 x 25 x 24 cm |
| Package Weight: | 35.10 kg |
