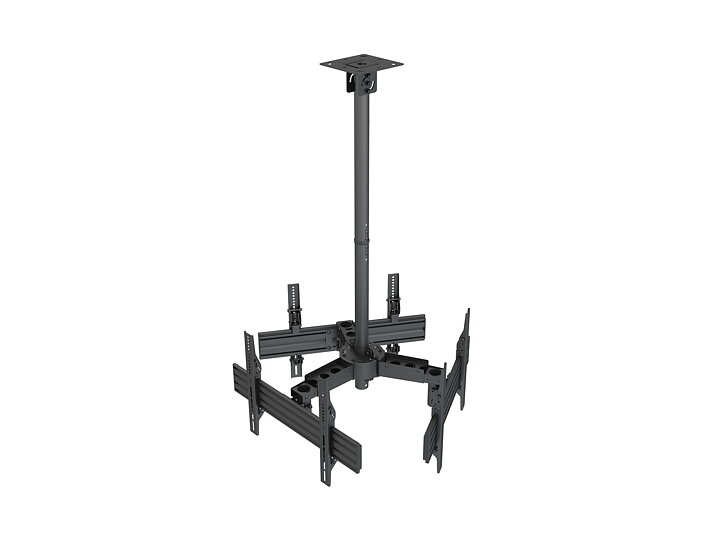

M Ceiling Mount Pro MBC3U VESA 600
Options
Variants that match your options:
In stock: 2
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073733521
Product overview

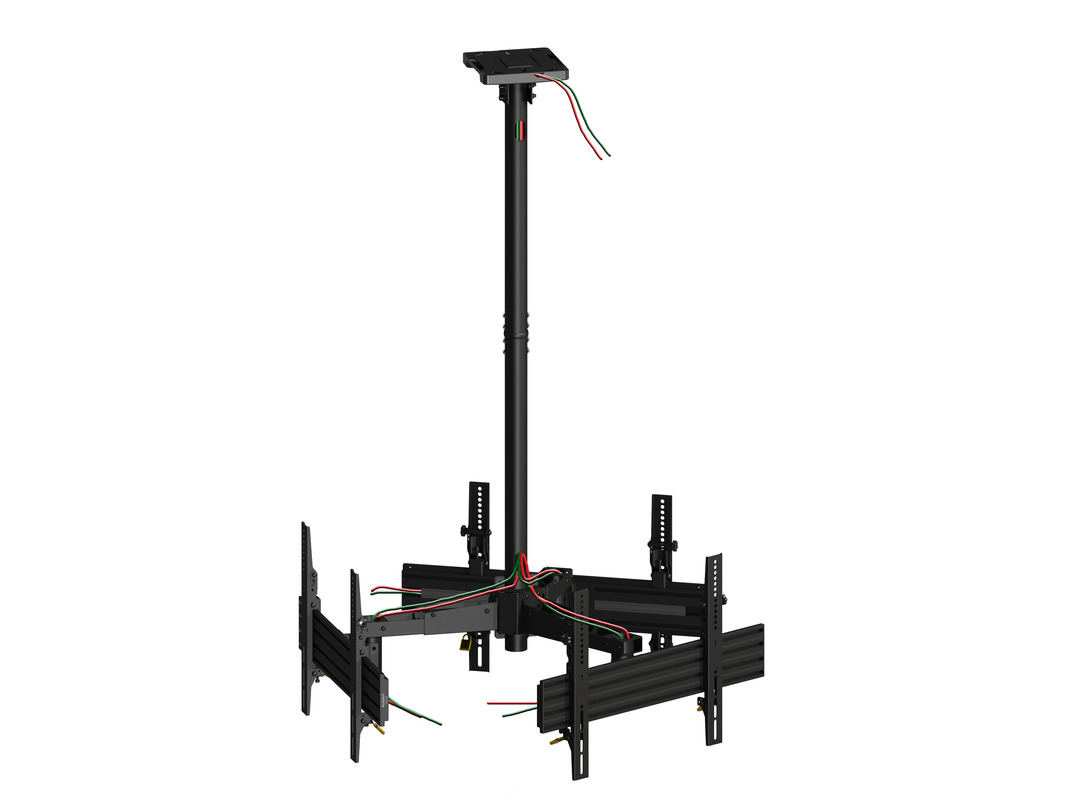

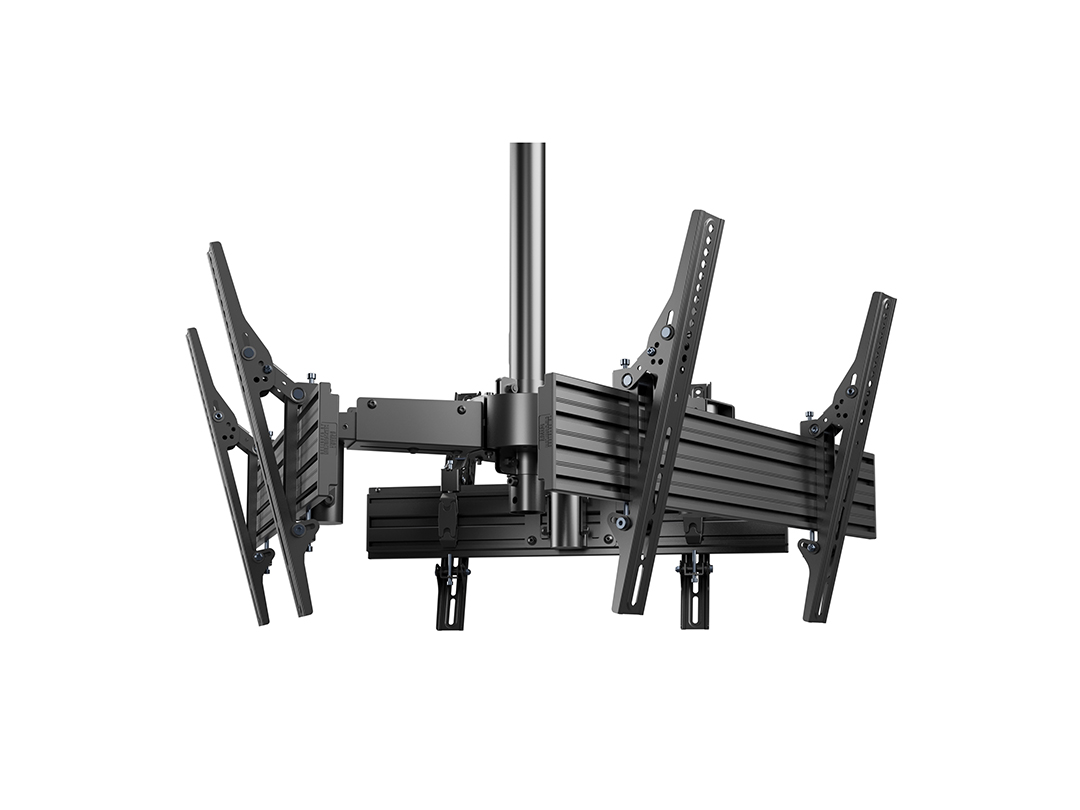

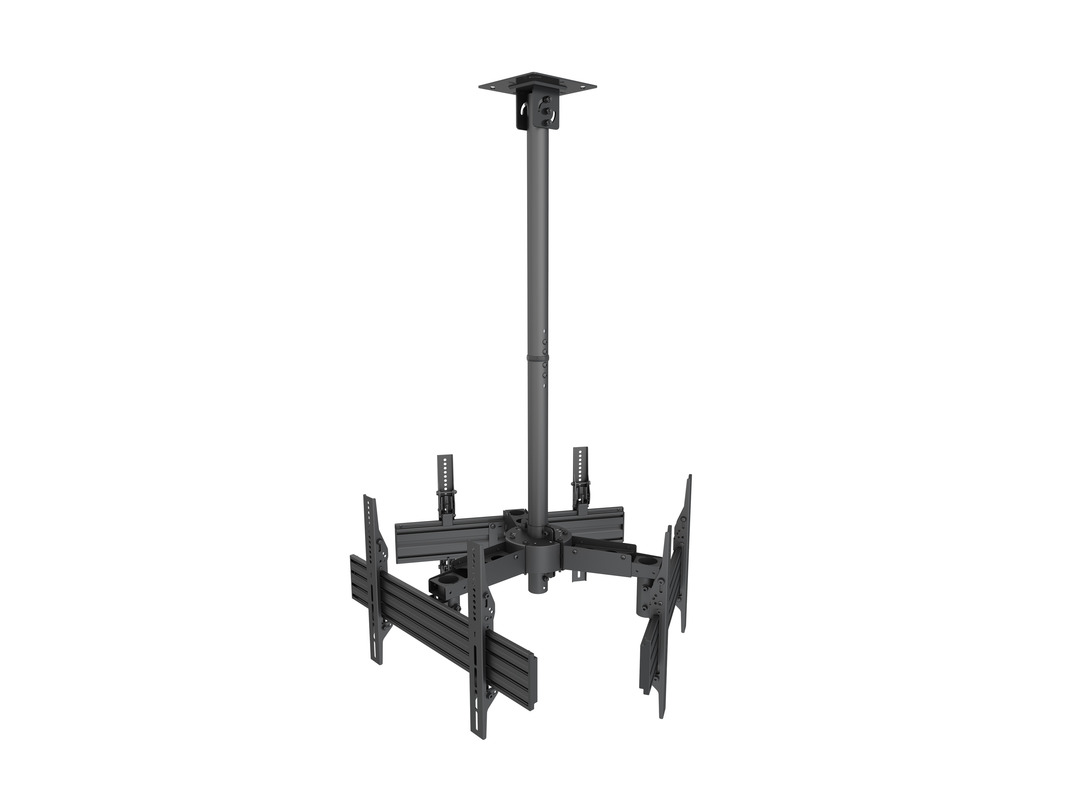

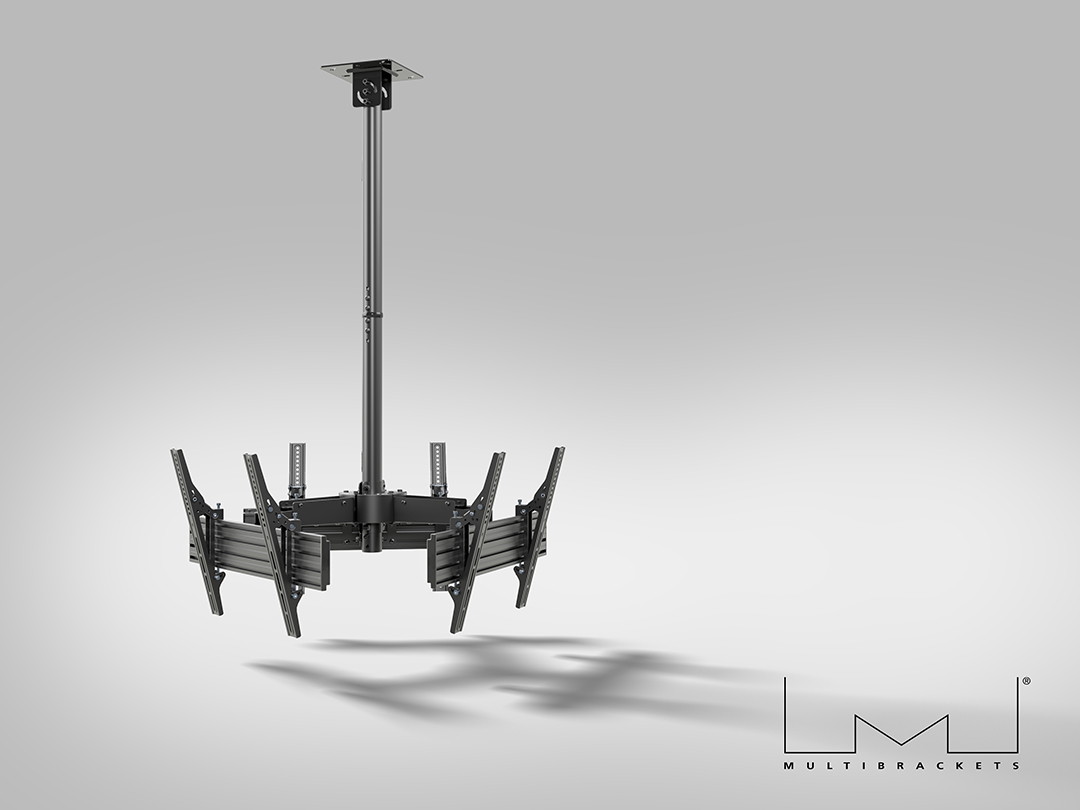

The Multibrackets M Ceiling Mount Pro MBC3U VESA 600 is a professional-grade triple-side ceiling mount designed to display three screens in 360-degree visibility setups. Built for environments such as retail spaces, airports, event halls, and information hubs, it offers an impressive combination of modularity, visual symmetry, and installation efficiency.
Part of the Multibrackets Pro Series, this mount is based on a robust aluminum rail system and features integrated cable management, fast installation with Power Click, and VESA support up to 600x400. The MBC3U’s modular design gives installers the freedom to adapt the configuration over time as requirements change.
With a clean, Nordic design language and high-quality materials, the mount is ideal for professional AV installations demanding both aesthetics and durability. Its triple-sided layout ensures maximum visibility from all directions, making it a compelling choice for centralized messaging and branding.
Highlights

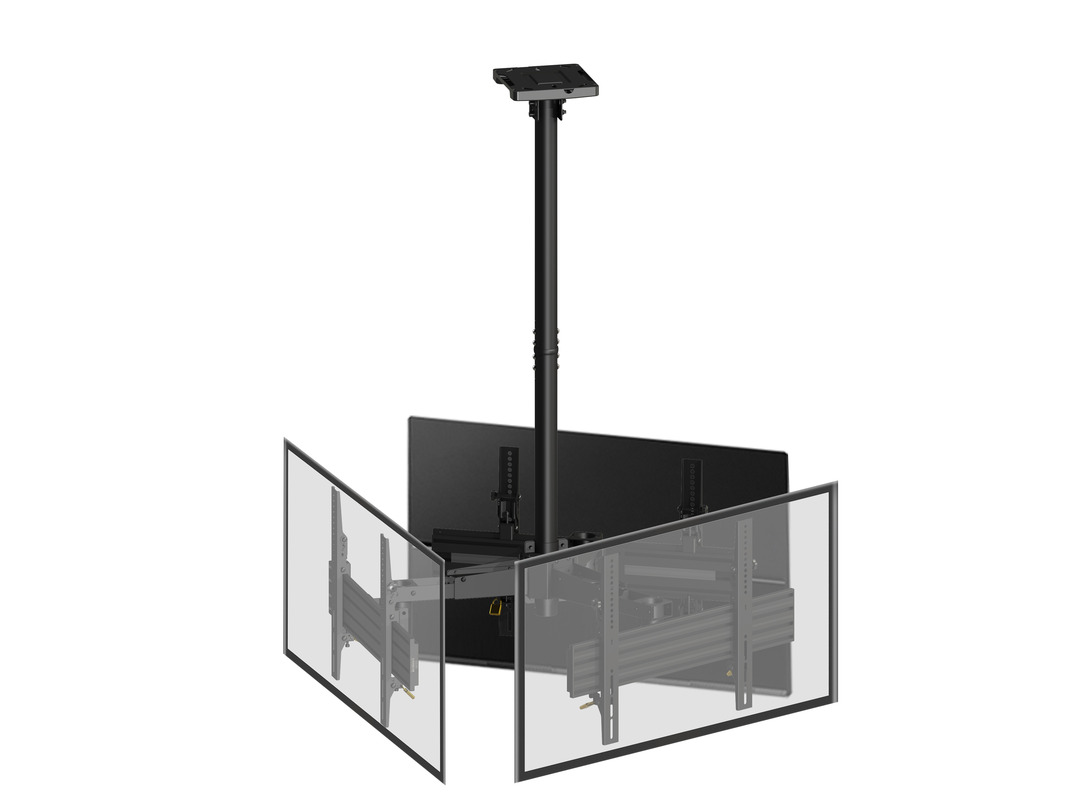

- Triple-side ceiling mount supports three displays
- VESA compatible up to 600x400
- Max screen size: 65”, Max load: 30kg per screen

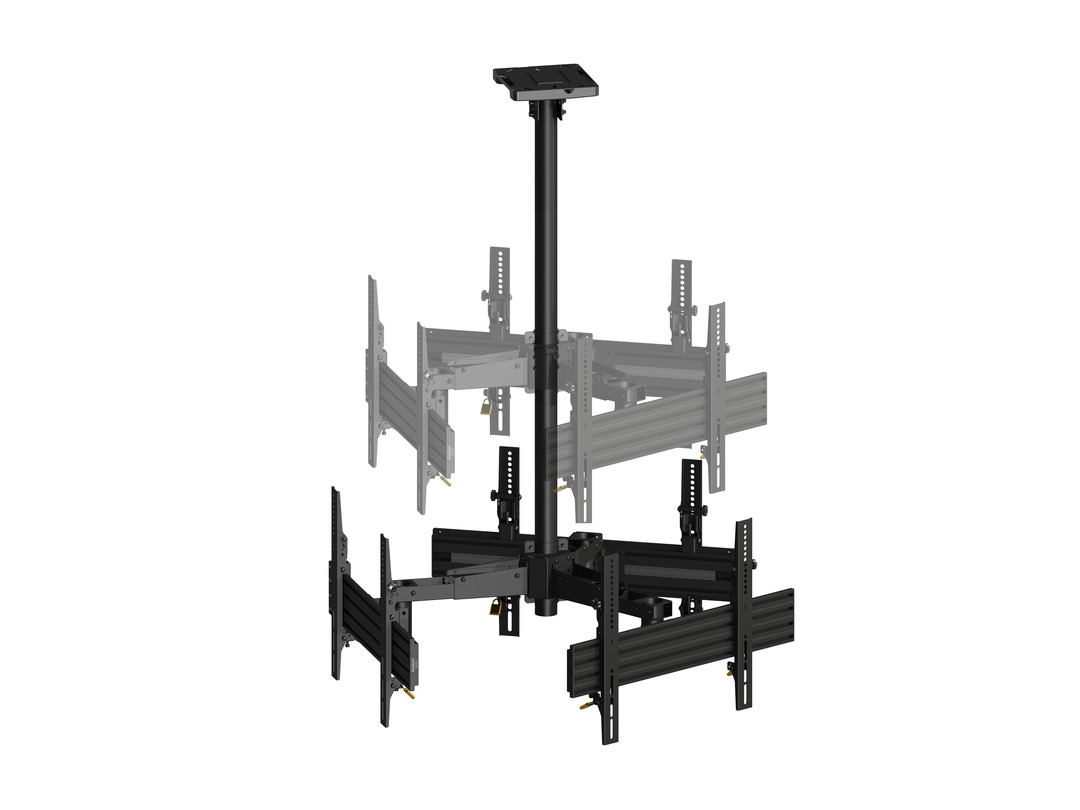

- Modular construction for scalable solutions

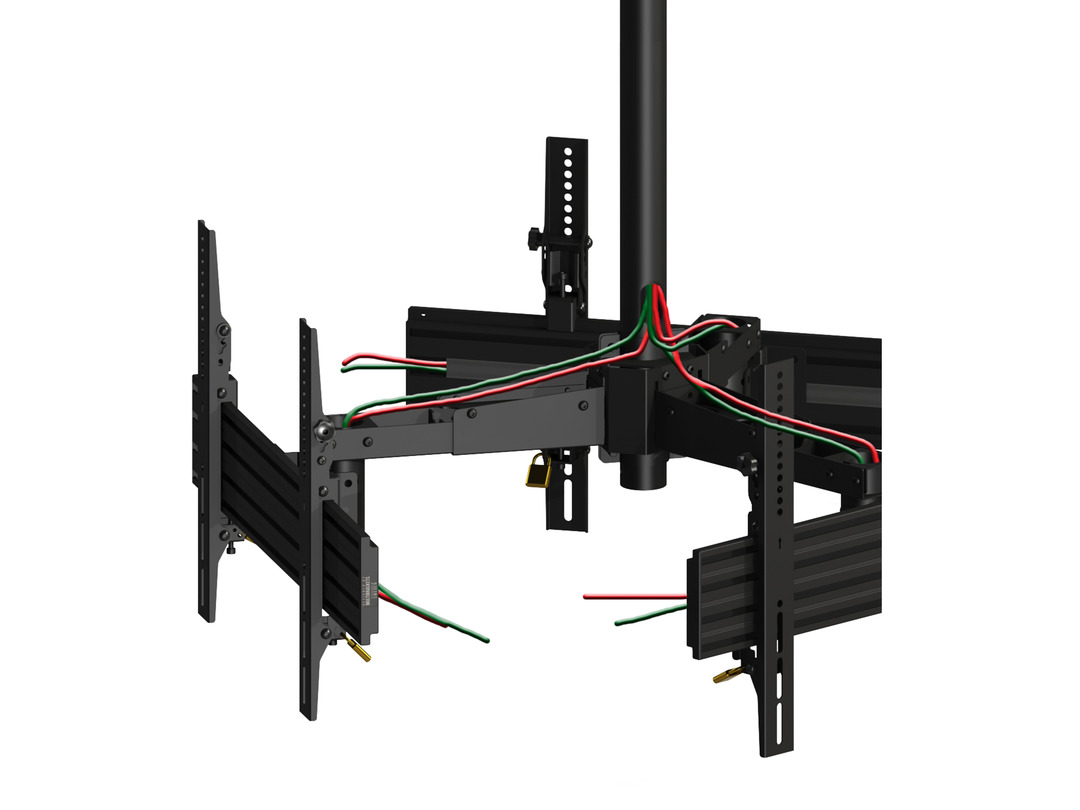

- Full cable management for clean installations

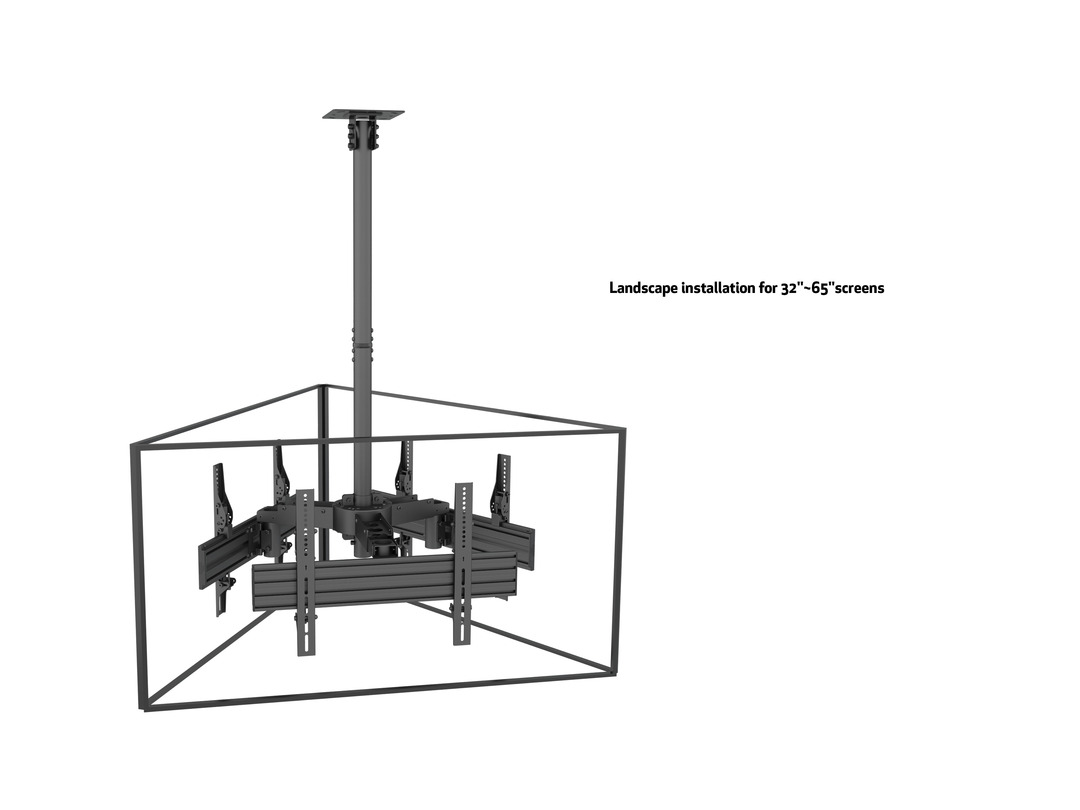

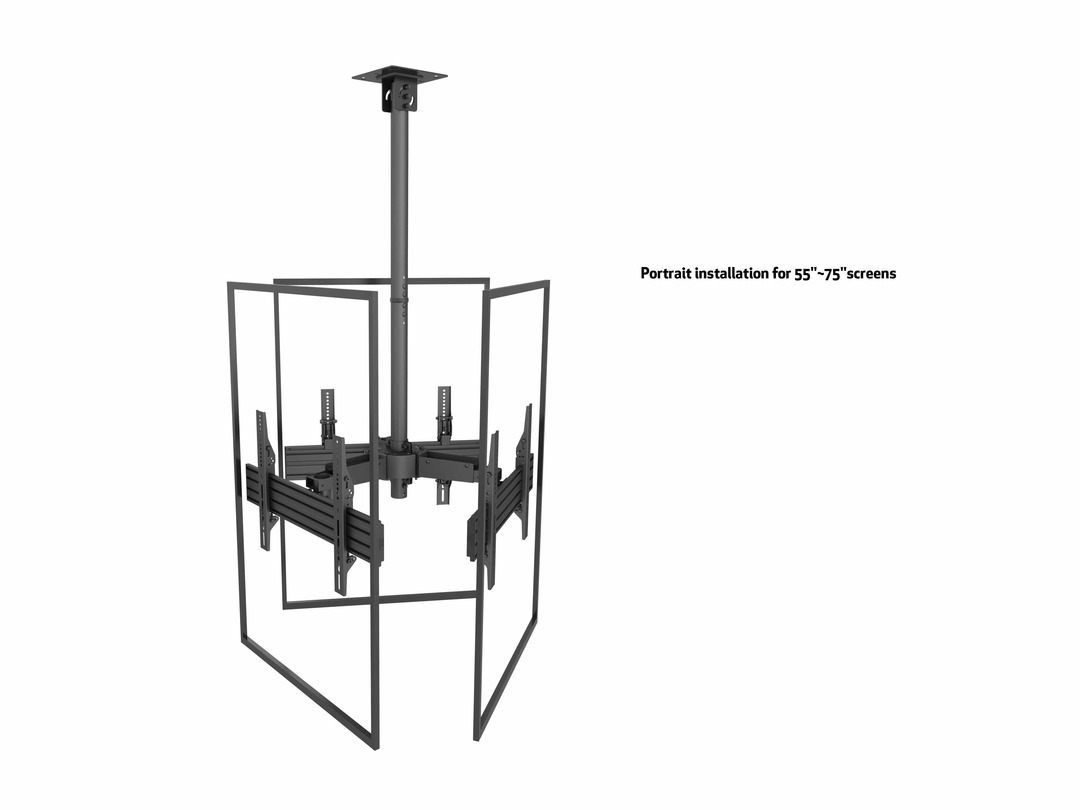

- Portrait or landscape screen orientation supported

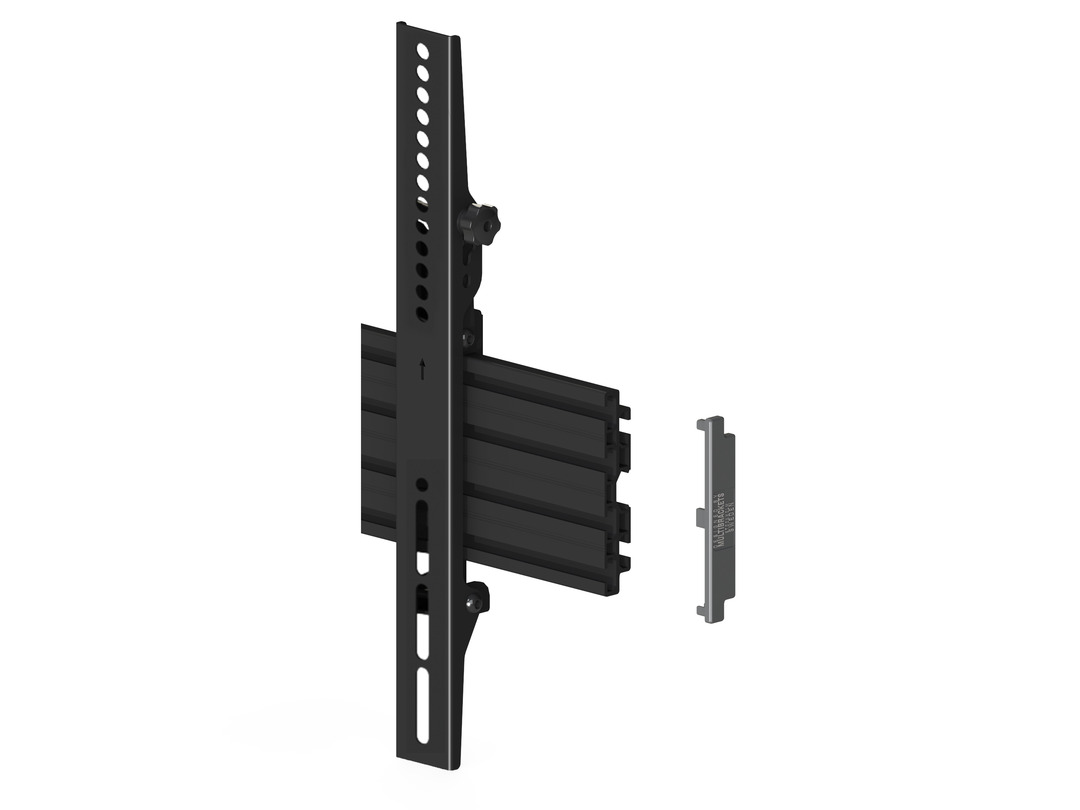

- Power Click installation system for safety and speed

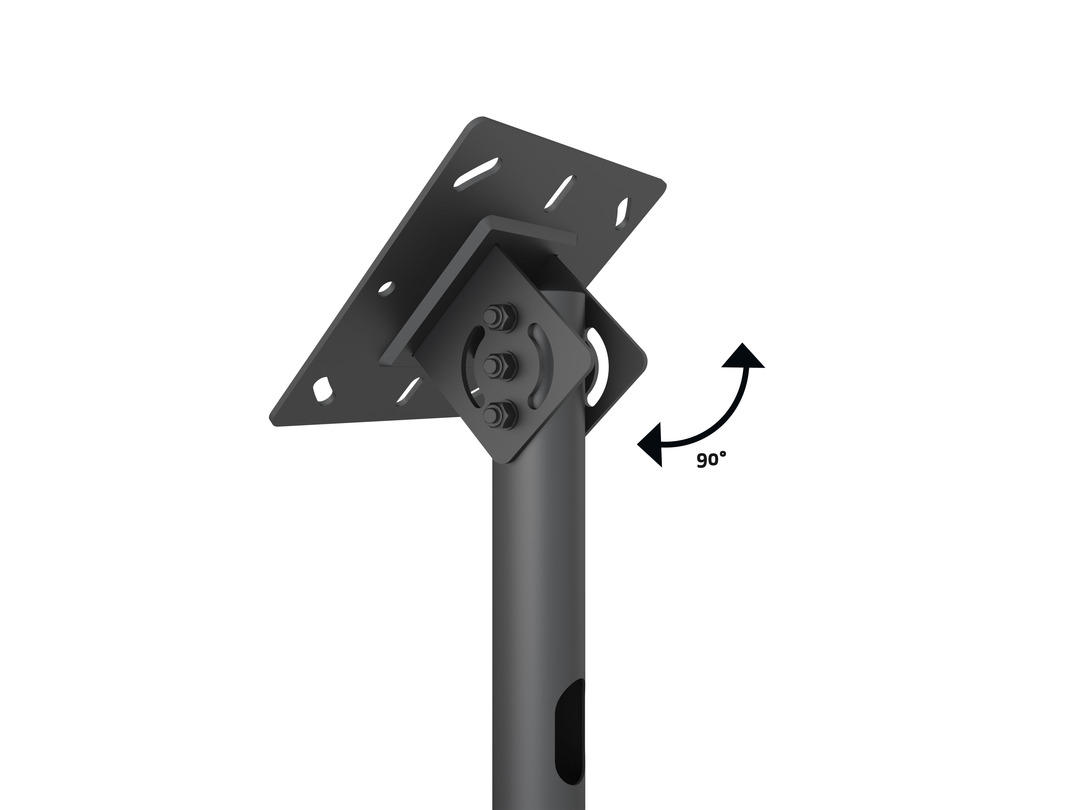

- Ceiling plate and complete hardware kit included

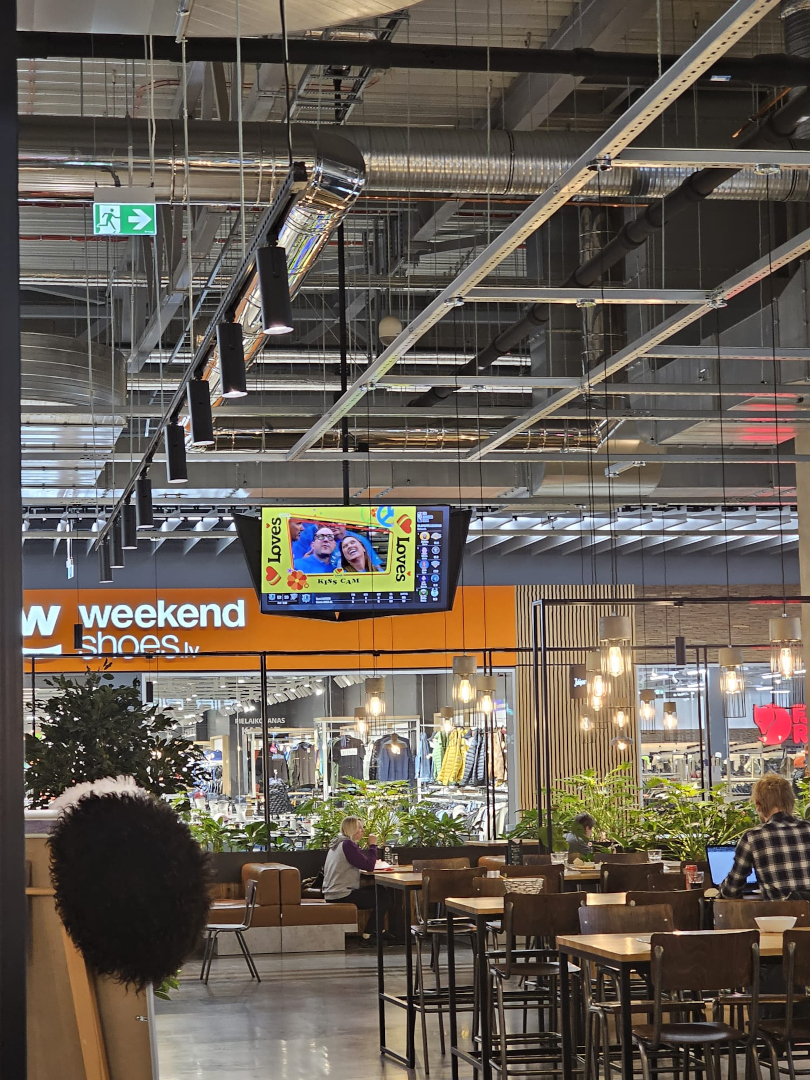

- Perfect for retail, public venues, and digital signage hubs
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC3U VESA 600 | |
| Article No: | 7 350 073 733 521 |
| For screen size: |
40”-65" |
| Type: | Triple Side MBC3U |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max Optional VESA 800x600 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 23 kg |
| Measurements | 338x117x102 cm |
| Max Load: | 30 kg per screen |

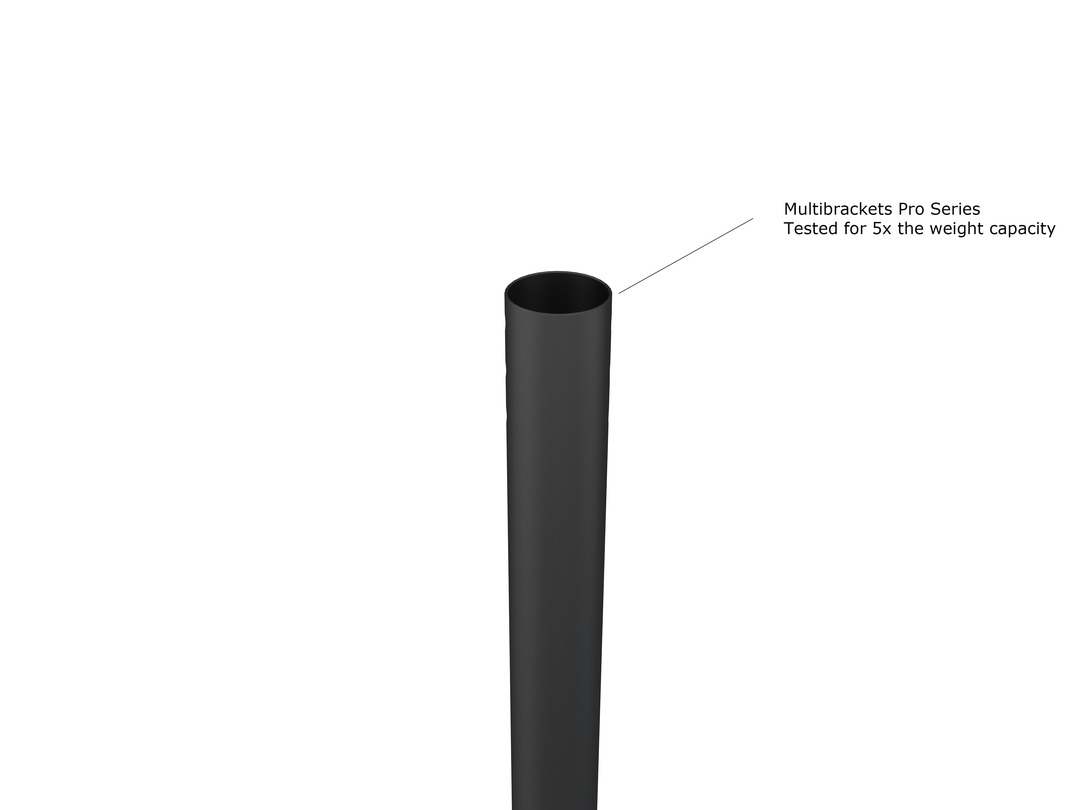

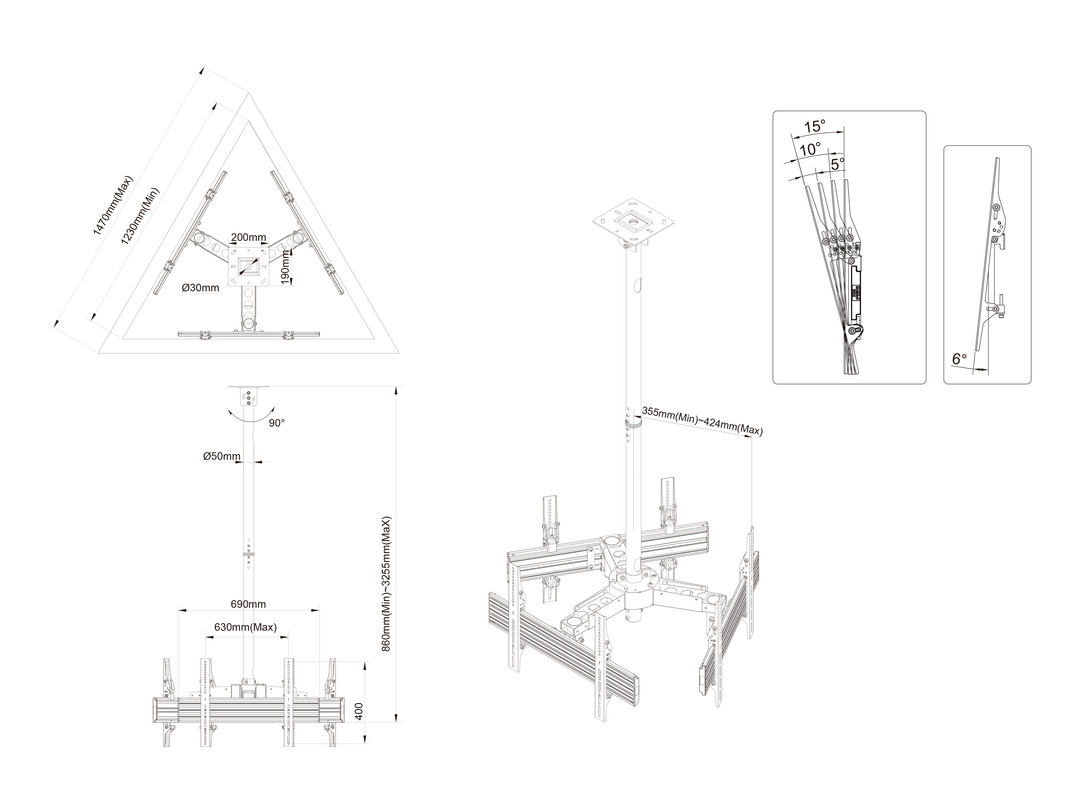

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 3m (800mm*4pcs) included |
| Tilt: | Yes, -6°~+15° |
| Swivel: | Yes, 360° |
| Rotate: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE, TÜV Nord |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 86 x 30 x 21 cm |
| Package Weight: | 28.00 kg |
