M Ceiling Mount Pro MBC3U VESA 75/100
Options
Variants that match your options:
Delivery: Status: Not in Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350105218200

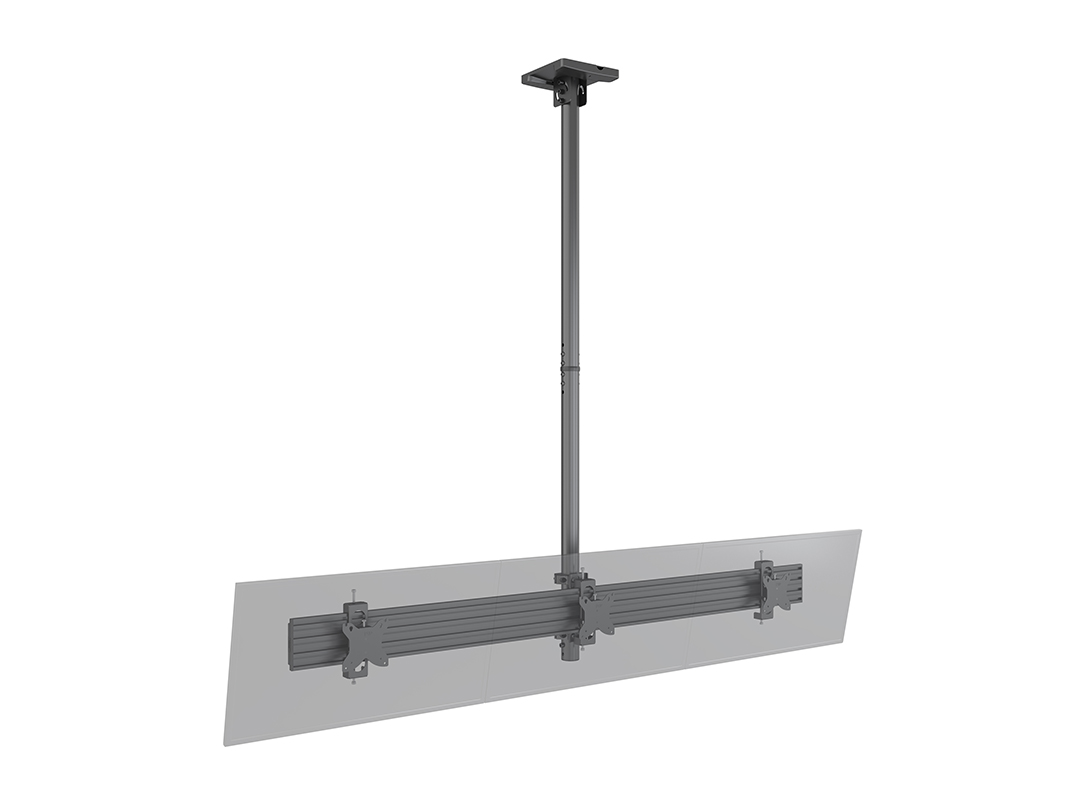

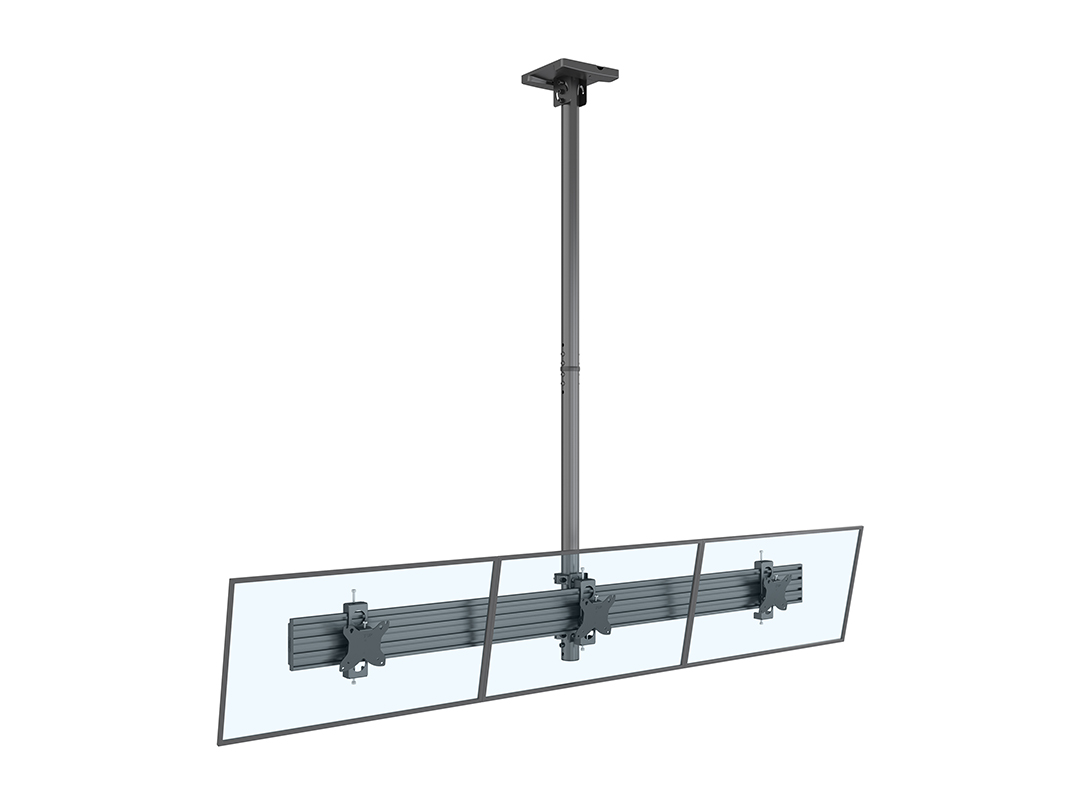

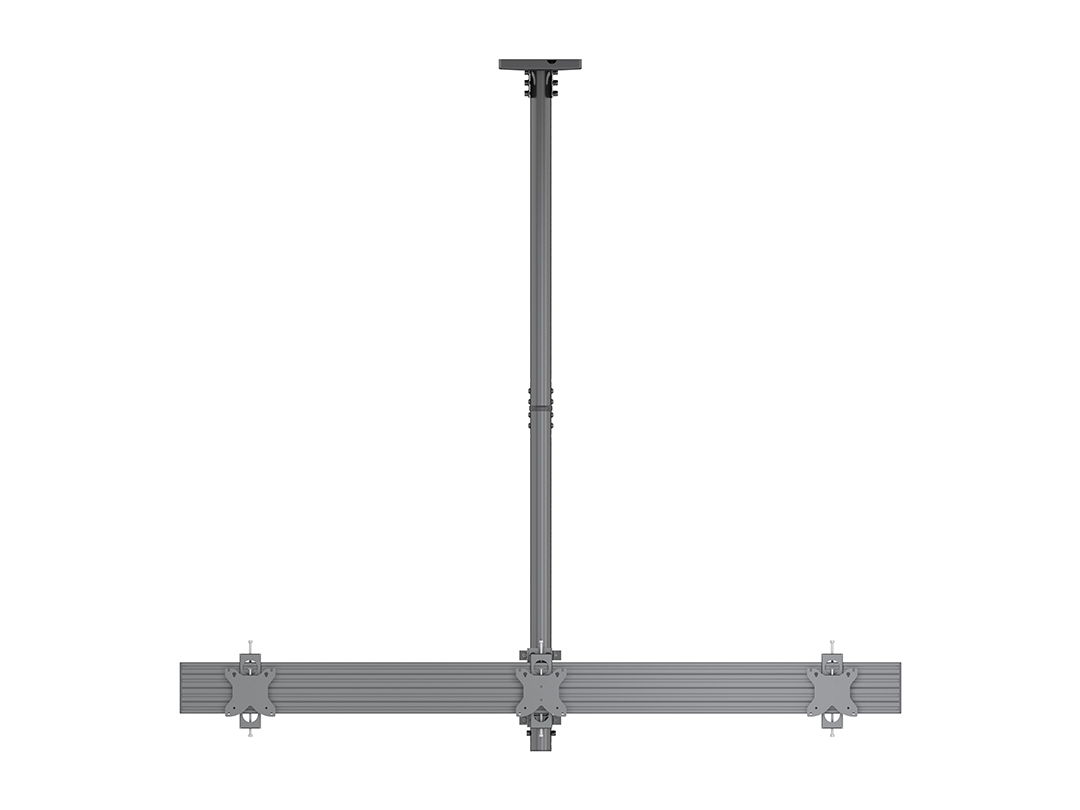

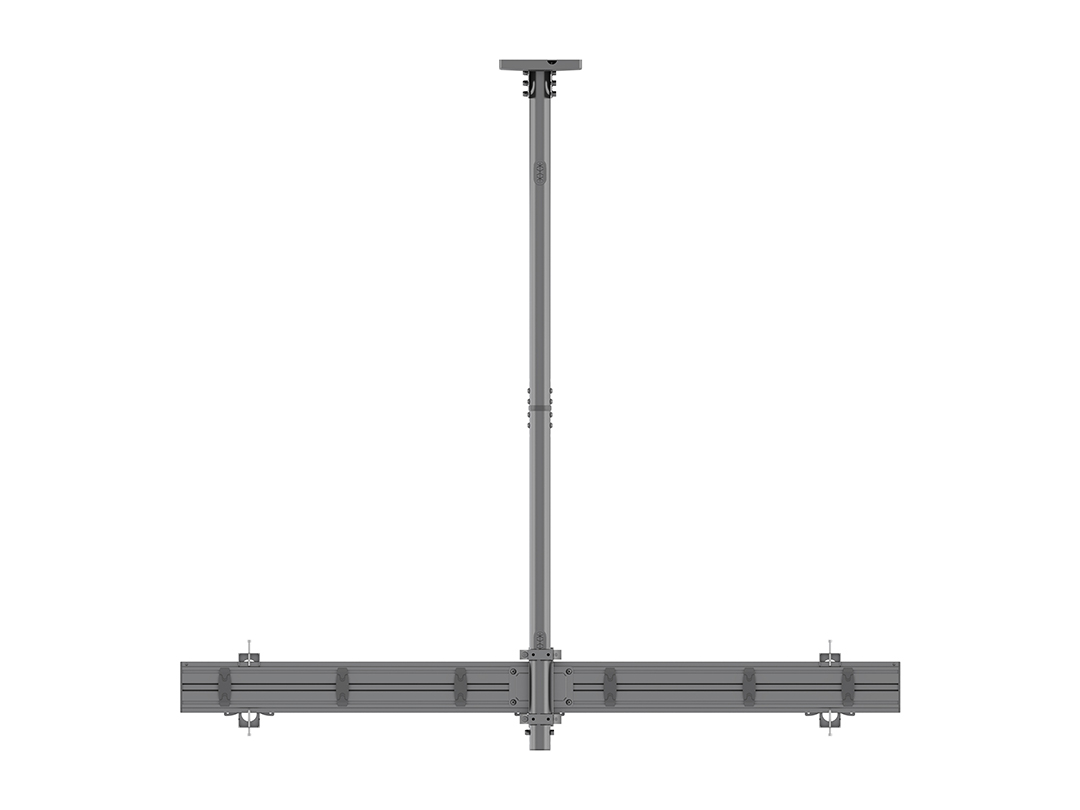

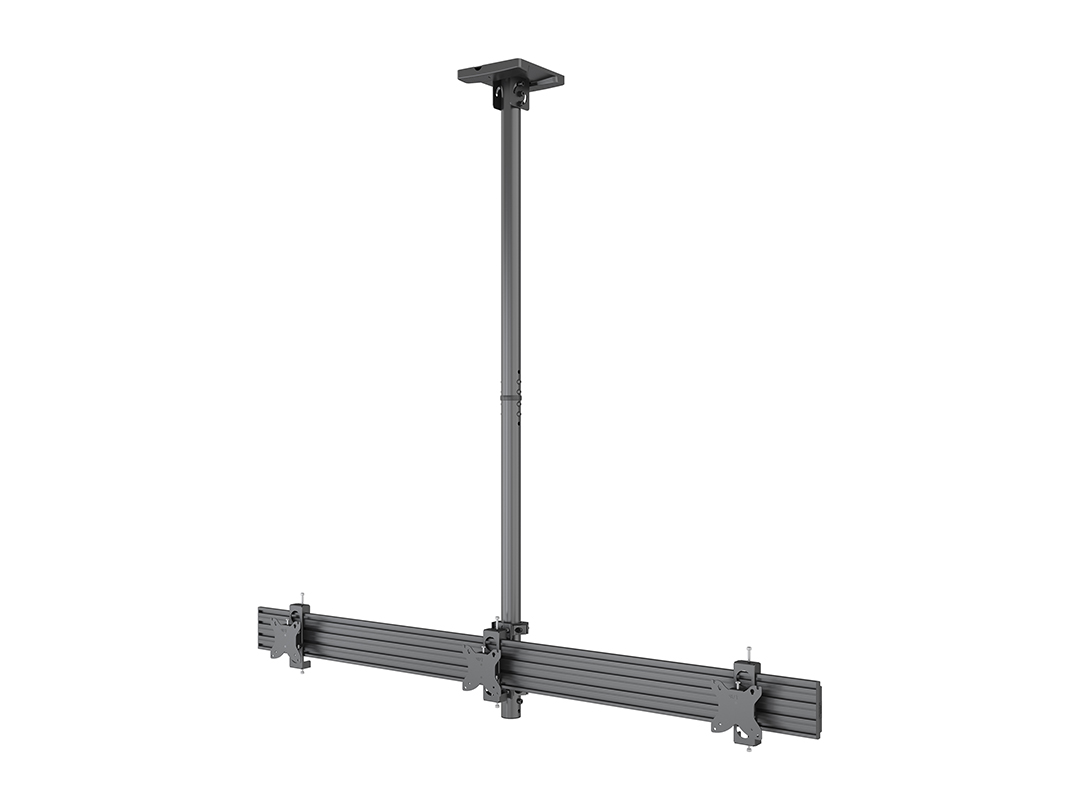

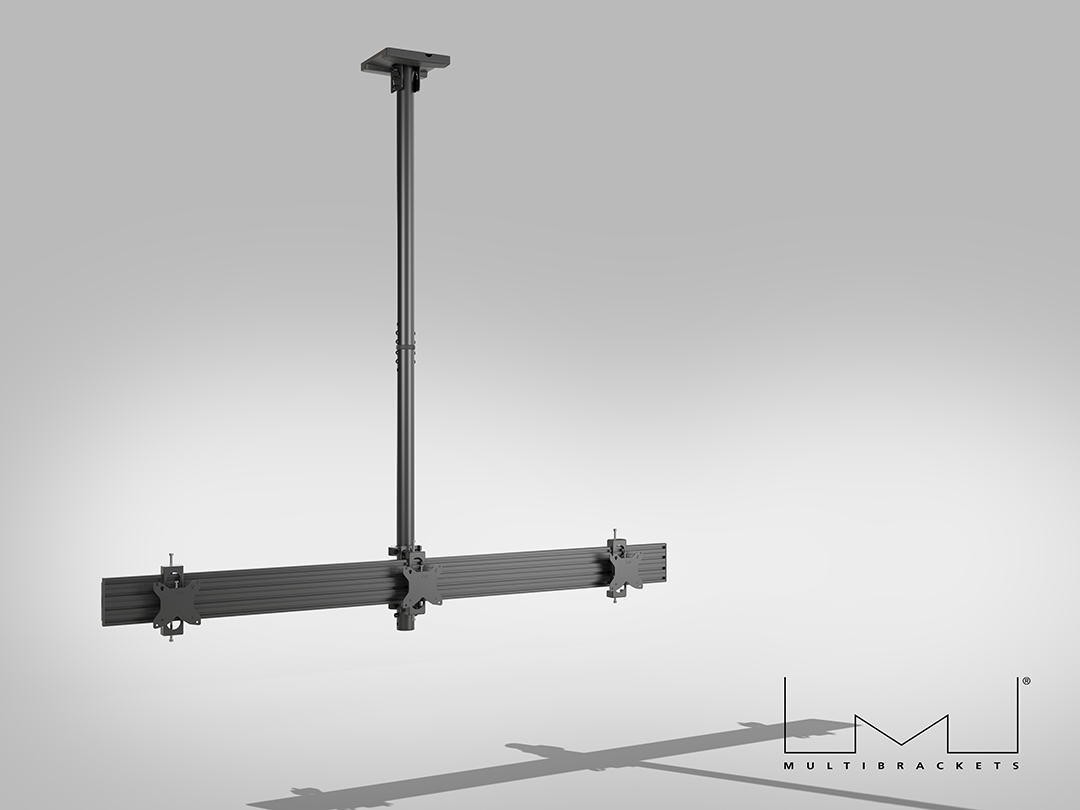

M Ceiling Mount Pro MBC3U VESA 75/100 - Ceiling mount for LCD display, steel, 1.5m length, 3 screens, triple sided, VESA Max 100x100 - screen size: 15"-32" - black
Product overview
The Multibrackets M Ceiling Mount Pro MBC3U is a professional-grade triple-sided ceiling mount designed for high-impact AV environments such as public displays, retail installations, and transportation hubs. Built on the Pro Series platform, it offers modularity, flexibility, and installer-friendly features in one clean solution.

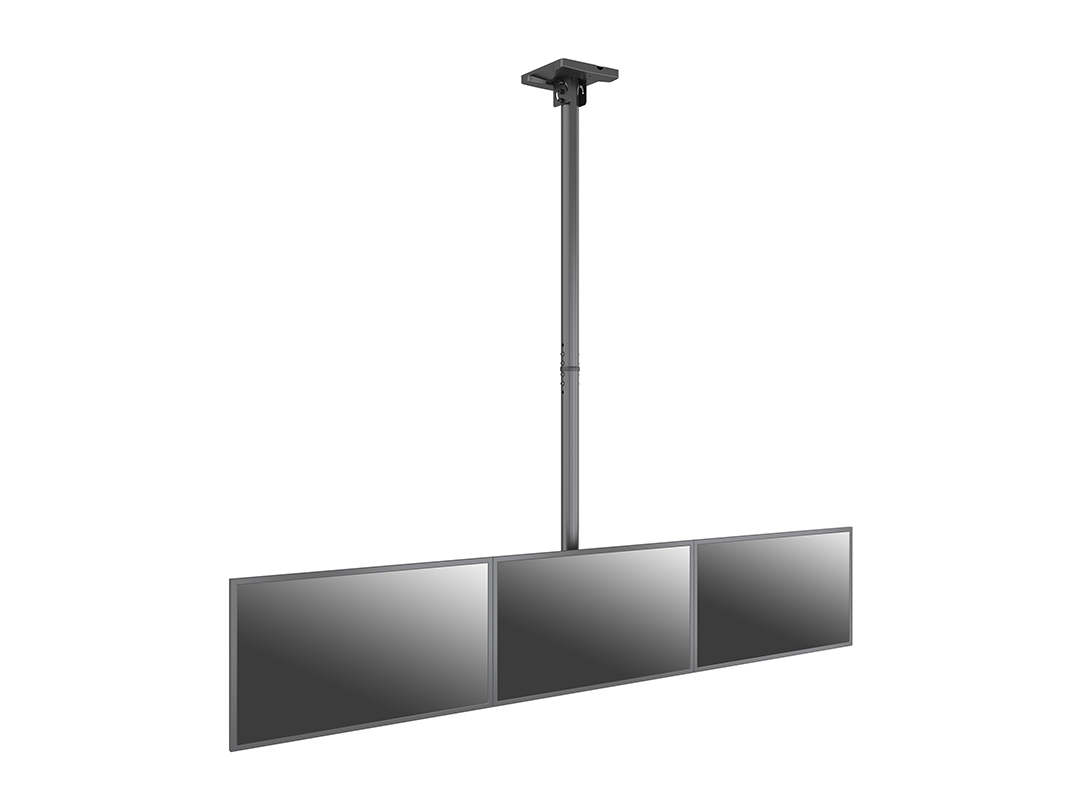

With support for three monitors in a 360° arrangement, the MBC3U enables maximum visibility from all directions. It features a durable aluminum rail system, full-length integrated cable management, and a sleek black Nordic design. The mount is VESA 75x75 and 100x100 compatible, allowing both portrait and landscape orientations.
Installation is fast and secure with the Power Click system, and the modular build means it can be expanded or reconfigured for future requirements. Ideal for large-scale signage or multi-angle information displays.
Click to view larger images
Highlights
-

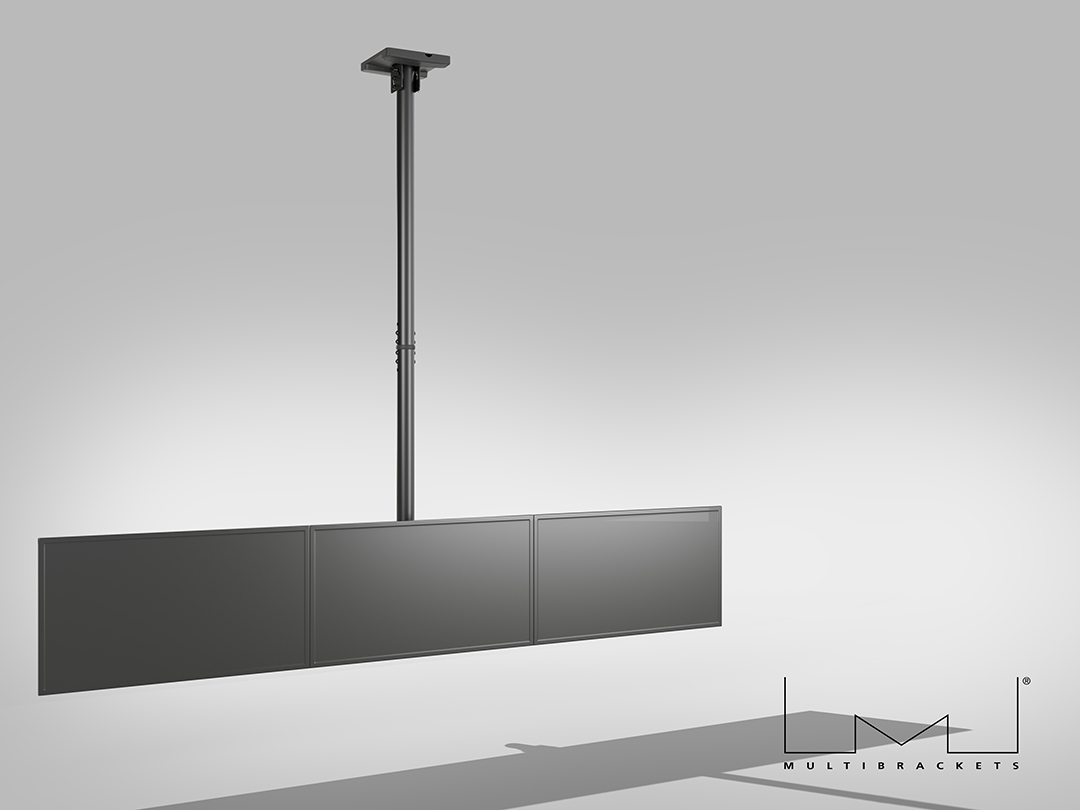

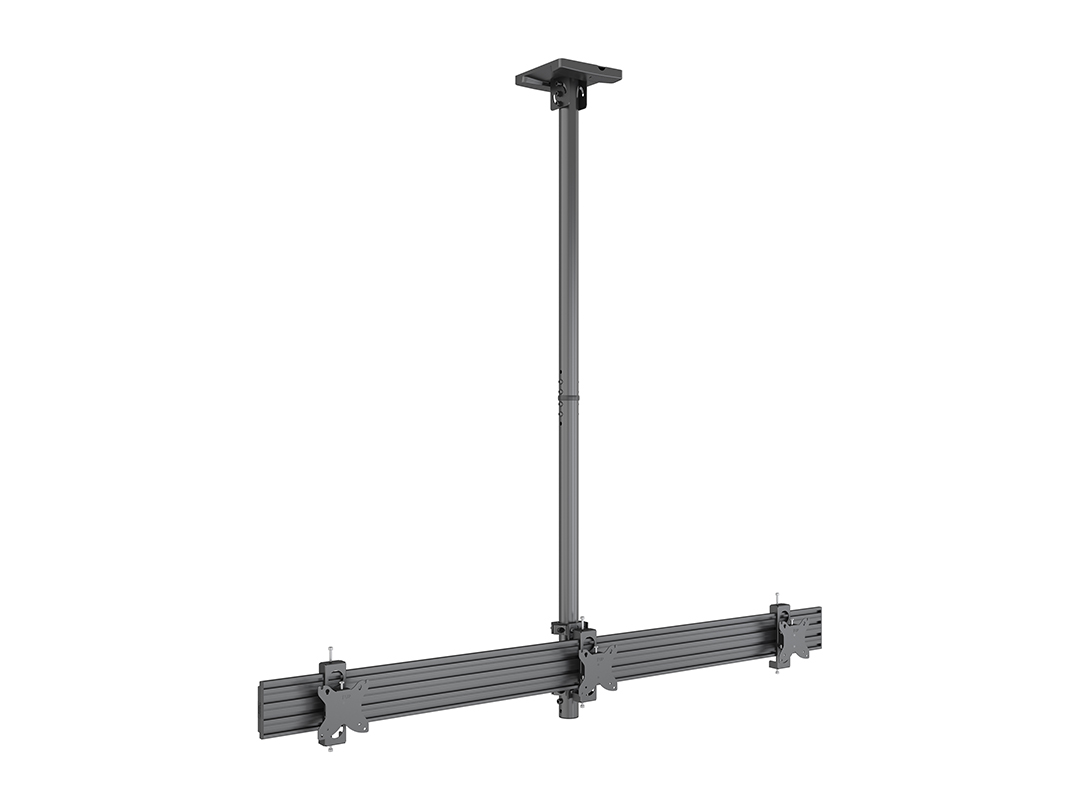

Ceiling mount for triple-sided monitor setup
-
Supports screen sizes up to 32" with VESA 75x75 and 100x100
-

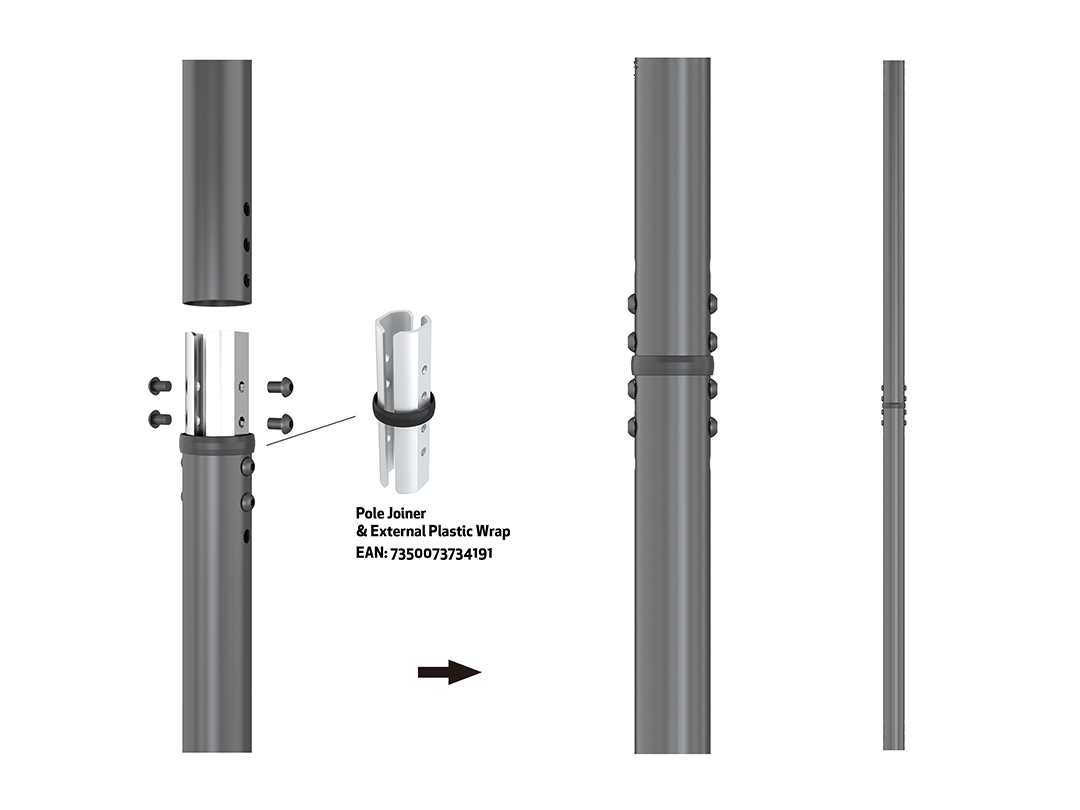

Fully modular design with expandable configuration
-

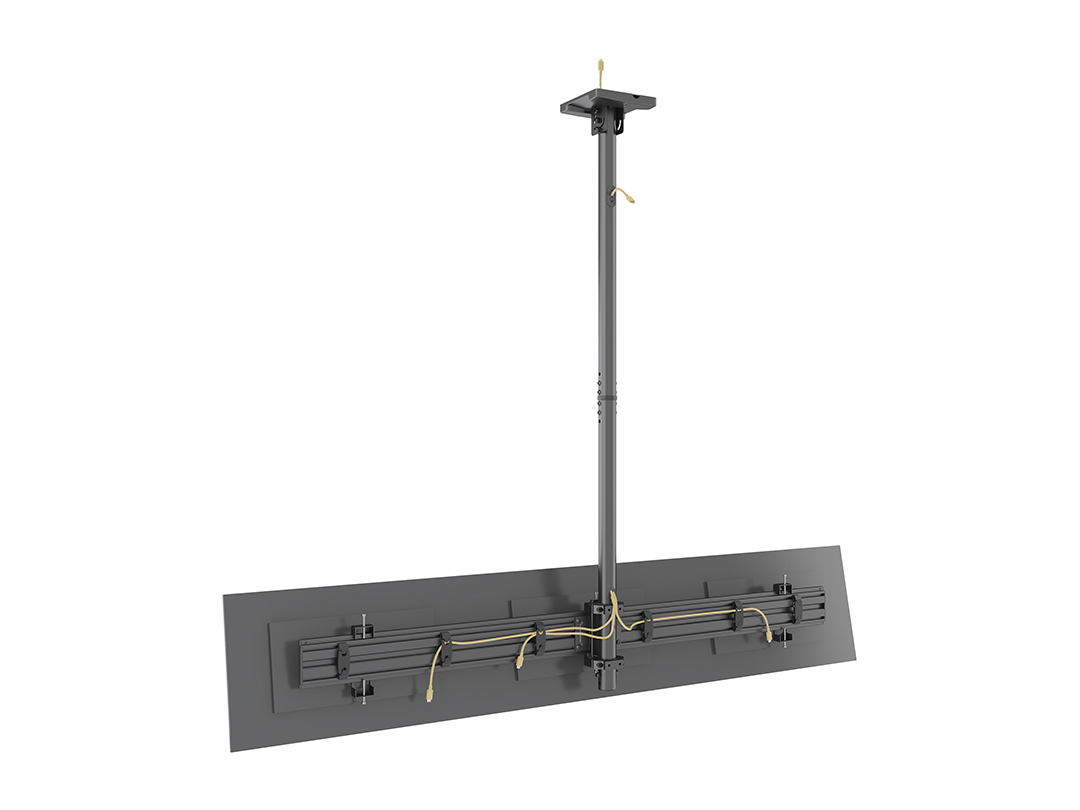

Integrated cable management for clean installations
-
Portrait or landscape monitor orientation supported
-
Power Click system for fast, safe installation
-
Premium Scandinavian design with durable black finish
-

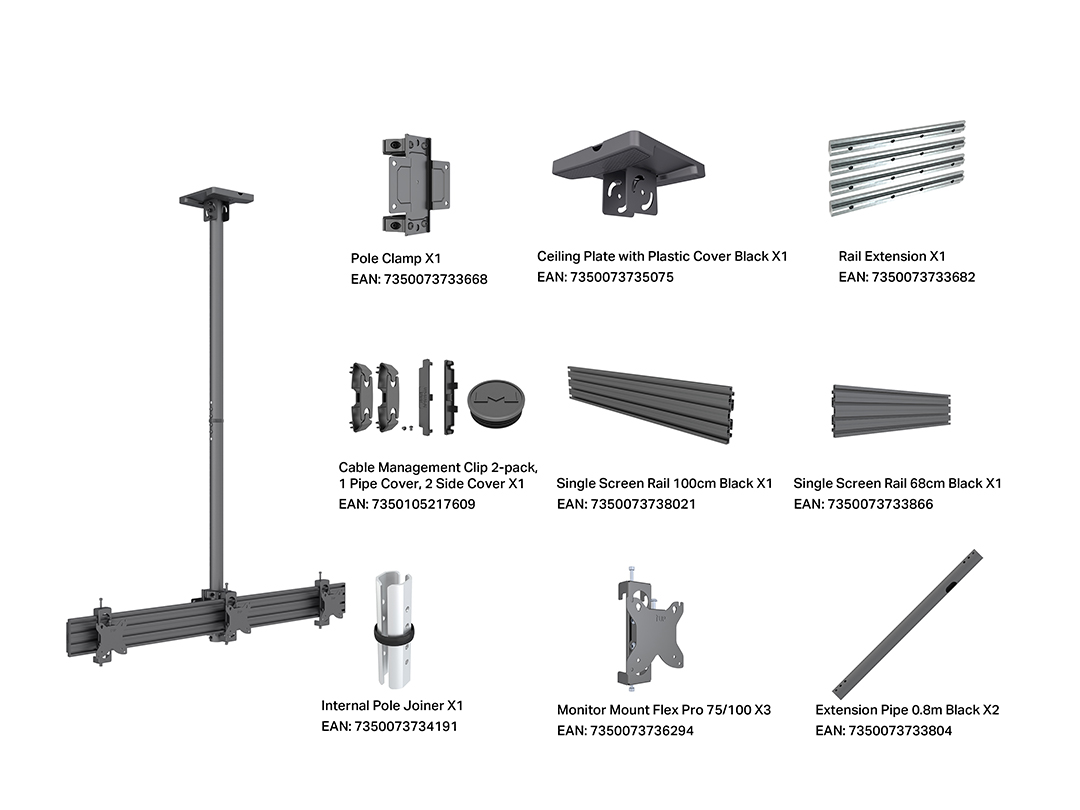

Includes ceiling plate and hardware kit for professional setup
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC3U VESA 75/100 | |
| Article No: | 7 350 105 218 200 |
| For screen size: |
15”-32" |
| Type: | Triple Sided MBC3U |
| Universal & VESA standard: | From 75x75 to 100x100 |
| Material: | Steel, Aluminium, Plastic |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 13 kg |

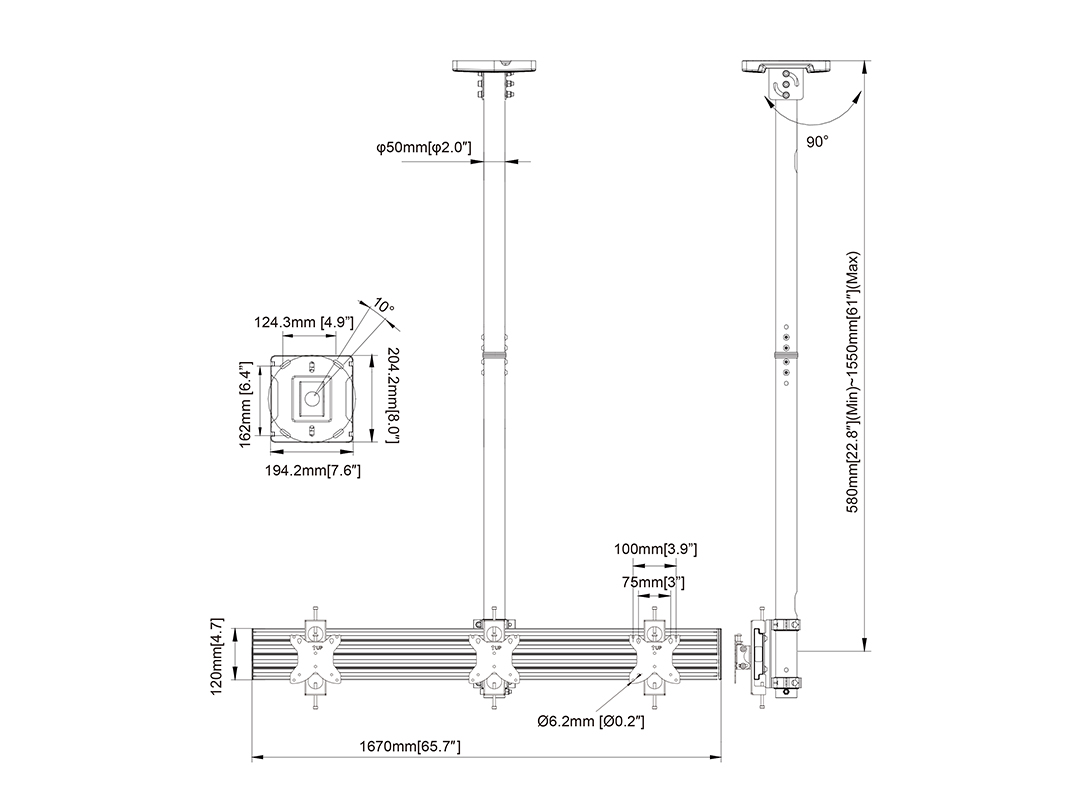

| Measurements | 104.5 x 20 x 14.2 cm |
| Max Load: | 10 kg per screen |

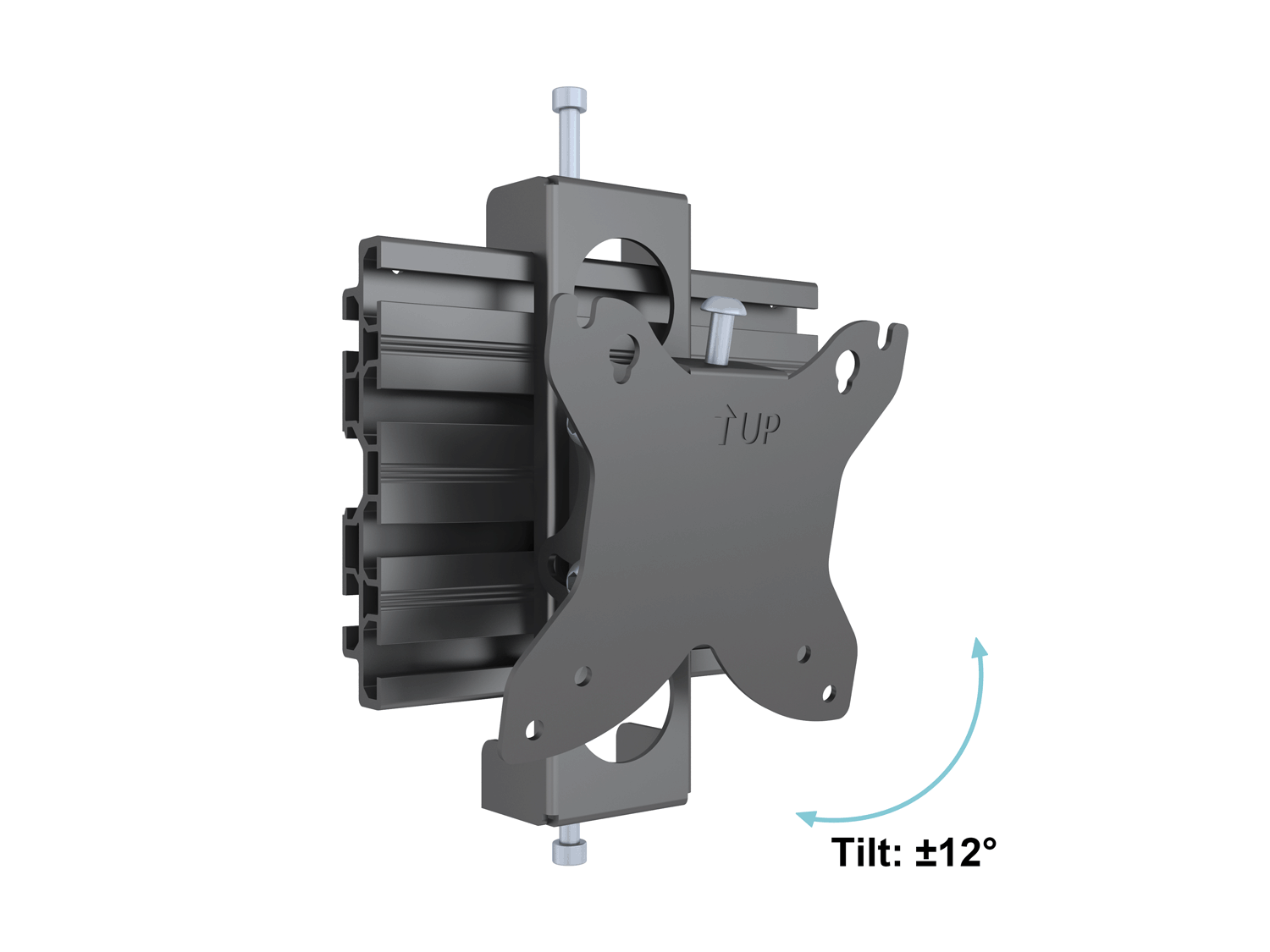

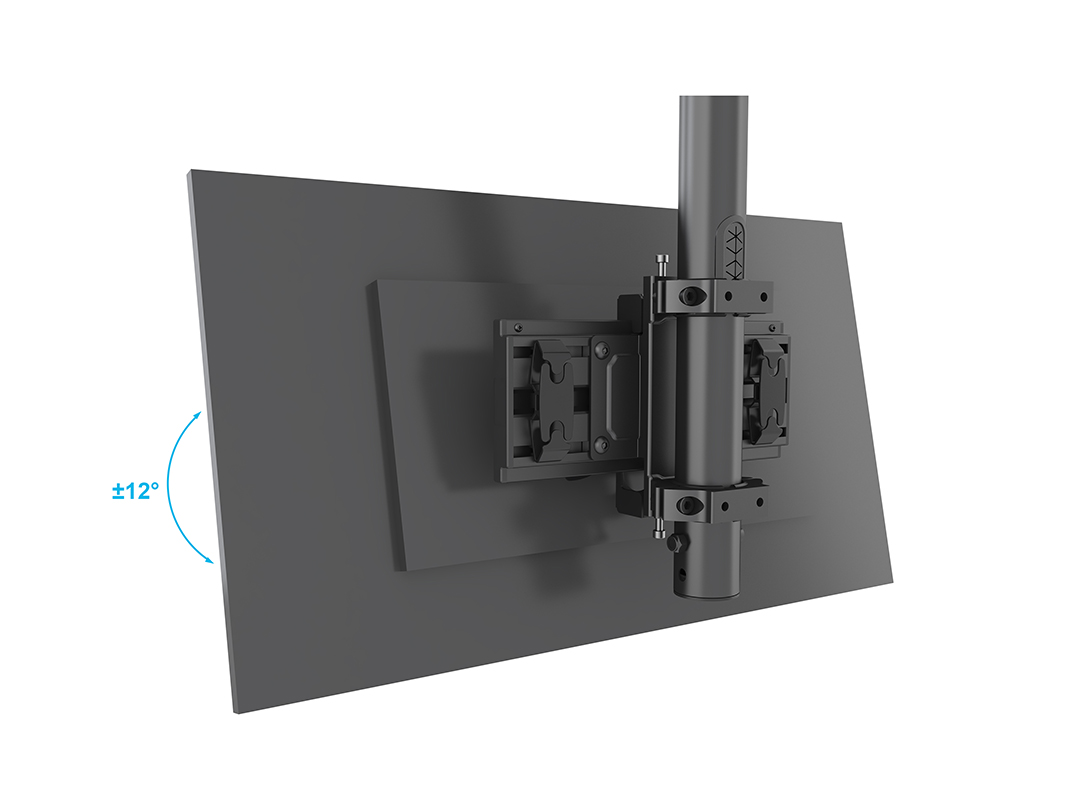

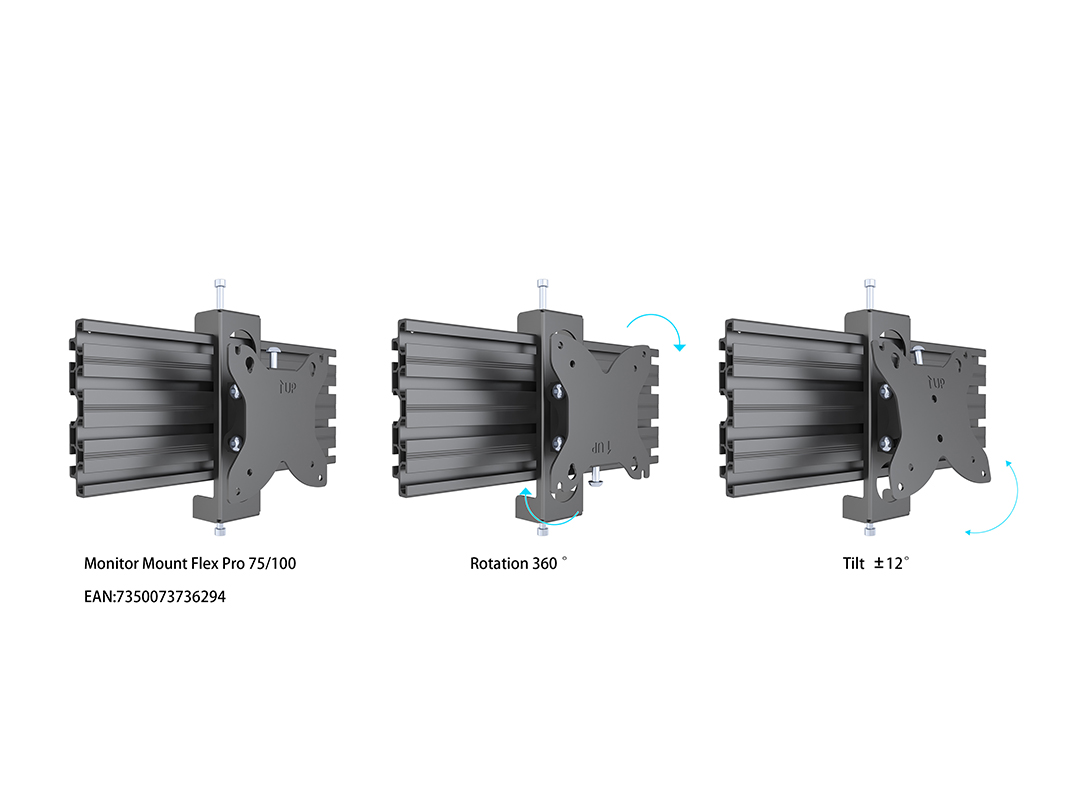

| Tilt: | Yes, -12°~+12° |
| Swivel: | No |

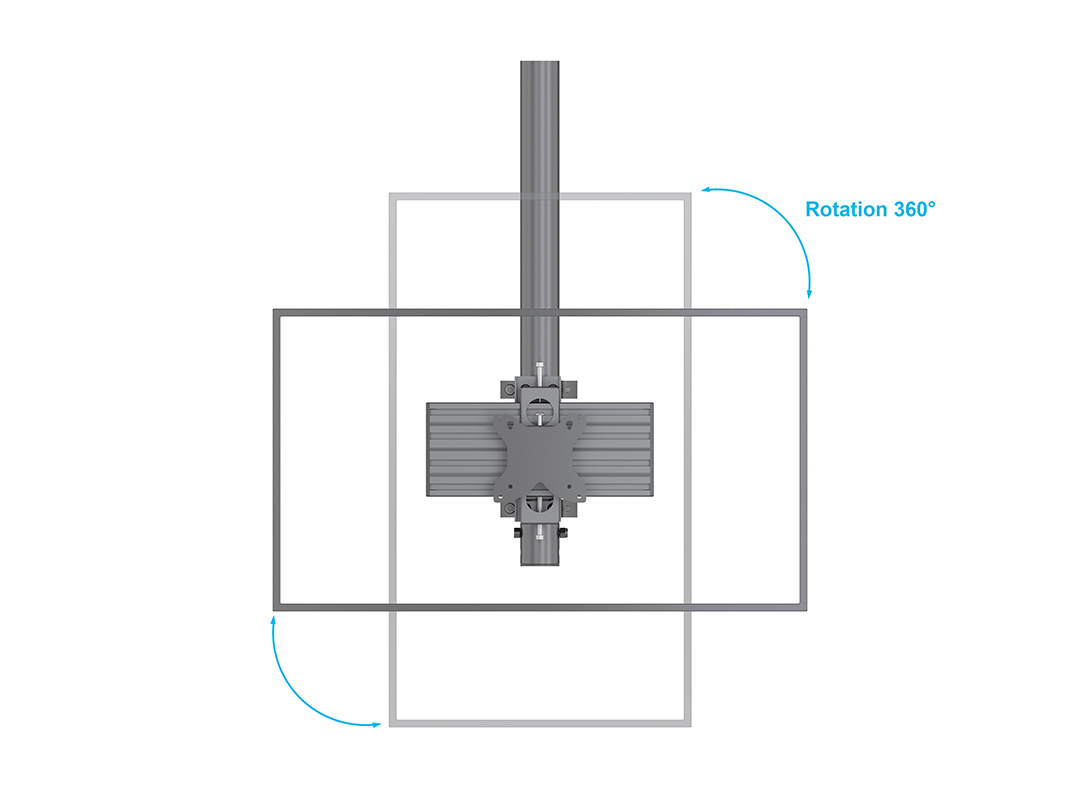

| Rotate: | 360° |
| Cable Management: | Yes |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 104.5 x 20 x 14.2 cm |
| Package Weight: | 14 kg |
