M Ceiling Mount Pro MBC3X2U VESA 600
Options
Variants that match your options:
In stock: 102
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073733569
Product overview

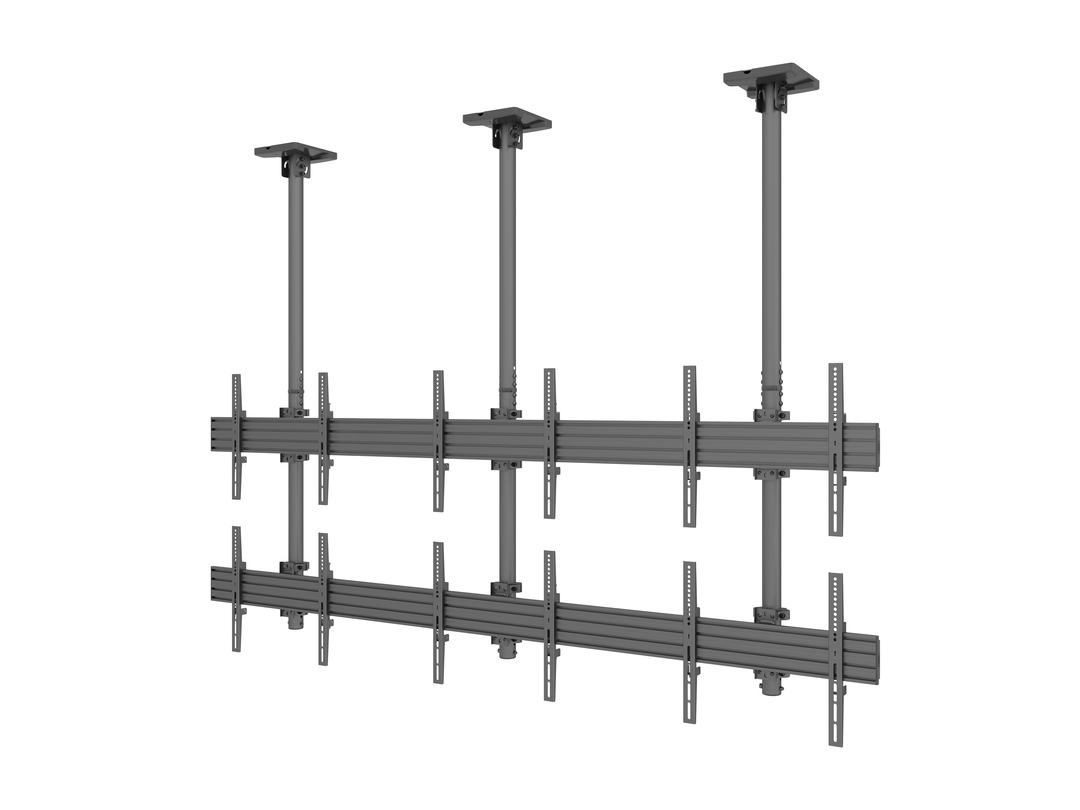

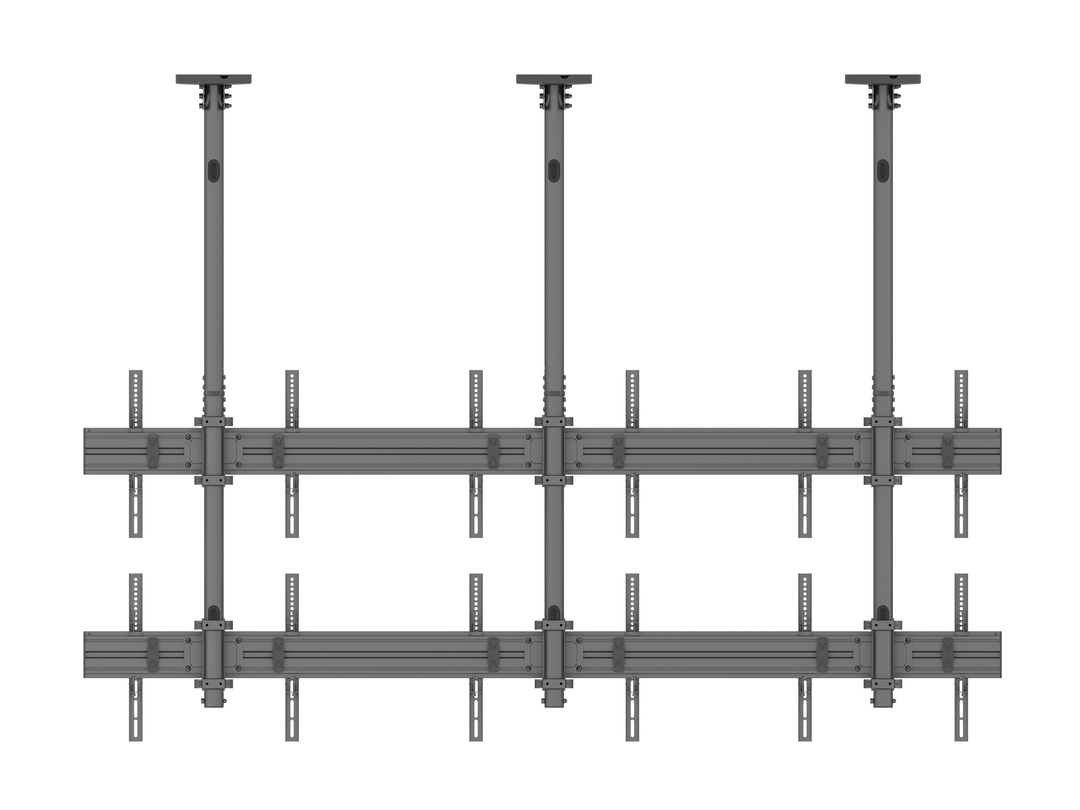

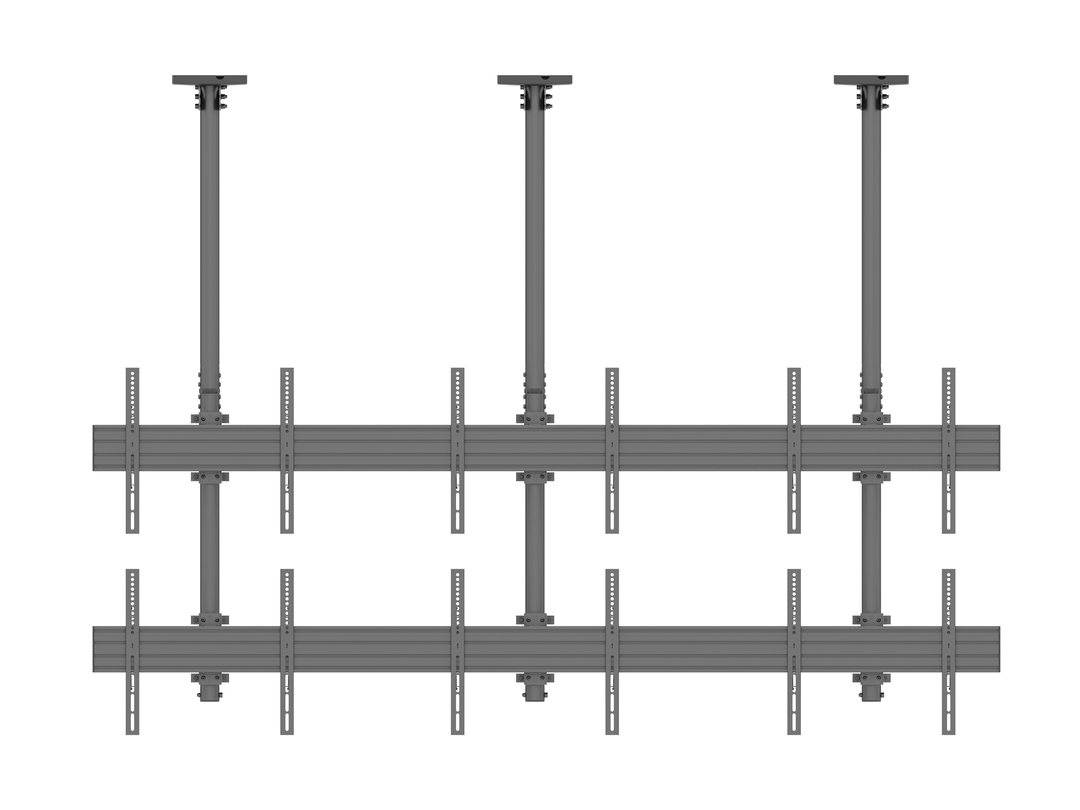

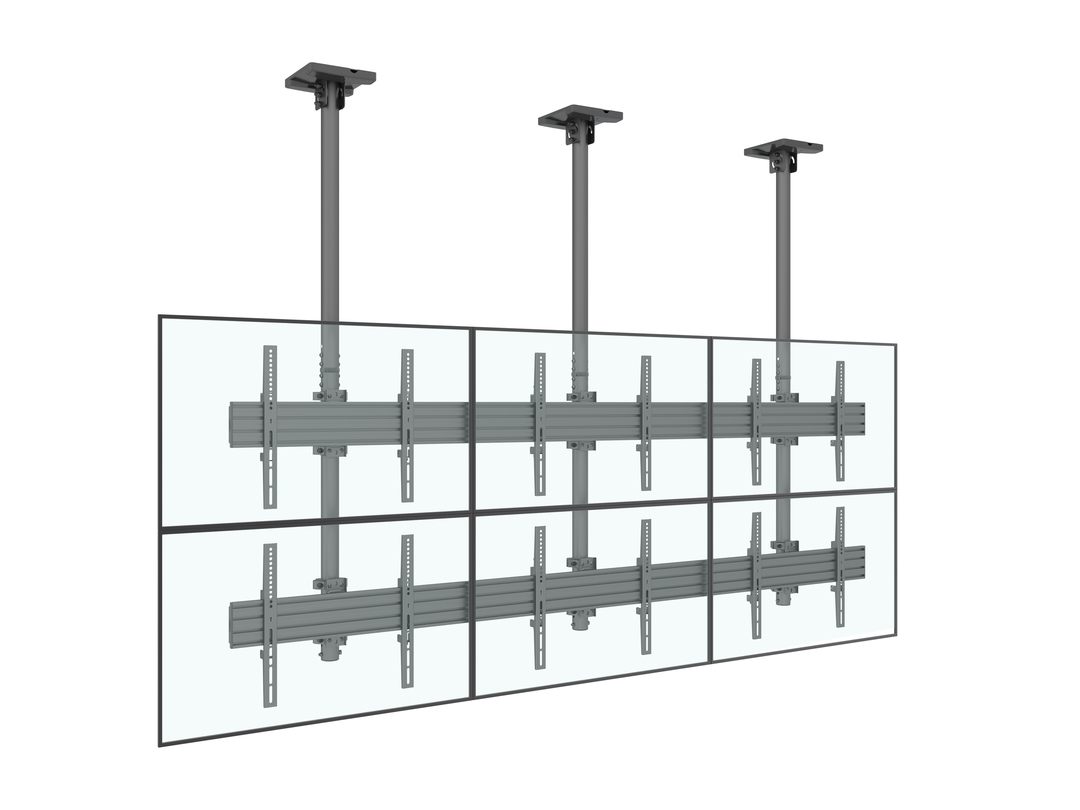

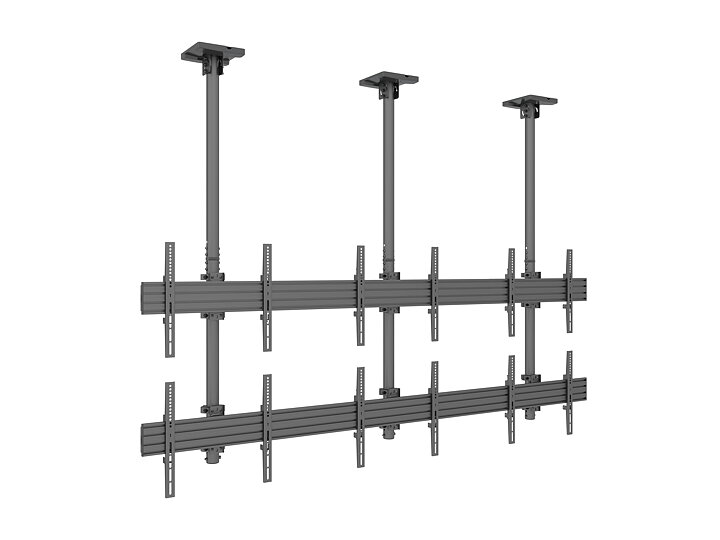

The Multibrackets M Ceiling Mount Pro MBC3X2U VESA 600 is a high-capacity, single-side ceiling mount that supports up to six displays. Designed for professional AV and signage installations, this Pro Series solution offers a robust, modular design with fast installation and clean cable management for a professional finish.
Built on a strong aluminum rail system, this mount ensures long-term reliability in demanding environments such as control rooms, transportation hubs, and retail. Its fully modular construction allows for updates and reconfiguration over time, making it a future-proof investment.
Influenced by Scandinavian design principles, the MBC3X2U combines aesthetic elegance with maximum functionality. It supports both portrait and landscape orientations and includes everything needed for a quick and secure installation.
Highlights
- Single-side ceiling mount supporting up to 6 displays
- VESA compatible up to 600x400
- Screen size support: 40"-65"
- Durable aluminum rail system with fixed arms
- Fully modular design for flexible configurations
- Power Click system ensures fast, secure installation
- Supports portrait and landscape screen orientation

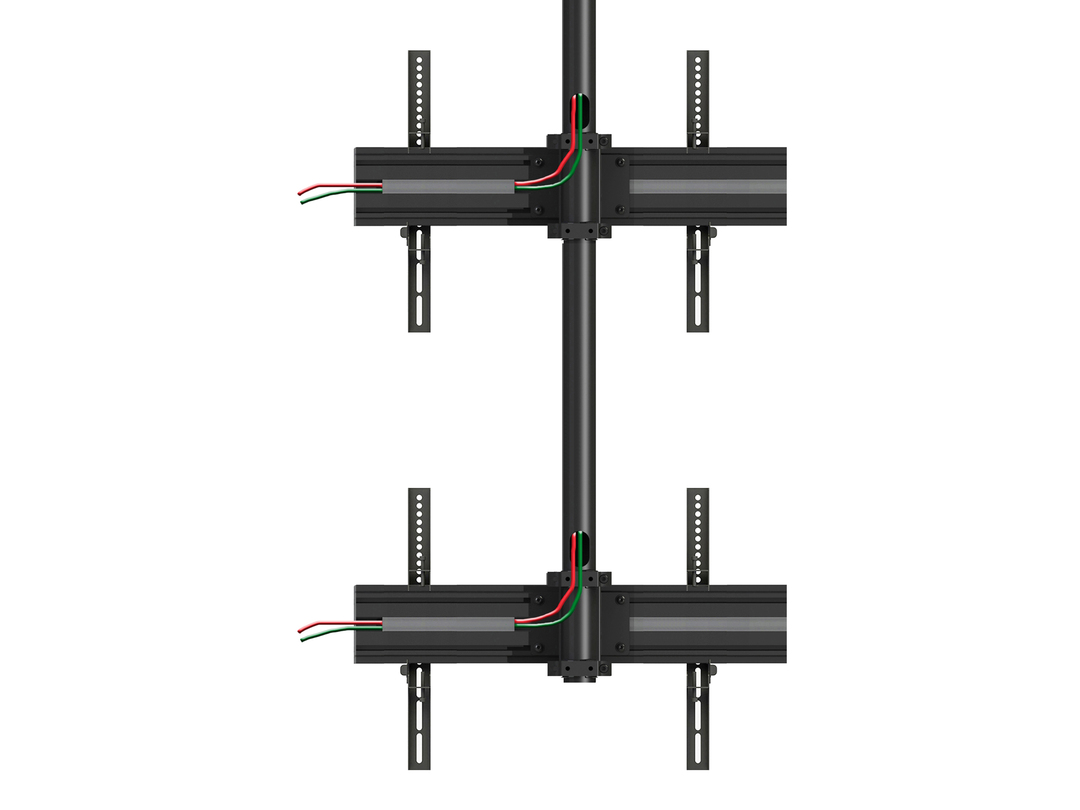

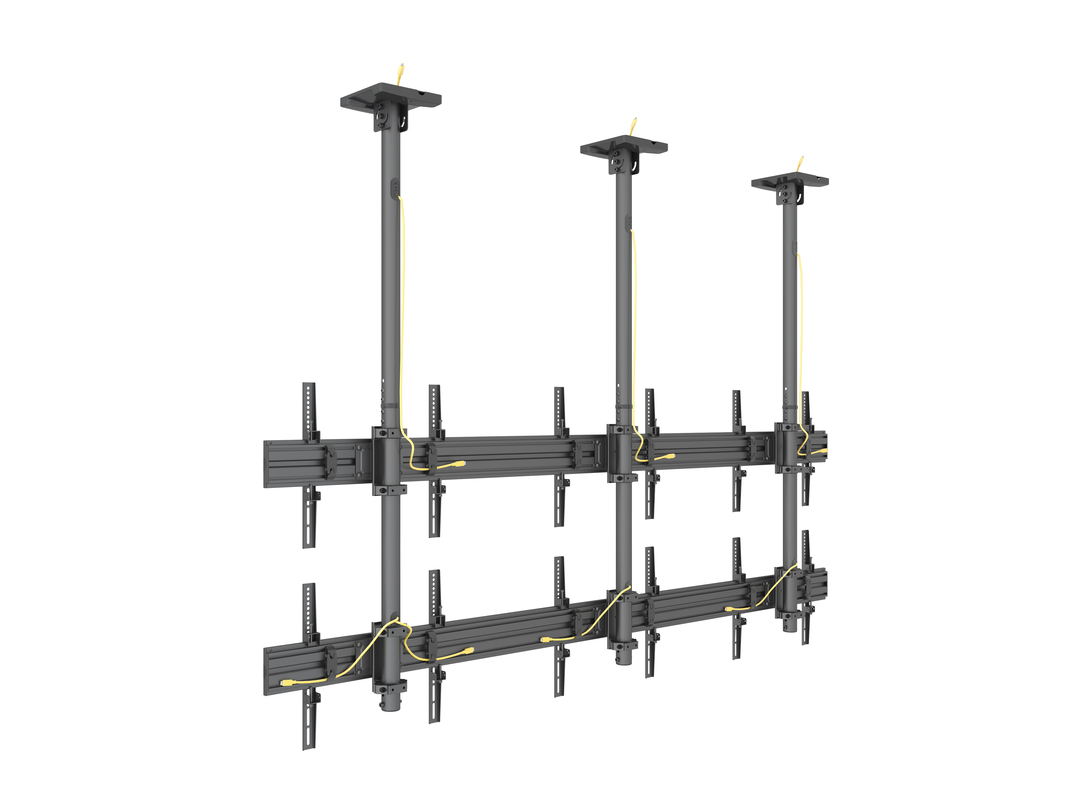

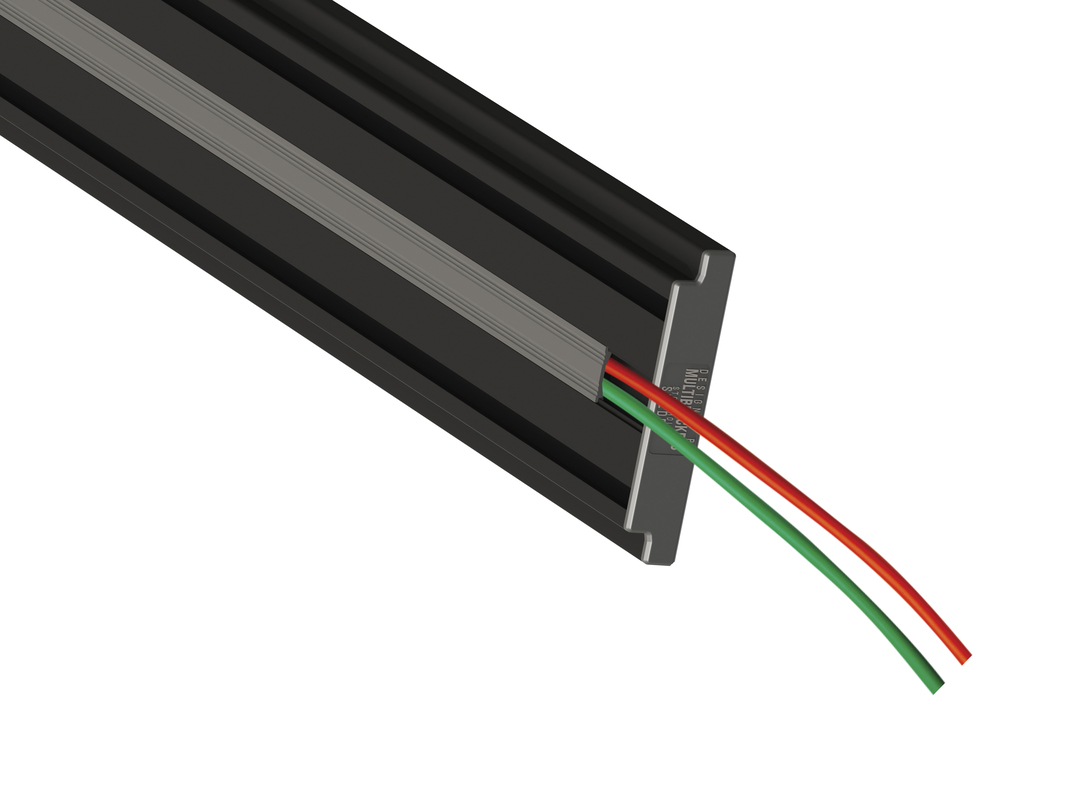

- Integrated cable management throughout

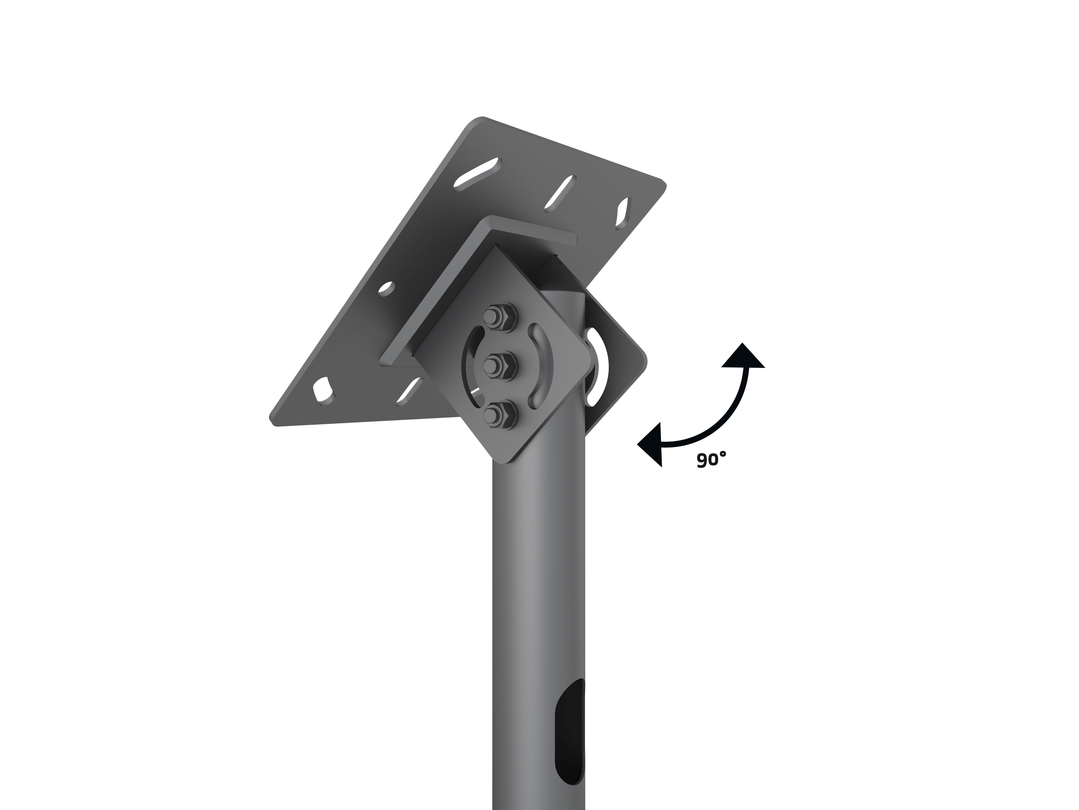

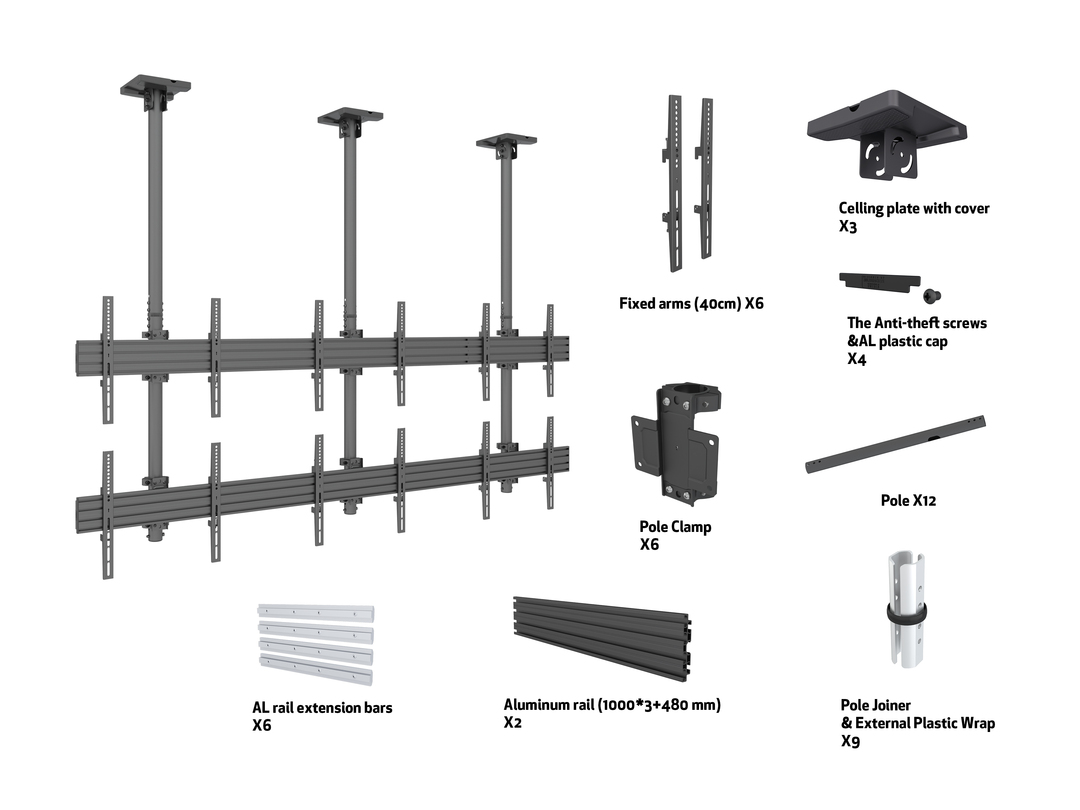

- Ceiling plate and complete hardware kit included
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC3X2U VESA 600 | |
| Article No: | 7 350 073 733 569 |
| For screen size: | 40”-65" |
| Type: | Single Side MBC3X2U |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max Optional VESA 800x600 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 56 kg |

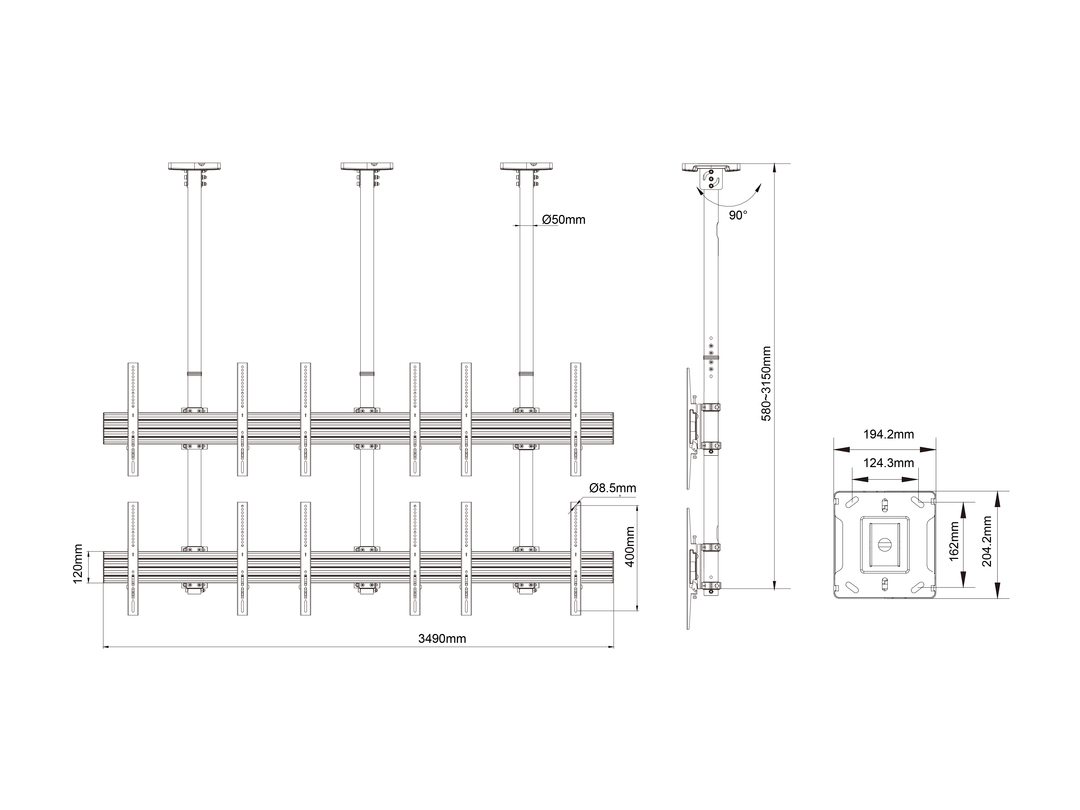

| Measurements | 369x338x20 cm |
| Max Load: | 30 kg per screen |
| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 3m (800mm*12pcs) included |

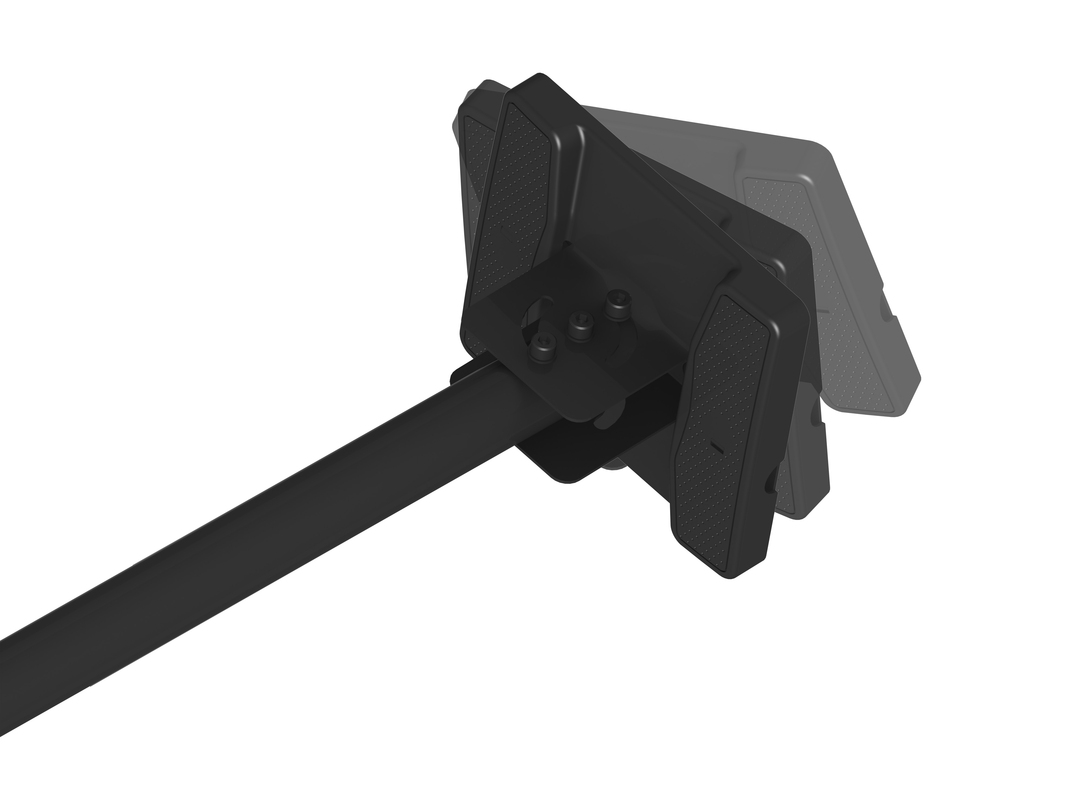

| Fixed: | Yes, Option: Tilt -6°~+15° |
| Swivel: | No |
| Rotate: | No |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 104 x 27 x 34 cm |
| Package Weight: | 55.10 kg |
