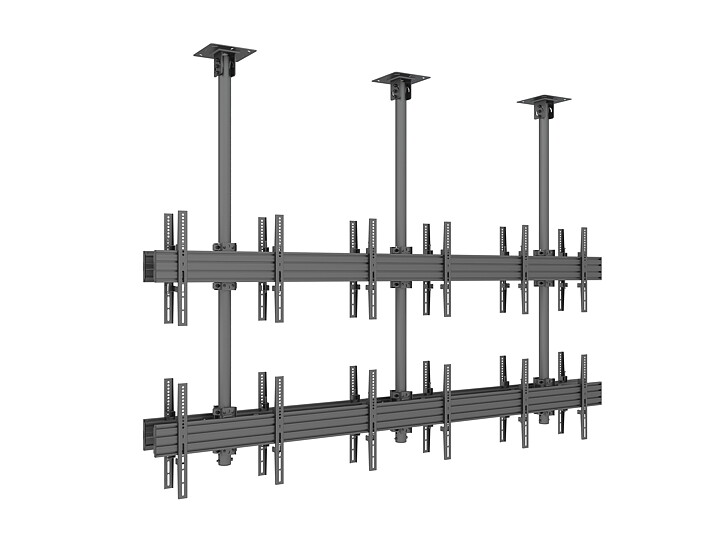

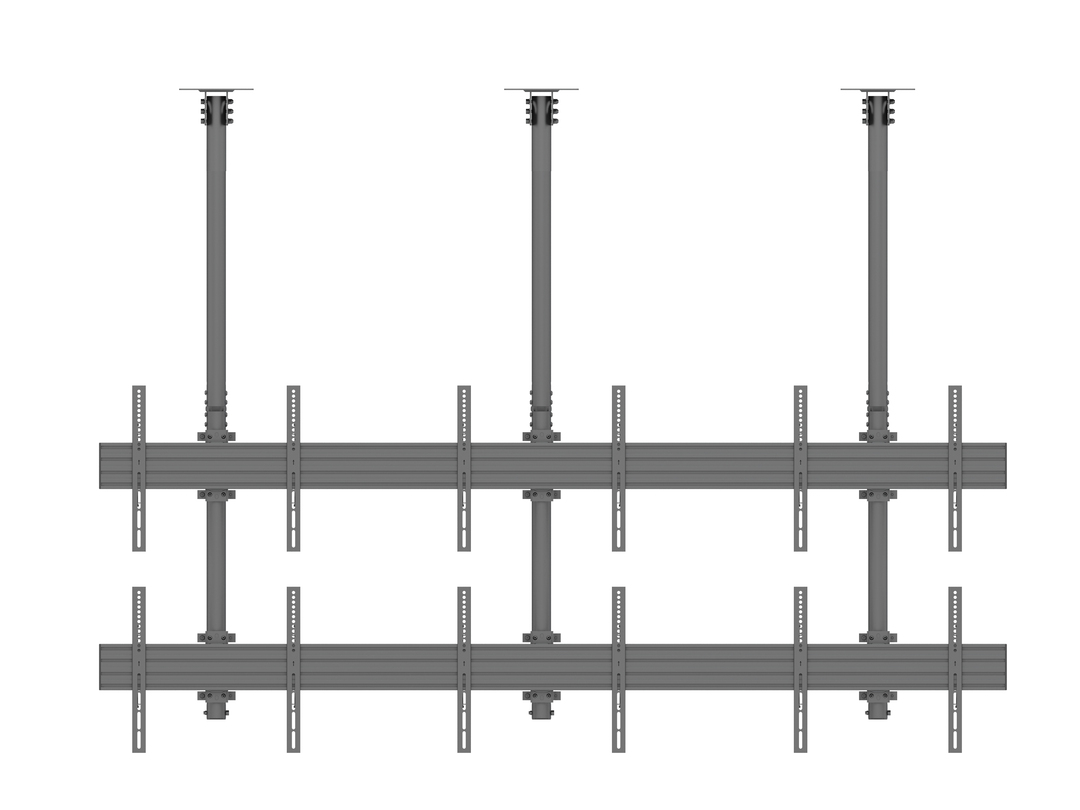

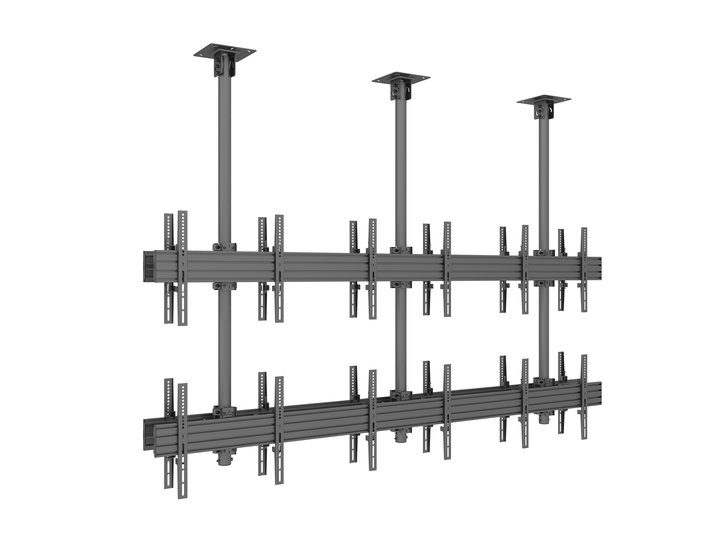

M Ceiling Mount Pro MBC3X2U2 VESA 600
Options
Variants that match your options:
In stock: 42
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073733606
Product overview

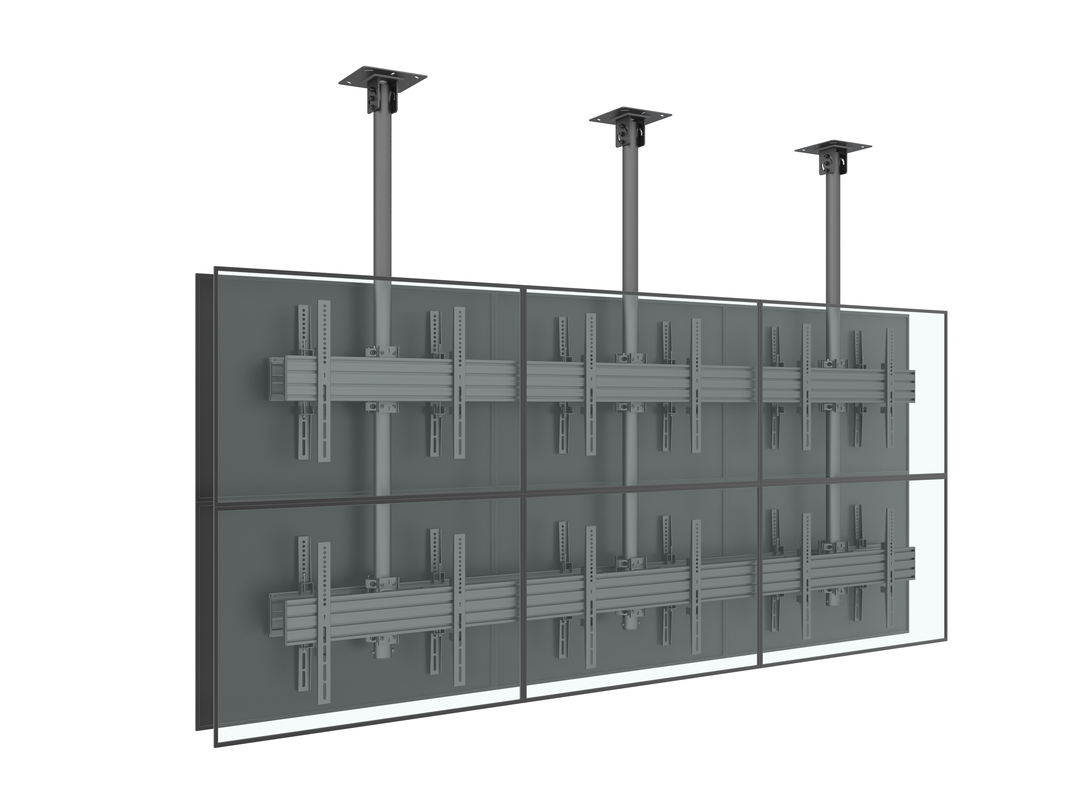

The Multibrackets M Ceiling Mount Pro MBC3X2U2 VESA 600 is a heavy-duty dual-side ceiling mount designed for large-scale digital signage environments. Supporting up to 12 screens, this solution is ideal for transportation hubs, retail chains, stadiums, and public spaces where high-impact visibility is essential.
Part of the Multibrackets Pro Series, the MBC3X2U2 is built on a robust and modular aluminum rail system that enables flexible installations. It features fully integrated cable management for a neat appearance and streamlined setup—perfect for professional AV environments requiring reliability and visual precision.
The mount is fully modular and can be customized to specific project needs, making it easy to scale or adapt over time. Its Scandinavian design ensures clean lines and high-quality materials, combining function and aesthetics in any public-facing application.
Highlights

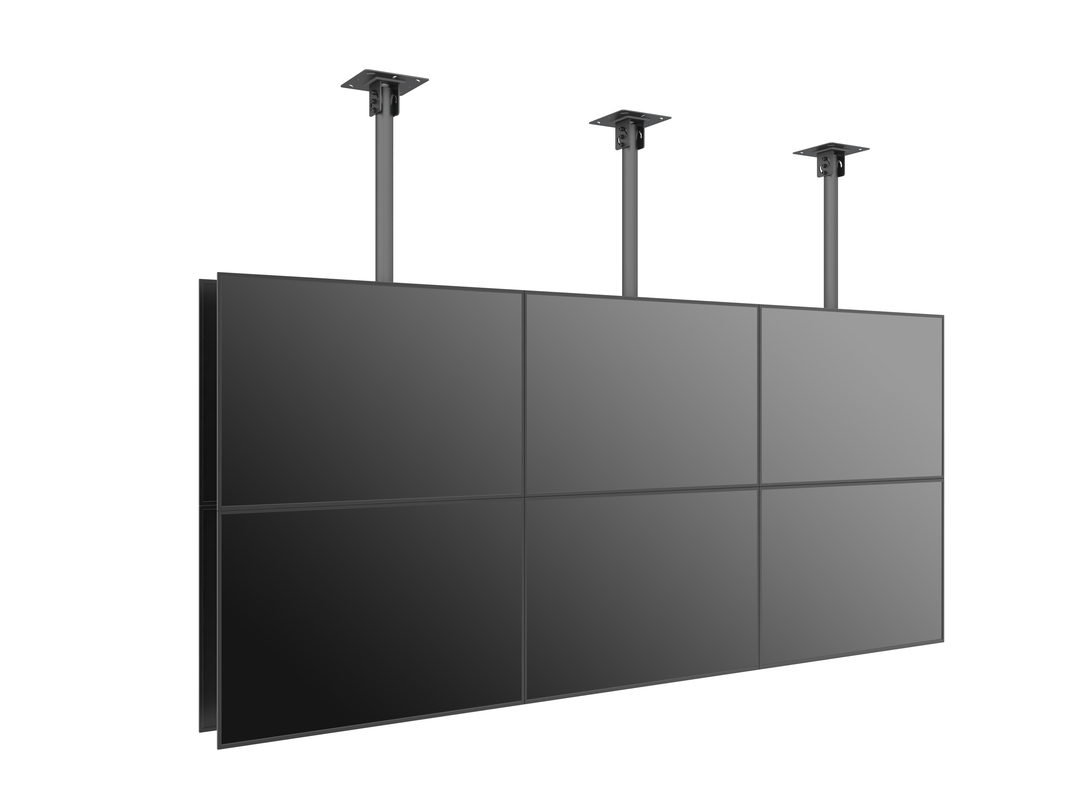

- Supports 12 screens in a dual-side configuration
- Max screen size: 65", max load 30kg per screen
- VESA compatibility up to 600x400
- Integrated cable routing for clean installations
- Modular design for scalable setups
- Power Click system ensures fast and safe installation
- Supports both portrait and landscape orientation

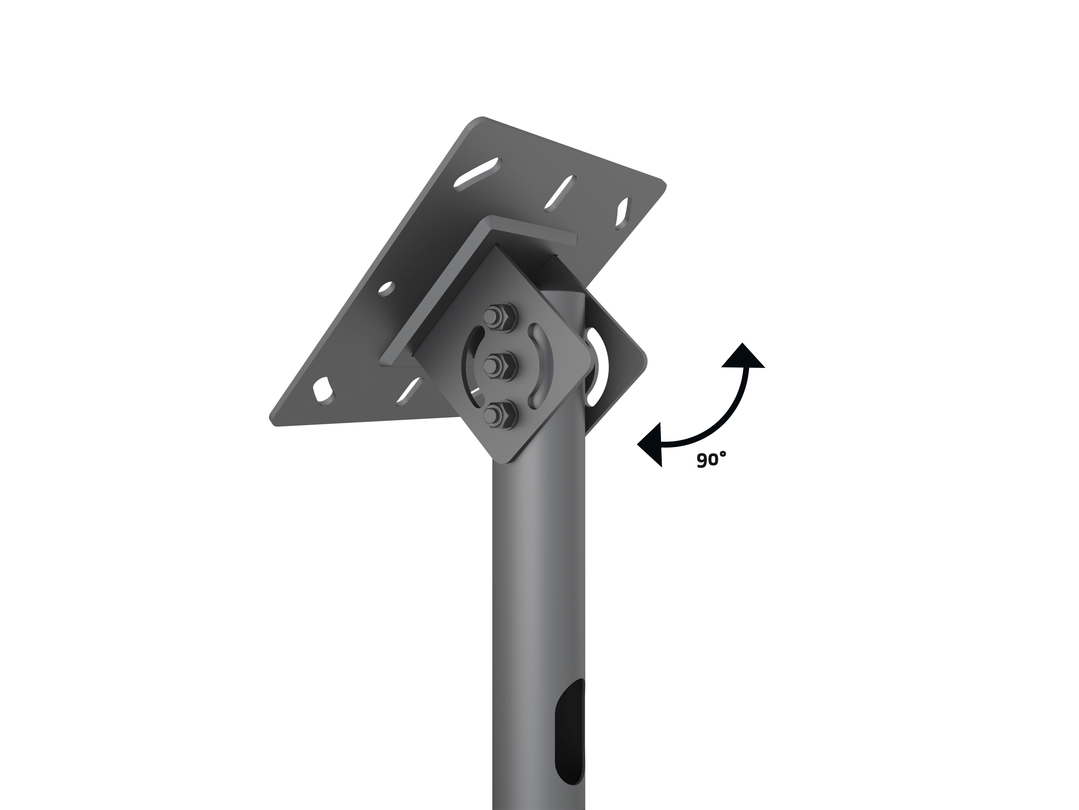

- Ceiling plate and hardware kit included
- Ideal for commercial signage in public and retail environments
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC3X2U2 VESA 600 | |
| Article No: | 7 350 073 733 606 |
| For screen size: | 40”-65" |
| Type: | Dual Side MBC3X2U2 |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 79 kg |

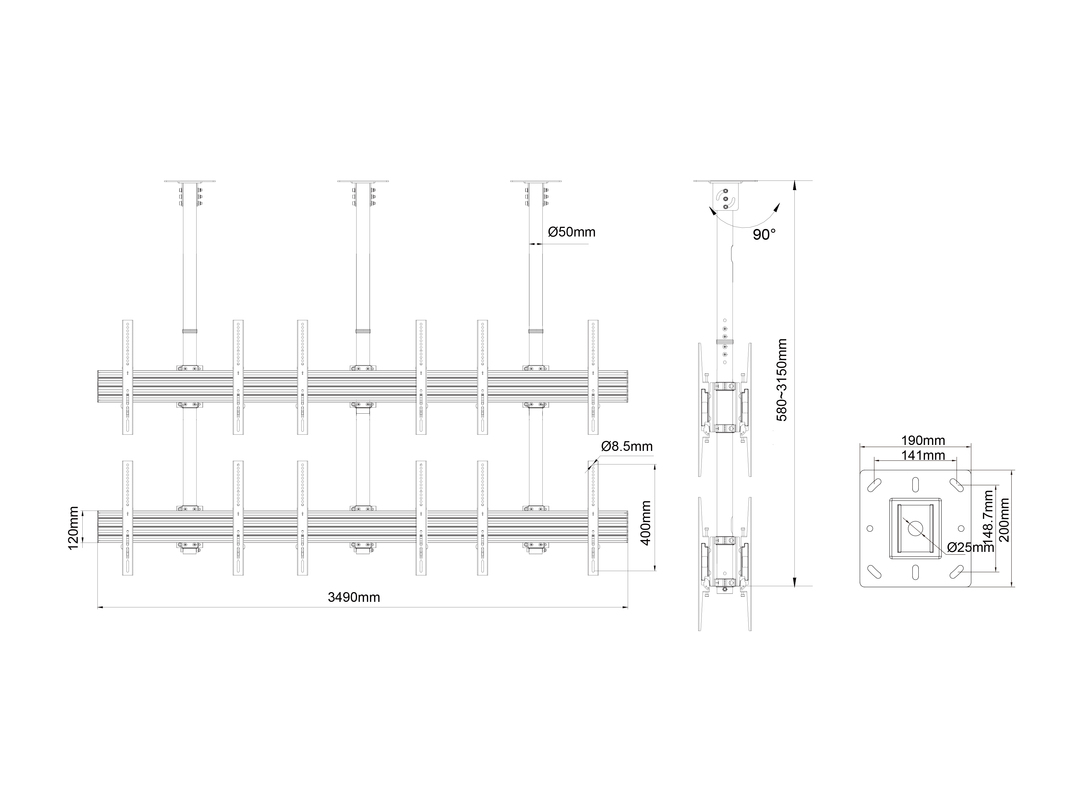

| Measurements | 369x338x20 cm |
| Max Load: | 30 kg per screen |

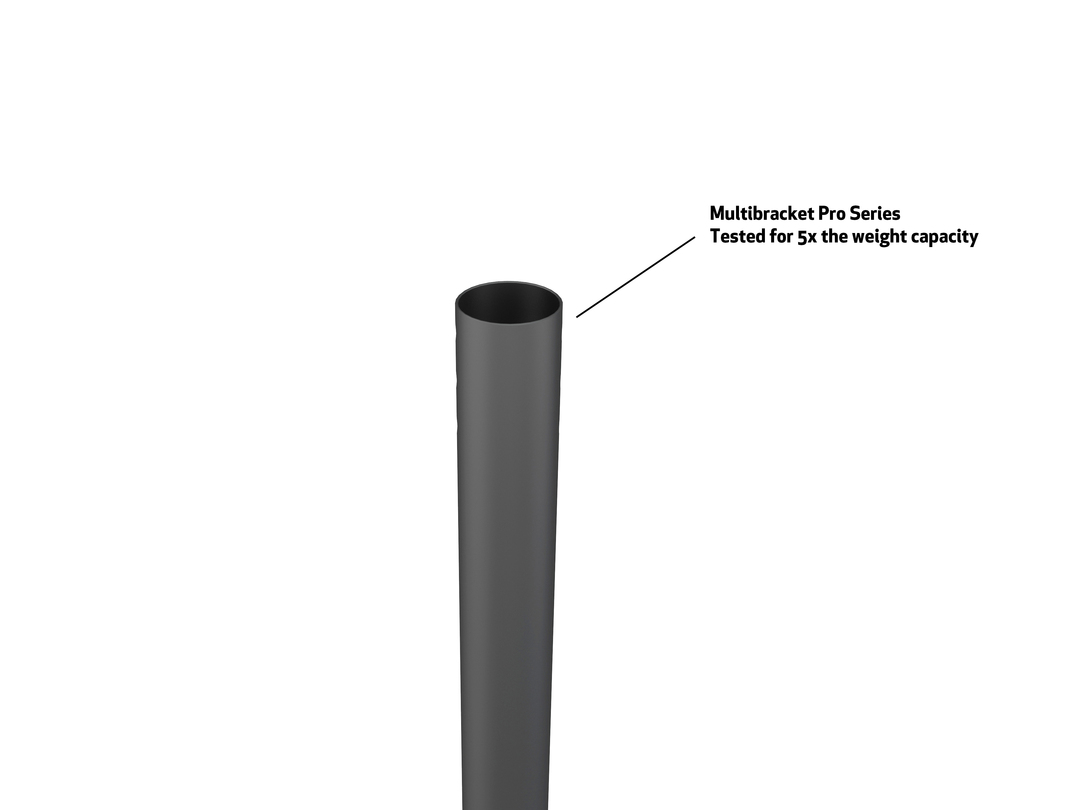

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 3m (800mm*12pcs) included |
| Fixed: | Yes, Option: Tilt -6°~+15° |
| Swivel: | No |
| Rotate: | No |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 102.6 x 74.7 x 14.2 cm |
| Package Weight: | 76.46 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 2 pcs |
| Package Measurements: | 83 x 24.5 x 19.5 cm |
| Package Weight: | 76.50 kg |
