Description
Article no.: 7350073733576
Product overview

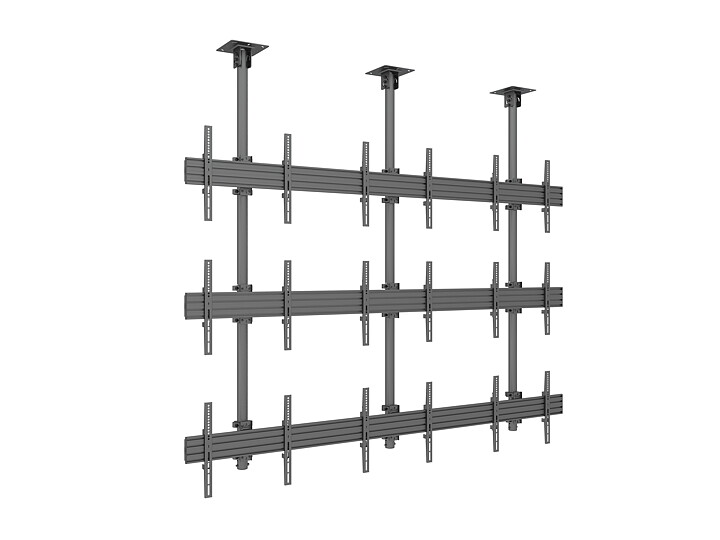

The Multibrackets M Ceiling Mount Pro MBC3X3U VESA 600 is a high-capacity, single-side ceiling mount solution built to support nine screens in demanding environments. Designed for commercial signage, control rooms, airports, and other public installations, this professional-grade mount delivers both strength and Scandinavian design precision.
As part of the modular Pro Series, the MBC3X3U is based on an ultra-strong aluminum rail system that simplifies setup and allows for future reconfiguration. With built-in cable management and Power Click installation, it ensures both speed and a clean visual presentation—ideal for settings where appearance and reliability matter.
Whether used in transit centers, retail displays, or high-traffic digital signage areas, the MBC3X3U offers unmatched scalability and installation flexibility. Its robust materials and sleek Nordic aesthetics make it a reliable long-term investment for AV professionals.
Highlights

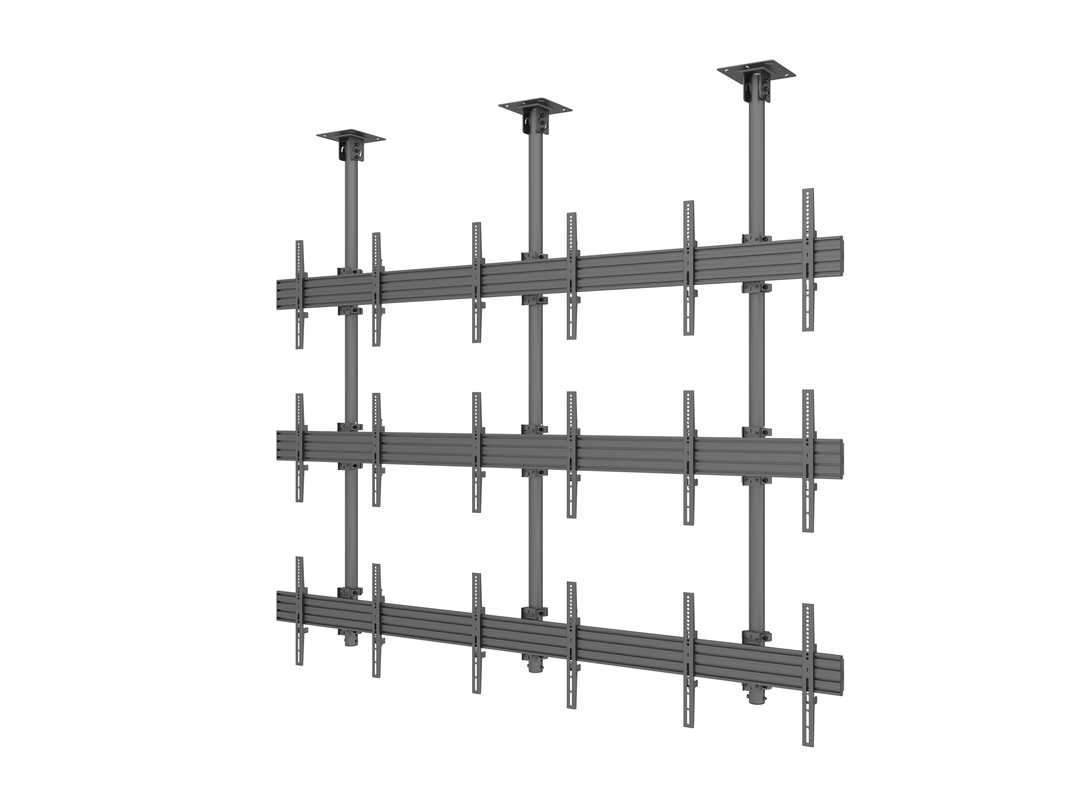

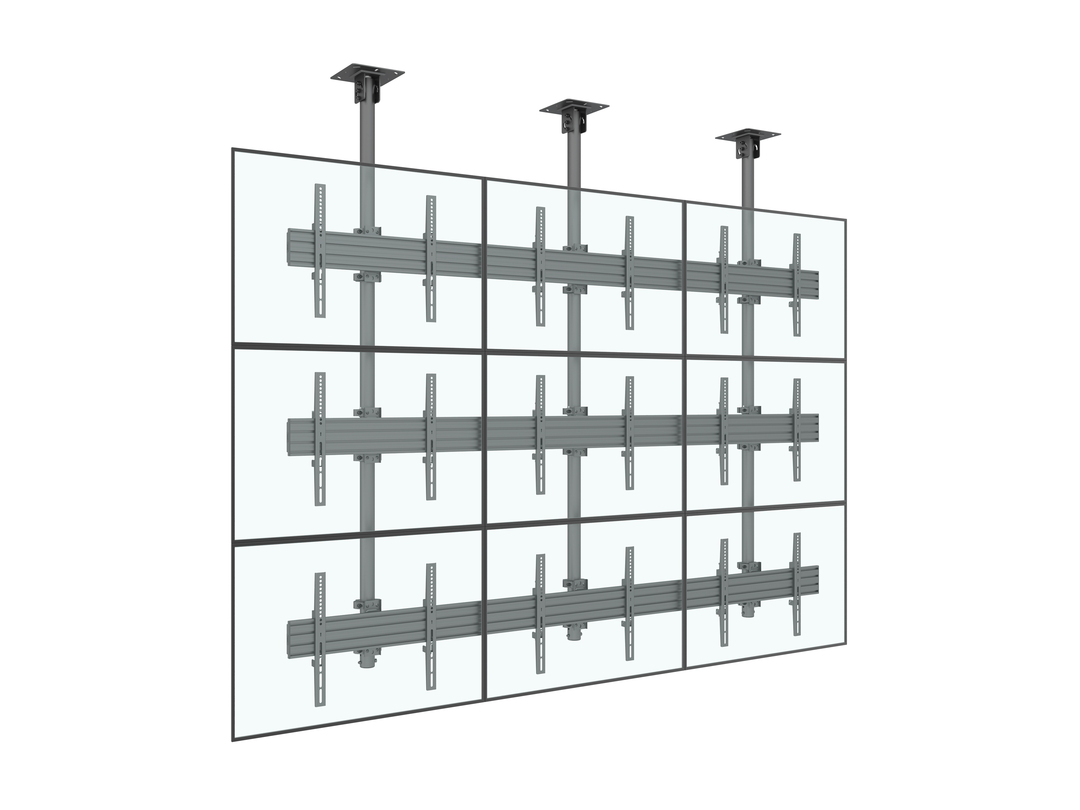

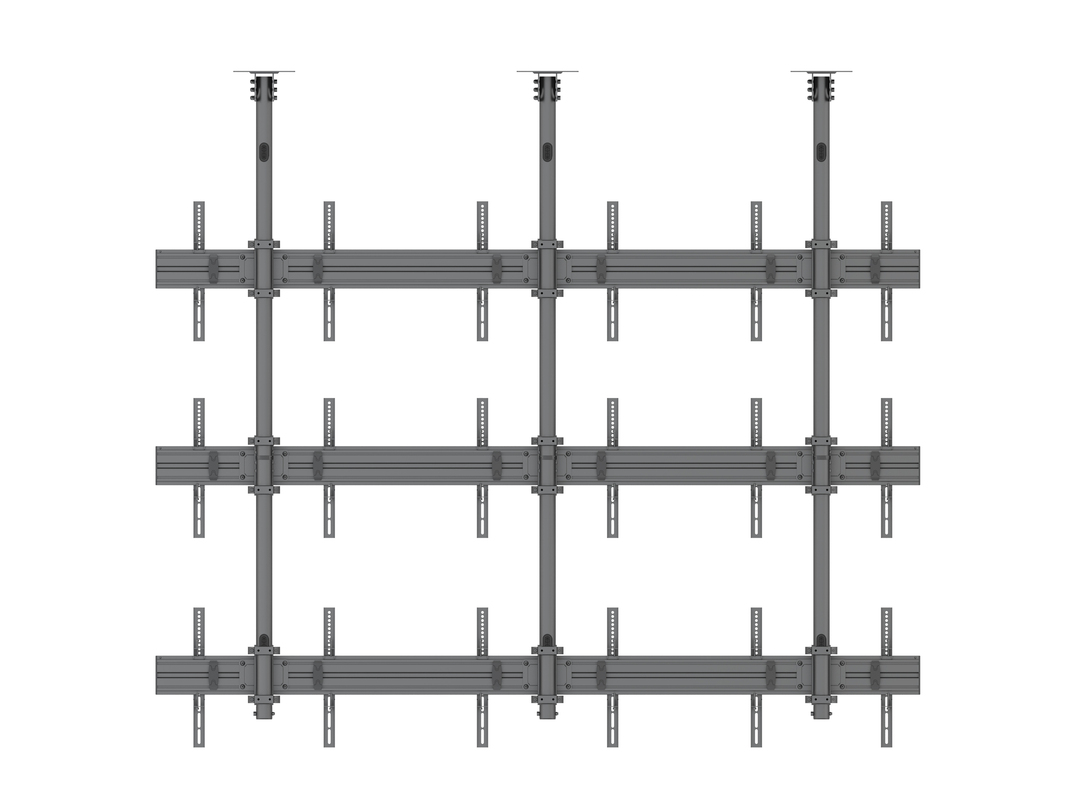

- Supports 9 screens in a single-side vertical 3x3 layout
- VESA compatible up to 600x400
- Max screen size: 65", max load: 30kg per screen
- Fully modular design for scalable configurations

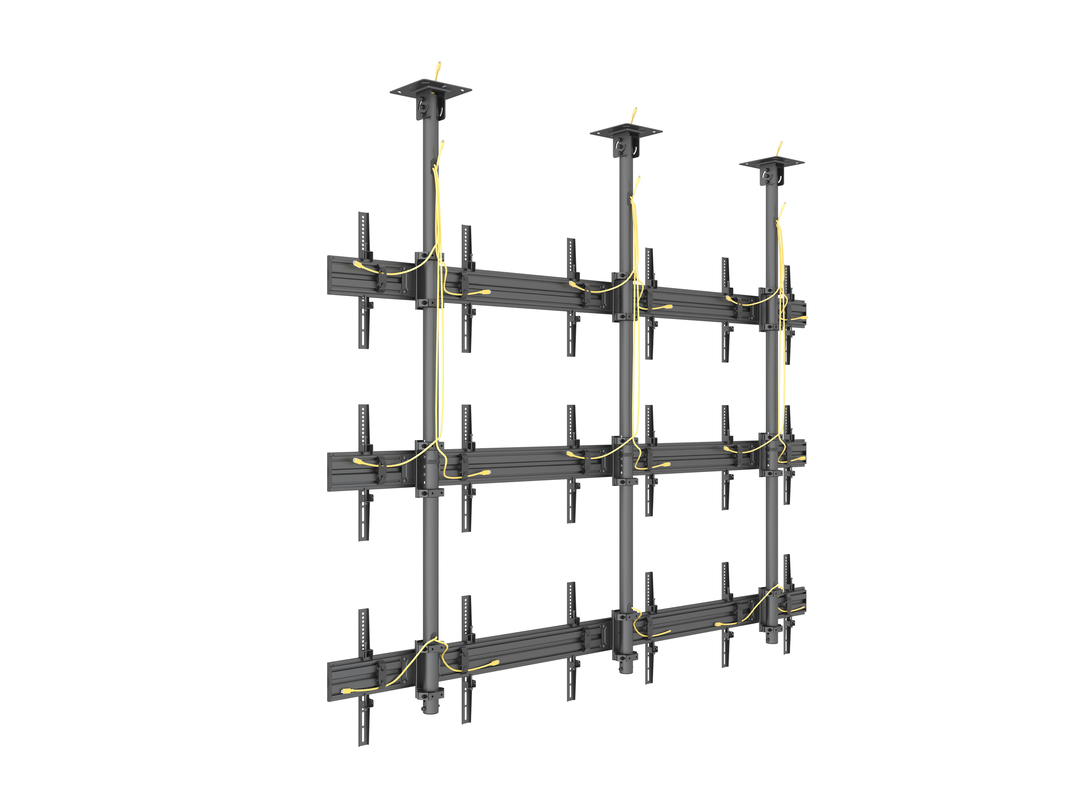

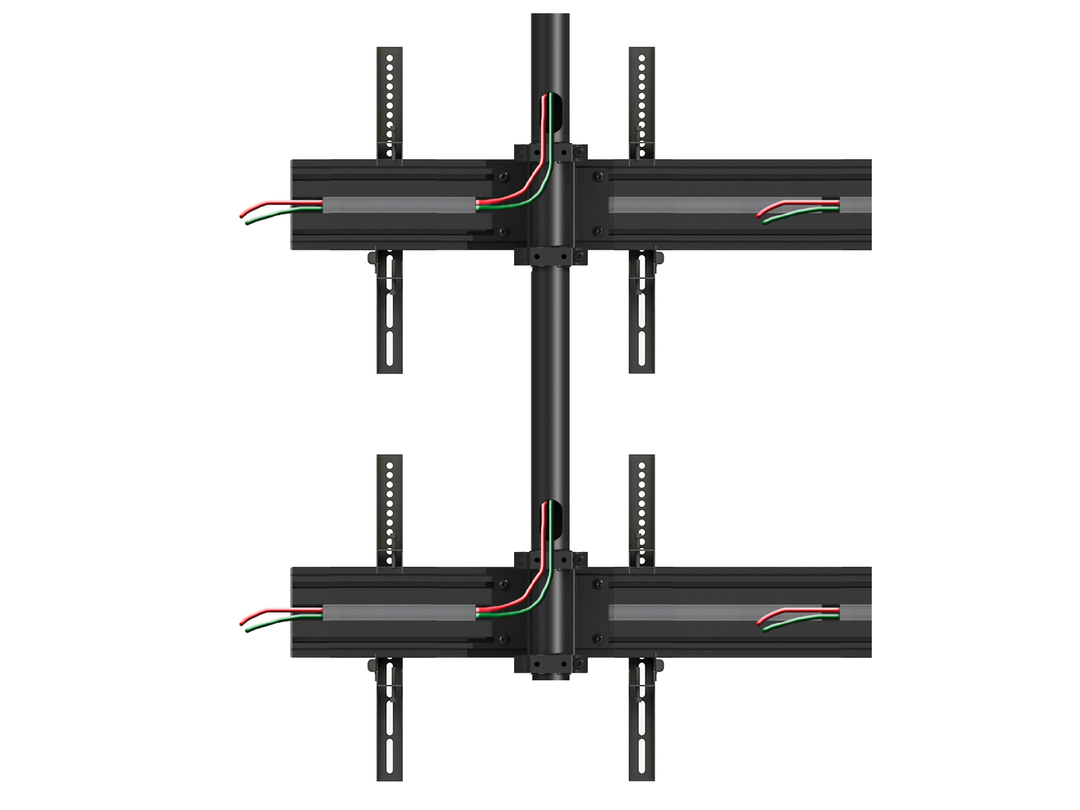

- Integrated cable management for a tidy finish
- Fast and secure Power Click installation system
- Portrait or landscape orientation supported

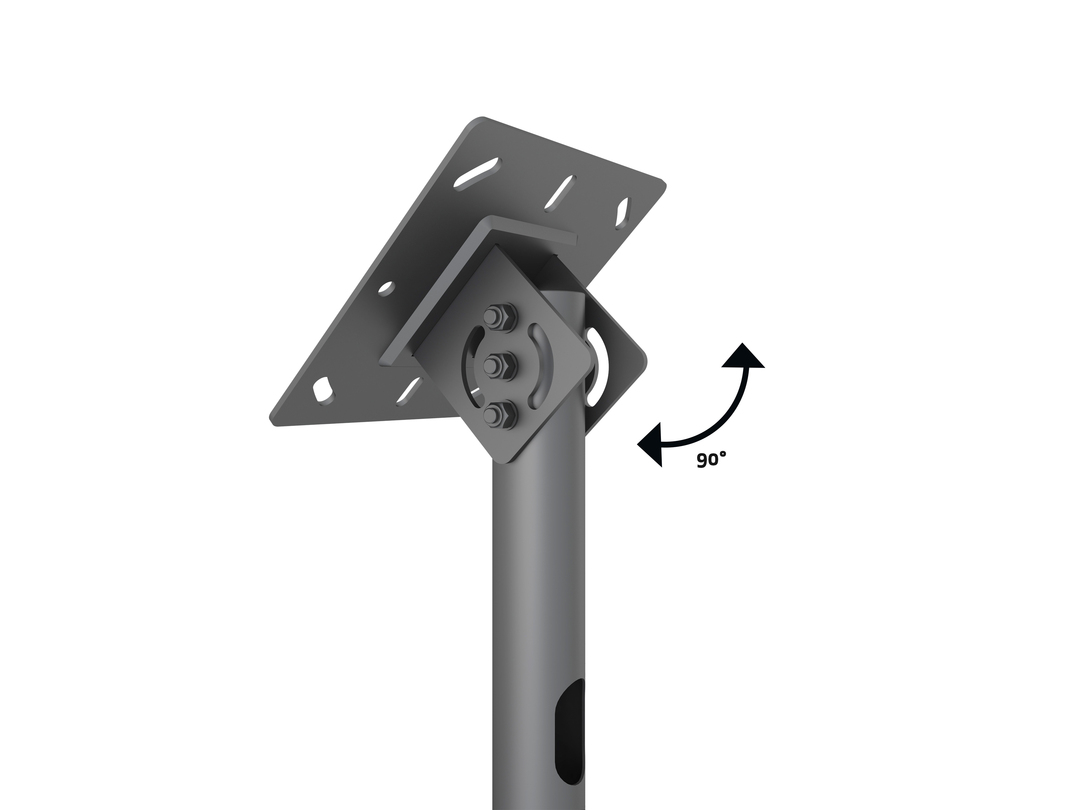

- Includes ceiling plate and complete hardware kit
- Perfect for control rooms, signage networks, and public displays
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC3X3U VESA 600 | |
| Article No: | 7 350 073 733 576 |
| For screen size: | 40”-65" |
| Type: | Single Side MBC3X3U |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max Optional VESA 800x600 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 71 kg |

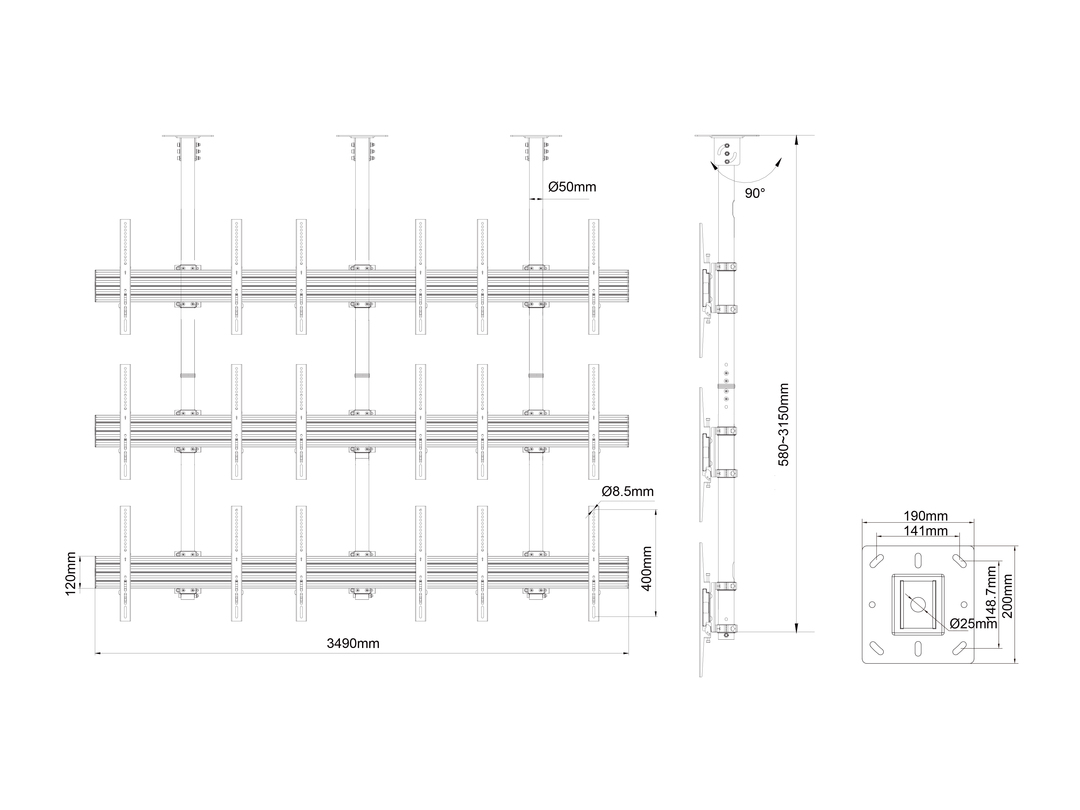

| Measurements | 369x338x20 cm |
| Max Load: | 30 kg per screen |

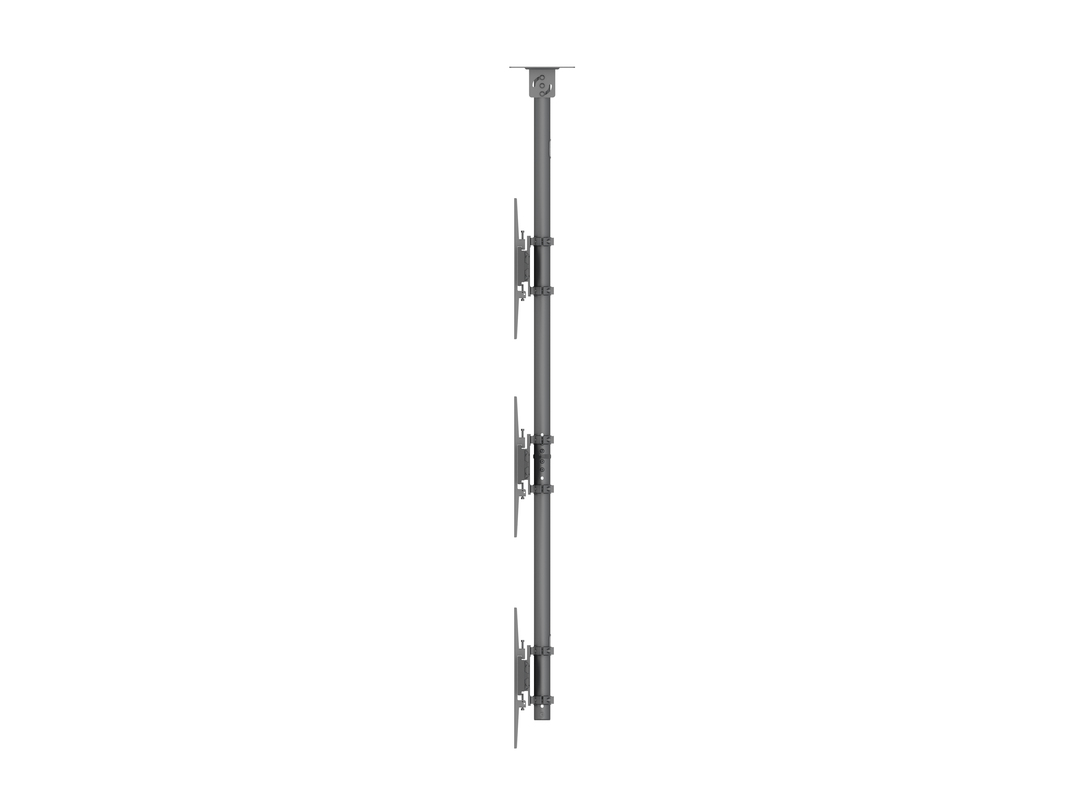

| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 3m (800mm*12pcs) included |

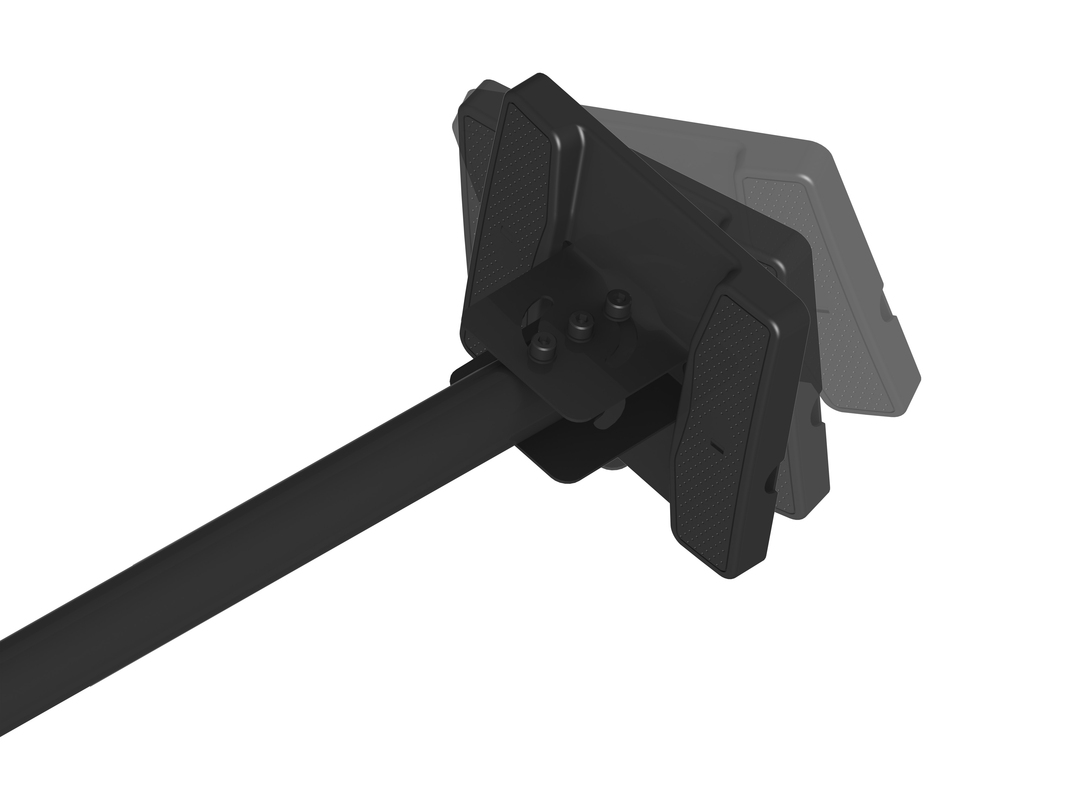

| Fixed: | Yes, Option: Tilt -6°~+15° |
| Swivel: | No |
| Rotate: | No |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE, TÜV |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 104 x 34 x 33 cm |
| Package Weight: | 72.20 kg |
