Description
Article no.: 7350073733613
Product overview

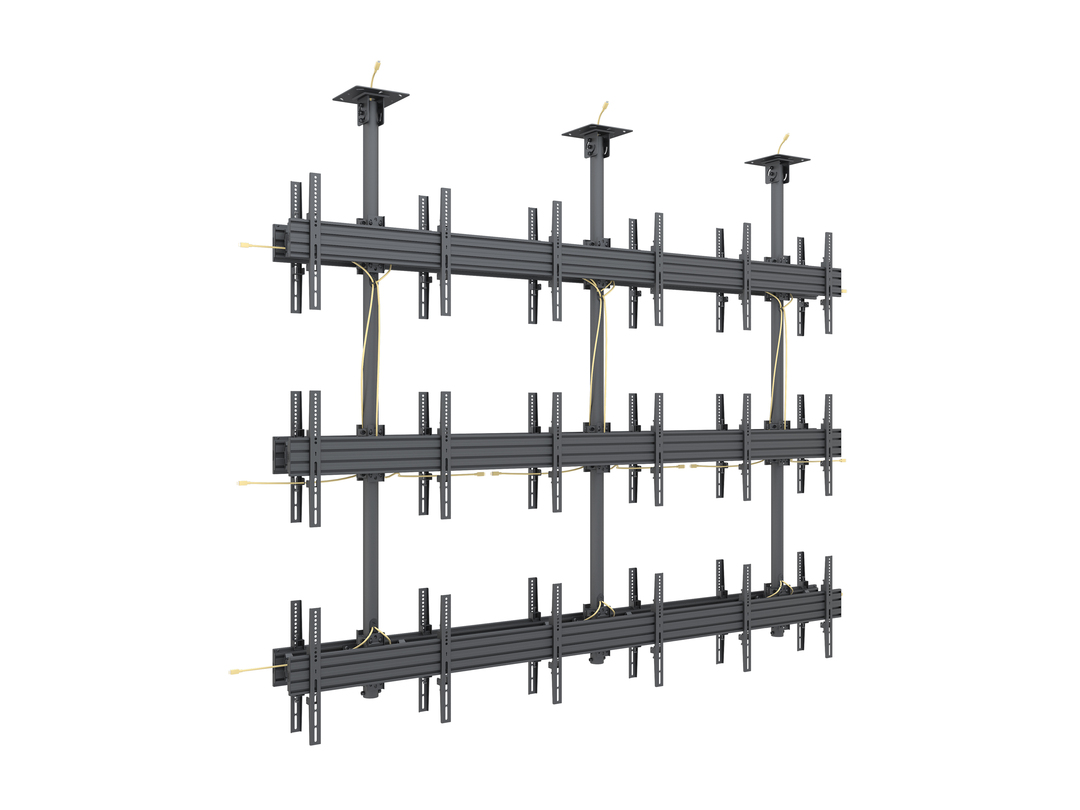

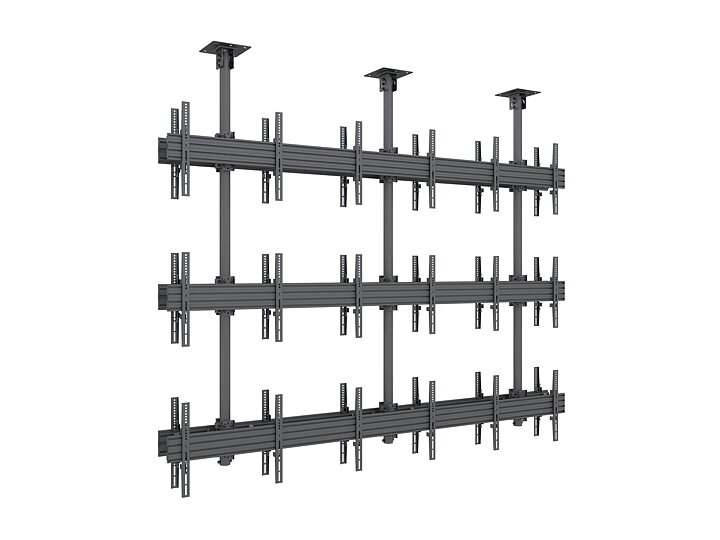

The Multibrackets M Ceiling Mount Pro MBC3X3U2 VESA 600 is a high-capacity, dual-side ceiling mount designed for professional digital signage environments requiring visibility from multiple directions. Supporting up to 18 screens in a 3x3 configuration on each side, this mount is ideal for airports, transportation hubs, retail spaces, and control rooms where performance and visual impact are critical.
Part of the Multibrackets Pro Series, this mount is built on an ultra-strong aluminum rail system that supports fast installation, seamless cable management, and long-term modular flexibility. With fixed arms, a 3-meter length, and robust VESA compatibility, it allows for a clean, scalable installation in even the most demanding commercial settings.
Thanks to its modular architecture and Scandinavian-inspired design, the MBC3X3U2 offers a sleek, professional look while delivering durable performance and simplified maintenance. It's engineered to evolve with your AV needs, allowing for extensions, custom pipe lengths, and configuration updates as systems grow over time.
Highlights

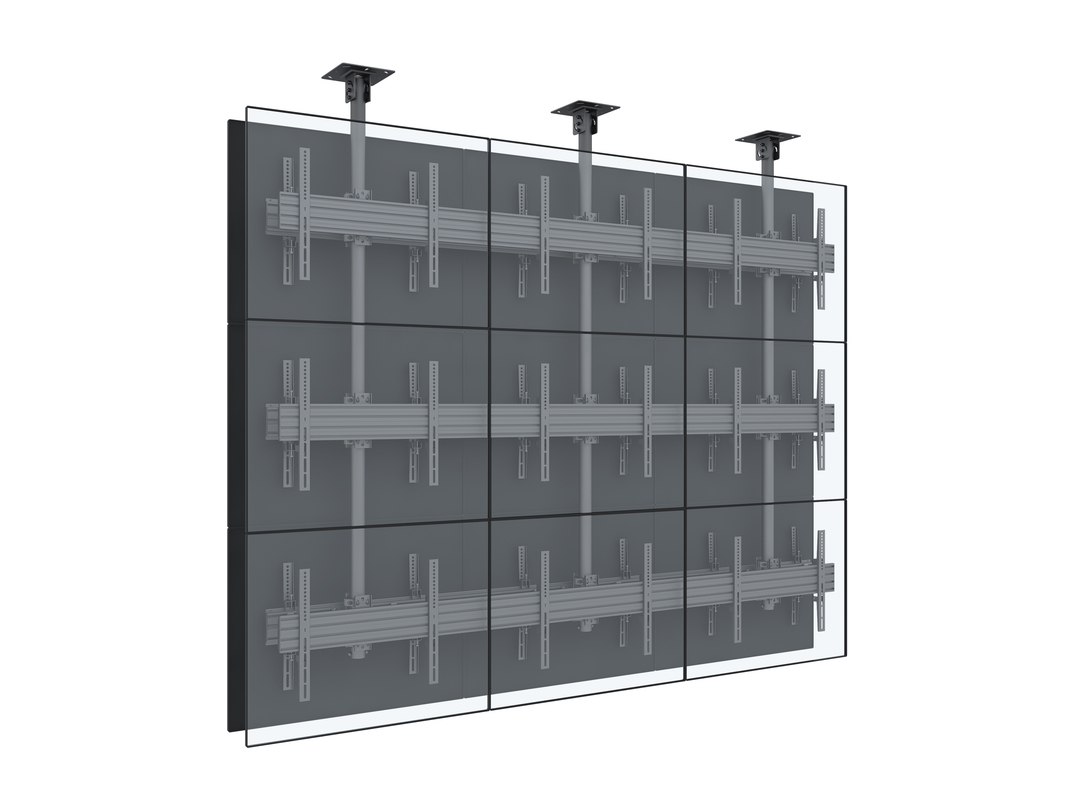

- Dual-sided mount supporting 18 displays (2x 3x3 layout)
- VESA compatible up to 600x400
- For screens 40" to 65", max load 30kg per screen
- Durable modular aluminum rail construction
- Clean cable routing with full cable integration
- Fast, secure installation via Power Click system
- Portrait or landscape orientation supported
- Complete ceiling plate and mounting hardware included
- Ideal for airports, shopping centers, and control rooms
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC3X3U2 VESA 600 | |
| Article No: | 7 350 073 733 613 |
| For screen size: | 40"-65" |
| Type: | Dual Side MBC3X3U2 |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max Optional VESA 800x600 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 105 kg |
| Measurements | 369x338x20 cm |
| Max Load: | 30 kg per screen |
| Pillar length: | Min: 580mm to Max: 1550 mm from ceiling to VESA plate center Extension pipes: 3m (800mm*12pcs) included |
| Fixed: | Yes, Option: Tilt -6°~+15° |
| Swivel: | No |
| Rotate: | No |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE, TÜV Nord |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 104.8 x 86.7 x 14.2 cm |
| Package Weight: | 103.76 kg |
| Distribution Package Specification | |
| Retail Package Parcels: | 2 pcs |
| Package Measurements: | 89 x 52.5 x 25.5 cm |
| Package Weight: | 103.80 kg |
