M Ceiling Mount Pro MBC4UHD VESA 600
Options
Variants that match your options:
In stock: 14
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073738878
Product overview

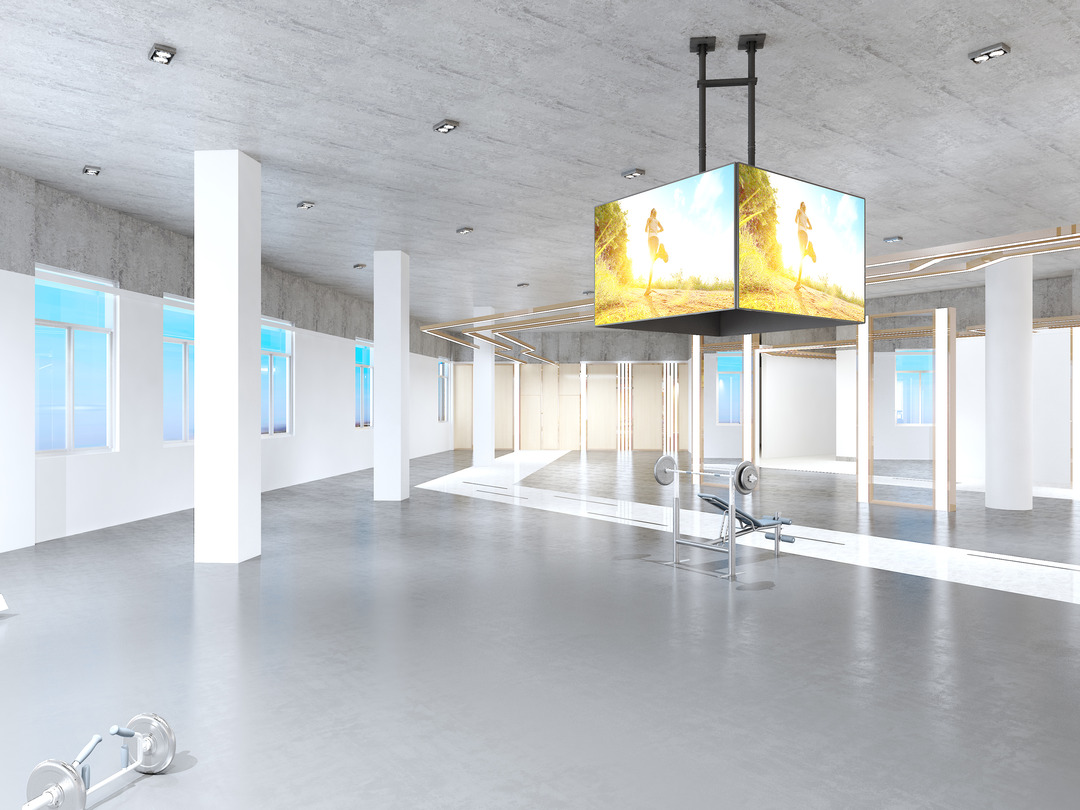

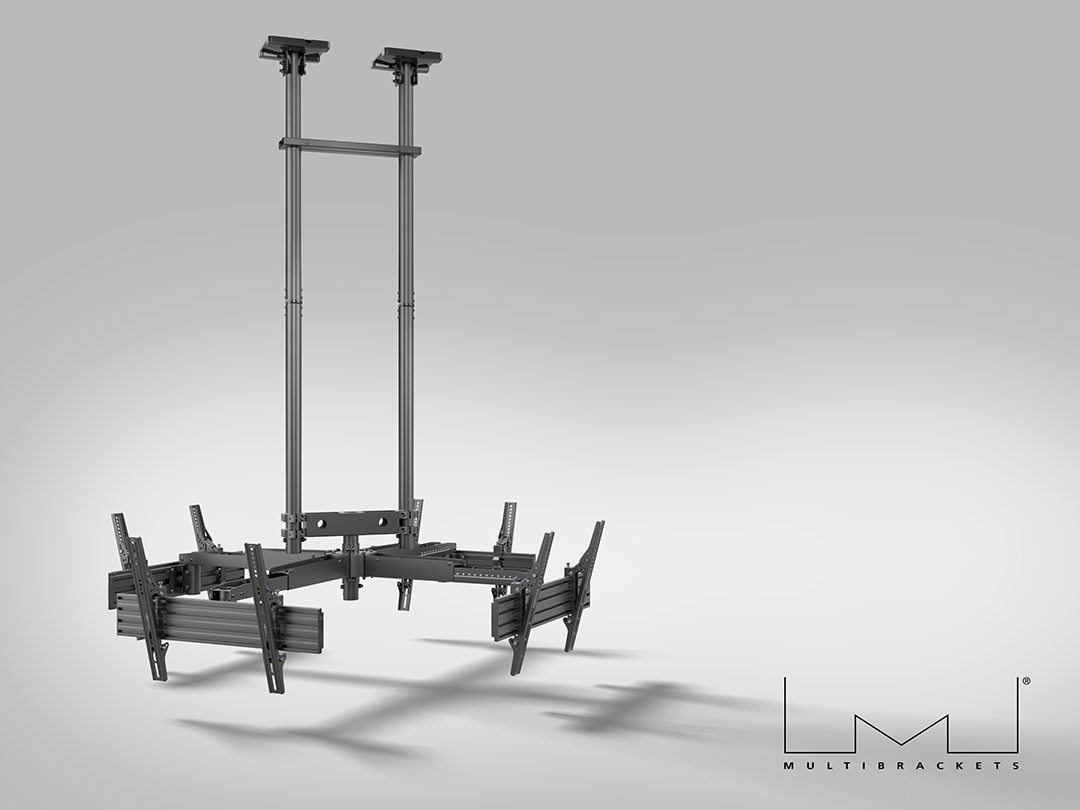

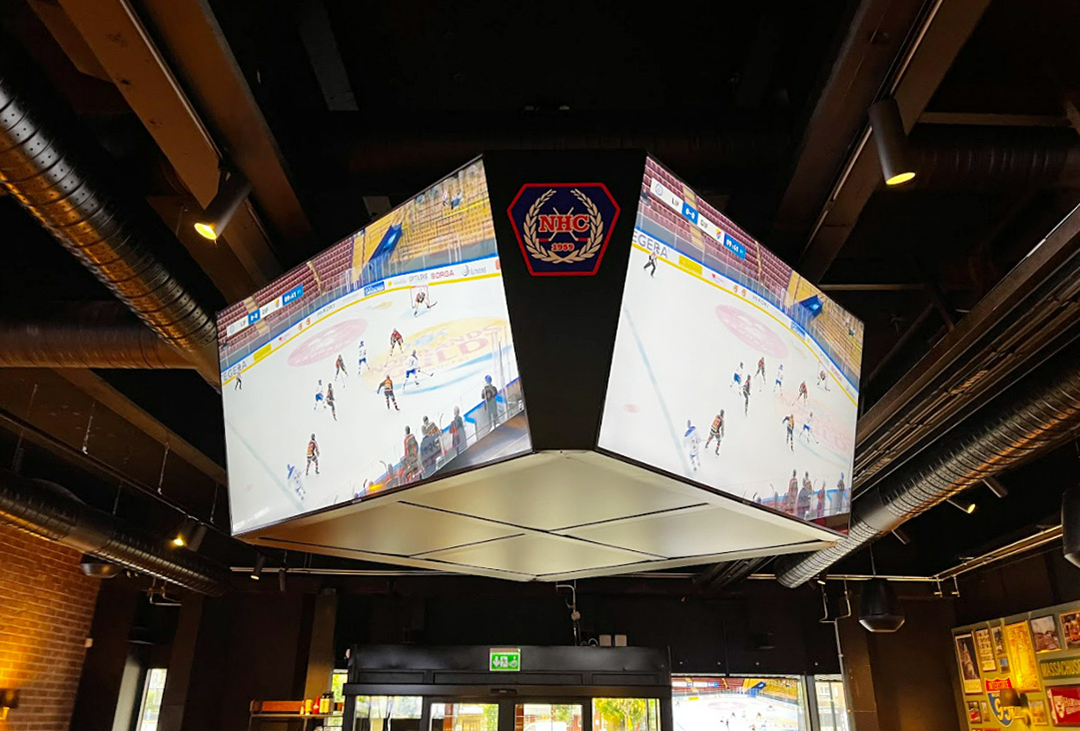

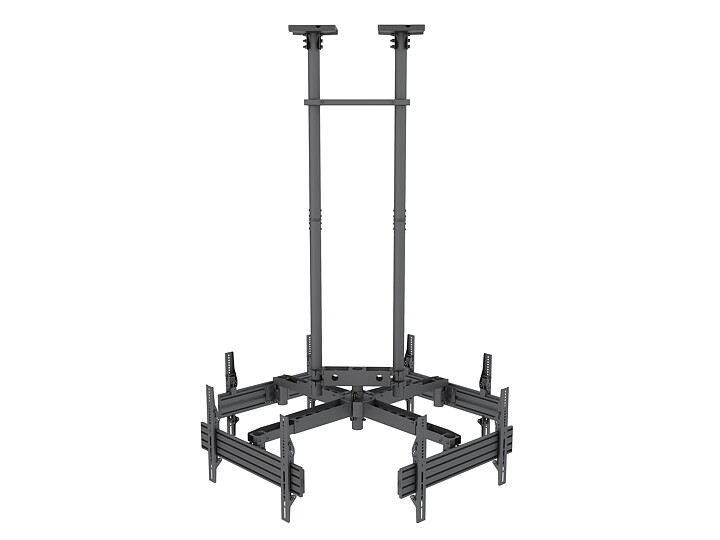

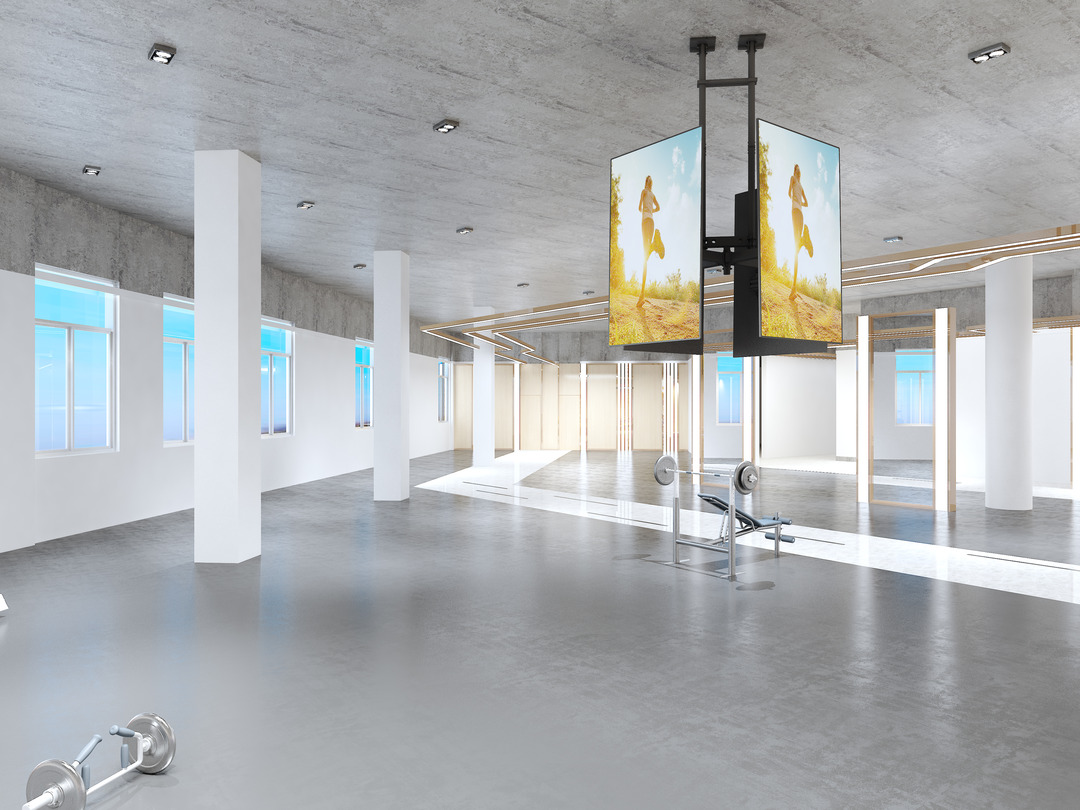

The Multibrackets M Ceiling Mount Pro MBC4UHD VESA 600 is a heavy-duty four-sided ceiling mount system designed for high-impact digital signage in public and commercial environments. Supporting up to four LCD displays from 50” to 75”, this robust solution is ideal for transportation hubs, shopping malls, arenas, and large retail spaces where 360° visibility is critical.
Engineered as part of the modular Multibrackets Pro Series, the MBC4UHD combines a durable aluminum rail system with integrated cable management for a streamlined, professional finish. The Scandinavian-inspired design ensures both functionality and aesthetics in demanding AV installations.

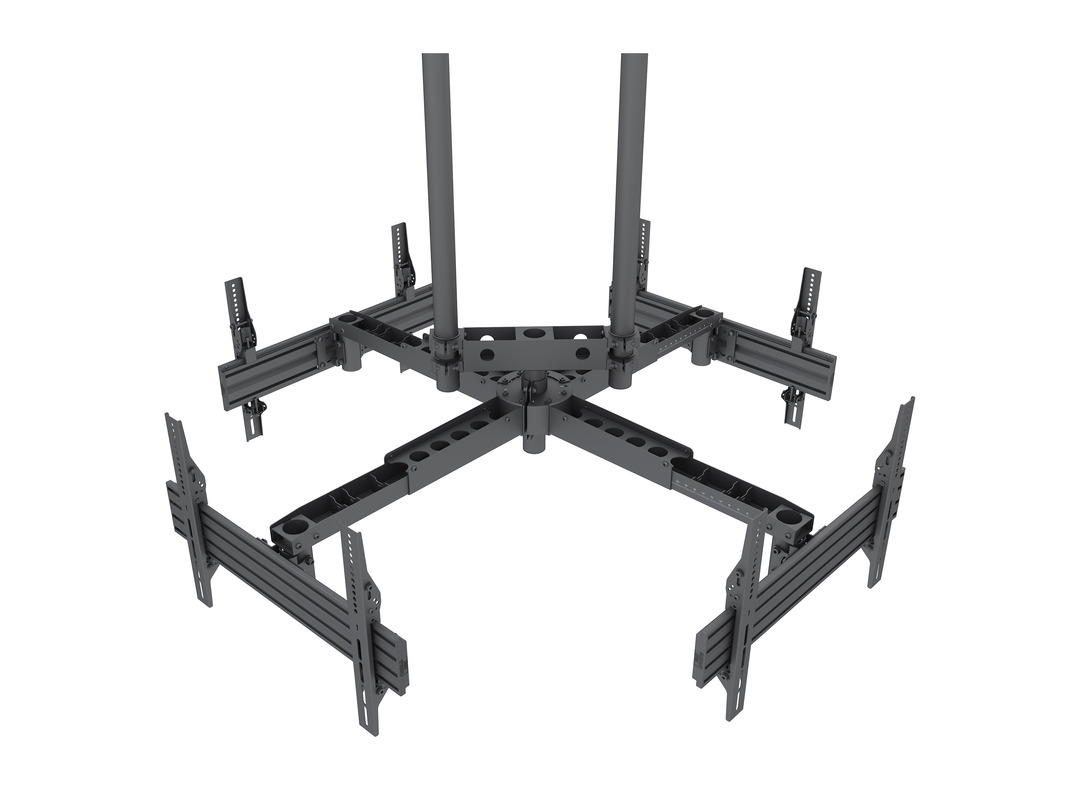

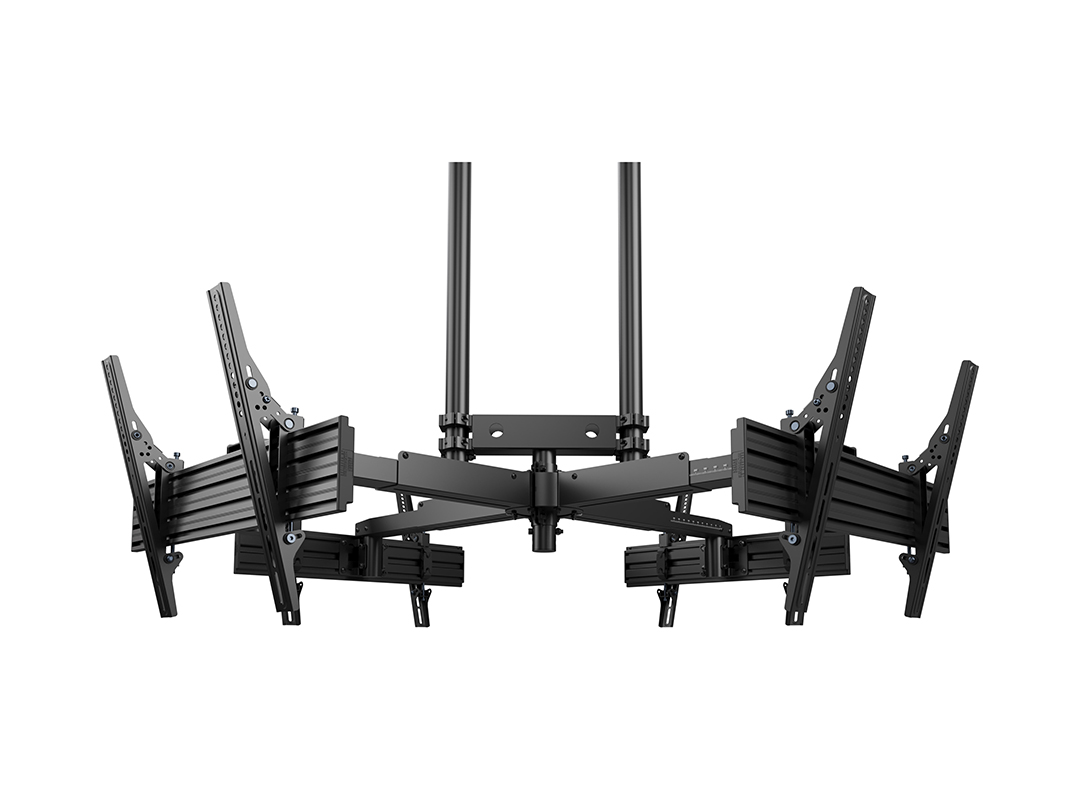

Designed for professional AV integrators, the mount features tilt arms for flexible screen alignment, a 3-meter vertical column, and full compatibility with VESA 600x400. Installation is fast and secure with Multibrackets’ Power Click system, and all essential mounting hardware is included out of the box.
Highlights

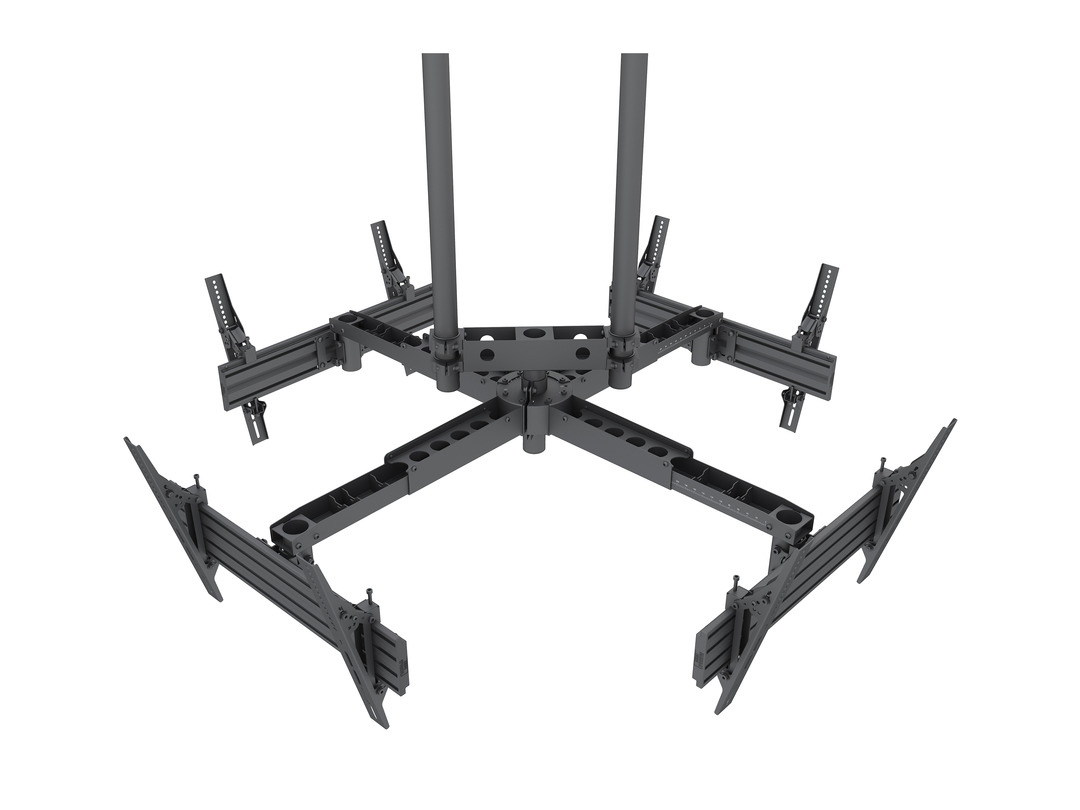

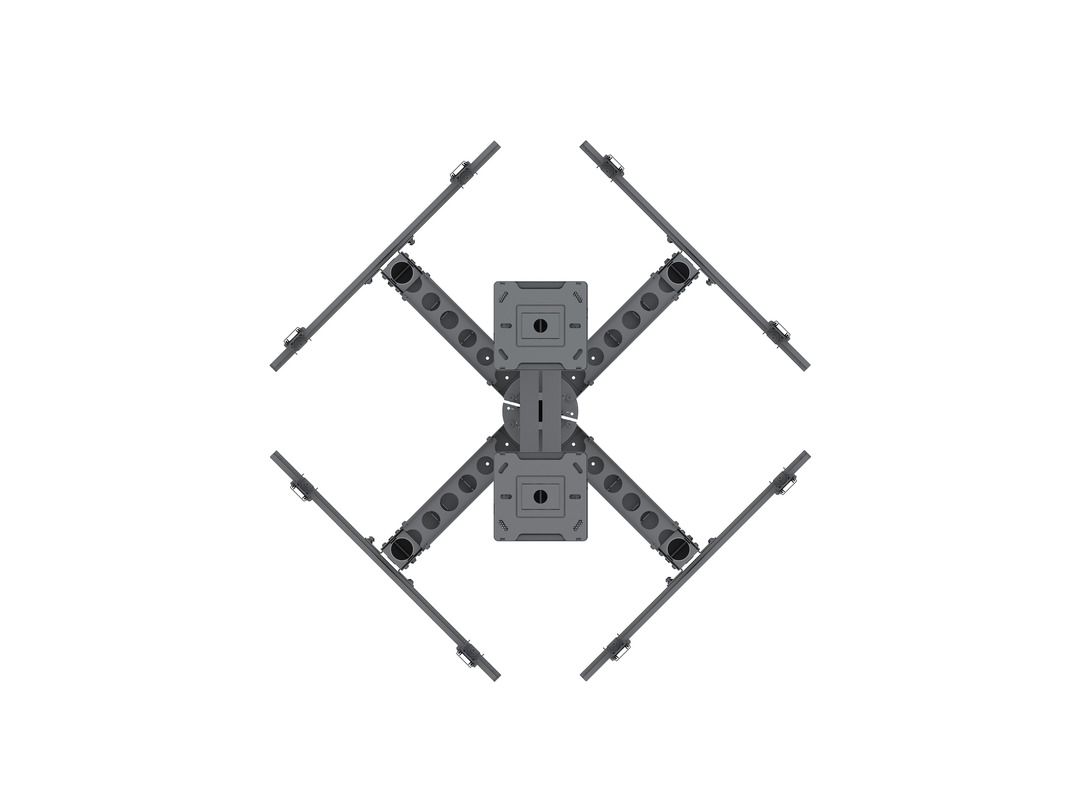

- Supports 4 screens mounted in a 360° four-sided configuration
- VESA compatibility up to 600x400
- Screen size: 50"-75", max load: 30kg per screen
- Scandinavian design with integrated cable management
- Power Click system for fast, secure installation
- Flexible portrait or landscape orientation

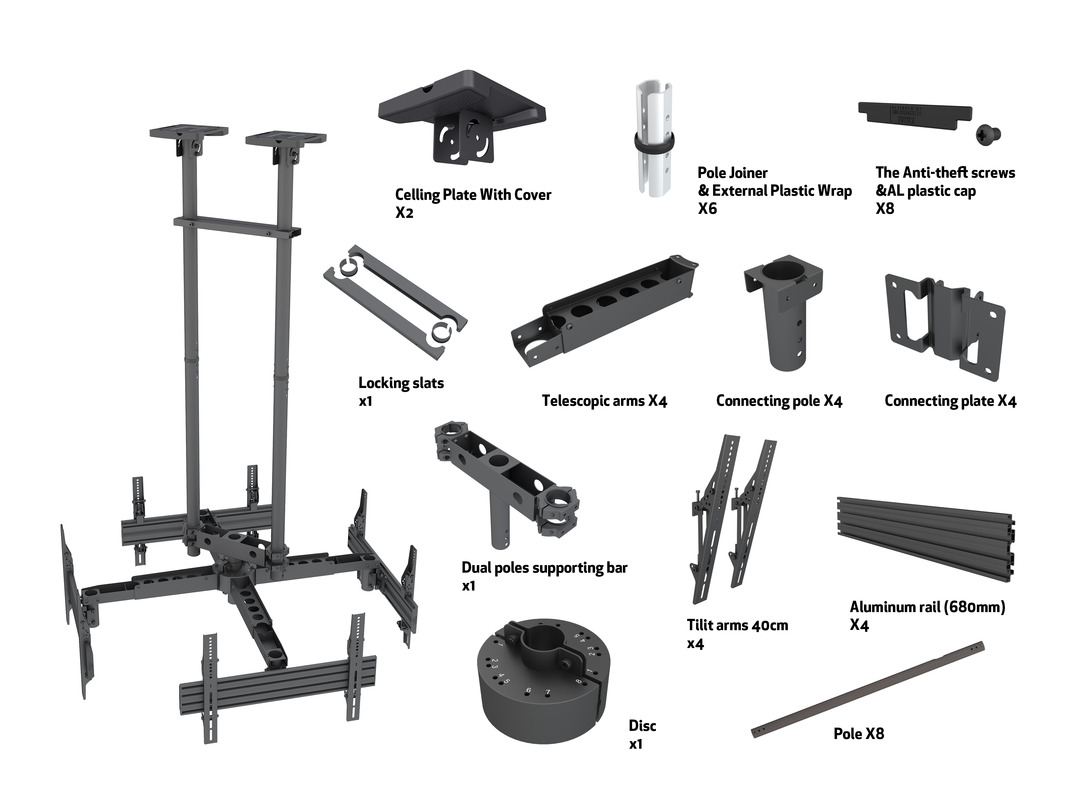

- Ceiling plate and full hardware kit included
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC4UHD VESA 600 | |
| Article No: | 7 350 073 738 878 |

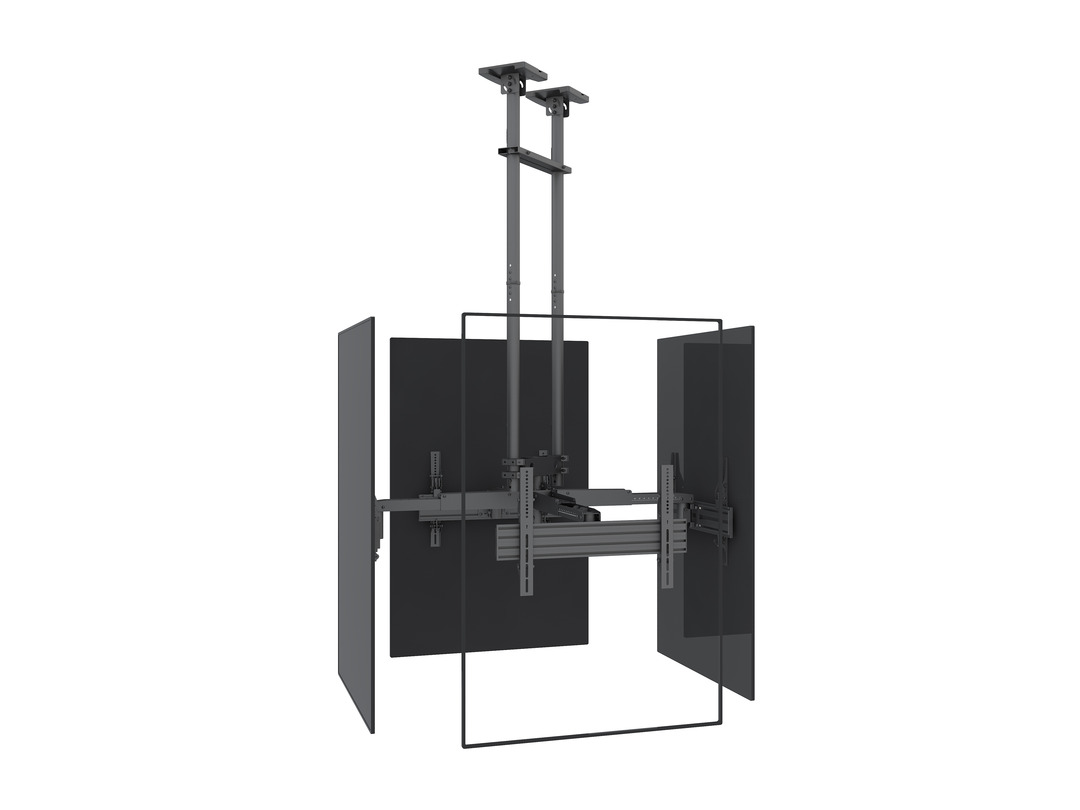

| For screen size: | Portrait: 50”-75" (seamless edge to edge installation possible) Landscape: 50"-75" |
| Type: | Four Side MBC4UHD |
| Universal & VESA standard: | 100x100, 200x200, 400x400, 600x400 mm |
| Material: | Steel, Aluminium, Plastic |
| Color: | Black |
| Surface Finish: | Powder coating |
| Weight: | 54.5 kg |
| Measurements | 105.0x51.5x18 cm |
| Max Load: | 45 kg per screen |

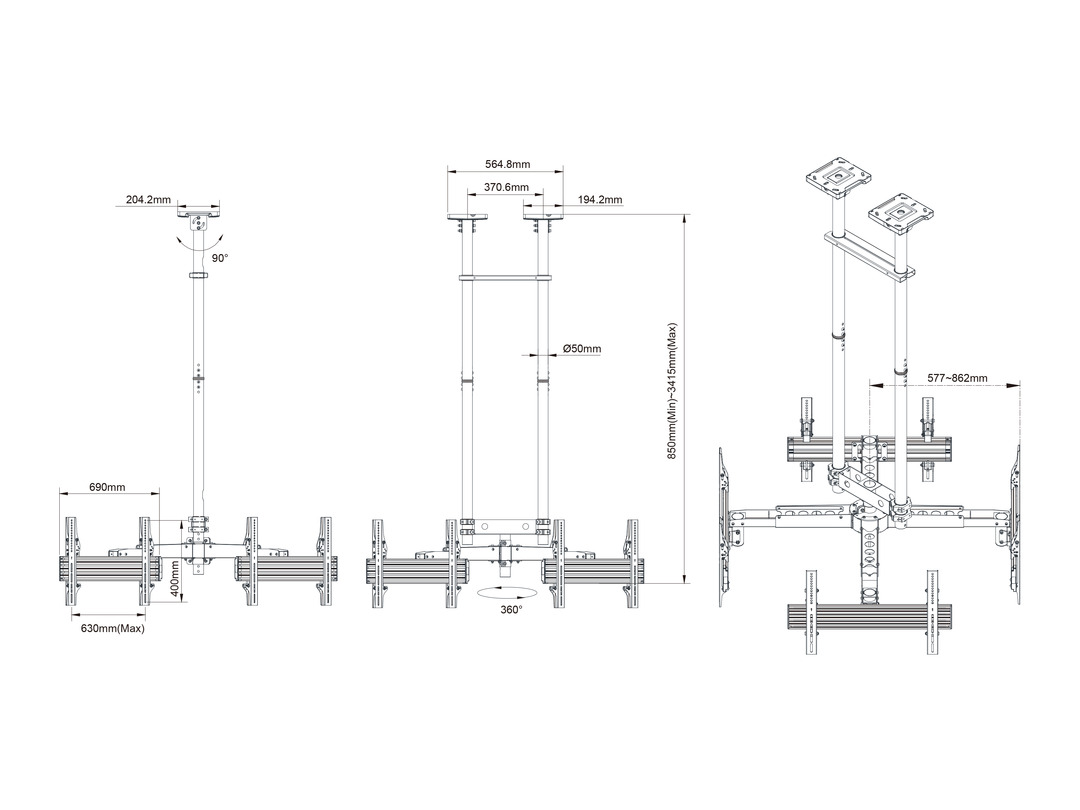

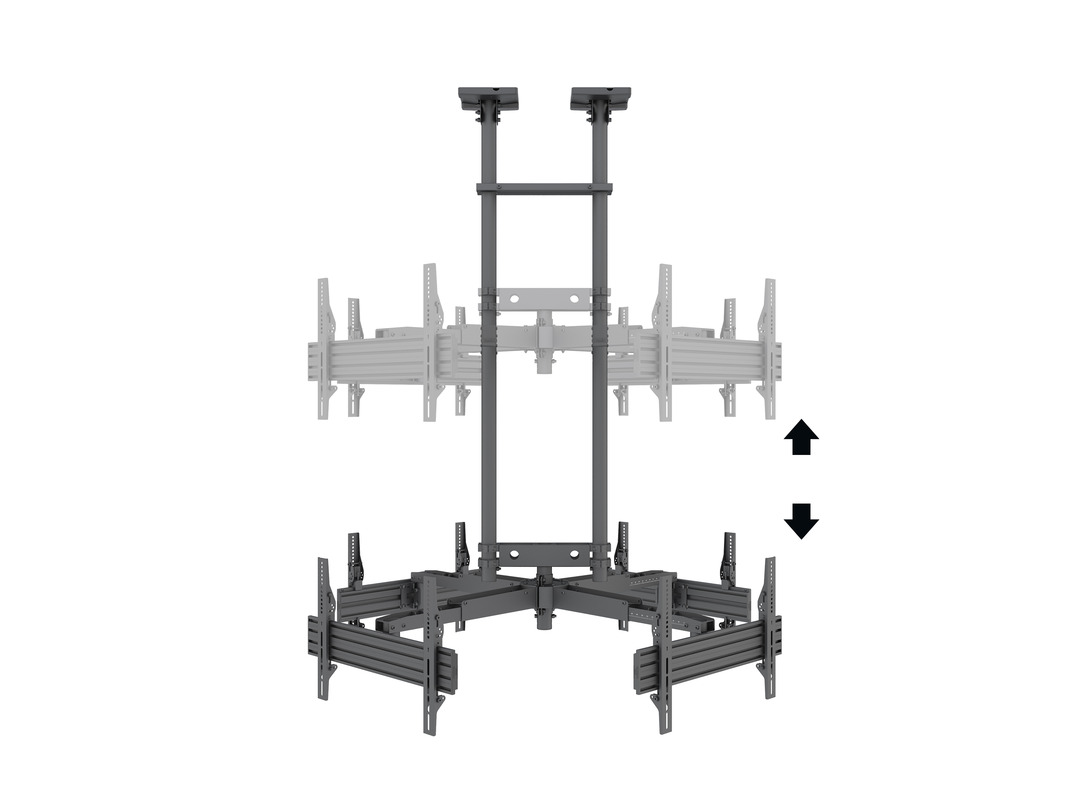

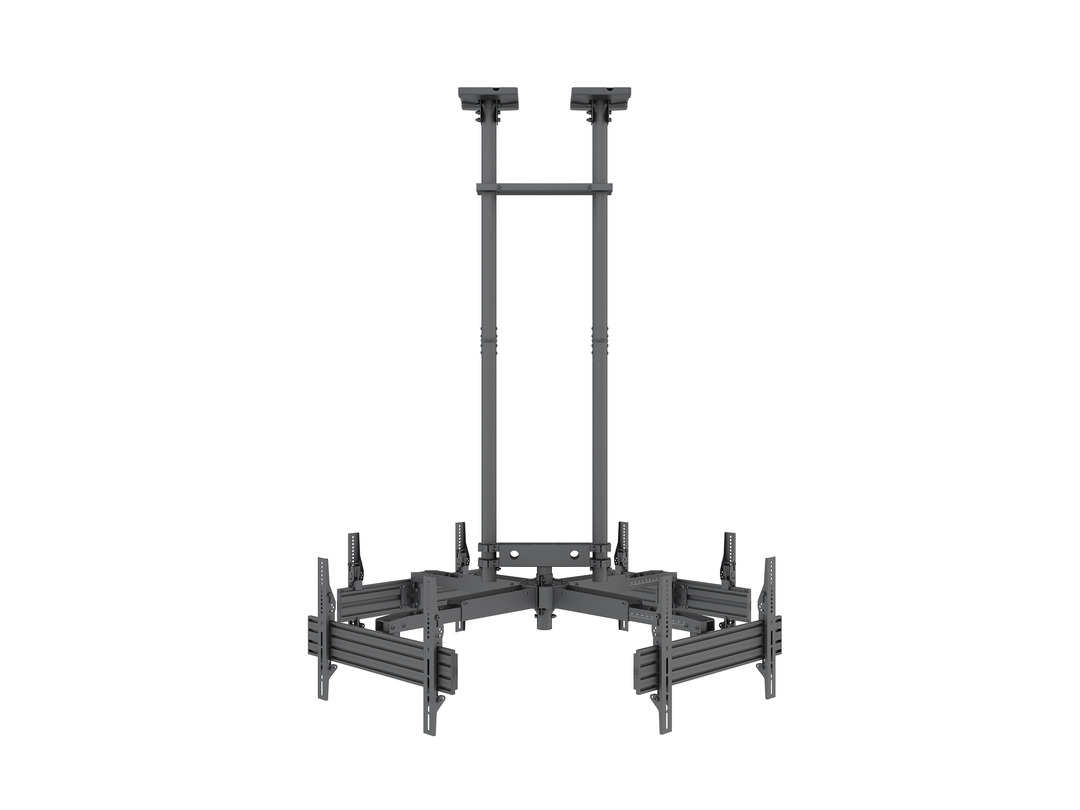

| Pillar length: | 860~3415mm from ceiling to VESA plate center Extension pipes: 3m (800mm*8pcs) included |
| Tilt: | Yes, -6°~+15° |
| Swivel: | Yes, 360° |

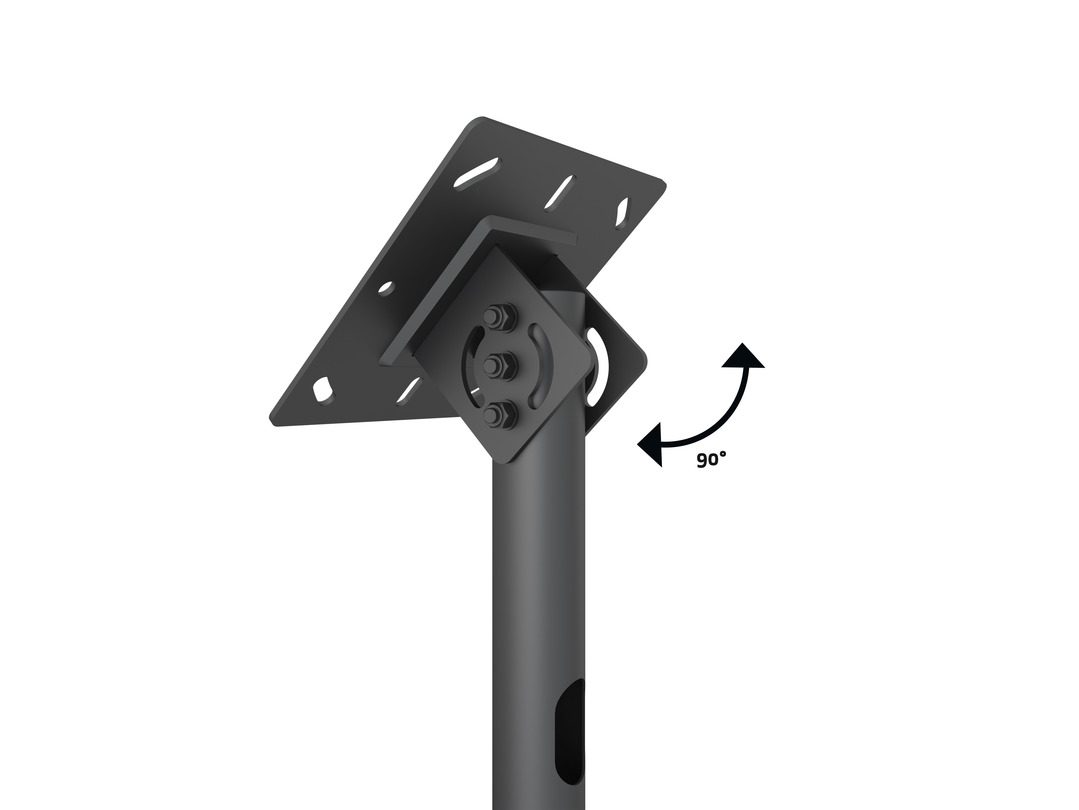

| Rotate: | Yes, 90° |

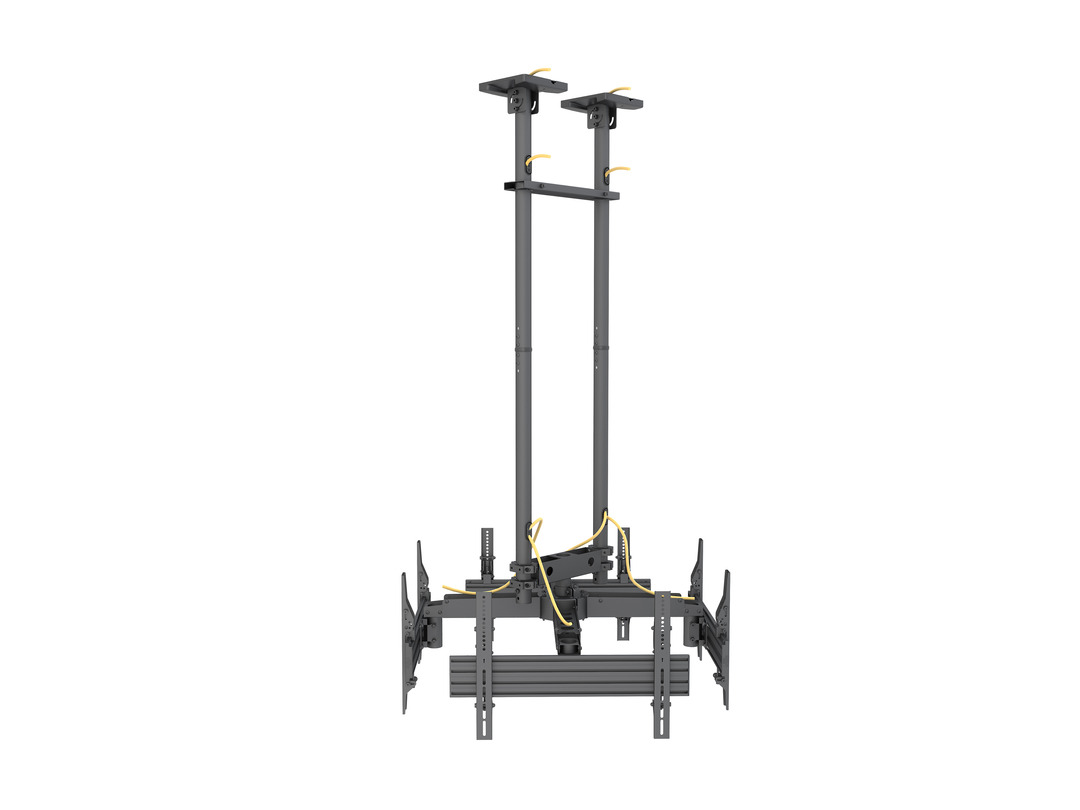

| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 96.5 x 29.5 x 19.5 cm |
| Package Weight: | 33.80 kg |
