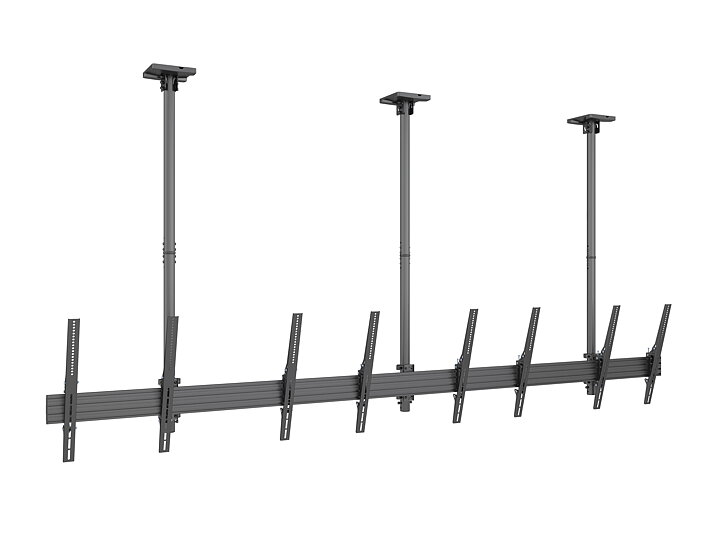

M Ceiling Mount Pro MBC4UPHD VESA 400x600
Options
Variants that match your options:
In stock: 162
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350022738928
Product overview

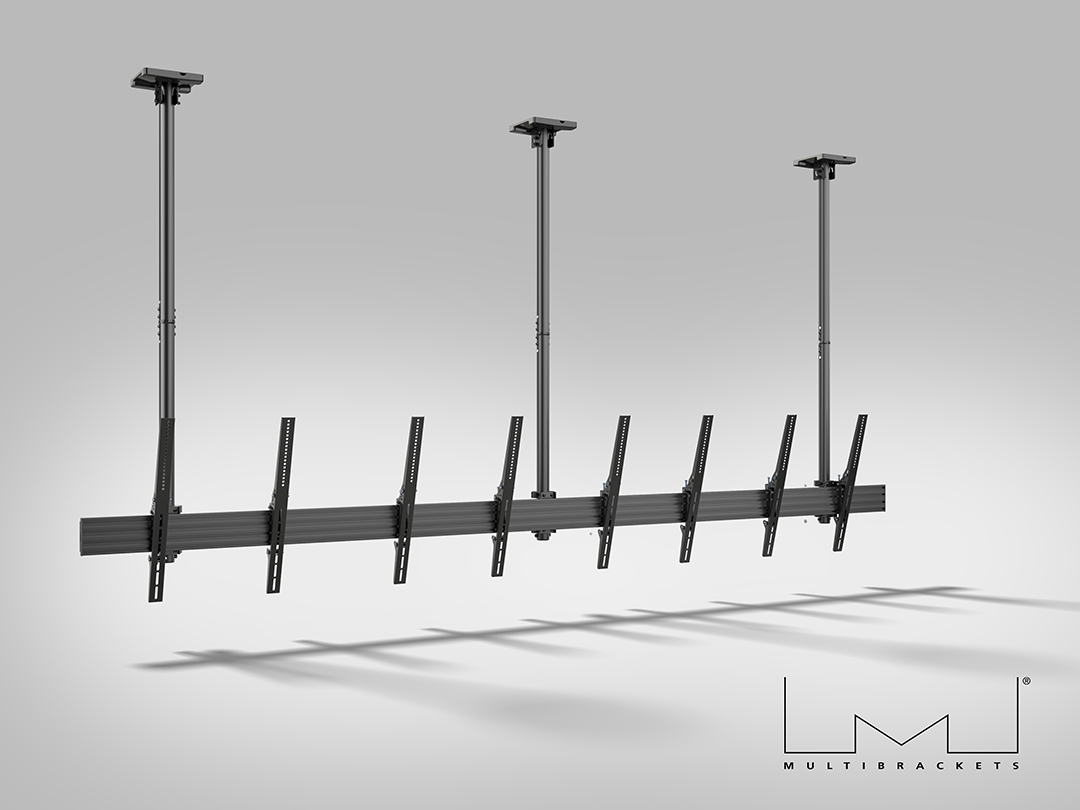

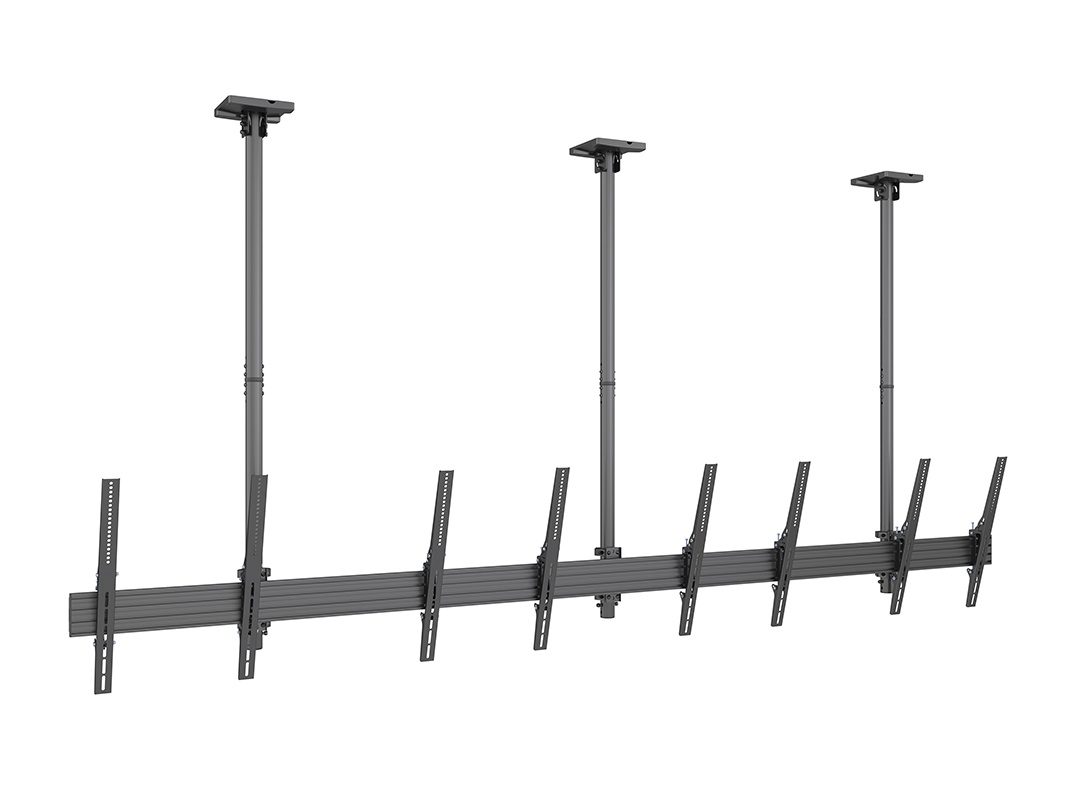

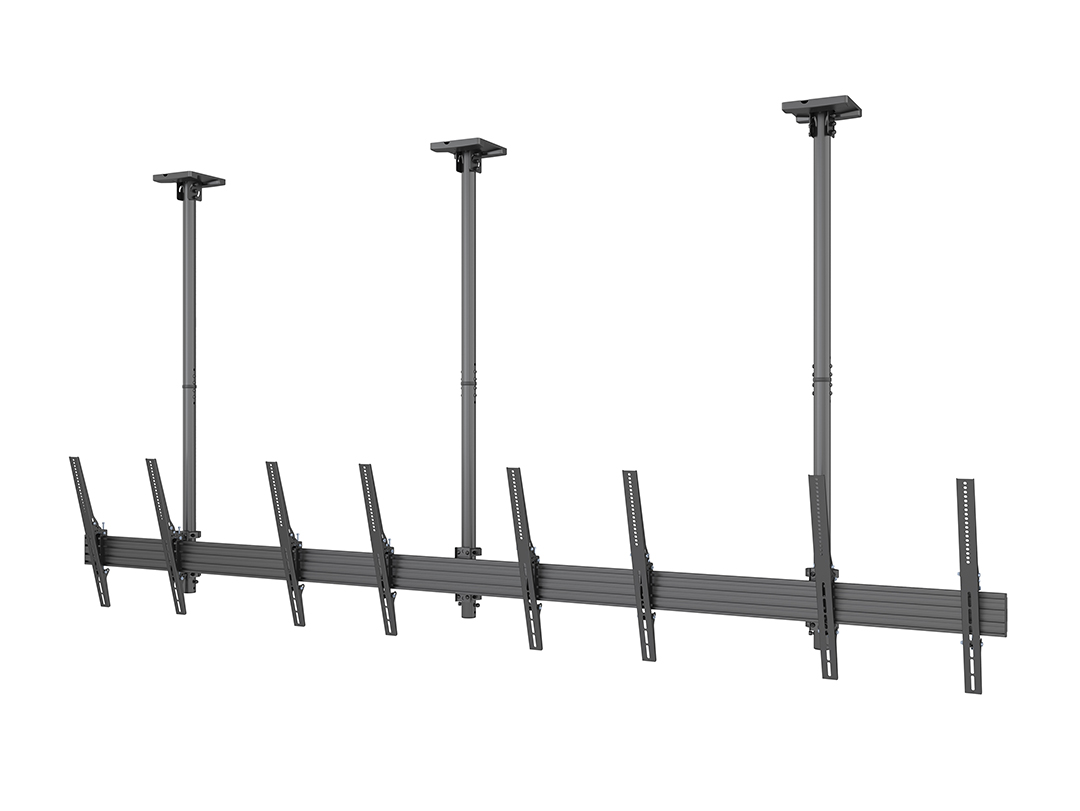

The Multibrackets M Ceiling mount Pro MBC4UPHD VESA 400x600 is a high-performance, single-side ceiling mount designed to support four large displays. Built for commercial AV and signage installations, this modular solution enables streamlined setup, clean cable management, and long-term flexibility in demanding environments.
Part of the Multibrackets Pro Series, the mount is based on an ultra-strong aluminum rail system and features extendable ceiling pipes, tilt functionality, and integrated cable routing—ensuring a professional look and fast installation. Whether in retail, transportation hubs or control rooms, this solution offers unmatched scalability and visual impact.
Highlights

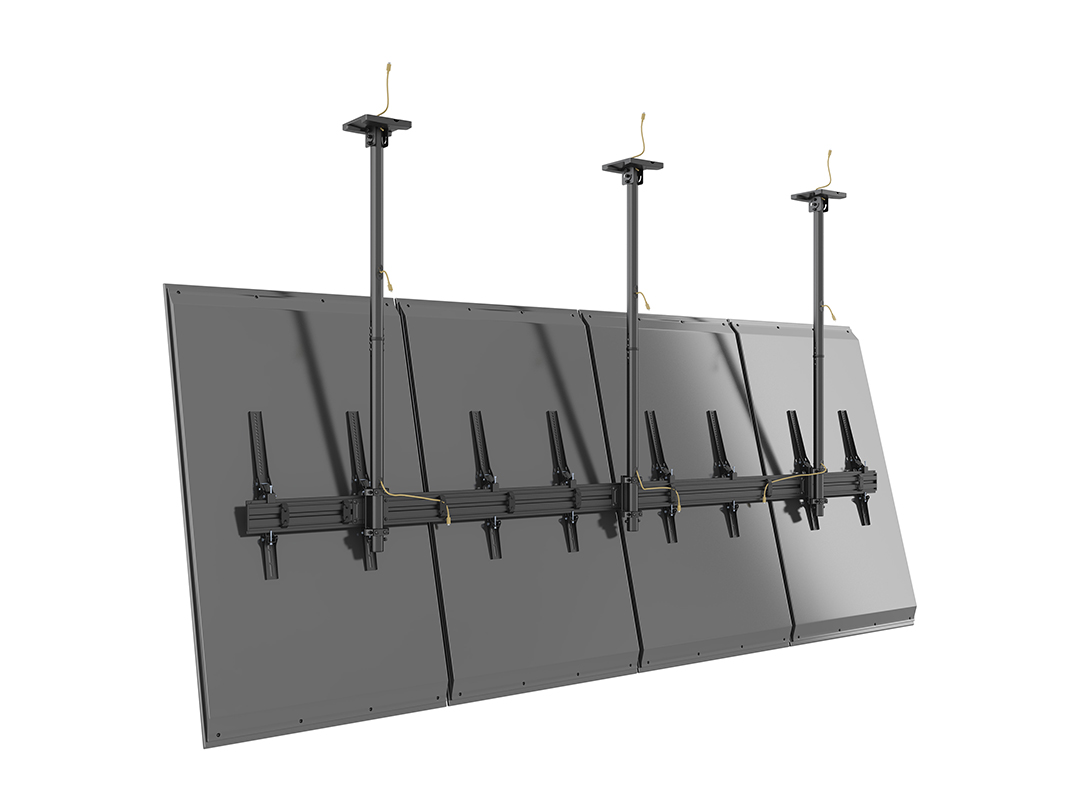

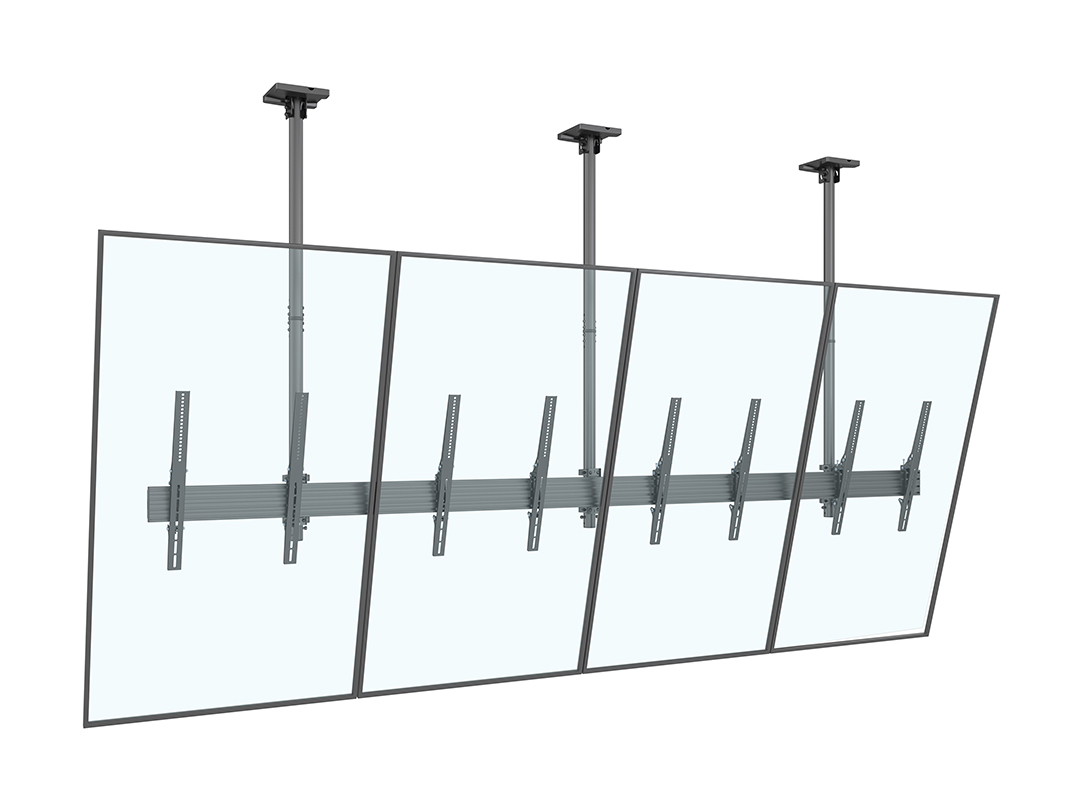

- Supports four screens on one side
- VESA compatible up to 600x400
- Max screen size: 75", Max load: 30kg per screen
- Flexible modular design for custom configurations

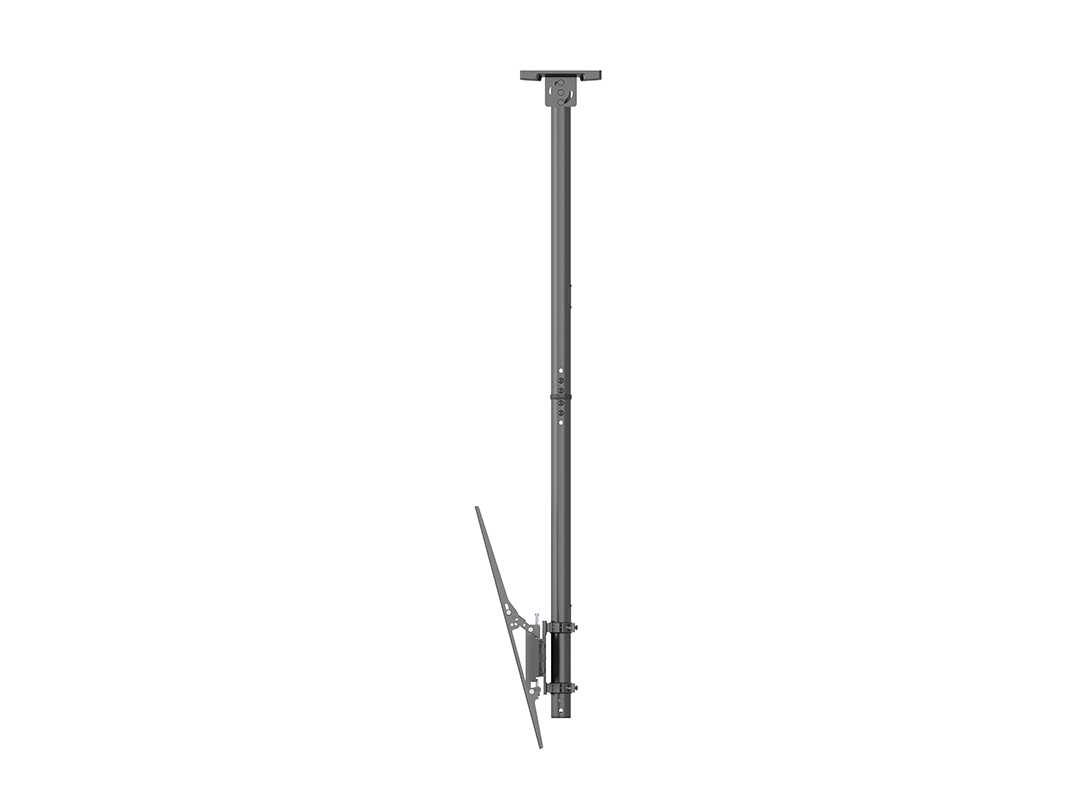

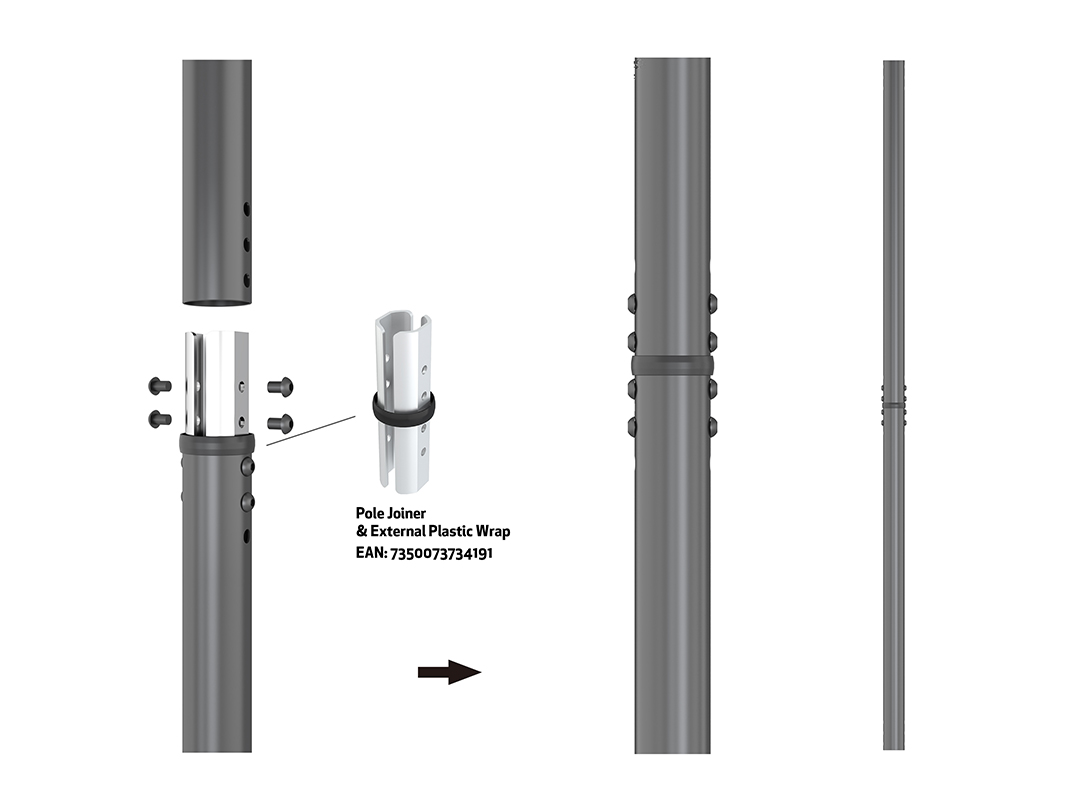

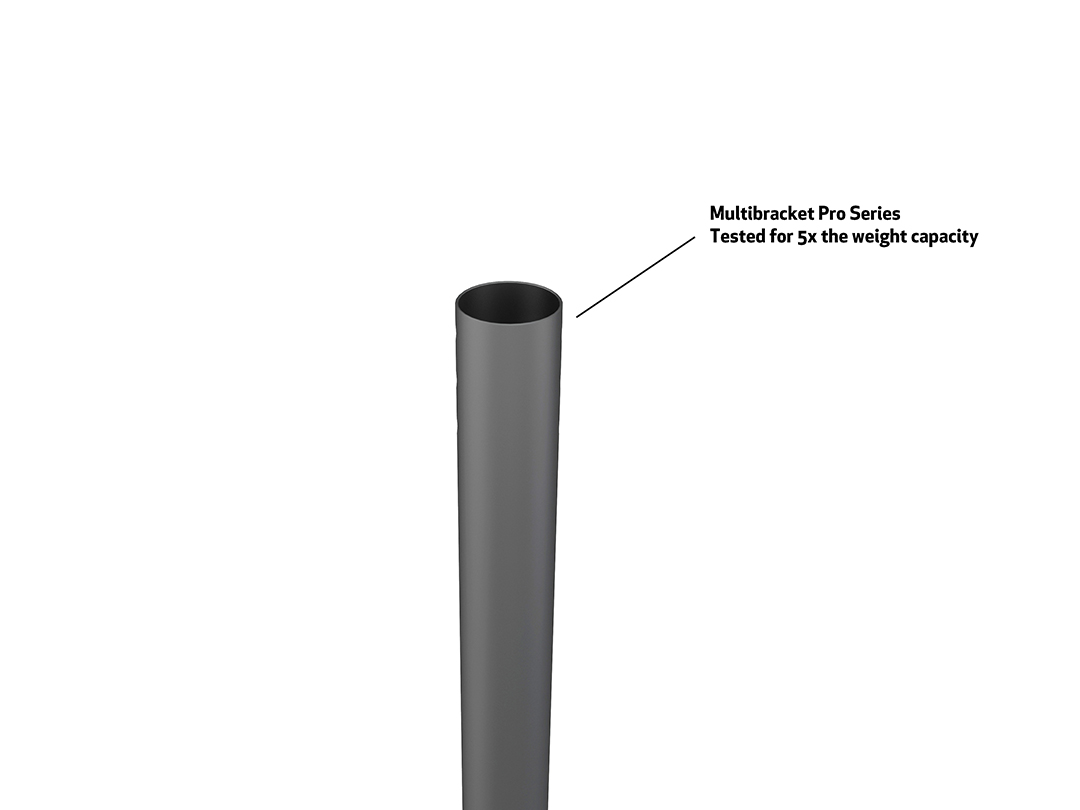

- Extendable ceiling pipe up to 6 meters

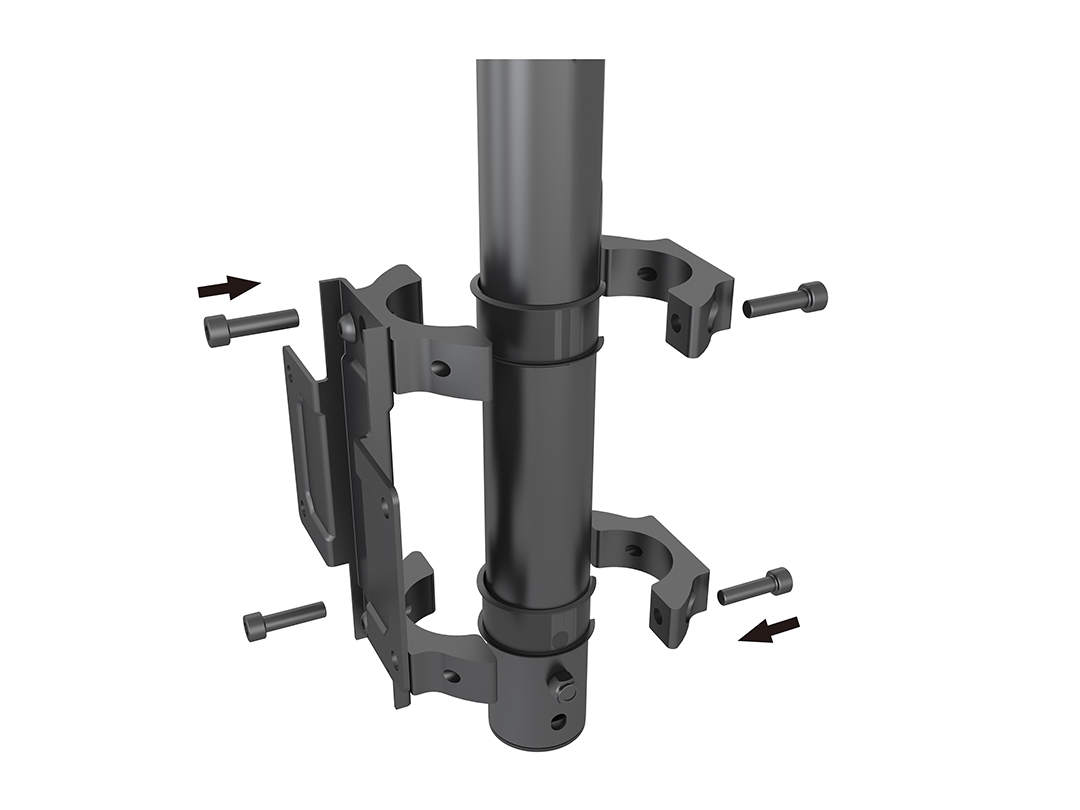

- Quick and secure Power Click installation system

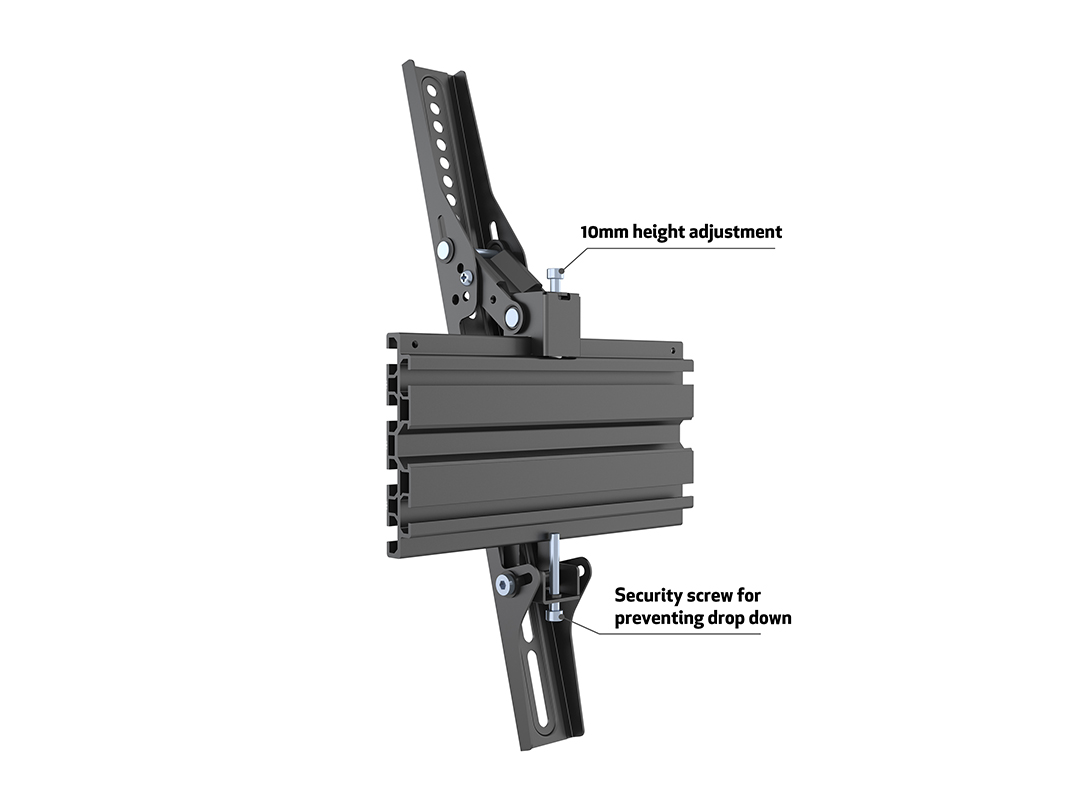

- Tilt functionality for optimal viewing angles
- Portrait or landscape orientation support
- Fully integrated cable management for a clean finish

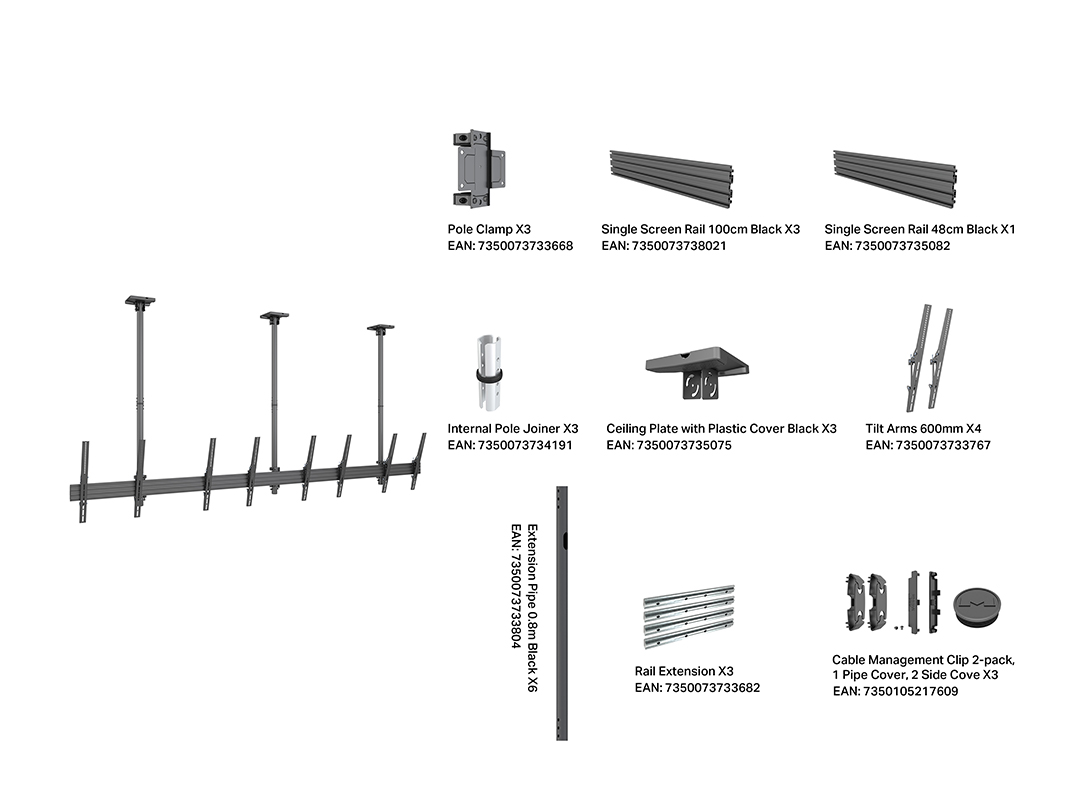

- Ceiling plate and hardware kit included
- Ideal for digital signage in retail, public spaces, and control rooms
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
| Specification | |
| M Ceiling Mount Pro MBC4UPHD VESA 400x600 | |
| Article No: | 7 350 022 738 928 |
| For screen size: | 50”-75" |
| Type: | MBC4UPHD |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 60 kg per screen |

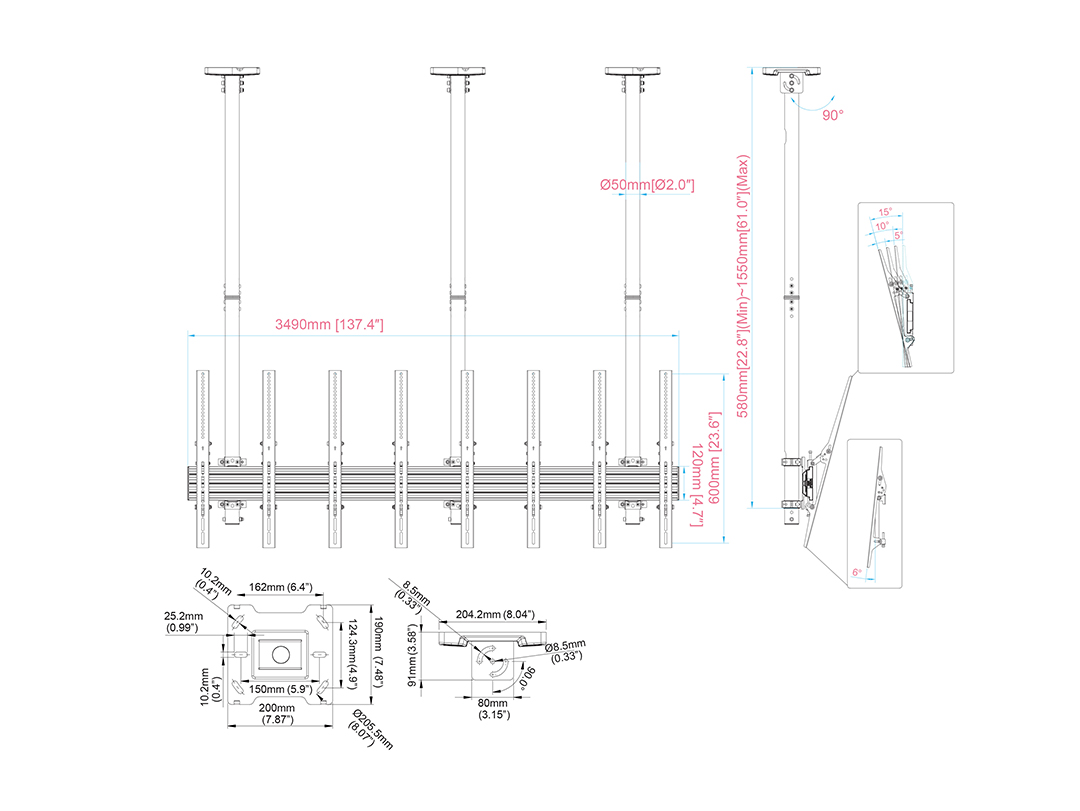

| Measurements | 84.5x20x12.2cm + 108.2x20.8x19.5cm |
| Max Load: | 60 kg per screen TUV approved at 30 kg per screen |

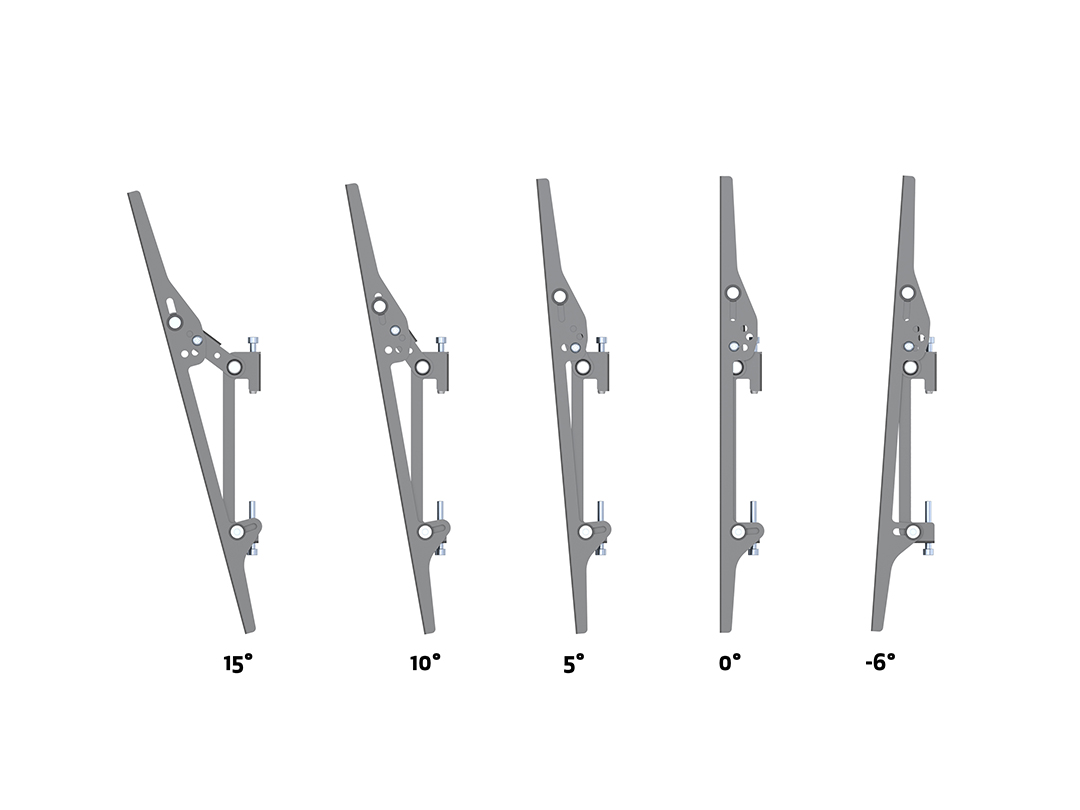

| Tilt: | Yes, -6°~+15° |
| Swivel: | 0° |
| Rotate: | 0° |
| Cable Management: | Yes |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 2 pcs |
| Package Measurements: | 84.5x20x12.2cm + 108.2x20.8x19.5cm |
| Package Weight: | 35 kg |
