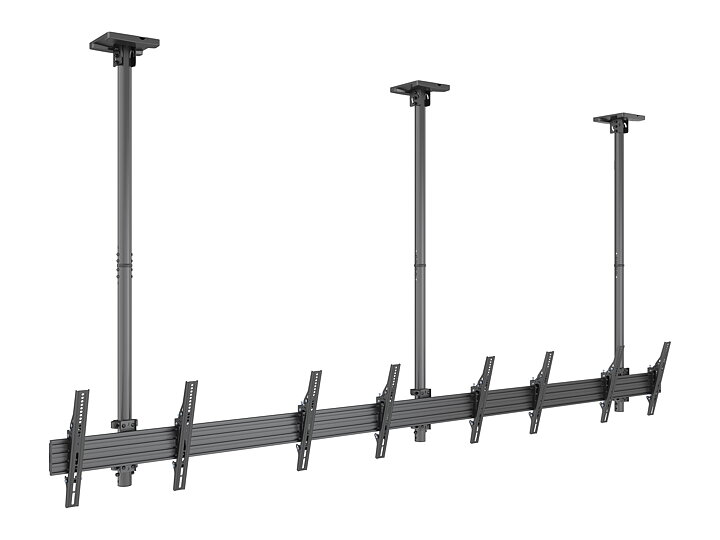

M Ceiling Mount Pro MBC4X1U VESA 600
Options
Variants that match your options:
In stock: 171
Delivery: Status: In Stock
- Quick response on email requests
- Fast deliveries
- Pan European warehousing
Description
Article no.: 7350073733484
Product overview

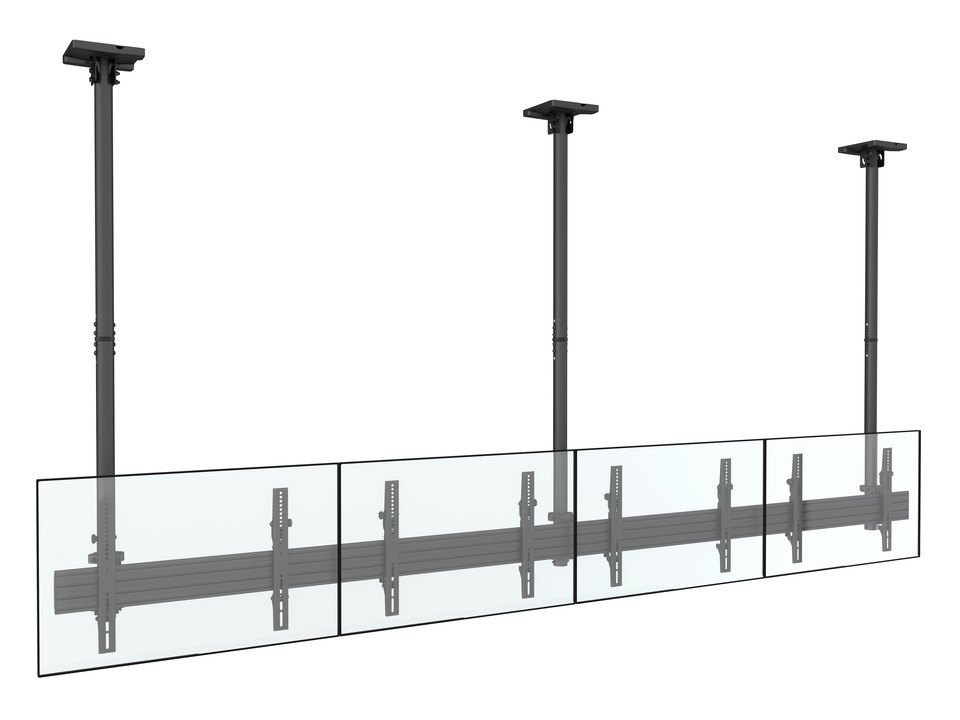

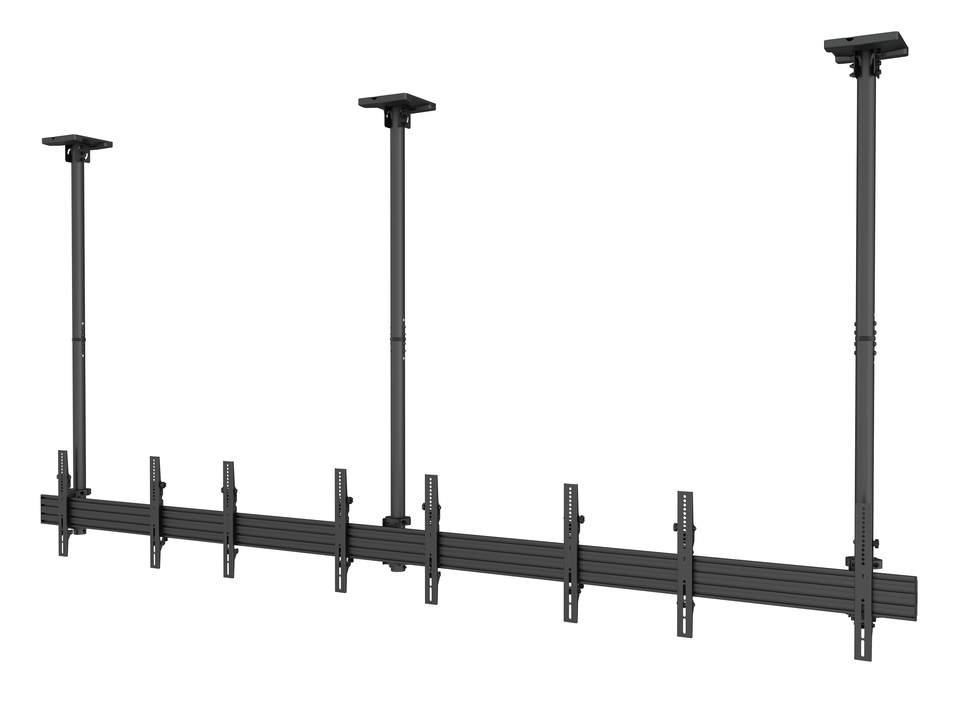

The Multibrackets M Ceiling Mount Pro MBC4X1U VESA 600 is a professional ceiling mount for four screens in a single row. Ideal for control rooms, digital signage, and commercial AV, it combines strength, flexibility, and clean aesthetics in one modular system.
Part of the Multibrackets Pro Series, it features a durable aluminum rail, integrated cable management, and adjustable tilt. The modular setup allows for quick installation, future upgrades, and both portrait and landscape screen orientation.
With TÜV-tested components and a Scandinavian design focus, MBC4X1U offers reliability and visual consistency in demanding environments.
Highlights
- Mounts 4 screens, 40"–65", single side
- Supports VESA up to 600x400 mm

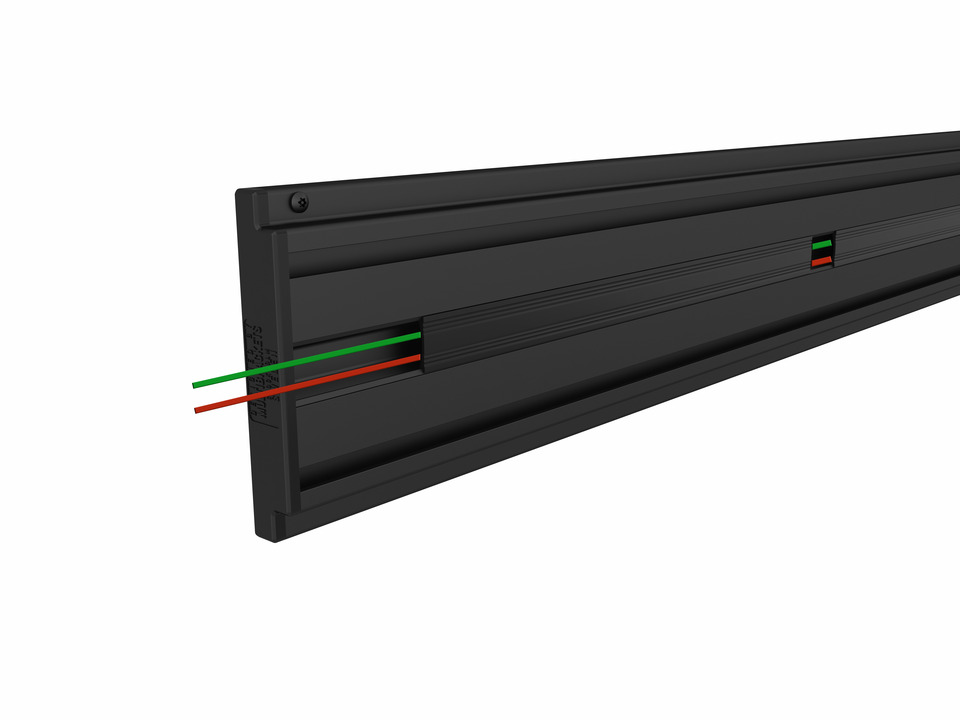

- Integrated cable management system

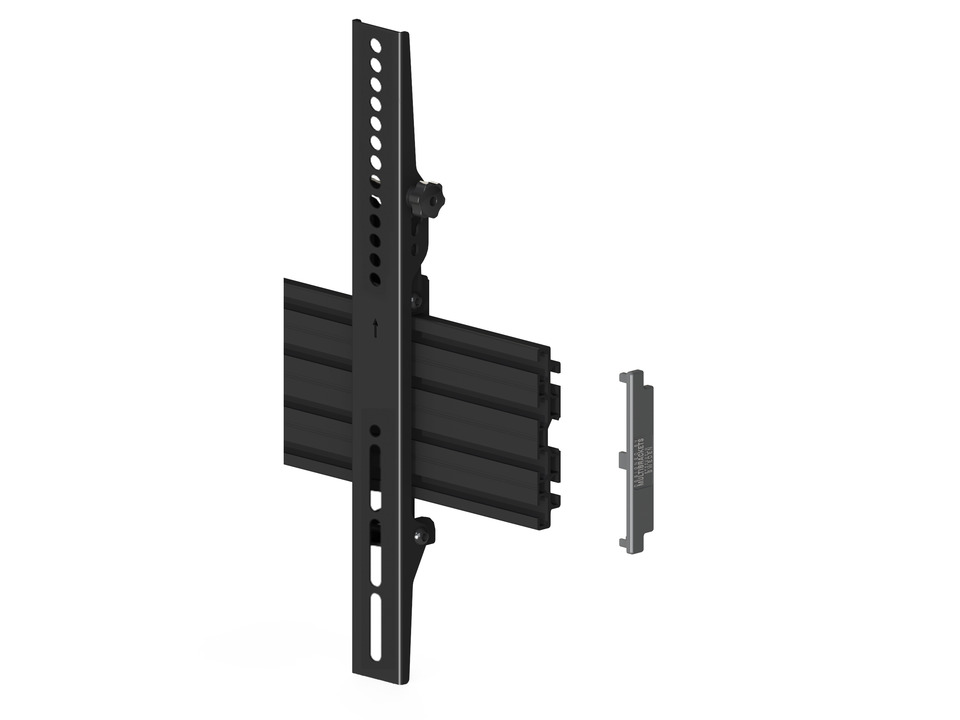

- Power Click for fast and secure installation

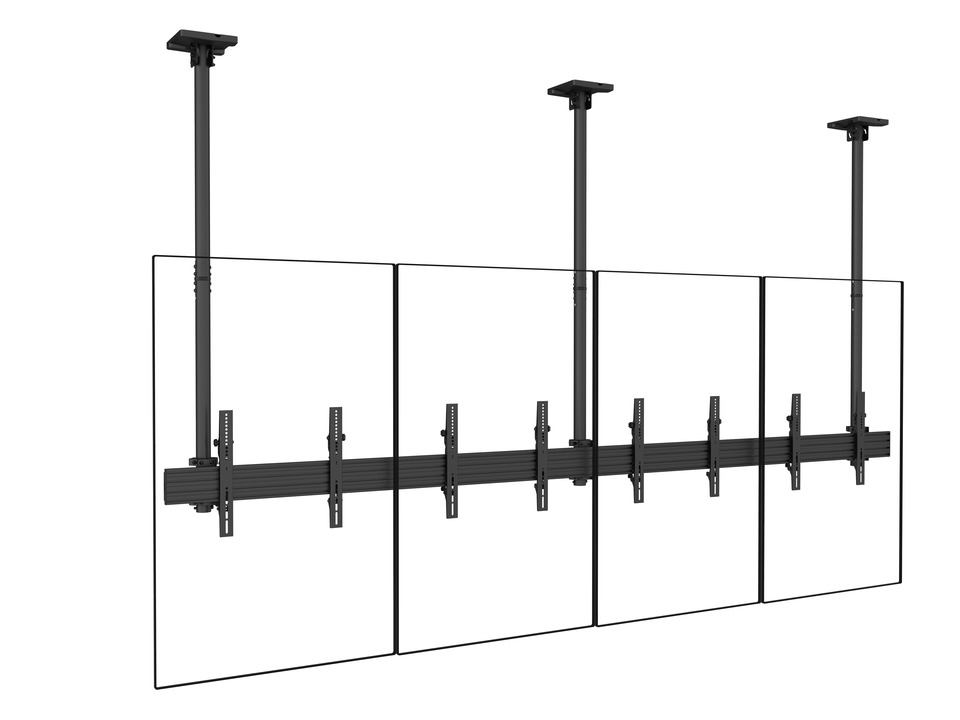

- Portrait or landscape screen placement

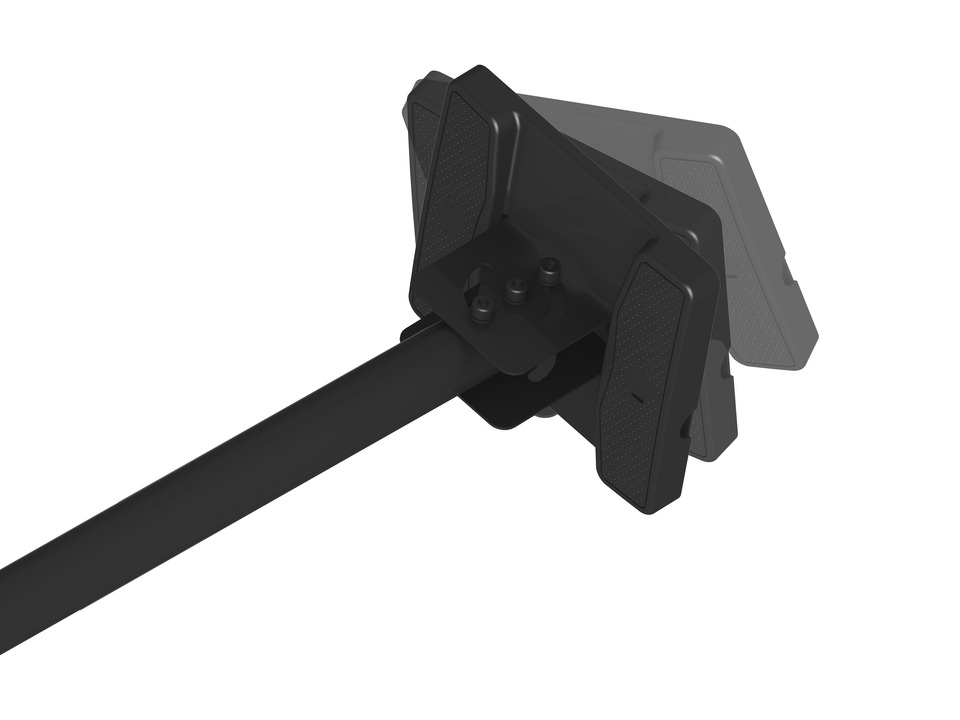

- Includes ceiling plate and hardware kit
- Modular system – easy to upgrade or reconfigure
 |
Multibrackets Pro Series configurations are design protected by Multibrackets via: EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide
| Specification | |
| M Ceiling Mount Pro MBC4X1U VESA 600 | |
| Article No: | 7 350 073 733 484 |
| For screen size: | 40”-65" |
| Type: | Single MBC4X1U |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max Optional VESA 800x600 |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 36 kg |
| Measurements | 530x338x20 cm |
| Max Load: | 30 kg per screen |

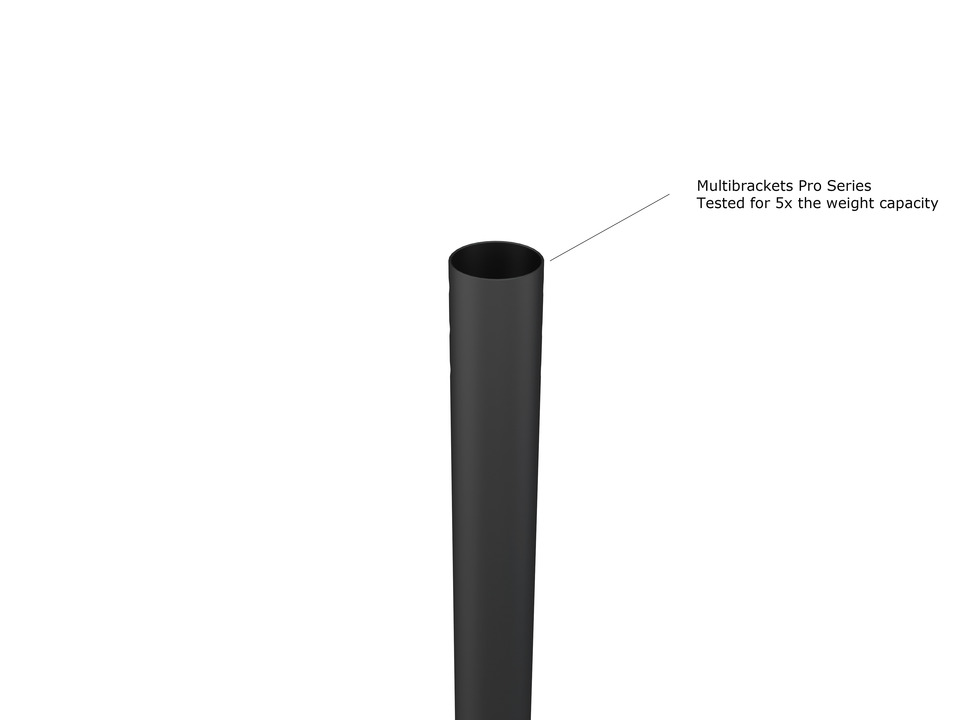

| Pillar length: | Min: 580mm to Max: 3150 mm from ceiling to VESA plate center Extension pipes: 1.5m (800mm*6pcs) included |
| Tilt: | Yes, -6°~+15° |
| Swivel: | Yes, 360° |
| Rotate: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification | |
| Package Parcels: | 1 pcs |
| Package Measurements: | 127 x 37 x 18 cm |
| Package Weight: | 39.10 kg |
